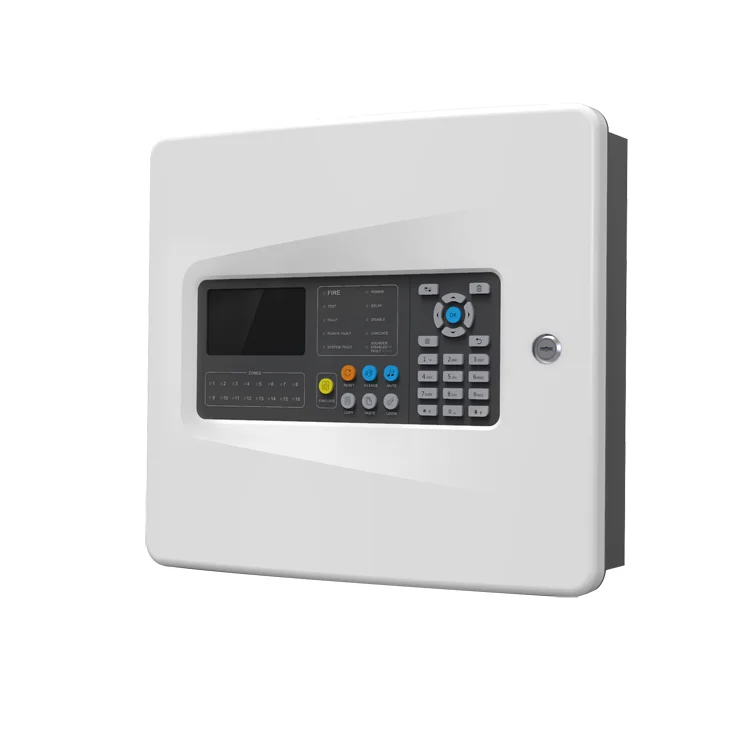

New Arrival One Loop Addressable Fire Alarm Control Panel

Price:

Price in USD:Details

Quantity:

Products Description

Mains Supply	230VAC (-15%, +10%). 47 ~ 63Hz. Max current 0.85A
Mains Fuse	T3.15AL250V
Operating Voltage	20 ~ 28VDC
Recommended Mains Cable	Standard/black mains cable, cable size 0.75mm2
Power Rating	Imin=0.45A; Imax.a=1.15A; Imax.b=1.65A
Max. Battery Supply Current	3A (when the Mains is disconnected)
Max. Charging Current	1A
Battery Capacity, Type And Recommended Model	NP7-12 for 7Ah VRLA(Yuasa)
Max. Internal Resistance Of Battery	1Ω
Battery Fuse	F6AL250V
Approx. Dimensions Of The Panel (W×H×D)	400×360×104mm
Approx. Weight (Without Battery)	3.7kg
