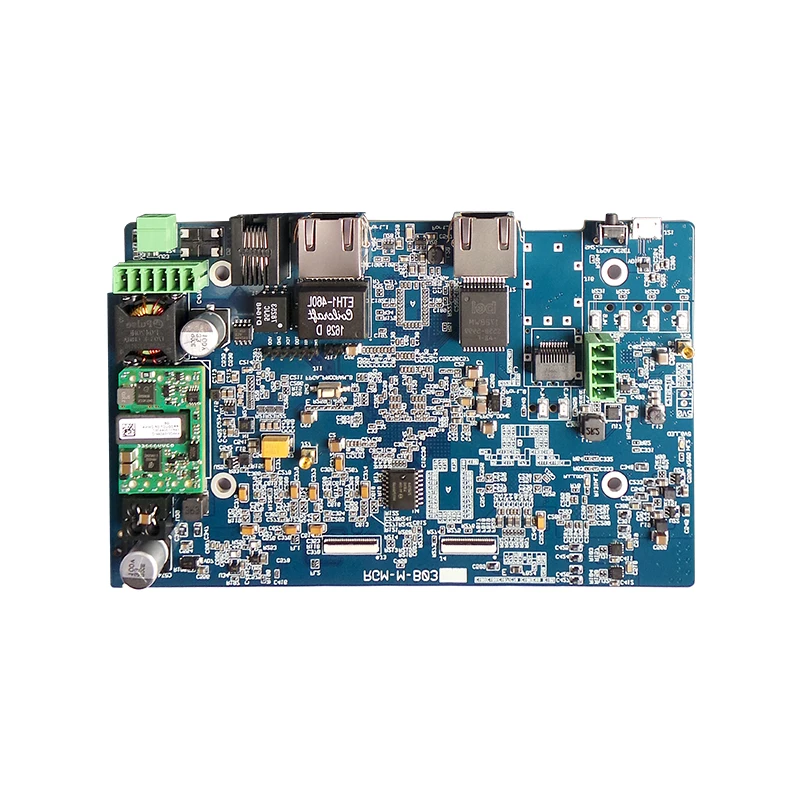

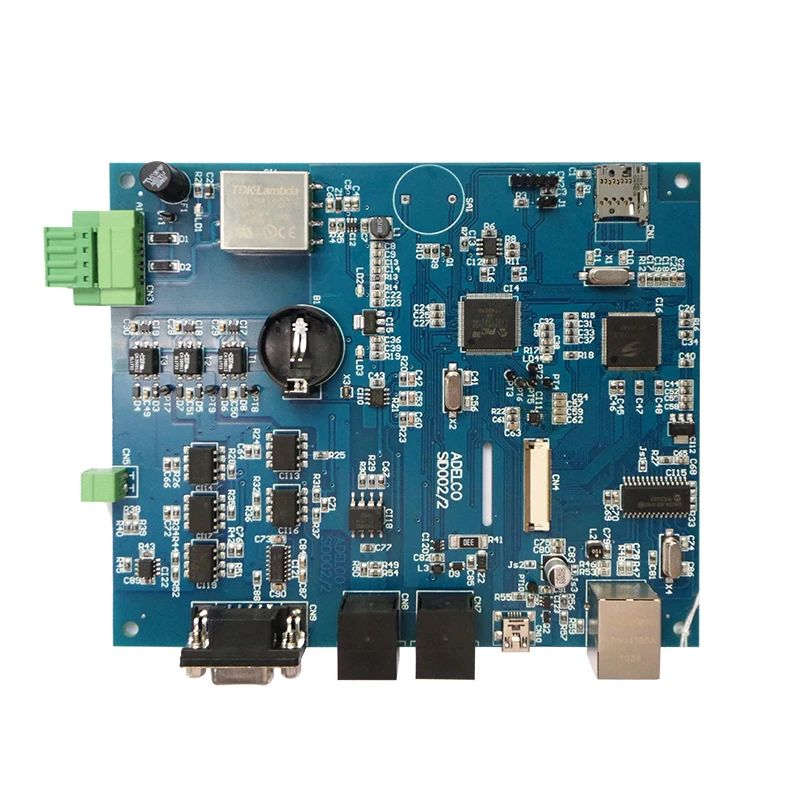

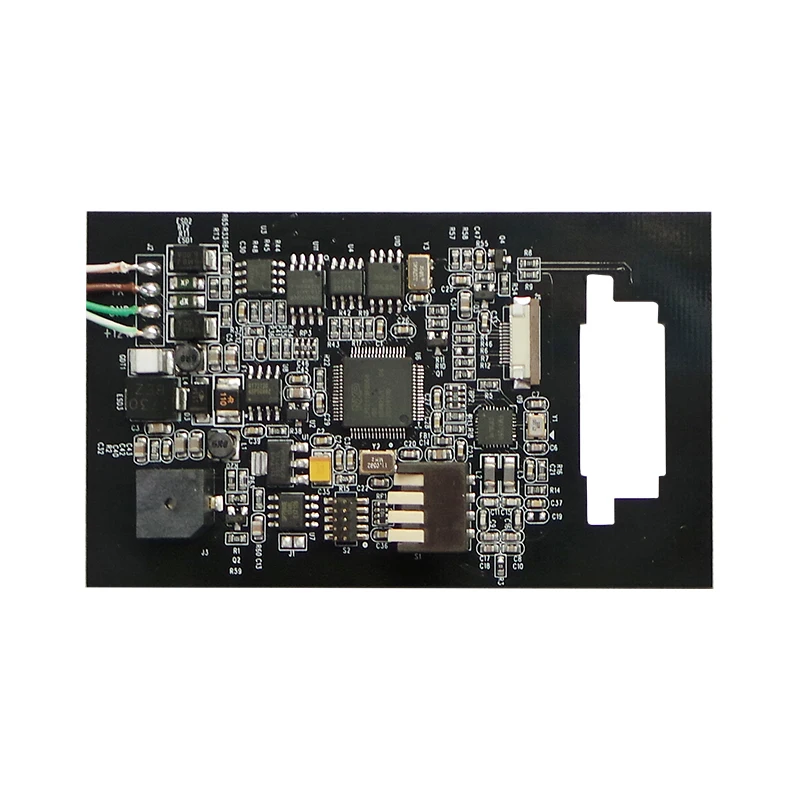

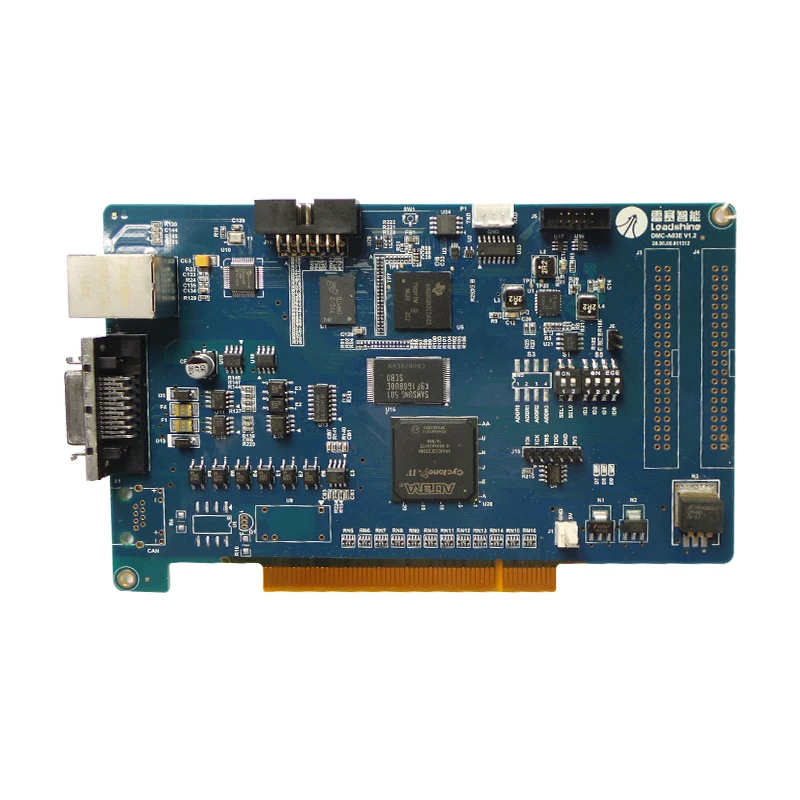

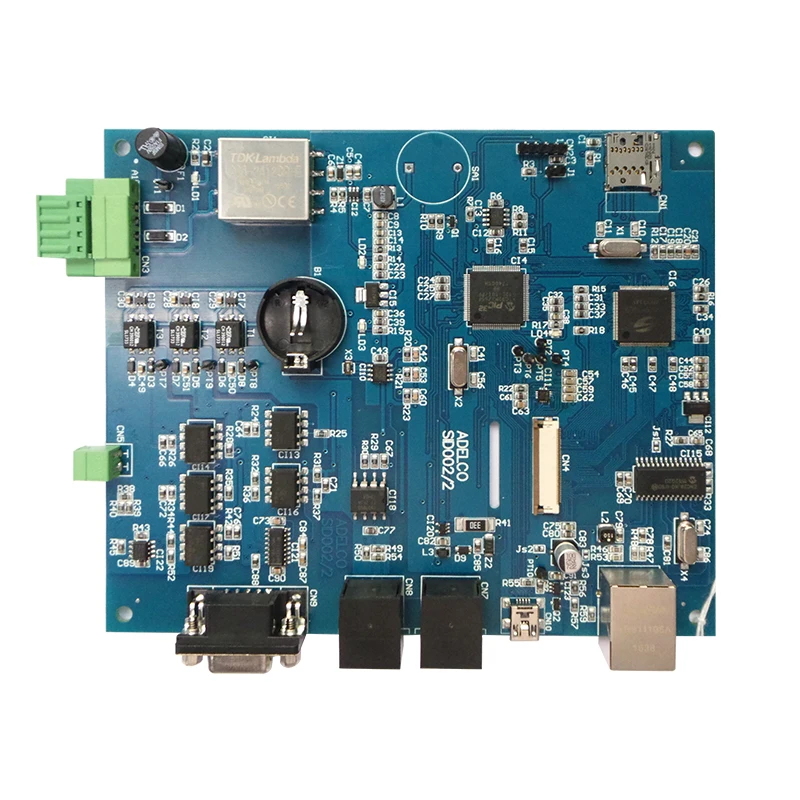

Customized Double Sides PCB Assembly Electronic PCB PCBA manufacturer
- Category: >>>
- Supplier: Shenzhen Jingbang Technology Co. Ltd.
Share on (1600537983077):
Product Overview
Description
About FASTPCBA
What Can FASTPCBA Do?
After 20 years of industry experience, FASPCBA turns into a first class manufacturer of pcb and pcba. From multilayer pcb to flexible pcb manufacturing, components sourcing and pcb assembly, FASTPCBA is your one-stop pcba partner to save your time & cost.
FASTPCBA has been ISO9001, ISO14001, ISO13485, IATF16949 quality management system standard and customized CE, UL, FCC and other product certifications according to the customer's requirements.
Millions of circuit boards are produced at FASTPCBA every year, which provides superior service for automotive electronics, medical electronics, power communications, industrial automation, millitary, aviation & aerospace, intelligent home and other industries around the world. We will continue to improve our quality and service; customer satisfaction and development of science and technology are our eternal motivation.
Our Advantage
Why Choose FASTPCBA?
With 20 years of development, FASPCBA turns into a first class manufacturer of PCB and PCB Assembly,with production capability 35,000 square meters. We provide our customers with PCB solutions and services worldwide.especially more than 80% printed circuit board are exported to oversea market.
PCBA Testing With Multi-step Verification
Although we are fast on every process , we never ignore the quality, our experienced QC team and highest advanced equipment can make sure your prototypes good quality and best fully-functional.
Comprehensive Quality Assurance
There is no shortcut for quality,and our goal just is to make well every printed circuit board. We have imported the advanced machinery from US,Japan,German and Israel to improve our production and technical ability.We have set a great example the PCB field of flying probe testing,buried and blind via and special controlled impedance. Finished PCB Assemblies are checked for proper component placement and functionality with a variety of methods including AOI Inspection, In-Circuit testing, and X-Ray inspection. We have a highly developed R&D division which has helped our factory successfully produce mechanical micro via,high density impedance and HDI.
Advanced Equipment:
| Tin Paste Printing Machine | Reflow Machine | Wave Soldering Machine |
| YAMAHA Surface Mount Machine | MYDATA Surface Mount Machine | X-RAY Detector |
| AOI Equipment | Ultrasonic Cleaning Machine | Three Anti-paint Spraying Machine |
| SMT Material Counting Machine | Dry Oven | Transportation Vibration Testing Machine |
Our Employees
FASTPCBA owned experienced professional and technology team, young and professional sales and customer service teams, experienced and professional procurement team and assembly testing team, which make sure the products quality of the pass rate, on-time delivery rate of customer orders.
Partner
Millions of circuit boards are produced here every year, which provides superior service for automotive electronics, medical electronics, power communications, industrial automation, intelligent home and other industries around the world. We will continue to improve our quality and service; customer satisfaction and development of science and technology are our eternal motivation.
Exhibition
FASTPCBA will regularly participate in some PCB international exhibitions and introduce our current technology and innovations to new and old customers, as well as global advanced solutions in related fields. We are always trying to improving our service quality to meet clients' requirements to the fullest.
Public welfare Activities
Donate to the disaster area / give love to the mountain children.
PCB Manufacturing
As a 20 years PCB manufacturer in China, FASTPCBA is providing the latest printed circuit board technologies and highest quality standards for electronics industry. You can trust us to meet your demands, from small volume to mass production whatever the simplest PCB boards or the most complex.
20 Years Experience
Accept Stardard: IPC III, Military, Automotive, Medcial, We offer you expanded PCB capabilities: Rigid PCB, Flexible, Rigid-flex, HDI board, High TG PCB
Up to 48 layer prototype PCB
Manufacture PCB board up to 56 layer, Raw material: Fr4, Rogers, Arlon, Teflon, Taconic, Nelco, Isola, Ceramic, Metal core
Up to 18 layer mass production
Support PCB surface process: HASL-LF, ENIG, Plating gold, Immersion tin, Immersion silver, ENIPIG, OSP
PCB Manufacturing Capability:
| Article | Description | Capability |
| Laminate Materials | FR4, high TG FR4, high frequency, alum, FPC | |
| Board Cutting | Number of layers | 1-48 |
| Min.thickness for inner layers (Cu thickness are excluded) | 0.003”(0.07mm) | |
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” | |
| 4layer:0.01±0.008” | ||
| 8layer:0.01±0.008” | ||
| Bow and twist | no more than 7/1000 | |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z | |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) | |
| PTH hole tolerance | ±0.002″(0.005mm) | |
| NPTH hole tolerance | ±0.002″(0.005mm) | |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) | |
| Thickness | (0.012*0.017mm) | |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) | |
| Component Sourcing | Yes | |
| Tolerance of PCB | ±5% | |
| Max Size of Finish Board | 700*460mm | |
| MOQ | NO MOQ (1pcs) | |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | |
| PCB Outline | Square,circle,irregular(with jigs) | |
| Package | QFN,BGA,SSOP,PLCC,LGA | |
| Sub-assembly | Plastic,metal,screen | |
| Min Line/Space | 0.075/0.075mm | |
| We have a professional sales team available to assist you with PCB Manufacturing, Send your PCB files (GERBER FILE) to Get A Free Quote Now ! |
