Lower Cost Lab Furnace Heat Treatment System with Stable Quality Easy Operation
- Category: Lab Supplies >>>
- Supplier: Zhuzhou Chenxin Induction Equipment Co. Ltd.
Share on (1600537989501):
Product Overview
Description
Lower Cost Lab Furnace Heat Treatment System Stable Quality Easy Operation
Product Description
3200C Induction Type Laboratory Vacuum Furnace Small Induction Type Graphitization Furmace
CX-GF- 20/30 VT is vertical top loading induction heating furnace with round hot zone shape. This model is ideal for various research applications and new materials development. Simple operation and easy maintenance process of this furnace, save time and budget in research projects. With maximum operating temperature of 3200 ℃, this model can be used for many applications.
Model | CX-GF 20/30 VT |
Configuration | Vertical, Top loading |
Max. Working Temperature | 3200 ℃ |
Continuous Working Temperature | ≥ 3000 ℃ |
Usable Space (mm) | Dia. * H: Φ200*300 |
Heating Power | ≤ 60 KW |
Frequency | 4000 Hz (auto-track) |
Ultimate Vacuum | 1.2 * 10-3 mbar |
Optional High Vacuum | 5 * 10-5 mbar |
Working Atmosphere | High Vacuum (Optional) / Vacuum / Inert Gas (Ar or N2) |
Supply Power | 3 N/PE, AC/380V, 50/60Hz |
Cooling Water Pressure | 1.5 - 2.5 bar |
Cooling Water Temperature | ≤ 28℃ |
Overall Dimension (L*W*H, mm) | Overall Dimension (L*W*H, mm) |
Weight (KG) | 1500 |
Main Application:
Carbonization and Graphitization treatment of carbon materials, like synthetic graphite film (Polyimide graphite flake and abbreviated PI film), carbon fiber, C/C composites, Graphene, Lithium battery negative electrode materials, VGCF negative material, etc. Purification of Carbon Nanotube (CNT), Natural Graphite, etc. Sintering of high temperature ceramics, other
materials which can be sintered or heated in graphite hot zone (carbon included environment).
materials which can be sintered or heated in graphite hot zone (carbon included environment).

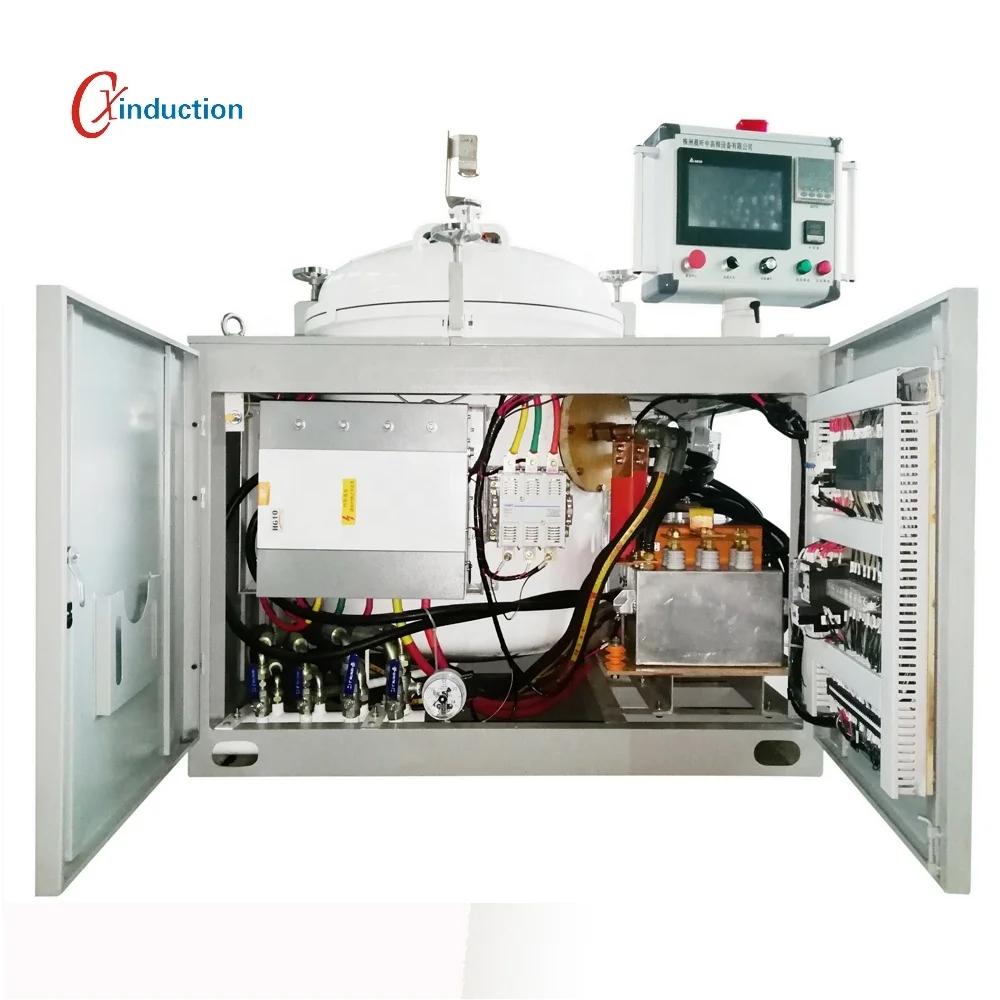

Furnace Structure
Related Products
Packing&Shipping
We have more than ten years of exporting experience.
We have long term cooperation freight forwarding in exporting, customs declaration line.
We can choose the best and economy transport way for you.
We have long term cooperation freight forwarding in exporting, customs declaration line.
We can choose the best and economy transport way for you.
After Sales Service
Company Introduction
Founded in June 2003, Zhuzhou Chenxin Induction Equipment Co.,Ltd is a scientific and technological enterprise relying on semiconductor converting technology. We has always been commitied to the manufacturer of various industrial furnace products, and have won several provincial technological progress awards and patent certificates. Our products have been exported to Vietnam, Thailand, Sayria, South Africa, Japan, Korea, USA and other countries as well as more than 20 domestic provinces and cities.
Customer Photos
FAQ
Question: Are you a factory?
[ reply:] Yes. We are the famous factory of High Temperature Vacuum Induction Furnace, and we have been successfully served many customers more than 18 years.
[ reply:] Yes. We are the famous factory of High Temperature Vacuum Induction Furnace, and we have been successfully served many customers more than 18 years.
Question: Do you have customization or OEM service?
[reply:] Yes, we do. Our furnaces can be customized to meet your needs.
[reply:] Yes, we do. Our furnaces can be customized to meet your needs.
