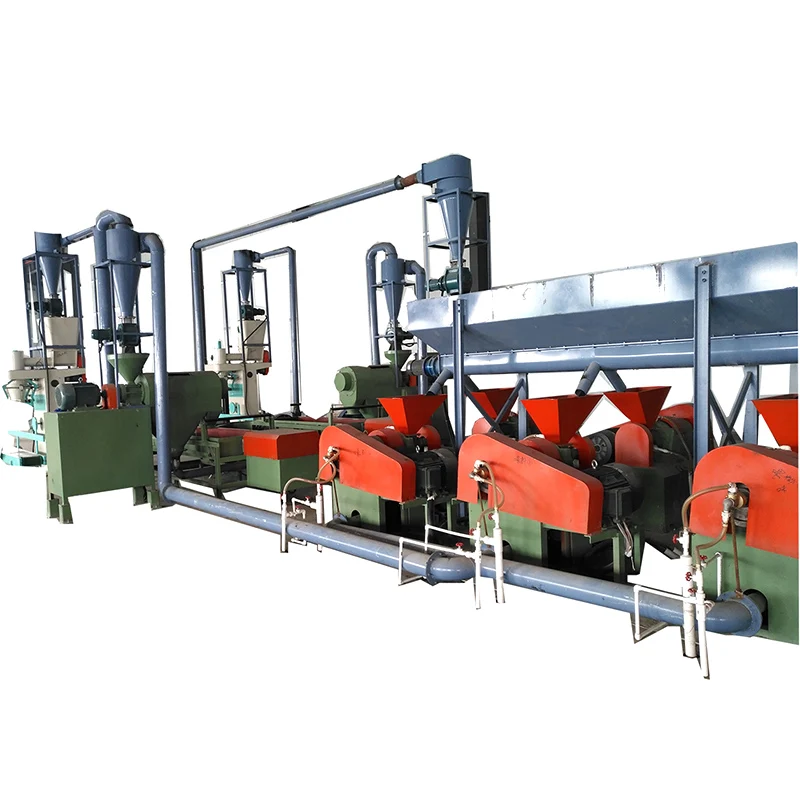

waste shredded rubeber tyre/Truck And Car Tyre Grinding Machine / Tire Shredding Equipment
- Category: >>>
- Supplier: Qingdao Dongnuo Rubber Machinery Co. Ltd.
Share on (1600537996295):
Product Overview
Description
Waste Tire Recycling Machine Manufacturing Equipment For Sale

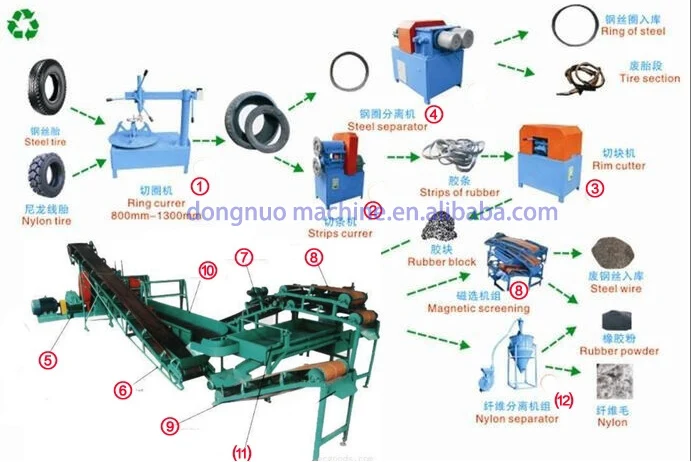

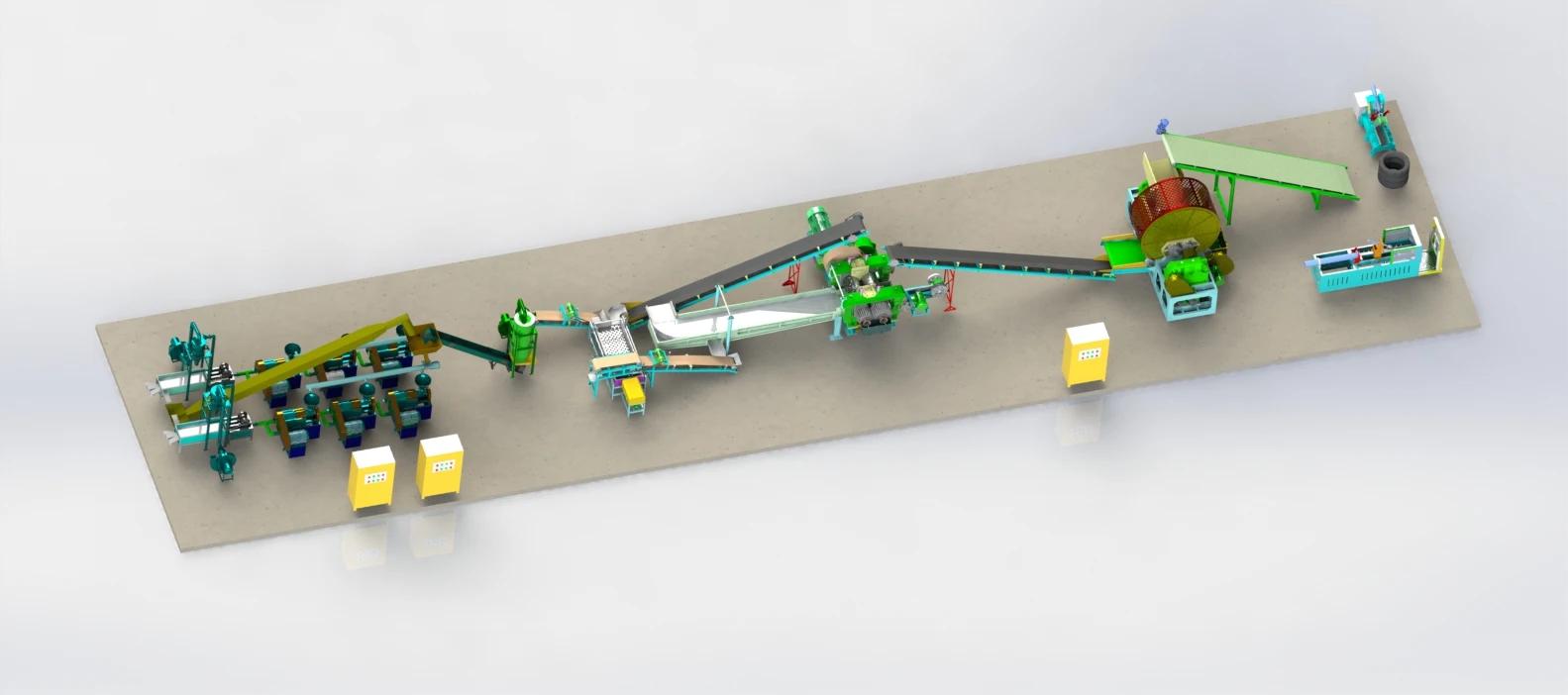

Waste tire——Remove the ring wire——The whole tire cutter——Tire shredded into pieces——Rubber crushing——Magnetic separating ——Nylon screening——Rubber powder
1 | Mainly product: Waste tire recycling machine production line |
2 | All of my machines are customizable. |
Product Description

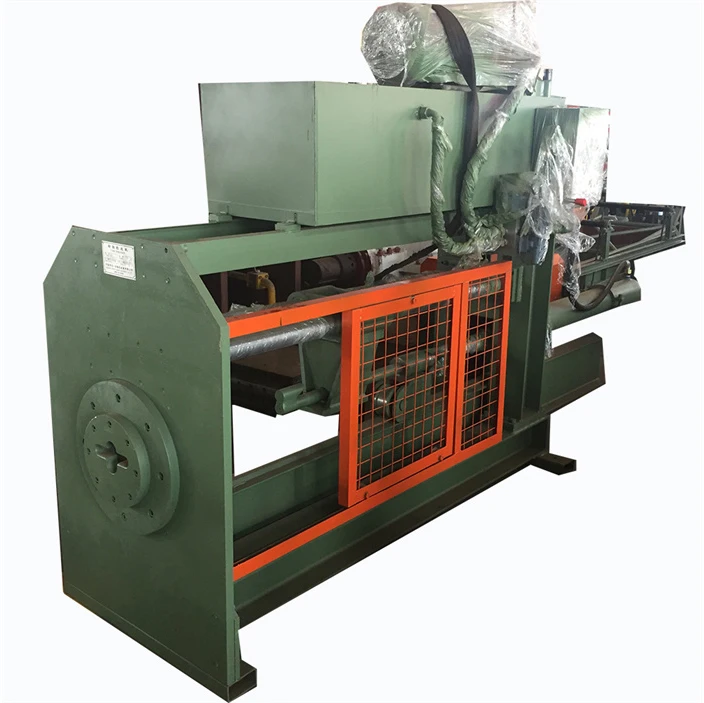

1.Tire De-beader(Remove the ring wire)
Application: It is mainly use to extract the bead wire from tire rim.
1-Capacity | 20-40 tires/hour(550-1200mm outer diameter) |
2-Pulling force(T) | 15 Tons |
3-Max.tire diameter | 1200mm |
4-Power(KW) | 7.5 KW |
5-Operation way | hydraulic system(automatic control) |

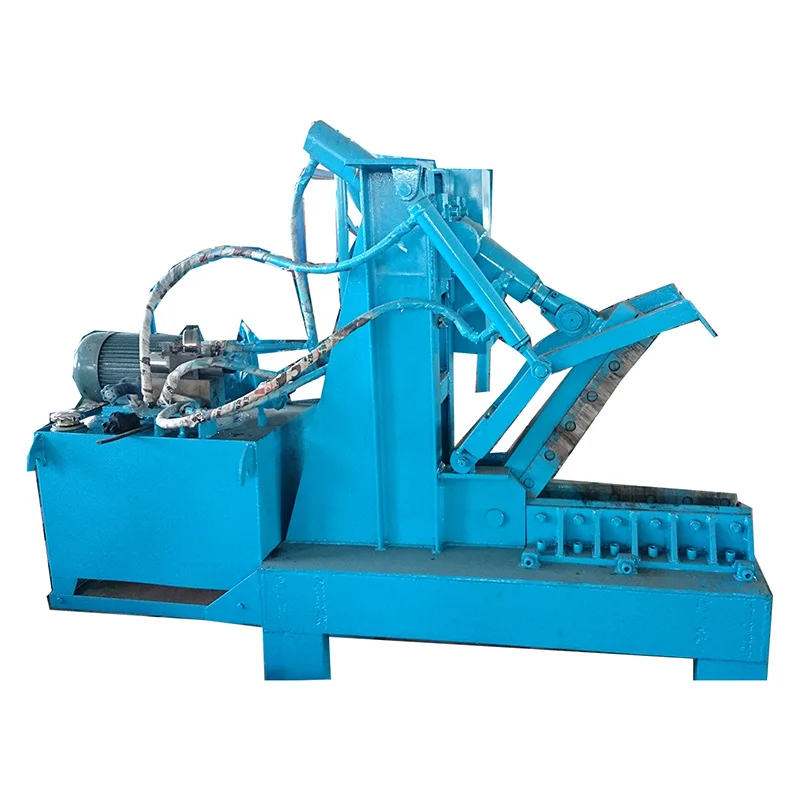

2.WTC-1200 Whole tyre cutter
1-Specification of raw material | 900-1200mm tires |
2-Specification of finished material | 100-400mm tire blocks |
3-Production Capacity | 40-60 tires per hour |
4-Pulling force | 20 T |
5-Max. Tyre diameter | ≤1200mm |
3.ZPS-900 tyre shredder
1-Feeding size | ≤900 whole tyre(removed bead) |
2-Main motor(2 motors) | 30KW*2=60KW |
3-Motor power of Output conveyor & circular sieve | 2.2kw |
4-Size of Discharge | 50x50mm |
5-Production capacity | 1000~1500kg/h |
6-Cutter rotate speed | 28.5R/MIN |

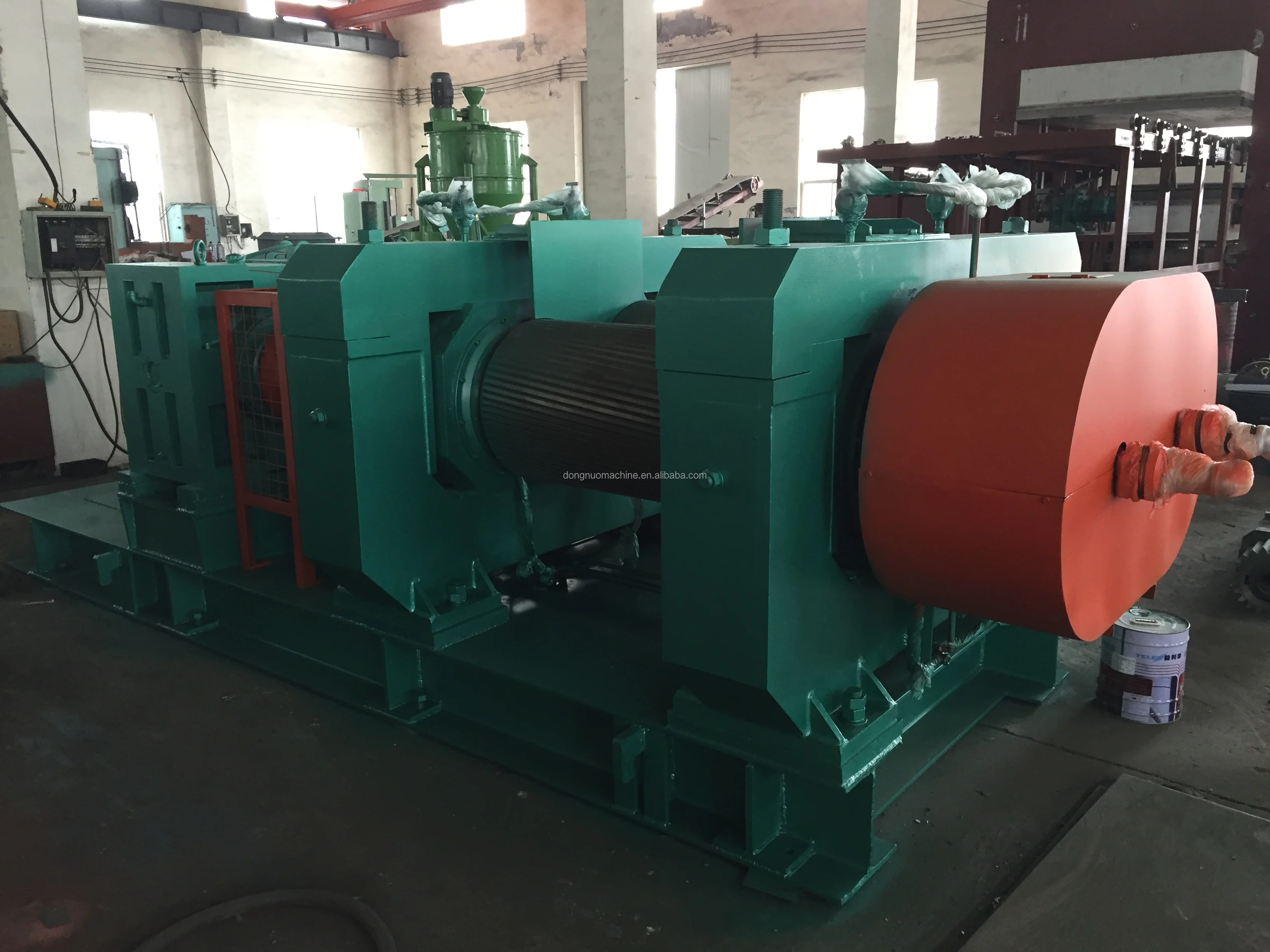

4.XKP-560 Rubber Crushing Mill
Diameter of back roll | 560mm(groove roller) |
Working length of roller | 800 mm |
Linear speed of front roll | 25.56 m/min |
Ratio | 1:1.30 |
MAX gap | 15 mm |
Features&Pictures
Company Profile
Qingdao Dongnuo Rubber Machinery Co., Ltd. is a professional enterprise that develops and sells rubber machinery. It was put into production in 2009. It has 8 experienced rubber machinery professional R&D technicians and 2 external rubber product technical experts from Qingdao University of Science and Technology. 10 CNC machining centers and various large, medium and small machining equipment, heat treatment equipment and precision testing instruments. Professionally undertake the production installation and product technical support of NBR rubber foam hot air vulcanization production line and rubber compound production line. The company's main products are NBR rubber foam hot air vulcanization production line, film cooling line, flat vulcanizing machine, open mill, internal mixer, rubber floor tile forming machine, gym floor mat production line, rubber sealing strip production line, EVA foam vulcanization machine, waste Tire processing equipment, extruders, etc.
The company has passed ISO9001, CE and SGS certification, and its products are sold all over the country, and are also exported to France, Russia, Japan, South Korea, Thailand, Egypt, Indonesia, India, Sri Lanka, Nigeria, Chile and more than 40 countries and regions.
QINGDAO DONGNUO RUBBER MACHINERY CO., LTD
Address: No. 259, Qianjiashan Road, Haibin Industrial Park, Huangdao District, Qingdao City, Shandong Province
The company has passed ISO9001, CE and SGS certification, and its products are sold all over the country, and are also exported to France, Russia, Japan, South Korea, Thailand, Egypt, Indonesia, India, Sri Lanka, Nigeria, Chile and more than 40 countries and regions.
QINGDAO DONGNUO RUBBER MACHINERY CO., LTD
Address: No. 259, Qianjiashan Road, Haibin Industrial Park, Huangdao District, Qingdao City, Shandong Province
