IEI Fanless Embedded Industrial PC ECW 281B 945GSE Intel Atom N270 Processor Embedded System VESA 100 wall mount

Product Overview

Description

Teket Innovation was founded in 2003 in Beijing, China. Nearly 20 years of experience in embedded industrial motherboards, industrial computer, mini pc, pc chassis, atx power supplies module, ram, ssd and lcd panel kits.

Intel,VIA,Asus,Asrock,Gigabyte,MSI and TEKET embedded motherboard Intel,Zotac,ASUS,MSI and TEKET mini pc AUO,BOE industrial panel touchscreen and LVDS/eDP cable PC chassis, power supply module, RAM and SSD support Our main target customers are system integrators and equipment manufacturers. We can provide total solution for you to build space and energy saving embedded computer systems such as industrial computing/automation/control,retail(POS/Kiosk/ATM),digital security & surveillance,digital signage,advertising machine(OPS),network security,router,storage server(NAS),gaming,educational,medical,thin client,HTPC,home and student etc.





IEI Industrial PC
ECW-281B-945GSE

https://www.attro.com/fanless/ECW-281B-945GSE.htm
Fanless Embedded PC
ECW-281B-945GSE
Fanless Intel® Atom™ Processor Embedded System

Features
Intel® Atom™ Processor N270 1.6GHz fanless system
Four USB 2.0, six COM ports for peripheral devices
Dual GbE LAN Ideal for high speed network application
Storage support for both CompactFlash and SATA hard drive
12 VDC, 9 VDC - 36 VDC input models available

Specifications
Model No. ECW-281B-945GSE
Processor Intel® Atom™ Processor N270 1.6GHz with 533 FSB
System Chipset Intel® 945GSE + Intel® 82801GBM/ICH7M
System Memory 200-pin 1GB DDR2 SDRAM SO-DIMM
Display 1 CRT interface intergrated in 945GSE with one VGA port
Display 2 N/A
Ethernet Dual Realtek RTL8111CP GbE controllers
Chassis Construction Aluminum Alloy
Operating Shock Half-sine wave shock 3G; 11ms; 3 shocks per axis
Operation Vibration MIL-STD-810F 514.5C-1 (HDD)
MIL-STD-810F 514.5C-2 (CompactFlash)
Storage 1 x 2.5" SATA HDD capacity, 1 x internal CompactFlash slot

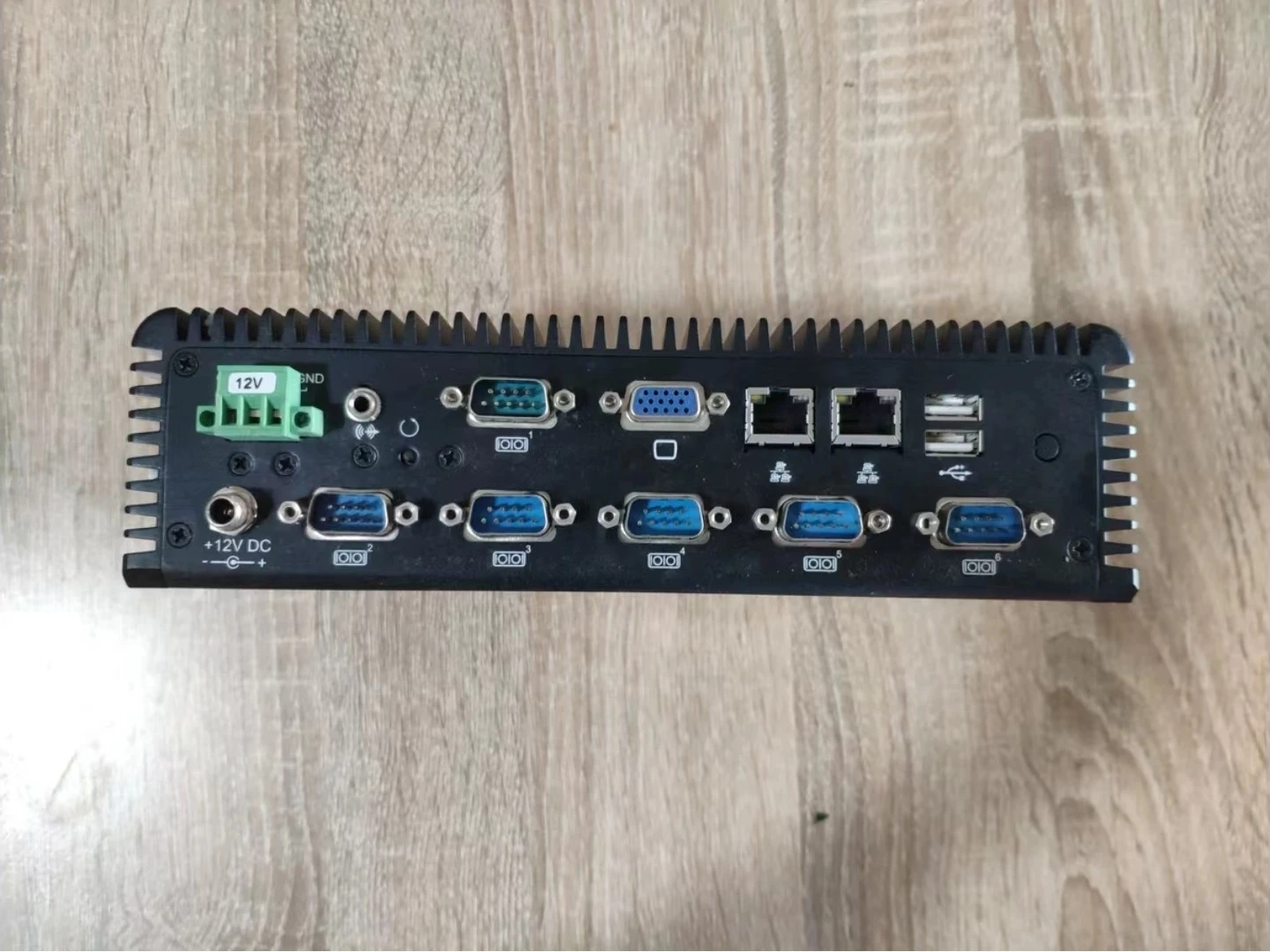

I/O USB:4 x USB 2.0
Serial Port :6 x RS-232
Audio:1 x speaker out
Mounting DIN mount, VESA 100 wall mount
Operating Temperature -10°C~50°C with hard drive
-10°C~60°C with CompactFlash
Power Input 12VDC in with DC jack and 3 pin terminal Block
WD series input voltage: 9V~36VDC
Dimensions (DxWxH) 132mm x 229mm x 64mm
Net Weight 2.1kg / 3.9 kg
EMC/Safety CE, FCC class A

Ordering Info
12VDC input
ECW-281B-945GSE-R10
