Automatic coffee chocolate cocoa powder packing machine premade bag milk powder packing machine
- Category: >>>
- Supplier: Kunshan Mega-Packing Machinery Equipment Co. Ltd.
Share on (1600538042221):
Product Overview
Description

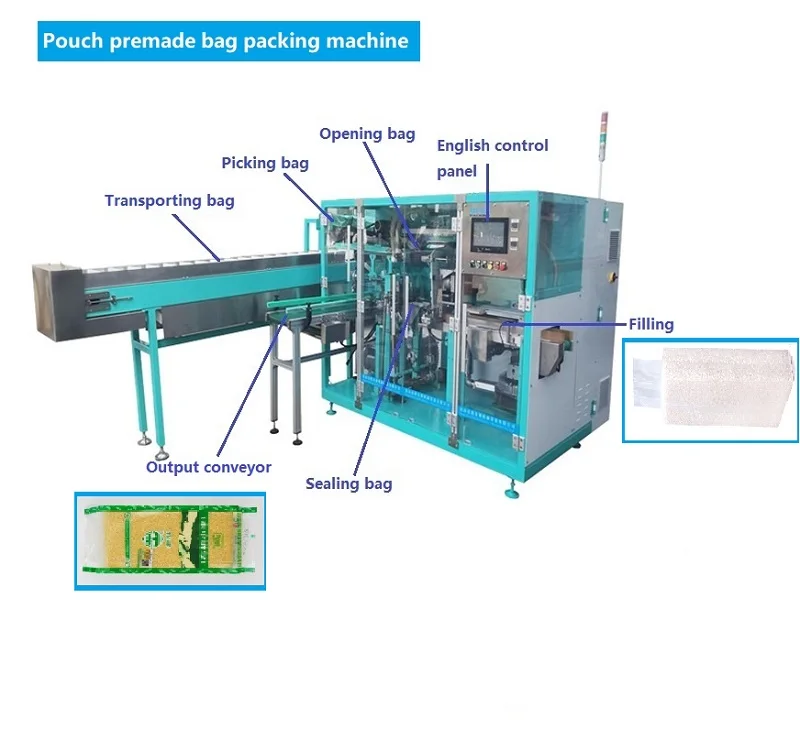

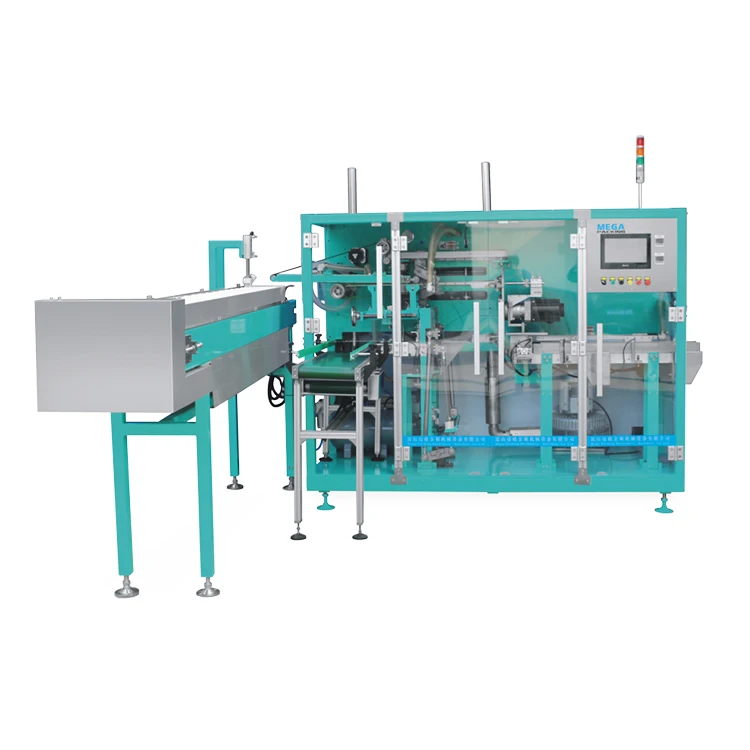

Product Description
Features:
·Full servo drive:The whole machine adopts Japanese Mitaubishi motion controller and PLC double CPU bus servo drive system, each servo motor transmission adopts synchronous virtual mode control, withextremely high packaging precision and excellent stability.
·Molding Mechanism: Inserting angle dislocation small, stable angle, straight line;
·Bag opening mechanism: The bag-opening mechanism adopts the parameters conveniently and quickly.
·Very short trimming material:Under the condition of ensuring formingstability,it can control the shortest length of the edge material,that is, the width of the sealing tail is less than or equal to 10mm
·Working efficiency:Open probability 85%, unwinding device, one roll for use, one roll for standby to meet the production needs,can achieve non-stop feeding, save film changing time, improve work efficiency.
·On-line mode:It can operate independently and put materials manually,and also can be connected to the stacker,automatic connection, automatic counting,automatic feeding and automatic packaging, with high degree of automation.
·Full servo drive:The whole machine adopts Japanese Mitaubishi motion controller and PLC double CPU bus servo drive system, each servo motor transmission adopts synchronous virtual mode control, withextremely high packaging precision and excellent stability.
·Molding Mechanism: Inserting angle dislocation small, stable angle, straight line;
·Bag opening mechanism: The bag-opening mechanism adopts the parameters conveniently and quickly.
·Very short trimming material:Under the condition of ensuring formingstability,it can control the shortest length of the edge material,that is, the width of the sealing tail is less than or equal to 10mm
·Working efficiency:Open probability 85%, unwinding device, one roll for use, one roll for standby to meet the production needs,can achieve non-stop feeding, save film changing time, improve work efficiency.
·On-line mode:It can operate independently and put materials manually,and also can be connected to the stacker,automatic connection, automatic counting,automatic feeding and automatic packaging, with high degree of automation.
Specification
Model | MG- SP100A |
Packing Speed | 50-60 Design 65 bags/min, actual running speed of 50-60 bags/min |
Qualification Rate | ≥ 98% |
Packaging Mode | Horizontal or vertical, using tube film,on-line bag making |
Tube Film Material | PE film,composite film,aluminized film,single layer thickness of film≤70um |
Packaging Bag Dimension | (70-200)*W(60-120)*H(30-100)mm, customized |
Machine Size | L3300mmxW3400mmxH1500mm |
Machine Weight | ≈2000KG |
Power | ≈12KW |
Power Requirements | Three-- phase five- wire system(R、S、T、N、PE),AC380V,50/60HZ |
Air Source Requirement | Air pressure 0.5- 0.8Mpa, Air consumption Max.300LPM |
Product Details & Application
More Products
Company Profile
Kunshan Mega-Packing Machinery Equipment Co.,Ltd
Kunshan Mega-Packing Machinery Equipment Co.,Ltd is a automation packaging machinery manufacturing service provider which focus on the design, manufacture, production of automatic packaging systems, and has top advantage in the Chinese high-end market, Mega-Packing technical team has professional engineers who has nearly 20 years automatic packaging systems experience, not only has a senior mechanical engineer and a first-class design team, also has domestic and foreign advanced technology and advanced manufacturing equipment&testing equipment.With the persistent pursuit of automatic packaging, we have designed and manufactured the packaging system with superior performance, and our products have the CE certification of the European Community.Packing & Delivery
FAQ
1.Q: How to find a Packing machine suitable for my product?
A:Tell me about your product details. 1. What kind of product you have. 2. The size of your product( the length, width, and height).»»contact us.
A:Tell me about your product details. 1. What kind of product you have. 2. The size of your product( the length, width, and height).»»contact us.
2.Q: Is an engineer available to serve oversea?
A:Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
A:Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
3.Q: Are you a factory or trading company?
A:We are the factory, and especially R&D, manufacture and sell various packing equipment. We have engaged in the packing R&D and production for over 10 years.
A:We are the factory, and especially R&D, manufacture and sell various packing equipment. We have engaged in the packing R&D and production for over 10 years.
4.Q: What's your payment way?
A:T/T by our bank account directly, or by Alibaba trade assurance service, or by West Union, L/C, or in cash.
A:T/T by our bank account directly, or by Alibaba trade assurance service, or by West Union, L/C, or in cash.
5.Q: How can we make sure about the machine quality after we put the order?
A:Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
A:Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
6.Q:We are afraid you won't send us the machine after we send you the money?
A:Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
A:Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
7.Q: Why we should choose your company?
A:We are professional in packing machines for almost 20 years, and we provide better after-sales service. You guarantee no risk for our deal.
A:We are professional in packing machines for almost 20 years, and we provide better after-sales service. You guarantee no risk for our deal.
