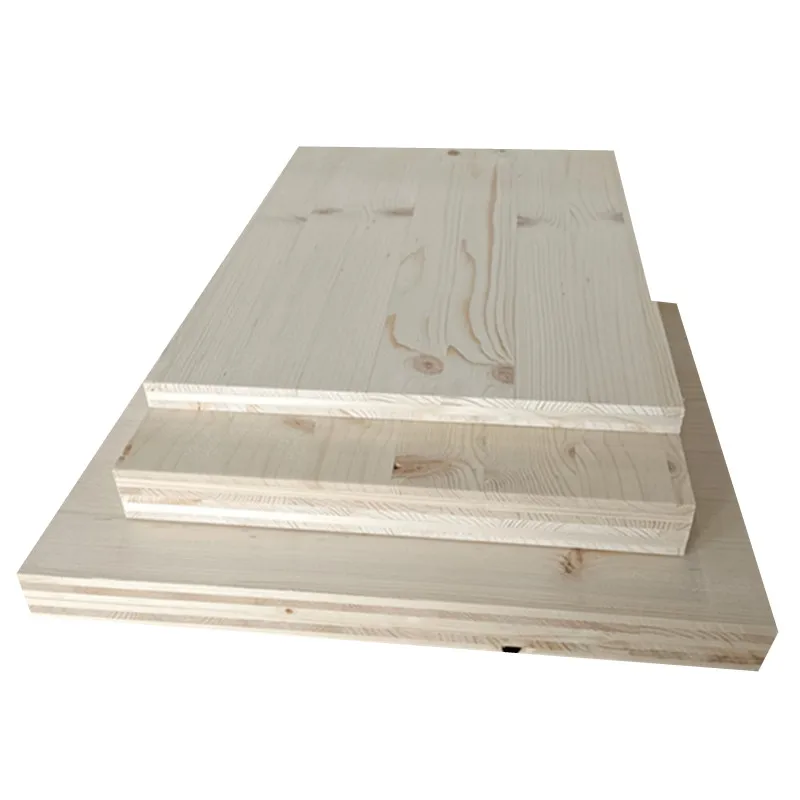

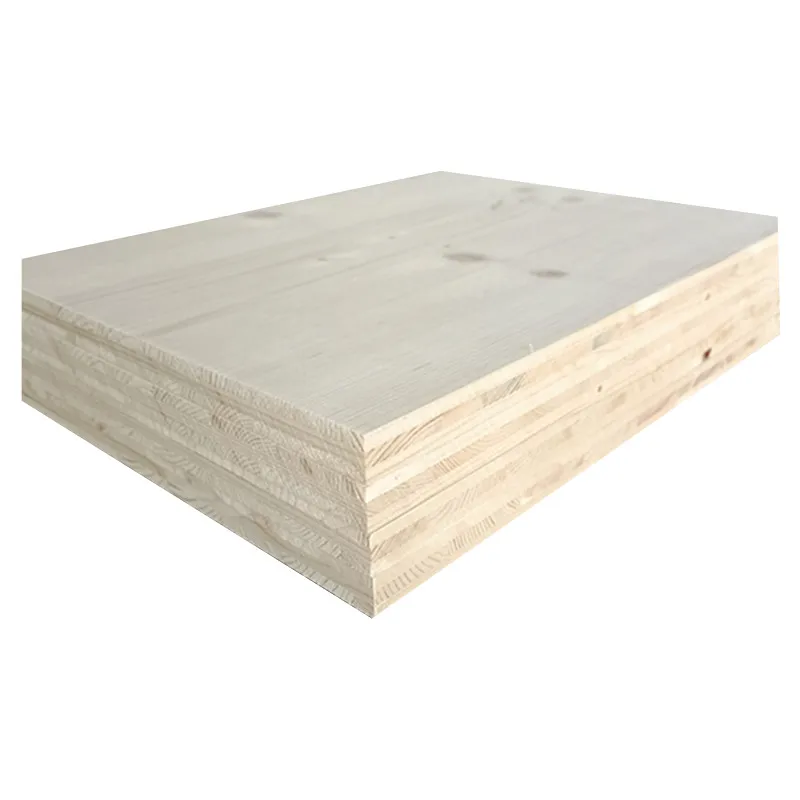

18MM 27MM 90MM SPRUCE MATERIAL CROSS LAMINATED TIMBER (CLT) building boards
- Category: >>>
- Supplier: Waying Trading (nanning) Co. Ltd.
Share on (1600538100127):
Product Overview
Description
Product Description
What is Cross Laminated Timber?
Cross-laminated timber (CLT) is a wood panel product that is made by gluing together layers of lumber stacked in alternating perpendicular directions. Lightweight yet very strong,that is rapidly gaining popularity in the U.S. after being widely adopted in Europe. The strength, dimensional stability, and rigidity of CLT allow it to be used in mid- and high-rise buildings. CLT is also fast and easy to install, generating almost no waste onsite. CLT offers design flexibility and low environmental impacts.
Cross-laminated timber (CLT) is a wood panel system that is rapidly gaining popularity in the U.S.
after being widely adopted inEurope. The strength, dimensional stability,
and rigidity of CLT allow it to be used in mid- and high-rise buildings.
Product Type: | Cross-laminated timber (CLT) |
Size: | 500x2000mm,1220×2440mm, 1220×2950mm, 2000x3100mm is largest size, or Customized |

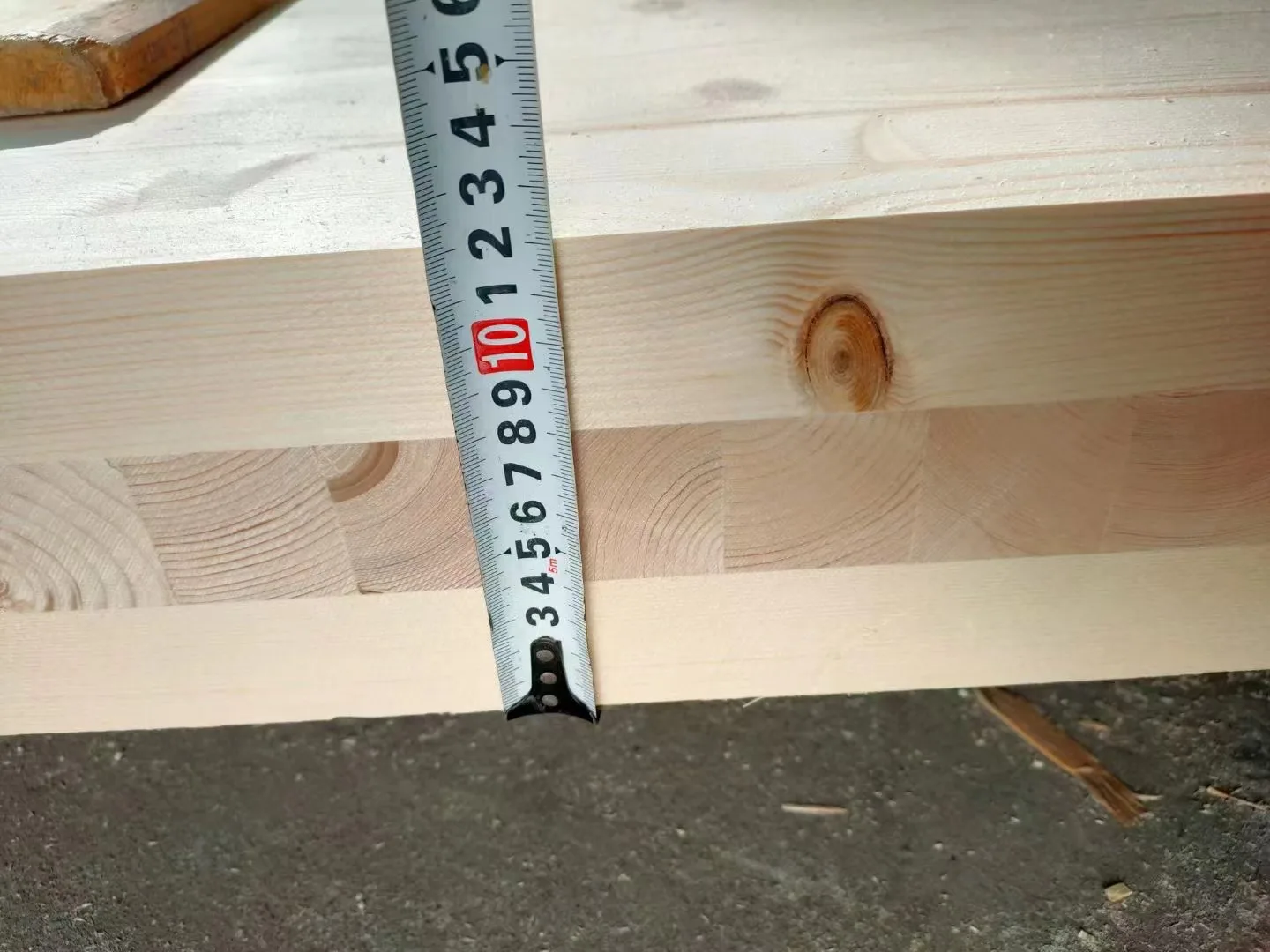

Thickness: | 18mm, 27mm, 30mm, 90mm is largest thickness or Customized |
Material: | Dragon spruce,Douglas Fir and Radiata Pine |
Glue: | WBP- E0 waterproof grade |
Loading: | 25ton/container，53-54CBM |
Packing: | Inner with plastic bag,then Steel tapes for strength, 3 times on width and 6 times on length, plywood sheet or Carton covering, with strong pallets. |
Usage: | Furniture (18MM 24mm) and wooden structures (30mm 50mm 60mm 90mm) |
Samples show:
How It Works

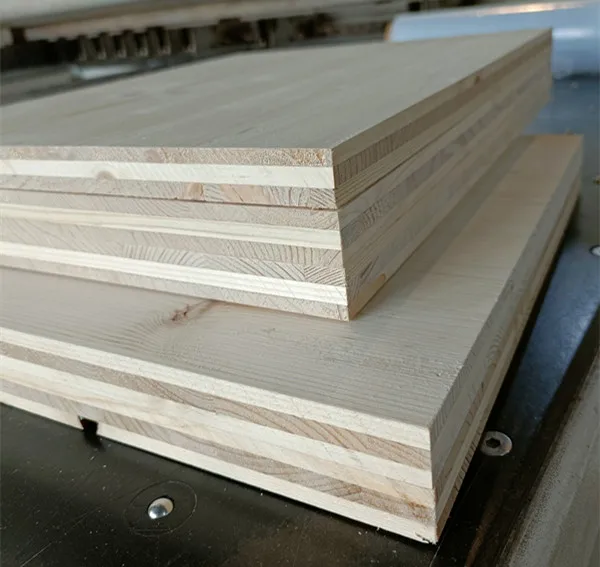

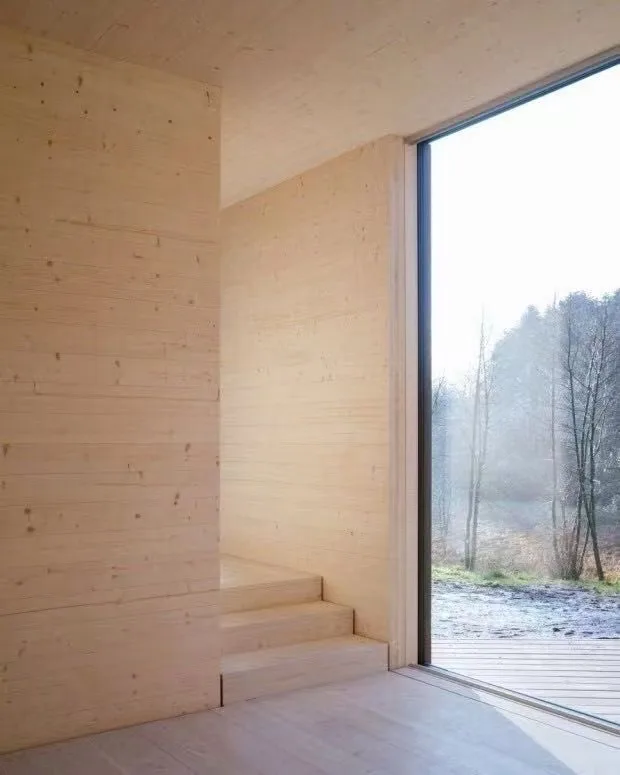

CLT panels consist of layered lumber boards (usually three, five, or seven) stacked crosswise at 90-degree angles and glued into place. Finger joints and structural adhesive connect the boards. Board thickness typically varies between 5/8 inch to 2 inches,with board width ranging from 2.4 to 9.5 inches.The panels can be manufactured at custom dimensions, though transportation restrictions dictate their length.Alternating grains improve CLT panels’ dimensional stability. This strength affords designers a host of new uses for wood,including wide prefabricated floor slabs, single-level walls, and taller floor plate heights. As with other mass timber products,CLT can be left exposed in building interiors , offering additional aesthetic attributes.Like other mass timber products, CLT can be used in hybrid applications with materials such as concrete and steel. It can also be used as a prefabricated building component, accelerating construction timelines.
Details Images

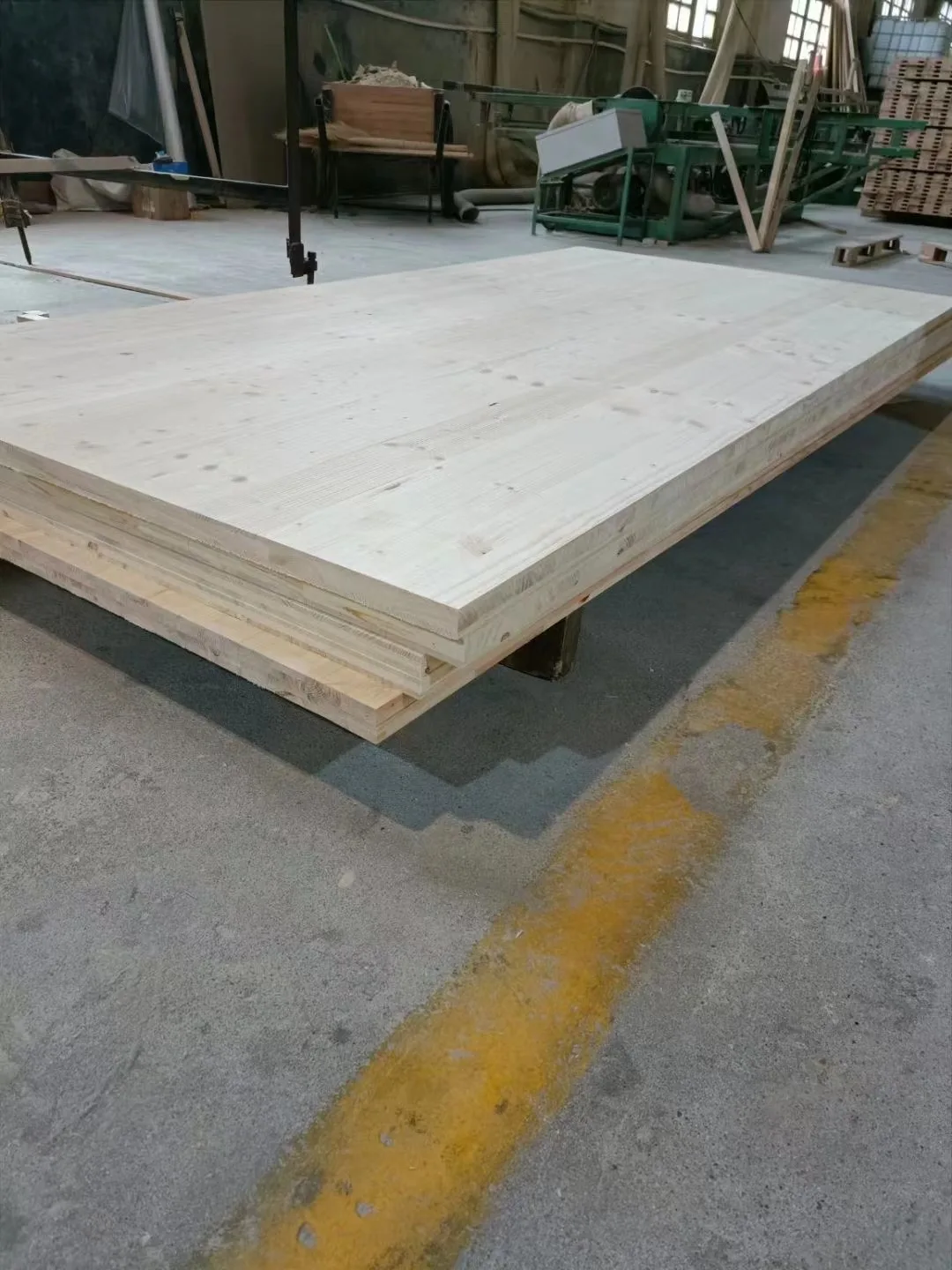

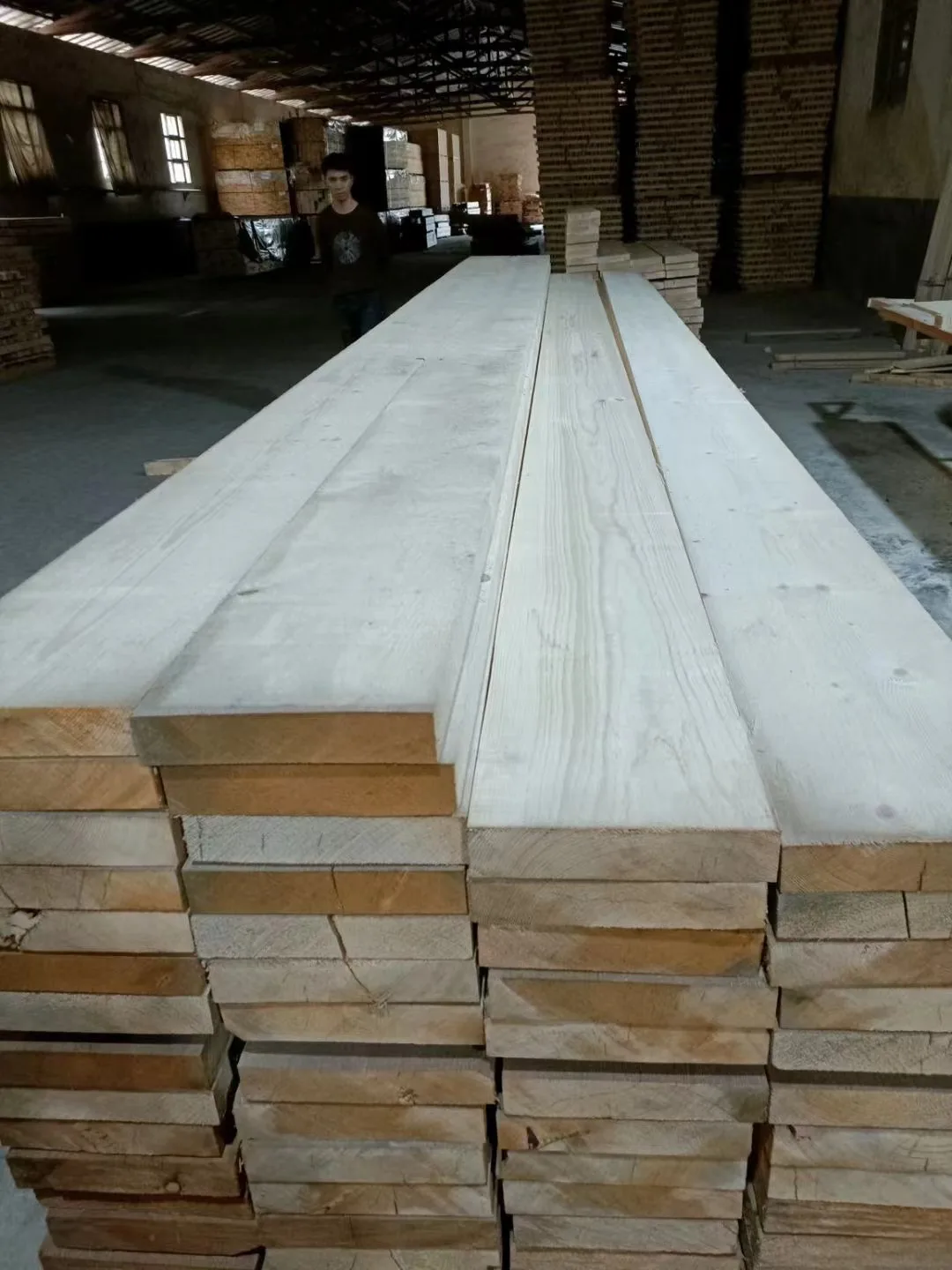

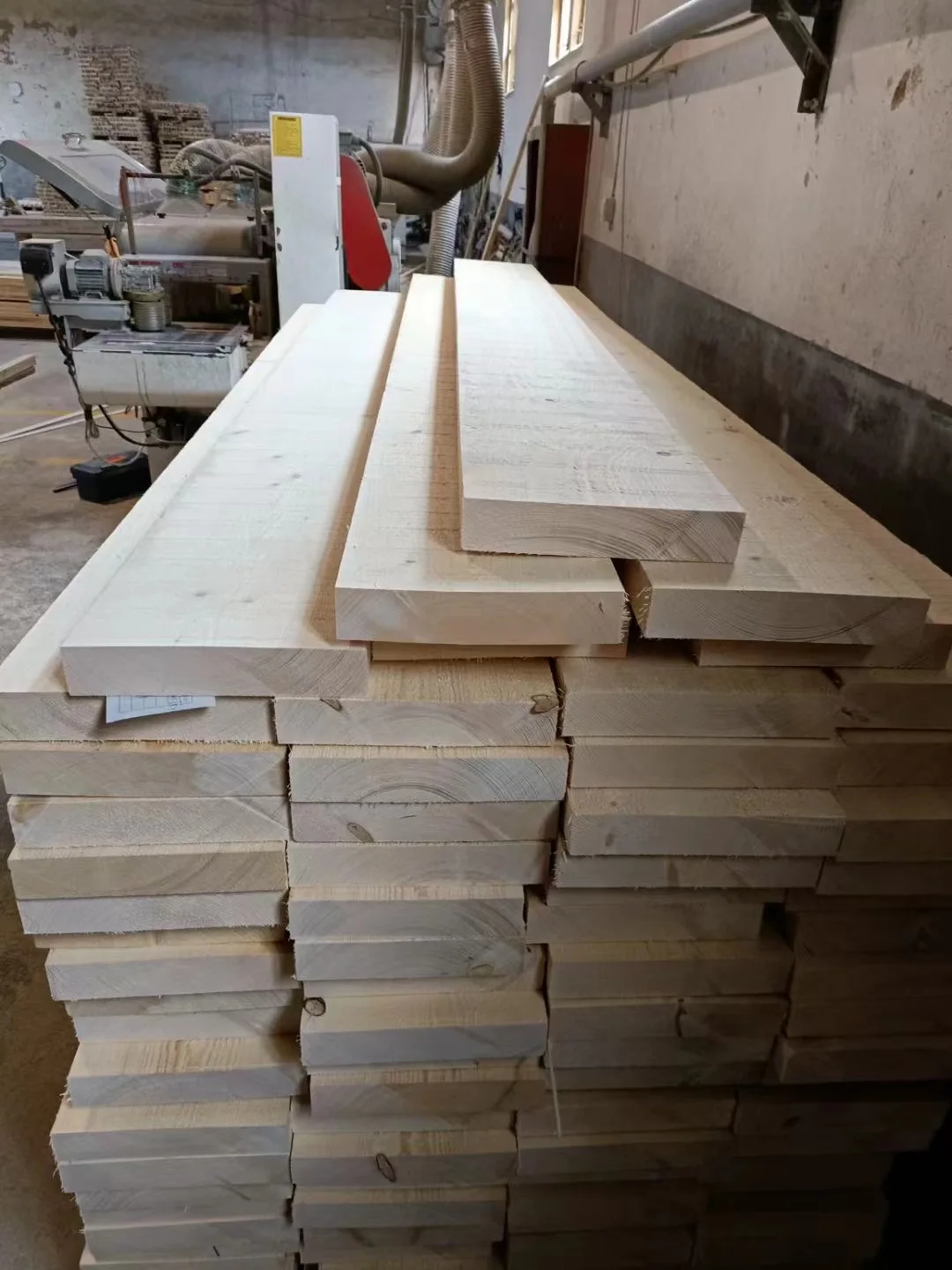

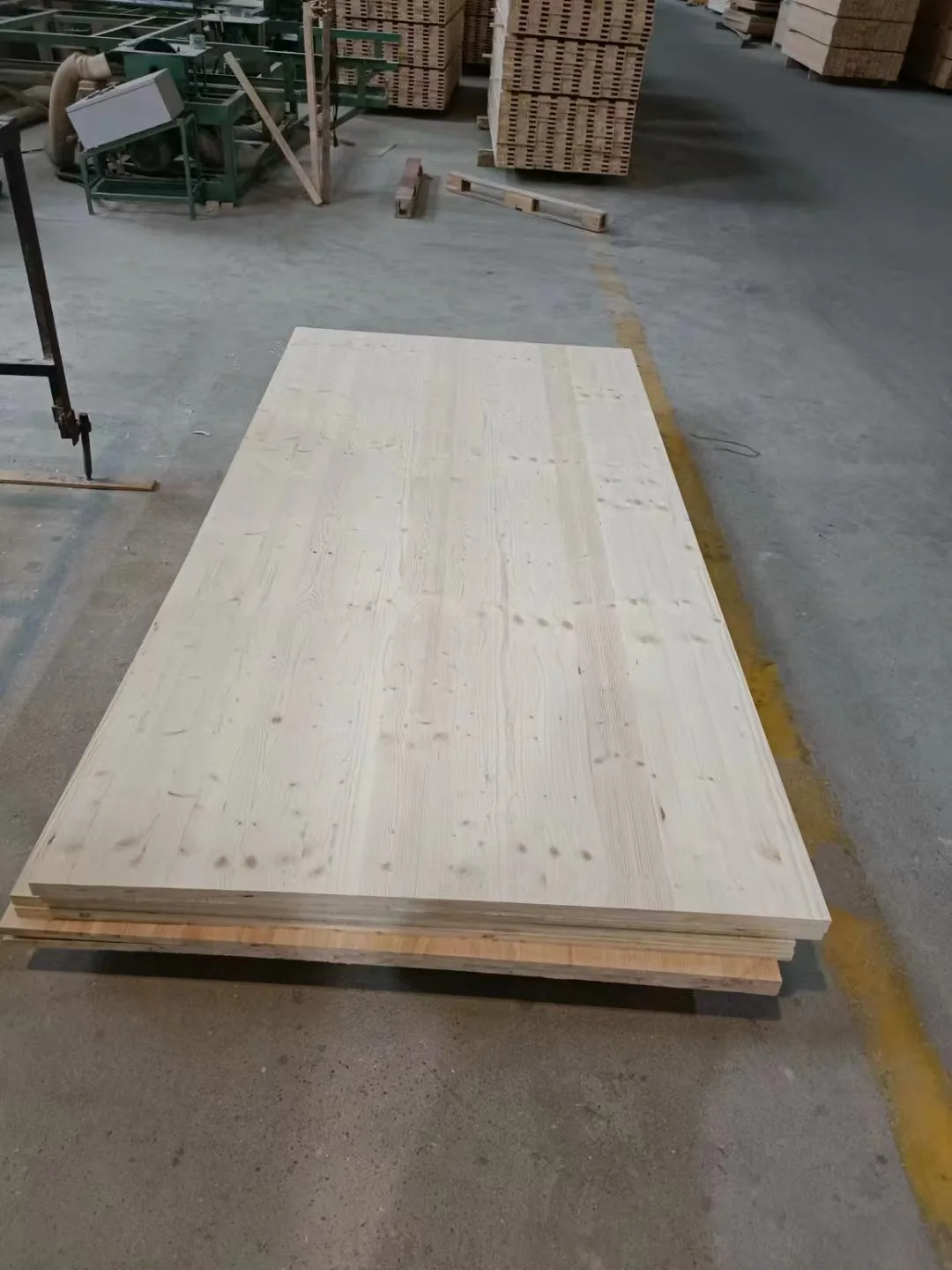

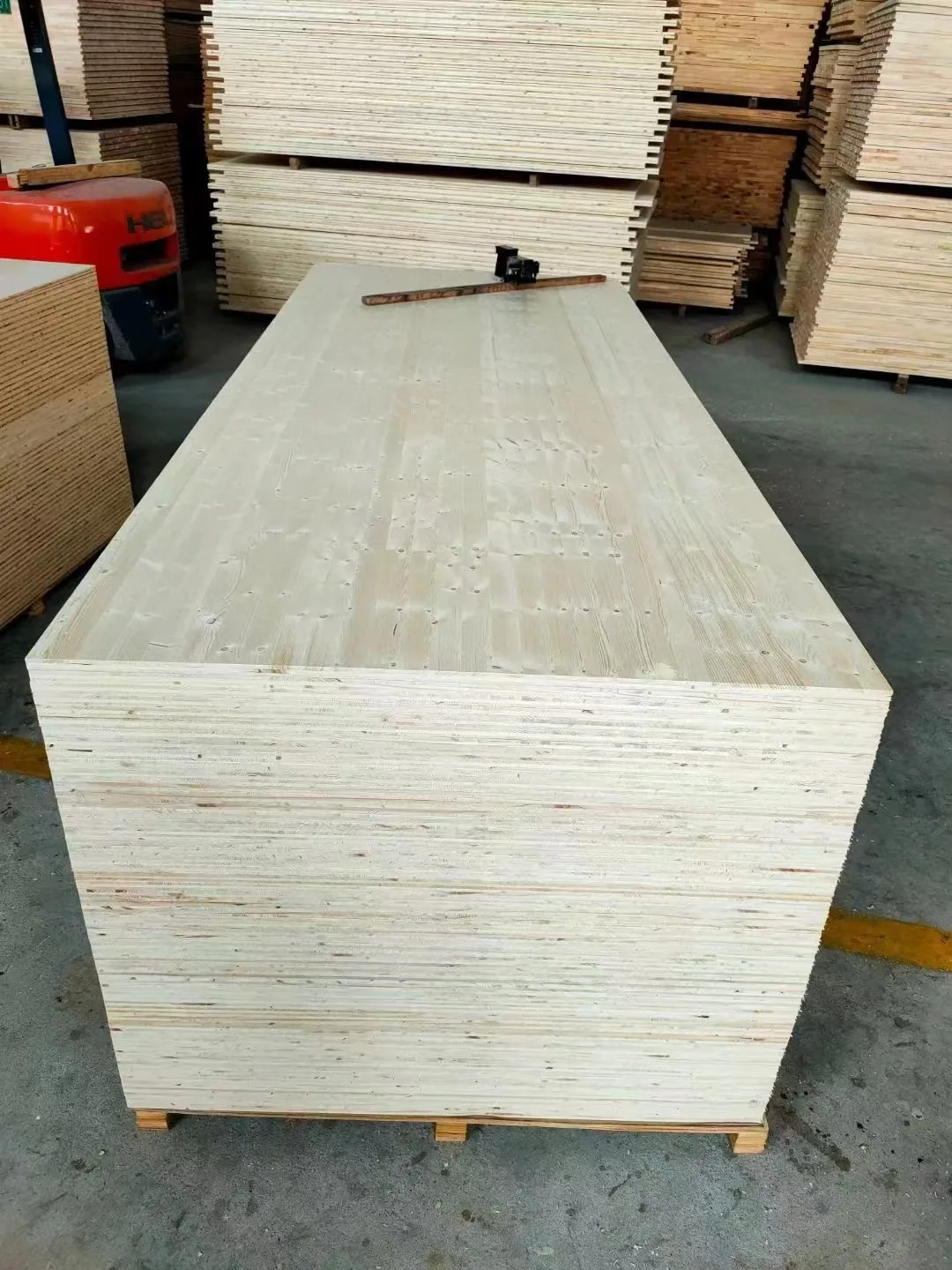

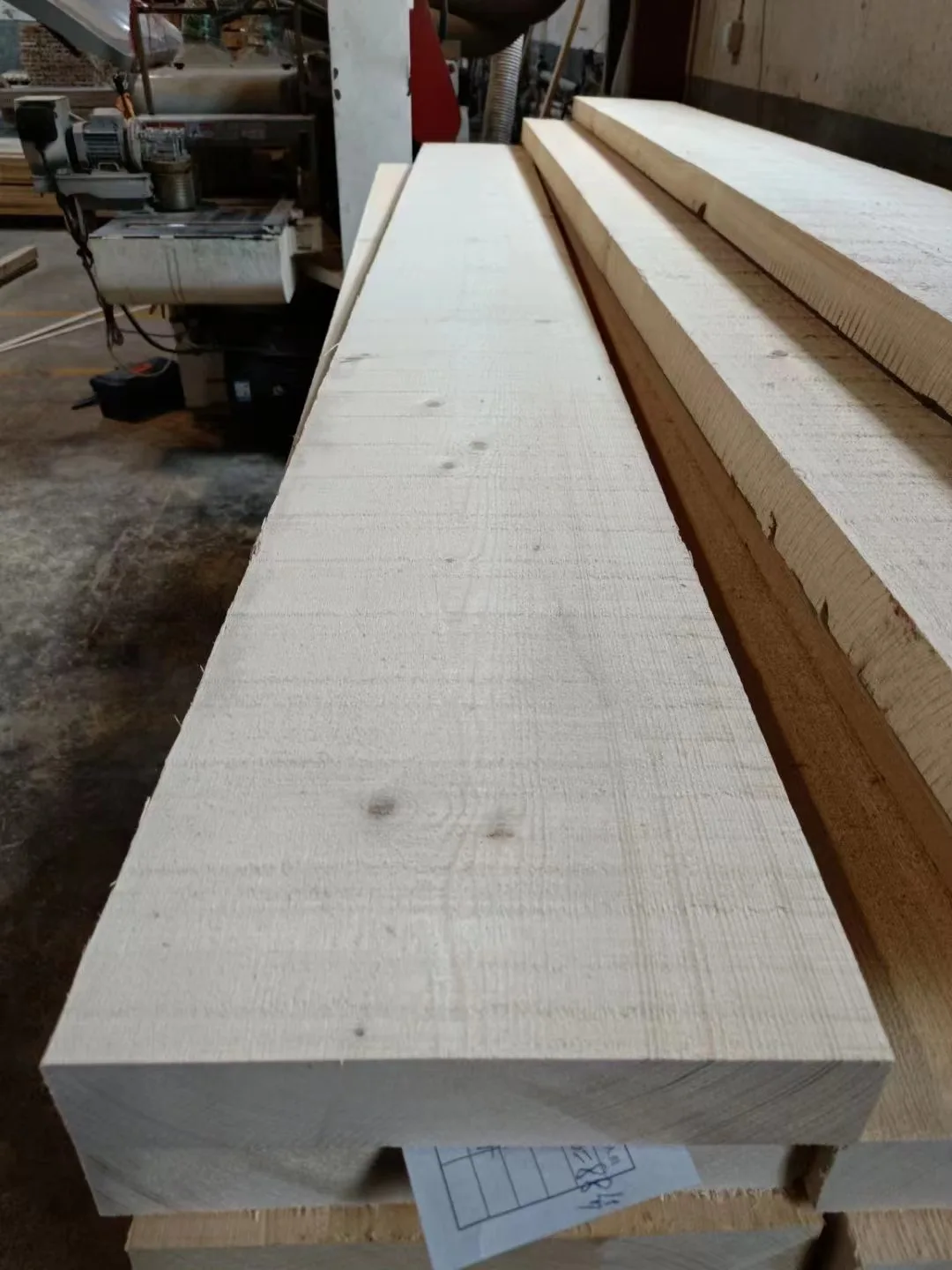

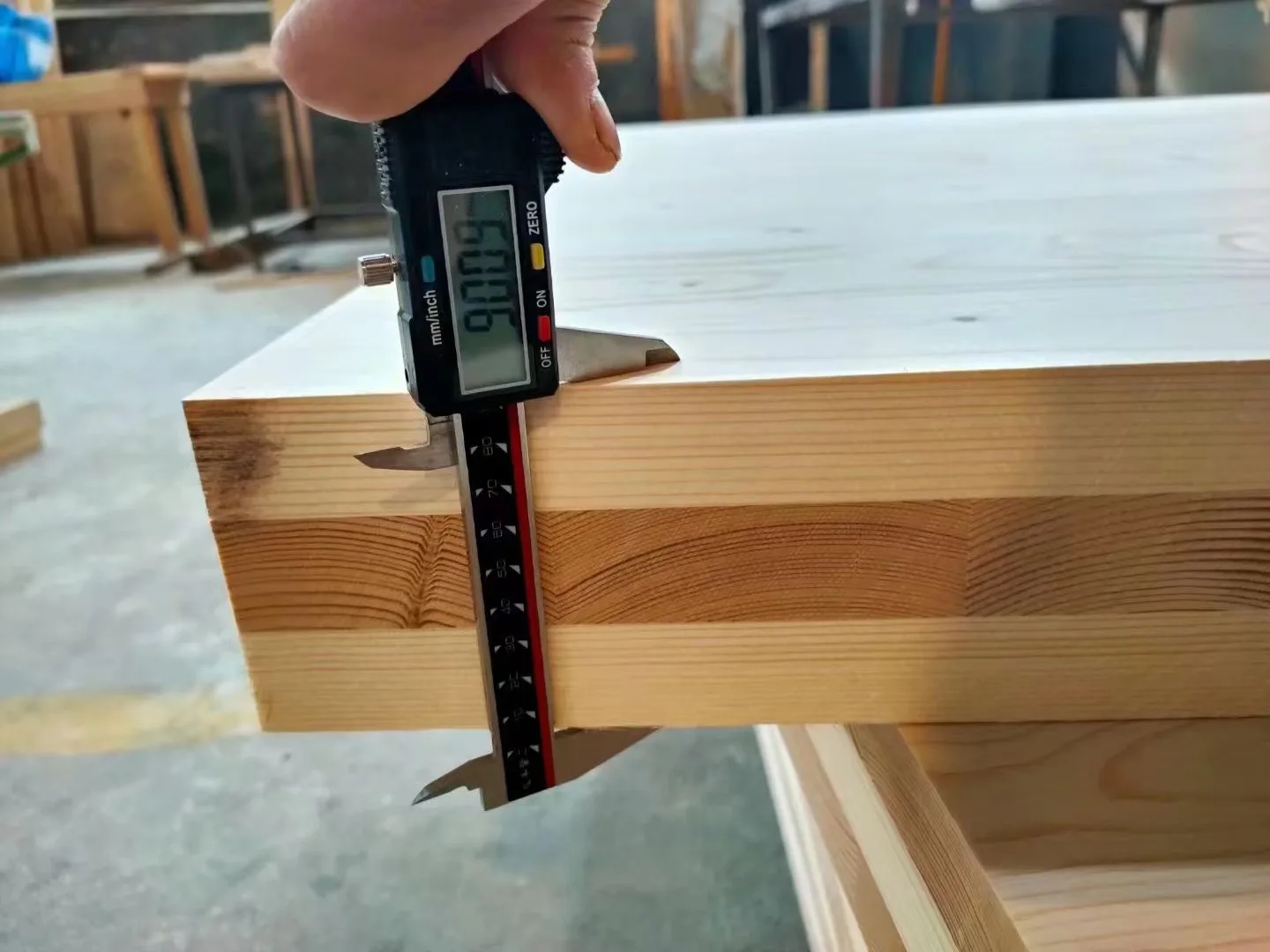

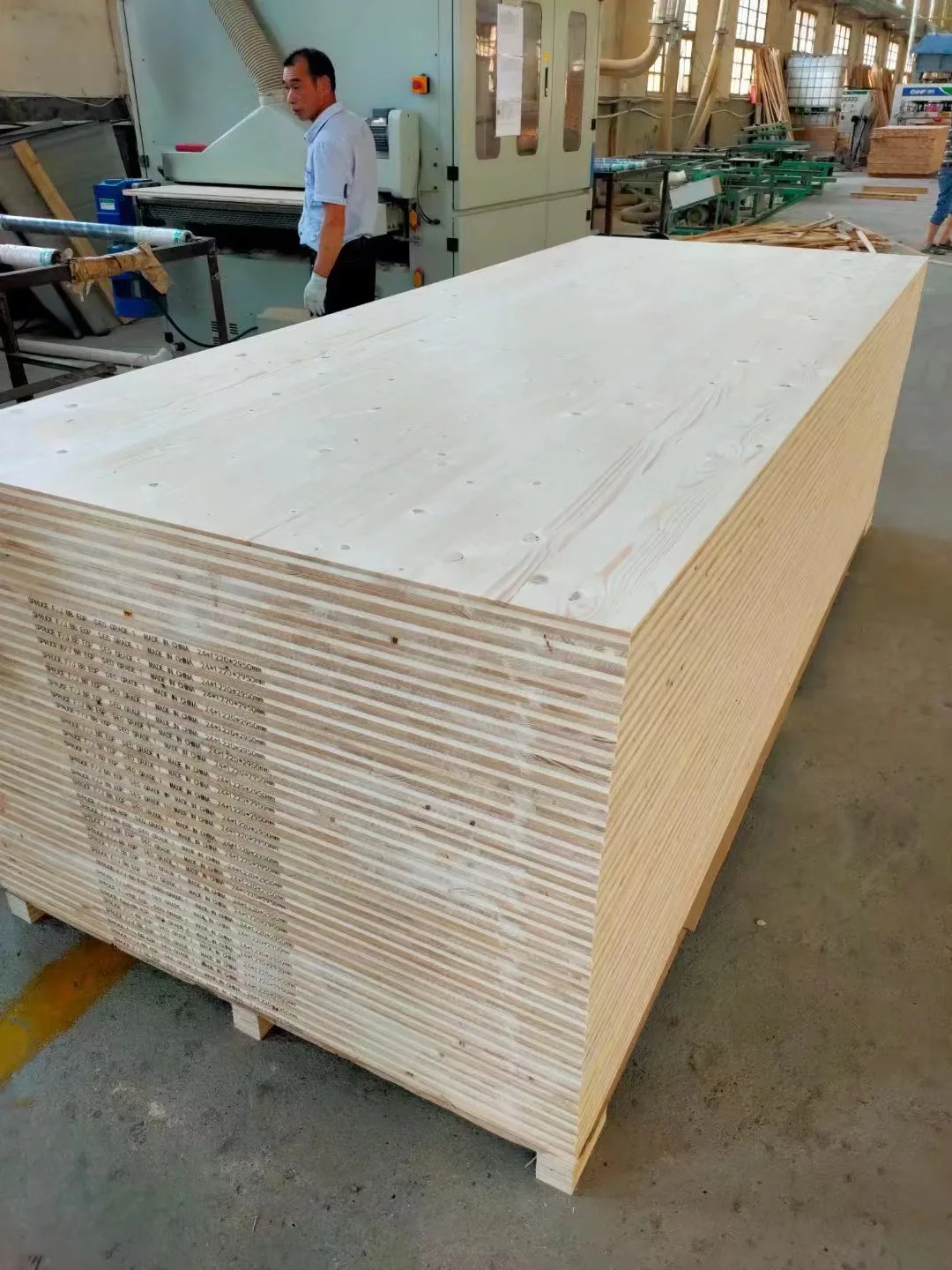

Real product show:
Features:
1.The cold pressing process is adopted, which is the same process as in Italy.
2.No obvious lamination marks, no black lines and offset printing, the narrowest cannot be lower than 910, the shortest cannot be lower than 1950, the press determines the size of the product, the press is imported from Italy.
3.E0 waterproof grade, environmentally friendly outdoor wood structure glue, meets the Japanese JAS standard.
4.Glue characteristics: the formed film has good hardness, elasticity, high bonding strength, safety and environmental protection, water resistance, acid and alkali resistance, and aging resistance.
2.No obvious lamination marks, no black lines and offset printing, the narrowest cannot be lower than 910, the shortest cannot be lower than 1950, the press determines the size of the product, the press is imported from Italy.
3.E0 waterproof grade, environmentally friendly outdoor wood structure glue, meets the Japanese JAS standard.
4.Glue characteristics: the formed film has good hardness, elasticity, high bonding strength, safety and environmental protection, water resistance, acid and alkali resistance, and aging resistance.
Usage
How It's Used.

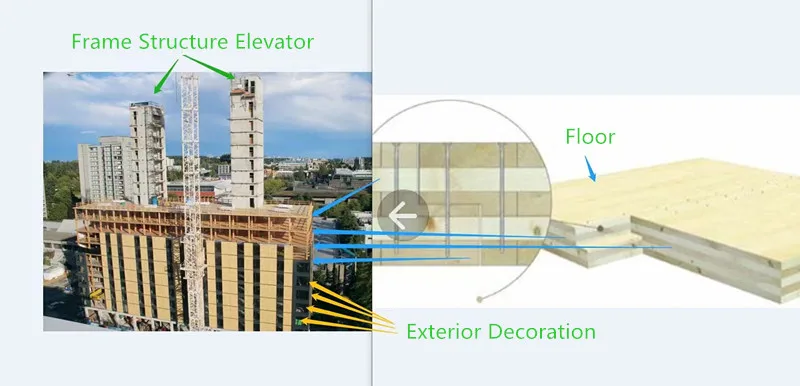

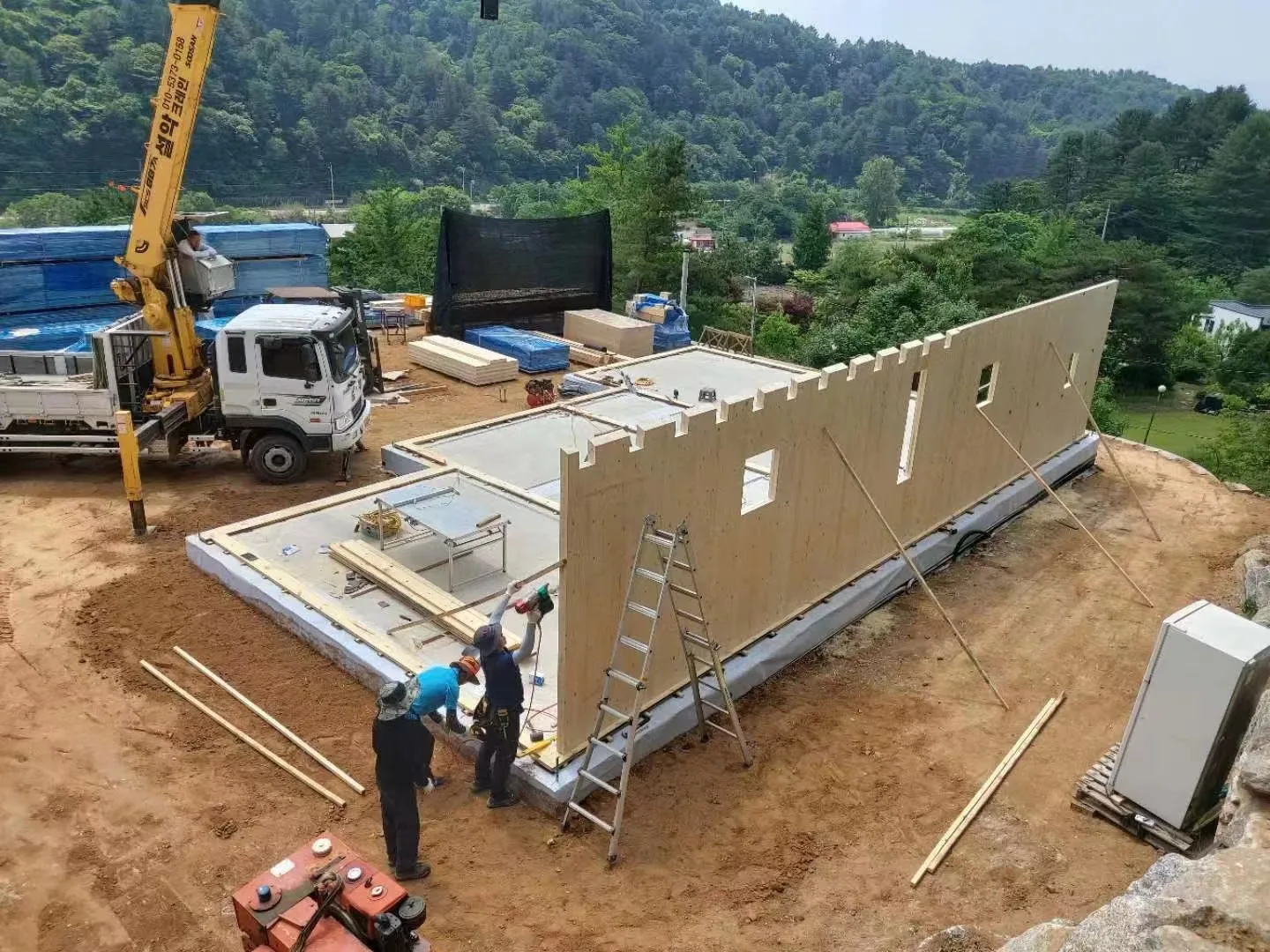

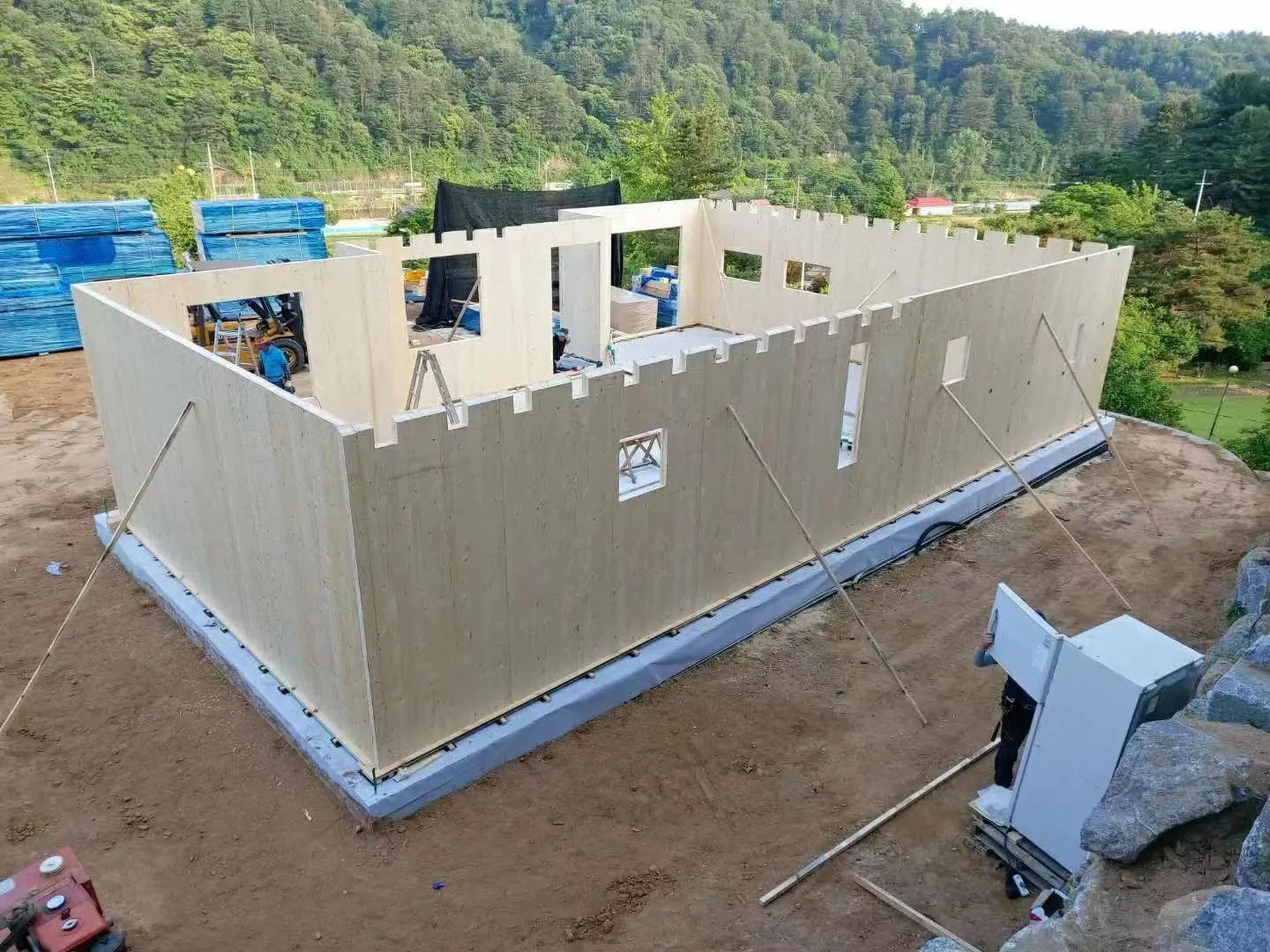

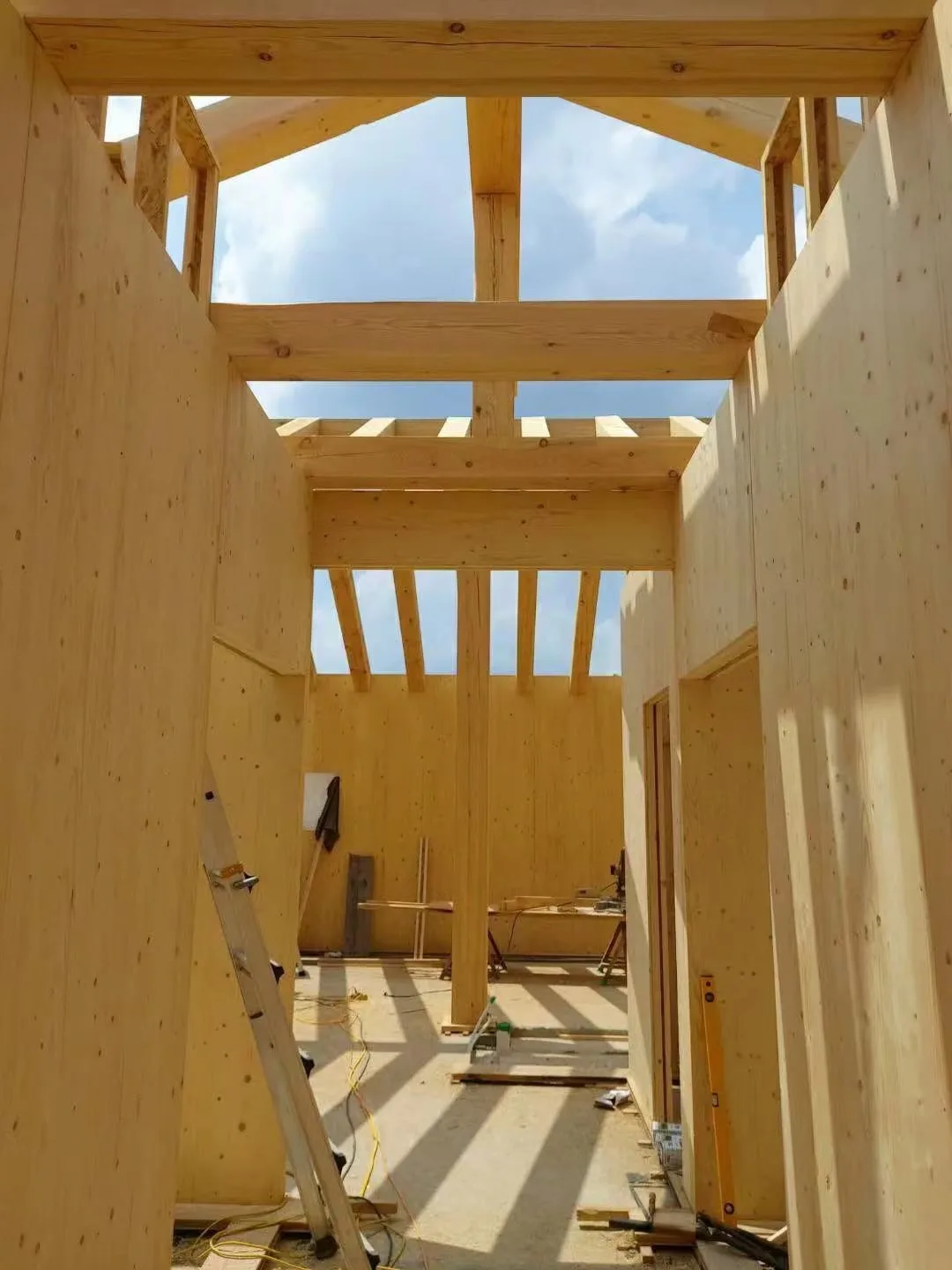

In structural systems, such as walls, floors, and roofs, CLT panels serve as load-bearing elements. As such, in wall applications,the lumber used in the outer layers of a CLT panel is typically oriented vertically so its fibers run parallel to gravity loads,maximizing the wall’s vertical load capacity. In floor and roof applications, the lumber used in the outer layers is oriented so its fibers are parallel to the direction of the span.
Applications for CLT include floors, walls and roofing. The panels’ ability to resist high racking and compressive forces makes them especially cost-effective for multistory and long-span diaphragm applications.
In structural systems, such as walls, floors, and roofs, CLT panels serve as load-bearing elements. As such, in wall applications,the lumber used in the outer layers of a CLT panel is typically oriented vertically so its fibers run parallel to gravity loads,maximizing the wall’s vertical load capacity. In floor and roof applications, the lumber used in the outer layers is oriented so its fibers are parallel to the direction of the span.
Packing & Delivery
Custom packaging
Print LOGO.
Package
Carton + Pallet.
Loading and delivery
20GP or 40HQ.
FAQ
1, What is your MOQ?
Our MOQ is usually one 20 feet container. if you need, we can also supply you less quantity.
2, What is your delivery time?
The delivery time is usually within 30days since receiving your deposit.
3, What is the loading port ?
Qinzhou,Guangzhou,Xiamen port
4, How we could visit your factory?
Our factory is located in Nanning City, Guangxi Province, China.
5, Is OEM service available?
Yes, customer's design and logo is welcome and available.
7, Are product samples available?
Yes, usually samples are free to customers. Freight charge would be collected in your side. This charge will be taken off from the cargo payment when customer place order to us.
Our MOQ is usually one 20 feet container. if you need, we can also supply you less quantity.
2, What is your delivery time?
The delivery time is usually within 30days since receiving your deposit.
3, What is the loading port ?
Qinzhou,Guangzhou,Xiamen port
4, How we could visit your factory?
Our factory is located in Nanning City, Guangxi Province, China.
5, Is OEM service available?
Yes, customer's design and logo is welcome and available.
7, Are product samples available?
Yes, usually samples are free to customers. Freight charge would be collected in your side. This charge will be taken off from the cargo payment when customer place order to us.
Company Profile
Waying Trading (Nanning) Co., Ltd.
We are a professional large-scale manufacturer of all types of wooden product, integrating development and production together.We locate in Nanning City, Guangxi Province, China. Founded in 2010,mainly produces Birch Plywood,Eucalyptus Plywood, Film Faced Plywood,Bamboo Plywood,Cross Laminated Timber and other wooden panels.
The products are well sold in America, Middle East, South-America, Africa, Europe and Southeast Asia. Our brand concept regards“reasonable prices, efficient production time and good after-sales service” as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
The products are well sold in America, Middle East, South-America, Africa, Europe and Southeast Asia. Our brand concept regards“reasonable prices, efficient production time and good after-sales service” as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
12 years experience
12 years film faced plywood Professional production & Export experience.
Quality guarantee
Good Strength More Than You Imagine.
High frequency of reuse.
24-hour service
Quality first, Customers first.
Reputation first.
Quick reply, Quick delivery.
