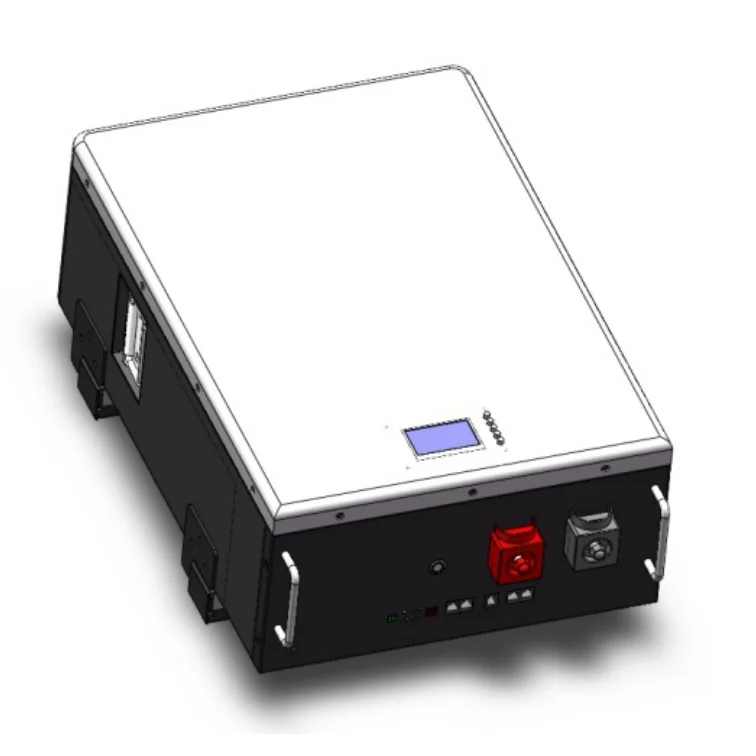

Factory sale various widely polymer titanate lithium ion battery cells
Factory sale various widely polymer titanate lithium ion battery cells
Factory sale various widely polymer titanate lithium ion battery cells
Factory sale various widely polymer titanate lithium ion battery cells

Factory sale various widely polymer titanate lithium ion battery cells

Share on (1600538120686):


Price:$950.00 - $1,010.00

Quantity:


Product Overview

Description

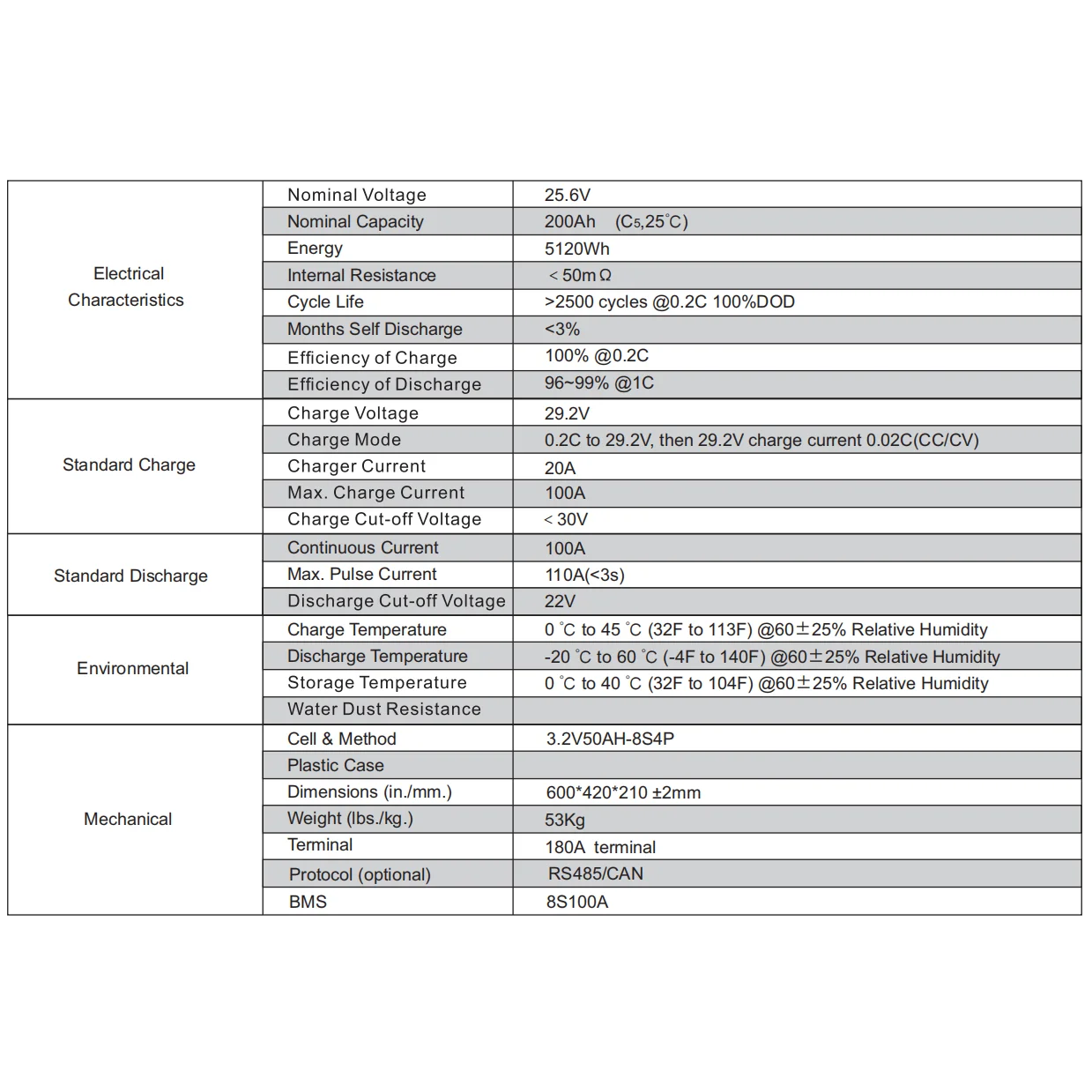

Product Description

























































































































Electrical Characteristics25.6V
Nominal Capacity200Ah    (C5,25℃)
Energy5120Wh
Internal Resistance<50mΩ

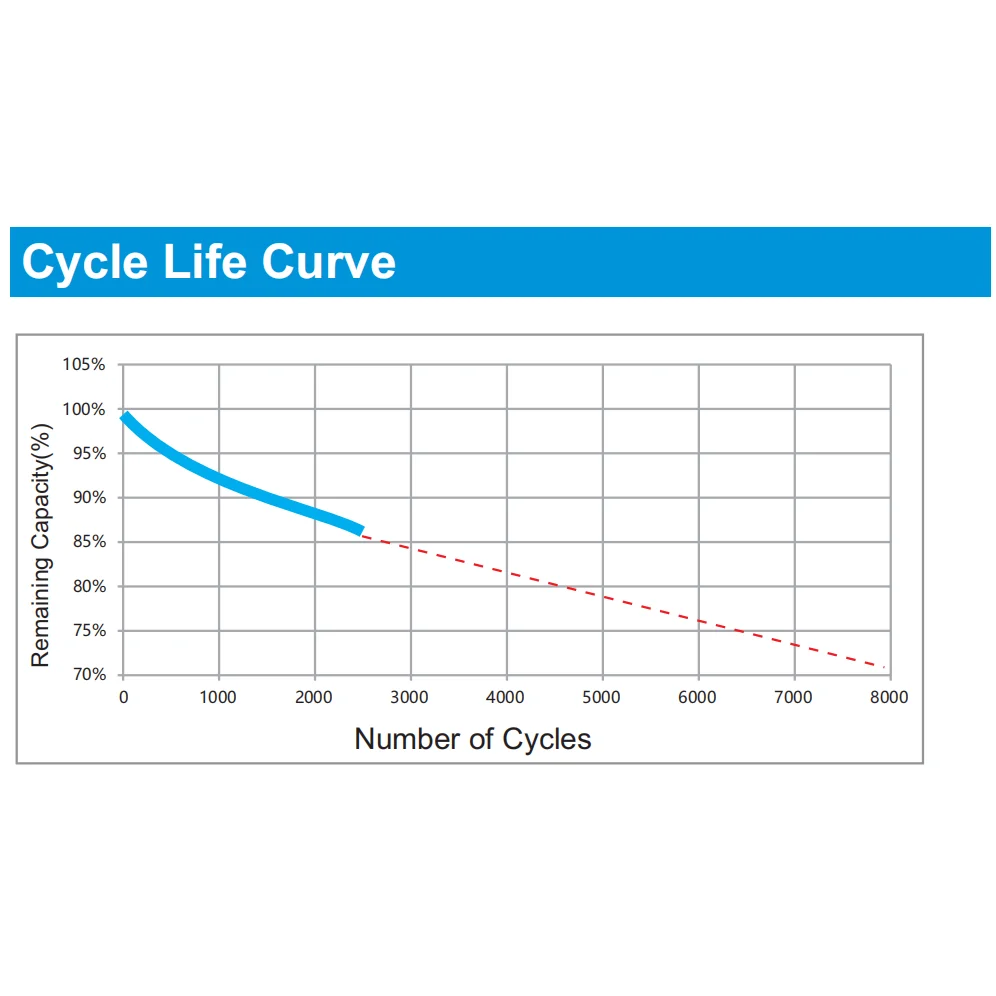

Cycle Life>2500 cycles @0.2C 100%DOD
Months Self Discharge<3%
100% @0.2C
96~99% @1C
Standard Charge29.2V
 0.2C to 29.2V, then 29.2V charge current 0.02C(CC/CV)
 20A
 100A
 <30V
Standard DischargeContinuous Current100A
Max. Pulse Current110A(<3s)
22V
EnvironmentalCharge Temperature0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge Temperature-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity

MechanicalCell & Method3.2V50AH-8S4P
Plastic Case
Dimensions (in./mm.)600*420*210 ±2mm
Weight (lbs./kg.)53Kg
Terminal180A  terminal
Protocol (optional)RS485/CAN
BMS8S100A






Our Services

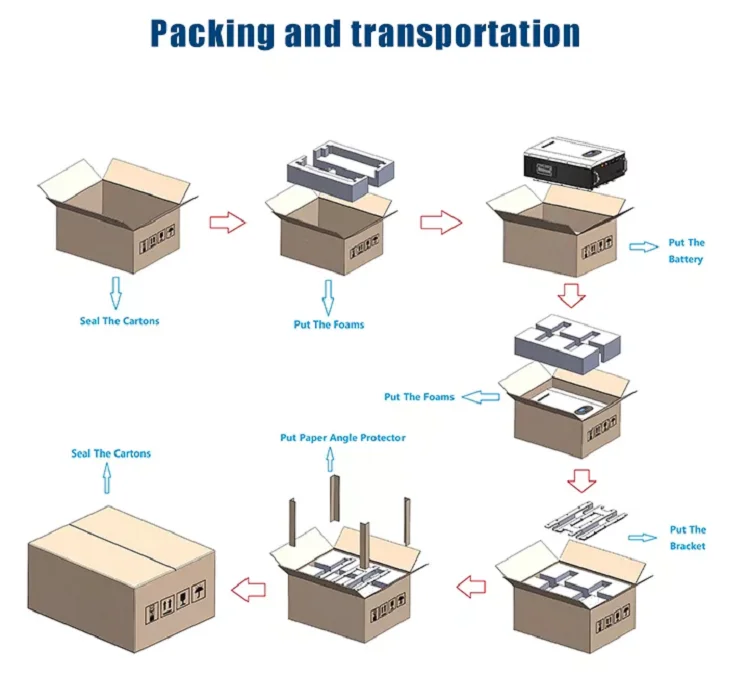

Packaging & Shipping


 .png







FAQ

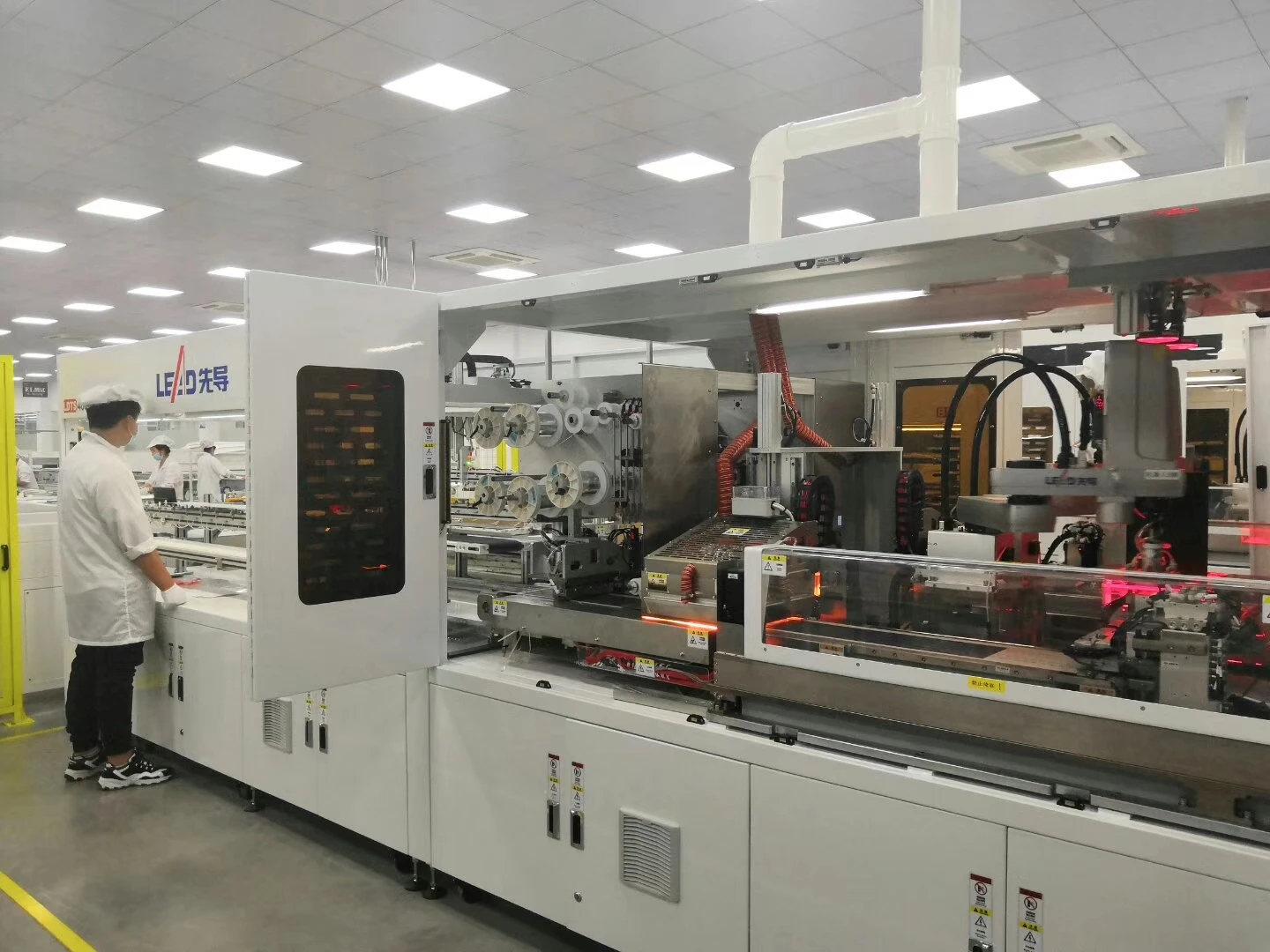

Company Information
