Product Overview
Description
Products Description

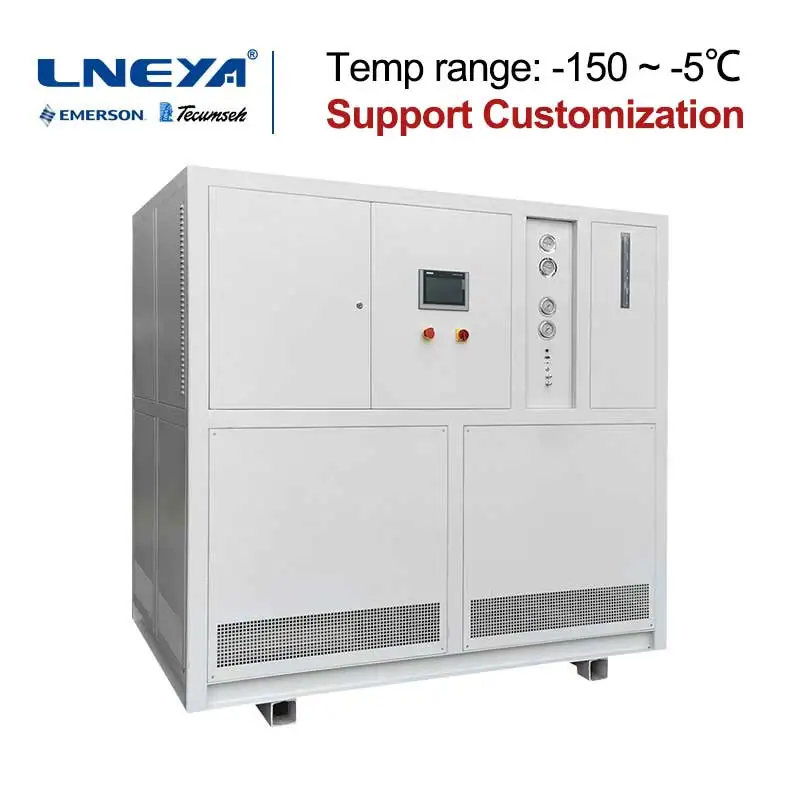

LNEYA specializes in the production of single-fluid cryogenic chillers. The refrigeration temperature ranges from -150°C to -5°C, which can meet the needs of different refrigeration temperatures. The company developed a direct-cooled ultra-low temperature chiller, using international brand compressors Carrier, using automatic cascade refrigeration mode and mixed refrigerants, within 3 minutes can be refrigerated to minus 120°C.

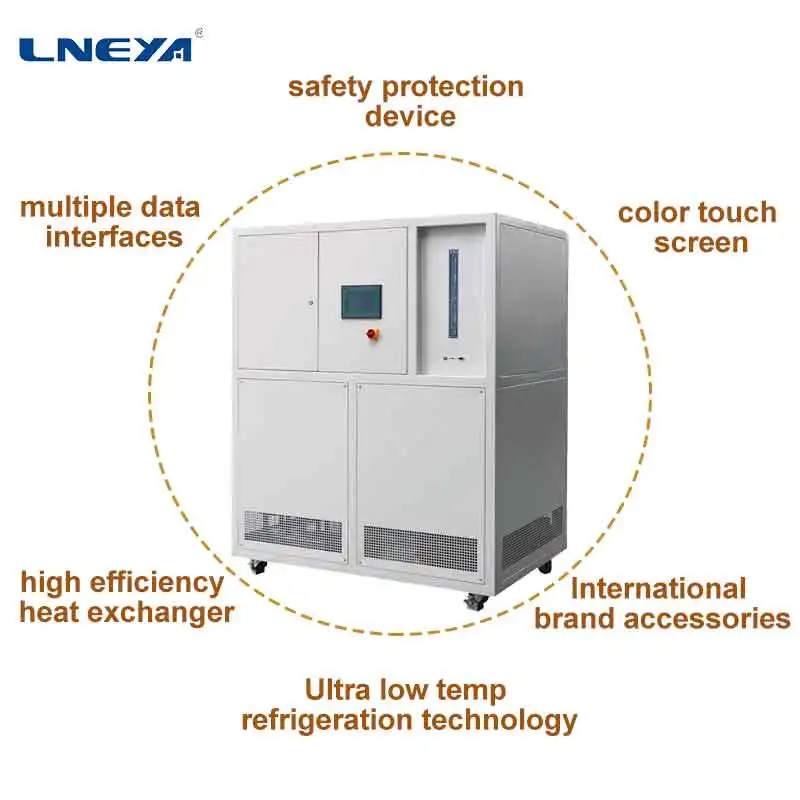

Advantages and Features of Industrial Ultra Low Temperature Chiller:
1.Temperature ranges from -5℃ ~ -150℃, can meet different temperature needs.
2.Famous brand semi-closed piston compressor, semi-closed bipolar piston compressor, semi-hermetic screw compressor, main brand are BOCK, Copeland, Handbell, fusheng; Plate heat exchanger, Small volume, High efficiency.
3.Top imported cold controller; Generator cooling water circuit uses intermediate heat exchanger, improve system reliability and safety.
4.DANFOSS electronic expansion valve, high precision control.
5.Adopt Siemens PLC S7-200/300, LNEYA touch screen, automatic control, temperature curve display, temperature record U disk, fault alarm.
6.Offer machine installation and system test, users only need to finish the installation of refrigerant and cooling water.
2.Famous brand semi-closed piston compressor, semi-closed bipolar piston compressor, semi-hermetic screw compressor, main brand are BOCK, Copeland, Handbell, fusheng; Plate heat exchanger, Small volume, High efficiency.
3.Top imported cold controller; Generator cooling water circuit uses intermediate heat exchanger, improve system reliability and safety.
4.DANFOSS electronic expansion valve, high precision control.
5.Adopt Siemens PLC S7-200/300, LNEYA touch screen, automatic control, temperature curve display, temperature record U disk, fault alarm.
6.Offer machine installation and system test, users only need to finish the installation of refrigerant and cooling water.
Product Paramenters
Model | LJ- 6W | LJ- 10W | LJ- 15W | LJ- 20W | LJ- 30W | LJ- 40W | LJ- 60W | LJ- 90W | LJ- 120W | ||||||||
Temp range | -45 ~ -10℃ (optional: -150 ~ -5℃) | -10~+200 ℃ | |||||||||||||||
Cooling capacity (KW) AT -20 ℃ | 12 | 20 | 30 | 40 | 60 | 80 | 120 | 180 | 240 | ||||||||
10320 Kcal/h | 17200 Kcal/h | 25800 Kcal/h | 34400 Kcal/h | 51600 Kcal/h | 68800 Kcal/h | 103200 Kcal/h | 154800 Kcal/h | 206400 Kcal/h | |||||||||
Circulation pump info | 6.6 m³/h 2.5bar | 9 m³/h 2.5bar | 15 m³/h 2.5bar | 15 m³/h 2.5bar | 25 m³/h 2.5bar | 25 m³/h 2.5bar | 25 m³/h 2.5bar | 35 m³/h 2.5bar | 35 m³/h 2.5bar | ||||||||
Inlet&outlet connection size | DN25 | DN32 | DN40 | DN40 | DN50 | DN50 | DN50 | DN65 | DN65 | ||||||||
Cooling Water at 30℃ | 8m³/h | 10m³/h | 16m³/h | 20m³/h | 25m³/h | 30m³/h | 38m³/h | 55m³/h | 70m³/h | ||||||||
Expansion tank | 100L | 175L | 250L | 350L | 500L | 600L | 750L | 1000L | 1350L | ||||||||
Compressor | Dorin semi-closed compressor | Dorin compressor/HANBELL、Fusheng | |||||||||||||||
Operation Panel | 7-inch color touch screen display, temperature curve record | ||||||||||||||||
Circulation Pump | LNEYA Mangetic Pump/German Brand Mangetic Pump | ||||||||||||||||
Evaporator | Danfoss/KAORI plate heat exchanger | ||||||||||||||||
Condenser | Casing type water-cooled condenser / tube-type water-cooled condenser | ||||||||||||||||
Electric | AC contactors, intermediate relays, circuit breakers, thermal relays, etc. are Schneider / ABB brand | ||||||||||||||||
Piping material | Expansion tank, cold storage tank and circulation pipeline are all made of SUS304 | ||||||||||||||||
Case material | Channel steel + square tube + cold rolled plate sealing plate spray 7035 | ||||||||||||||||
Refrigerant | R404A/R23 | ||||||||||||||||
Dimension cm | 100*150 *185 | 100*150 *185 | 250*145 *205 | 205*145 *205 | 205*145 *175 | 245*145 *205 | 300*160 *225 | 350*160 *205 | 400*160 *225 | ||||||||
Power max 380V 50HZ | 10KW | 14KW | 22KW | 31KW | 45KW | 61KW | 86KW | 127KW | 167KW | ||||||||
Optional | Optional outside touch screen display controller (separated), the communication line distance is 10 meter | ||||||||||||||||

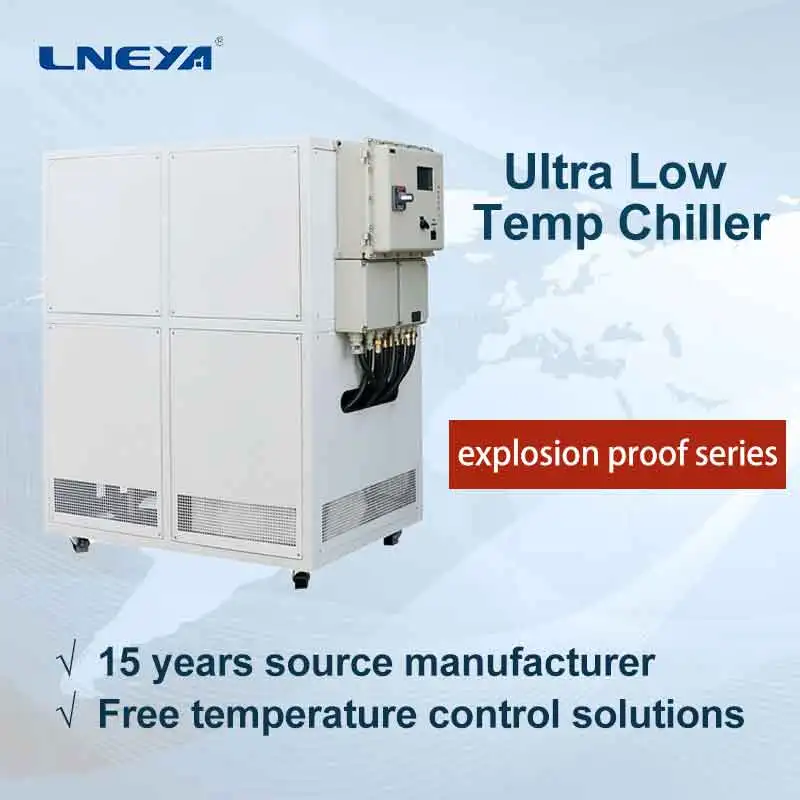

Optional | Optional explosion-proof touch screen control system (ExdeIIBT4), the communication line distance is 15 meter | ||||||||||||||||
Weight kg | 800 | 950 | 1100 | 1350 | 1500 | 1800 | 2400 | 3100 | 3600 | ||||||||
LNEYA has several high-quality designers with rich experience in ultra-low temperature and high-low temperature development. At present, the company is at the advanced level of its peers in the R & D of refrigeration technology, at the international advanced level in the research of high and low temperature rapid temperature rise and fall technology, and at the advanced level in the research of single medium temperature control of reactor.
Company Profile
Wuxi Guanya Refrigeration Technology Co., Ltd. specialized in the industrial chiller, environmental chamber, industrial freezer, thermostatic bath, multi-reactor chiller (TCU), recirculating air control system and ultra-low temp. water-cooled chiller.We are the technology leader for high precision thermoregulation solutions in research and development industry. Our products offer temperature control solutions for applications from -152 to +350℃.
Exhibition
LNEYA attends various exhibitions at home and abroad every year. At the exhibition, we show the latest research equipment of LNEYA. Every year, long-term cooperative customers will come to exhibitions and communicate with us. We are also actively developing new customers to provide them with high quality machines and services.
Certifications
So far, LNEYA has 11 patents of utility model authorized certificate.
As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems. The products of LNEYA, CE is used as a permit for the product to enter the European market.
FAQ
Q: How many years have your factory been established？
Our company was established in 2006, registered the LNEYA trademark in 2007 and began to develop industrial temperature control equipment.
Q: Are you a trader or a manufacturer？
We are a professional manufacturer of industrial temperature control equipment, and have agents in the United States, South Korea, Russia, Thailand and India.
Q: How long is the warranty?
One-year free warranty. During the warranty period, no maintenance fees and accessory fees will be charged (the cost of spare parts will be charged for instrument failure caused by human factors). After the warranty period, the equipment will be responsible for maintenance for life, and appropriate fees will be charged according to the actual maintenance costs.
Q: Do you provide customized services?
Of course, you only need to send your specific requirements, and we will provide you with the products you want.
Our company was established in 2006, registered the LNEYA trademark in 2007 and began to develop industrial temperature control equipment.
Q: Are you a trader or a manufacturer？
We are a professional manufacturer of industrial temperature control equipment, and have agents in the United States, South Korea, Russia, Thailand and India.
Q: How long is the warranty?
One-year free warranty. During the warranty period, no maintenance fees and accessory fees will be charged (the cost of spare parts will be charged for instrument failure caused by human factors). After the warranty period, the equipment will be responsible for maintenance for life, and appropriate fees will be charged according to the actual maintenance costs.
Q: Do you provide customized services?
Of course, you only need to send your specific requirements, and we will provide you with the products you want.
