Full Automatic Plastic Shopping Bag T-shirt Bag Making Machine
US $33000-$53000
Двойной V образный складной перфорированный плоский мешок для мусора на рулонах
- Category: Packaging Material Making Machine >>>
- Supplier: Zhejiang Baihao Intelligent Equipment Co. Ltd.
Share on (1600538187487):
Product Overview
Description
Products Description
BL720B2-AR2 Double lines garbage bag making machine
The BL720B2-AR equipment is for making rolling garbage bags in efficient production by automatically changing plastic rolls. The rewinder rolls are tight and in order. Sealing type can be Star sealing. And it uses heat sealing and heat cutting, it also suits for printing and non-printing bag making. The materials for making bag can be HDPE, LDPE, LLDPE, PLA or any other biodegradable materials.
Machine type: Feeding Folded Film Rolls Before Sealing
Optional choice: Double V-folding Devices
Optional choice: Double V-folding Devices
Product Video
Product Paramenters
Model | BL720B2-AR2 | |
Voltage | 380V | |
Total Power | 14KW | |
Average Power | 8KW | |
Film Width (Production roll width) | 100-280mm (Extra to 300mm) | 3.93 - 11.02 inches (Extra 11.81 inches) |
Bag Width | 300-1200mm (Extra to 1200mm) | 7.87 - 40.15 inches (Extra 47.24 inches) |
Bag Length | 300-2000mm | 11.81 - 78.74 inches |
Line Speed | 120-130m/min | |
Production Speed | 480-520pcs/min | |
Machine Weight | 2900KG | |
Machine length | 6250mm | |
Machine Width | 2100mm | |
Machine Height | 1450mm |
Product Features
1. This bag making machine is applied to making perforation coreless rolling garbage bags or rubbish bags. And without paper-core
star sealing bags.
2. Double bag film rolls with double functions unwinding structure.
3. Folding unit *2sets.
4. The machine adopts computer control system.
5. Automatic rewinder. This machine is equipped with automatic bag rolls rewinding and changing
6. With functions such as double bag film roll unwinding, folding system, photocell automatic tracking, strong heat-sealing
device, microcomputer length setting, Taiwan Delta inverters, automatic counting, automatic alarm when reaching the set figure,
digital temperature controller, automatic bag rolls rewinding and changing.
7. It is an ideal fully automatic equipment to produce roll garbage bags, or for the bag plant to improve efficiency and reduce
the labor demand device of choice.8. This machine has IOT system, remote diagnosis & remote upgrade available.
star sealing bags.
2. Double bag film rolls with double functions unwinding structure.
3. Folding unit *2sets.
4. The machine adopts computer control system.
5. Automatic rewinder. This machine is equipped with automatic bag rolls rewinding and changing
6. With functions such as double bag film roll unwinding, folding system, photocell automatic tracking, strong heat-sealing
device, microcomputer length setting, Taiwan Delta inverters, automatic counting, automatic alarm when reaching the set figure,
digital temperature controller, automatic bag rolls rewinding and changing.
7. It is an ideal fully automatic equipment to produce roll garbage bags, or for the bag plant to improve efficiency and reduce
the labor demand device of choice.8. This machine has IOT system, remote diagnosis & remote upgrade available.
Product Details
Automatic unwinding unit
High precision perforation heat sealing & cutting
EPC + tension control
PLC touch screen control
Automatic rewinding unit with high-speed auto sticker
Optional choice: V-folding device

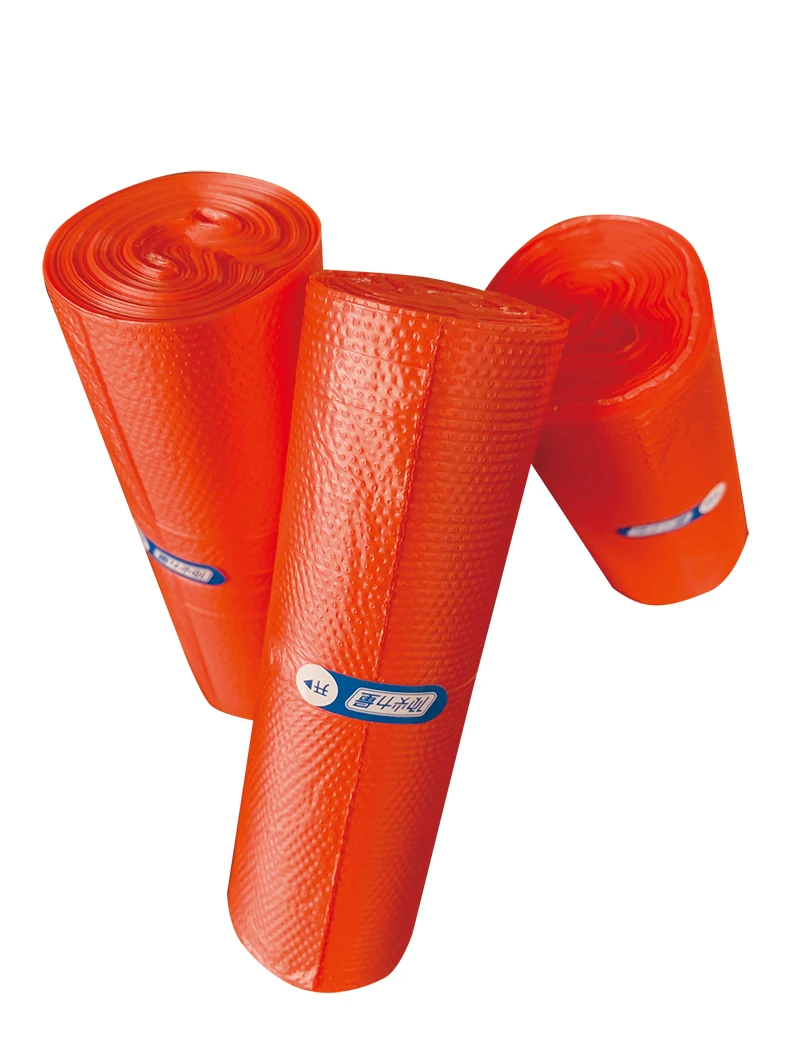

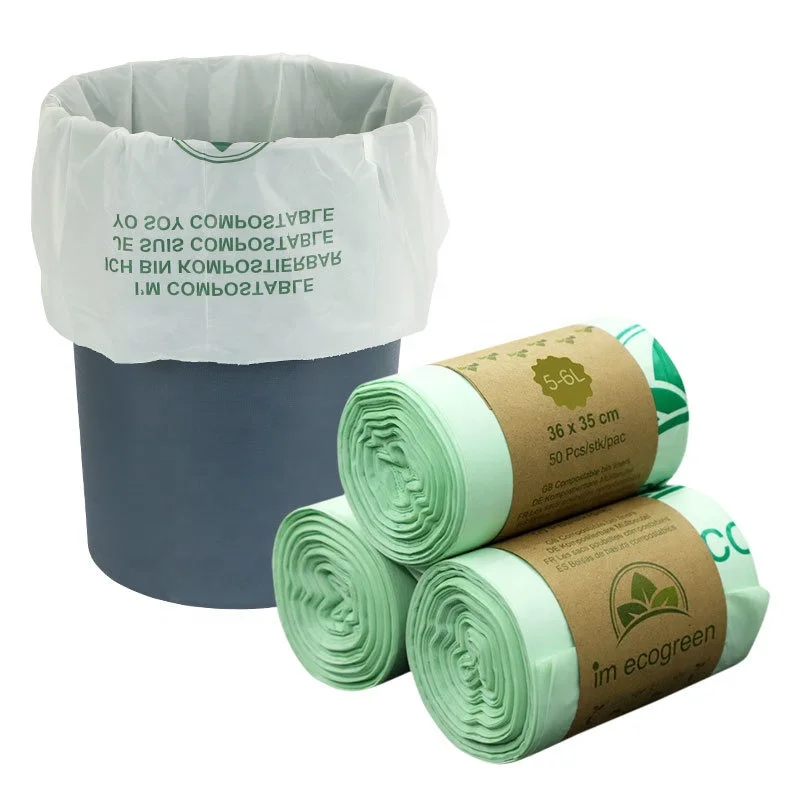

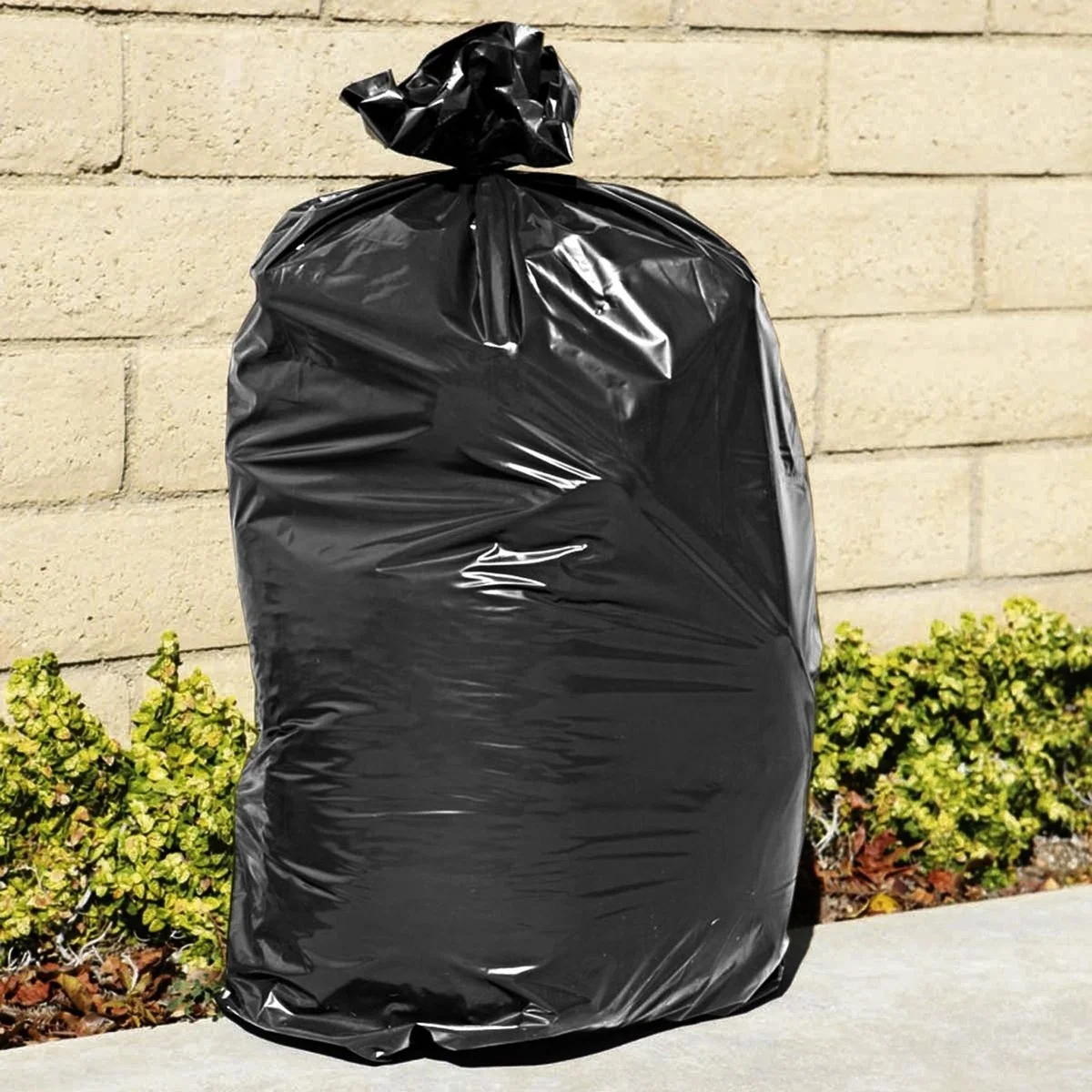

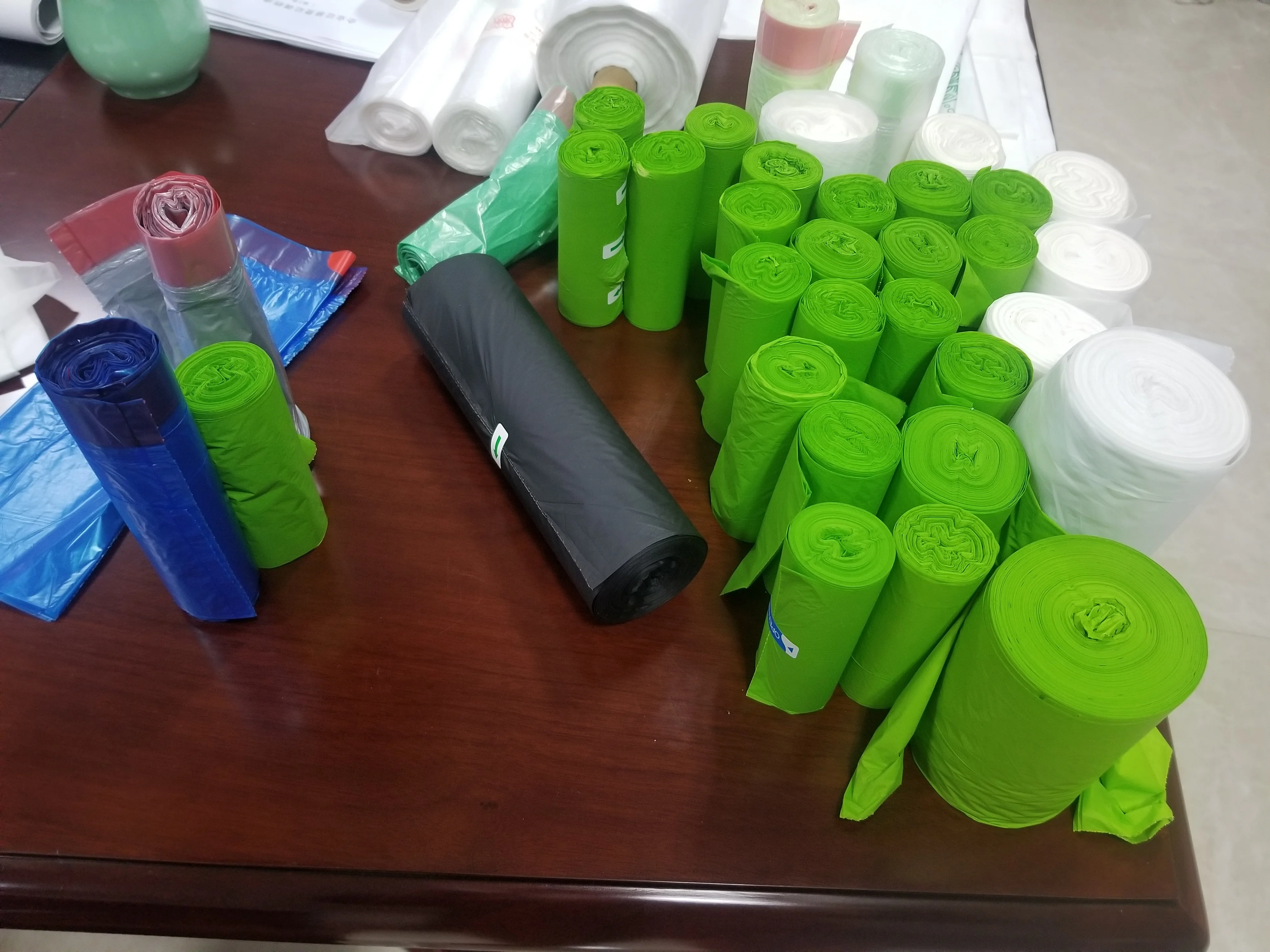

Production Bag Samples
Baihao has a single working moto "Good Service results in Good Business". Our vision, we thus deliver on this philosophy and help industries around the country flourish and grow stronger. We envision changing the process of the industry by establishing the importance of creativity that births with Research and Development. With this aim in mind, we look forward to becoming the best China and International plastic bag making machine manufacturer.
1. Baihao begins with Innovation & Ends with satisfaction.
2. Baihao believes in Creativity, Innovation and satisfaction.
3. Ultimate Solution to make your business standout.
Our mission, Leveraging the use of modern technology, baihao has the ultimate vision of catering to the clients' needs at an
affordable cost with the premium products that match the international standards of production.
1. Baihao all about Discover, Develop, Grow and Commercialized with care.
2. To fulfil customer expectations in Quality, Delivery and cost with customer interaction.
3. We Work with the best to get the best.
