NO Battery powered Eink Paper display 1.54 inch color small square eink panel
Products Description

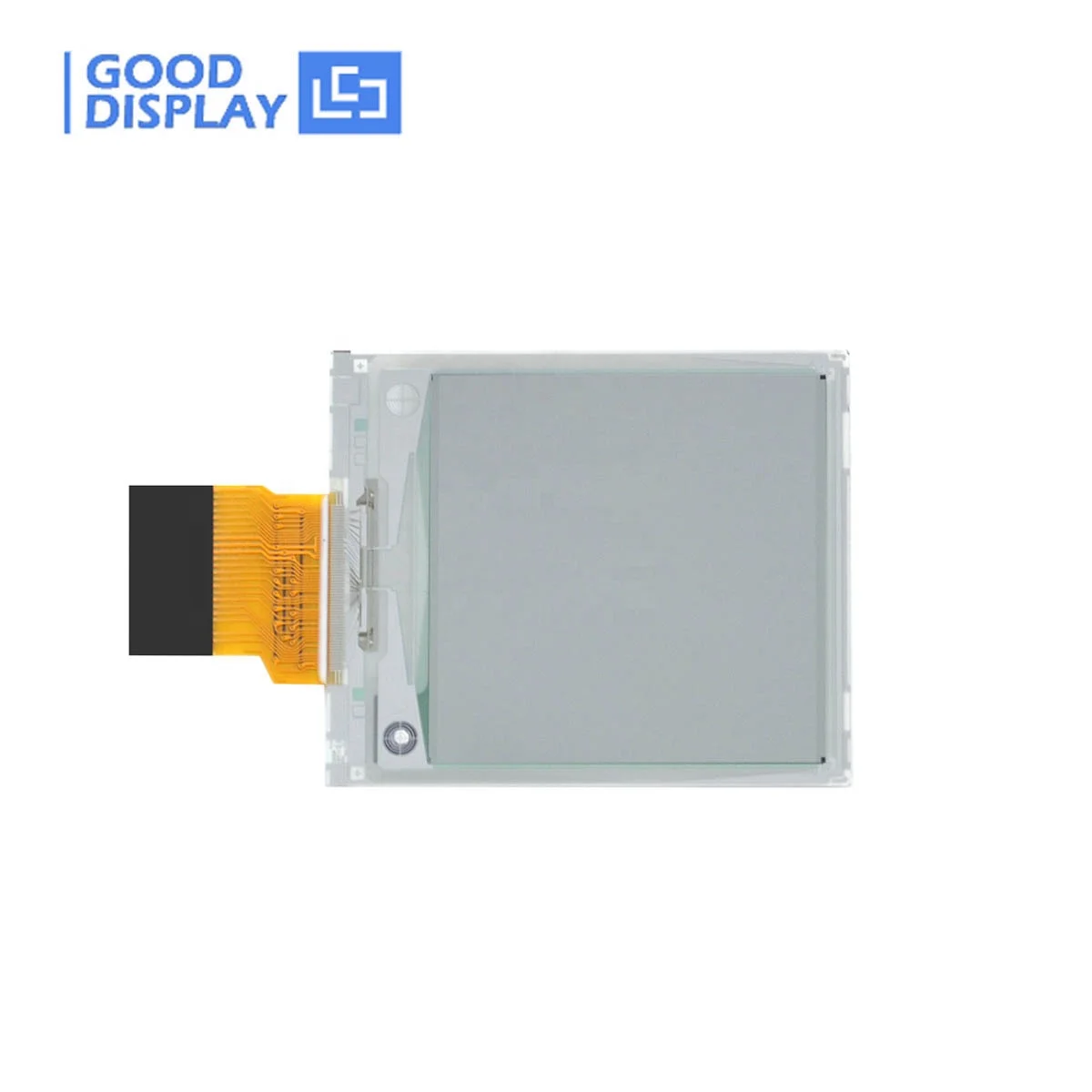

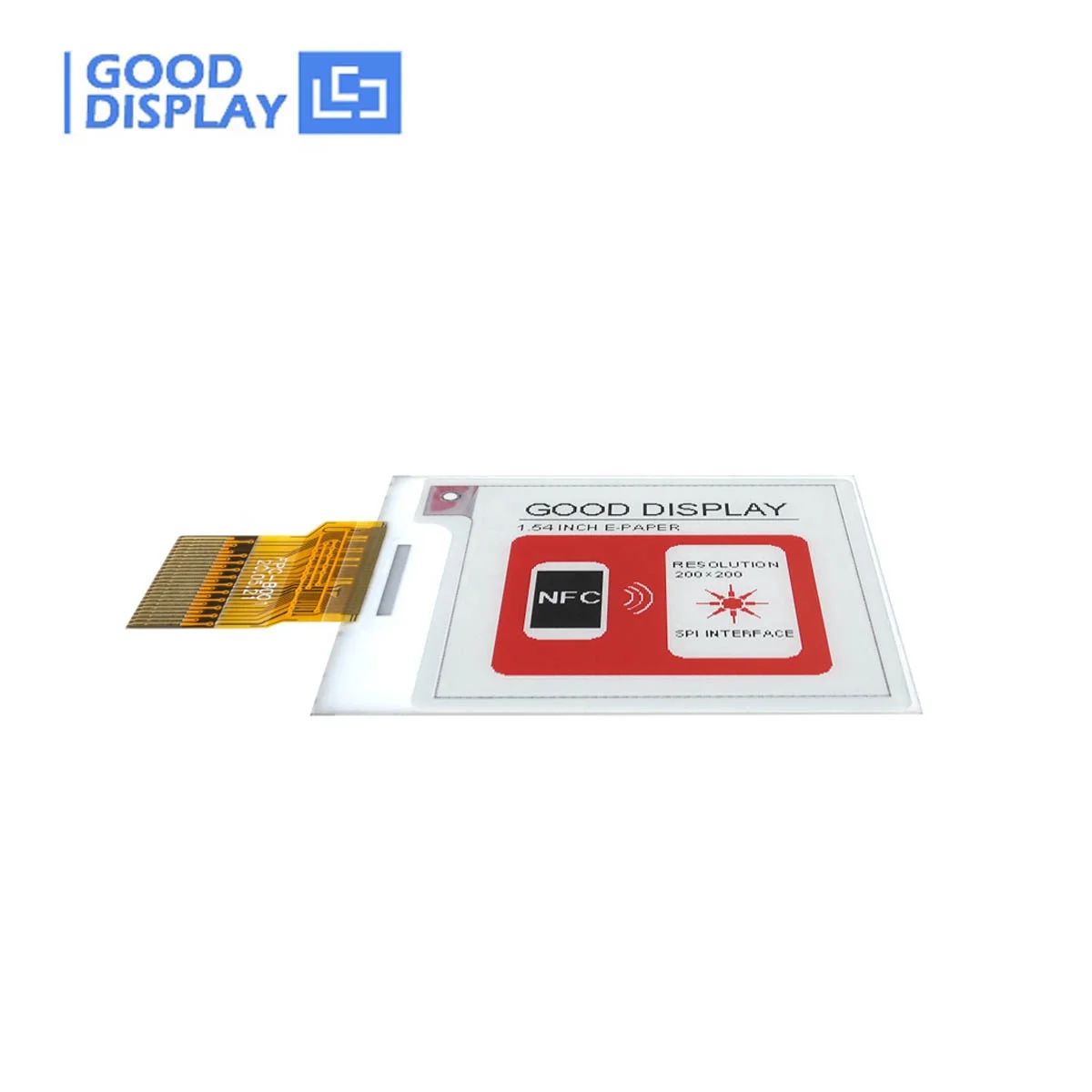

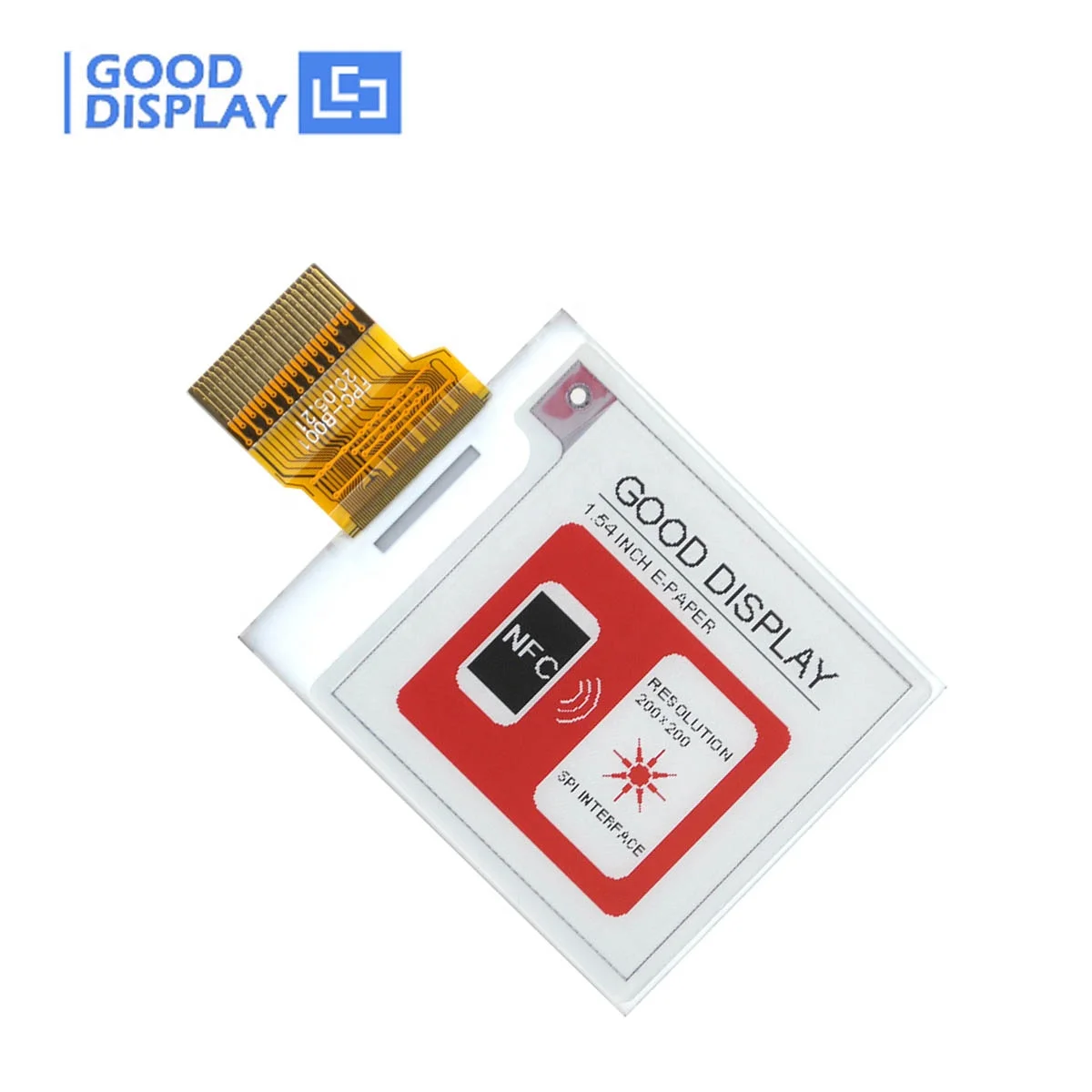

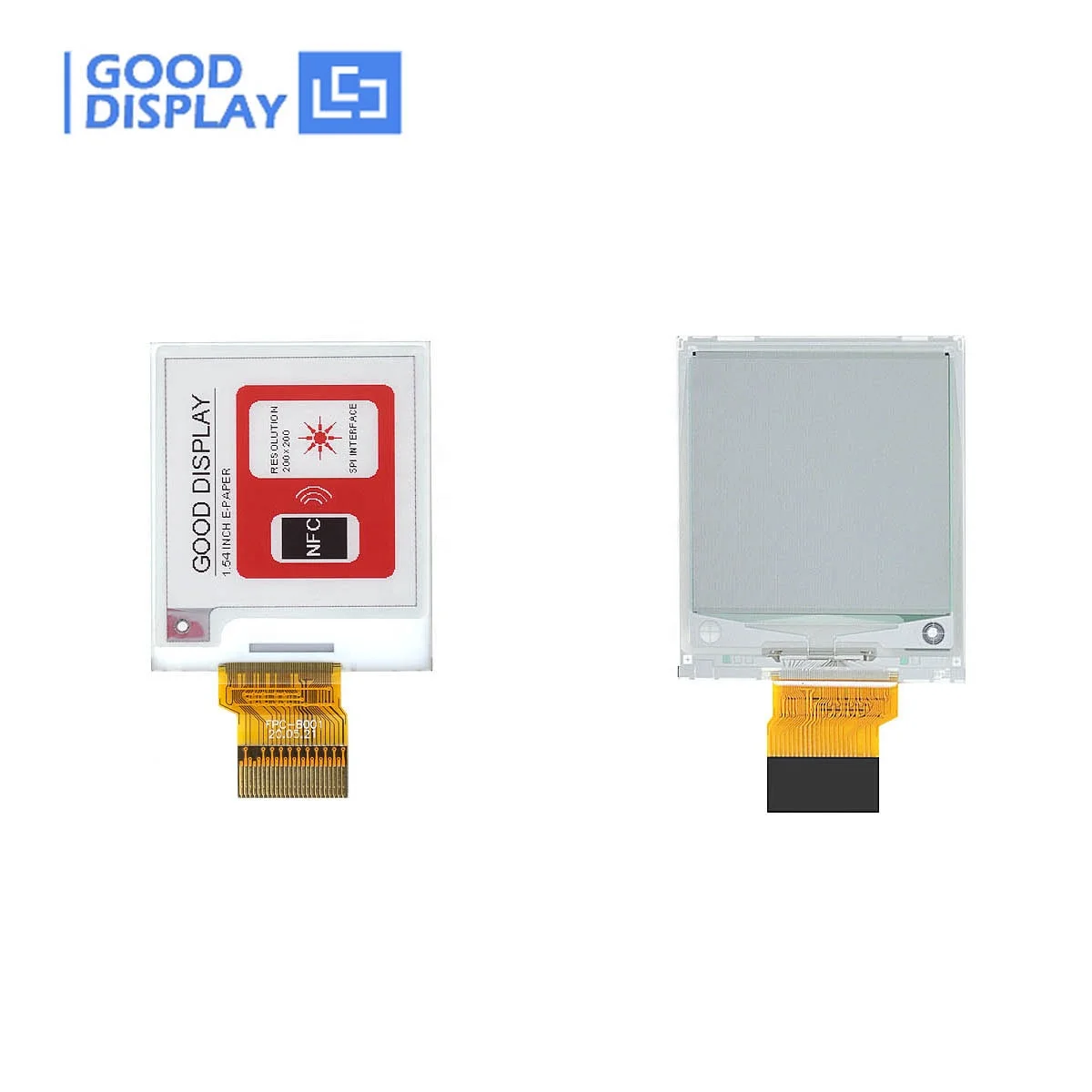

This is a color epaper small e-ink, 1.54 inch, 200x200 resolution, SPI interface, and the color e-paper display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-ink screen modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This tri-color epaper screen display GDEY0154Z90 is perfect for low power devices powered by solar or batteries.
We provide the E-Ink Adapter Board for you to connect the E-paper Display.
We could provide front light, touch screen and other accessories for you.
Use our free e-paper software to prepare your bitmap image for this display.
* This e-ink display module DOES NOT support partial updates
We provide the E-Ink Adapter Board for you to connect the E-paper Display.
We could provide front light, touch screen and other accessories for you.
Use our free e-paper software to prepare your bitmap image for this display.
* This e-ink display module DOES NOT support partial updates
PART NUMBER | GDEY0154Z90 |
TYPE | Dot Matrix |
SIZE | 1.54 inch |
IC | SSD1681 |
RESOLUTION | 200x200 |
OUTLINE SIZE(mm) | 37.32x31.80x0.98 |
ACTIVE SIZE(mm) | 27x27 |
PIXEL PITCH(mm) | 0.14x0.14 |
OPERATING TEMP. | 0℃~40℃ |
STORAGE TEMP. | -25℃~60℃ |

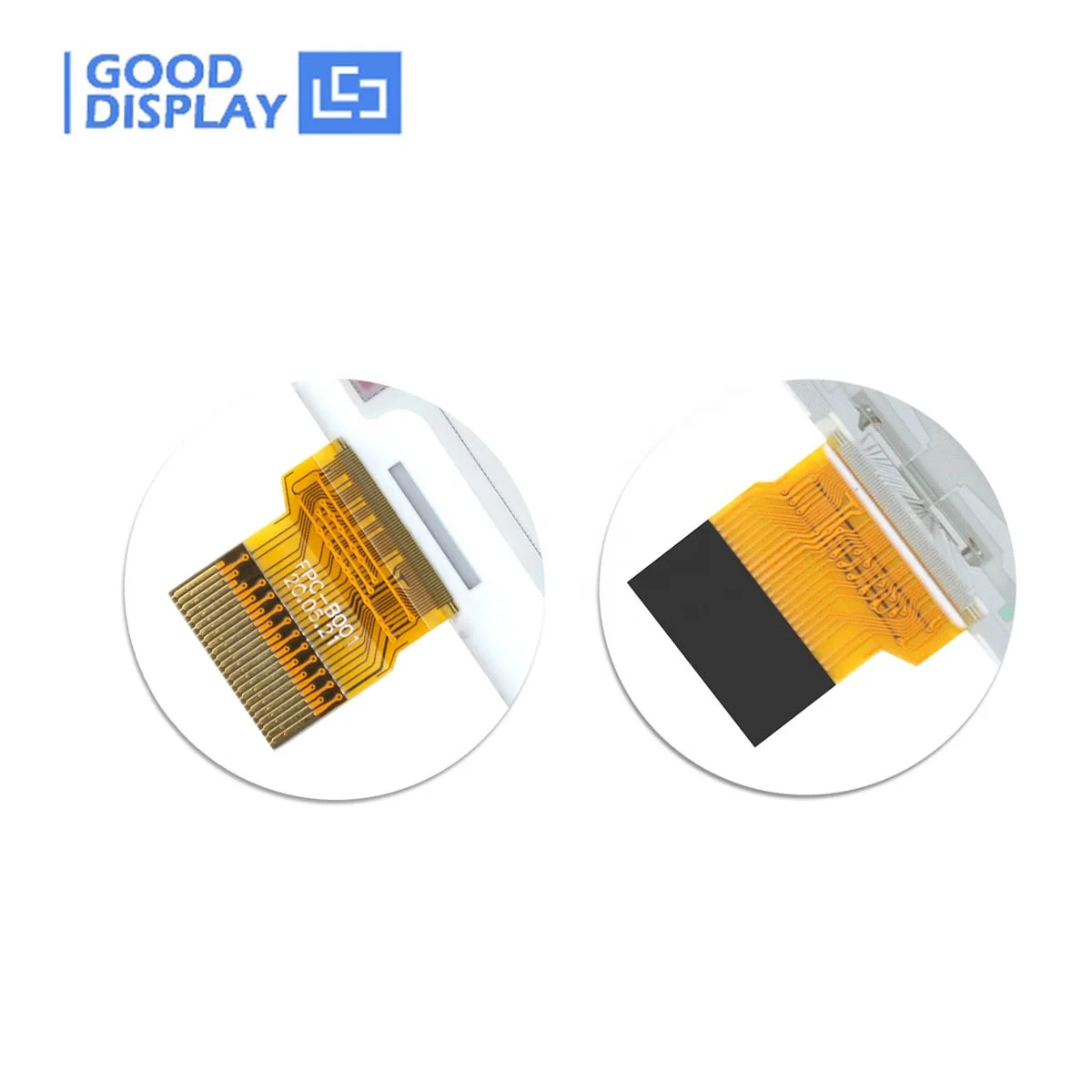

CONNECTOR | 24 Pin FPC |
MAX GRAYSCALE | 2 |
COLOR | Black, White, Red |
INTERFACE | SPI |
FULL REFRESH(s) | 16 |
POWER CONSUMPTION OF THE REFRESH(mW) | 7.5 |
STANDBY POWER CONSUMPTION (mW) | 0.003 |
How does E-paper Display Work?
Features
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful
Other Products
E-Paper Display Q&A
Q: How large/small can Matrix e-ink displays be?
A: At present, the largest e-ink display is 32 inch E-ink Display, and the smallest e-ink display is 0.97 inch E-ink Display.
Q: Storage humidity for electronic paper.
A: 40% to 70%.
Q: Does Good Display provide or support flexible matrix displays?
A: The flexibility of an EPD display is controlled by the backplane. Good Display does support flexible backplanes, if you're intrested, please contact us.
Q: Can an Matrix e-ink display support animation or video rates?
A: Using the faster update modes, e-ink screens can support animation quality video rates. A number of examples are available from customers that show examples of e-ink screens showing video.
A: At present, the largest e-ink display is 32 inch E-ink Display, and the smallest e-ink display is 0.97 inch E-ink Display.
Q: Storage humidity for electronic paper.
A: 40% to 70%.
Q: Does Good Display provide or support flexible matrix displays?
A: The flexibility of an EPD display is controlled by the backplane. Good Display does support flexible backplanes, if you're intrested, please contact us.
Q: Can an Matrix e-ink display support animation or video rates?
A: Using the faster update modes, e-ink screens can support animation quality video rates. A number of examples are available from customers that show examples of e-ink screens showing video.
Q: Any solution to achieve lower power consumption of E-paper display?
A: After E-paper enters deep sleep mode, turn off the driving circuit and IC power supply so that the electronic paper can achieve zero power consumption.
A: After E-paper enters deep sleep mode, turn off the driving circuit and IC power supply so that the electronic paper can achieve zero power consumption.
