Hot Sale Pb free Energy Saving 0603 0805 1206 Red Green Blue Smd Led Chip On Board
- Category: >>>
- Supplier: Shenzhen Hongying Technology Co. Ltd.
Share on (1600538225288):
Product Overview
Description

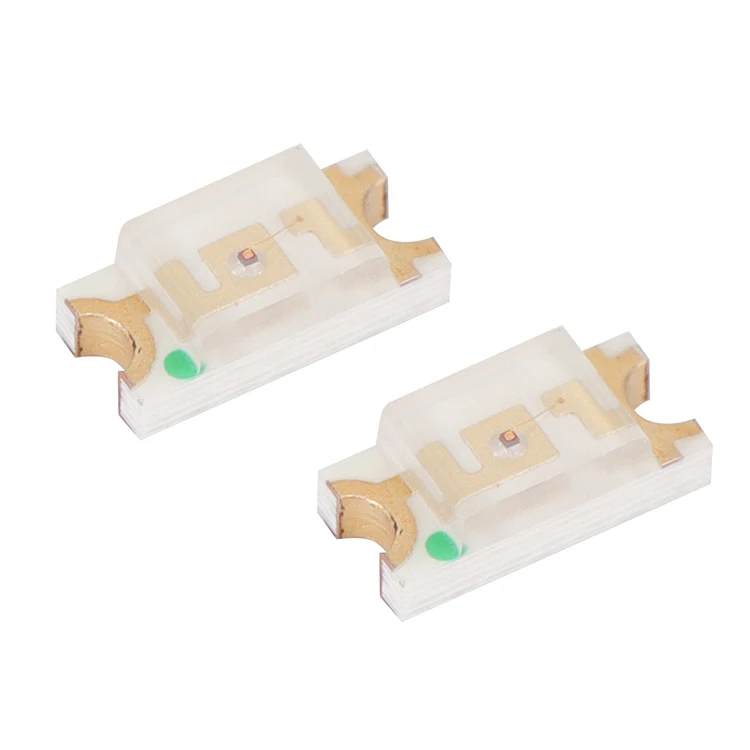

Hot Sale Pb-free Energy Saving 0603 0805 1206 Red Green Blue Smd Led Chip On Board
Absolute Maximum Ratings (TSoldering=25℃)
Parameter | Symbol | Rating | Unit | |||
Forward Current | IF | 60 | mA | |||
Peak Forward Current (Duty 1/10 @1ms) | IFP | 150 | mA | |||
Power Dissipation | Pd | 140 | mW | |||
Operating Temperature | Topr | -40 ~ +85 | ℃ | |||
Storage Temperature | Tstg | -40 ~ +100 | ℃ | |||
Electrostatic Discharge (HBM) | ESD | 2000 | V | |||
Soldering Temperature | Tsol | Reflow Soldering : 260 ℃ for 10 sec. Hand Soldering : 350 ℃ for 3 sec. | ||||
Note: The products are sensitive to static electricity and must be carefully taken when handling products. | ||||||
Electro-Optical Characteristics (TSoldering=25℃)
Parameter | Symbol | Min. | Typ. | Max. | Unit | Condition | ||||||
Luminous Intensity | IV | 450 | -------- | 900 | mcd | IF=20mA | ||||||
Peak Wavelength | λp | -------- | 632 | -------- | nm | IF=20mA | ||||||
Dominant Wavelength | λd | 617.5 | -------- | 629.5 | nm | IF=20mA | ||||||
Forward Voltage | VF | 1.7 | -------- | 2.3 | V | IF=20mA | ||||||
Viewing Angle | 2θ1/2 | -------- | 130 | -------- | deg | IF=20mA | ||||||
Reverse Current | IR | -------- | -------- | 10 | uA | VR =5V | ||||||
1. Tolerance of Luminous Intensity: ±10%. 2. Tolerance of Dominant Wavelength: ±1nm. 3. Tolerance of Forward Voltage: ±0.1V. | ||||||||||||

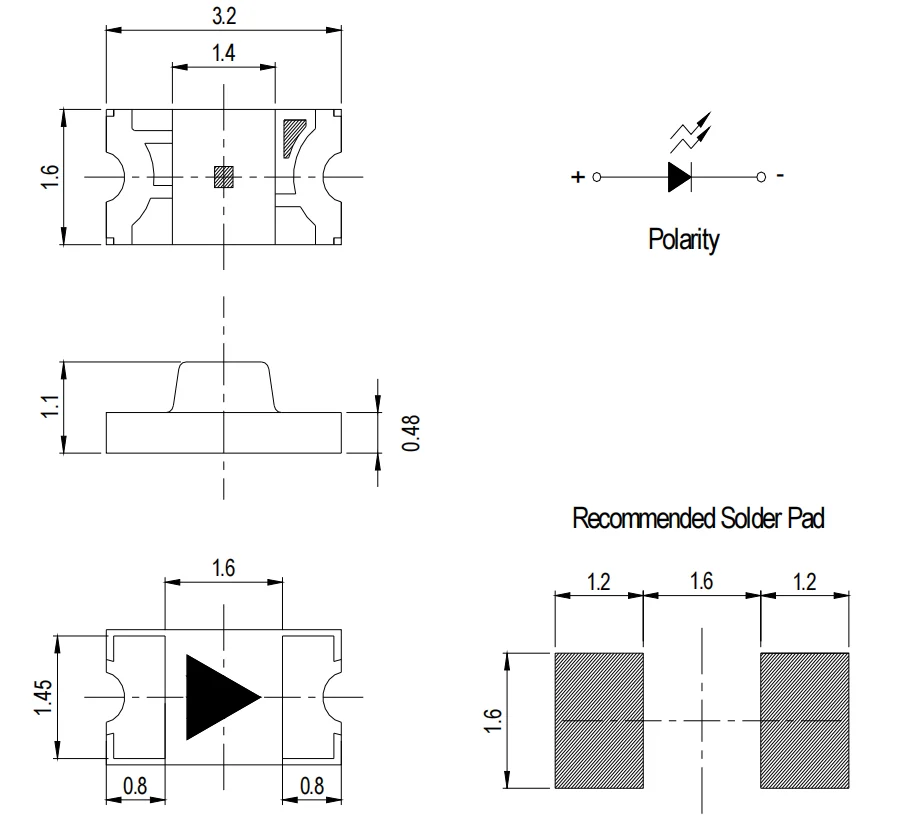

Package Dimensions
Note:
Tolerance unless mentioned is ±0.1mm,Unit = mm.
Our Advantages
FAQ
Q:How about the quality of the leds?
A:Please do not worry about the quality. Our company is the main manufacturer of LEDs in China. Our products have exported worldwide since the year 2010.
Q:Do you offer Custom-made ?
A:Yes , we offer this , but we will charge cost for the custom-made samples .
Q:Can I get free sample?
A:Yes, we can offer free sample for you to check before orderas long as you afford the express freight.
Q:What’s the lead time?
A:Samples delivery out in 3-7 working days.Lead time of mass production needs to negotiate, it depends on quantity.
Q:How about the payment terms?
A:Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment). Please note we do EXW/FOB/CNF/CIF/DDU/DDP.
