Price:$620.00 - $680.00

Quantity:


Product Overview

Description





Good Quality 8 Pon Ports Ftth Equipment
Epon Connecting Olt Port Amplifier Olt
WK-OLT-8P EPON OLT product is a 1U rack-mounted device with L3 function. It comply with IEEE802.3ah standard and China CTC 2.1/3.0 standard, compatible with mainstream brand ONU access, easy to build EPON network flexibly and efficiently. It is smart, easy to deploy, high performance, and secure green. It meets the requirements of equipment performance and volume in different environments, and provides users with stable, efficient and value-added network access services.






Login WEB
WEB Configuration


Command Line Interface
Tr069 Working


Technical Support

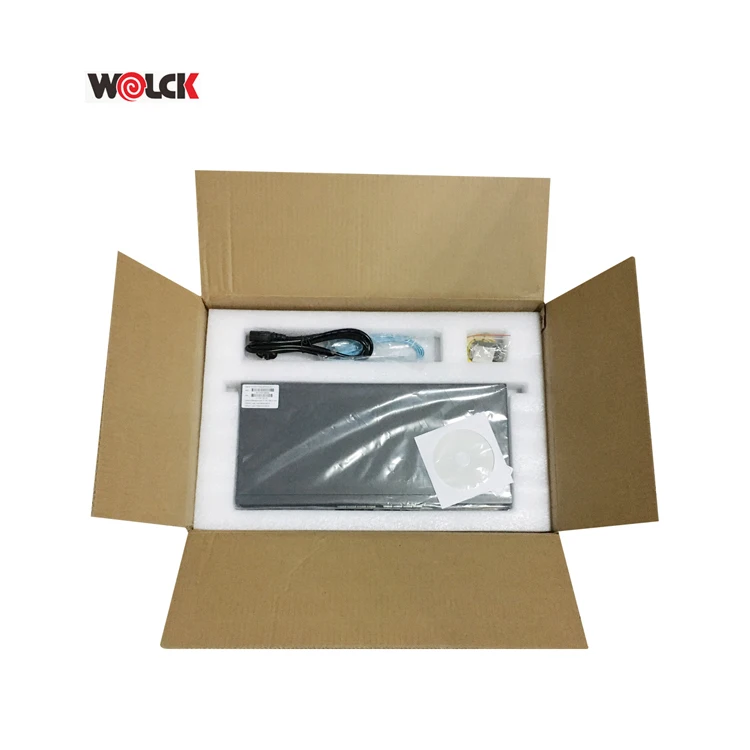

Packaging




Products Name
8 Pots EPON OLT

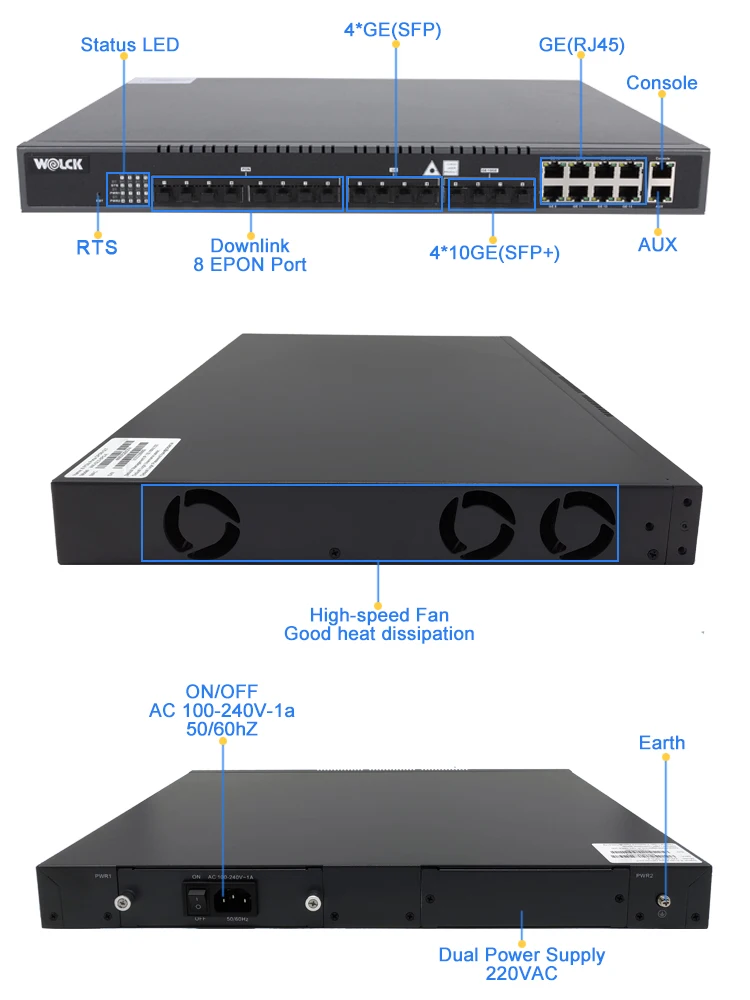

Data Interfaces
Provide 8 PON ports
Provide 4 GE WAN Interfaces (with 1.25G SFP Optical Transceiver or 1000Base-T
SFP Copper Transceiver)

Management Interfaces
Provide one 10/100Base-T RJ45 out-band management interface
Out-band management interface via any GE WAN interface
Provide RS232 serial configuration port
Data Switch
Support L3 Ethernet switch, 200Gbps switch capability with no any blocking


LED indications
RUN, ALM, PW1, PW2 indicates the status of system running, alarm and power
supplies
PON1 to PON8 indicates LINK and Active status of each PON port
GE1 to GE4 indicates LINK and Active status of each GE WAN interface

Power Supply
220V /1A AC power supply (may change to DC power supply or dual power
supplies according to customer requirements)
Typical power consumption 60W
Weight
4.6kg
Case Temperature
0-55
Size
322.1mm (Length) * 482.60mm (Width) * 44.7mm (Height)


















Shenzhen Wolck Network Porducts Co.,Ltd. is located in Shenzhen city which is one of the first-tier cities in China. Wolck company is a high-tech enterprise specializing in the development of technology and equipment for EPON/GPON/CATV equipments.Production and equipments detailed can be shown online, and all products will be passed the test before shipment.
Wolck company not only offer equipments but also offer technical support and best service for after-sales. Wolck company also is Quality Guarantee Enterprise, got the ISO9000 cetificate, and offer cetificates such as CE, CO, FORM-E/F/M etc.
