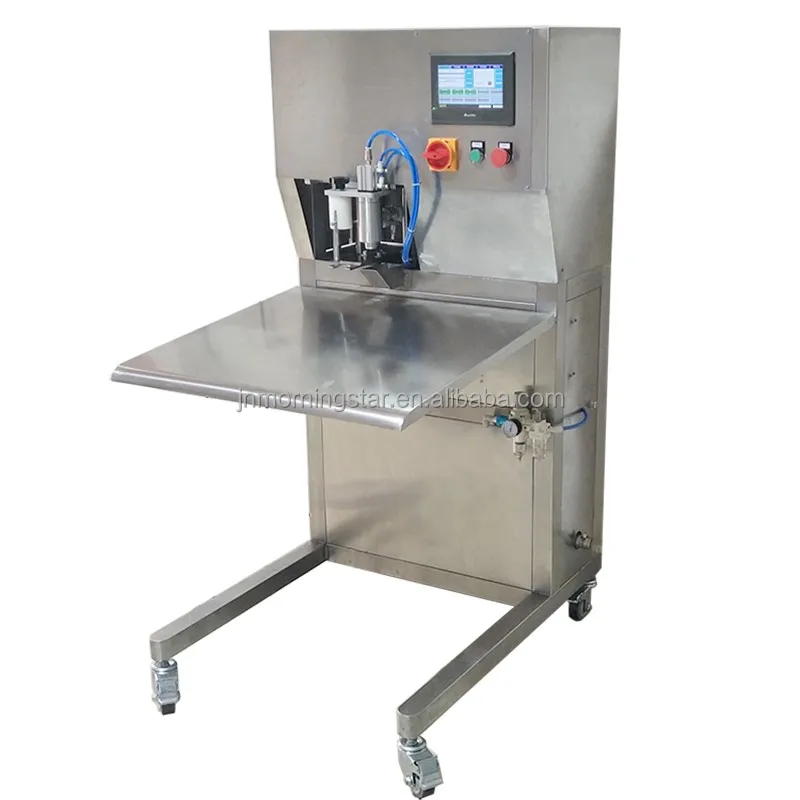

1 to 30 Liter automatic bag in box or pouch filler wine juice beverage water bib filler equipment aseptic filling machine
- Category: >>>
- Supplier: Jinan Morningstar Machinery Equipment Co. Ltd.
Share on (1600538261009):
Product Overview
Description
Product Details

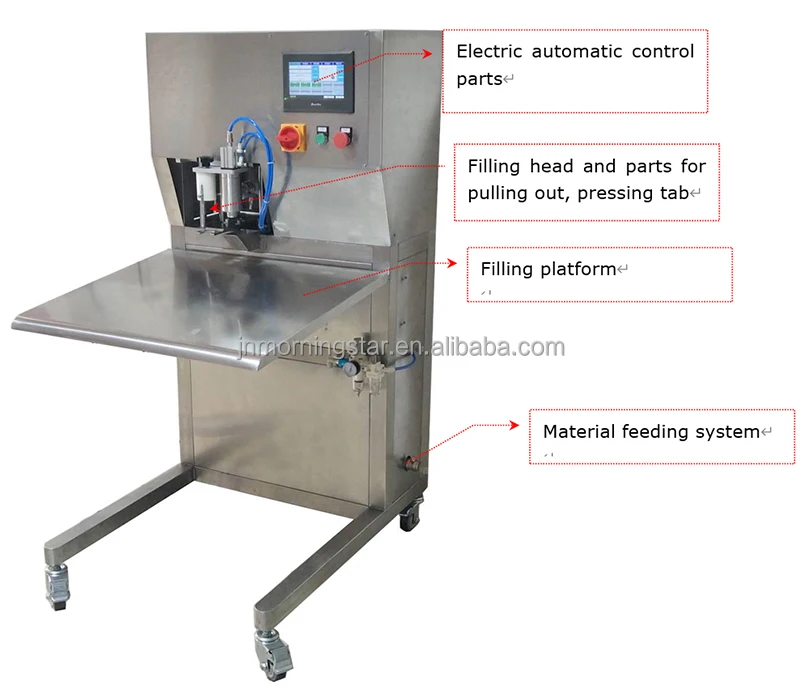

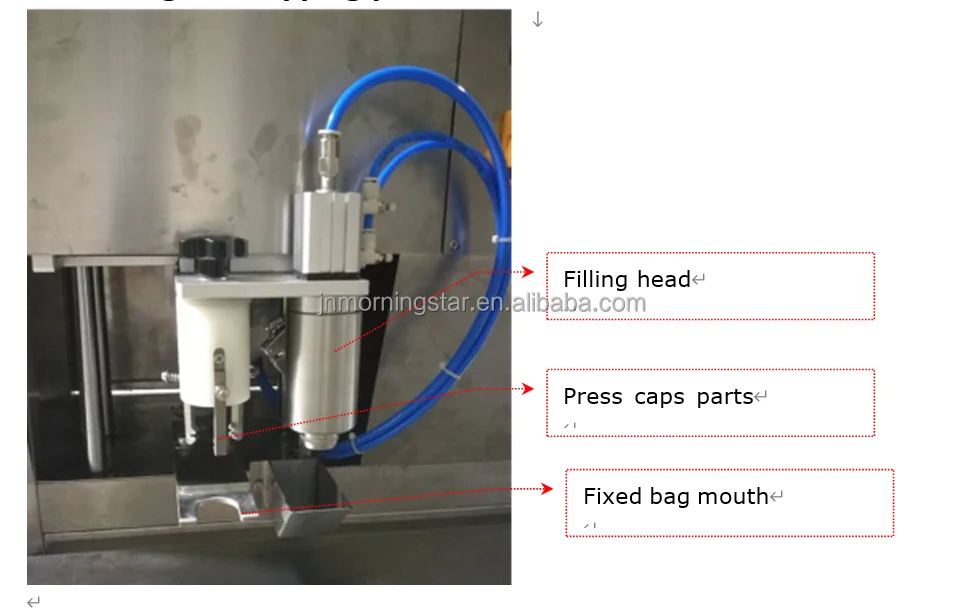

Filling and capping part
Insert the bag mouth into the feeding trough, start the machine, and automatically complete filling and capping

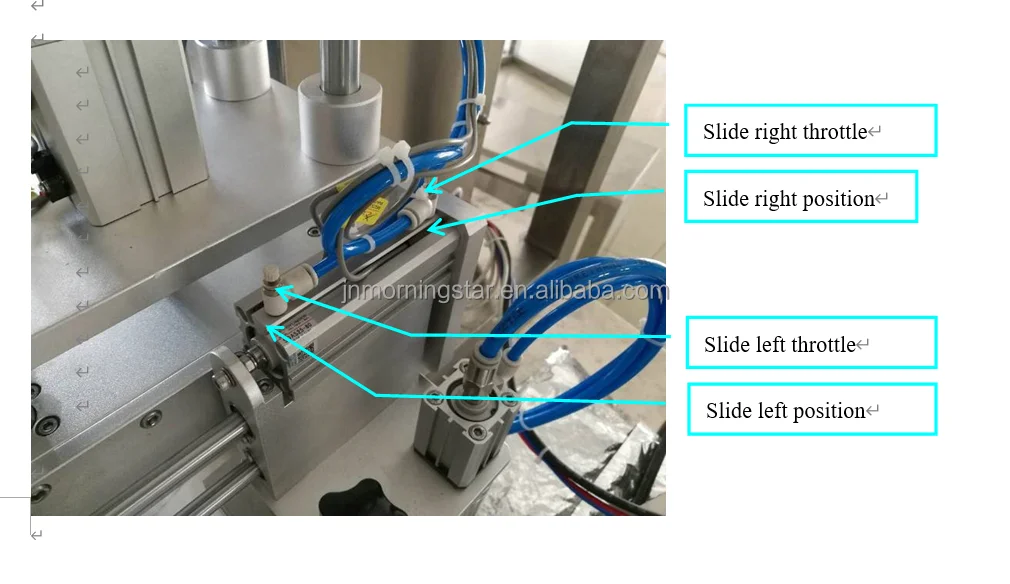

Left and right slide parts
After filling, it will automatically slide to the other side for capping

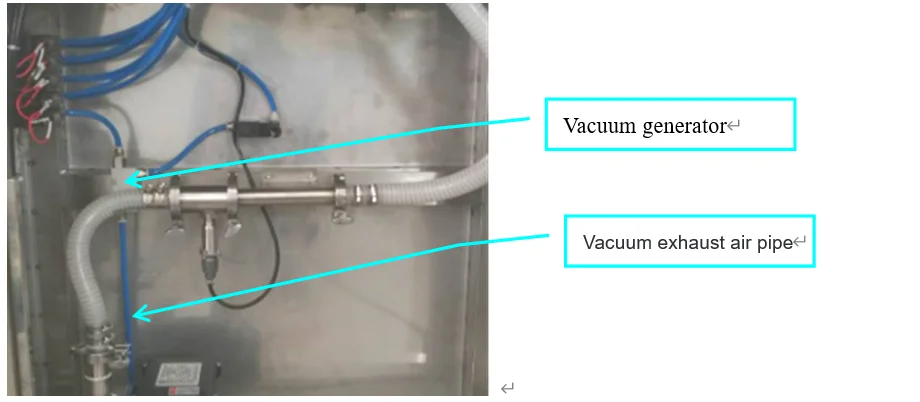

Vacuum generator
The main part of the vacuuming, vacuuming the bag before filling, discharging the bag air, discharging from the vacuum exhaust
pipe.
pipe.
Flow meter and motor
High-quality motors and high-precision flow meters ensure stable operation and filling accuracy

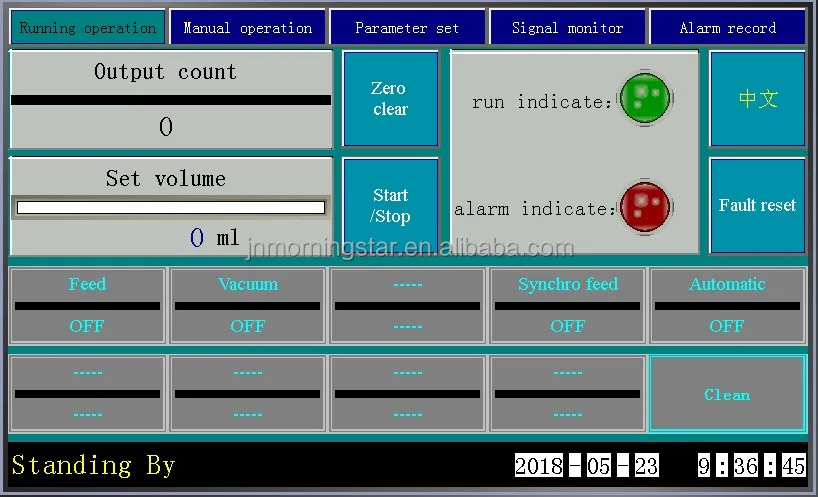

PLC control and touch screen
PLC stable control, simple touch screen operation

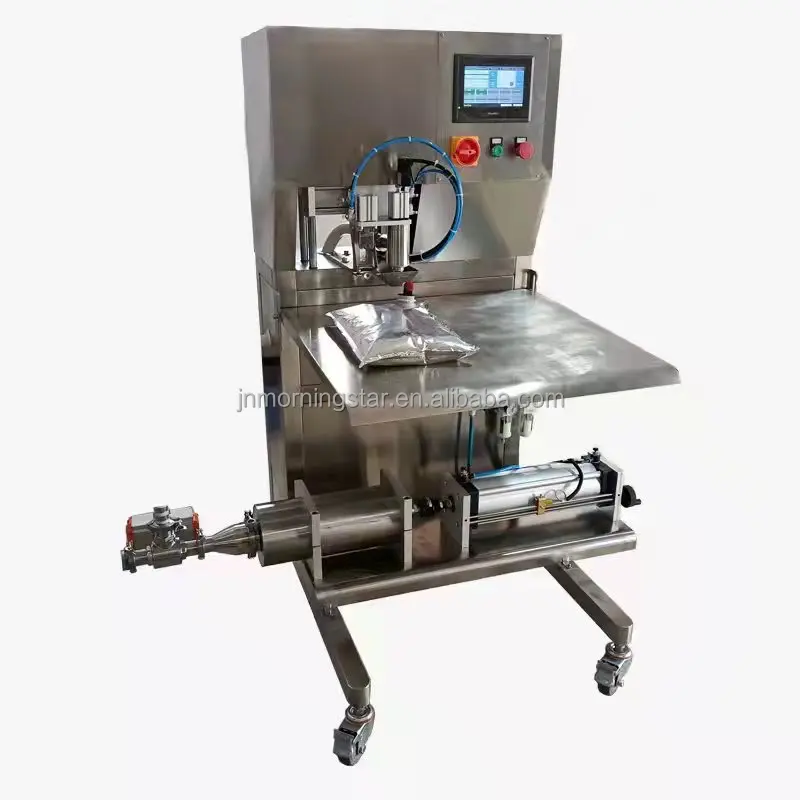

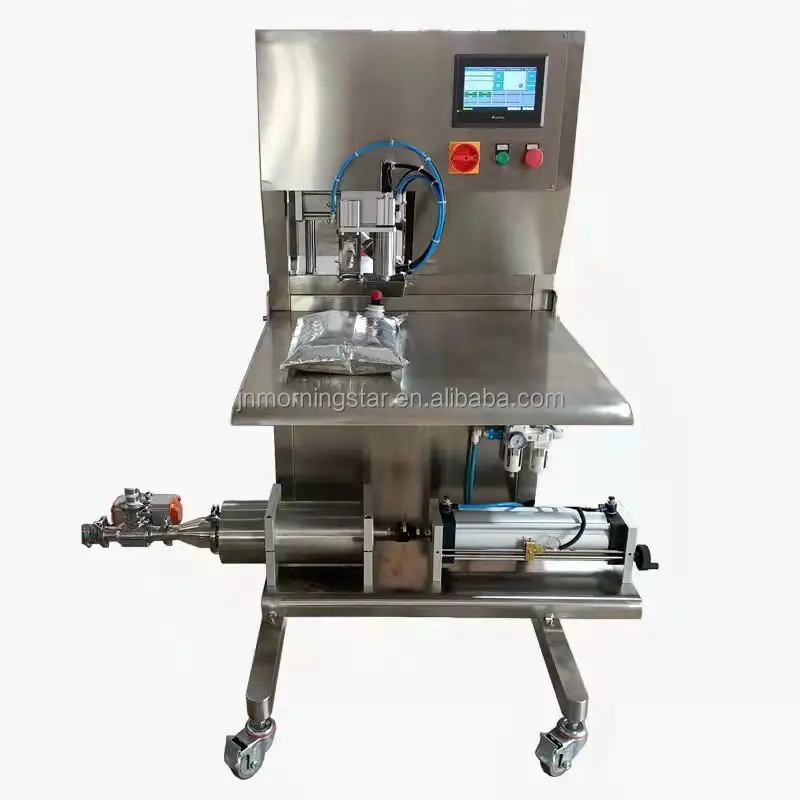

Product Description
The bag-in-box filling machine is designed by our company for the quantitative filling of bag-in-box (bag-in-box) based on advanced French technology. It adopts a flow meter measurement method, with high filling accuracy and very intuitive and convenient setting and adjustment of the filling volume; this machine has a novel design, reasonable and compact structure, and can automatically complete the processes of pulling out the cap, quantitative filling, vacuuming, and pressing the cap.
It is widely used for bag-in-box filling of egg liquid, wine, edible oil, fruit juice, additives, milk, syrup, alcoholic beverages, concentrated condiments, detergents, chemical raw materials and other materials.
It is widely used for bag-in-box filling of egg liquid, wine, edible oil, fruit juice, additives, milk, syrup, alcoholic beverages, concentrated condiments, detergents, chemical raw materials and other materials.
Performance characteristics:
1). The shell and frame are mainly made of high-quality stainless steel with beautiful appearance; the pipes in contact with materials are made of 304# stainless steel and food-grade plastic pipes, which meet the requirements of food hygiene.
2) It can automatically complete the processes of pulling out the lid, vacuuming, quantitative filling, and pressing the lid, with a high degree of automation.
3) It adopts flow meter measurement method, high filling accuracy and fast speed; filling volume setting and adjustment are convenient and quick.
4) Adopt PLC control and touch screen operation, intuitive display and convenient operation.
5) This machine can vacuum the bag before filling to reasonably extend the product shelf life. It can also be equipped with a nitrogen filling system after filling according to customer requirements (nitrogen filling function is not a standard configuration).
1). The shell and frame are mainly made of high-quality stainless steel with beautiful appearance; the pipes in contact with materials are made of 304# stainless steel and food-grade plastic pipes, which meet the requirements of food hygiene.
2) It can automatically complete the processes of pulling out the lid, vacuuming, quantitative filling, and pressing the lid, with a high degree of automation.
3) It adopts flow meter measurement method, high filling accuracy and fast speed; filling volume setting and adjustment are convenient and quick.
4) Adopt PLC control and touch screen operation, intuitive display and convenient operation.
5) This machine can vacuum the bag before filling to reasonably extend the product shelf life. It can also be equipped with a nitrogen filling system after filling according to customer requirements (nitrogen filling function is not a standard configuration).
Product Paramenters
Machine Model | MF-30 | ||
Power supply | AC220V 50HZ/60HZ Customize110V/380V | ||
Power | 0.4KW | ||
Air source | 0.6-0.8 Mpa | ||
Filling range | 1~30L | ||
Capacity | 220-240bags/h (when filling 3L) | ||
Dimension | 1000*650*1400mm | ||
Weight | 110 KG | ||
Certifications

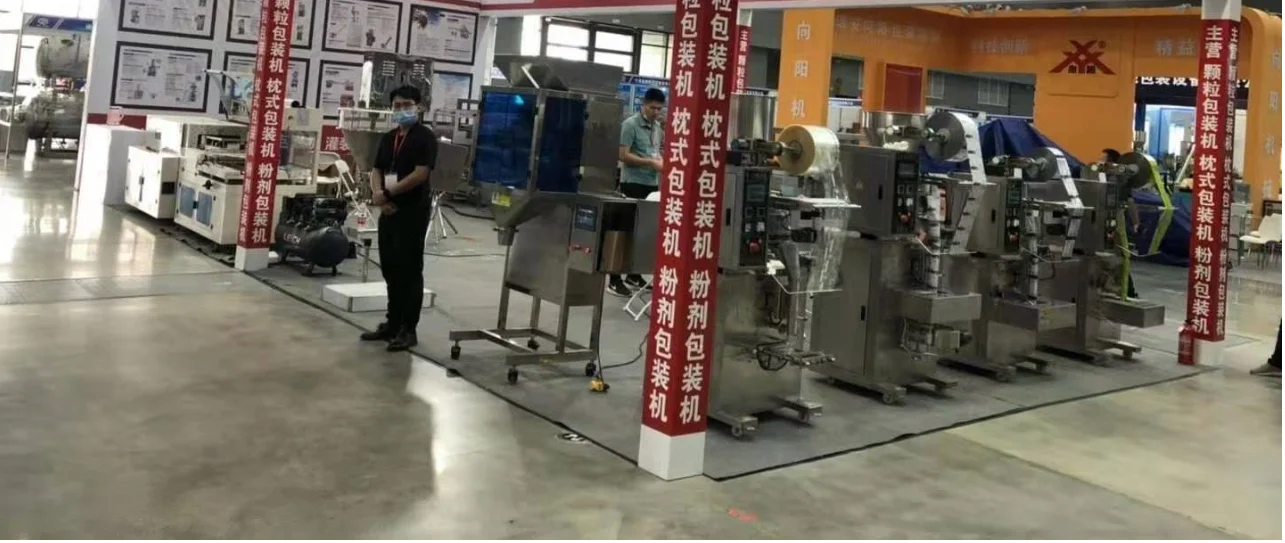

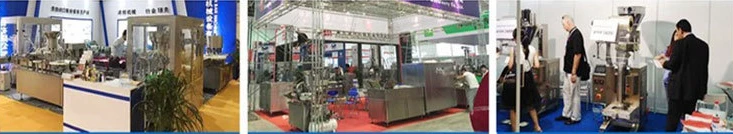

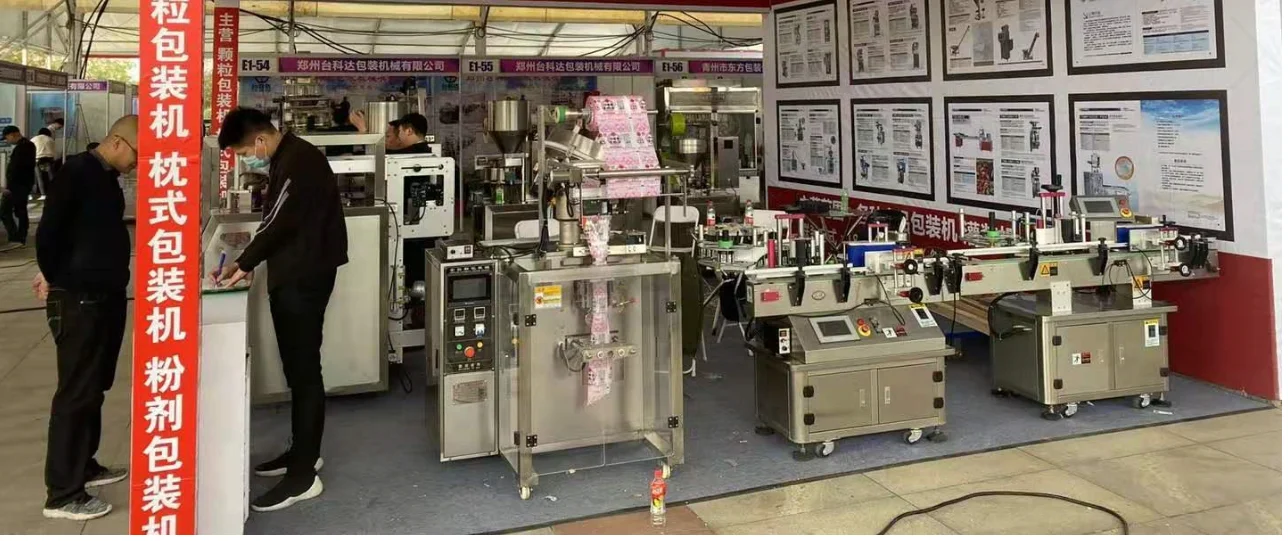

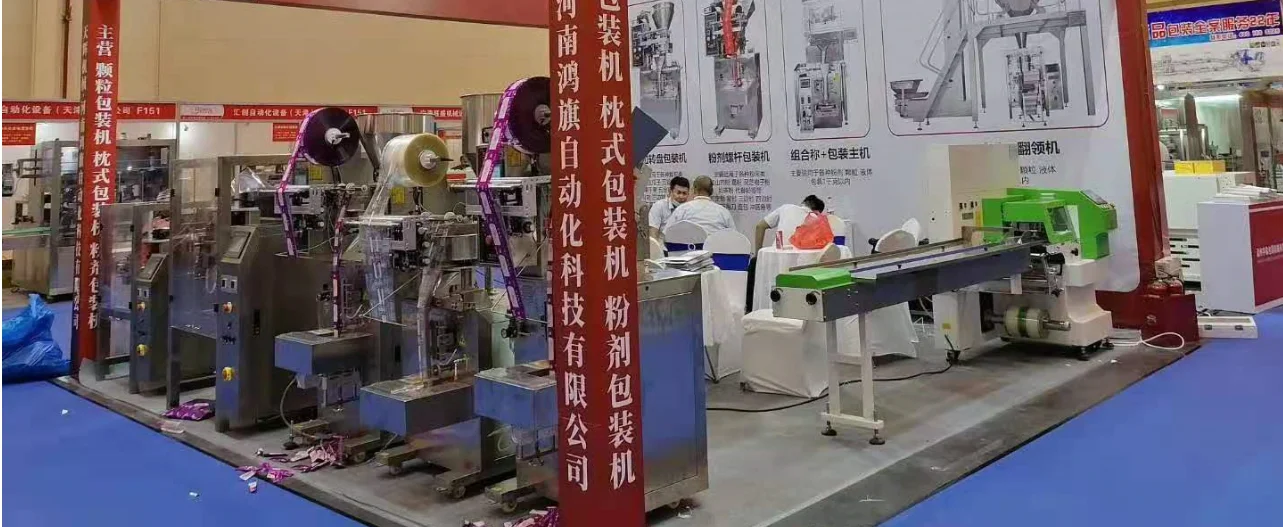

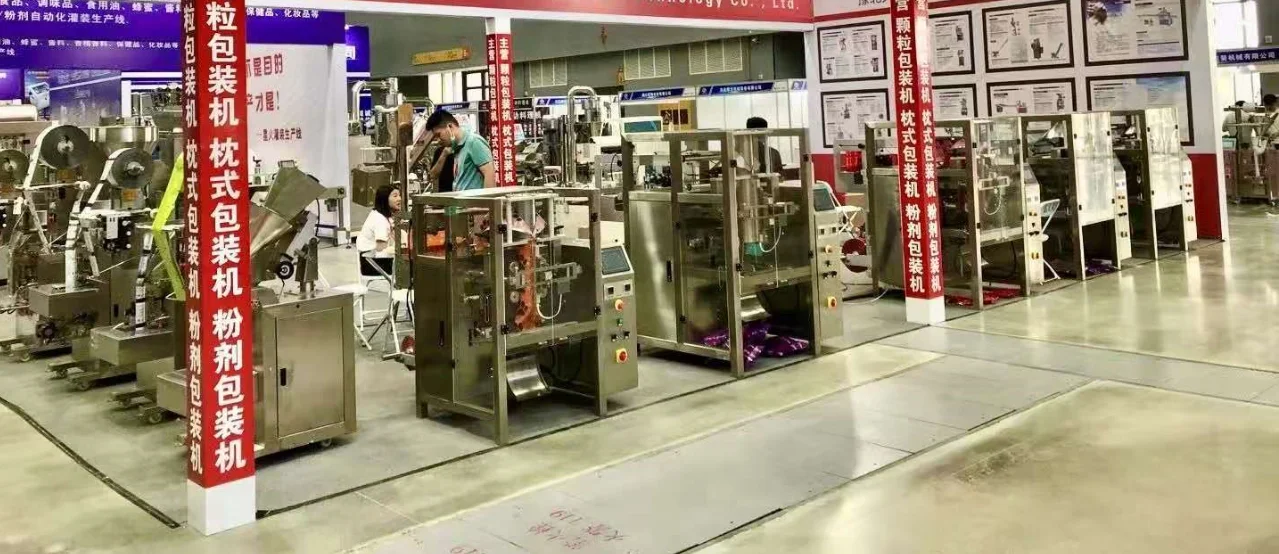

Exhibition
