FM3D0325I PYH L PCB inspection 3D video microscope 4K digital microscope
- Category: >>>
- Supplier: Guilin FT-Opto Co. Ltd.
Share on (1600538277784):
Product Overview
Description
FM3D0325I-PYH-L PCB inspection 3D video microscope 4K digital microscope
Specification
Model | FM3D0325I-PYH-L | |
Lens Parameter | ||
Optical magnification | 0.6-5.0X zoom body with 0.5X C mount | |
Total magnification | 10.8-90X (based on 12.5 inch monitor) | |
Working distance | 2D:86mm 3D:50mm | |
Ratio | 1:8.3 | |
Field of view | 25.6x14.4-3.1x1.7mm | |
Lens mount | Standard C mount | |
Observe mode | 2D observation | |

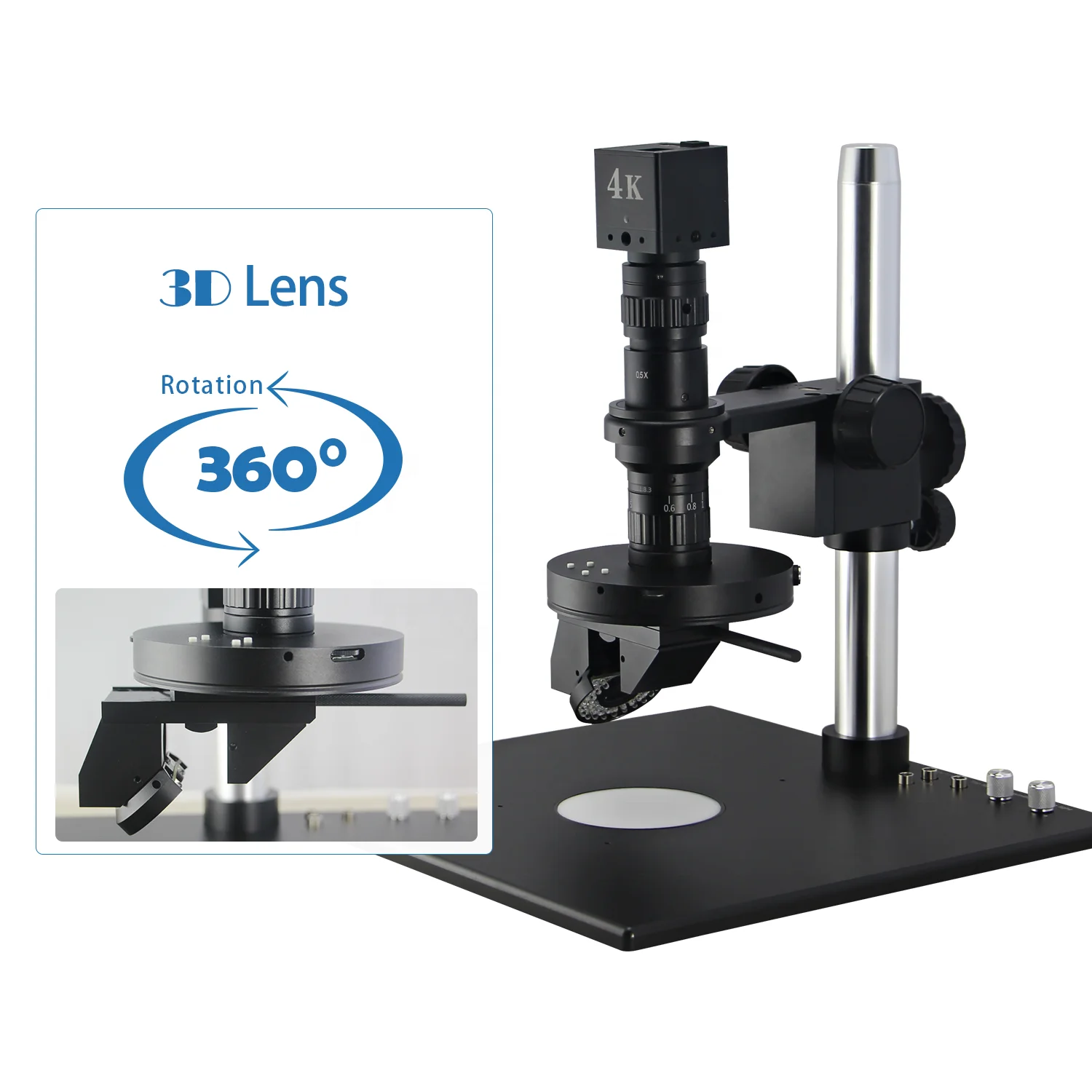

360 degree rotation 3D observation | ||
Push and pull | ||
Camera parameter | ||
Sensor | 1/1.8” SONY CMOS | |
Resolution | 3840x2160 | |
Pixel | 8.0MP | |
Frame | 30 FPS | |
Pixel size | 2.0μm x 2.0μm | |
Output | HDMI output | |
Memory function | Take photo to U disk | |
Measuring function | Support measuring of line, angle, circle, radian, rectangle, polygon etc., precision reaches the level of micron. | |
Light source parameter | ||
Front light | 267 PCS LED，color temperature 6000K，Brightness 0-100% adjustable | |

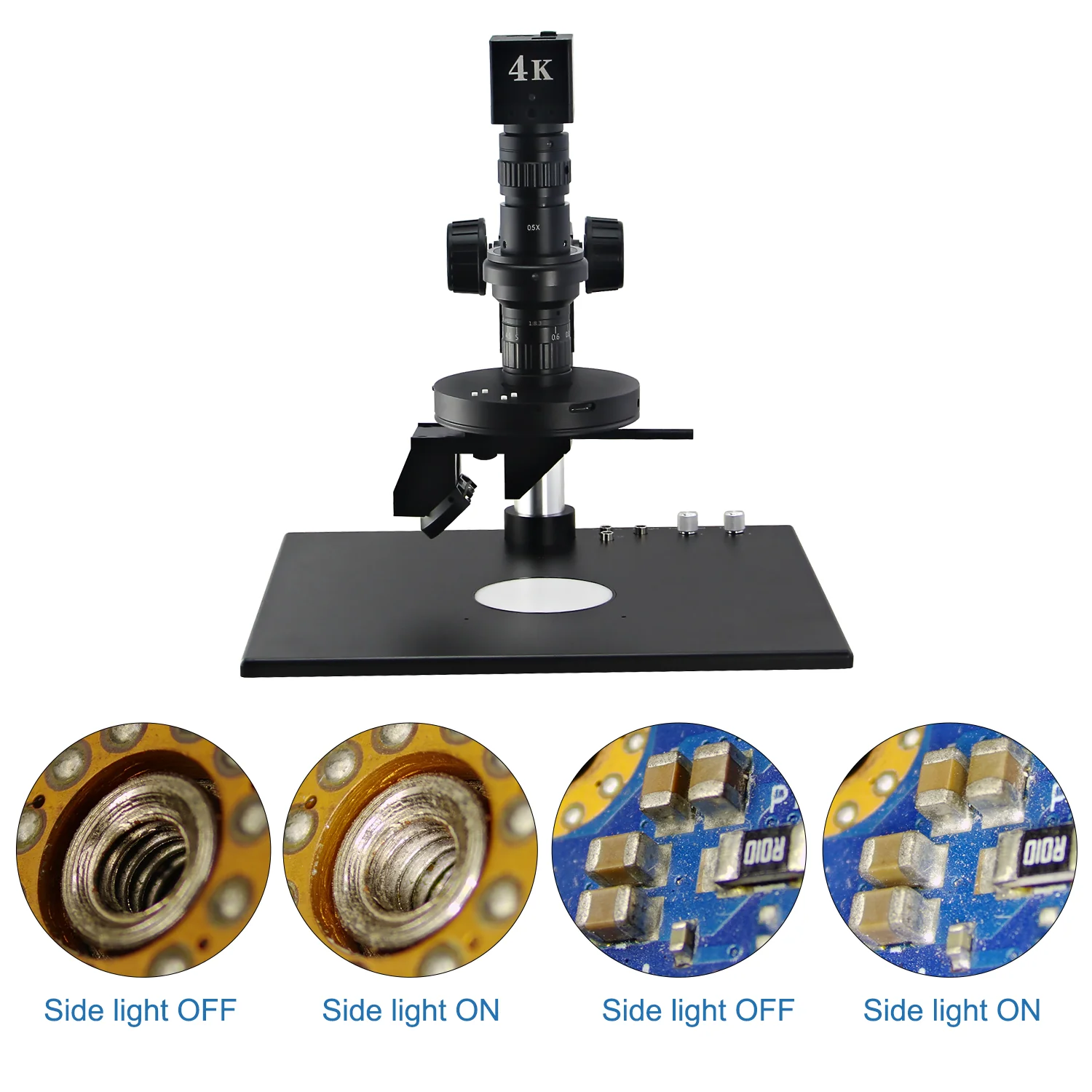

Side light | 31 PCS LED, color temperature 6000K，Brightness 0-100% adjustable | |
Transmitted light | 12V 5W,0-100% brightness adjustable | |
Stand parameter | ||
Base size | 330*300mm | |
Focus | Coarse focus | |
Height of post | 318mm | |
Main Feature

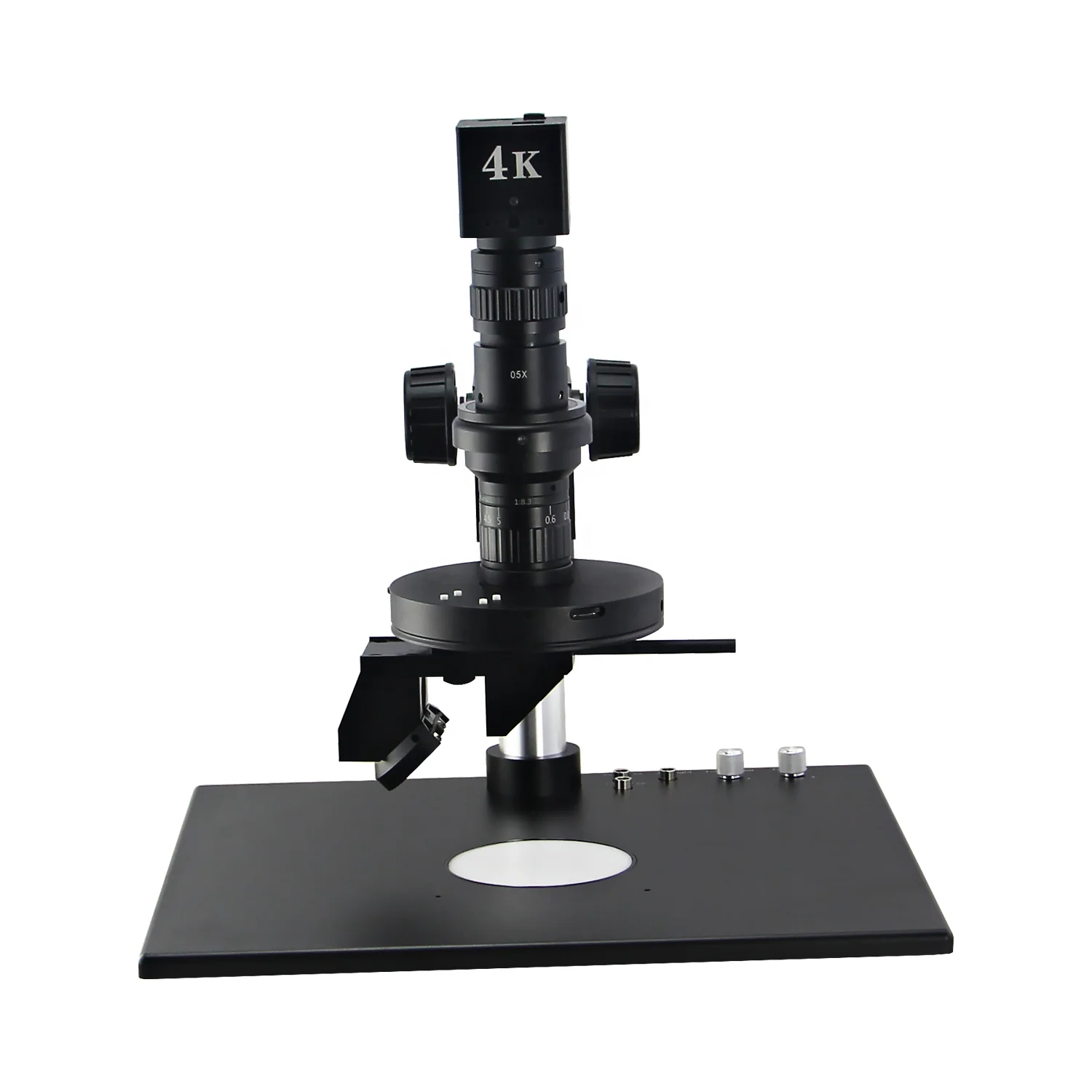

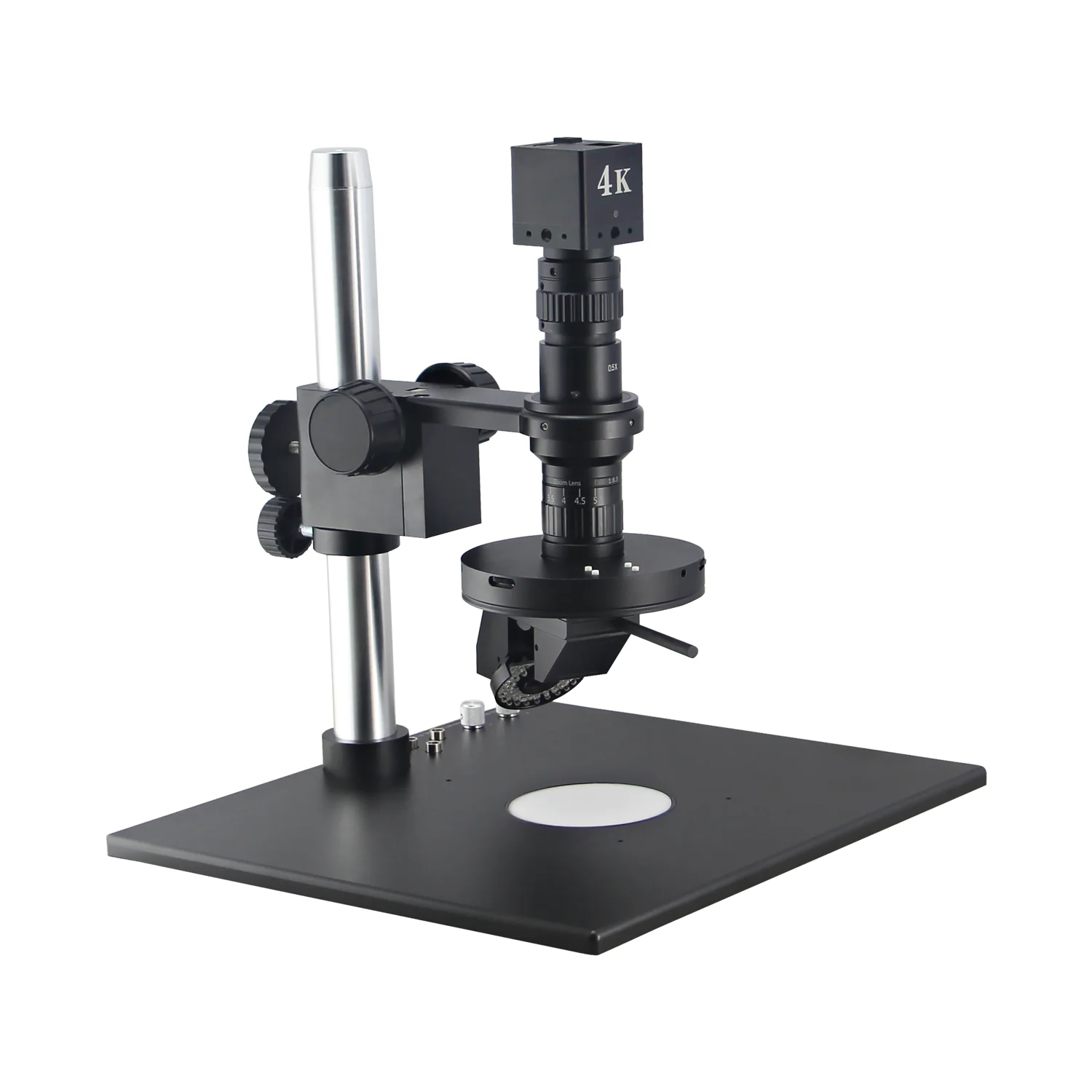

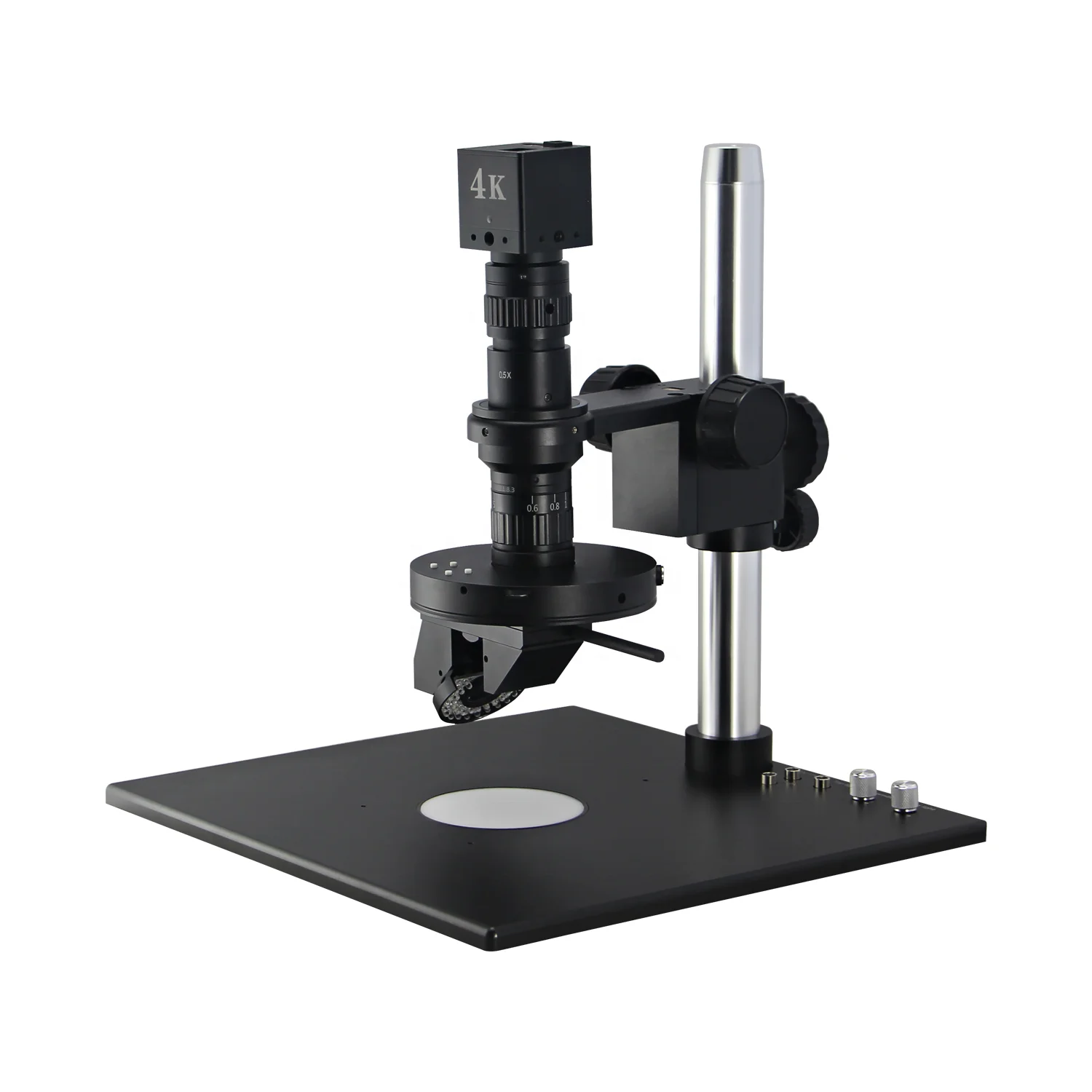

Product Pictures
Optional Accessory
Model | Name | Specification |
FB3D01815I | Zoom Body | 0.18-1.5X(0.6-5.0X zoom body+0.3X C mount) |
FB3D0325I | Zoom Body | 0.3-2.5X(0.6-5.0X zoom body+0.5X C mount),standard Specification |
FB3D0650I | Zoom Body | 0.6-5X (0.6-5.0X zoom body+1.0X C mount) |
