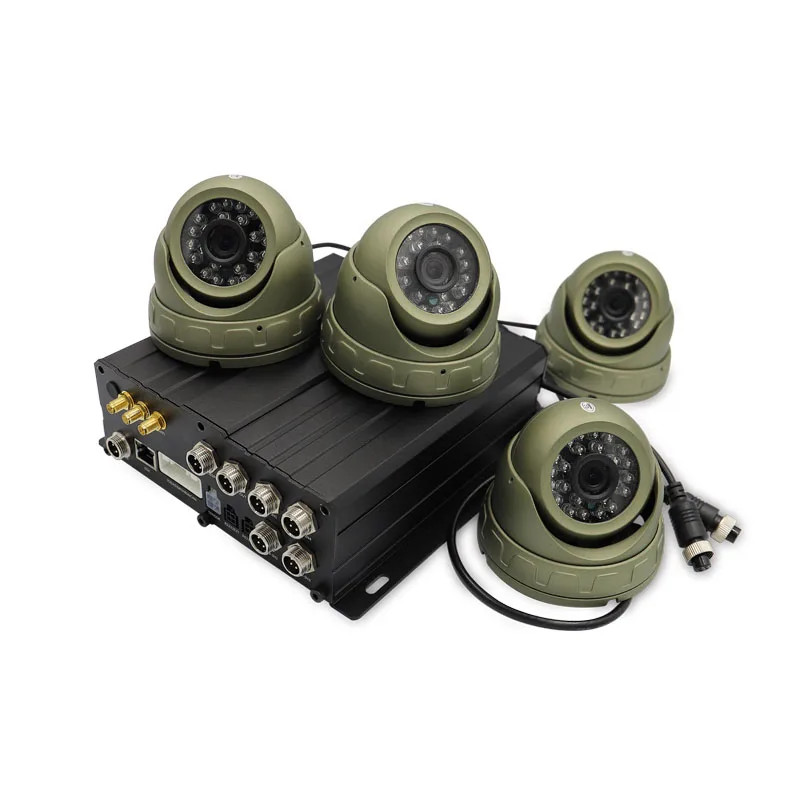

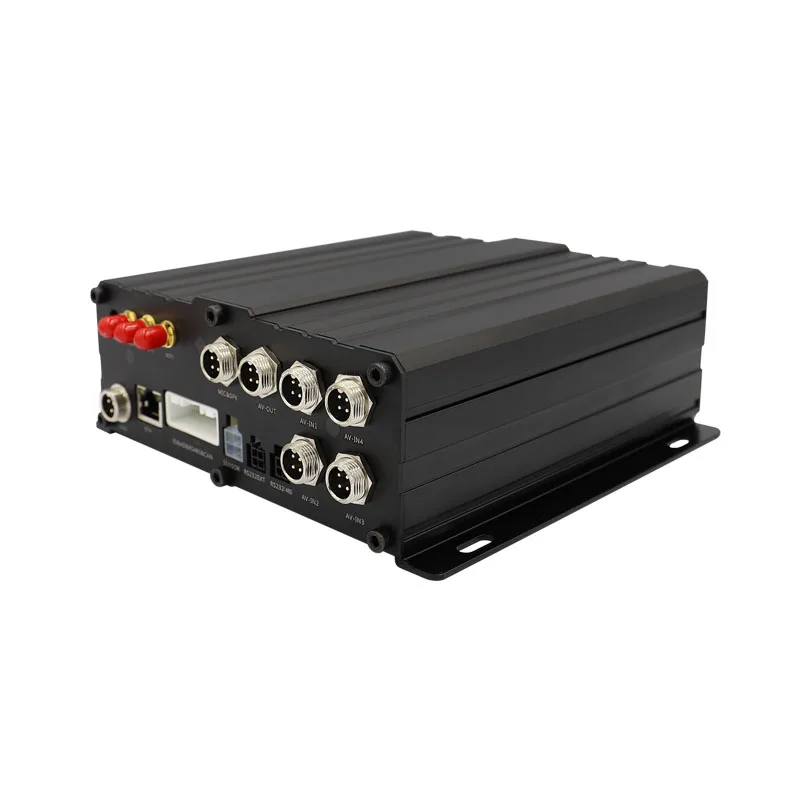

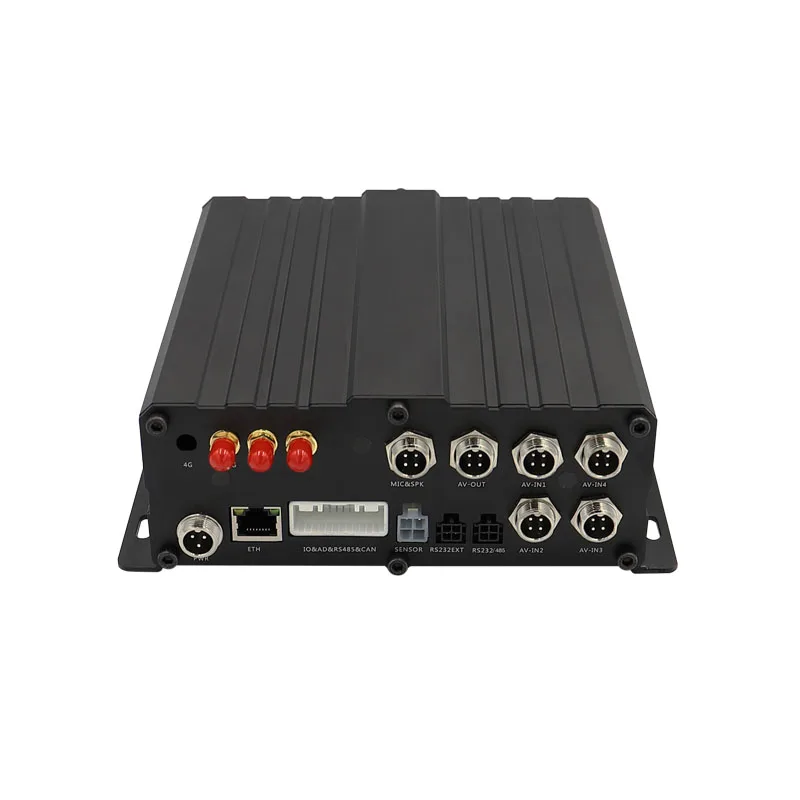

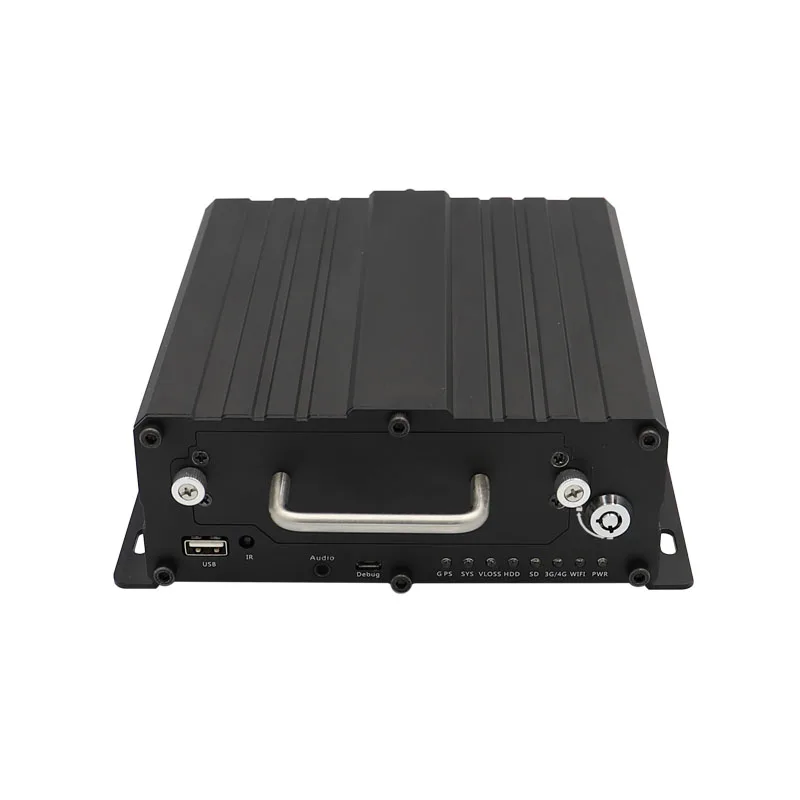

Factory Wholesale 4 Channel 720P AHD Camera Car DVR Bus G sensor Vehicle CCTV MDVR
- Category: >>>
- Supplier: Meitrack Group (Shenzhen)
Share on (1600538295143):
Product Overview
Description
Product Overview
Specifications
Dimension | 177 mm x 162 mm x 63mm |
Weight | 1750g (including the disk) |
Power input | DC: 8V–36V/A |
Power consumption | Start the host audio and video: about 6.6 W Single MCU: 45mA Connect a camera: 120–200 mA (day); 400–600 mA (night) |
Operating temperature | -20°C to 70°C |
Video input | 4-channel 720P live video recording and playing |
Video output | 1-channel CVBS |
Compression standard | H.264 |
Image display | Support one-image and four-image display |
Audio compression | G.726 |
Audio input | 9-channel audio input; 8-channel AV-IN interface; 1-channel voice intercom interface |
Audio output | 5-channel audio input; 4-channel AV-IN interface; 1-channel voice intercom interface; 1-channel handle interface |
Recording search and playback | Search and play back videos based on the channel, recording type, or time. |
Recording method | Simultaneously record the ACC, alert, sound, and video. |
WiFi | 802.11 b/g/n; frequency: 2.4 GHz |
GPS/GLONASS | Detect the insertion, pull-out, and short circuit of the antenna. |
Storage medium | 1 SD card and 1 SATA hard drive/SSD hard drive |
2G/3G/4G | MD511H-E GSM: B3/B8, WCDMA: B1/B8 LTE FDD: B1/B3/B7/B8/B20/B28A MD511H-A WCDMA: B2/B4/B5, LTE FDD: B2B4/B12 MD511H-AU GSM: B2/B3/B5/B8, WCDMA: B1/B2/B5/B8 LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 MD511H-J WCDMA: B1/B6/B8/B19 LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 MD511H-G GSM: B2/B3/B5/B8, WCDMA: B1/B2/B4/B5/B6/B8/B19 LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B25/B26/B18/B19/B20/B28 LTE TDD: B38/B39/B40/B41 |
Accessories
ACCESSORIES | MD511H MDVR |
Power & ACC cable | |
I/O cable | |
USB cable | |
GPS antenna | |
3G/4G antenna | |
WiFi antenna | |
Hard disk lock key | |
CD download card | |
OPTIONAL ACCESSORIES | 4 Cameras |
SD card | |
SSD/HDD (2.5 inches) | |
CVBS display | |
Microphone & speaker | |
Ultrasonic fuel level sensor | |
RFID reader | |
LED display |
Certificates: CE

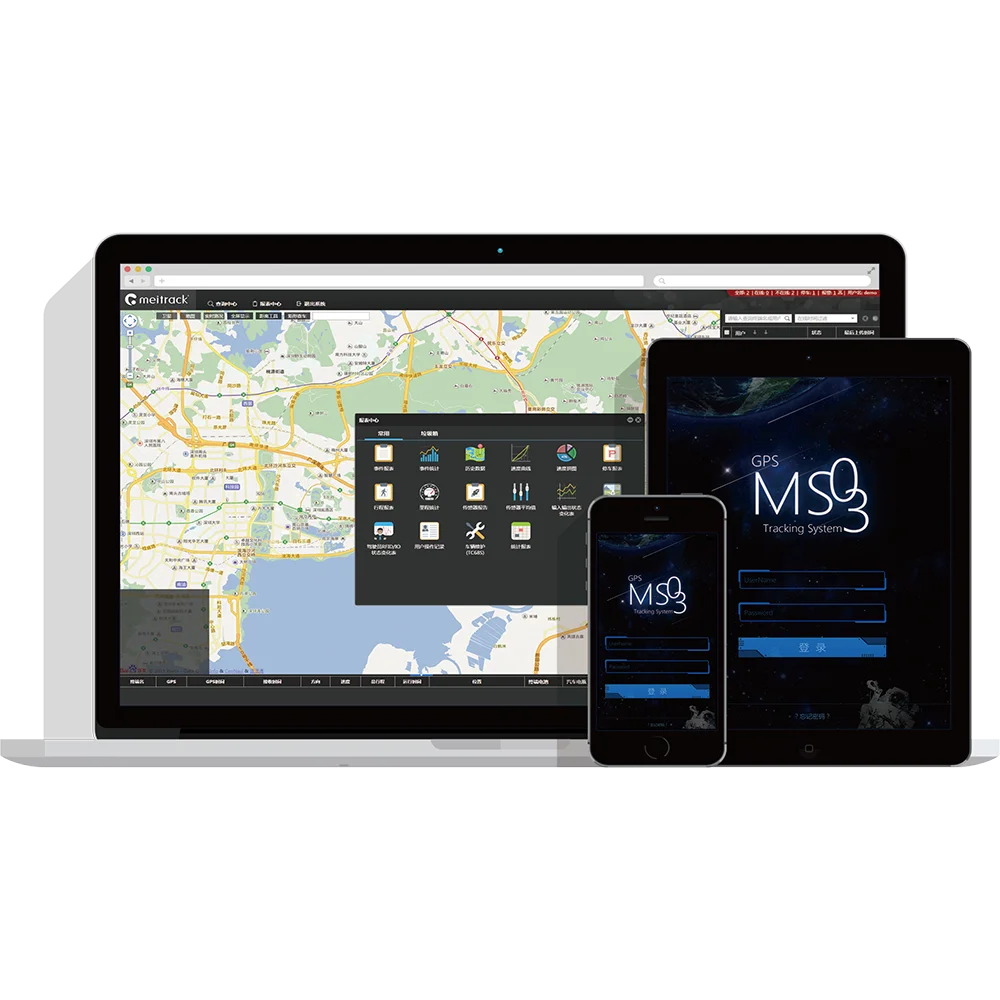

Meitrack MS03
Advanced GPS Tracking Software
MS03 is a professional centralized software that is tailor-designed to support businesses and sustainable platforms, ideal for developers. The MS03 spotlights such features as GPS Tracking, Video Surveillance, and Alarm Systems amongst others.
Contact us to get a free domo now!
Case Study
City Buses
MD522S | Mexico
The Mexican government introduced Meitrack's MDVR bus management solution to guarantee the safety of Mexican residents, ensure a safe bus travel, and prevent illegal activities inside buses. In this project, Meitrack MD522S, camera, LCD display, SOS button, A91 passenger flow sensor and MS03 tracking platform work together to provide a one-stop internal bus monitoring solution.
Armored Vehicles
MD511H | Malaysia
Inside an armored bank vehicle, a MD511H mobile DVR is connected to four cameras. The video surveillance solution only allows authorized staff to start the vehicle. If the vehicle door is opened without permission or the vehicle is hijacked, the monitoring center can quickly and efficiently keep track of what's happening inside the vehicle, remotely cut off the en gine to prevent the vehicle from moving, and take immediate action to minimize the loss.
