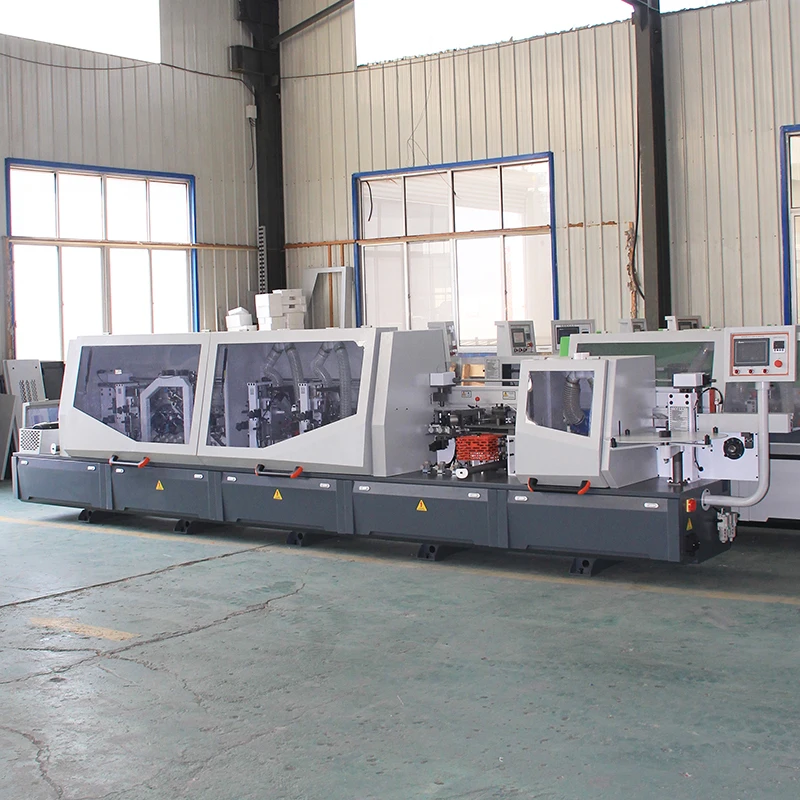

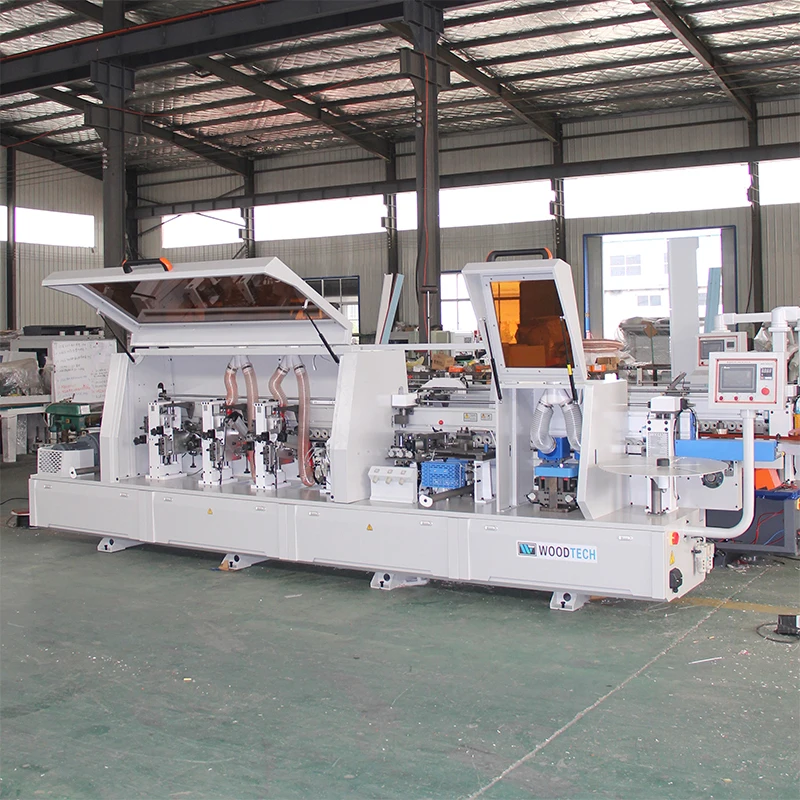

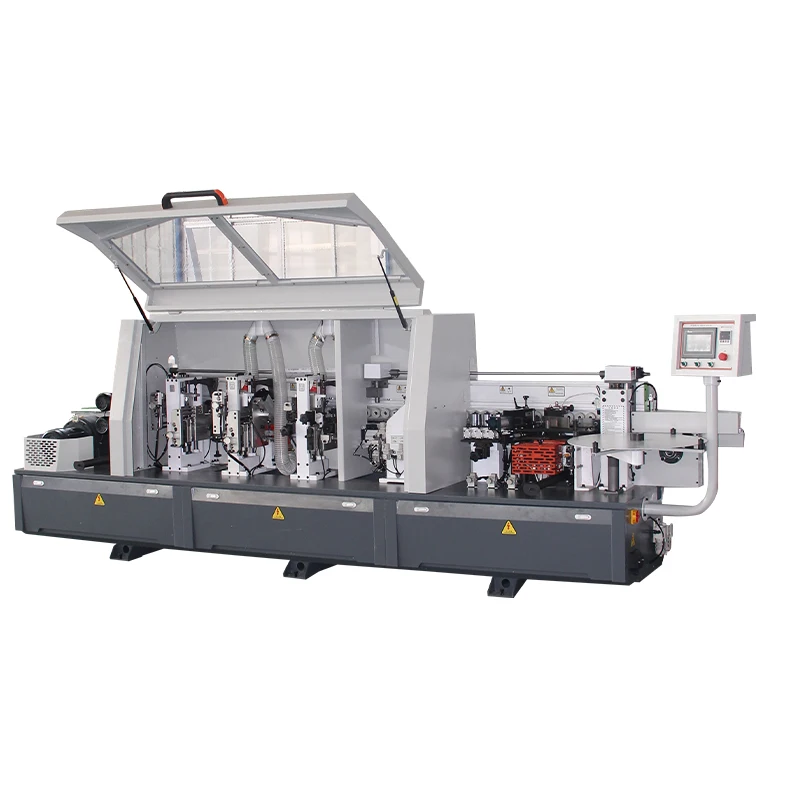

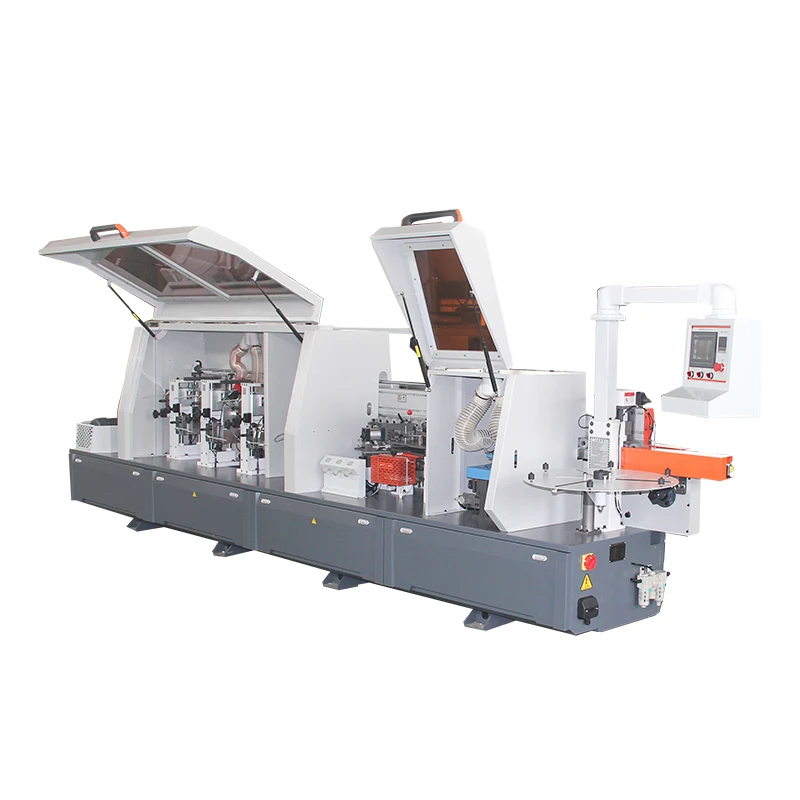

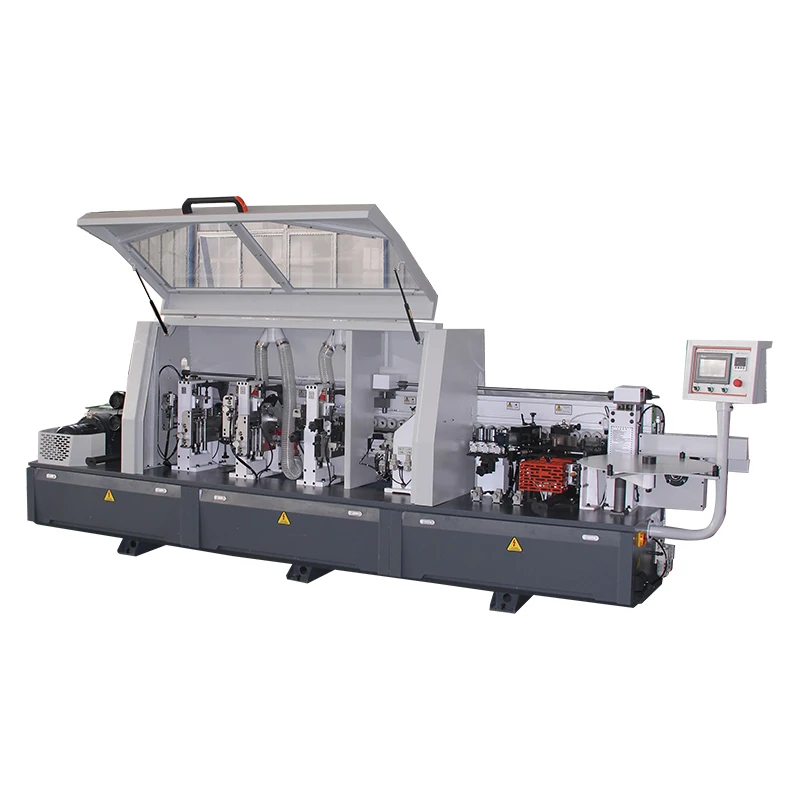

full automatic pvc wood pre milling cutter edge banding making machine portable edge bander
- Category: >>>
- Supplier: Qingdao Polestar Mechanical And Electrical Co. Ltd.
Share on (1600538298904):
Product Overview
Description
Product Information
The edge banding machine is an indispensable machine for making cabinet door panels,This machine is mainly used for the production of panel furniture edge-sealing workpieces with comprehensive functions and suitable for edge banding of various thicknesses and material. It is suitable for melamine board, medium density board, plywood (plywood). Various types of roll edge banding can be used, including: PVC/ABS/acrylic/wood (straight edge seal) and other edge sealing
materials, and the pressing system ensures the smooth conveying of the plate during the edge sealing process.
materials, and the pressing system ensures the smooth conveying of the plate during the edge sealing process.
Product Show
Model | MF450D | ||||
Workpiece thickness | 10-60mm | Feed speed | 12-20m/min | ||
Workpiece width | ≥60mm | Total power | 11.13.kw | ||
Workpiece length | ≥80mm | Air press | 0.7Mpa | ||
Edge height | 10-60mm | Weight | 2300kg | ||
Feeding power | 3.7kw | End trimming power | 0.75kw*2 | ||
Rough trimming power | 0.75kw*2 | Fine trimming power | 0.75kw*2 | ||
Scrapping power | 0.75kw*2 | Polishing power | 0.37kw*2 | ||
Edge thickness | 0.4-3mm | Overall size | 5800 x 1100 x 1600mm | ||
Functions | Gluing, End cutting, Rough trimming, Fine trimming, Corner rounding, Scraping, Buffing. | ||||
Model | MF360D | ||||
Workpiece thickness | 10-60mm | Feed speed | 12-20m/min | ||
Workpiece width | ≥60mm | Total power | 11.13.kw | ||
Workpiece length | ≥80mm | Air press | 0.7Mpa | ||
Edge height | 10-60mm | Weight | 2300kg | ||
Feeding power | 3.7kw | End trimming power | 0.75kw*2 | ||
Edge thickness | 0.4-3mm | Overall size | 6200 x 1100 x 1600mm | ||
Functions | Pre-milling, Gluing, End cutting, Rough trimming, Fine trimming, Corner rounding, Scraping, Buffing | ||||
Product Detail
Product Advantage
1.Adopt domestic famous motor and high quality electrical components.
2.The fuselage is firm and steady,thus increasing the stability of the whole machine.
3.Aluminum alloy beam is a relatively advanced method, its precision and straightness are far superior to cast iron.
4.Auto cleaning, high precision, high efficiency.
5.The machine can be customized.
6.Automatic and precise gluing procedure as well integrated double finishing side within one workflow .The end cutting can be done at the rear side of the machine.
7.Multiple Air cylinder will assembled on the machine, mainly used for positioned location assured the panel materials processing accuracy in a very high level.
8.Secondary Dust Exhaust System, mainly used for sawdust collection during processing period, to keep the material smooth and clean.
9.The machine adopts the devices of sound insulation, controlling of dust, platform frame Micro adjustment by manual operation.
2.The fuselage is firm and steady,thus increasing the stability of the whole machine.
3.Aluminum alloy beam is a relatively advanced method, its precision and straightness are far superior to cast iron.
4.Auto cleaning, high precision, high efficiency.
5.The machine can be customized.
6.Automatic and precise gluing procedure as well integrated double finishing side within one workflow .The end cutting can be done at the rear side of the machine.
7.Multiple Air cylinder will assembled on the machine, mainly used for positioned location assured the panel materials processing accuracy in a very high level.
8.Secondary Dust Exhaust System, mainly used for sawdust collection during processing period, to keep the material smooth and clean.
9.The machine adopts the devices of sound insulation, controlling of dust, platform frame Micro adjustment by manual operation.
Product Application
More Model
1 | MF501 | Gluing, Fine trimming, Scraping, Buffing. |
2 | MF505 | Gluing, End cutting, Fine trimming, scrapping. Buffing. |
3 | MF506 | Gluing, End cutting, Rough trimming, Fine trimming, scrapping. Buffing. |
4 | MF506D | Gluing 1, Gluing 2, End cutting, Rough trimming, Fine trimming, scrapping. Buffing. |
5 | MF506P | Pre-milling, Gluing, End cutting, Rough trimming, Fine trimming, scrapping. Buffing. |
6 | MF506PG | Pre-milling, Gluing, End cutting, Rough trimming, Fine trimming, scrapping. Buffing. Grooving. |
7 | MF360D | Gluing, End cutting, Rough trimming, Fine trimming, Scraping, Buffing. |
8 | MF360J | Pre-milling, Gluing, End cutting, Rough trimming, Fine trimming, Corner rounding, Scraping, Buffing. |
9 | MF450D | Gluing, End cutting, Rough trimming, Fine trimming, Corner rounding, Scraping, Buffing. |
10 | MF450DJ | Pre-milling, Gluing, End cutting, Rough trimming, Fine trimming, Corner rounding, Scraping, Buffing. |
11 | MF450KDS | Gluing 1, Gluing 2, Quick End cutting, Rough trimming, Fine trimming, Corner rounding, Scraping, Buffing. |
Packing & Delivery
Packing：Stretch film with wooden case or as your request per edge banding machine
Delivery：within 10-15days after confirming the payment
Delivery：within 10-15days after confirming the payment
Company Profile
Qingdao Polestar Mechanical and Electrical Co.,Ld has been supplying quality woodworking machines in CHINA for over 18 years and prides itself on producing the woodworking machines for all types of machines.America, Europe, Mid east also AISA both have markets. Technology team design ,We've been doing this for more than 20 years and have over 14,000 wood machines export every year. And what all those customers will tell you is that if you choose Polestar you will get a better-built wood machine with more standard features for a great price.
