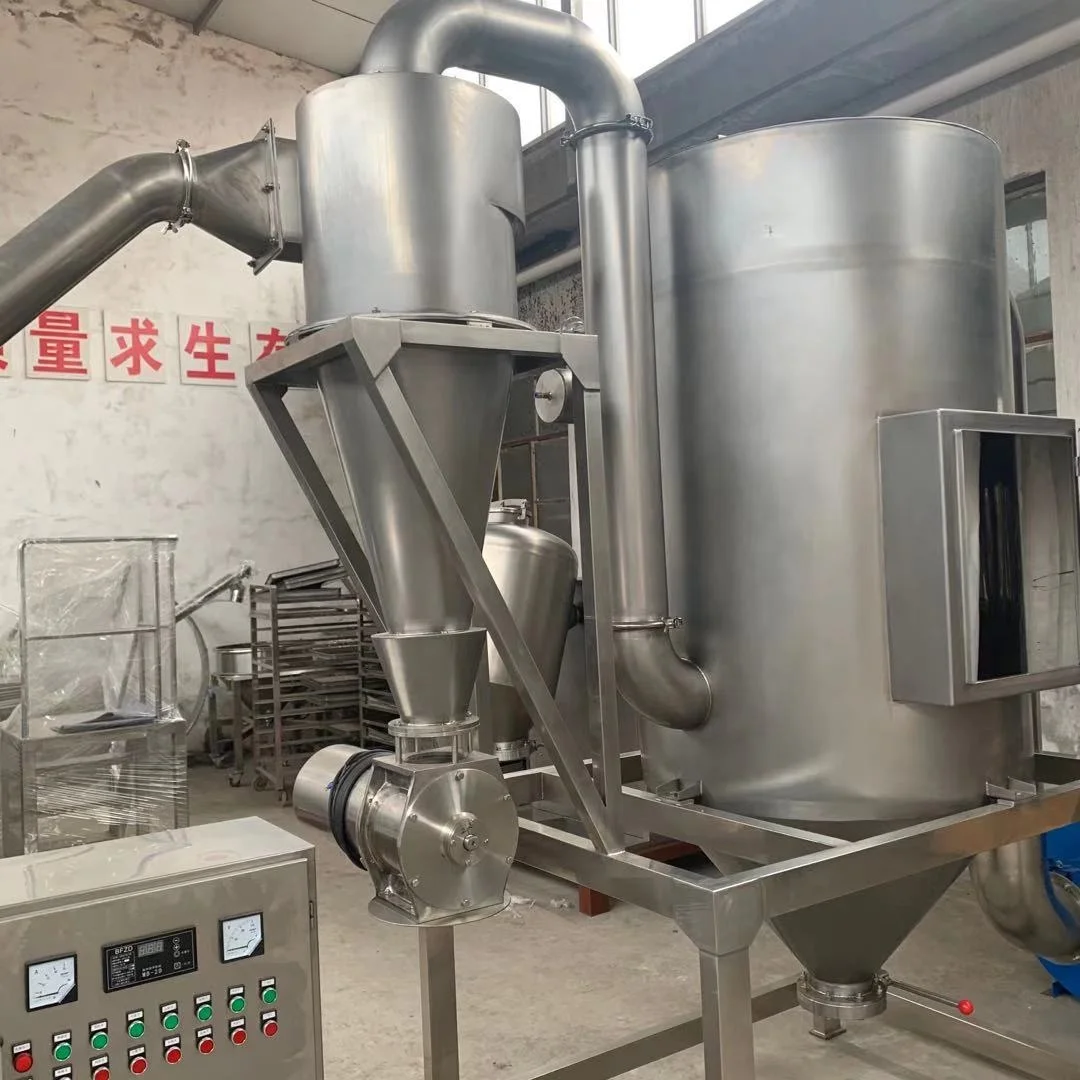

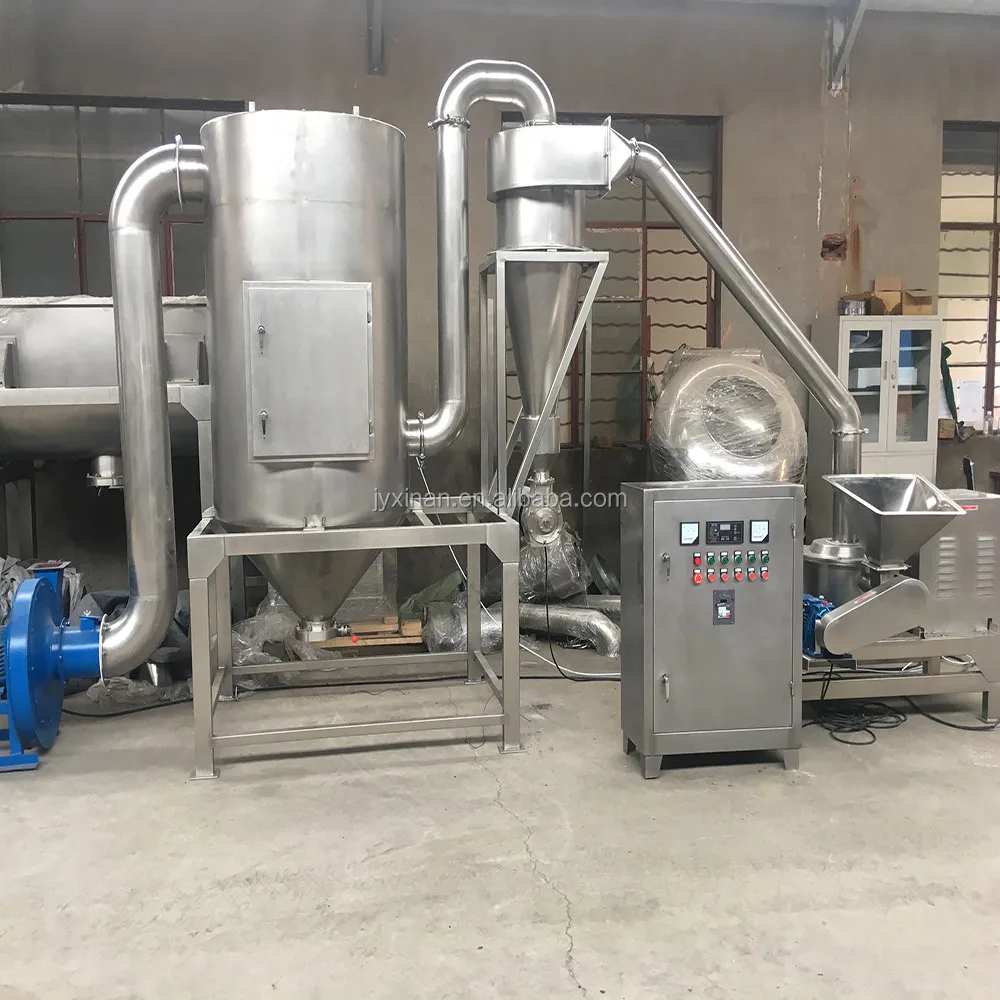

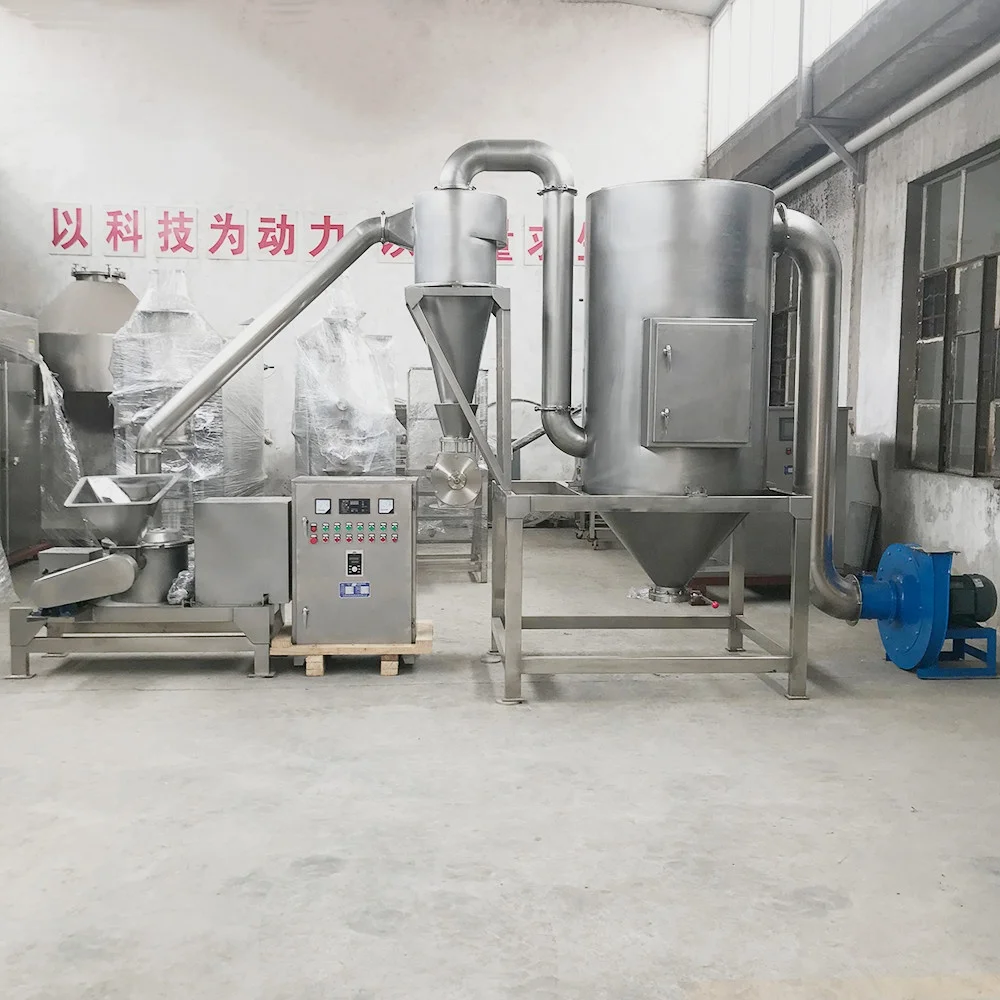

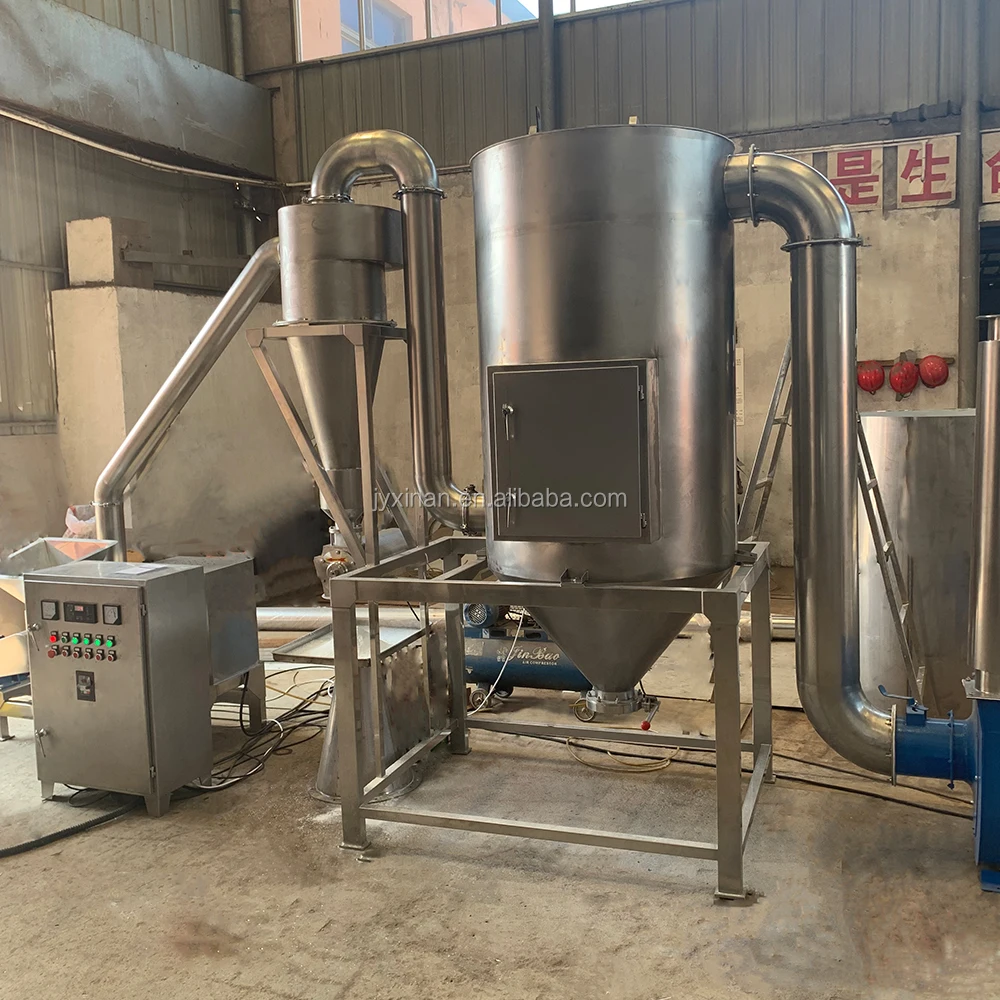

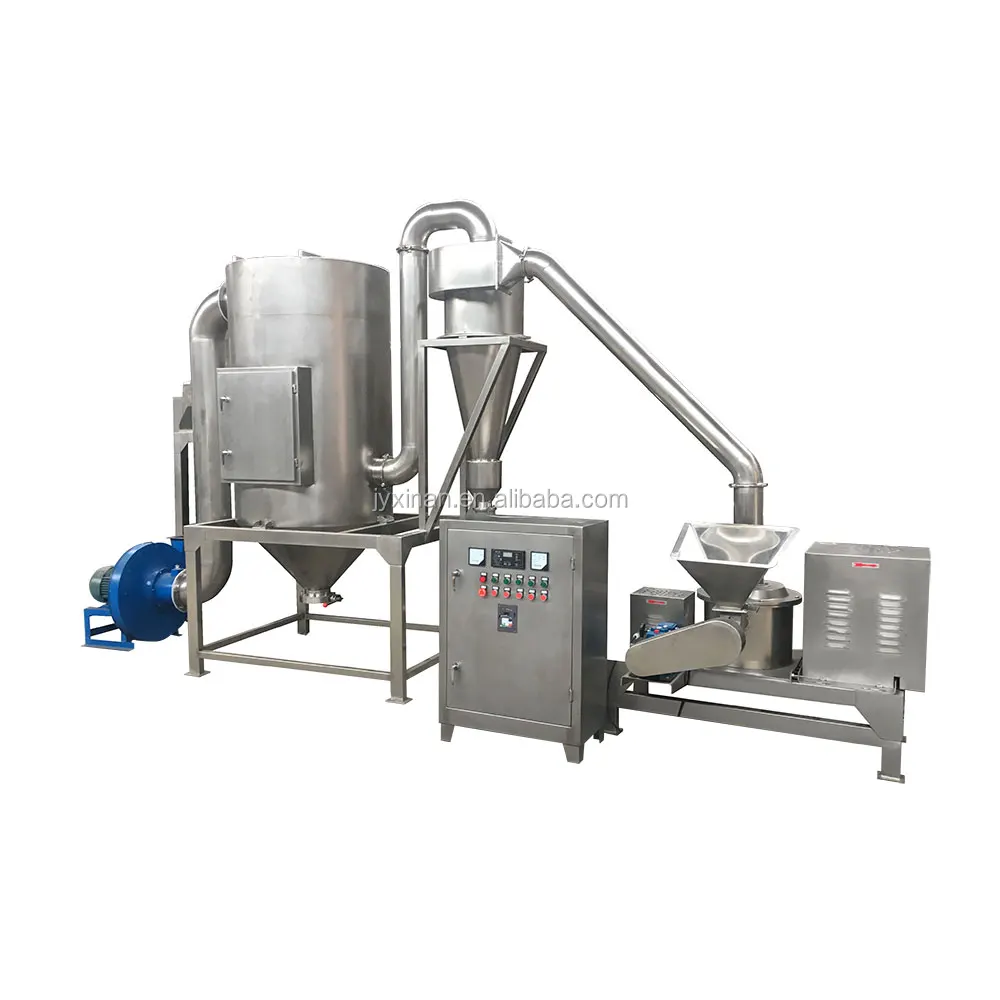

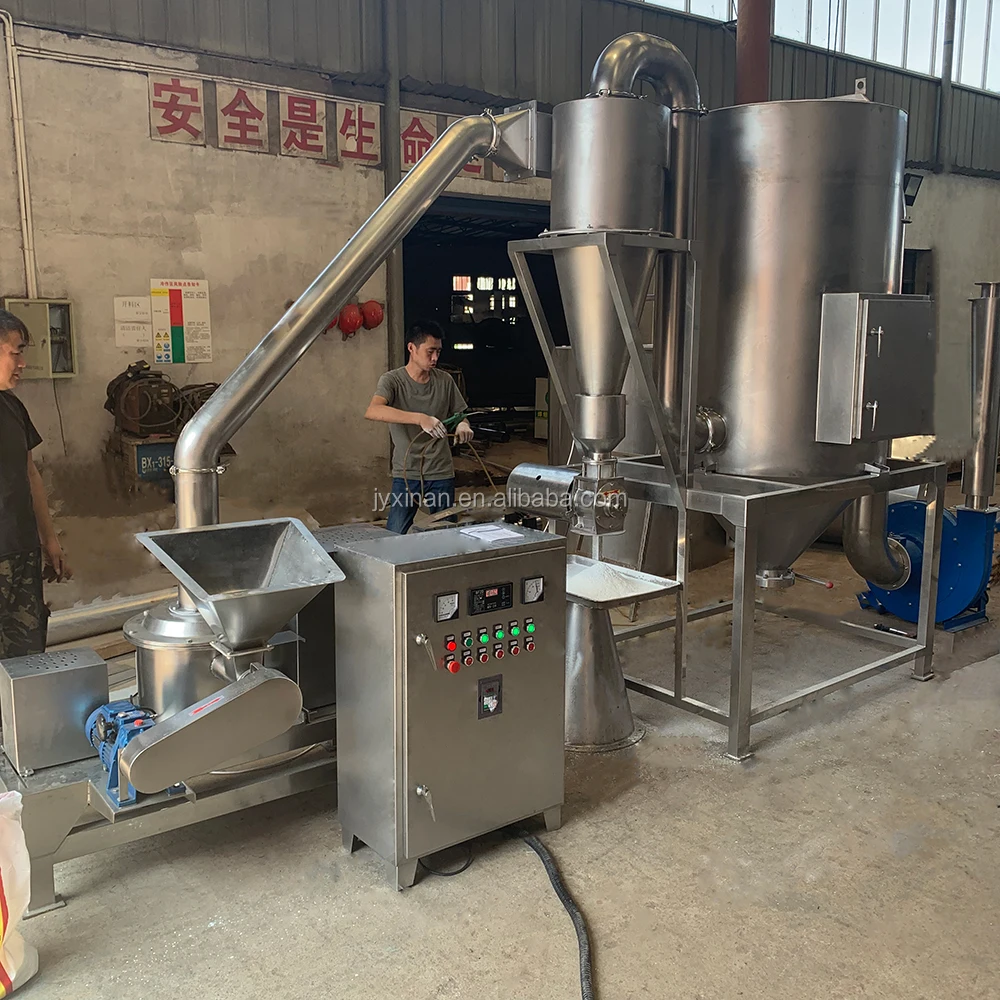

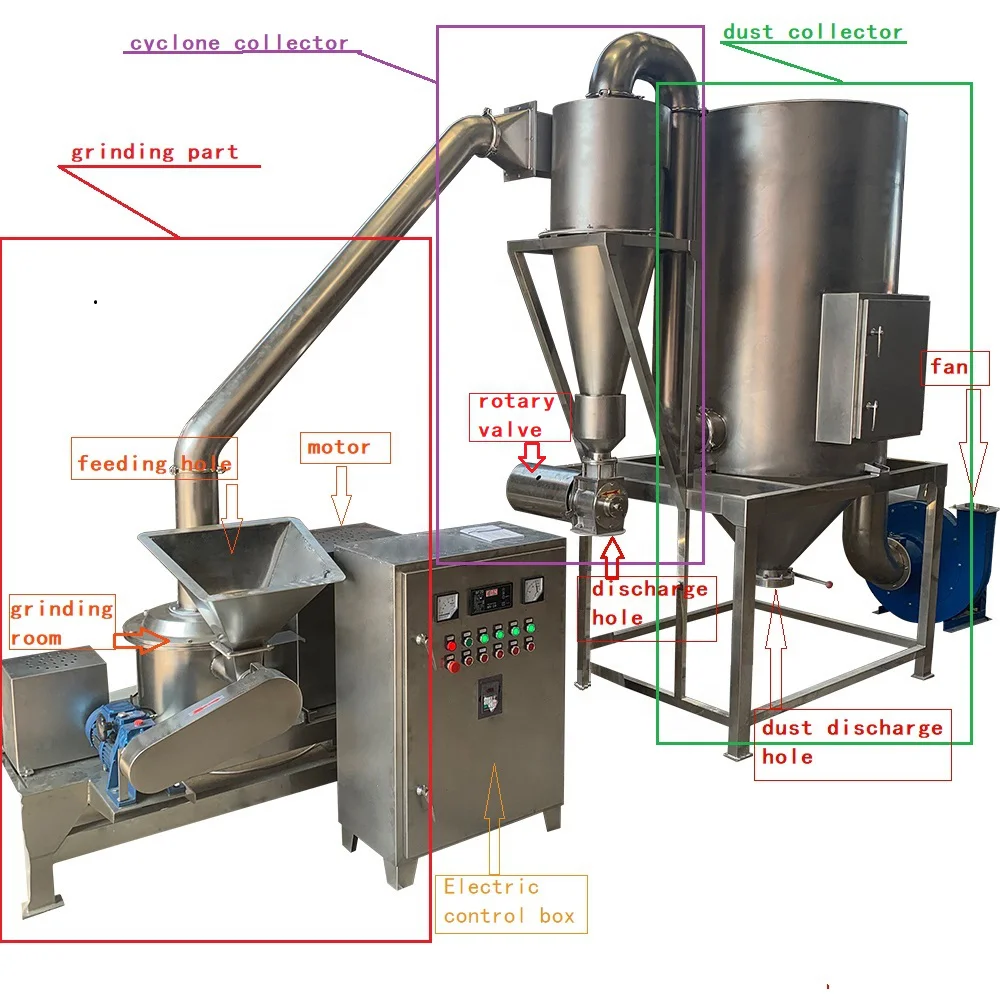

Model WFJ Series Micronizer consists of main motor, auxiliary motor, and electrical control cabinet with the capabilities of winnowing, non-sieve or mesh, equality of granule size, and continuous processing etc.

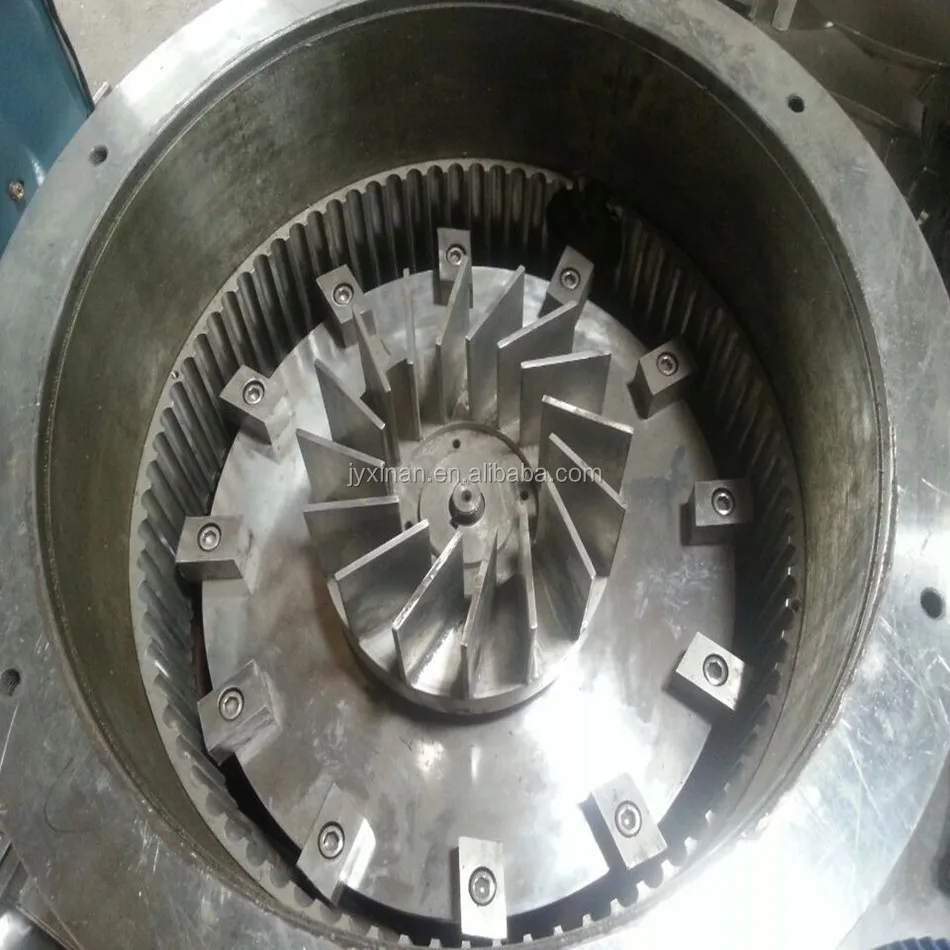

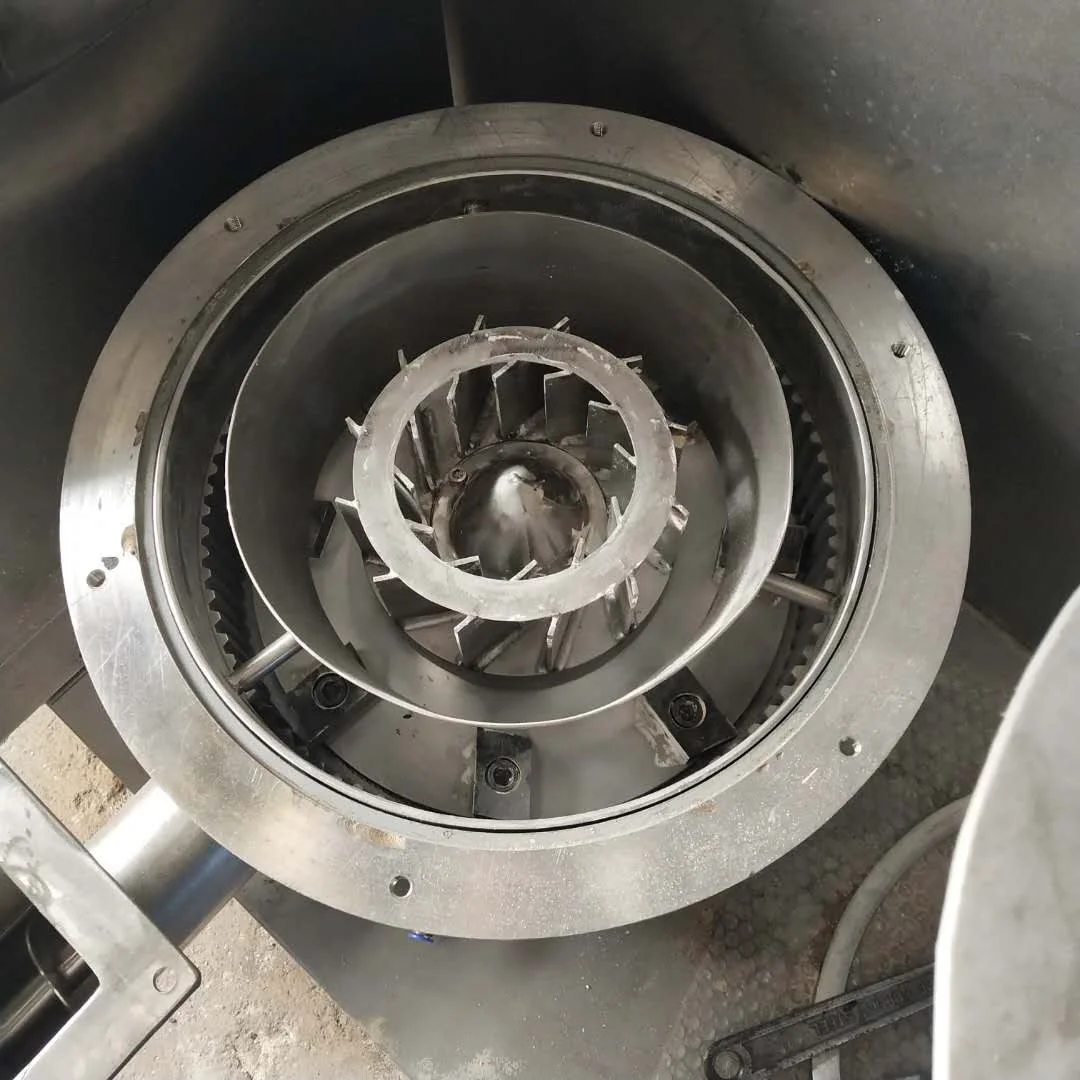

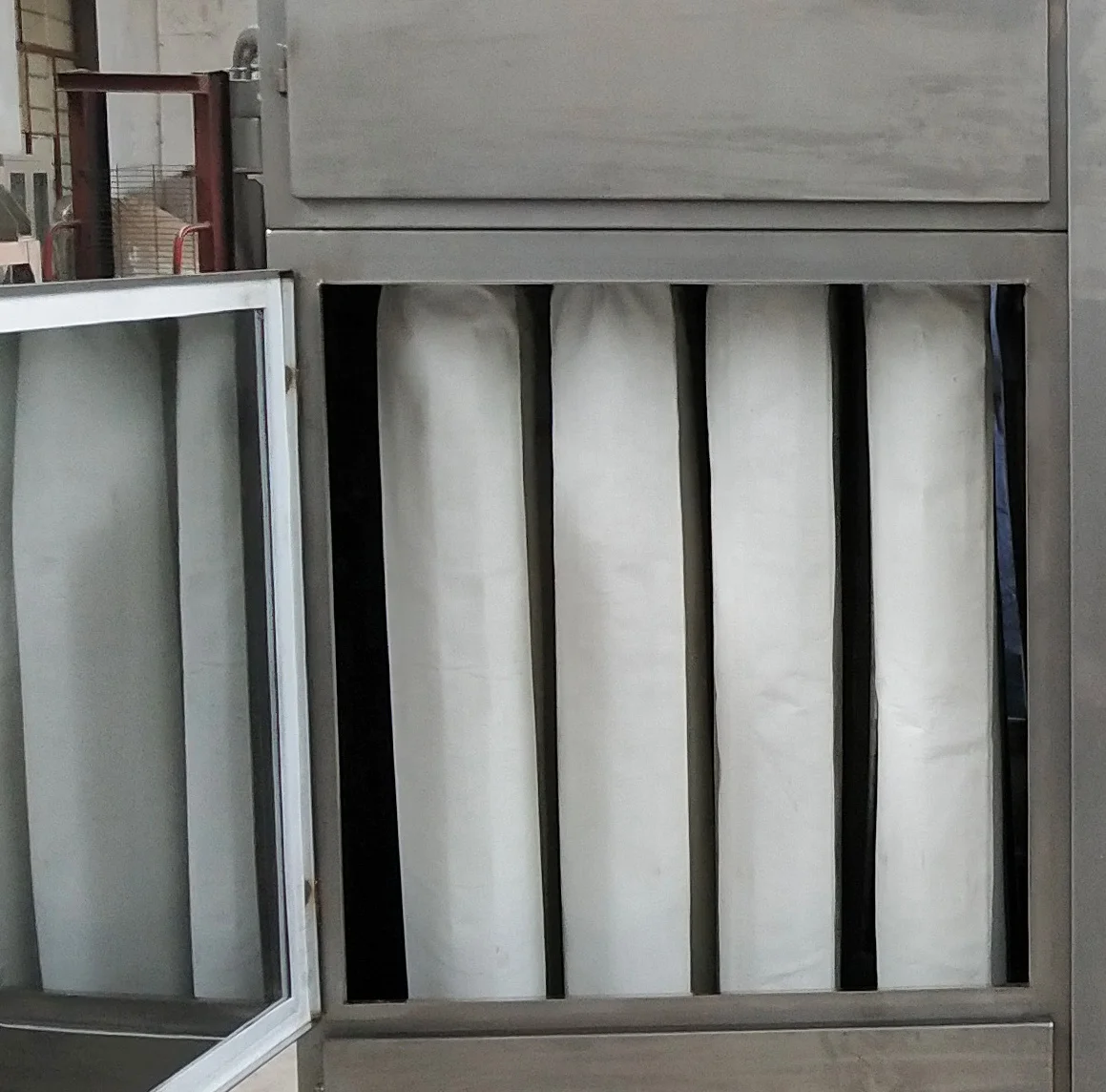

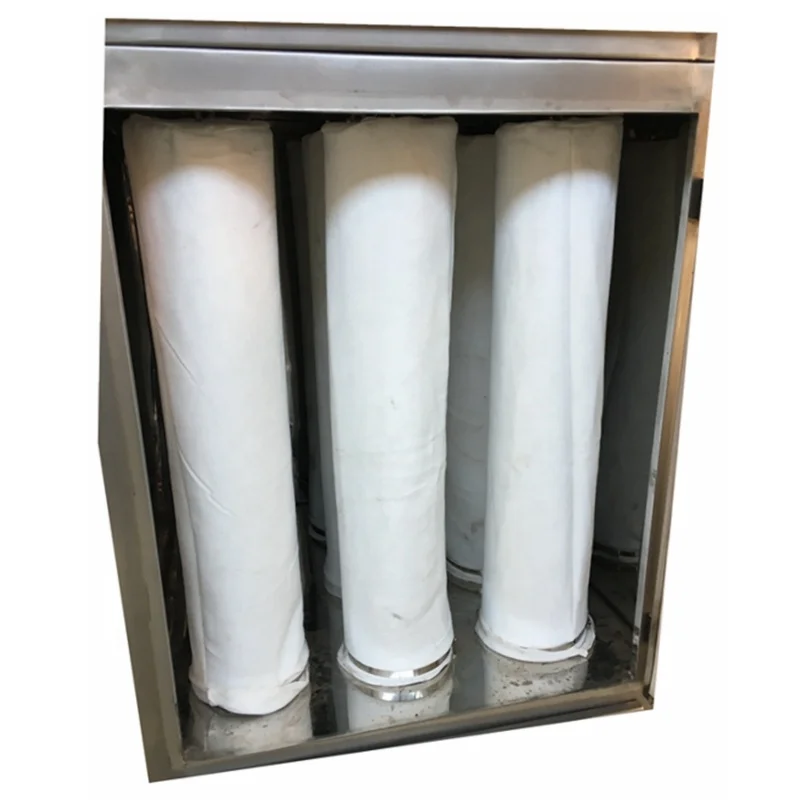

By means of relative motion between flexible and fixed fluted discs, material is crushed through impact and friction of the teeth and impact among the material. The crushed material flows into the cyclone separator by the gravitation of blower and rotating centrifugal force, then discharges through gate blower. Dust comes into the pulse dust evacuator box, filtered and recycled by the filter cylinder. The crushing size can be adjusted by the screen.
Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise.
| Model | Production Capacity(kg/h) | Feeding Size(mm) | Discharge Motor(mesh) | Total Power(kw) | Main Speed(r/min) | Overal Dimension(mm) | Weight(kg) |
| WFJ-15 | 10-200 | <10 | 80-320 | 13.5 | -6000 | 4200*1200*2700 | 850 |
| WFJ-20 | 20-300 | <12 | 80-320 | 17.5 | -4800 | 4700*1250*2900 | 1250 |
| WFJ-30 | 30-800 | ≤10 | 80-320 | 46 | 3800 | 6640*1300*3960 | 2800 |
| WFJ-60 | 50-1200 | ≤10 | 80-320 | 84.15 | 2800 | 7500*2300*4530 | 4500 |
| WFJ-80 | 100-2000 | ≤15 | 80-320 | 145 | 2200 | 9800*2600*6800 | 9500 |






Standard export wooken case packing.
7-30 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

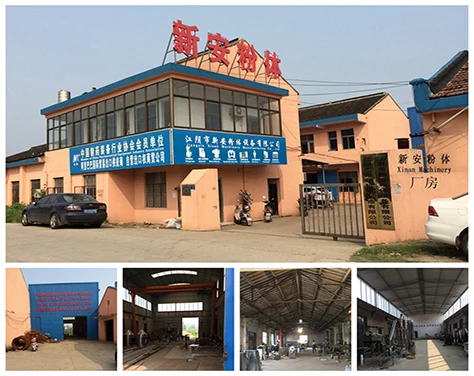

JIANGYIN XINAN MACHINERY MANUFACTURING Co., Ltd.
is located in JIANGYIN, China. we are devoted to provide reliable products and service to our customer to build a great enterprise.
Our company can improving the product according to the customers' requirements.compared to the similar domestic products ,the outstanding strong points of our product are lower price,better quality and our after-service are well.
