Full Automatic Plastic Shopping Bag T-shirt Bag Making Machine
US $33000-$53000
full automatic pe pp three side sealing zipper bag making machine
- Category: Packaging Material Making Machine >>>
- Supplier: Zhejiang Lifeng Machinery Co. Ltd.
Share on (1600538321737):
Product Overview
Description
automatic zipper ziploc bag doypack stand up pouches making machine
Products Description
Performance and features:
The machine is well-processed and assembled, with beautiful appearance and reasonable structure. The whole machine runs smoothly and has low noise. It adopts PLC double servo traction control, so that the unwinding and overhead materials are continuously drawn forward by the third traction motor at a constant speed. Centralized control of temperature by
computer reduces power consumption. The intermediate tension floating roller adopts the dynamic compensation mode, which makes the up and down fluctuation very small during the drawing process and the intermediate tension control is stable.
the multifunctional Laminated Bag Making Machine by servo motors. It is widely used in producing 3 Side Sealing Bag, Zipper Pouch(3 Side Sealing Bag with zipper), Doypack(3 Side Sealing Stand-up Zipper Pouch Bag), 4 Side Sealing Bag for different plastic packaging.
The machine is well-processed and assembled, with beautiful appearance and reasonable structure. The whole machine runs smoothly and has low noise. It adopts PLC double servo traction control, so that the unwinding and overhead materials are continuously drawn forward by the third traction motor at a constant speed. Centralized control of temperature by
computer reduces power consumption. The intermediate tension floating roller adopts the dynamic compensation mode, which makes the up and down fluctuation very small during the drawing process and the intermediate tension control is stable.
the multifunctional Laminated Bag Making Machine by servo motors. It is widely used in producing 3 Side Sealing Bag, Zipper Pouch(3 Side Sealing Bag with zipper), Doypack(3 Side Sealing Stand-up Zipper Pouch Bag), 4 Side Sealing Bag for different plastic packaging.
Material | All kinds of laminated hot-seal fim and peper |
Maximum mechanical beat | 180 beats/min(Actural speed depends on material and bag type) |
Maximum unwinding line speed: | ≤40m/min (depending on the material) |
Bag length size: | 600mm |
Maximum width: | 50-400 mm double delivery is used for length exceeding this length (maximum 6 times delivery) |
Maximum size of the roll: | Φ 900×1250 mm (diameter×width) |
Positioning accuracy: | ≤±0.5mm |
Bag Data | CRT Displaying,preset for bag amount,speed,punching time and batch number ect |
Message alert | Lost photoelectricity,lost temperature and midway tensdion,cut off stop |
Warping | Put the warp beam horizontally ,LPC Rectify a deviation,auto control of tension |
Temperature setting range: | 0～300℃ |
Power of the whole machine: | 68.43KW |
Cooling water: | 15L/min |
Gas Pressure: | 0.6Mpa |
Dimensions: | 15600×2300×2200 mm (length×width×height) |
Net weight of the whole machine: | 7800kg |
Location | Parts | Description | Quantity | Brand |
Towing parts | Traction motor | 1kw*3+1.5kw | 2set | Yaskawa Servo |
Pneumatic Components | 1set | Taiwan Servo | ||
Main transmission part | Reducer | 1:13 | 1set | Taiwan |
Inverter | 3.7kw | 1set | Yaskawa | |
Unwinding part | Inverter | 0.75kw | 1set | Yaskawa |
Control section | PLC | 1set | Panasonic | |

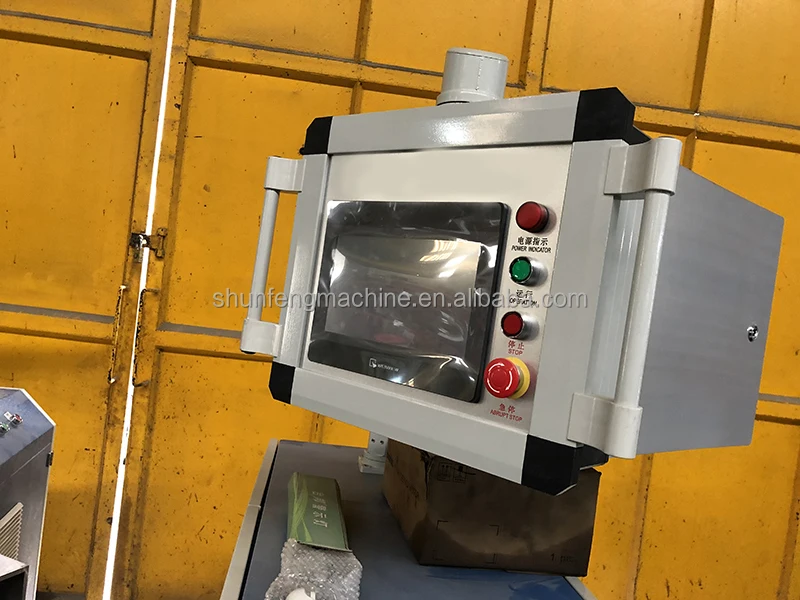

Bearing part | screen | 10.4inch colors | 1set | weinview |
solid state relay | 16 pcs | China | ||
Magnetic powder brake | 2.5kg | 1set | China | |
Correction controller | Double photoelectric | 1set | China | |
Joint bearing | China | |||
Photoelectric tracking part | Transmission bearing | China | ||
Photoelectric eye | 3pcs | KCON |

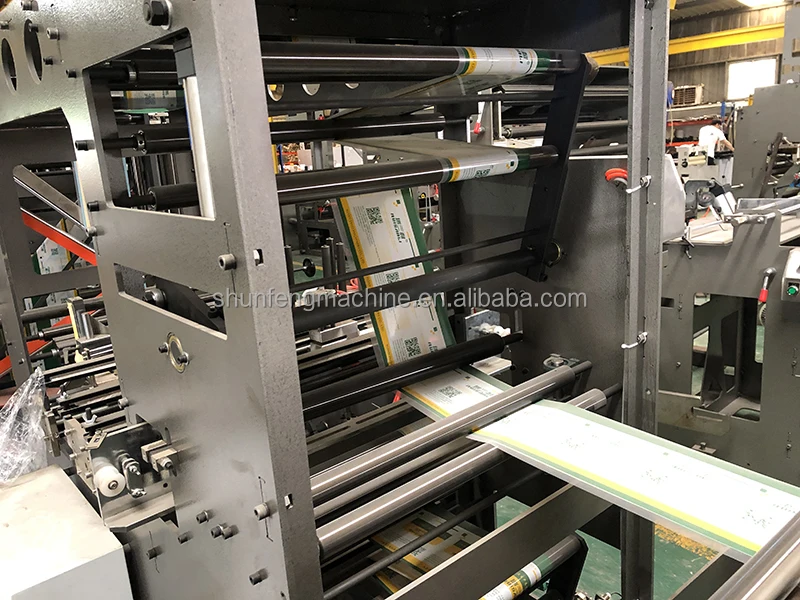

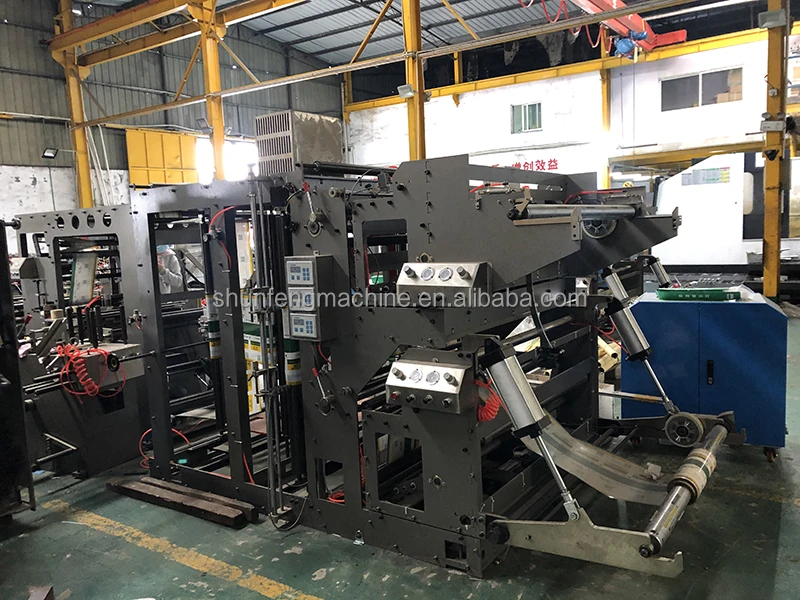

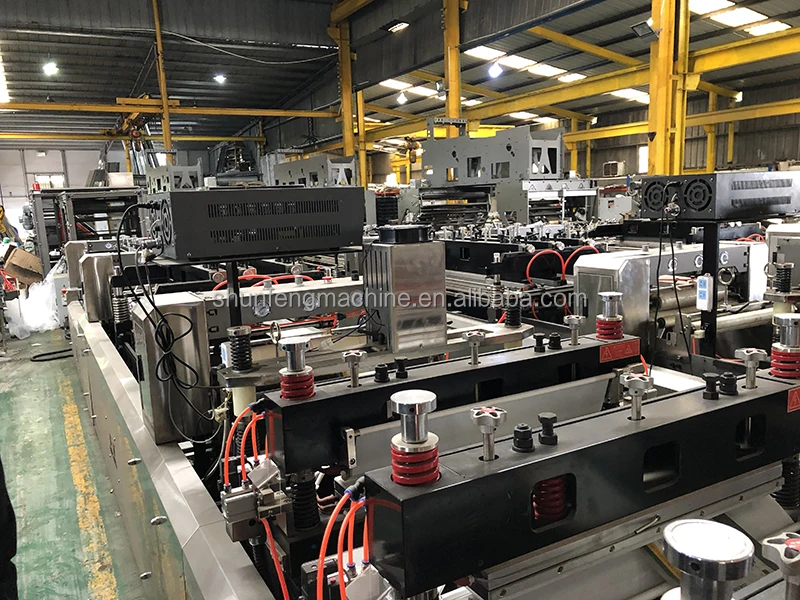

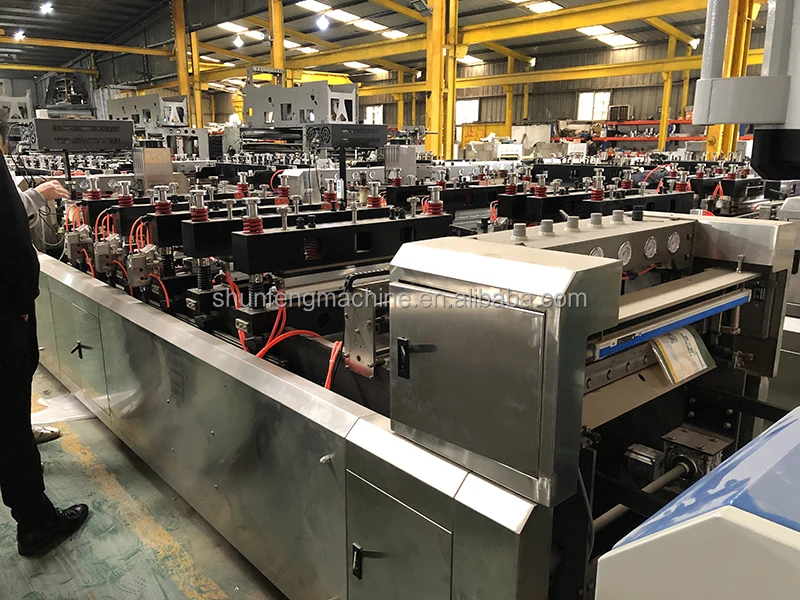

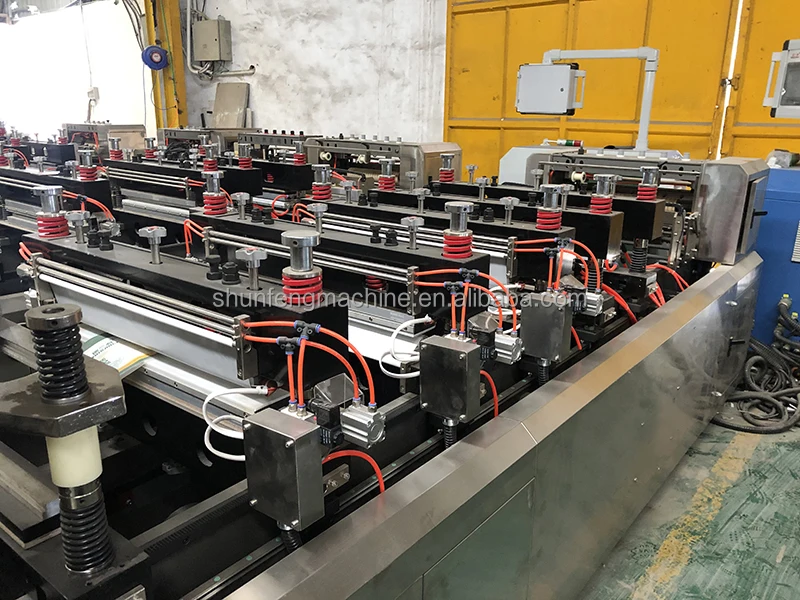

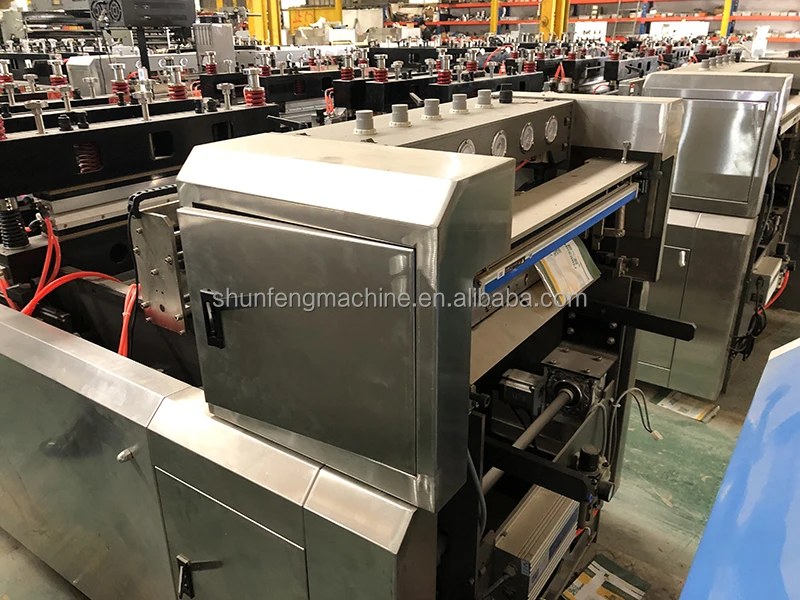

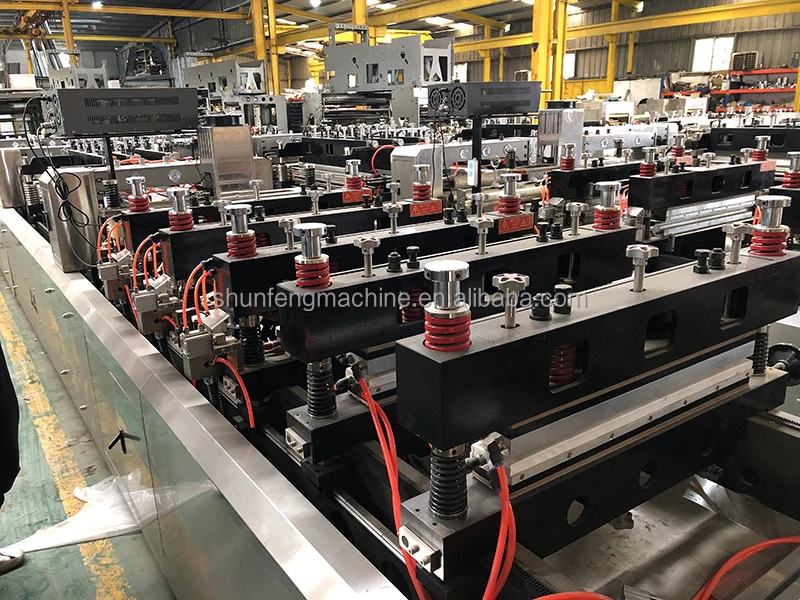

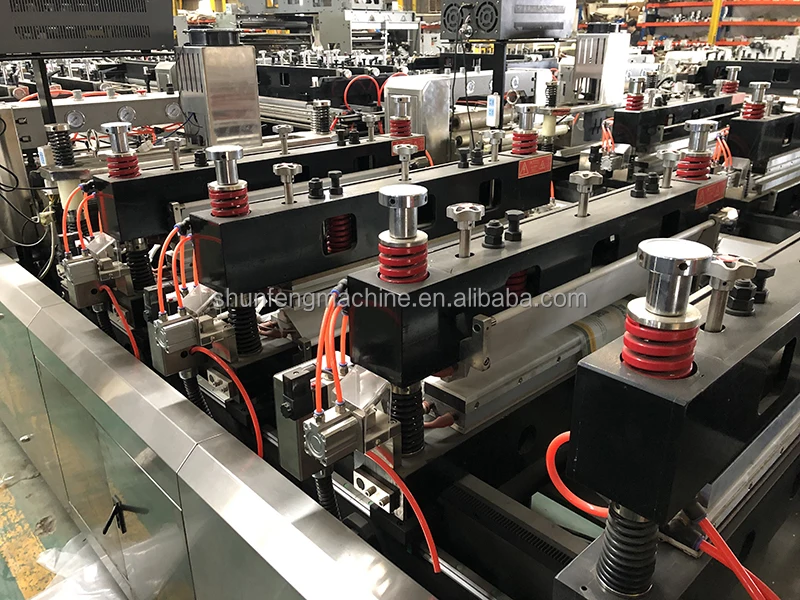

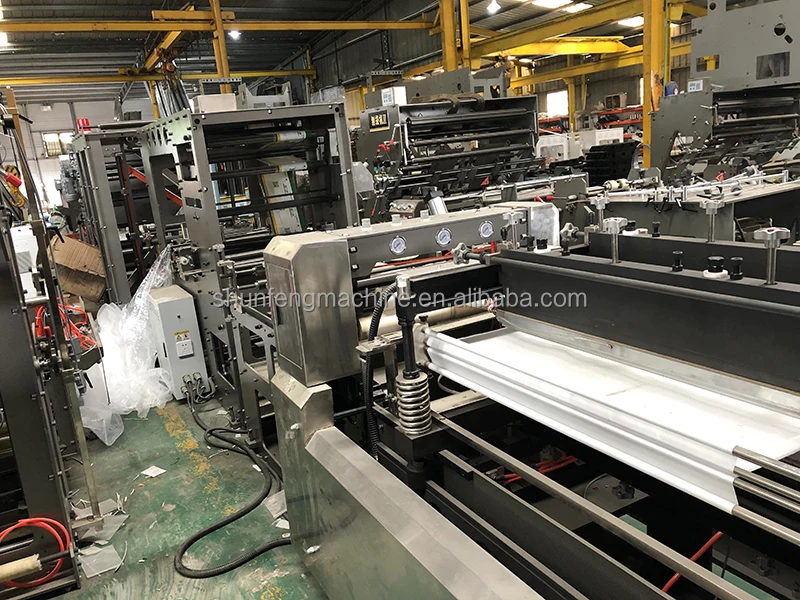

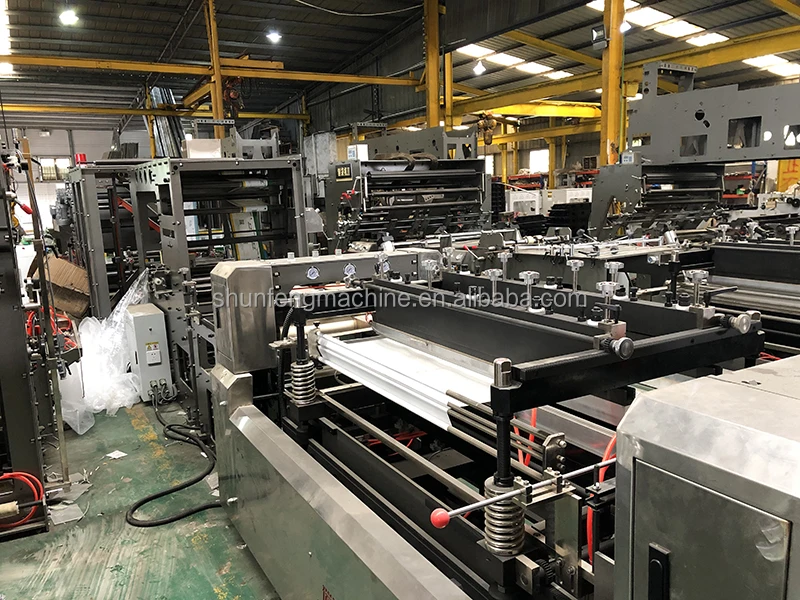

Details Images

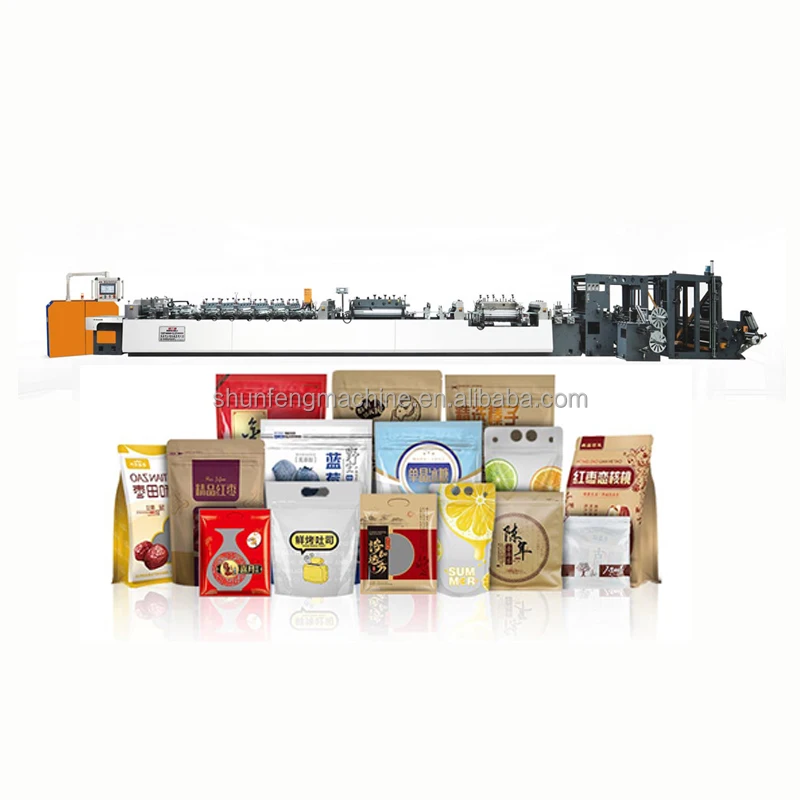

Customer Cases
Company Profile
Zhejiang Lifeng Machinery Co., Ltd
Zhejiang Lifeng Machinery Co., Ltd,which has a long history, grand scale, self-research, sales service is professionally manufacturing plastic soft packaging machine with high technology.The quality of its products had firstly passed the certification of quality management system ISO9001-2008 and CE certification of European Union.
We are professional manufacture in kinds of Bag Making Machine,Film Blowing Machine,Printing Machine,Cutting Machine ,Recycle Machine,Plastic Air Bubble Film Machine,Laminating Machine,Slitting and Rewinding Machine are popular in all the markets of the whole world ,products are exported to eastern Europe,North America ,Southeast,Asia,Russia,Africa,Middle East and more than 20 countries and regions , They win good reaction in the market and welcomed by vast customers no matter new or old from home and abroad.
We are professional manufacture in kinds of Bag Making Machine,Film Blowing Machine,Printing Machine,Cutting Machine ,Recycle Machine,Plastic Air Bubble Film Machine,Laminating Machine,Slitting and Rewinding Machine are popular in all the markets of the whole world ,products are exported to eastern Europe,North America ,Southeast,Asia,Russia,Africa,Middle East and more than 20 countries and regions , They win good reaction in the market and welcomed by vast customers no matter new or old from home and abroad.
Our customer
Certifications

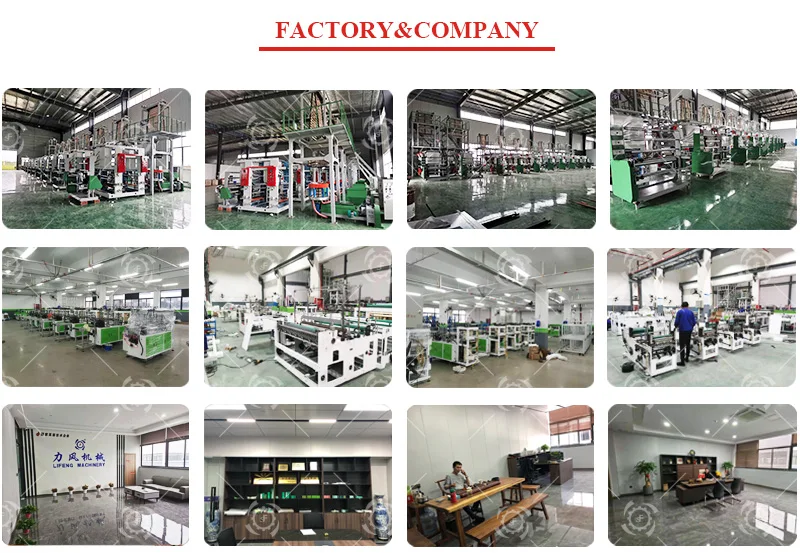

Factory & Company
Packing & Shipping
FAQ
Q1:Are you a factory or trading company?
A1: We are established in 1995, a actual factory and manufacturer in the line of printing&package machine for 20 years.
Q2:Where is your factory located? How can I visit there?
A2: Our factory is located in Rui'an City, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!
Q3: Which industries are widely used in of your machine?
A3: Those are mainly used in making plastic bags and labels in the maket. Examples of stand up pouch, zipper pouch, plastic bag for dialy necessities and food, plastic label for drink bottle, Foil yogurt cup, Medical pouch, laminated film or soft carboard,etc.
Q4: How about the payment term?
A4: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q5: What about your main market?
A5: Ourproducts be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
Q6: How does your factory do regarding quality control?
A6: Quality is the most important principle. GREAT WALL people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.
Q7:What about warranty and do the engineers available to overseas?
A7: One year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.
Q8:What about the service after sale?
A8: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12hours and help you to slove the problem.
A1: We are established in 1995, a actual factory and manufacturer in the line of printing&package machine for 20 years.
Q2:Where is your factory located? How can I visit there?
A2: Our factory is located in Rui'an City, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!
Q3: Which industries are widely used in of your machine?
A3: Those are mainly used in making plastic bags and labels in the maket. Examples of stand up pouch, zipper pouch, plastic bag for dialy necessities and food, plastic label for drink bottle, Foil yogurt cup, Medical pouch, laminated film or soft carboard,etc.
Q4: How about the payment term?
A4: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q5: What about your main market?
A5: Ourproducts be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
Q6: How does your factory do regarding quality control?
A6: Quality is the most important principle. GREAT WALL people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.
Q7:What about warranty and do the engineers available to overseas?
A7: One year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.
Q8:What about the service after sale?
A8: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12hours and help you to slove the problem.
