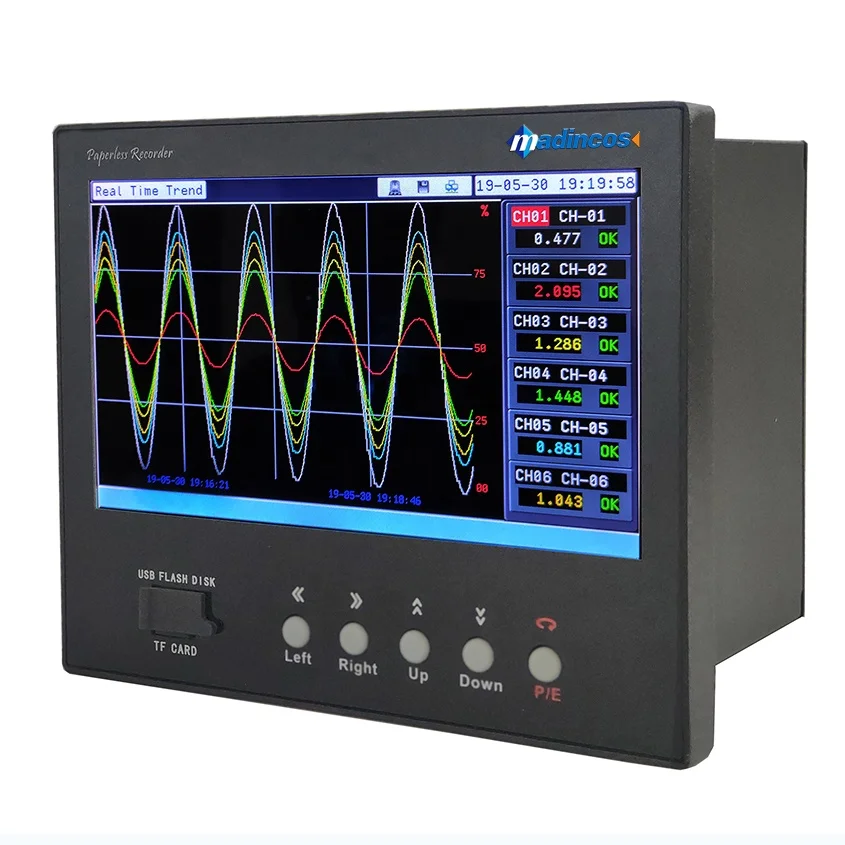

Advanced High Quality High Temperature 32 Multi channel USB Temperature Data Logger Color Paperless Recorder with RS485/Ethernet
- Category: >>>
- Supplier: Xiamen Madincos Automation Co. Ltd.
Share on (1600538322418):
Product Overview
Description
7Advanced High Quality High Temperature 32 Multi channel USB Temperature Data Logger Color Paperless Recorder with RS485/Ethernet
Product Show
Specification | ||||||
Accuracy | ±(0.2%FS +1) digital | |||||
Display | 7' Color LCD TFT | |||||
Size/Installation Size | 180x150x160mm/ 138x138mm | |||||
Power supply | 100-240VAC | |||||
Sampling & Memory Specification | ||||||
Sampling | 1 second per 8channels | |||||
Memory capacity can be set flexibly according to the memory interval time setting. | ||||||
Huge capacity for Long time data saving up to 10 years with power -off protection | ||||||
Memory Interval time | 1, 2.......3600seconds, can be set flexibly as required in recorder | |||||

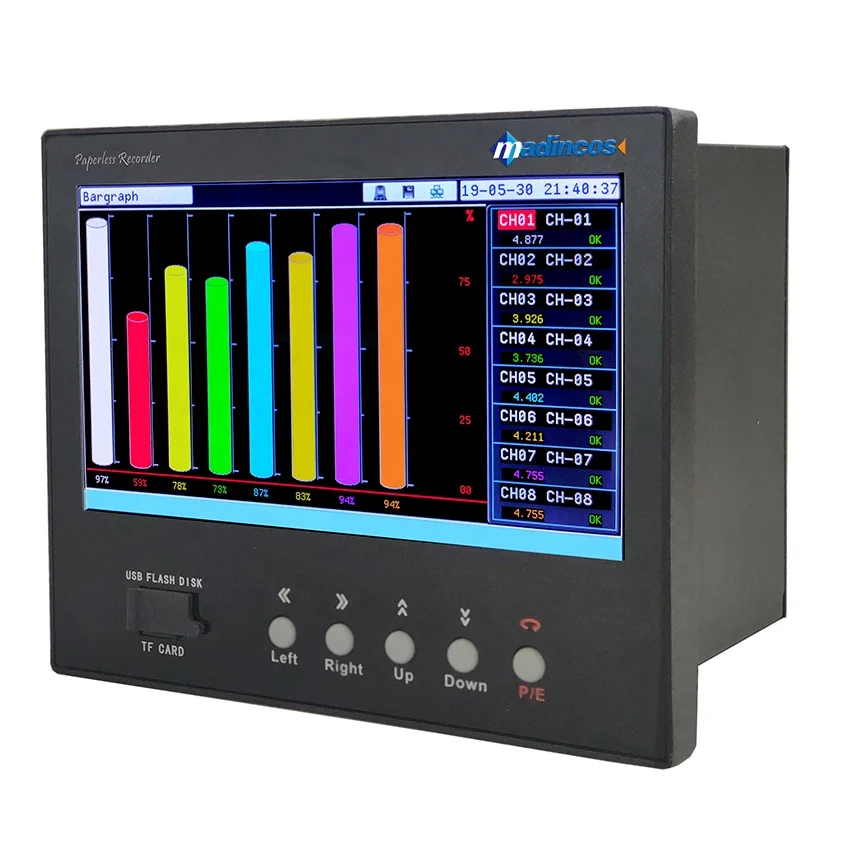

Screen Display | Various screen display in digital, trend, barograph, circular chat display | |||||
PC software | Powerful software function: to display memorized data in digital curve, Print Data and export the data to excel for further analysis. | |||||
Input & Output Specifiation | ||||||
Univeral Input | Themocouple, RTD, Analog, mV,frequency input; programmable | |||||
Input Channels | 1,2,3,4,5,6,7,8......16.....24....32, optional | |||||
Channels Isolation | 400VAC photoelectrical isolation | |||||
Sample Rate | 1 seconds /8 channels | |||||
Relay output | 3A, NO, max 16 relay output, configurable for channels | |||||
RS485 communication | standard Modbus-rtu protocol, | |||||
Ethernet Communication | standard Etherent MODBUS-TCP/IP protocol | |||||
feed output | auxiliary 24VDC output for transmitter | |||||
Print | printing output for data in digital and curve | |||||
Flow totalizer | with temperature, pressure compensation for channels | |||||
Math | +, -, x, /, ,max, min, average; linear math | |||||
Detailed Images

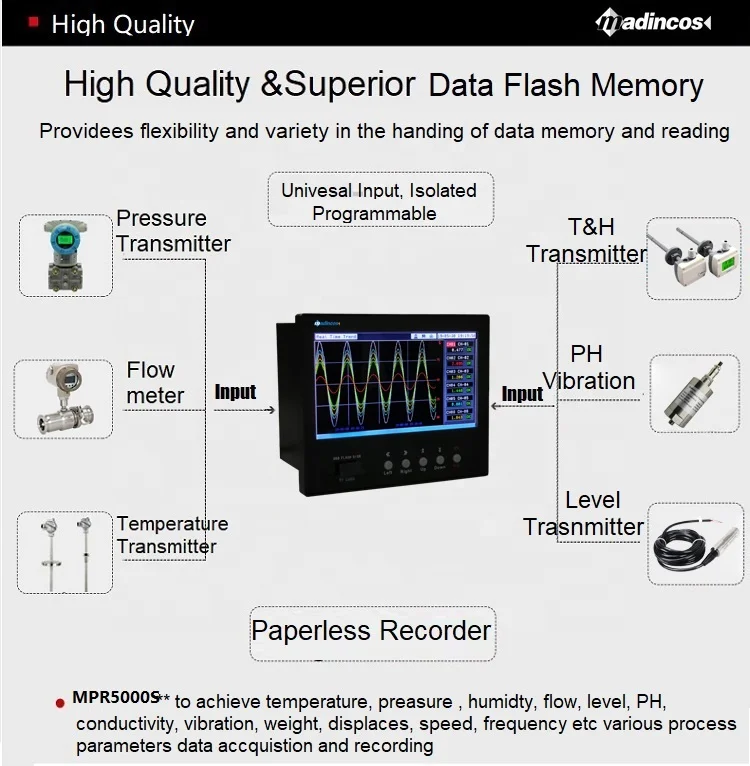

Programmable Universal Isolated Input Each Channel, Powerful Paperless Recorder
** Univeral Input, Isolated Version, input type each channel can be programble and setting flexibly as reqruied
**For temperature, preasure , humidty, flow, level, PH, conductivity, vibration,weight, displaces,speed, Frequency etc variours process parameters data accquistion and recording.

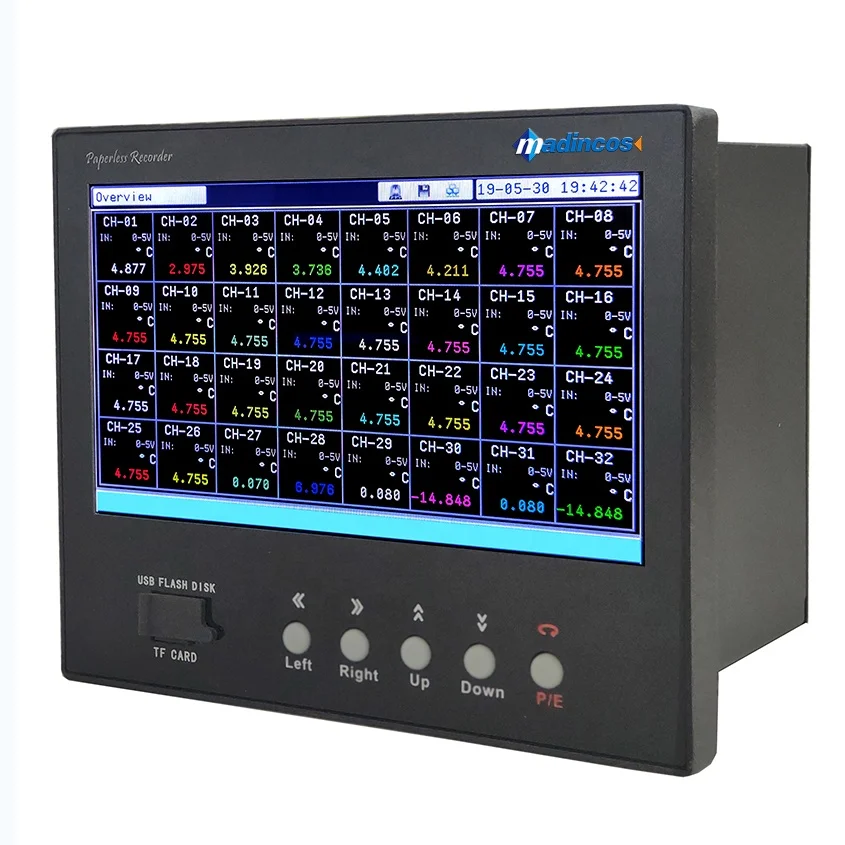

Industrial 32-Channel 7'' LCD Display Digital Paperless pt100+Thermocouple Temperature Recorder with rs485,Ethernet
**For temperature, preasure , humidty, flow, level, PH, conductivity, vibration,weight, displaces,speed, Frequency etc variours process parameters data accquistion and recording.
Industrial 32-Channel 7'' LCD Display Digital Paperless pt100+Thermocouple Temperature Recorder with rs485,Ethernet
USB Data Transferring, Plug and Play
*Huge Capacity 8G USB pen driver for data transfer automatically only for 1-2 munities when u need to transfer the data, Fast and Easy operation.
* Powerful PC software
To display and read the memoried data in digital and curve, print the chart data.; also export the data as Excel for further analysis.

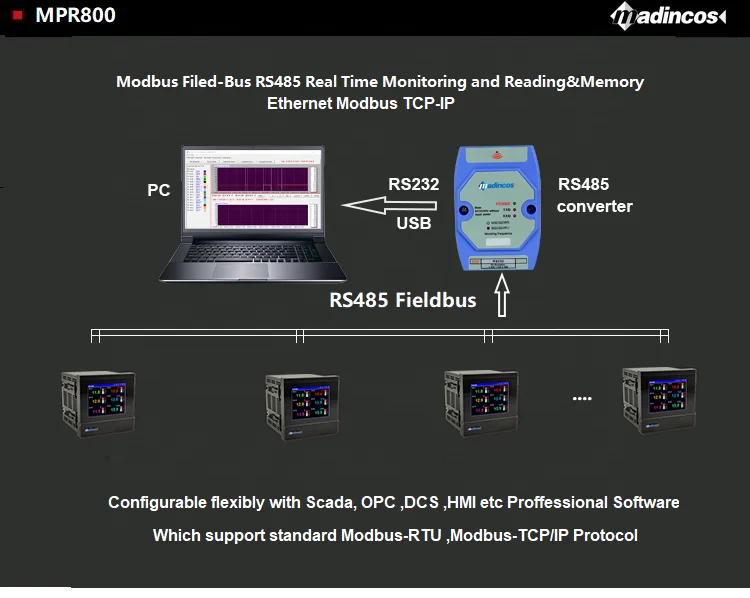

Remote Real Time Reading and Monitoring
*Photoelectrical isolated RS485 communication output
*Standard MODBUS-RTU protocol, can be configurable flexibly with SCADA, DCS, PLC, HMI, OPC server for real time reading and monitoring in control room remotely
*Powerful PC software
real time monitoring and reading while memory data in PC automatically
Packing & Delivery
Packaging | ||
Size | 250(L) * 250 (W) * 230(D)mm | |
Weight | 2.5kg | |
Packaging &Delivery | Package: The normal package is paper box(Size: 250L*230W*230HMM). PC+Bubble box +paper box with prection further to garantee the delivery the goods to you great. Delivery: by DHL, TNT, UPS, FEDEX; by air, by sea | |
Related Transmitter
MTH500S Wall Type Temperature Humidity Transmitter
Accuracy: 0.3degc, 3%RH Range:-20 to 80℃, -40 to 60℃, 0-50℃
Output:4-20ma, 0-5V,0-10VDC, RS485
MTH300S Wall Type Temperature Humidity Transmitter
Accuracy: 0.3degc, 3%RH Range:-20 to 80℃, -40 to 60℃, 0-50℃
Output:4-20ma, 0-5V,0-10VDC, RS485
MPT910 Smart Pressure Transmitter
Absolute, Gauge,
Accuracy:0.2%FS,0.1%FS
Range:0- tp 600Mpa
Output: 4-20ma, 0-10vdc
MLT6300P Submersible Throw-in Level Transitter,Corrosion-proof
Accuracy:0.5%FS, 0.2%FS
Range: 0-170m
Output: 4-20ma,0-10VDC,0-5VDC
Our Factory
FAQ
Q1. How can I place an order?
Welcome to contact our any salesman for your orders. Please kindly confirm our salesman with your exact requirement and technical requirement in details as clear as possible. So, we can offer you professional recommend and solutions for your requirement and projects. As an experience manufacture, our salesman can be pleasured to offer good service and professional major for you.
Q2: Hong long can I expect to get the sample?
We can offer sample to you in 3-5 working days against 100% sample cost. The goods will be delivered to you by DHL, TNT, express, UPS and so on courier to you asap.
Q3. What is the delivery term and shipment?
Delivery Term: EXW, FOB, CFR, CIF and so on, please choose the preferred one which is most convenient or costless.
Shipment: DHL, TNT, FEDEX, UPS etc. express for small parcel. By sea and air for mass orders.
Q4. What's your payment term?
Payment term: TT, western union, L/C, Alibaba trade assurance payment and so on. Alibaba assurance payment is new popular online payment term to guarantee the profit, delivery time, quality by third thirty by Alibaba.
Q5. Do you have offer warranty and after-service?
Yes, sure, warranty:1 year. We can offer you our items in high quality and professional solutions for your projects, also excellent after-service to guarantee our reputation of our brand in market.
Q6: Are you a manufacturer?
Yes, sure, we are a professional manufacturer in industrial instrumentations for more than 10 years manufacturing experience, with production lines in paperless recorder, pressure transmitter, level transmitter, temperature and humidity transmitter, temperature transmitter.
Q7: Where is your location? How to arrive?
Location: in Xiamen City, Fujian Province, China, which is a beautiful sea island in China.
How to arrive: we have our airport in the center city, only 10minutes by car from airport to our office
Before visiting us, please kindly advise us your schedule, flight no. or train no for our picking you up. Kindly welcome to visit us, our sincere friends!
Q8: What service you offered?
Distributor &Agent Wanted: professional and experienced, with nice distributor channels, good reputation
Welcome to join us Madincos team as our long-terms partners as distributor or agent for our win-win cooperation.
OEM and ODM Wanted: welcome to OEM and ODM requirement for your brand to guarantee your profit and win-win.
