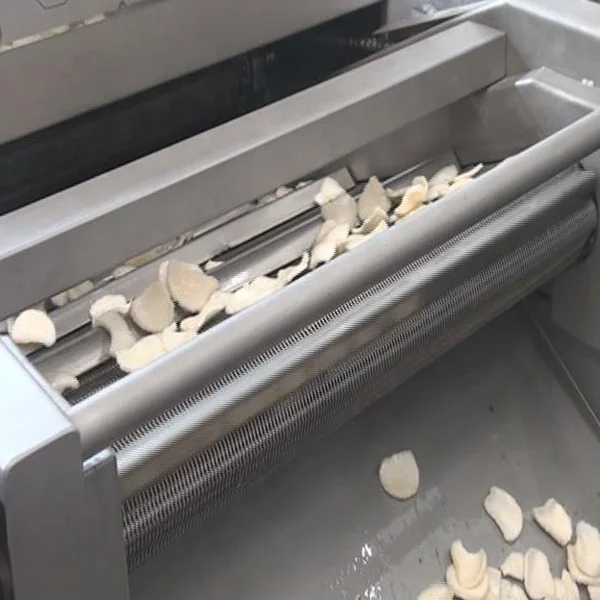

DBP automatic gas continuous belt fryer frying machine with circulation oil filtering system
- Category: >>>
- Supplier: Shijiazhuang Debao Machinery Manufacturing Co. Ltd.
Share on (1600538324437):
Product Overview
Description

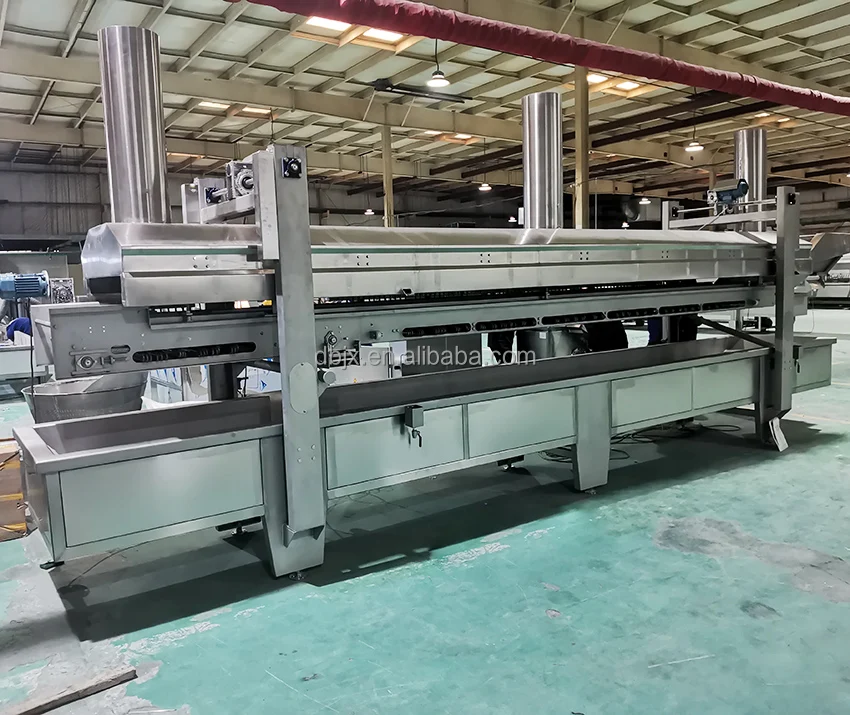

DBP Automatic gas continuous belt fryer frying machine with circulation oil filtering system

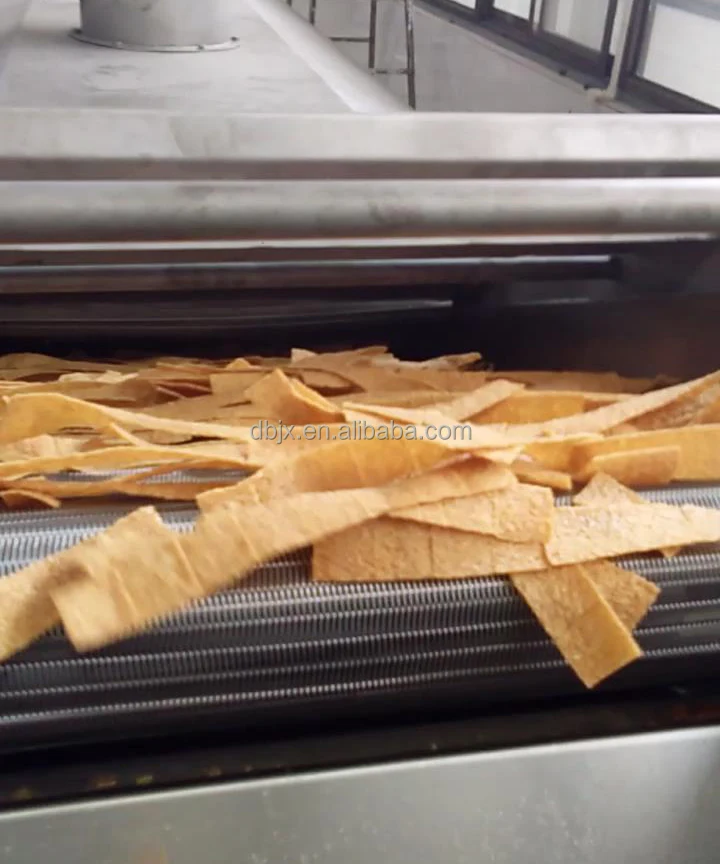

This DBP Continuous Deep Fryer is specially developed for puffed snack foods like Potato Chips, Rice Cracker, Cornflakes, Plantain Chips, Bugles...etc.
1. Fryer Heating way can be Electricity, LPG or Gas.
2. Frying Machine Made by Stainless Steel.
3. Optimized Oil Frying Structure, the minimum oil to achieve continuous production.
4. Automatic Oil Temperature Control and Oil Supplement.

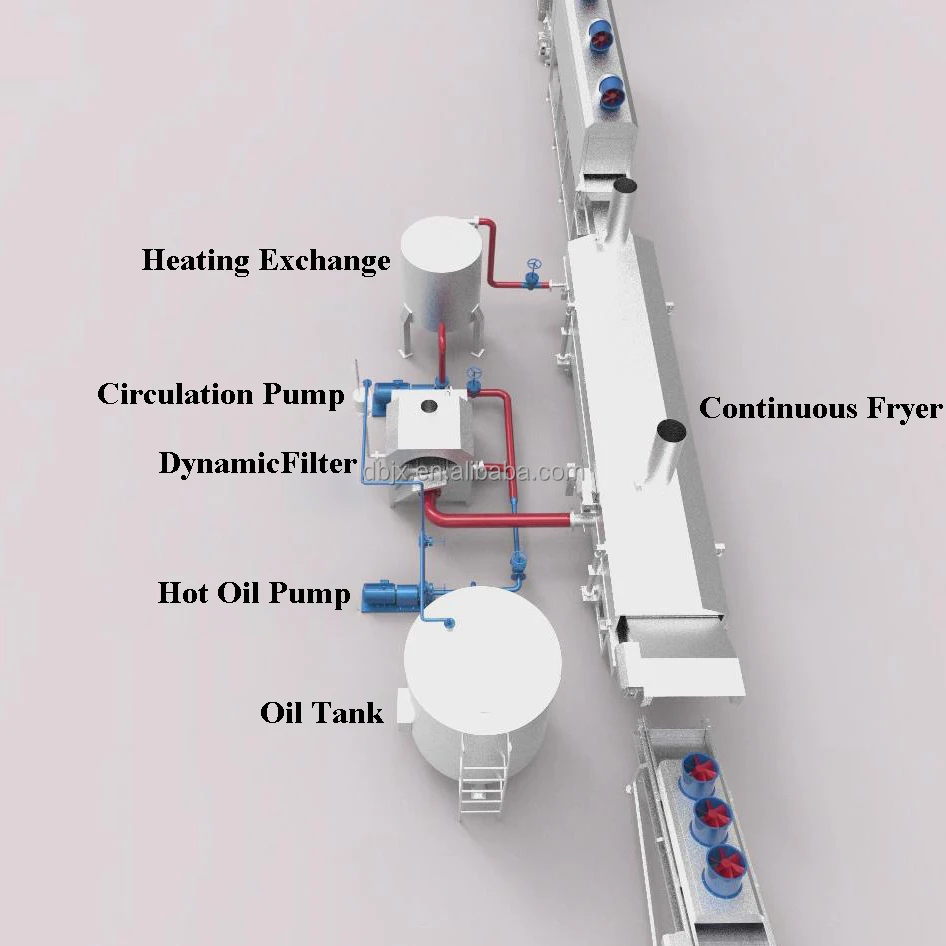

5. Can Filter Fried Dregs Automatically, optional Frying Circulation-filtering System.
6. Electricity leakage protector.
7. When the temperature anomaly, the safeguard will work and give an alarm.
| Model | DBP30 | DBP50 | DBP60 |
| Dimension | 3000x1450x2900 mm | 5000x1650x2900 mm | 6500x1530x2900 mm |
| Frying Area | 1500x650x80 mm | 3500x650x80 mm | 4800x650x80 mm |
| Oil Capacity | 260 L | 520 L | 680 L |
| Weight | 600 KGS | 1800 KGS | 2300 KGS |
| Power | 1.5 kw | 1.5 kw | 1.9 kw |
| Capacity | 200-400 kgs/h | 500-800 kgs/h | 700-1000 kgs/h |
| Heating Way | Electric / LNG / Gas / Exchange | ||
| Temperature Range | <=260 | <=260 | <=260 |
Please Contact Us For Further Information, Most of Our Fryer Are Customized Base On Your Real Demands.

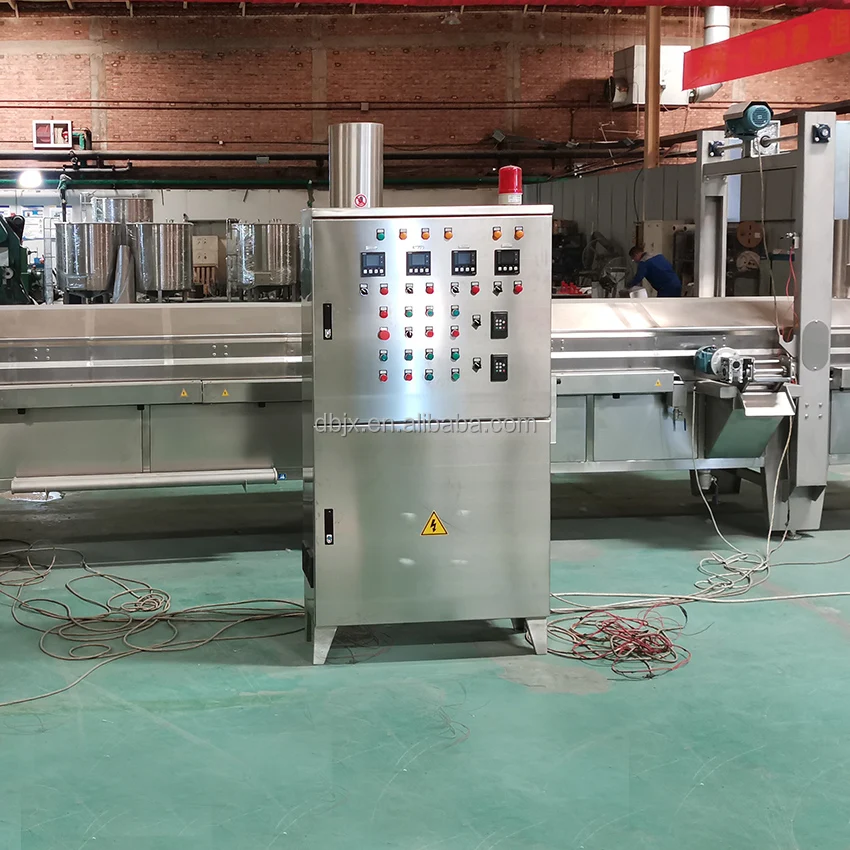

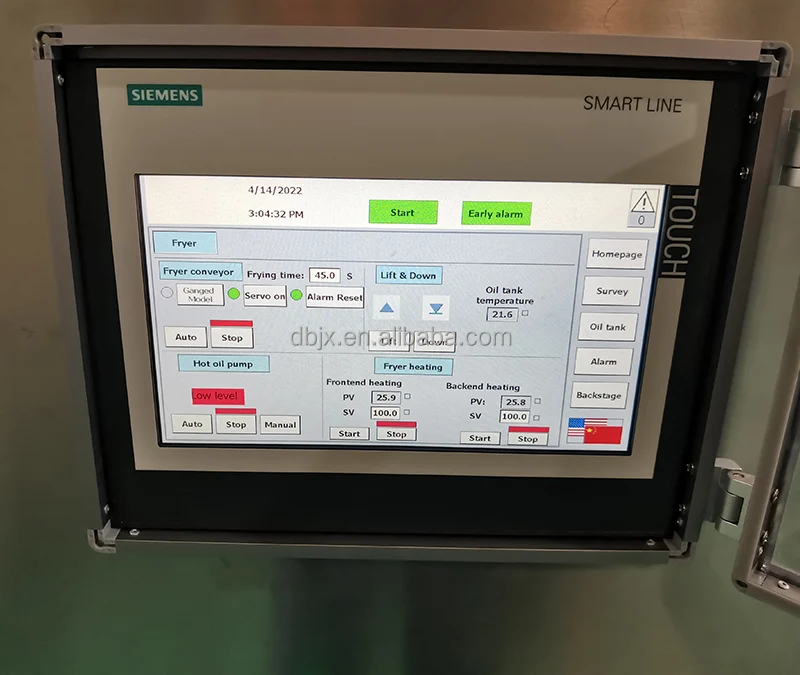

1. Centralized Control System, Easy to operation.
Centralized control system of the production line, it can control all the machine in one box.
Button type control panel, easy to operation. Save labor cost and easy to operation.
2. Automatic frying time and temperature control.

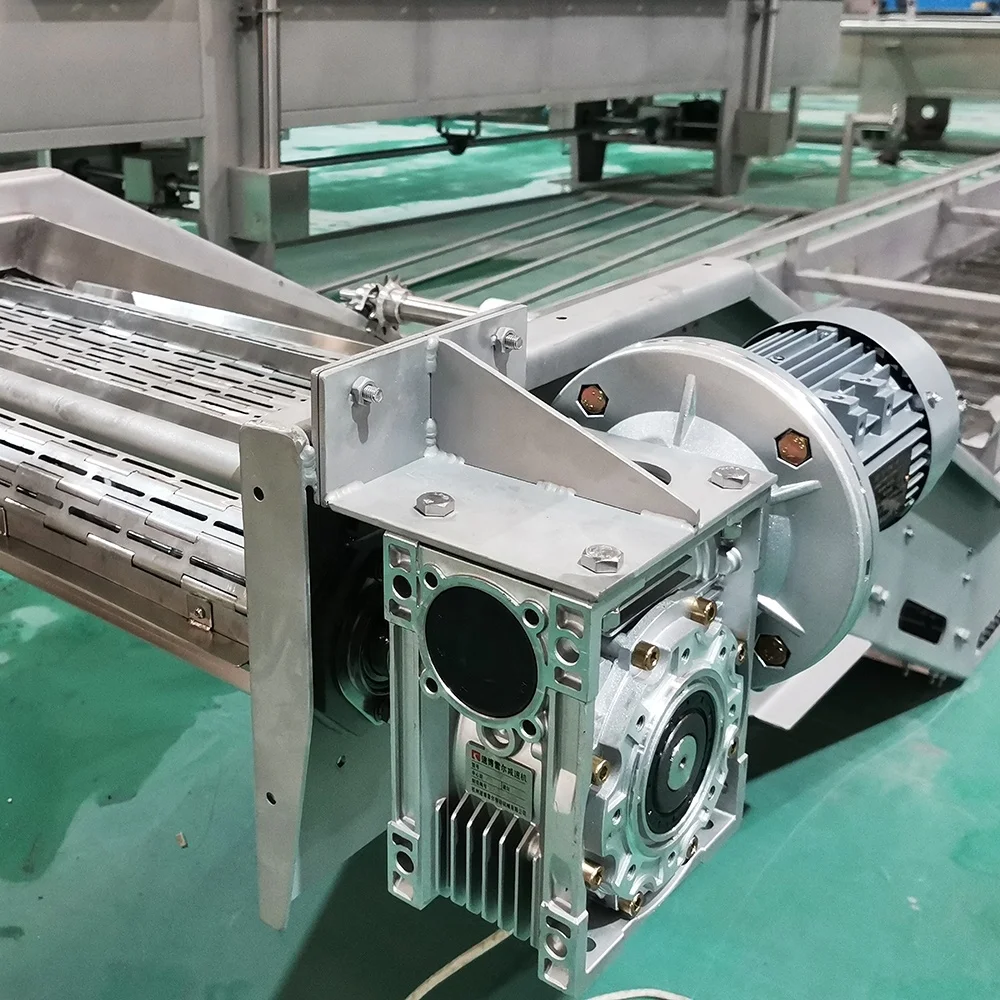

Frequency conversion system, it can control mesh belt speed and control the products frying time.
The fryer will stop heating while oil temperature reach preset temperature. And start heating automatically once oil temperature lower than preset temperature.
3. Automatic lift up device, easy to cleaning and maintenance.
The belt and exhaust fume collecting hood can lift-up automatically separately or together. It is convenient to cleaning and maintenance.
Lift up device use lead screw lift system. It is safety, save space and good looking appearance.

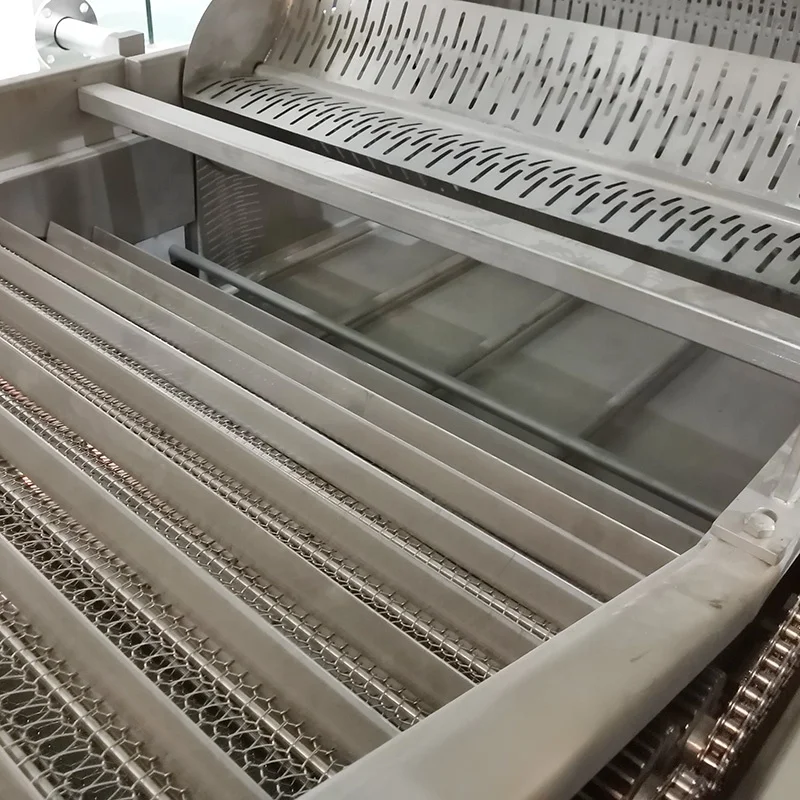

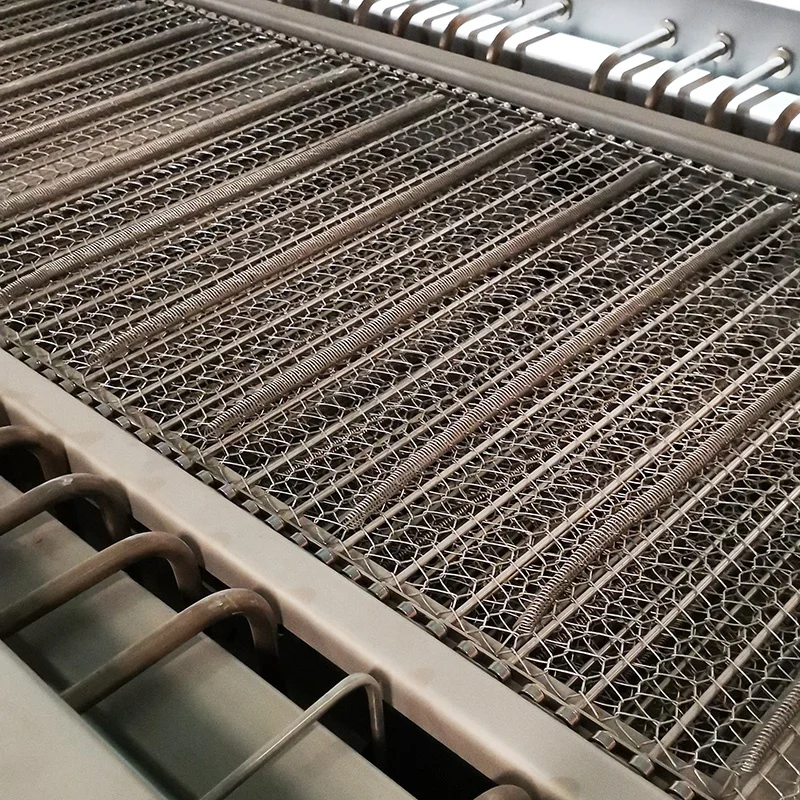

4. Customized Conveyor Belt Construction Based on Customer Demands
The conveyor belt can be single belt, double belt, belt with wheels, PTEF belt, ect.
5. Automatic oil level control
The fryer equipped with oil level detection device. While oil level is less, the pump will start work to adding fresh oil into fryer, maintain oil level stability.

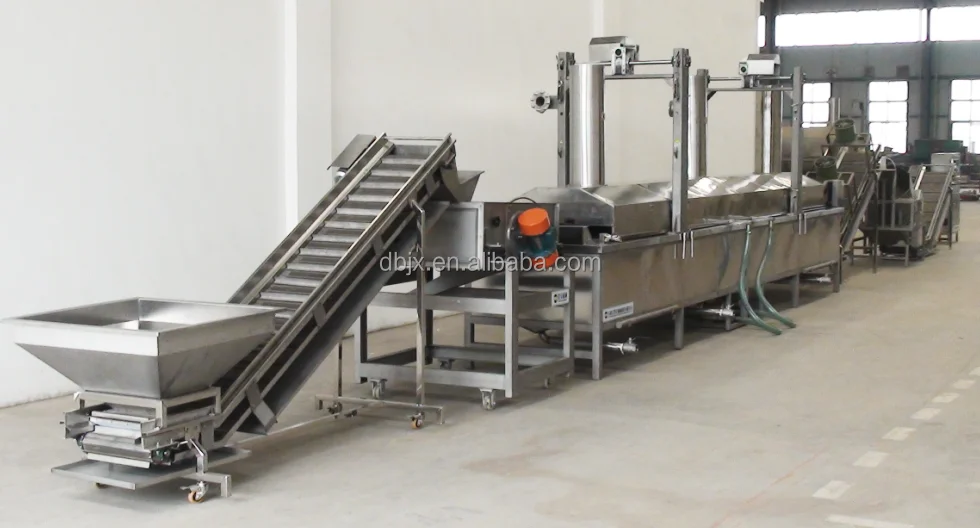

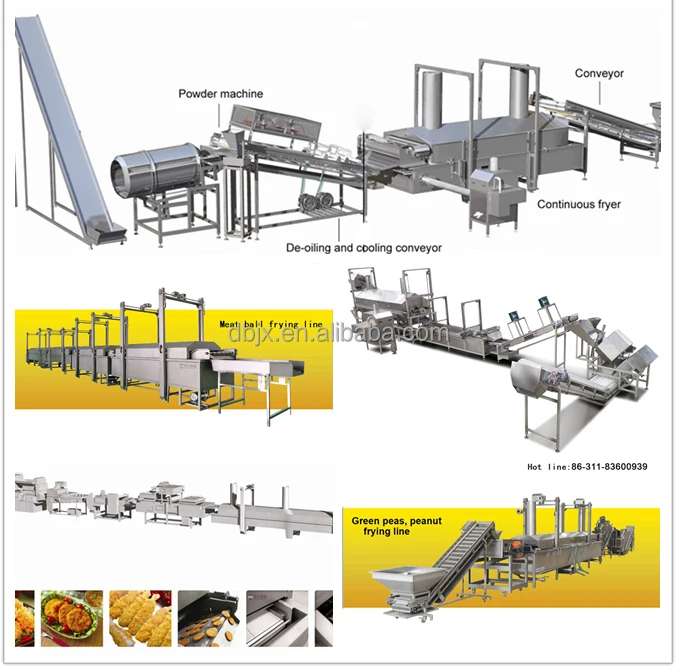

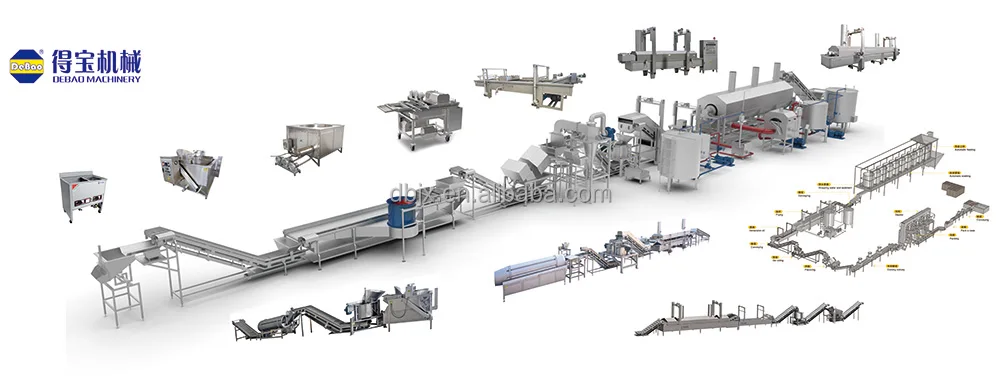

Production Line
If you own a Snack Food factory, I recommend you buy this production line:
DB/DBP Continuous Fryer: it can fry various food automatically like Crispy Peanuts, Salted Green Peas, Crunchy Puffs, Sweet Corn, Rice Cracker, Potato Chips and Meat Snack Foods.
DBCE Deoiling Machine: reduce the oil in Beans, Cashews, Peanuts, Bananas Chips, Plantains Chips, Casava Chips and other Snack Food by high speed rolling.
DBCE Flavoring Drum: mix the flavoring powder with Beans, Cashews, Peanuts, Bananas Chips, Plantains Chips, Casava Chips and other Snack Food.

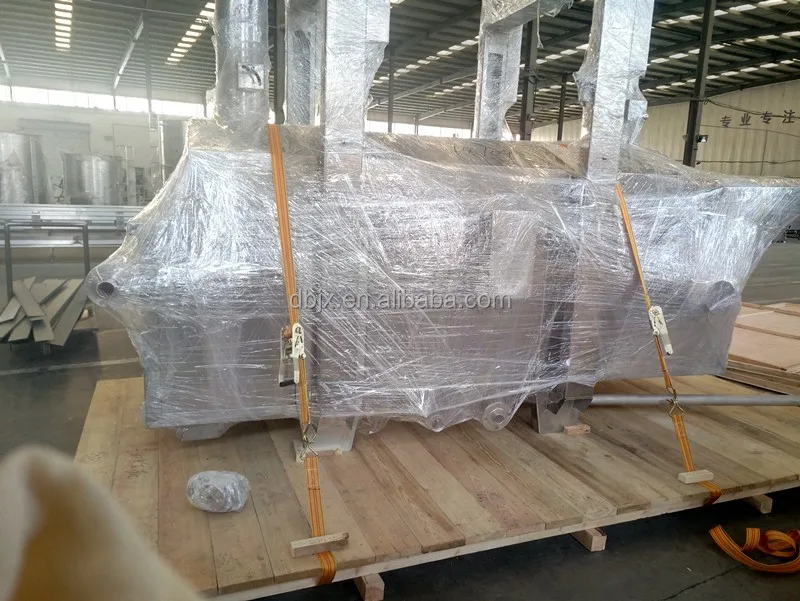

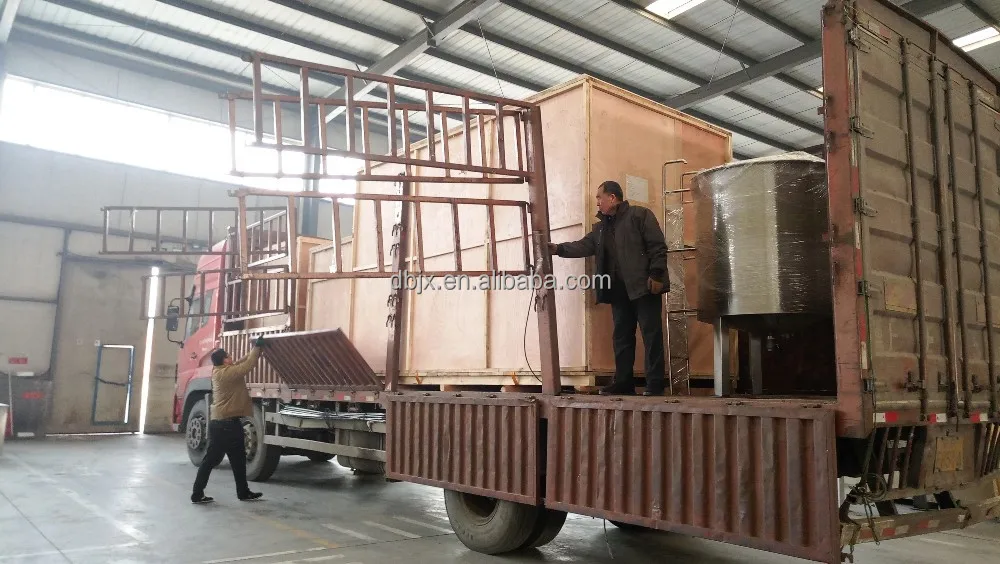

Packaging & Shipping
Trade Shows
Company Information
Since it establishment in September 2000, Shijiazhuang Debao Machinery Co., Ltd. has become the leader of Frying Machine Industry with the "Profession, Concentration, Creating value for client" as business philosophy and depending on scientific and technological innovation. It is given the reputation of "Frying Expert".
We own two famous registered brands" Debao" and "Leda", and more than 100 specifications of frying machines, three series, our products have satisfied all needs of guests not only in Asia but also in Europe.
Our tech team pay much attention to the fundamental research of thermal energy, material, fluid, machinery and food engineering as well as the application of new technology, this is the guarantee of us to gain the services and equipment which meets standards of technology and environment.
Professional skill is put in use in order to reduce the cost and increase the efficiency and quality become a reality, this is our focus of attention from beginning to the end.
We pay much more attention on details and key control point of management in order to guarantee the products to conform the design requirement.
We will do our best to carry forward debao machines philosophy and culture, commit ourselves to the development if industry and guests profits, and exert ourselves continuously.
FAQ
1. Are you a factory or trading company?
We are the leading factory of frying machine in China. We welcome you visit us!
2. How about the product quality?
Each machine will be tested finishing.
All elements are use reliable and famous brand that work with us over 20 years.
3. What about the warranty and after-sale service?
Our machine has 12 months guarantee, electrical parts has 6 months guarantee.
Our engineers are available to serve oversea.
4. Are you providing training about machine installation and operation?
Yes, our engineer can teach your worker in our factory OR give them a class in your factory.
5. Is it possible to use our LOGO or special custom design?
Yes, no problem.. We have a professional technology team for new research and development.
6. How long the lead time is?
Usually 40-50 Days is enough.
7. What is the price term and payment method?
We can quote EXW, FOB, CIF and CNF price. You can pay us by T/T, L/C or Western Union.
