Настольный портативный ручной лазерный маркировочный аппарат raycus 20 Вт 30 Вт 50 Вт 60 Вт 100 Вт Лазерный Гравер маркер
- Category: Industrial Machinery >>>
- Supplier: Liaocheng Dongchangfu Ketai Laser Equipment Co. Ltd.
Share on (1600538330813):
Product Overview
Description

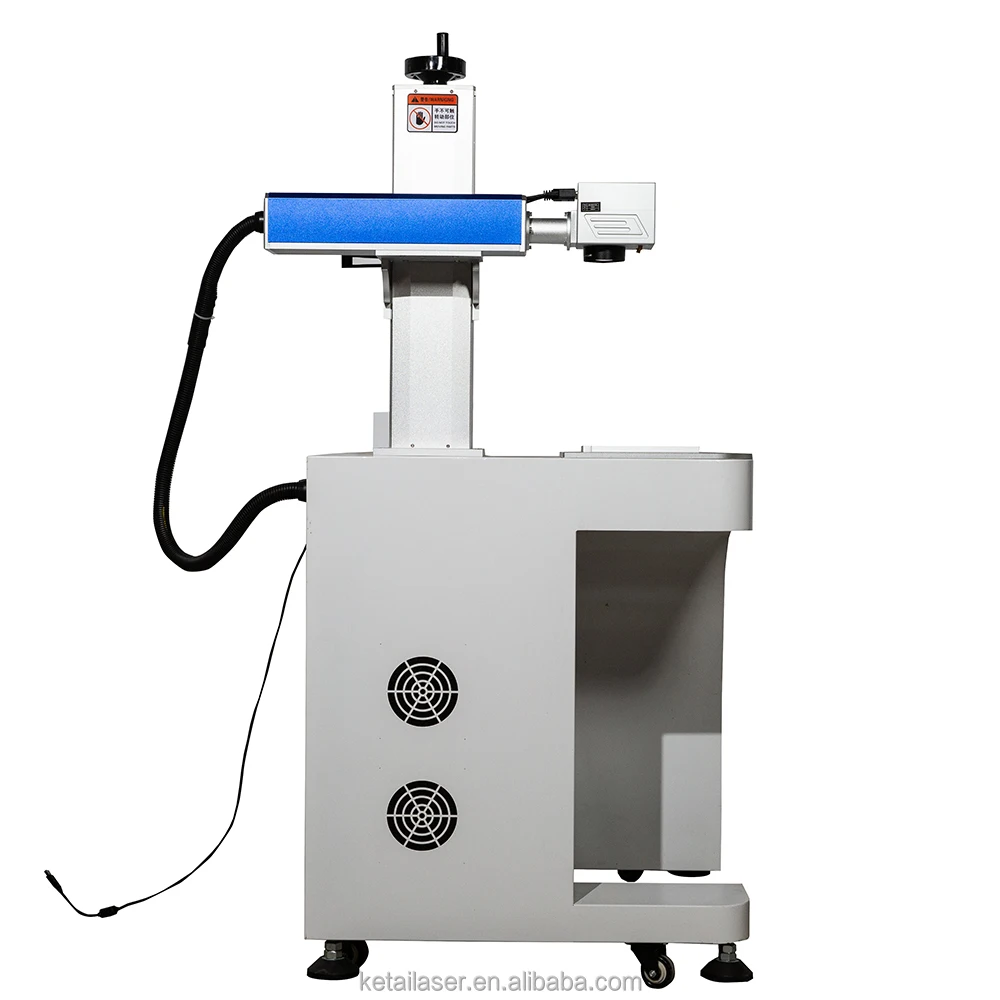

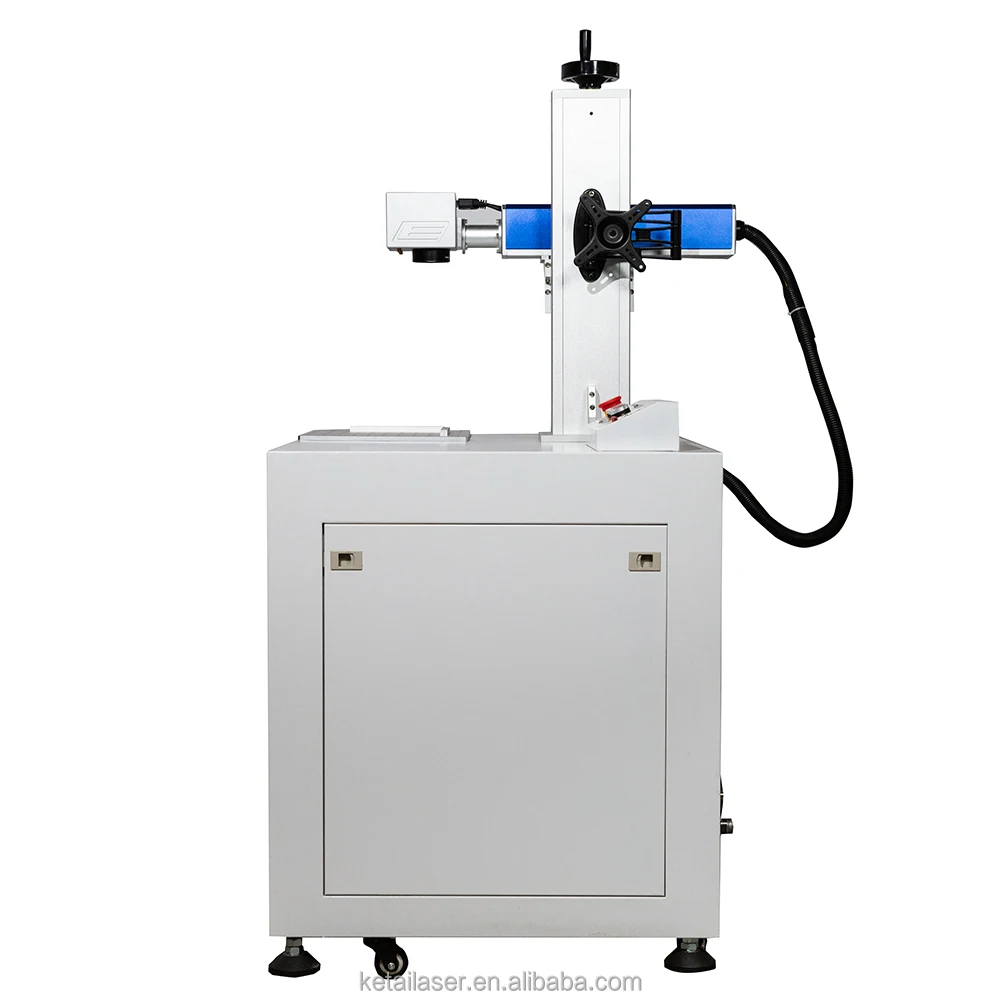

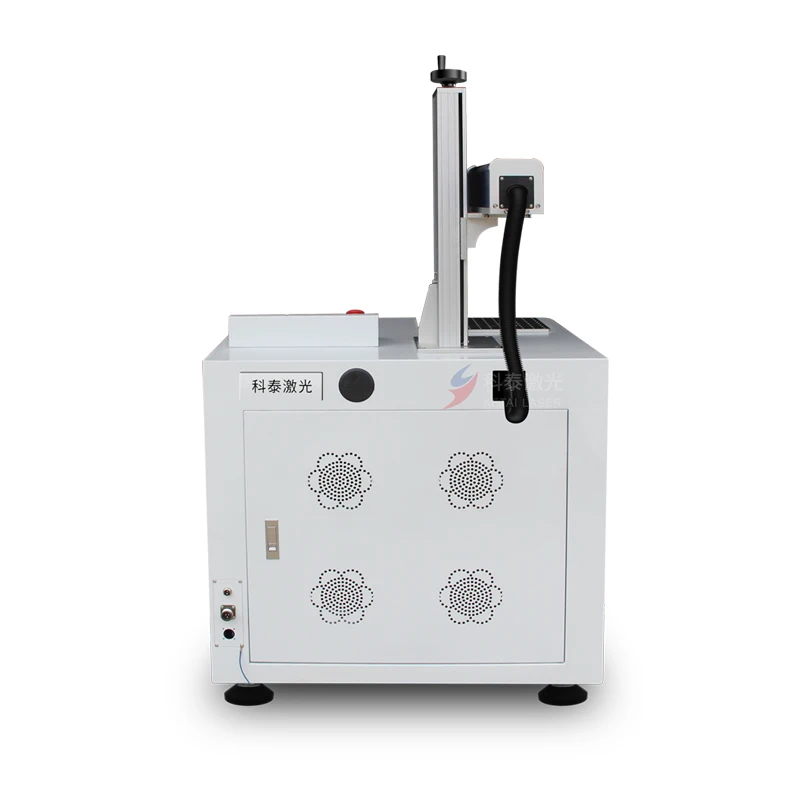

Desktop portable handheld raycus metal fiber laser marking machine 20w 30w 50w 60w 100w laser engraver marker
Product Description
1. No supplies, low power consumption, power consumption is less than 500W
2. Fully air-cooled, water-cooled machine does not need to reduce energy consumption;
3. It is not affected by changes in harsh environments and temperatures in the state can use batteries, car cigarette lighter work;
4. The product can greatly reduce the cost of depreciation, fully meet the customers large quantities, stable production.
2. Fully air-cooled, water-cooled machine does not need to reduce energy consumption;
3. It is not affected by changes in harsh environments and temperatures in the state can use batteries, car cigarette lighter work;
4. The product can greatly reduce the cost of depreciation, fully meet the customers large quantities, stable production.
Specification
Product | Desktop Fiber Laser Marking machine |
Model | KT-10F, KT-20F, KT-30F, KT-50F,KT-70F,KT-100F |
Laser type | Fiber laser |
Laser power | 30W |
Cooling mode | Air cooling |
Supports graphical format | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |
Beam quality | m2 <2 |
Laser Wave length | 1064nm±10nm |
Marking range | 110 * 110mm-150*150mm |
Marking Speed | ≤7000mm/s |
Marking Depth | ≤0.2mm |
Mini. Character | 0.15mm |
Repeated Accuracy | ±0.002mm |
Applications | Metal and non-metallic materials |
Dimensions | 1400*650*800mm |
Details
1. LASER SOURCE
Fine marking, good beam quality, Small pulse width, more delicate marking graphics.
2. POWER SUPPLY
Stable performance, fault. The rate is low.

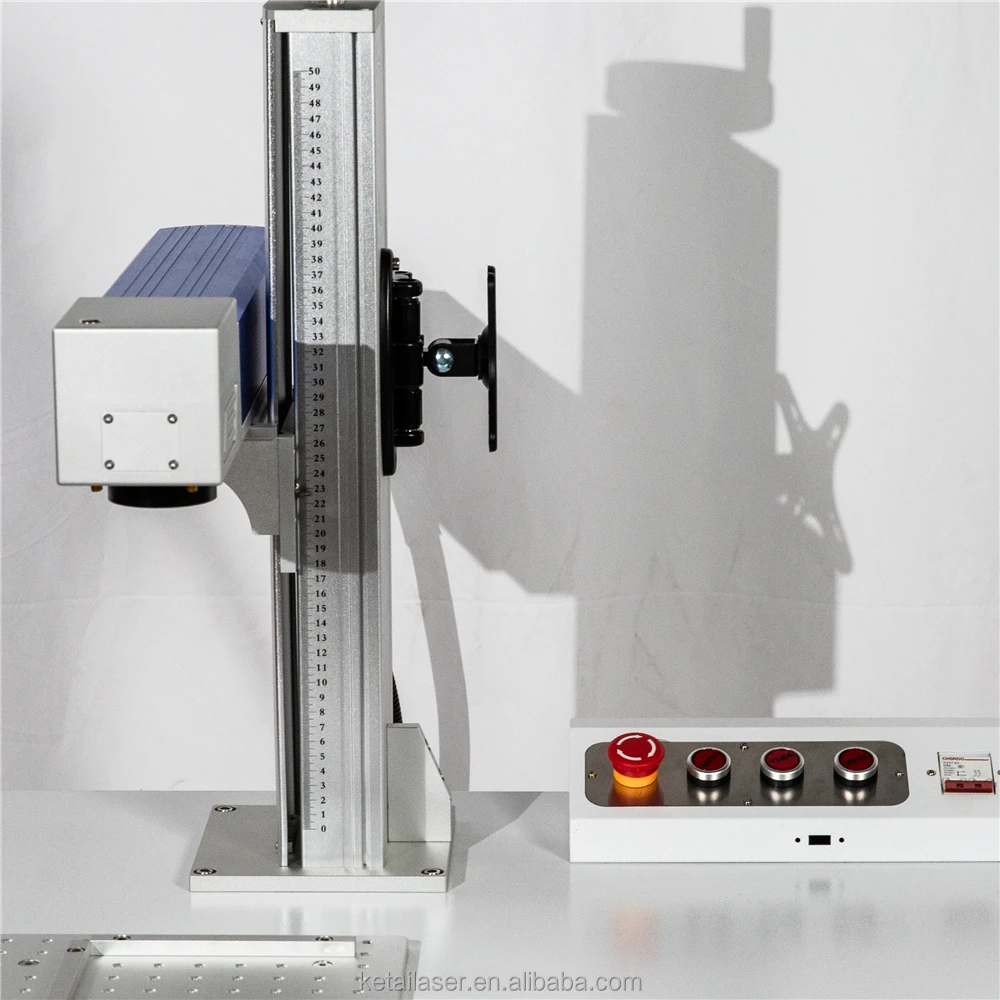

3. CONTROL SWITCH
Safe and easy to use, control separation.
4. LASER FIELD MIRROR
Anti glare coating, wear-resistant and scratch resistant, clear focus, wide focusing range, excellent marking.

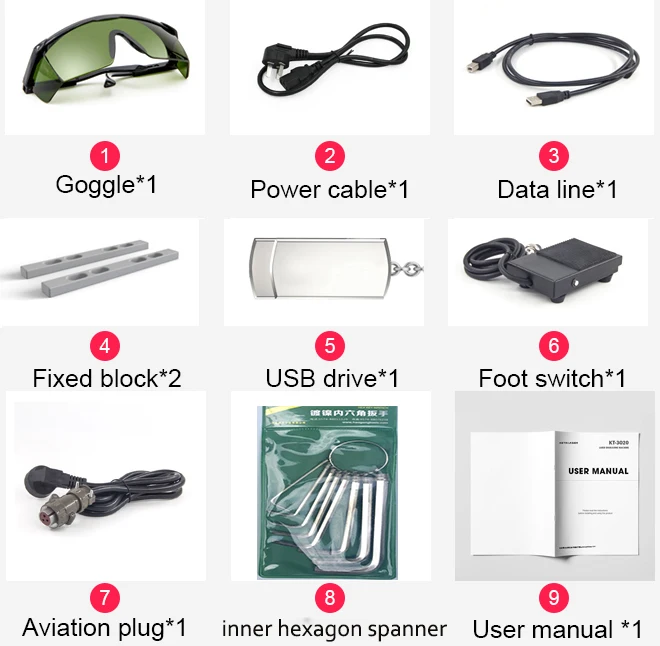

Accessories:

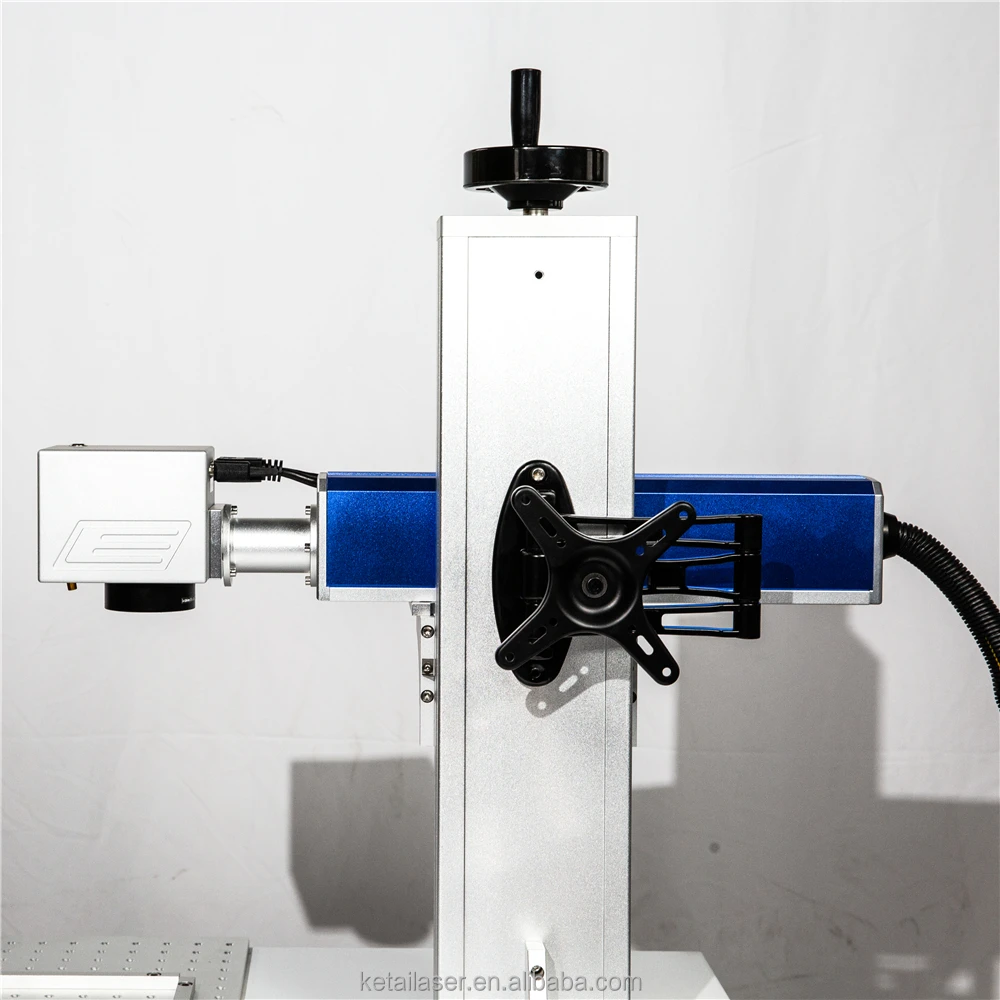

5. LASER GALVANOMETER
High scanning precision, sensitive response, shockproof design and accurate focusing.
6. WORKING PLATFORM
Positioning holes are provided as standard to improve eficiency.
World famous brand core parts provide the quality insurance of the desktop fiber laser marking machine KETAI believe that details decide everything.
Application
KETAI series fiber laser marking machine can process most metal and non-metal materials.
Support marking on stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium, other products, painting acrylic, density board, plastic, acrylic acid, rubber, bamboo, marble, painting glass, TPU (Thermoplastic polyurethanes).

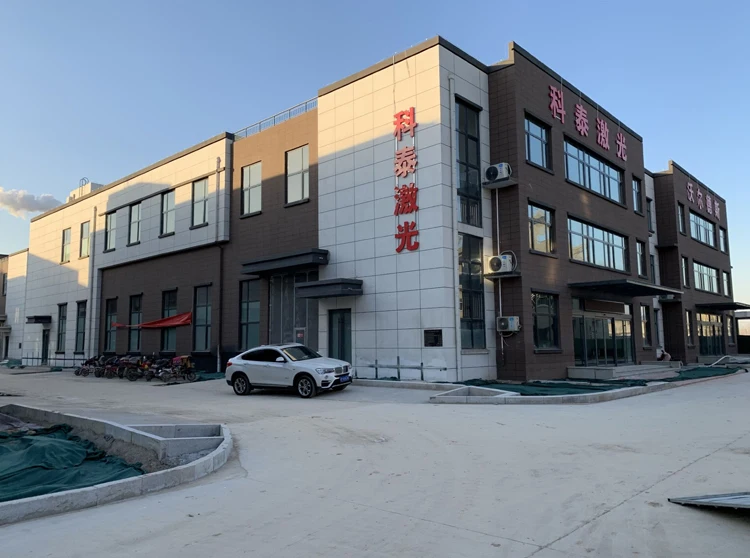

Company Profile
Liaocheng ketai laser equipment co.,ltd. Which is a provincial hitech and municipal science technology demonstration enterprise.
Our main product include laser engraving machine, laser cutting machine, and fiber marking machine. Our brand is ketai KT, now the main model we produce is KT-40, KT-3020, KT-3040, KT-3050, KT-4060, KT-5070/6090, KT-1224, KT-1290/1390, KT-1312, KT-1325, KT-1610/1810/1812, KT-1530, KT-10F/20F/30F/50F, and can customize the machine according to your need. The products widely used in craft gift industry, clothes industry, leather industry, logo embroidery industry, advertisement industry, seal industry, packing
industry, plate making industry, furniture making industry, knife mold manufacturing industry, digital and electrical appliance industry etc, and have been widely sold to more than 40 countries.
Welcome all walks of friends come to visit and work with us.

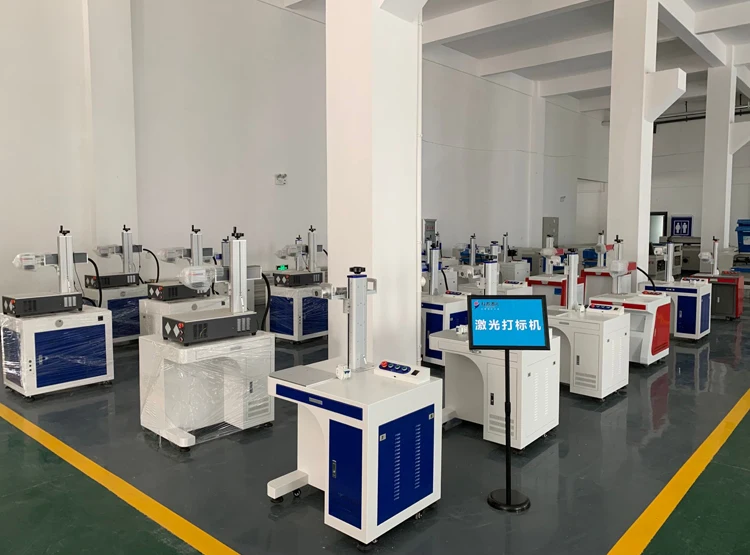

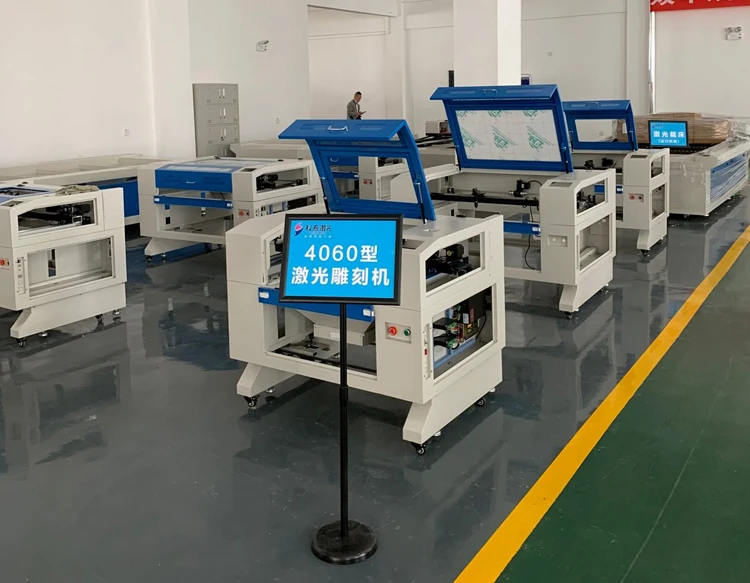

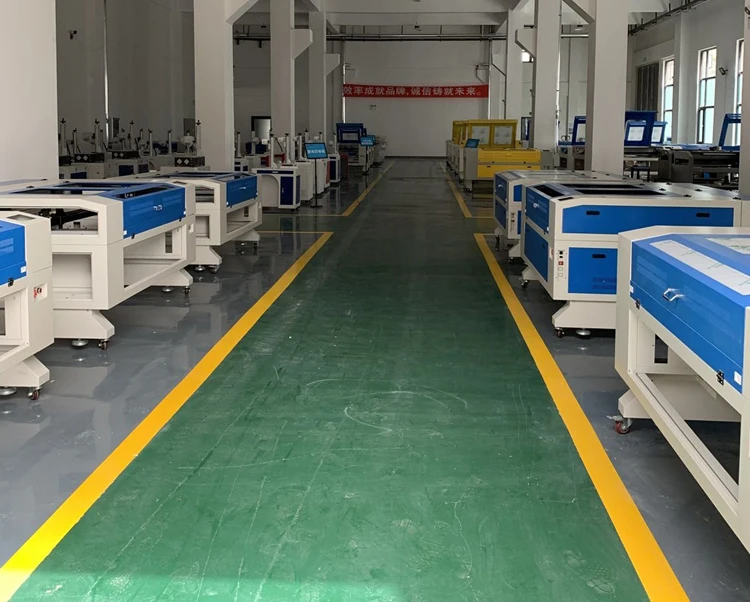

Our Exhibition
Packing & Delivery
1.We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam,to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2.Air-Worthy Packing or Sea Packing which comply with international standard.
Service
1. Two year quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge when if any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day, free technical support.
5. Machine has been adjusted before delivery
FAQ
Q1. If we don't know how to use the machine,can you teach us?
A1: Yes, we will, English manual and video will come along with the machine.
Q2. What certificates do you have?
A2:Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 countries.
Q3. How to operate?
A3:Video will be sent to you.After you watch videos you can install this kind of machine by yourself.
Q4. How can I get machine's spare parts?
A4:There are two methods. Spare parts can be ordered together with the machine.
Q5. What's the payment method?
A5: You can pay by T/T, L/C, Western Union or Trade Assurance.
