China asphalt milling road maintenance machine XM1003K 1000mm milling machine for sale in Indonesia

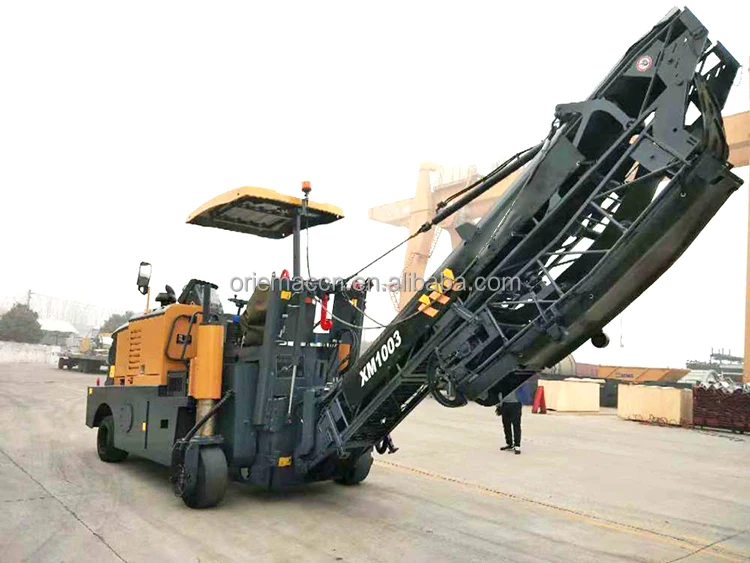

XM1003K road milling machine is a high-performance 1m-wide milling machine mainly used for the digging and renovation of asphalt concrete pavements in highways, downtown roads, airports, cargo yards, and parking lots.

* This machine is powered by Shangchai 162kW electronic injection engine is applied to achieve higher power reserve than domestic like products. With higher working power, this engine can be used to effectively handle the working conditions with harder material and higher milling depth.

* Engine complies with China III emissions standards, green construction, reduces environmental pollution. With the fuel consumption at 40L/h under rated power, this engine features lower fuel consumption and better operation economy.

* The 45m/min working speed is higher than the like products. Three working speeds are provided to achieve more accurate matching between working speed and working load.

* The super-high capacity water tank and fuel tank (860L and 450L respectively) guarantee longer continuous working time and reduce the down time.

* The intelligent sprinkling control technology is applied so that the sprinkling is turned off automatically at the stop of milling and is turned on automatically at the restart of milling to save the manual operation steps.


Item		Unit	XM1003K
Milling drum	Milling drum Milling width	mm	1000
	Milling depth	mm	300
	Cutter spacing	mm	15/18
	Number of cutters		100/80
	Rotor diameter with tool	mm	930
Engine	Model		SC9DK220G3
	Cooling method Water cooling		Water cooling
	Number of cylinders		6
	Rated power/speed	kW/rpm	162/2200
	Displacement	L	8.8
	Rated power consumption	L	36.7
	Comprehensive fuel consumption	L	12.3
	Emission Standard		China III
	Electrical system	V	24
Box capacity	Box capacity Fuel tank	L	450
	Hydraulic oil tank	L	130
	Water tank	L	860
Driving performance	Driving performance Maximum operating speed	m/min	45
	Maximum speed	km/h	8
	Theoretical climbing ability	%	75
	Ground clearance	mm	180
Tire	Tire Tire Form Solid Rubber Tire		Soild rubber tires
	Front tire size	mm	645×300
	Rear tire size	mm	645×300
Milling material conveying	Milling material conveyor Belt width	mm	500
	Theoretical feeding capacity	m3/h	127
Transport size	Shipping Size Host Size (L×W×H)	mm	4837×2546×3745
	Host size (right leg swings into the frame) (L×W×H)	mm	4837×2057×3745
	Folding conveyor size	mm	7300×1085×980
Machine weight	Machine Quality Work	kg	16800
	Front axle load (under working quality)	kg	6000
	Rear axle load (under working quality)	kg	10800
