XCMG Official Heavy Truck Crane XCA550 550 Ton All Terrain Crane.
The lifting capacity takes the lead in the industry with strong power, the 6-axle all terrain crane with high intelligent level.
1. Super lifting performance

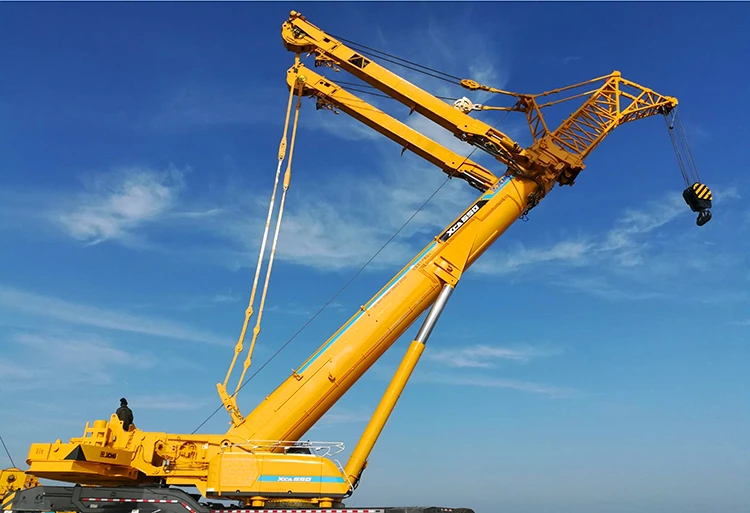

* 7-section boom of 80m, fixed jib of 6 36m, fixed-length tensioning technology of super lifting device brings 5-8% higher performance.
* Automatic rope ordering technology contributes to smooth and orderly wire rope.

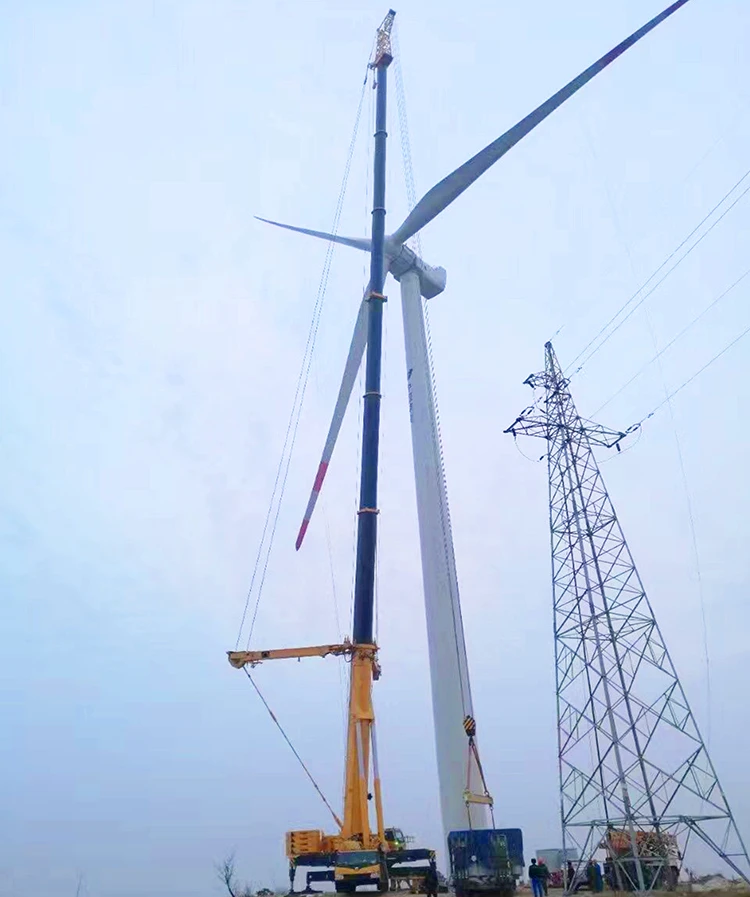

2. Work condition of wind power
* Boom 69.8m+ Super lifting device + luffing jib of 8m for wind power maintenance, the working radius is 16m, the rated lifting load is 33.2t.
* Less product auxiliaries for 1.5MW wind power maintenance operation and more efficient and convenient assembly, contributing to much lower cost.
3. New highly efficient energy-saving hydraulic system
* Closed hydraulic system for lifting and slewing system, equipped with large-displacement pump, lifting speed with heavy load highly.
* Min. stable lifting speed (at drum) 2.5m/min, and min. stable slewing speed 0.1°/s.
4.Power and traveling performance
* Rated power 442.6kw, max. torque 2800N.m.
* Max. travel speed 80Km/h, Max. grade ability 57%.
Specification
Item | Unit | Parameter | ||||
Overall length | mm | 20880 | ||||
Overall width | mm | 3000 | ||||
Overall height | mm | 4000 | ||||
Wheel base | 1st and 2nd | mm | 1650 | |||
2nd and 3rd | mm | 3100 | ||||
3rd and 4th | mm | 1650 | ||||
4th and 5th | mm | 2980 | ||||
5th and 6th | mm | 1650 | ||||
6th and 7th | mm | 1650 | ||||
Track | mm | 2540 | ||||
Dead weight in travel configuration | kg | 84000 | ||||
Axle load | On the1st, 2nd and 3rd axle | kg | 12000 | |||
On the 4th, 5th, 6th and 7th axle | kg | 12000 | ||||
Chassis engine | Model | OM502LA.E3B/1 | OM502LA.E3B/1 | |||
Rated power | kw/(r/min) | 482.2/1800 | 480/1800 | |||
Max. torque | N.m/(r/min) | 3000/1300 | 2800/1300 | |||
Travel speed | Max. travel speed | km/h | ≥85 | |||
Min. steady travel speed | km/h | ≤2 | ||||
Min. turning diameter | m | ≤26 | ||||
Min. ground clearance | mm | 340 | ||||
Approach angle | ° | 11.4 | ||||
Departure angle | ° | 12.8 | ||||
Braking distance (at 30 km/h ) | m | ≤9 | ||||
Max. grade ability | % | ≥50 | ||||
Oil consumption per 100km | L | 103 | ||||

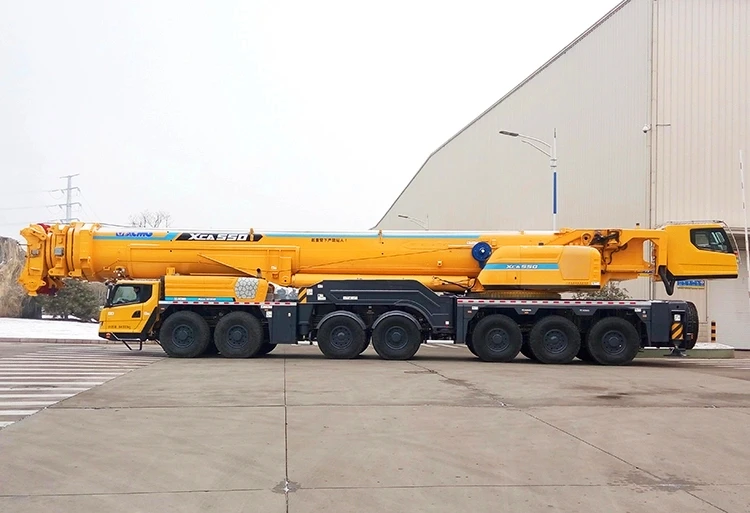

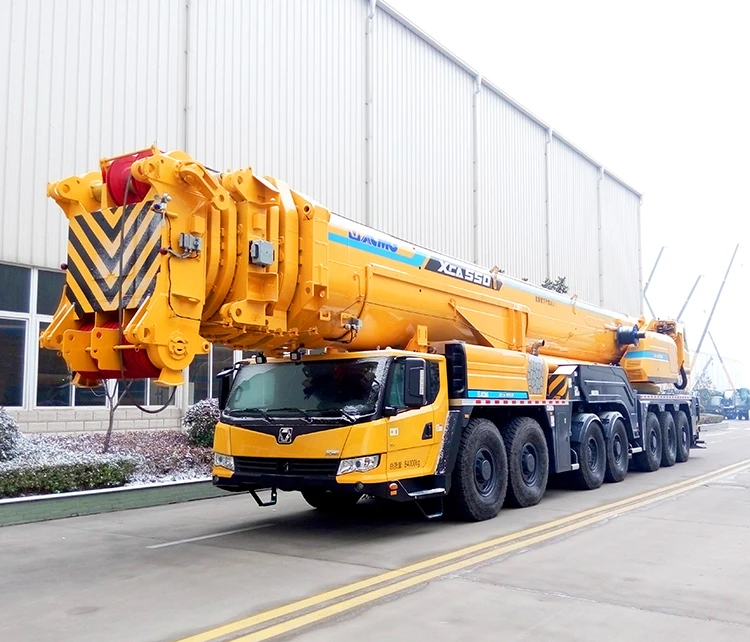

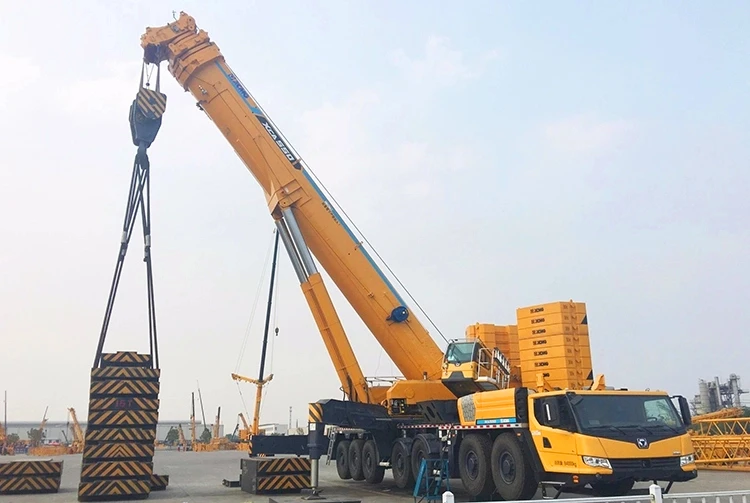

Product Show
