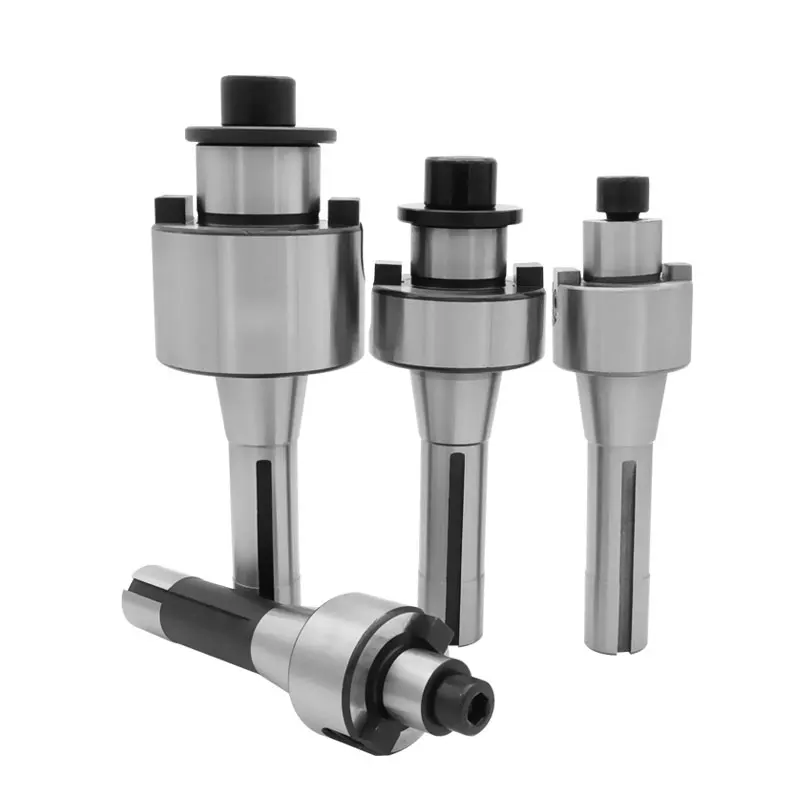

Mailling Machine R8 Shanks Fmb End Mill Tools Holders R8 fmb32 Chuck For Face Mill
- Category: >>>
- Supplier: Shandong Aolu Machinery Co. Ltd.
Share on (1600538418451):
Product Overview
Description
Product Description

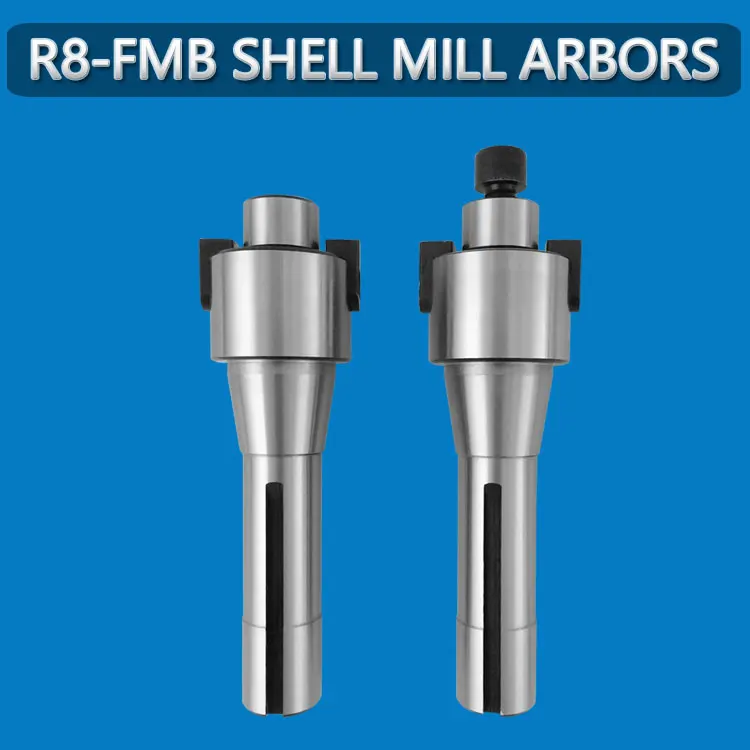

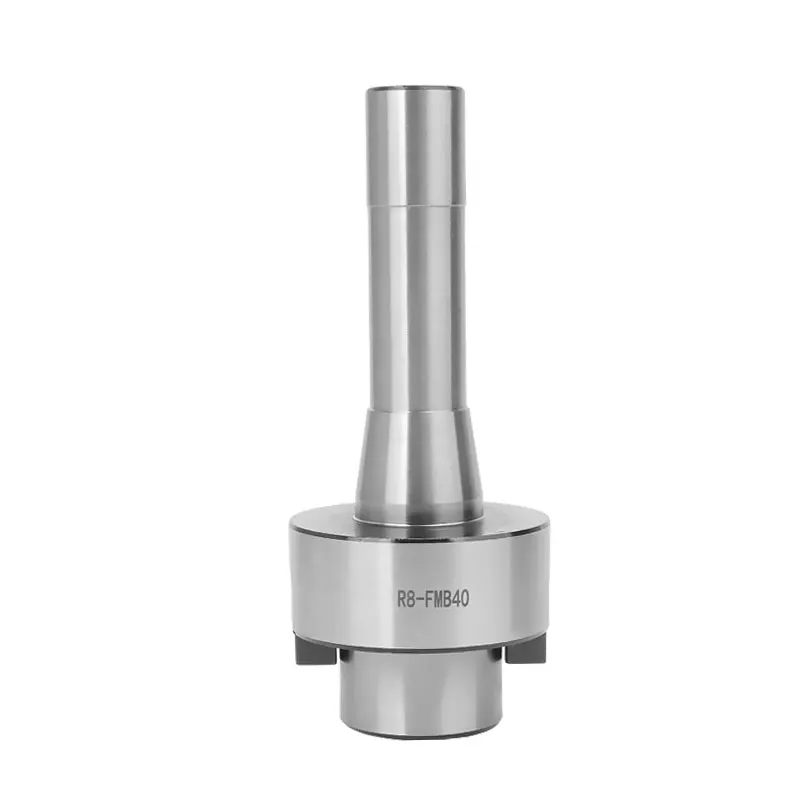

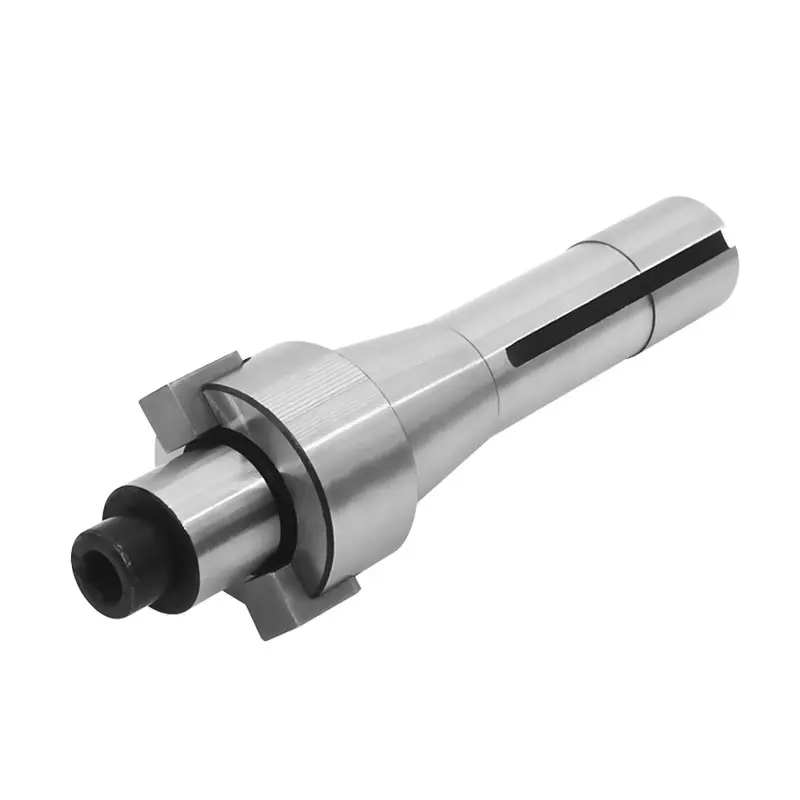

Product name | R8-FMB Shell Mill Arbors |
Model | R8-FMB16/22/27/32/40 |
Material | 42CrMo |
Feature | High presion |

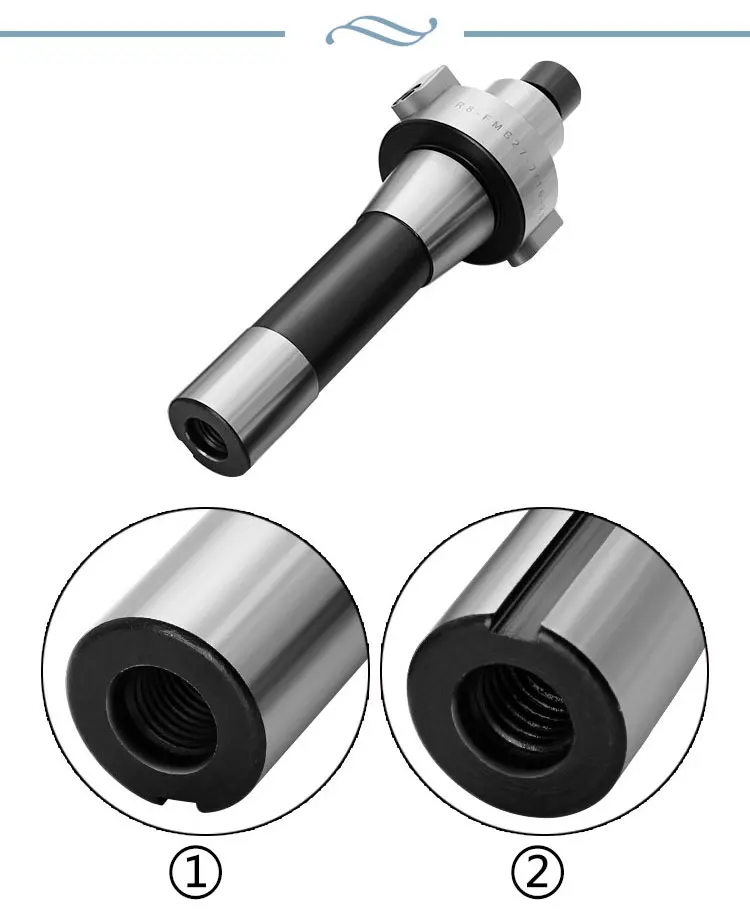

① 7/16 Inch(fine threads) ② M12 metric(coarse thread)

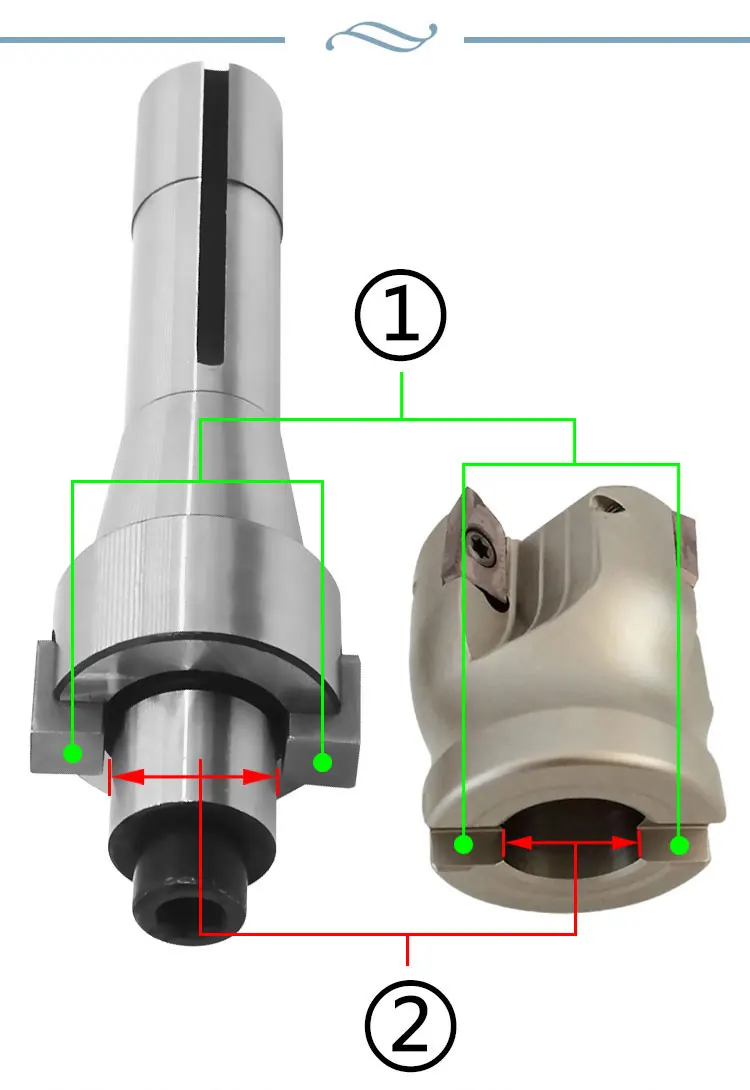

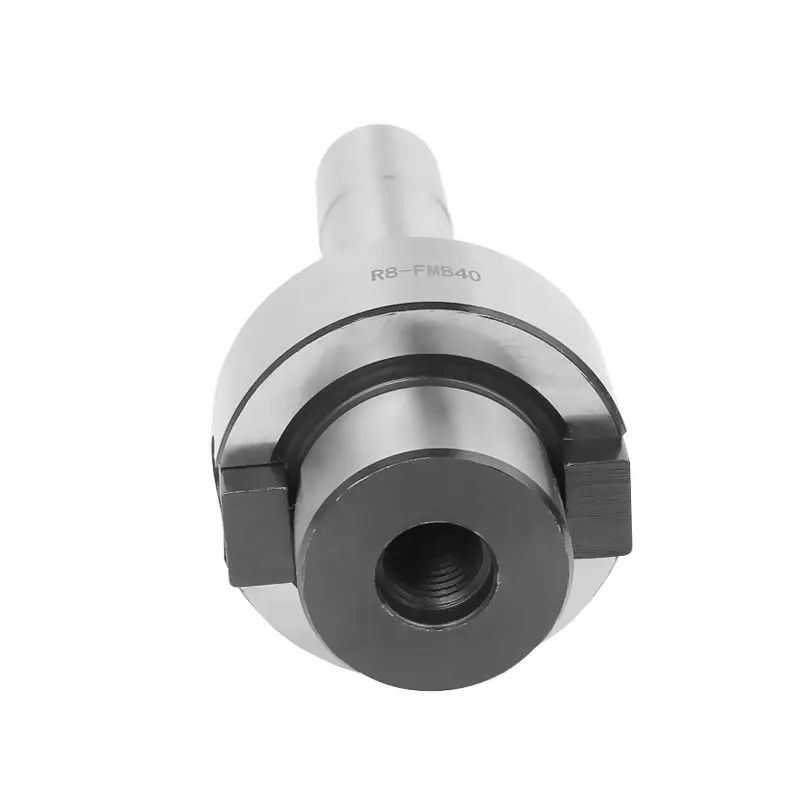

① Double-side keys ensure stable processing
② The same diameter can match
Double-side keys ensure stable processing.It is not easy to swing left and right during heavy cutting,high concentricity good machining effect,and effective protection of machine tools

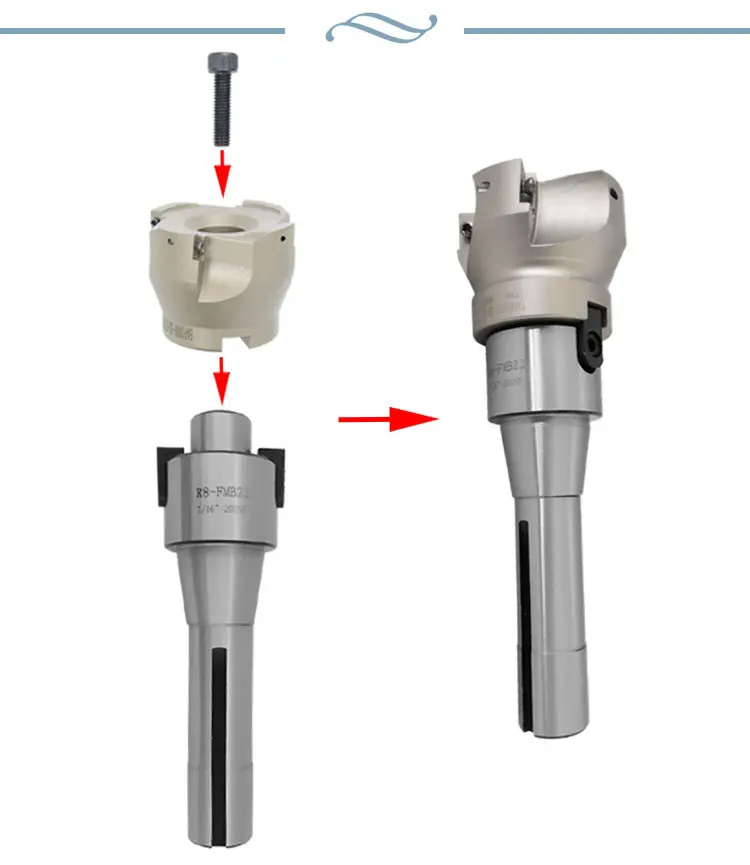

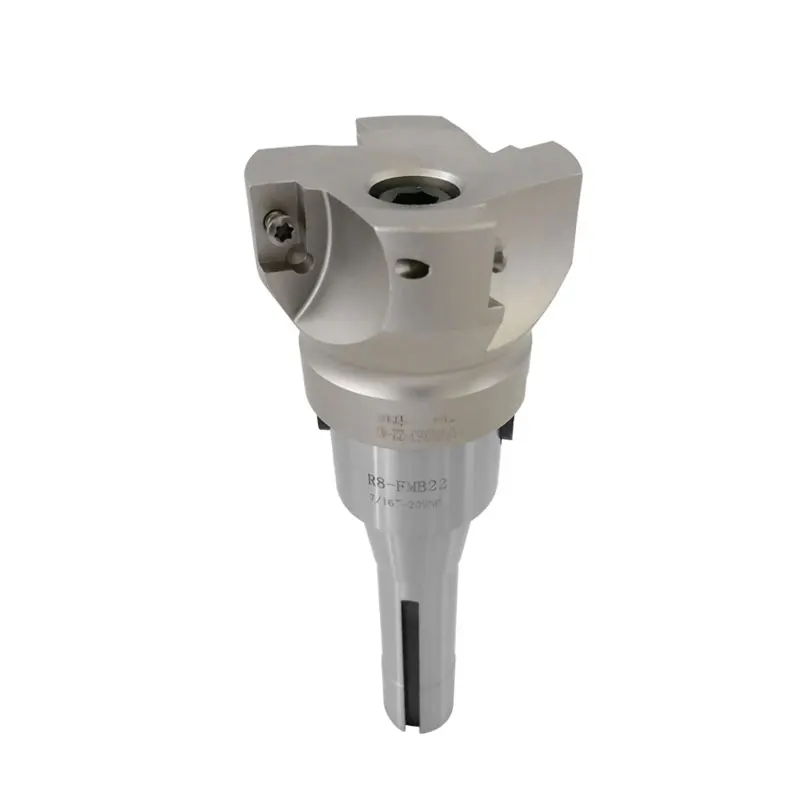

When using, the Face milling cutter is used together (the Face Milling needs to be purchased separately). Before installing the tool holder,
you should pay attention to cleaning all parts and keep the mechanical spindle clean.
you should pay attention to cleaning all parts and keep the mechanical spindle clean.

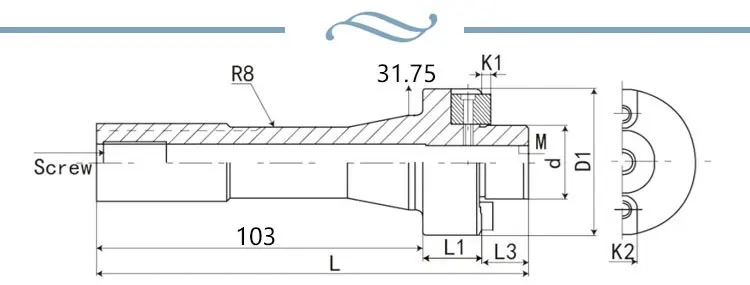

Size | L | L1 | L3 | D1 | d | M | K1 | K2 | Screw |
R8-FMB22 | 151 | 30 | 18 | 40 | 22 | M10*1.5P | 4.8 | 10 | 7/16"-20UNF OR M12*1.75P |
R8-FMB27 | 155 | 32 | 20 | 48 | 27 | M12*1.75P | 5.8 | 12 | 7/16"-20UNF OR M12*1.75P |
R8-FMB32 | 160 | 35 | 22 | 59 | 32 | M16*2.0P | 6.8 | 14 | 7/16"-20UNF OR M12*1.75P |
R8-FMB40 | 163 | 35 | 25 | 64 | 40 | M16*2.0P | 8.3 | 16 | 7/16"-20UNF OR M12*1.75P |
1:Are you factory or trade company?
We are Industry and trader integration.
2: Why we can choose you?
1): Reliable--.we are the real company, we dedicate in win-win
We are Industry and trader integration.
2: Why we can choose you?
1): Reliable--.we are the real company, we dedicate in win-win
2): Professionalwe offer the pet products exactly you want
3): Factory--we have factory so have compective price
3: Could you supply samples?
Yes,we can supply samples.
4:Do you support processing customized products?
It can be customized according to drawings, samples and dimension drawings
3: Could you supply samples?
Yes,we can supply samples.
4:Do you support processing customized products?
It can be customized according to drawings, samples and dimension drawings
