Competitive price mini cnc turning machining center VMC600 cnc 5 axis machine controller with siemens fanuc syntec gsk knd
- Category: >>>
- Supplier: Jinan Shangneng CNC Equipment Co. Ltd.
Share on (1600538444978):
Product Overview
Description

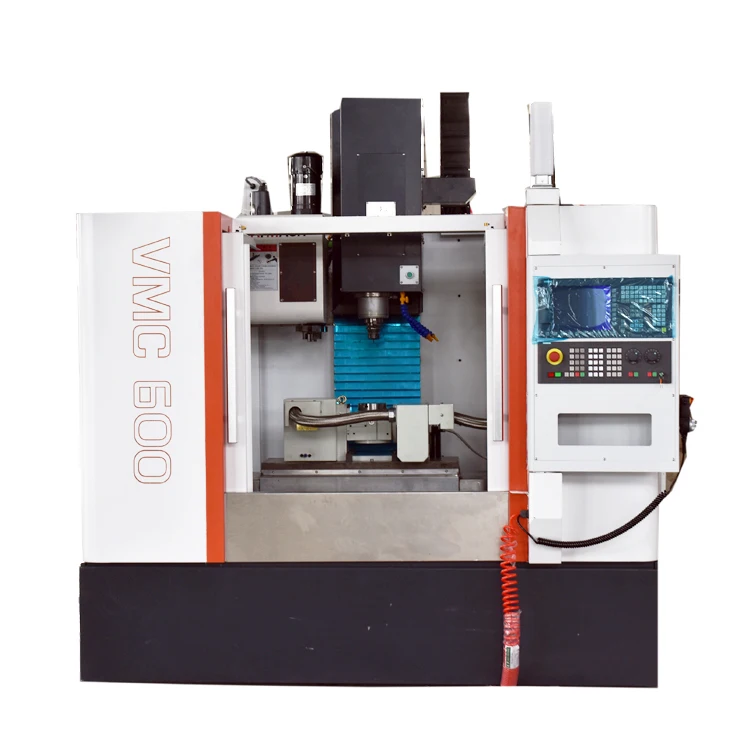

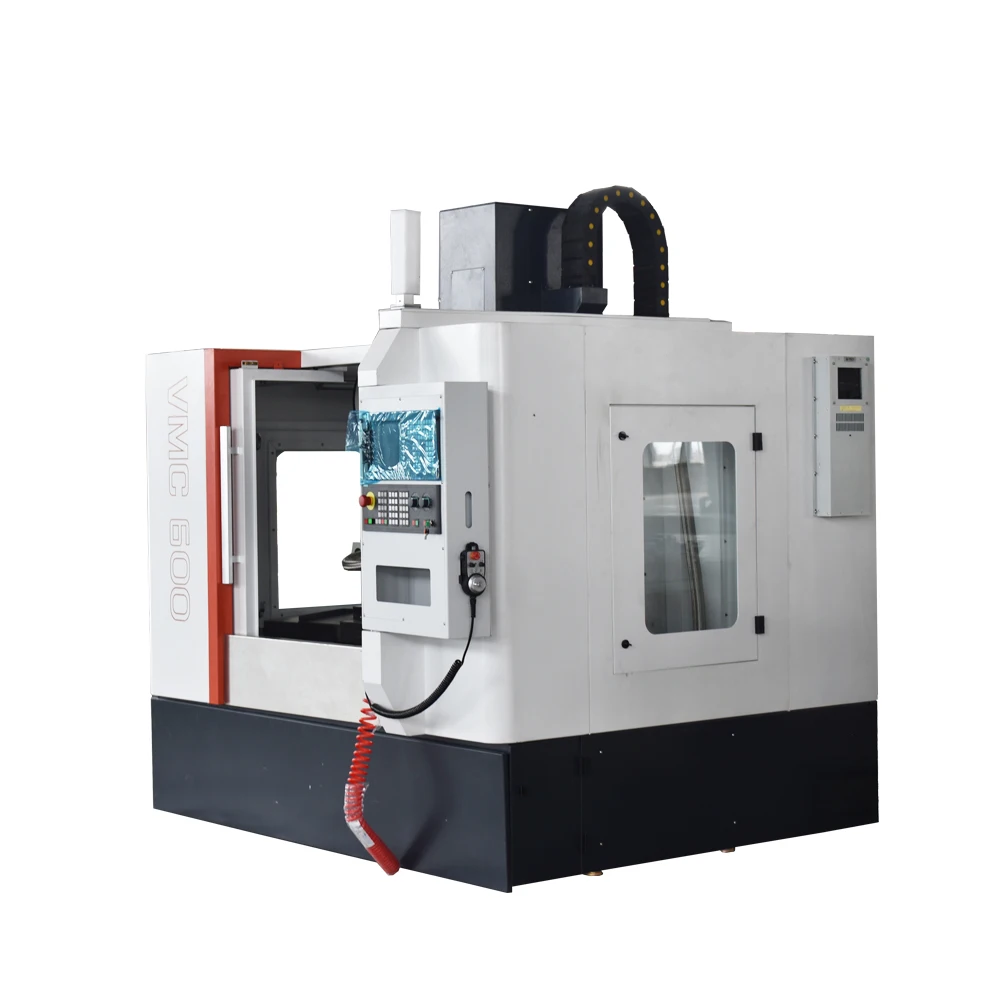

5 Axis Vertical Machining Center VMC600 CNC Milling Machine With Arm Type Tool Magazine

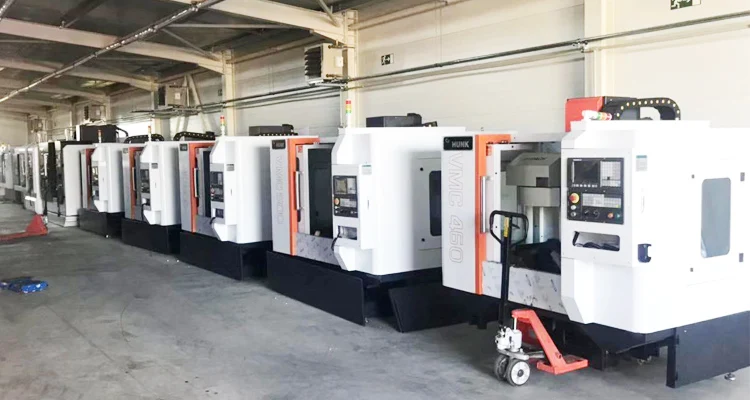

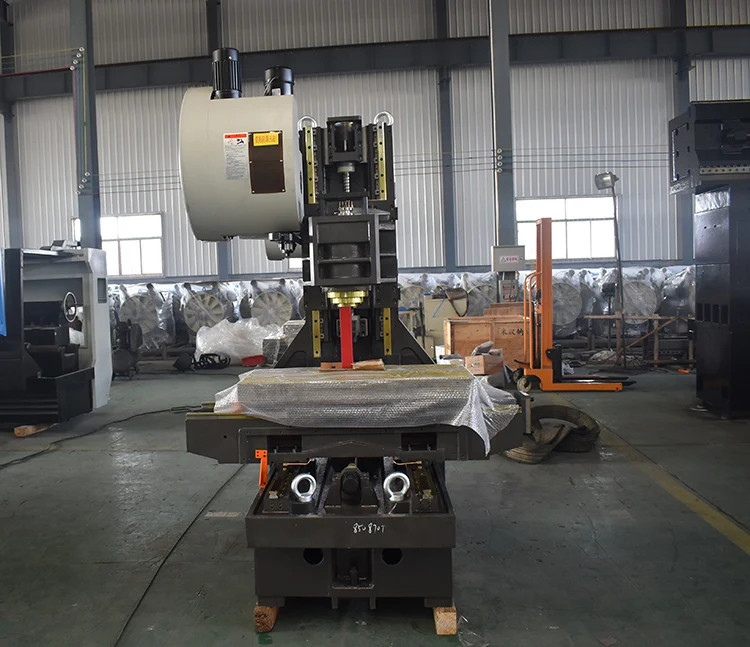

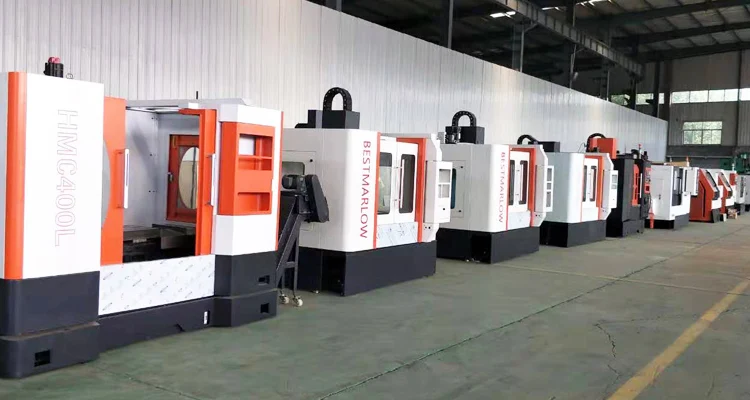

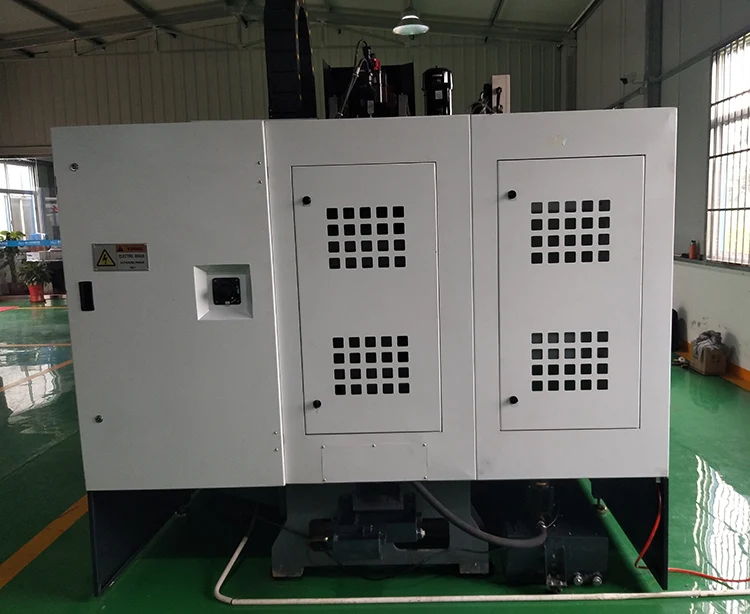

Factory shooting
With over 20 years working experience, We can provide OEM&ODM service

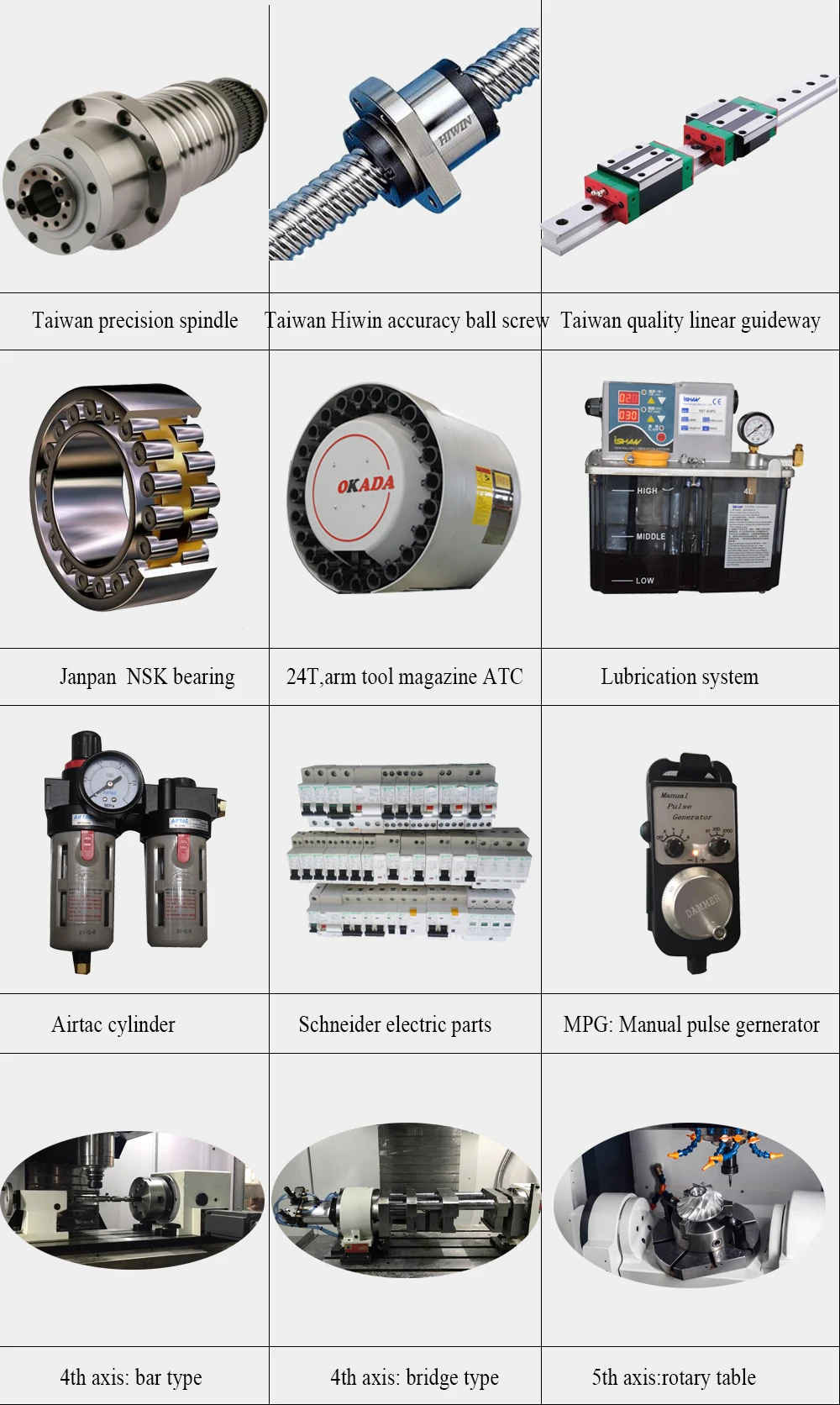

Standard And Optional Configuration
Standard
Taiwan spindle (Royal/Posa/Kenturn)
Taiwan ball screw(PMI/HIWIN)
Linear guideway(PMI/HIWIN/Rexroth)
Three color warning light
Automatic lubrication
Full enclosed cover
Optional

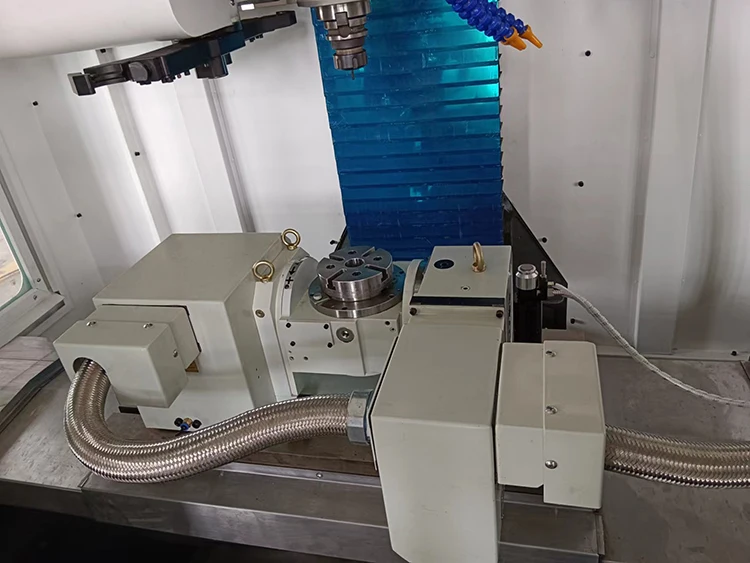

CNC 4th/5th axis
Automatic chip conveyor
SIEMENS/FANUC/MITSUBISHI/SYNTEC/GKS/KND
Specification
Model | VMC600L | |
Work Capacity | ||
Travel X,Y,Z | 600mm,400mm,500mm | |
Spindle Nose to Table | 100-600mm | |
Spindle Center to Column | 430mm | |
Work Table | ||
Table Area | 800*360mm | |
Spindle | ||
Spindle Max. Speed | 8000RPM | |
Driving Type | Belt Drive | |
Spindle motor power | 5.5KW | |
Spindle taper | BT40 | |
Automatic Tool Changer (ATC) | ||
Magazine type | Disc type | |
Magazine Capacity | 16 tools | |
Tool Selection Type | Set Tool Number | |
Max. Tool Diameter | 120/200mm | |
Max Tool Length | 350mm | |
Max Tool Weight | 8kgs | |
Air Blast at Tool Change | Standard | |
Motion | ||
Cutting Feed Rate | 1-10000 | |
Rapid Traverse X/Y/Z | 10000/10000/10000 mm | |
Accuracy | ||
Positioning Accuracy | 0.01mm | |
Repeatability Accuracy | 0.007mm | |
CNC Control Features | ||
Controller | SIEMENS | |
Control Model | SIEMENS808D2 (option) | |
Programming Assist | Manual Guide | |
4th Axis Support | SIEMENS808D2(option) | |
5th Axis Support | SIEMENS828D(option) | |
Coolant System | ||
Flood Coolant Nozzles | 2 | |
Coolant Tank Capacity | 140L | |
Chip conveyor | option | |
Power Requirement | ||
Electrical | Three phase AC 380V±10% 50Hz±10% | |
Using air pressure | 0.6MPa | |
Machine Measurements | ||
Out dimension | 2200*2100*2200mm | |
Machine weight | 3500kgs | |
Application

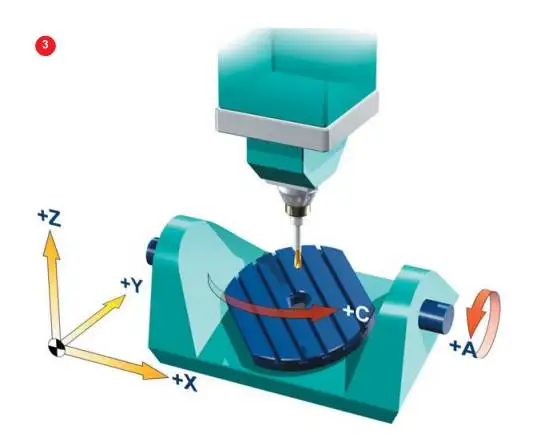

5 axis universal CNC milling machine
It can finish clamping one-time of various dishes, plates, shell, cam, mold and other complex parts. It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process . so it is suitable for many varieties, medium and small batch production. It can finish the processing of complex, high precision parts . It can be matched the four rotary shaft , in order to meet the requirements of special parts.

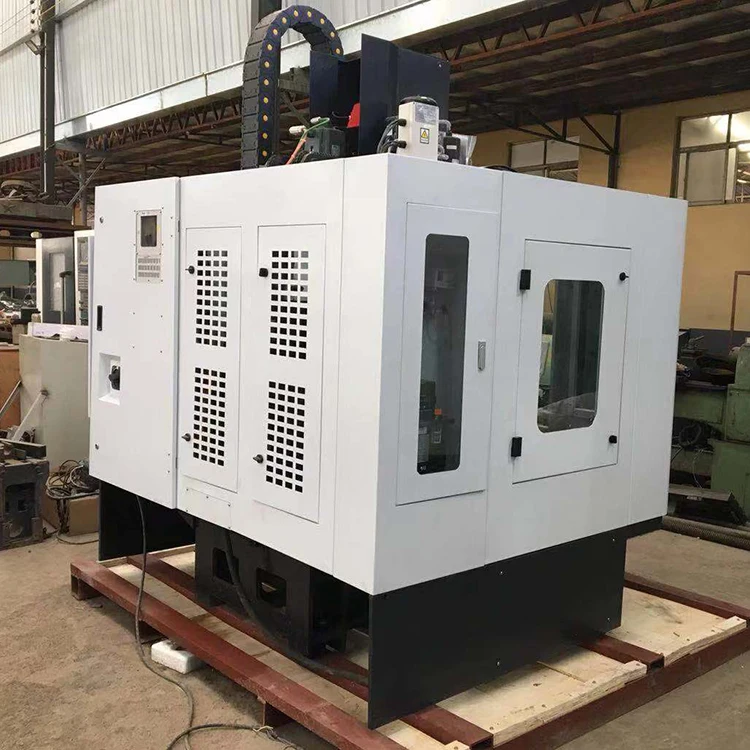

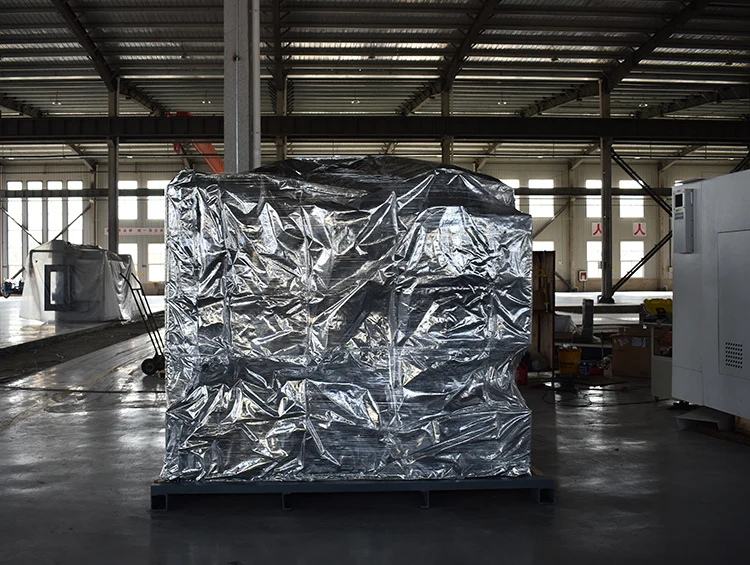

Packing & Delivery

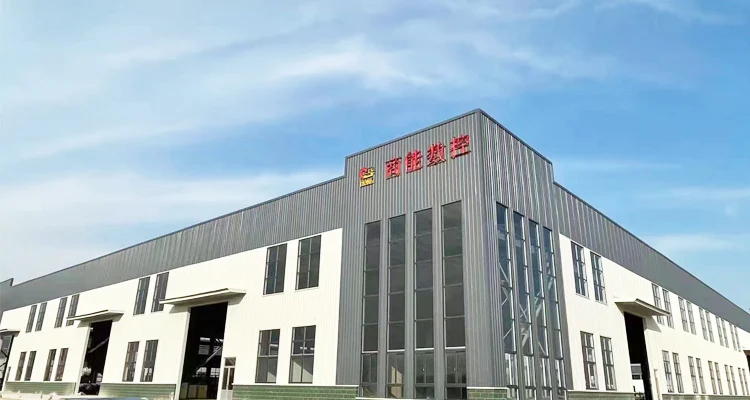

Company Profile
Jinan Sunligh CNC Equipment Co.,Ltd located in the beautiful capital Jinan City, Integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.
Now our products have a large market share and have a high popularity in domestic, sales and service network have been established in many province and cities. Our products have been sold to America, South East Asia, Russia and Middle East countries with high reputation.
Exhibition
Certification
We have passed the ISO9001 international quality management system authentication. And we have Product Patent Certificate and CE Certification for the products.
FAQ
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep
your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep
your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
