Product Overview
Description

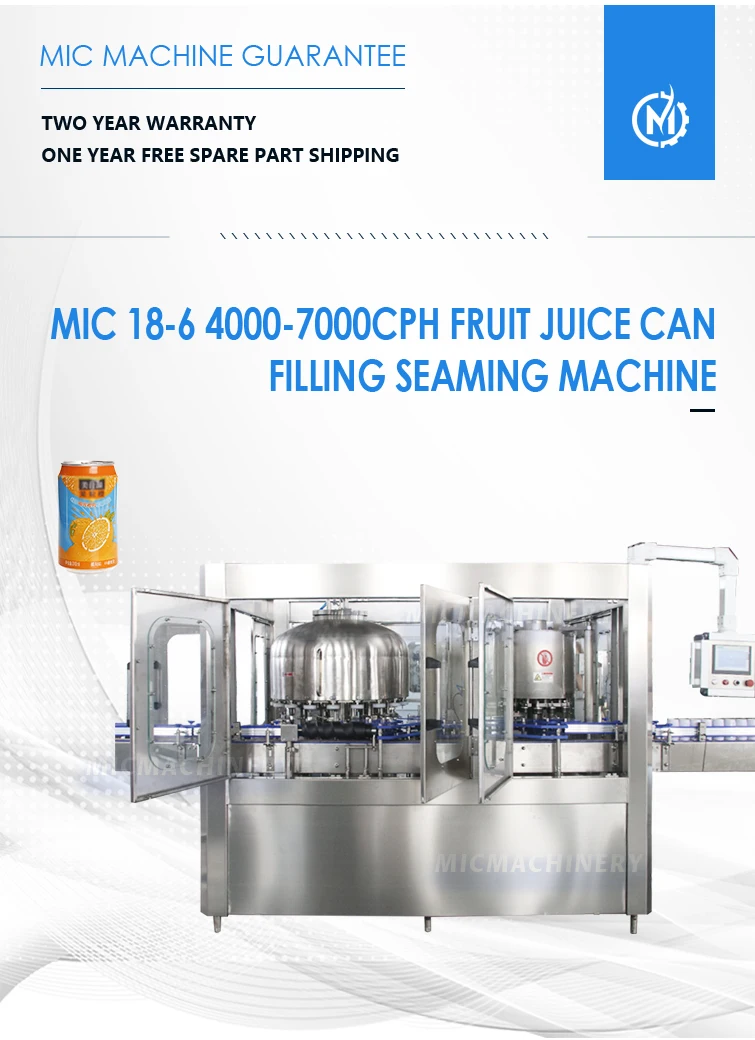

Mic 18-6 coffee juice can filling seaming machine adopts normal pressure filling system which is applicable for fruit juice, cold brew coffee, energy drink, herbal tea, alcoholic beverages and other canned non-carbonated drinks (Cold filling temperature at 0-4 degrees Celsius or hot filling temperature at 80-85 degrees Celsius.)
Machine features:
1. Mic 18-6 coffee juice can filling machine is in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit.Filling and seaming part is the overall designed, in order to ensure that both the absolute synchronization and coordination.
2. The machine adopts PLC, frequency converter, human machine interface controlling system, having the advanced controlling technologies, such as frequency control, no can no filling and so on.
3. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip CIP system according to the customers’ request. It is the preferred equipment for the small brewery and medium beverage plant
4. The main electric and pneumatic components of the machine are famous imported brands, and it also can be disposed according to client’s requirements.
1. Mic 18-6 coffee juice can filling machine is in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit.Filling and seaming part is the overall designed, in order to ensure that both the absolute synchronization and coordination.
2. The machine adopts PLC, frequency converter, human machine interface controlling system, having the advanced controlling technologies, such as frequency control, no can no filling and so on.
3. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip CIP system according to the customers’ request. It is the preferred equipment for the small brewery and medium beverage plant
4. The main electric and pneumatic components of the machine are famous imported brands, and it also can be disposed according to client’s requirements.
Model/Parameter | MIC-12-1 | MIC-18-1 | MIC-18-6 | MIC-24-6 | MIC-32-8 | ||||
Application | Fruit juice, cold coffee, energy drink, alcoholic beverage, herbal tea, non-carbonated drinks and so on | ||||||||
Packing Type | Aluminum cans, tin cans, pet cans, etc | ||||||||
Capacity | 1000-2000CPH | 1500-2500CPH | 4000-7000CPH | 5000-8000CPH | 8000-12000CPH | ||||
Filling Range | 180ml, 250ml, 330ml, 355ml, 440ml, 500ml, 8oz, 12oz, 16oz, 1L and so on (0.1-1L) | ||||||||
Power | 1.1KW | 1.5KW | 2.5KW | 3.5KW | 4.2KW | ||||
Size | 1.8M*1.3M*1.95M | 1.9M*1.3M*1.95M | 2.3M*1.4M*1.9M | 2.58M*1.7M*1.9M | 2.8M*1.7M*1.95M | ||||
Weight | 1800KG | 2100KG | 2500KG | 3000KG | 3800KG | ||||

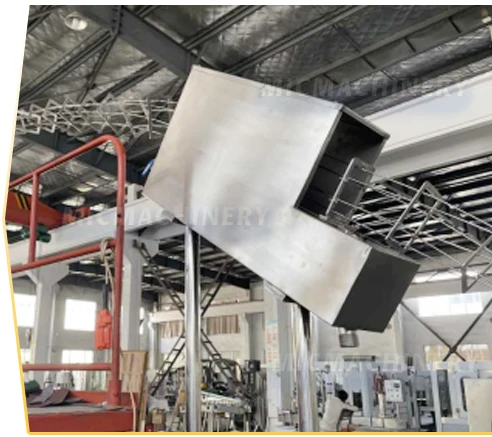

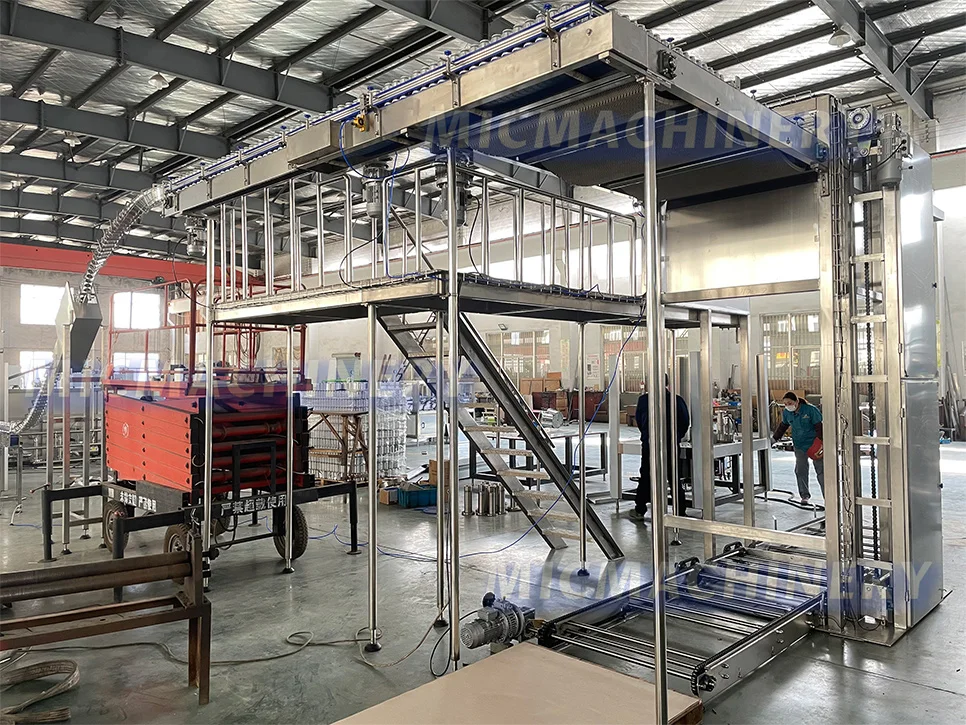

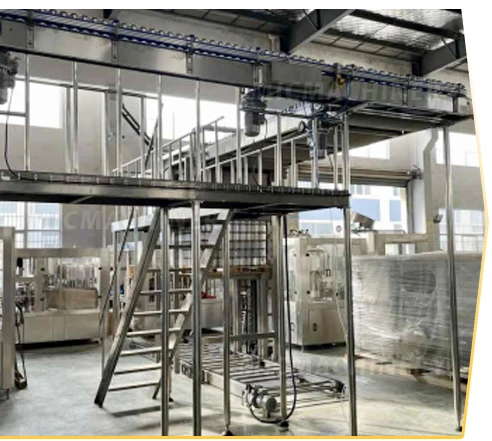

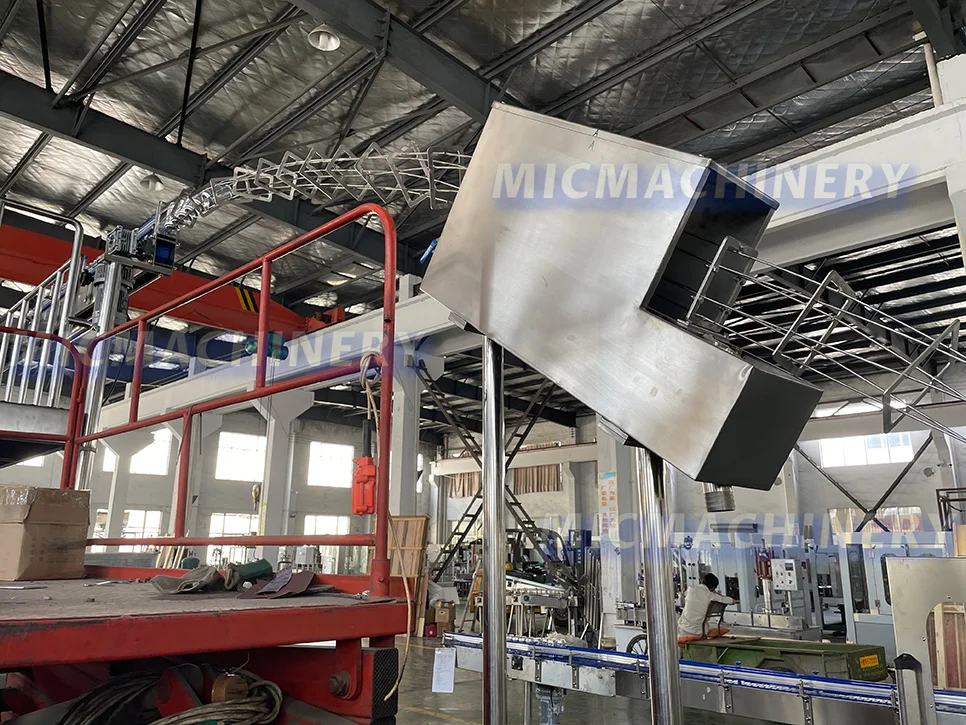

Empty can depalletizer
Automatic empty aluminum cans depalletizer is mainly used for automatic unloading of empty cans. The empty cans stacked on the
pallet, from bottom to top layer of lift and push to the net conveyor and matching use with inline cans rinser which is the ideal
equipment of medium-sized and large beverage manufacturers essential.
pallet, from bottom to top layer of lift and push to the net conveyor and matching use with inline cans rinser which is the ideal
equipment of medium-sized and large beverage manufacturers essential.
Inline can rinser / can washing machine
The inline can rinser is used to clean the empty cans by clean water before filling, we can add this can rinser in the beginning
of filling line. The twist cages are customized with your sample cans. As long as the height and diameter of your cans are
different, you need to buy the extra set twist cages to change.
of filling line. The twist cages are customized with your sample cans. As long as the height and diameter of your cans are
different, you need to buy the extra set twist cages to change.

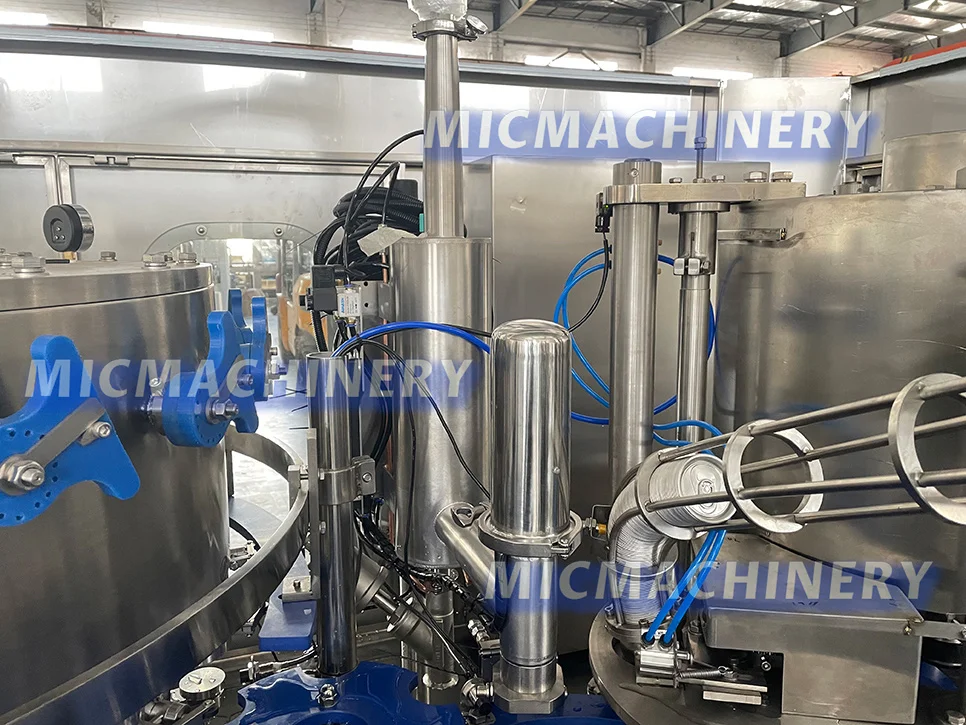

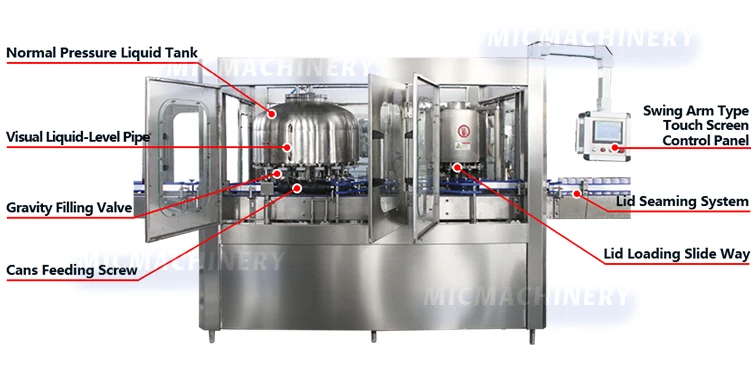

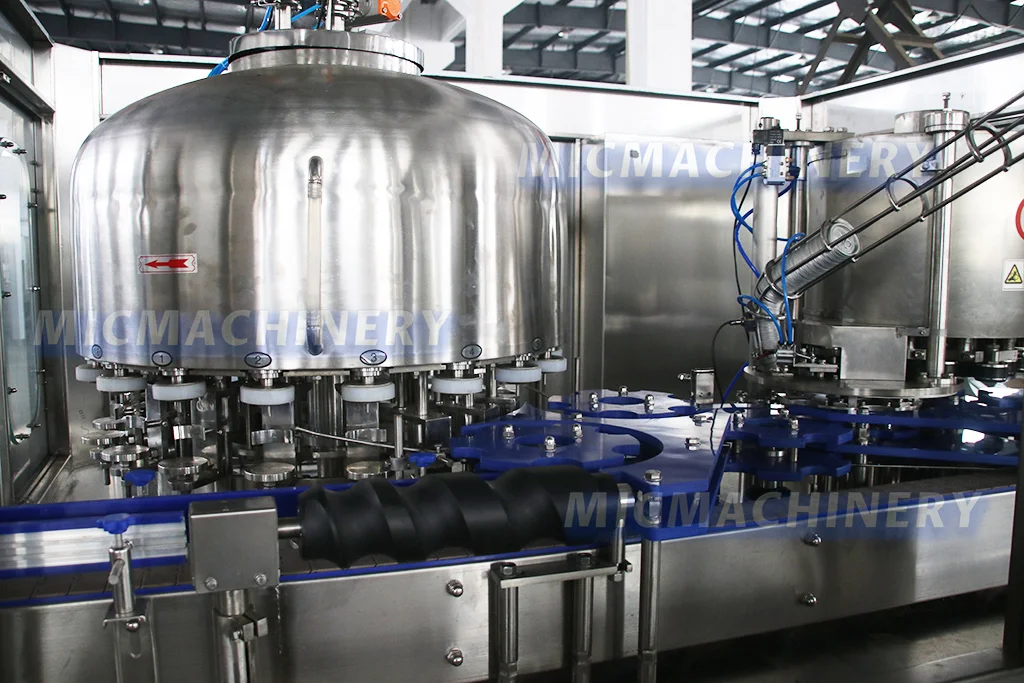

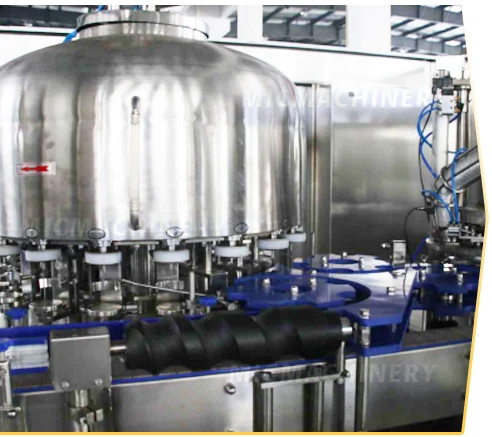

Normal pressure gravity filling system
Monoblock design, filling & seaming process combined in one system. Adopts high precision and normal pressure filling valve make sure the liquid level is high accuracy without loss. Adopts high precision grinding process and food grade 304 stainless steel liquid tank. It will equipped with CIP connector as customer's demand.

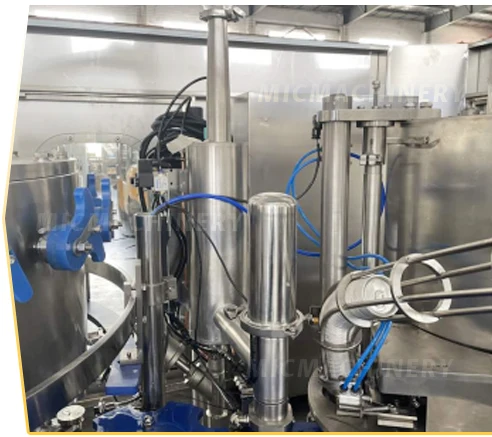

Liquid nitrogen doser
Normally, as for cold brew coffee, fruit juice and herbal tea filling, we will suggest our
customer to add this liquid nitrogen doser to work with canning machine. In order to extend its shelf life and make sure it tastes good. It also makes the aluminum cans fuller and less prone to deformation.
customer to add this liquid nitrogen doser to work with canning machine. In order to extend its shelf life and make sure it tastes good. It also makes the aluminum cans fuller and less prone to deformation.

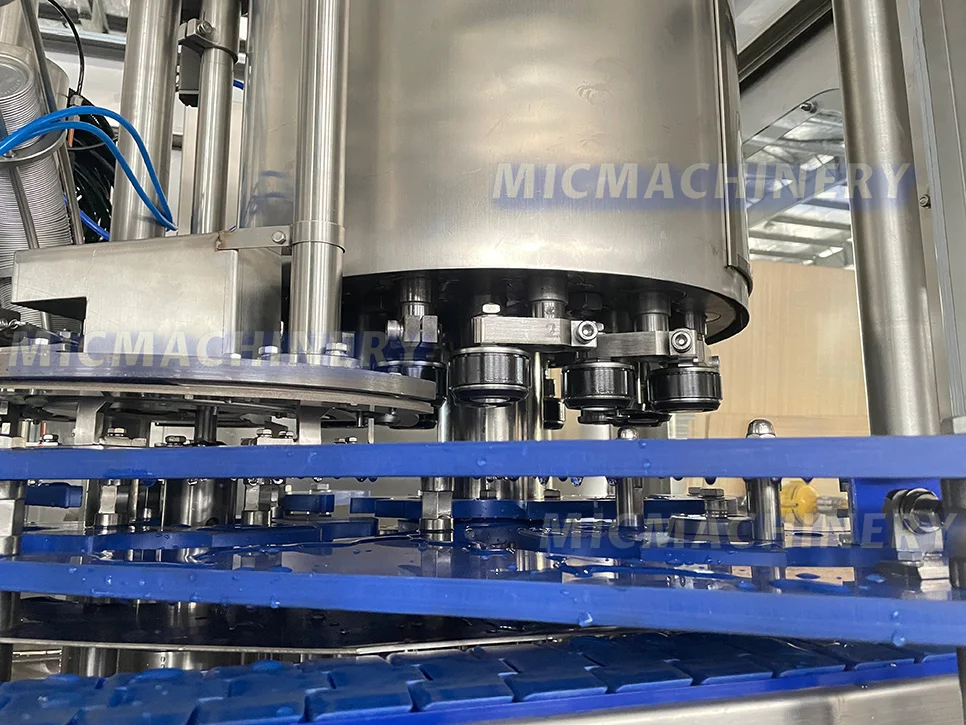

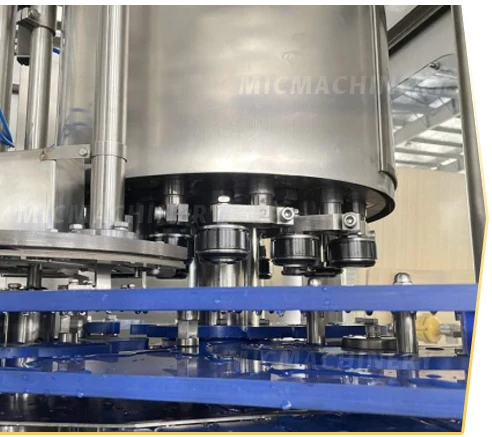

Aluminum lid seaming system
The “MIC” system is a mechanism actuated, cam-driven seamer with easily
adjustable rollers that allow for precise adjustment to from seams that are within can-maker specifications. Seams are formed in
under only a second, faster than any other system in its class. Through two past decade’s technology innovation and optimization,
the result is revolutionary.
adjustable rollers that allow for precise adjustment to from seams that are within can-maker specifications. Seams are formed in
under only a second, faster than any other system in its class. Through two past decade’s technology innovation and optimization,
the result is revolutionary.

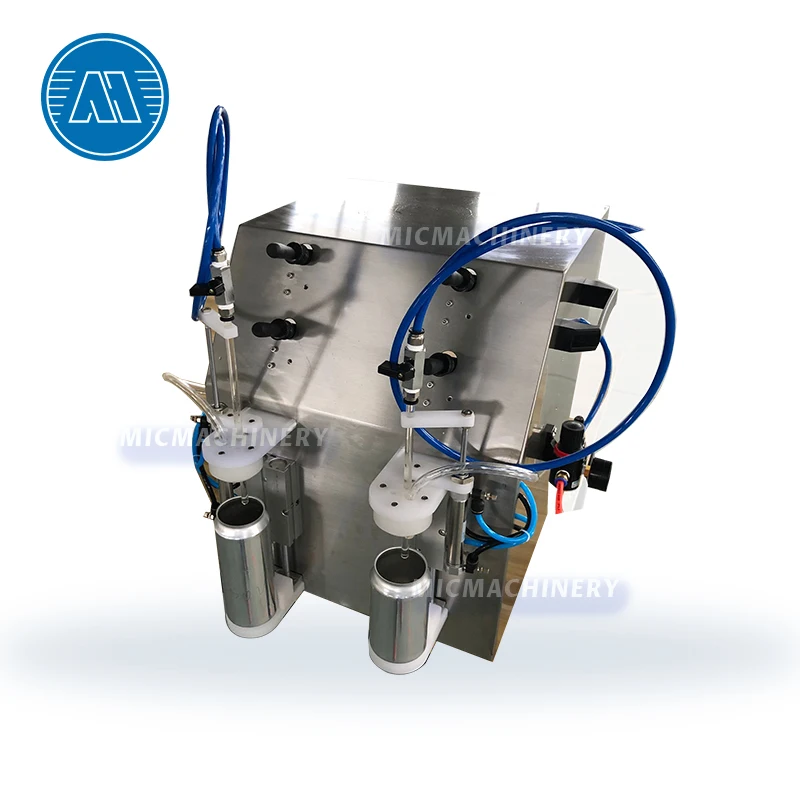

Semi automatic beer filling machine
Put the can on the tray, turn the start button and the machine will start filling automatically. This filling machine is equipped
with reflux device, you do not have to worry about filling liquid will flow out of the cans, if beyond the set page will flow to
the material recycling box, will not waste materials.
with reflux device, you do not have to worry about filling liquid will flow out of the cans, if beyond the set page will flow to
the material recycling box, will not waste materials.

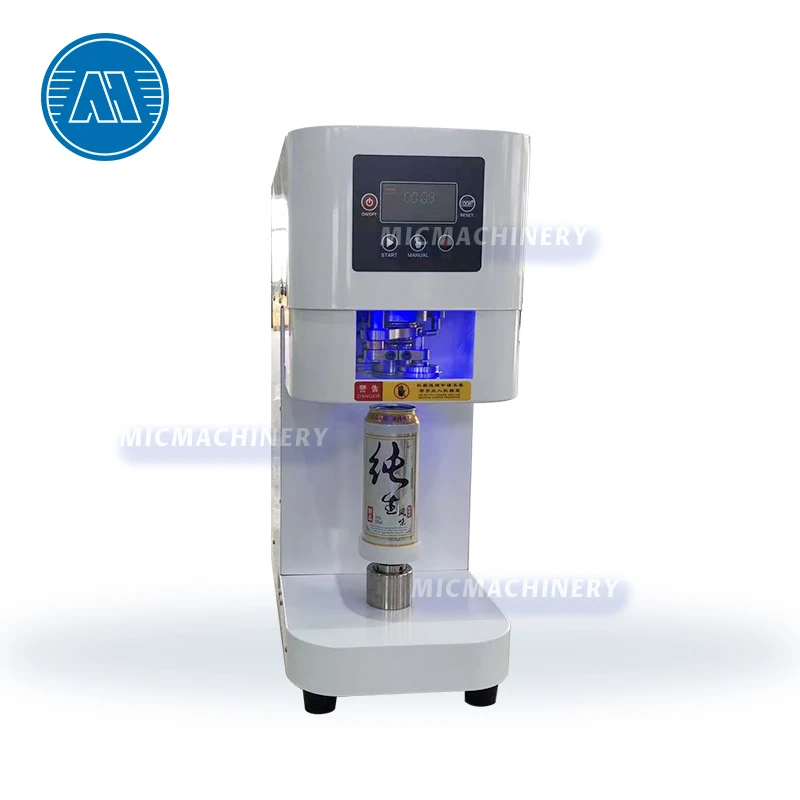

Manual beer sealing machine
filling, manually put the lid on, put the can on the tray of the capping machine, open the start button, and the internal
device rotates at high speed and spins the cap efficiently.
device rotates at high speed and spins the cap efficiently.
