Product Overview

Description

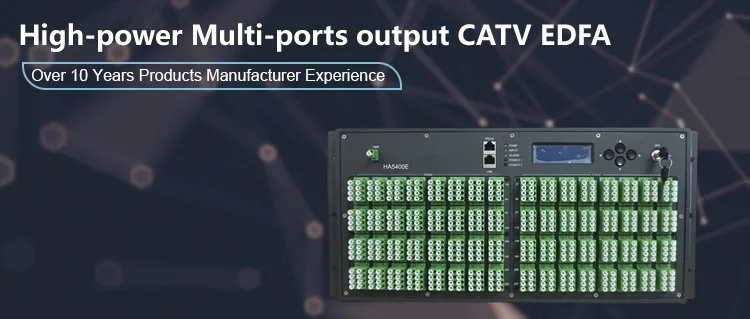

HA5400E (5RU) series is a high power multi-ports optical amplifier with gain spectrum band within 1540~1563nm. It is mainly designed for the application of CATV or 1~8 continuous banding channel (ITU wavelength). It offers a flexible and low-cost solution for CATV large area coverage of metropolises and medium-sized cities.

HA5400E optical amplifier adopts the world's top class pump laser and active optical fiber. Perfect APC, ACC and ATC control, excellent design in the ventilation and heat-dissipation ensure the long life and high reliable work of pump laser.

HA5400E has extremely low noise figure, the entire unit adopts twin-stage amplification, and the pre-amplifier adopts low noise EDFA, output cascade adopts high power EYDFA. When input optical power Pin=0dBm, the noise figure of unit is ≤5.5dB Unlike other kind of product which need high optical power input to maintain lower noise figure.

HA5400E LCD at the front panel offers the work index of all equipment and warning alarms. The laser will switch off automatically if optical power is missing, which offers security protection for the laser.RS232 and RJ45 offer serial commutation and SNMP network management port. All the optical port of optical amplifier can be installed in the front panel or back panel.

HA5400E optional two-way optical input (built-in 2x1 optical switch), can be used for self-healing ring network or redundant backup network.

HA5400E with carrier-class reliability and network security management, high quality, high reliability and excellent cost performance and is ideal for system integrators and system operator.

HA5400E :19" 5RU rack, The total maximum output power of 49dBm (80000mW), optional output port up to 512 optional port.

Performance			Index			Supplement
			Min.	Typ.	Max.
Optical feature	Operating wavelength range	(nm)	1540		1563	CATV
	Input power	(dBm)	-10		+10
	Total output power	(dBm)			49
	Number of output port	(pcs)			512
	Each output power	(dBm)	0		22
	Difference of each output power	(dB)	-0.5		+0.5
	Output optical power monitoring	(dB)		-20		Optional
	Output power adjustable range	(dBm)	-6		0	Optional
	Noise figure (Pin=0dBm)	(dB)		4.5	5.5	HA5400E-1x[][][]
				5.0	6.0	HA5400E-2x[][][]
	Switching time	(ms)			8.0	HA5400E-2x[][][]
	Polarization dependence loss	(dB)			0.3
	Polarization dependence gain	(dB)			0.4
	Polarization mode dispersion	(ps/nm)			0.3
	Input/output isolation	(dB)	30
	Pump power leakage	(dBm)			-30
	Echo loss	(dB)	55			APC
General feature	Serial interface		RS232
	SNMP network management interface		RJ45
	Power supply	(V)	90		265	220VAC
			30		72	-48VDC
	Power consume	(W)			289
	Work temp.	( °C )	-5		65
	Storage temp.	( °C )	-40		80
	Relative humidity	(%)	5		95
	Size (W) x (D) x (H)	( " )	19 x 14.7 x 8.25 ( " )			5RU ( 19'' )
