Clam shell Pipe Cutter Stainless Steel Pipe End Cutting Beveling Machine

Product Overview

Description

Clam shell Pipe Cutter Stainless Steel Pipe  End Cutting Beveling Machine

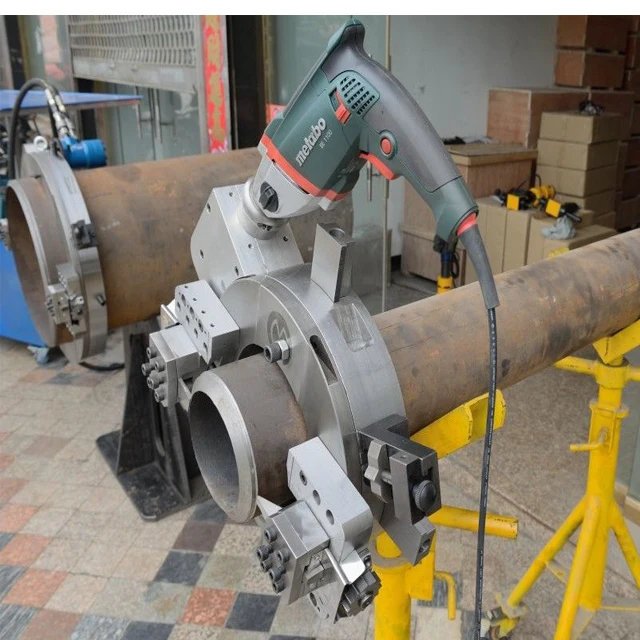

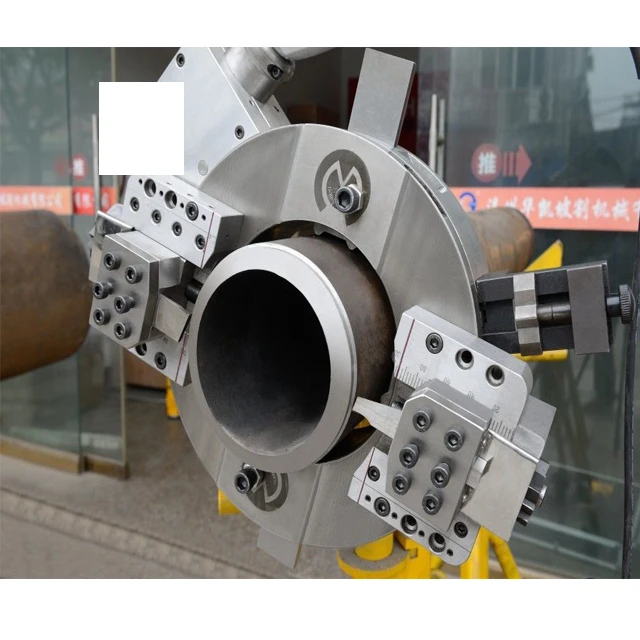

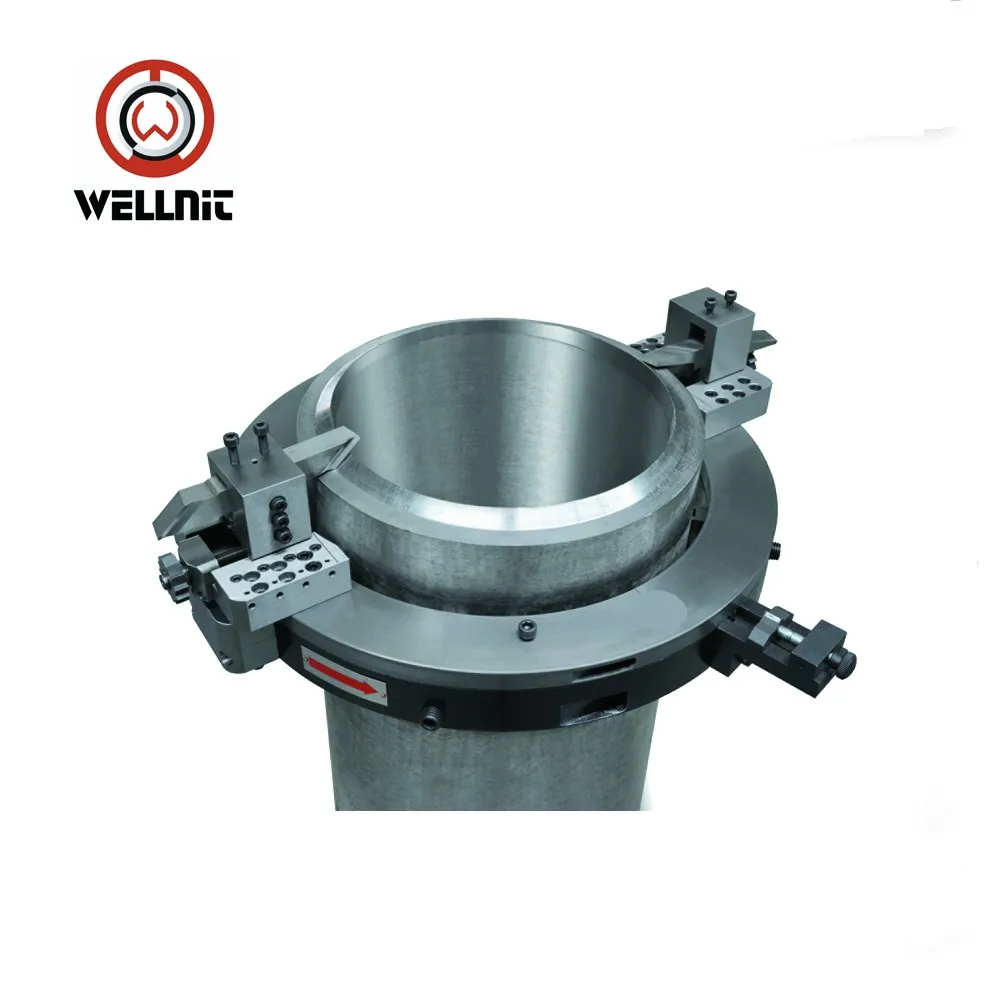

  Product Show







 Production Description

Clam shell Pipe Cutter Stainless Steel Pipe  End Cutting Beveling Machine



The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall thicknesses and material.



 Features:

• Cold Cutting and Beveling improves safety


• Cutting and Beveling simultaneous


• Split Frame: easy mounted on pipeline


• Tools feed automatically


• Fast, Precision, On-site Beveling


• Minimal Axial and Radial clearance


• Light weight and compact design


• Easy set-up & Operation

Model	Working Range(ID-OD)		Wall Thickness	Rotation Speed	Air Pressure	Air Consumption
OCP-89	Φ25-89	3/4”-3”	≤100mm	50r/min	0.6Mpa	1500L/min
OCP-159	Φ50-159	2”-5”		21r/min	0.6Mpa	1500L/min
OCP-168	Φ50-168	2”-6”		21r/min	0.6Mpa	1500L/min
OCP-230	Φ80-230	3”-8’		20r/min	0.6Mpa	1500L/min
OCP-275	Φ125-275	5”-10”		20r/min	0.6Mpa	1500L/min
OCP-305	Φ150-305	6”-10”		18r/min	0.6Mpa	1500L/min
OCP-325	Φ168-325	6”-12”		16r/min	0.6Mpa	1500L/min
OCP-377	Φ219-377	8”-14”		13r/min	0.6Mpa	1500L/min
OCP-426	Φ273-426	10”-16”		12r/min	0.7Mpa	1800L/min
OCP-457	Φ300-457	12”-18”		12r/min	0.7Mpa	1800L/min
OCP-508	Φ355-508	14”-20”		12r/min	0.7Mpa	1800L/min
OCP-560	Φ400-560	16”-22”		12r/min	0.7Mpa	1800L/min
OCP-610	Φ457-610	18”-24”		11r/min	0.7Mpa	1800L/min
OCP-630	Φ480-630	20”-24”		11r/min	0.7Mpa	1800L/min
OCP-660	Φ508-660	20”-26”		11r/min	0.7Mpa	1800L/min
OCP-715	Φ560-715	22”-28”		11r/min	0.7Mpa	1800L/min
OCP-762	Φ600-762	24”-30”		11r/min	0.8Mpa	2000L/min
OCP-830	Φ660-813	26”-32”		10r/min	0.8Mpa	2000L/min
OCP-914	Φ762-914	30”-36”		10r/min	0.8Mpa	2000L/min
OCP-1066	Φ914-1066	36”-42”		9r/min	0.8Mpa	2000L/min
OCP-1230	Φ1066-1230	42”-48”		8r/min	0.8Mpa	2000L/min

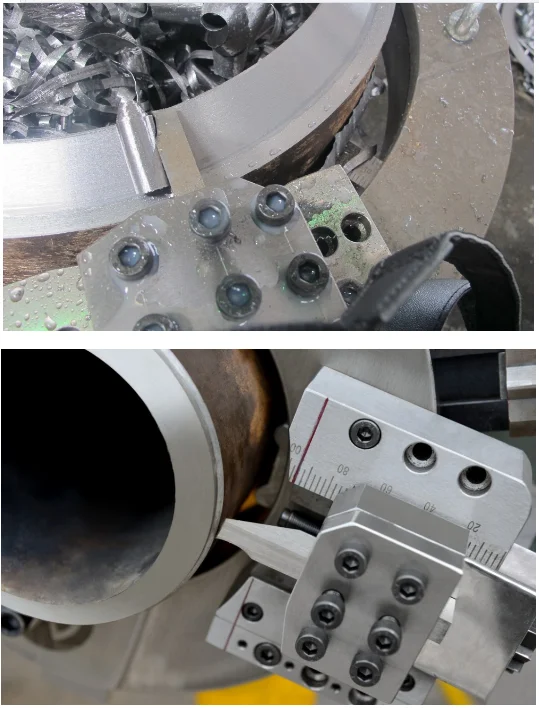

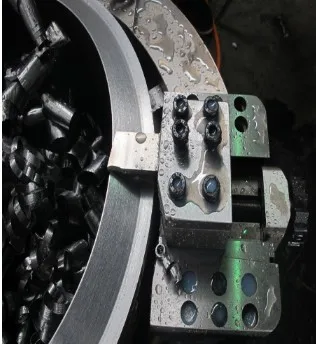

  Project Show

•


  Choose the right Model





•


  Confirm your electric power supply ( Voltage, frequency and phase)





•


  Confirm the beveling angel required





•


  Confirm the welding joint required (U, V, Double V or Compound preparation)





•


  Advise your pipe material ( Carbon steel, stainless steel or others)





•


  Other special demands about machine





•


  The spare parts needed





•


  If the pipe wall thickness more than 30mm, inform us in advance (Important)
