Price:$6,500.00

Quantity:


Product Overview

Description



Attention
1 --- All prices and parameters shown above are automatically generated by the system, if you want to know the exact information, please click "Contact Supplier" to send mail to us.
2 --- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.




Products Description


Automatic 3 in 1 PET Bottle Washing Filling Capping Machine.
This washing filling capping machine is mainly used for Non-aerated carbon dioxide drink, such as mineral water, pure water and so on.The machine design is shorten the time for the drink material contact with outside, Increase the sanitation condition throughout economy benefit.


Product Paramenters


Model
CGF14125
CGF18186
CGF24248
CGF323210
CGF404012
Number of washing, filling and capping heads
14-12-5
18-18-6
24-24-8
32-32-10
40-40-12
Production capacity(600ml) (B/H)
4000-5000
5000-6000
8000-12000
12000-15000
16000-20000
suitable bottle specification(mm)
φ=50-110 H=170 volume=330-2250ml
Washing pressure(kg/cm2 )
2~3
Motor power(kw)
Main motor 2.2kw
Main motor 3kw
Main motor 3.8kw
Main motor 5.5kw
Main motor 7.5kw
Overall dimensions (mm)
2400×1650 ×2500
2400×1830 ×2400
3100×2200 ×2400
3800×2800 ×2900
4600×2800 ×2900
Weight (kg)
2500
3500
4000
6500
8500

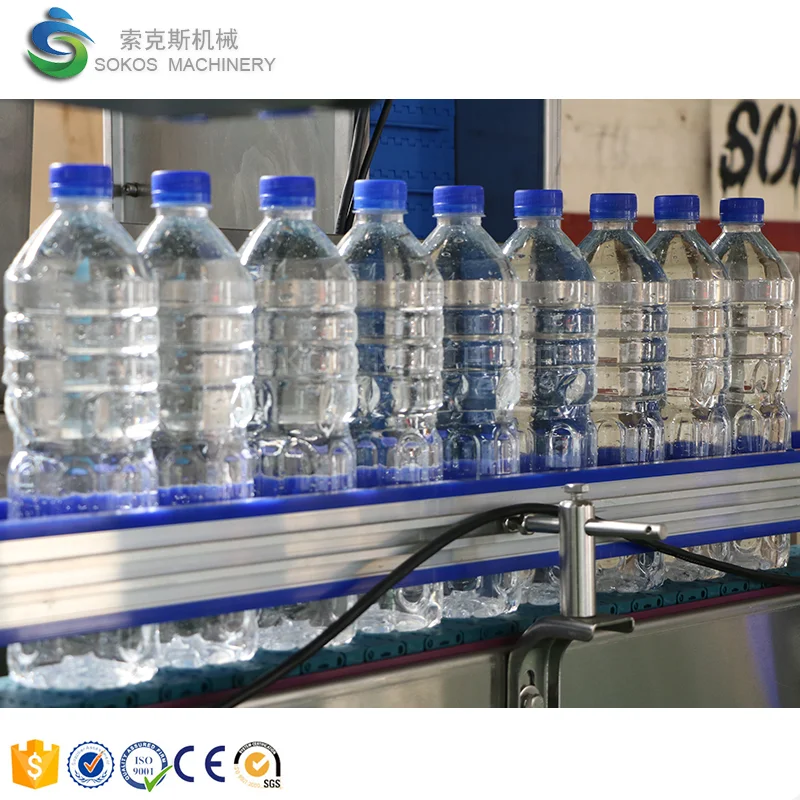

Final Products




Details Images

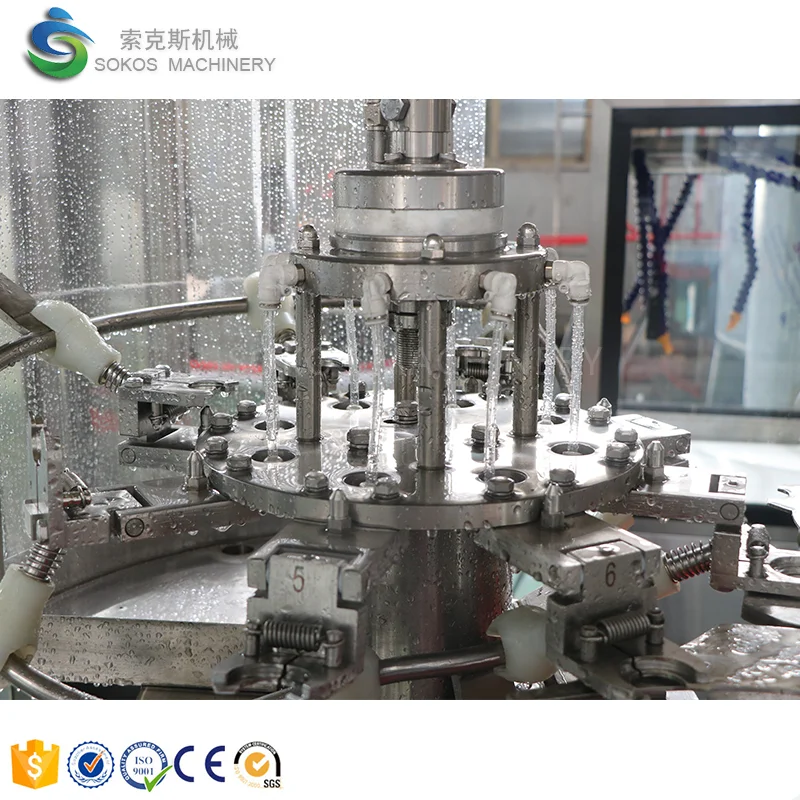

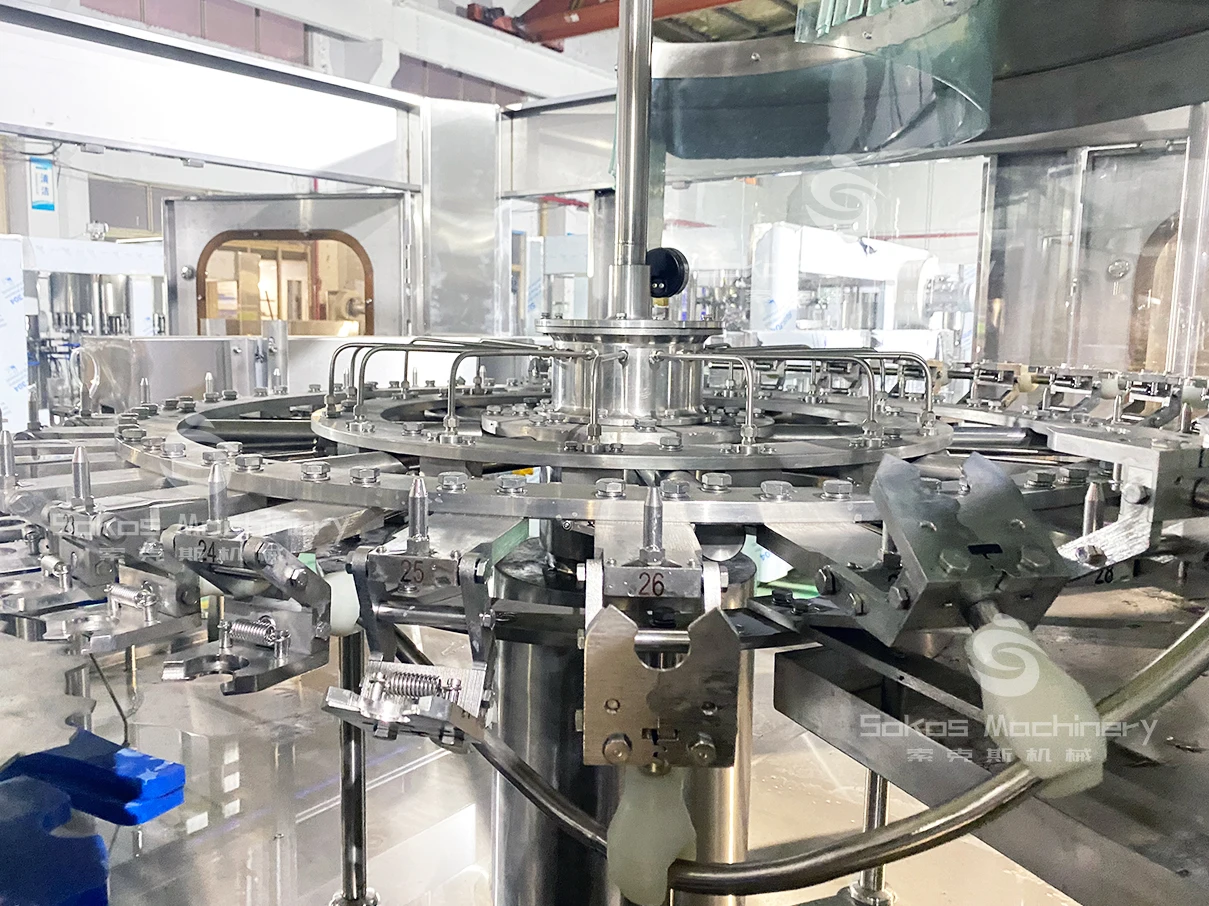

Washing Parts.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

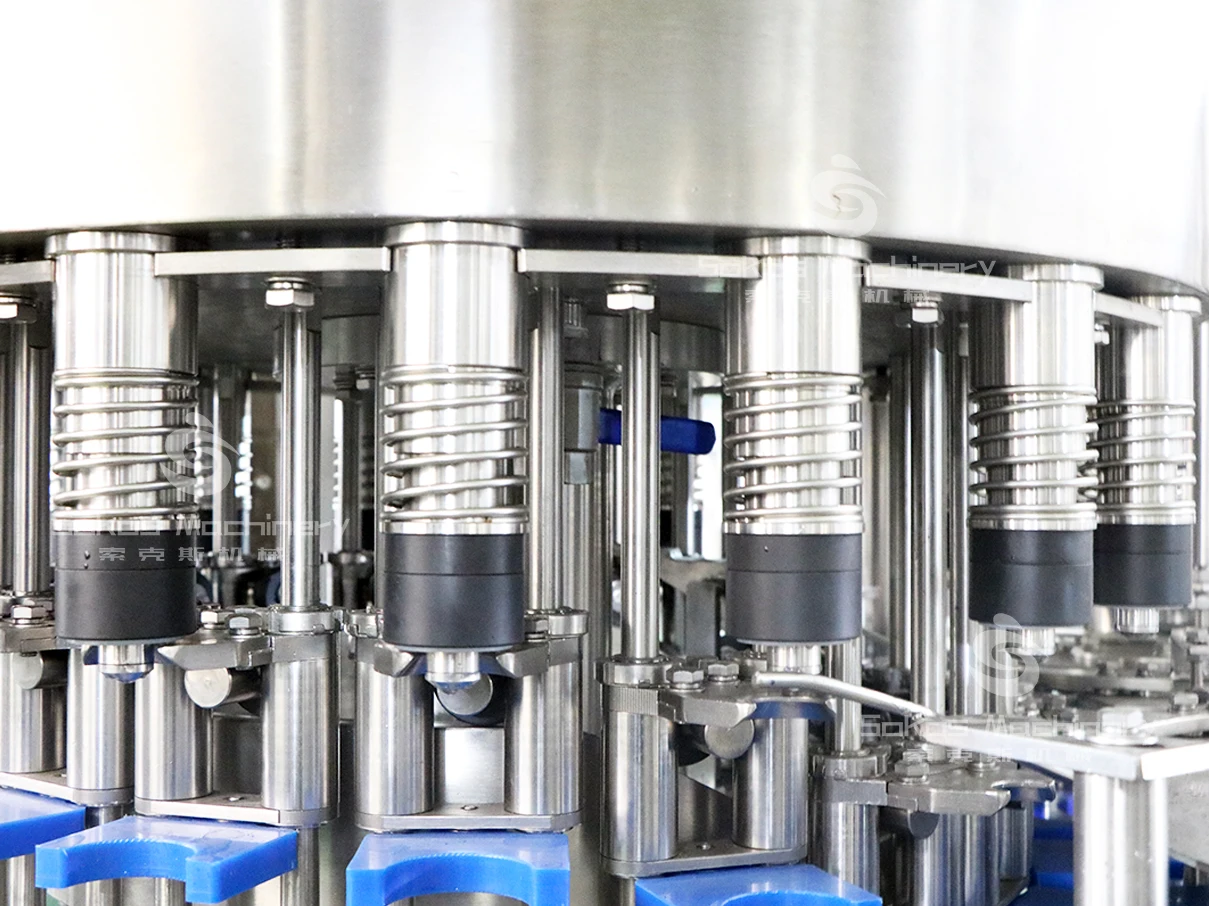

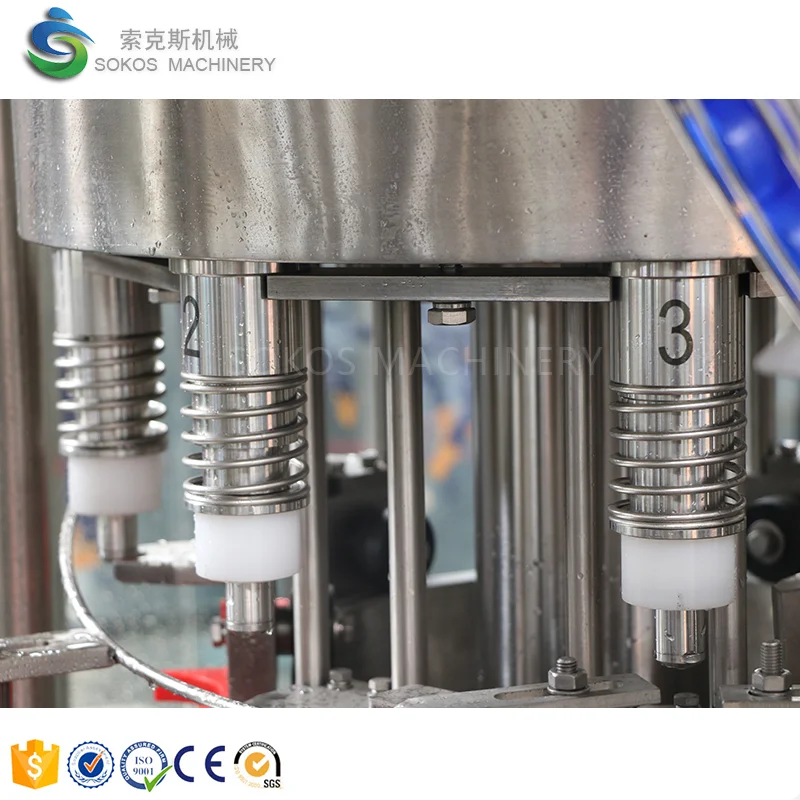

Filling Parts.
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

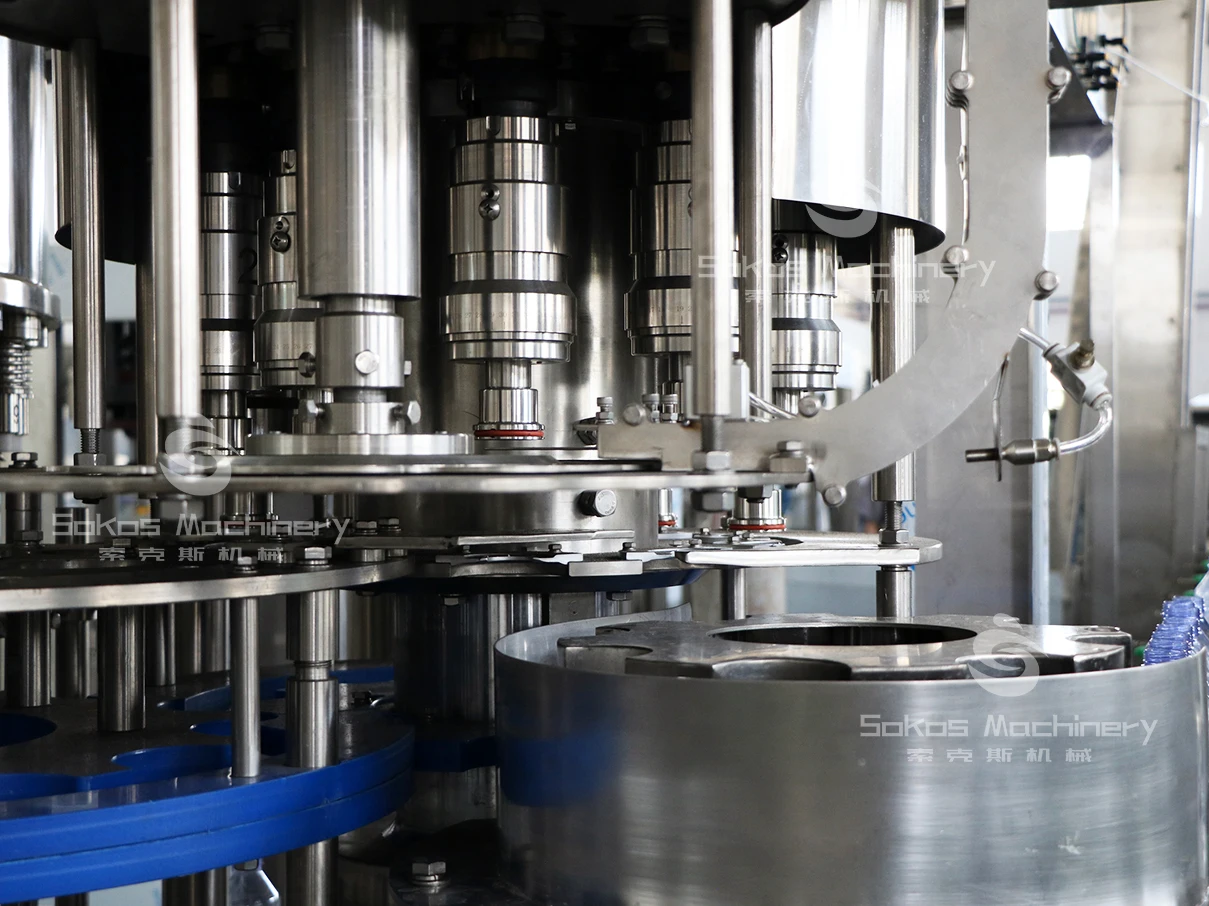

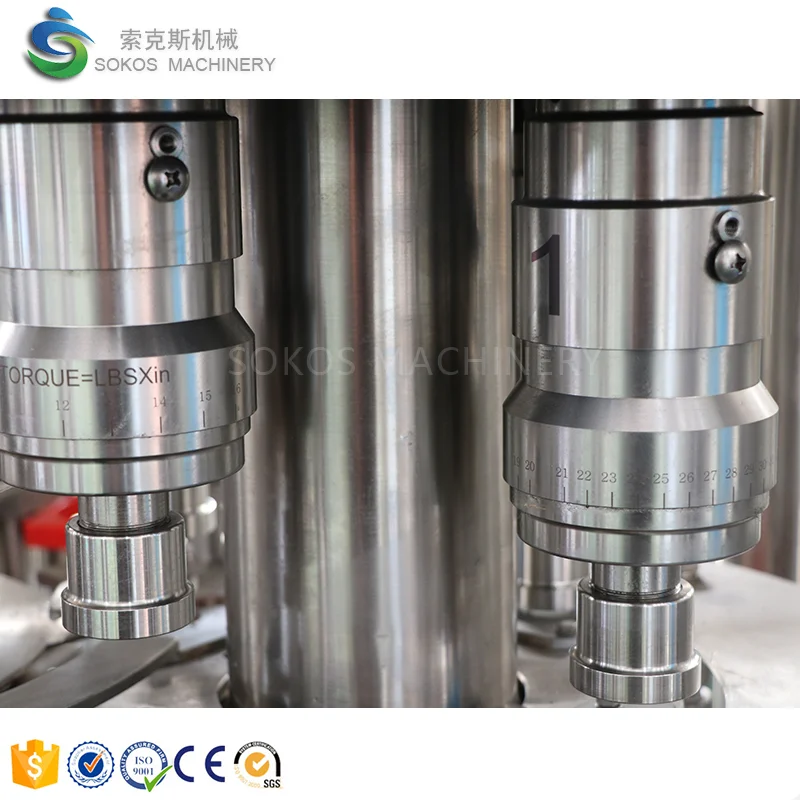

Capping Parts.
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%


Product packaging
