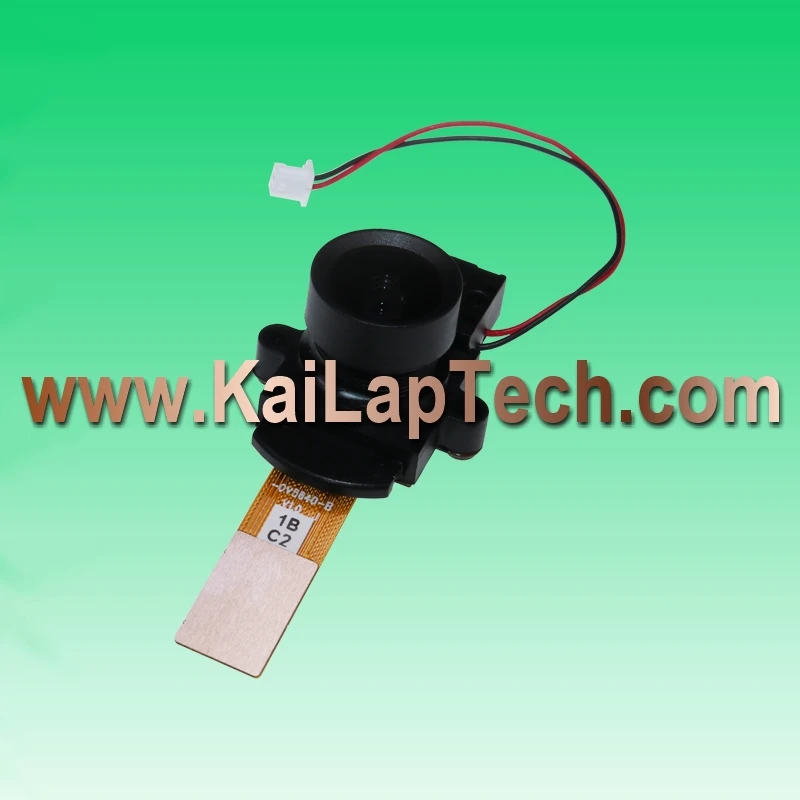

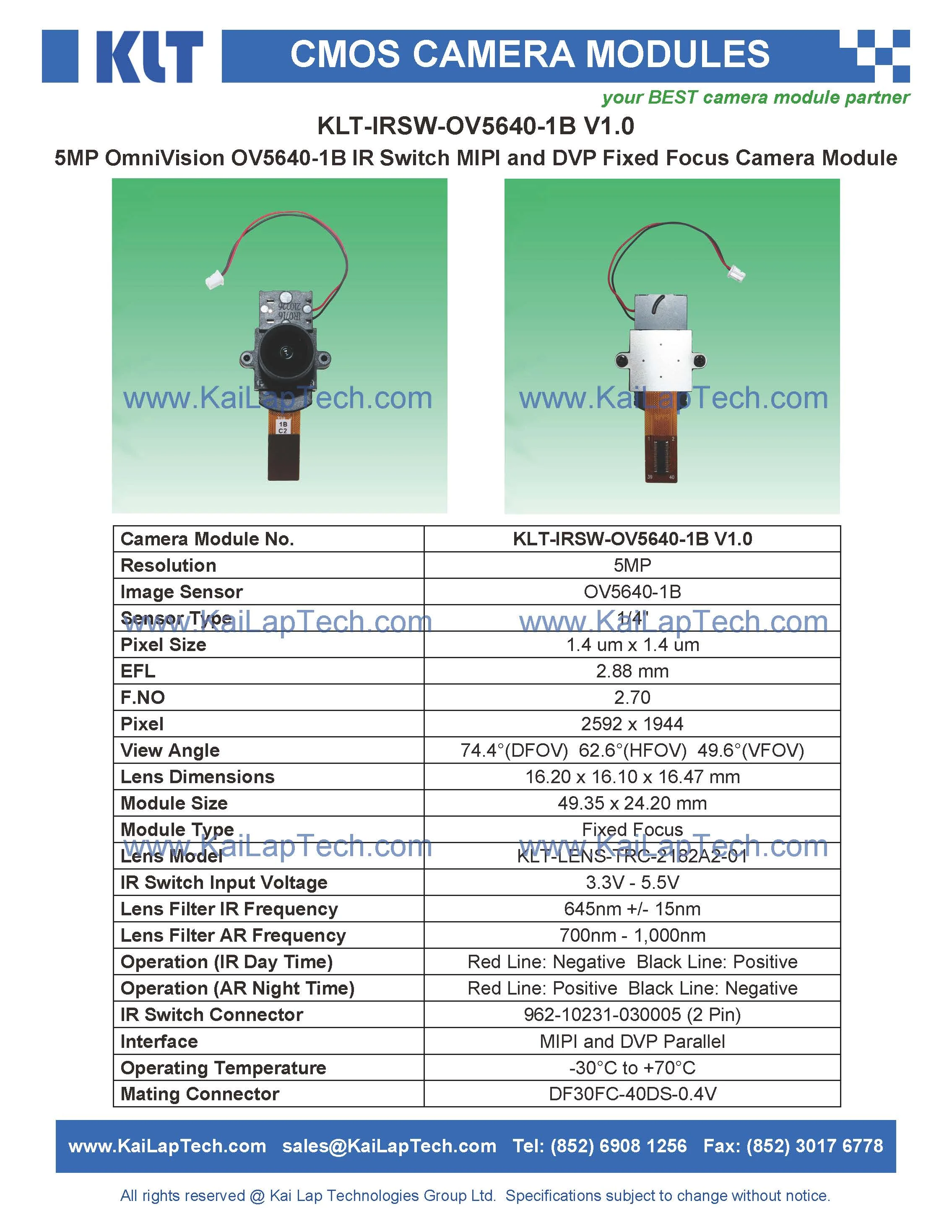

5MP OV5640 1B IR Switch MIPI and DVP Parallel Interface M12 Fixed Focus Camera Module KLT IRSW OV5640 1B V1.0
- Category: >>>
- Supplier: Kai Lap Technologies Group Limited
Share on (1600538525501):
Product Overview
Description
KLT-IRSW-OV5640-1B V1.0

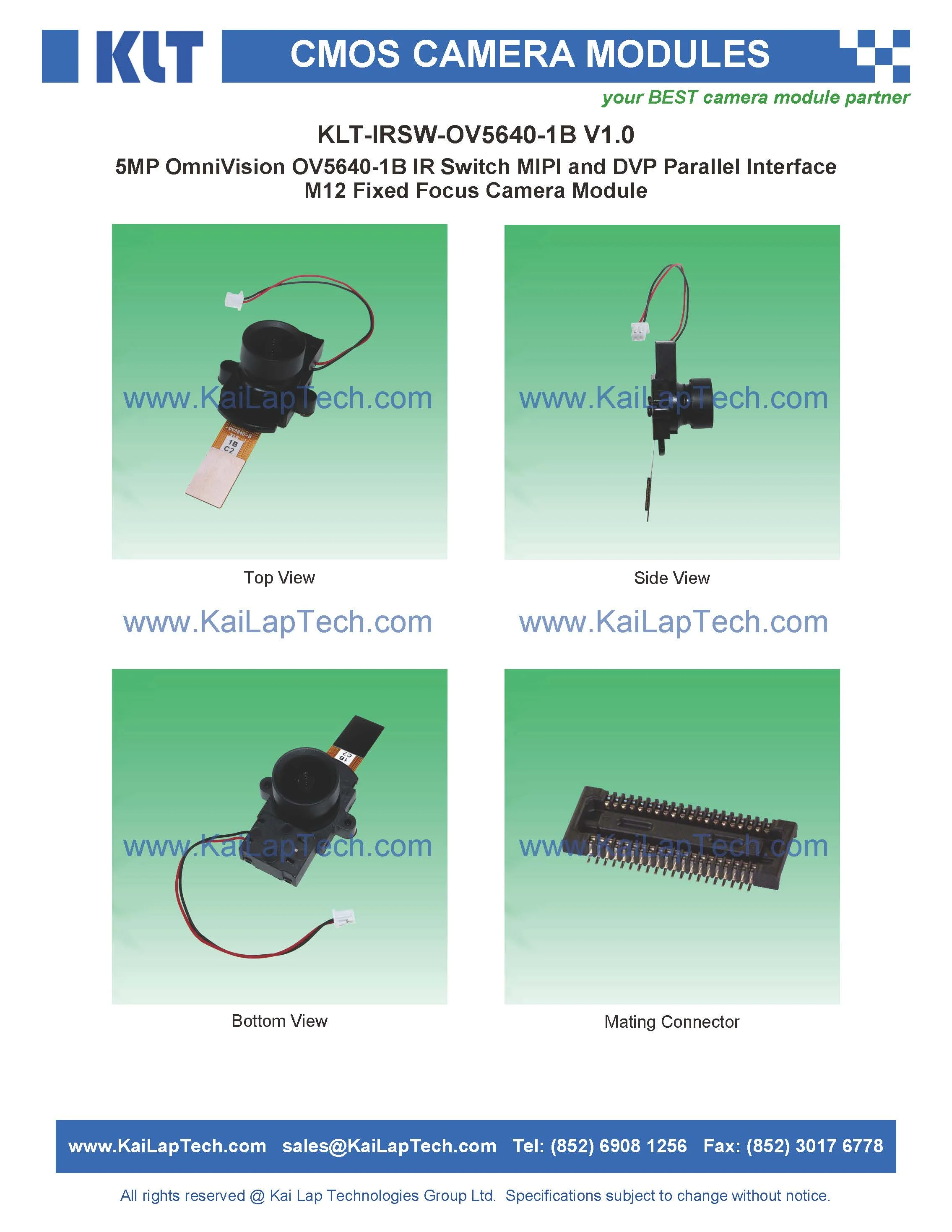

5MP OV5640-1B IR Switch MIPI and DVP Parallel Interface M12 Fixed Focus Camera Module
| Camera Module No. | KLT-IRSW-OV5640-1B V1.0 |
| Resolution | 5MP |
| Image Sensor | OV5640-1B |
| Sensor Type | 1/4" |
| Pixel Size | 1.4 um x 1.4 um |
| EFL | 2.88 mm |
| F.NO | 2.70 |
| Pixel | 2592 x 1944 |
| View Angle | 74.4°(DFOV) 62.6°(HFOV) 49.6°(VFOV) |
| Lens Dimensions | 16.20 x 16.10 x 16.47 mm |
| Module Size | 49.35 x 24.20 mm |
| Module Type | Fixed Focus |
| Lens Model | KLT-LENS-TRC-2182A2-01 |
| IR Switch Input Voltage | 3.3V - 5.5V |
| Lens Filter IR Frequency | 645nm +/- 15nm |
| Lens Filter AR Frequency | 700nm - 1,000nm |
| Operation (IR Day Time) | Red Line: Negative Black Line: Positive |
| Operation (AR Night Time) | Red Line: Positive Black Line: Negative |
| IR Switch Connector | 962-10231-030005 (2 Pin) |
| Interface | MIPI and DVP Parallel |
| Operating Temperature | -30°C to +70°C |

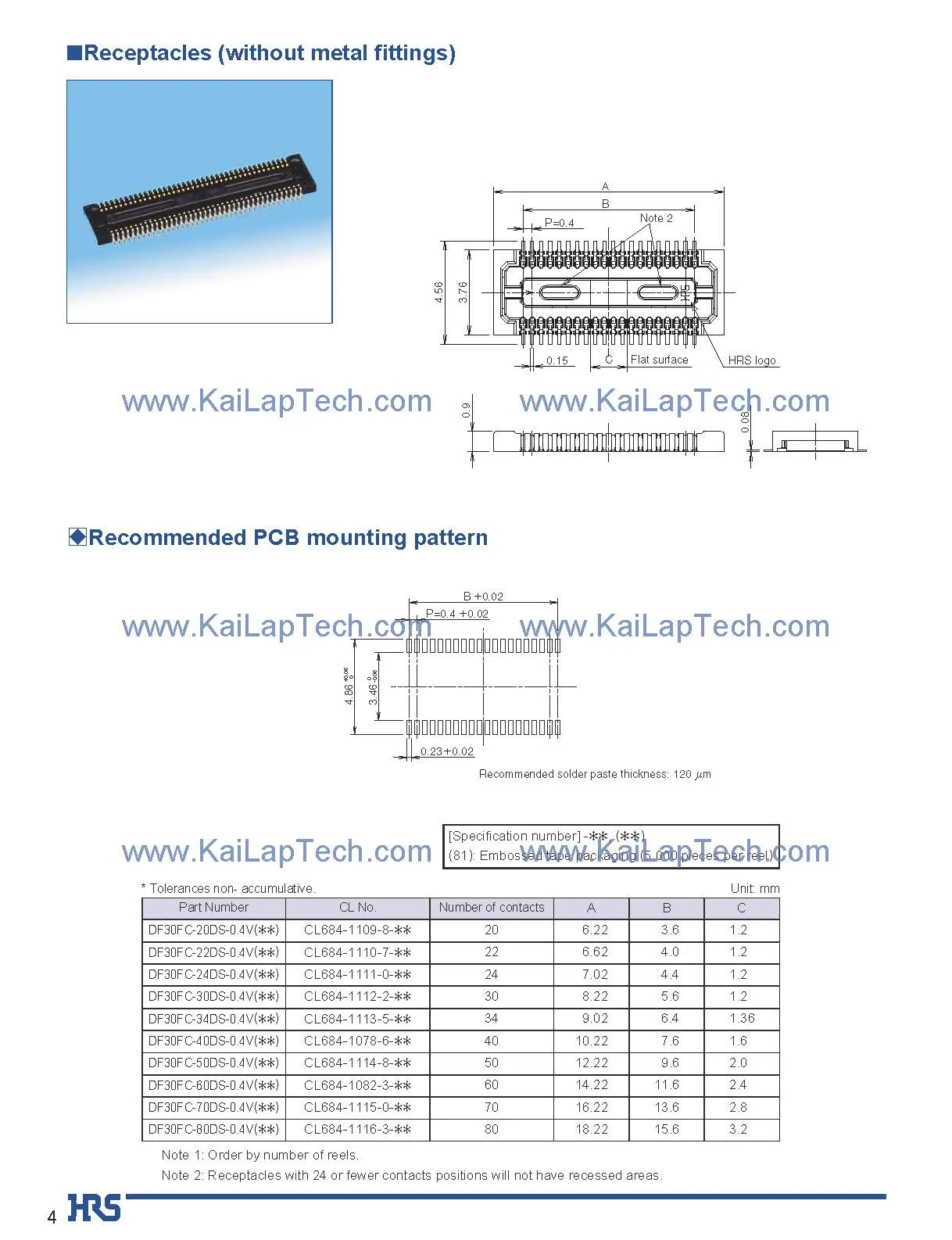

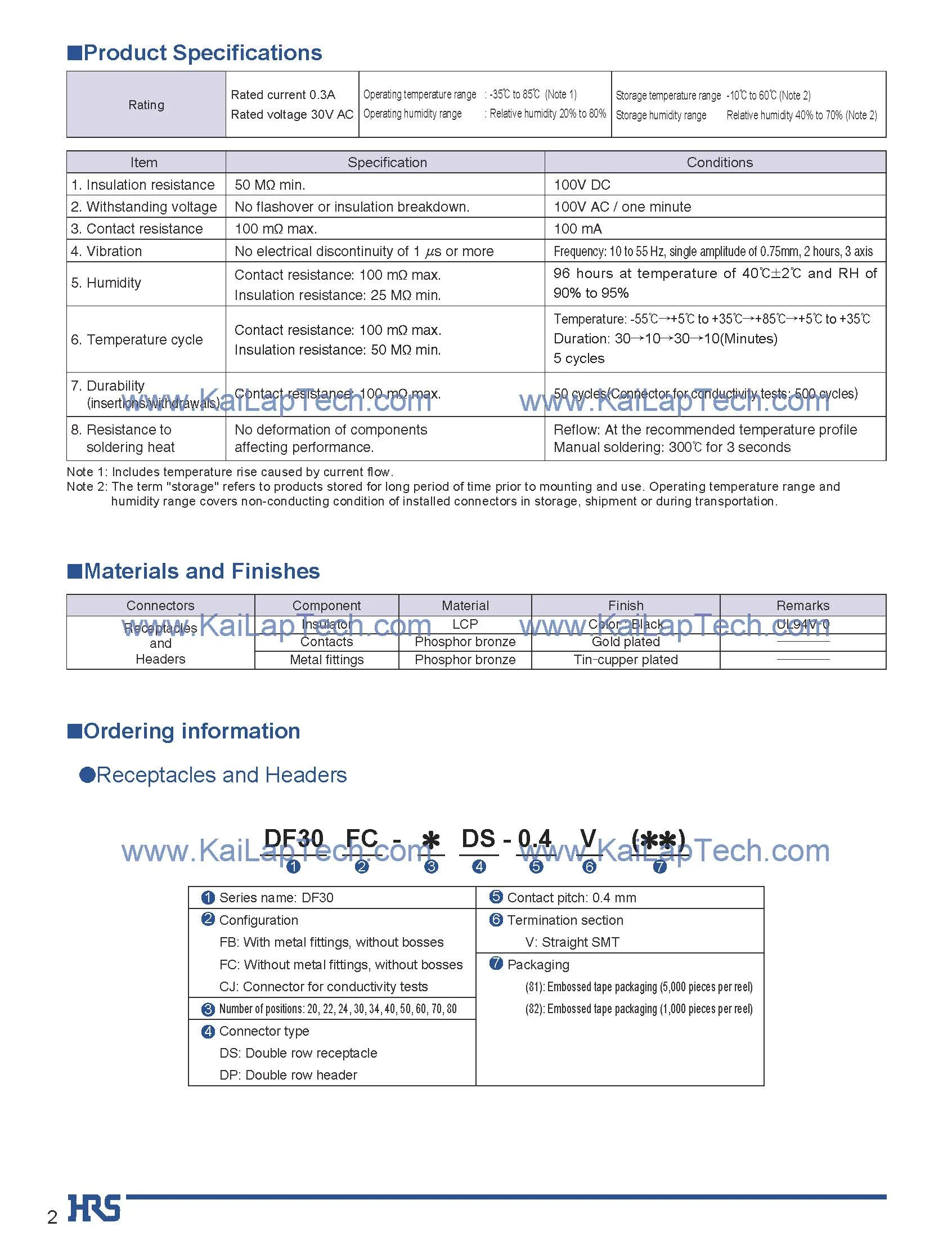

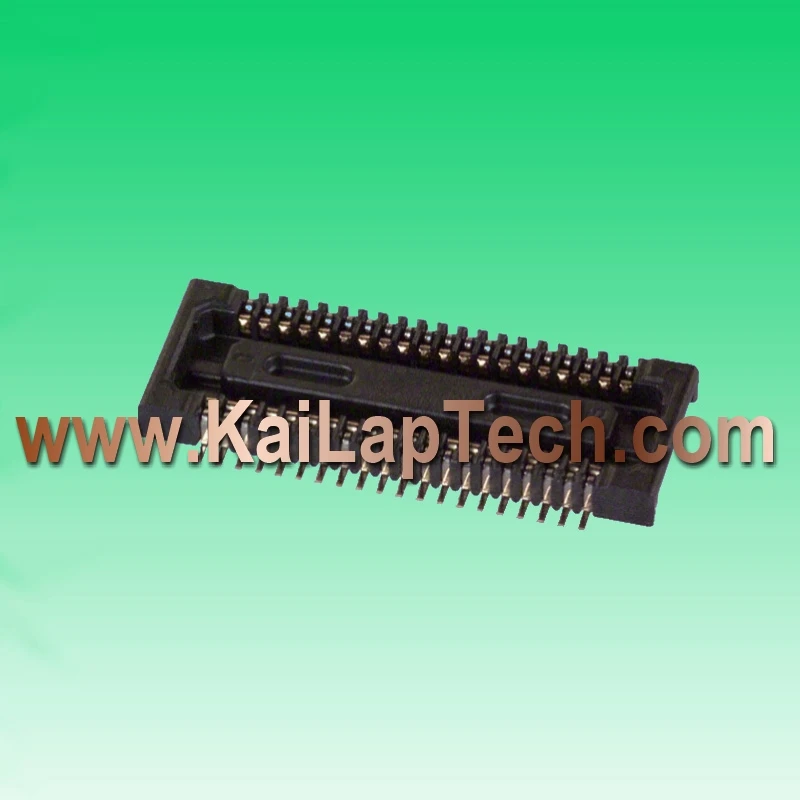

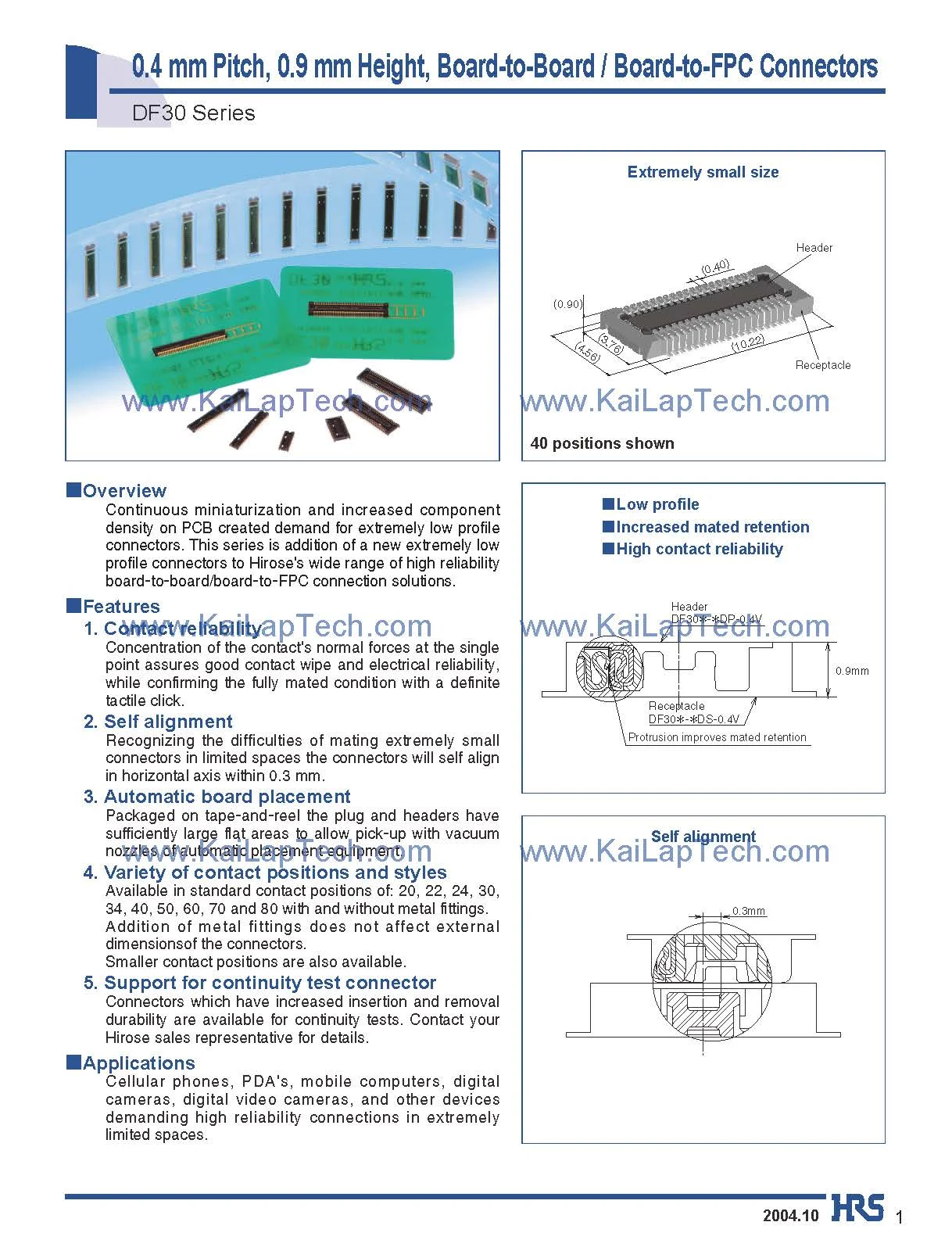

| Mating Connector | DF30FC-40DS-0.4V |
