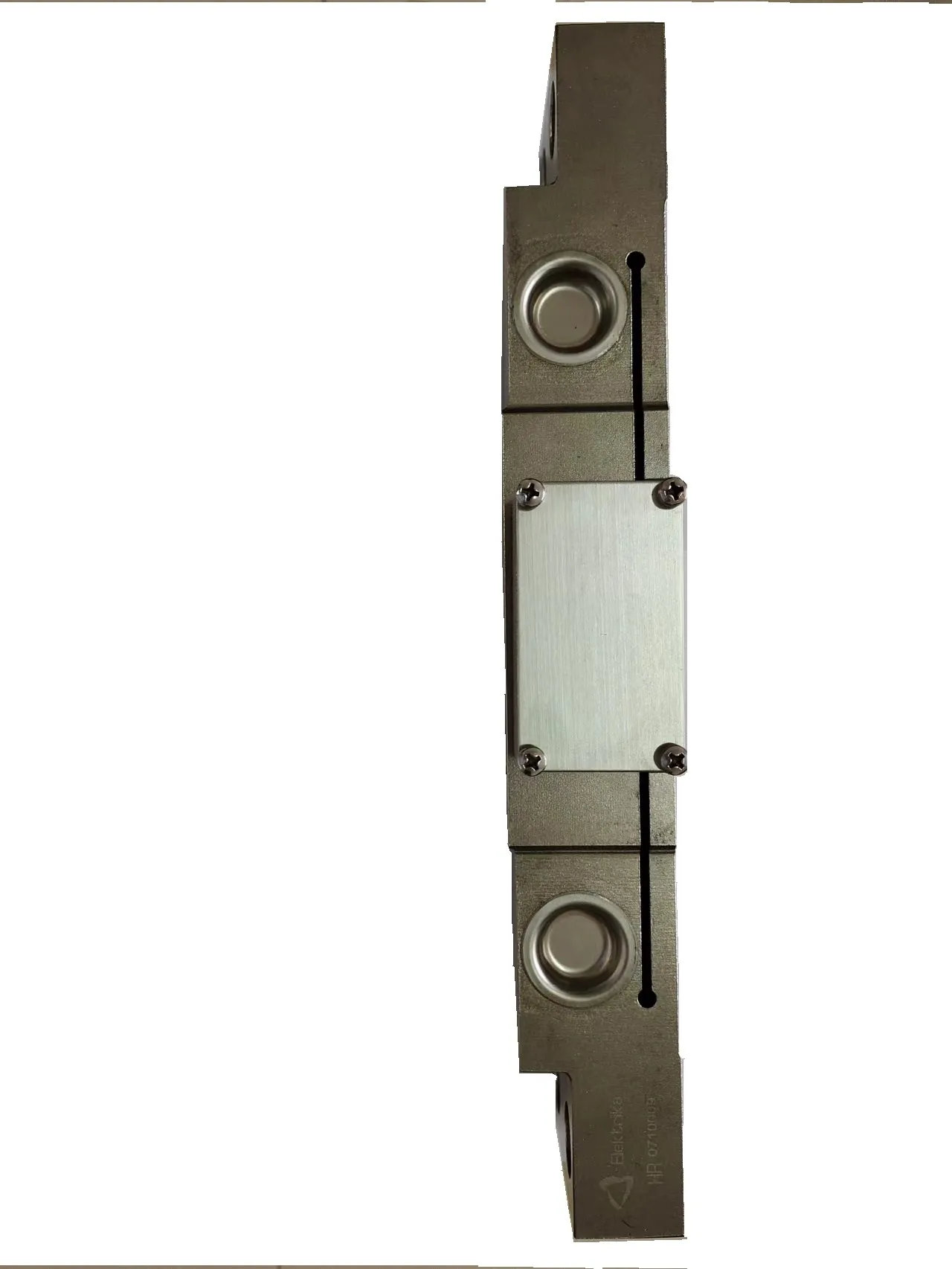

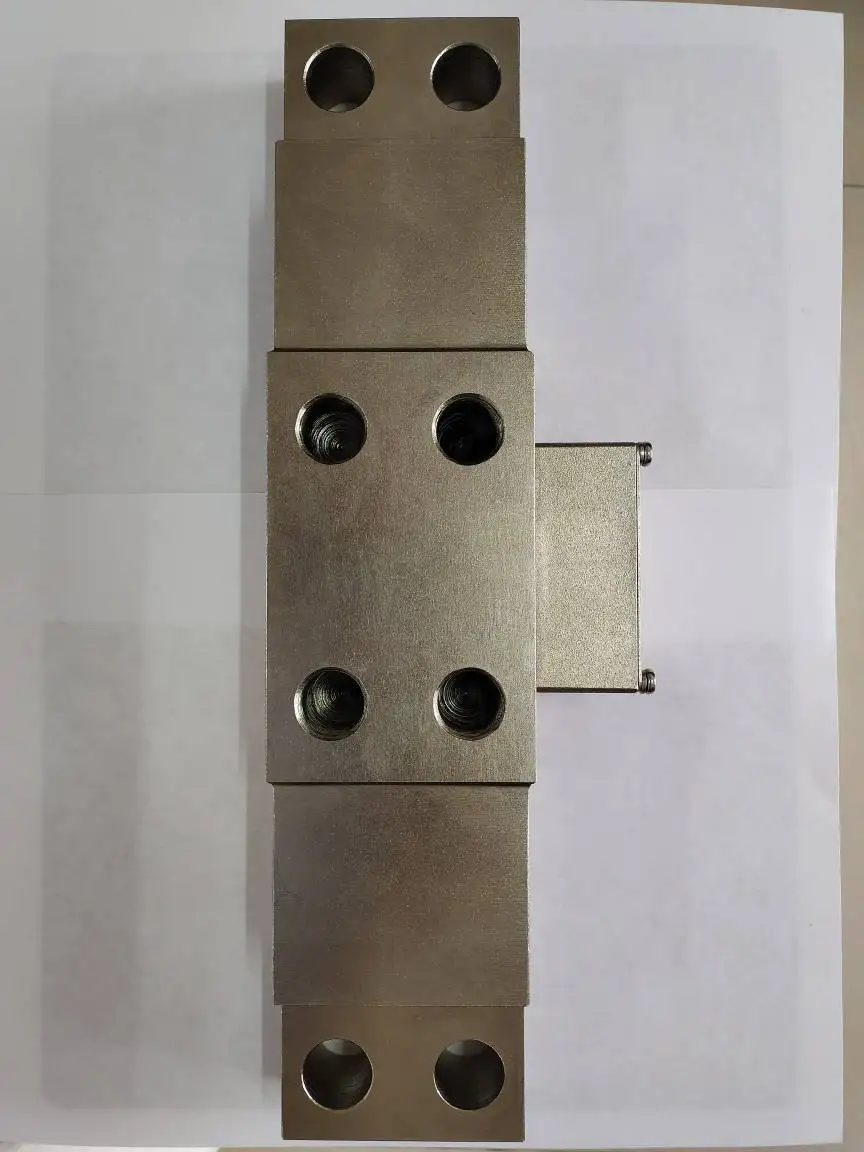

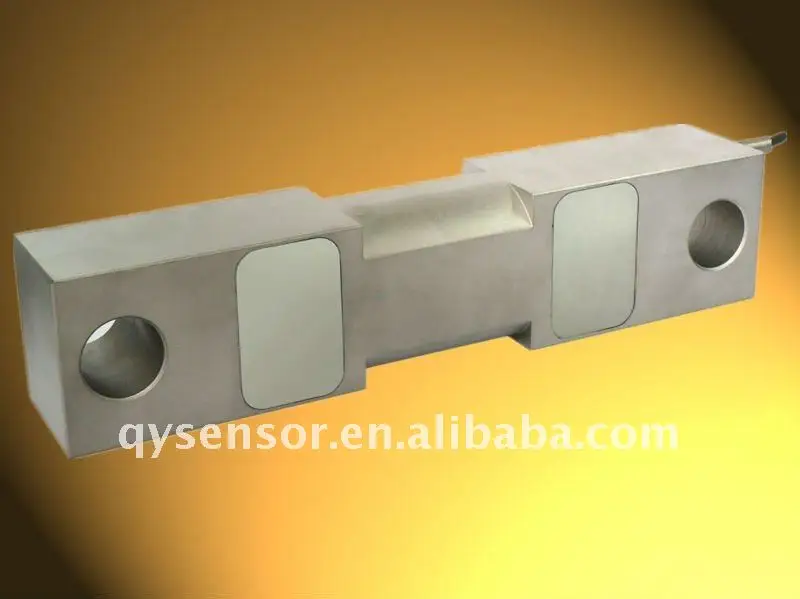

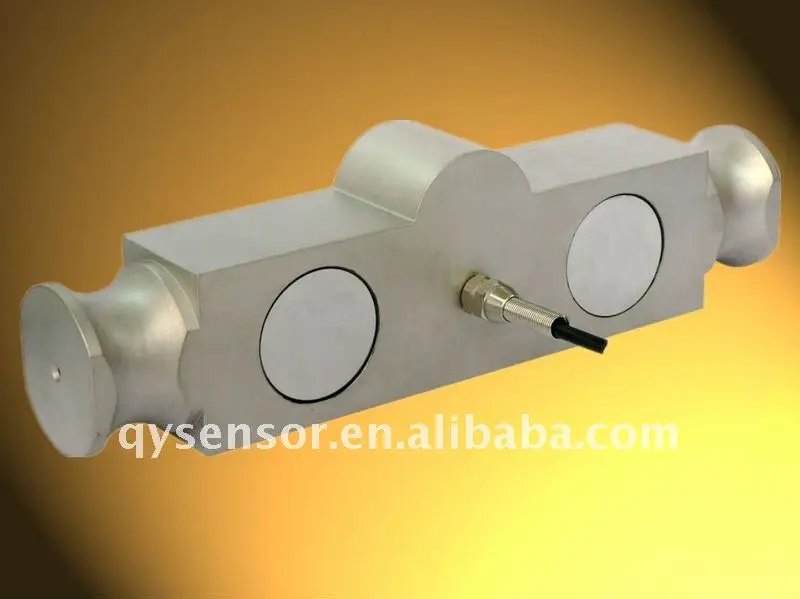

double ended shear beam load cell for vehicle/Truck weight sensor

Product Overview

Description

QH-43D load cells are available in the capacities of 15t,30t

Alloy steel construction with double shear beam type. Silicon adhesive sealed inside,waterproof,anti-corrosion,suitable for multiform environments.
Suitable for truck scales,steam lines and other electronic weighing devices.
  Features:
1.Capacity: 15t to 30t

2.Defend grade:IP68

3.High accuracy,reliable performance.
4.Integral structure,easy installation.

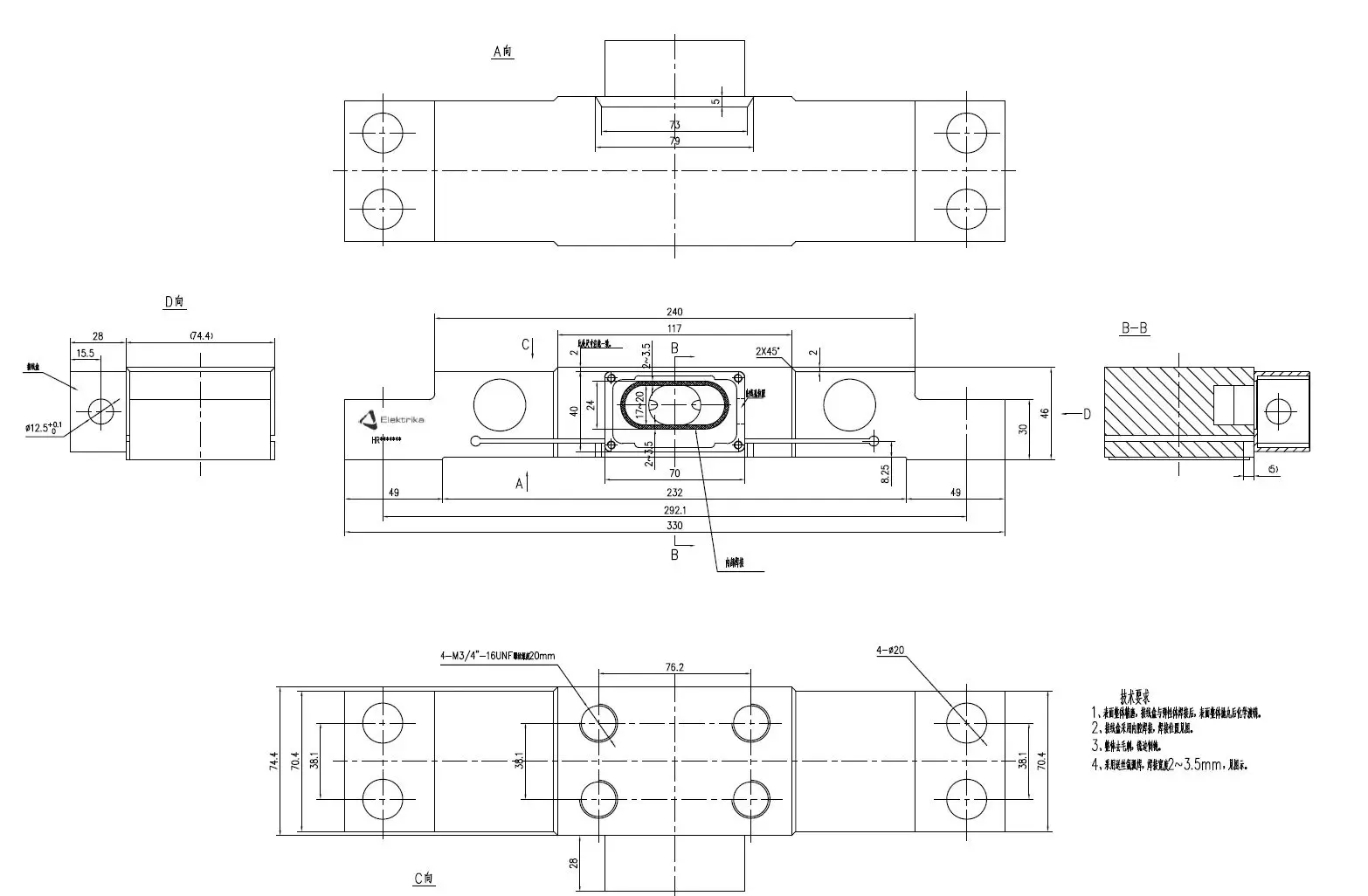

Electrical connection and Dimensions:(dimension unit:mm)







Technical Specifications

Specifications:
capacity	t	15,30
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	2.0 ± 0.02
excitation voltage	Vdc	5 ~ 12
combined error	%FS	± 0.05
zero unbalance	%FS	± 1
non-linearity	%FS	± 0.05
hysteresis	%FS	± 0.05
repeatability	%FS	± 0.05
creep	%FS/30min	± 0.05
input resistance	Ω	700 ± 10
output resistance	Ω	700 ± 5
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	℃	-20 ~ +55
compensated temperature range	℃	-10 ~ +40
temperature coefficient of SPAN	%FS/10℃	± 0.05
temperature coefficient of ZERO	%FS/10℃	± 0.05





Electrical connection:

1.Excitation+ red     Excitation- black   Signal+ green   Signal- white
2.Four-core shielded cable with polyethylene.
3.Cable diameter :5mm
4.Cable length:6m The cable length could be chose by customer’s application.

Ordering code: model(QH-alloy steel,QB-stainless steel)-range-rated output-accuracy-defend grade- the length of cable
Example:QH-41B-2t-2.0mV/V-0.03%FS-IP66-6m
