12 24 Volt Phone APP Control 8 Button RGB Backlighting Switch Panel Power System
- Category: Auto Switches >>>
- Supplier: Shenzhen Nova Technology Co. Ltd.
Share on (1600538588493):
Product Overview
Description
Business Partner
What Partners Are We Looking For ?
We looking for business partners such as retailer, dealer, agent, wholesaler, distributor, manufacturer, etc., who sell our products online or offline (such as online store, supermarket chain, auto parts store, repair shop, 4S shop, etc.) and order in large quantity.
Please note that we do not sell for personal private purpose.
What We Can Support You?
As a combination of factory and trading company since 2007, we are proud to offer you OEM ODM service or regular LED lighting products supported by our full supply chain of raw materials, R&D team, skillful production team, and guarantee service. Check with our regular product line up if you are looking for aftermarket car led light bars, led fog driving lights, switch panel power system, mount brackets or other lighting accessories. Send us product inquiry if you need extra service such as LOGO engraving service, custom box, or even an exclusive product version just for your company.
Products Description
Why do you need a switch panel power system?
This switch panel power distributon system makes installing aftermarket led lights or electronic car devices or camping devices so much easier! It offers perfect solution to clean up all wiring harness mess through a single panel and compact size circuit control box. This switch panel system allows you to connect and control eight car auxiliary LED light bars or LED fog driving lights or other electronic devices once a time.
12 or 24 Volt Fitment
This complete package of power control system fits for all 12 volt or 24 volt vehicles, pickup trucks, powersports utv, boats and marines, suv, rv motovan, or other heavy duty machines.
Widely Application

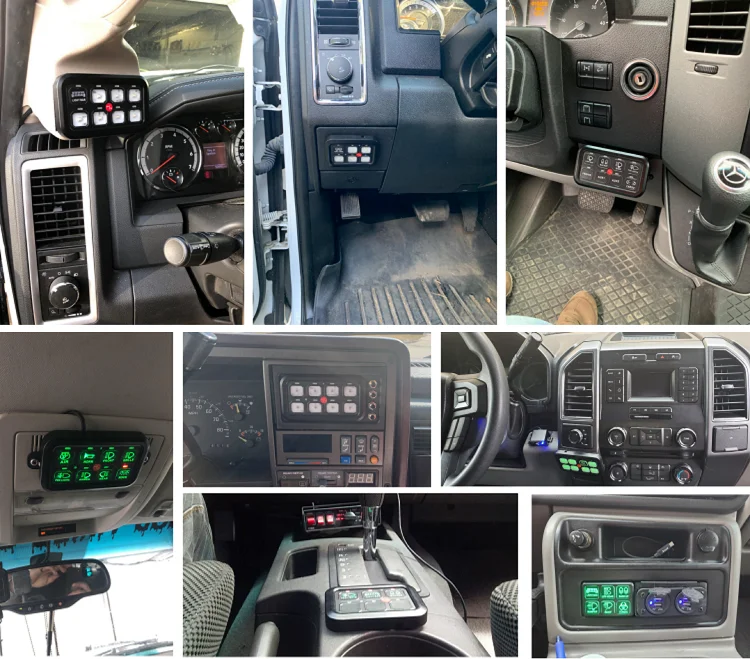

Available with flexible or fix mount brackets. For most of the cases, end users could mount the switch panel overhead the rear view mirror or overhead liner, onto the dashboard arround the steering wheel, embedding or inserting into the position nearby the car audio device, empty postion between the driver and passenger, or even in the car trunk bed, etc.
What's the most advantages of this switch panel?

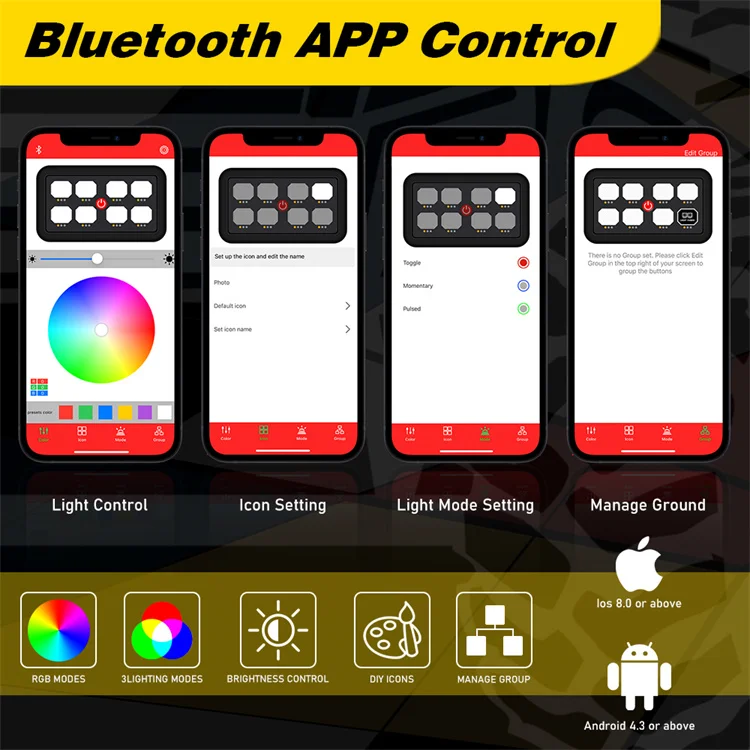

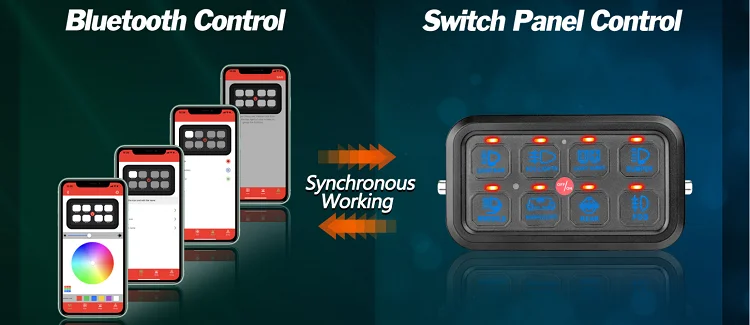

Comparing with those blue or green backlit switch panel control boxes on the current market, the biggest advantages of this switch panel power distribution system is user programmable and control via the panel or smart phone, blue tooth interface. The app name is Switch Panel. User can download it from phone app store directly. For instance, if users connecting eight led lights to the switch panel, you can turn these lights on or off inside the cab where you mount the switch panel, or you can step outside the vehicle, power all the lights on and off in 10 meters away via a finger touch on your phone app.

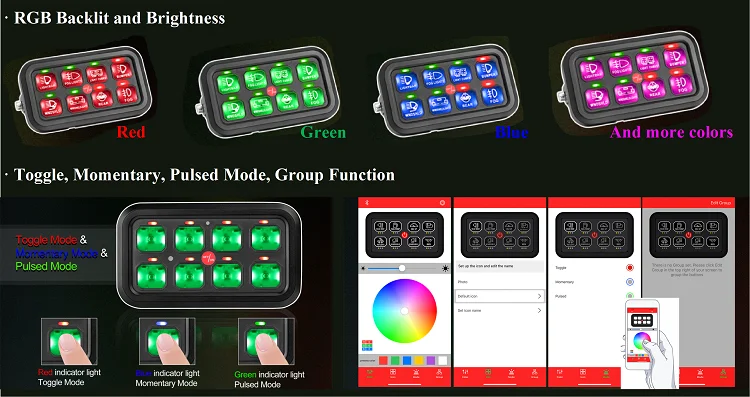

Backlit Color and Brightness
What's the point of RGB programmable? With this function, you can set up whatever backlit color and brightness you like.
There are many options of 12 volt switch panels on the market, some of them are fixed in green or blue backlit with five different brightness options, some of them are designed with automatically dimmable backlit function. But there are still some customers want more backlit color choices rather than green or blue, where to get them? Now with our updated RGB programmable blue tooth 8 gang switch panel power distribution system, we take good care of your needs and concerns!
This switch panel's backlit color can be changed and modified via phone app or switch panel operation, there are totally 64 different backlit color choices can be operated via the panel itself, and over 16 millions RGB colors via phone app operation to fulfill your needs.
As for the backlit brightness, users can fix and set up the brightness via phone app control. It's also automatically dimmable. Which means the brighter the surrounding is, the brighter the backlit brightness will be; and vice versa. In this case, users will never need to worry about too much brightness and eye attention during night driving.
Toggle, Momentary, Pulsed, Group Function
What's the point of RGB programmable? With this function, you can operate the switch panel and control the connected LED lights or electronic devices at your will.
Accessories circuit 1-8 of the switch panel can be operated as Toggle, Momentary, or Pulsed mode, or set up with group function. By default, the switch panel comes out the box set for Toggle mode.
Toggle mode helps you to turn on and off the connected led lights, momentary mode mostly used for product such as horn, pulsed mode for strobing flashing needed LED warning lights or emergency lights. While the group function could let you to set groups with same light mode and same operation.
User Selectable Switch Legends

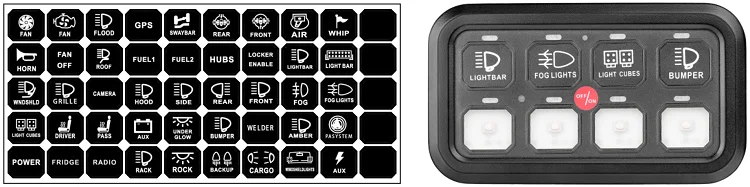

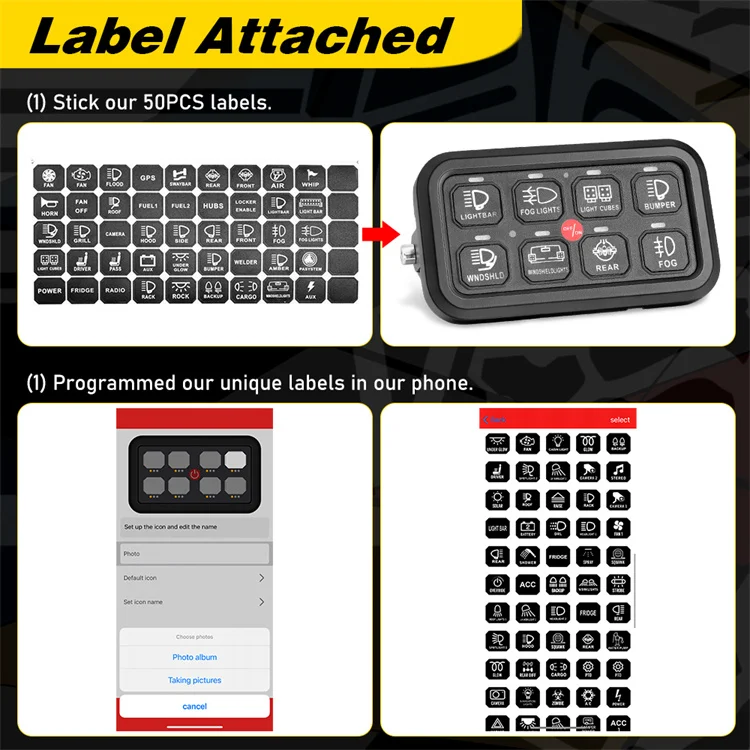

By default, there is a sheet of 50 stickers. 45 of them are printing with labels and icons, 5 of them are black and blank. Users could select the needed legends during installation, and stick the blank stickers on it if you are not going to use all 8 switches for the beginning, so the blank circuit will not shine too much and being distrupted during night or daytime driving.

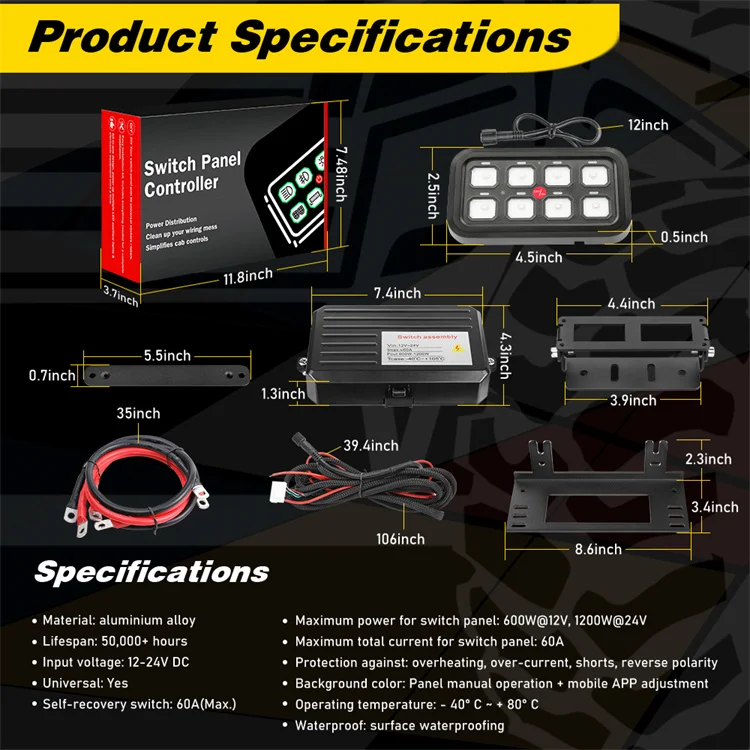

Switch Panel Specifications
. Toggle, momentary, pulsed mode
. Group fuction
. Back light color: Green or RGB
. Toggle mode - red indicator light
` Momentary mode - blue indicator light
` Pulsed mode - green indicator light
. Input voltage: 12-24 volt
. Power handling: 600 -1200 watts
. Maximum current: 60 amps
. Panel material: Plastic button, aluminum base
. Panel size: 4.5*2.4 inch

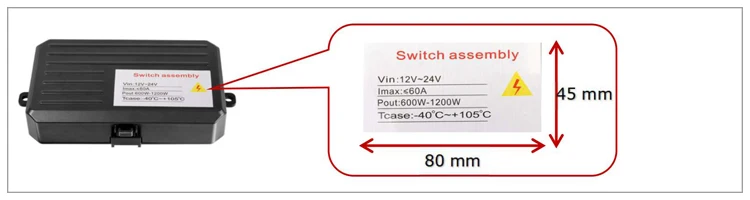

. Control box: Plastic shell cover, aluminum base
. Control box size: 7.4*4.5 inch
. Technology: IGBT
What's In the Box:
8 Gang switch panel,
Switch panel bracket,
Circuit breaker,
Circuit control box,
Control box bracket,
50 Custom labels decals,
6 Spare auto fuses,
Power harnesses,
Mount hardware, screws and zip ties.
12-24 Volt Phone APP Control 8 Button RGB Backlighting Switch Panel Power System
Product Video
Check below product detailed video of this 12-24 Volt Phone APP Control 8 Button RGB Backlighting Switch Panel Power System
Product Q+A
Check below frequently asked questions about this 12-24 Volt Phone APP Control 8 Button RGB Backlighting Switch Panel Power System, if you have any further questions or needs more supports from us, please click Send Inquiry and chat with us online right now!
Question: What is the background light and indicate light?
Answer: By default, the background light is in blue or green color when the switch panel is powered on, and the indicate light is in red color when each circuit is powered on.
Question: Can I turn off the background light?
Answer: No. The background light can not be turned off.
Question: What is Toggle, Momentary, and Pulsed Mode?
Answer: Accessories 1-8 of the switch panel can be operated as Toggle, Momentary or Pulsed Mode. By default, the switch panel comes out of the box set for Toggle Mode. Toggle Mode, which means pressing the circuit or button on the switch panel once to power on the connecting LED lights and press it again to turn it off. Momentary Mode, the connected LED light will be lighted up each time you press the circuit or the button, and when you relax your finger the light will be shut off. Exactly like the case of a horn use. Pulsed Mode, this is when you press the button the connected LED light will be lighted up and keep flashing or strobing, press the button again to turn it off.
Question: What is Group function?
Answer: Generally speaking, when operating the switch panel, users need to press down each circuit or button to power on or off the connected LED lights or car electronic devices. For instance, if all eight circuits are connected with auxiliary LED lights, users need to do eight times pressing to turn on or off the LED lights. But with this group function set up via phone app operation, things are different. For instance, user could make group NO. 1 for all front mounted LED lights from your vehicle, group NO. 2 for all rear reverse backup mounted lights, and so forth, maximum 4 different groups. And when the user press any circuits or buttons from group NO. 1, all front mounted lights will be turned on or off at the same time. And vice versa for the rest 3 groups.

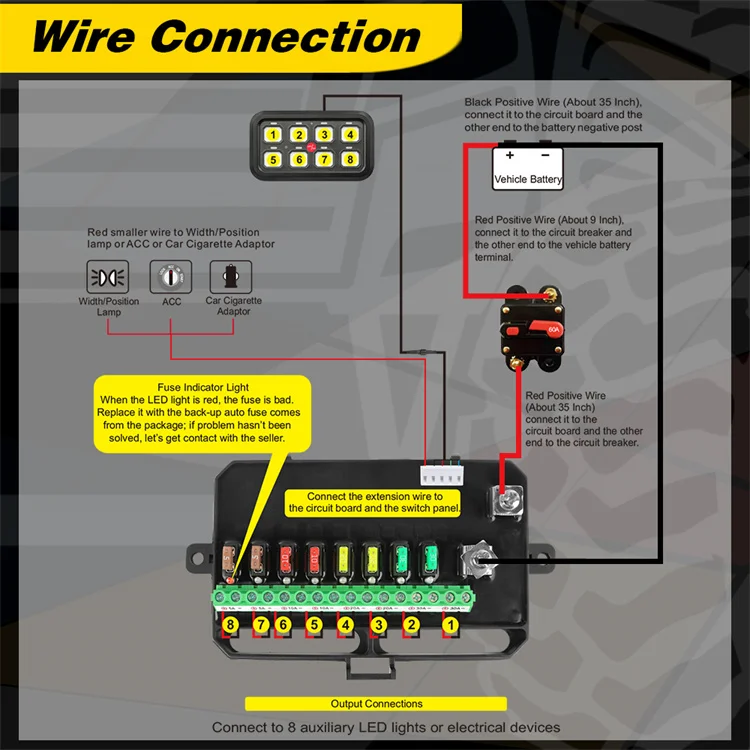

Question: Why should I connect the red color smaller positive cable to the Ignition Power, or say ACC? Why not directly to the battery positive post?
Answer: Avoid draining off the battery power when the vehicle is powered off.
Question: If I turn on the ON/OFF button, will it remember my last setting after I restart my vehicle?
Answer: Yes, it does.
Question: Is the switch panel and circuit control box waterproof?
Answer: Yes, it's waterproof.

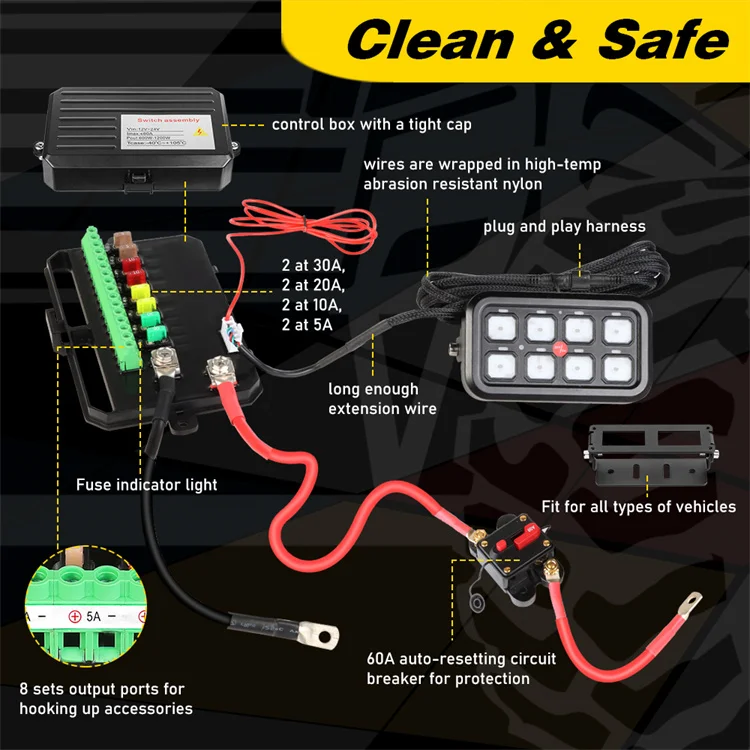

Question: How many amps can you run per switch?
Answer: 2 Rated at 5amps, 2 at 10A, 2 at 20A and 2 at 30amps.
Question: Can I switch the fuse of 30amps to the position of 5 amps circuit?
Answer: This is not recommended. Each circuit is fixed with maximum current.
Question: How do you connect to the connectors numbered 1-8?
Answer: The control box itself has the connection pieces already made on it, just slide your wires in and squash the connection pieces.
Question: How do you pack my orders?
Answer: There are 3 layer protection. The first layer is the PE foam or film wrap or air bubble bag, the second layer is small size inner box, and the last protection is one bigger size outside carton box.
Question: Does sample order acceptable?
Answer: Yes, paid sample order for product quality testing is acceptable and welcomed. But after that, there will be small minimum order requirement to keep a long term business relationship.
Question: Do you have other options of the switch panels?
Answer: Yes, we carry 6 and 8 gang switch panel control system.
OEM / ODM Service
Need to add more personality on this 12-24 Volt Phone APP Control 8 Button RGB Backlighting Switch Panel Power System? As a factory and manufacturer, Shenzhen Nova company offer you with different customize service including:

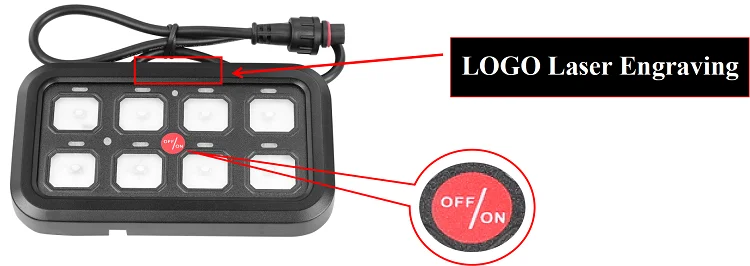

1, LOGO Printing.
The ON OFF button in the middle of the switch panel could be printed with customers company LOGO or icon image. And custom company LOGO can also be laser engraving on the front of the switch panel.
2, Sticker Printing Service.
Send us design file in AI or PSD or PDF format, and we can add your company name or LOGO or any other required information shown and stick on the cover shell of the control box.
3, Wire Cable Or Light Harness.

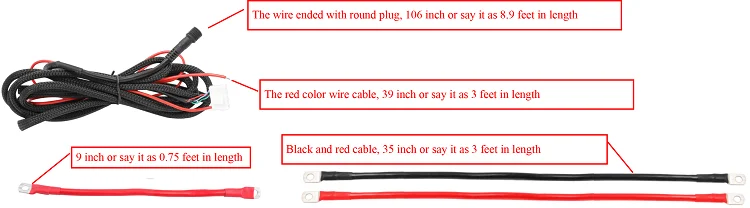

By default, these power harnesses' length is fixed, if customer hopes to get a longer light harness, this is also acceptable.
4, Labels Decals Customization
By default, there is 45 labels printed with black color background and white letters or icons, plus 5 blank labels. This design and combination is fixed. If customers hope to modify some of the label designs or create a totally new sheet, that is also acceptable.

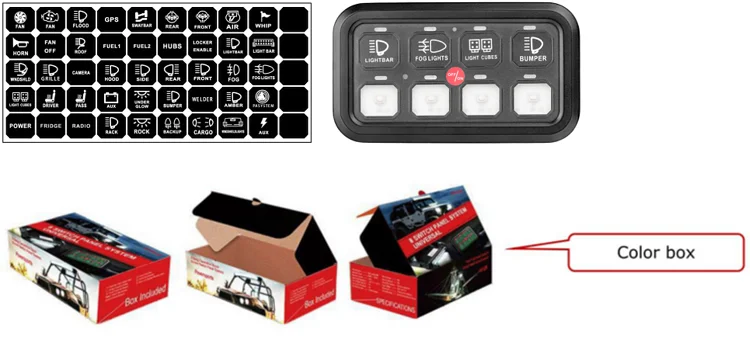

5, Package Box
By default, this switch panel control system is packed in our design of box. Custom deisgn or printing is also available. Or it can be in white box without any printing.
Company Profile
Who Are We?
Shenzhen Nova has been dedicated into car interior and exterior LED light and accessories since 2007. We intergrate all advantages to continuous innovation, improvement and optimize industrial structure and product performance.Our business idea:
To offer a wide range of well-design, functional, value-for-money auto parts for drivers around the world.
What We Sell?
Shenzhen Nova mainly focus on the industry of automotive & motorcycle LED lighting system, including:
. street legal LED light ( emark or SAE DOT compliant),
. laser LED light bar and driving light,
. LED light bar,
. LED work light,
. switch panel control system,
. RGB LED light such as LED whip light, LED rock lights, etc.
All of Shenzhen Nova's LED light products and accessories are widely used on off road vehicles, power sport vehicles, agriculture machines, marine, etc.
What About Our Factory?
Shenzhen Nova's factory base in located in Foshan city, mainland of China, with over 2,000 square meters modern factory area, fully equipped with first class production and testing euipments. 12 assemblying lines, at least 10 professionals of the R&D team, 500 more skillful workers. Our factory performs according to ISO 9001:2008 standards, with original c ree LED chip or o sram LED chip, most of our LED lighting products have passed CE, ROHS, IP68, IP69K.
Any further hesitation or need more supports? Please click Send Inquiry and chat with us online right now!
