Alimak SC65 SC45 Passenger materials hoist rack and pinion lift building construction elevator
- Category: >>>
- Supplier: Shandong,Xingdou,Intelligent,Equipment,Co.,Ltd.
Share on:
Product Overview
Description

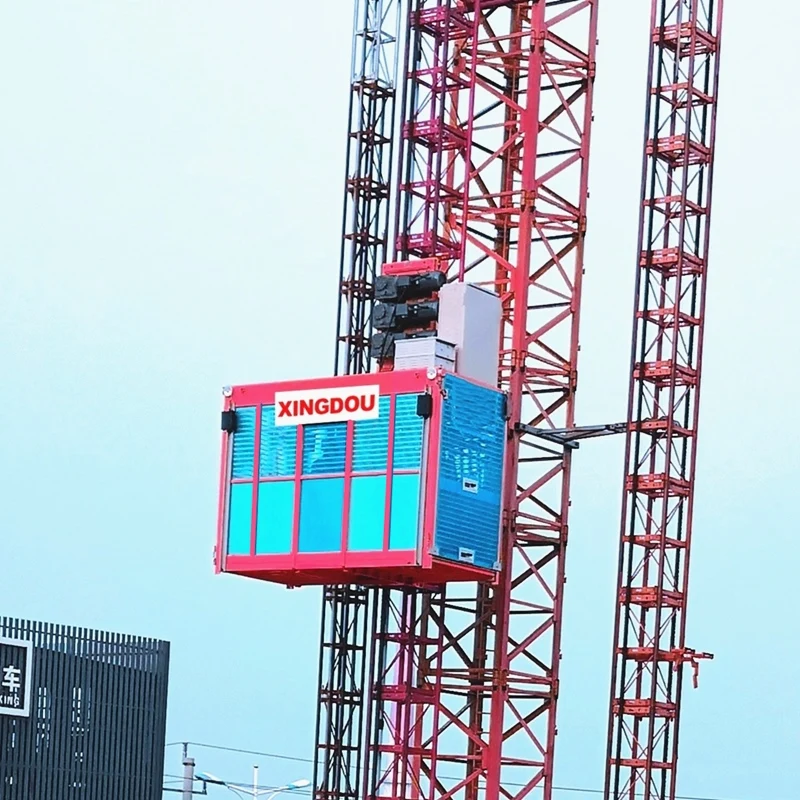

Alimak SC65 SC45 Passenger materials hoist rack and pinion lift building construction elevator
Product Description
500kg-3000kg Load passenger and materials lift Constriction hoist Elevator Its main products include: |
PLC construction elevator / lift / hoist . |
Low, medium, and high-speed variable frequency construction elevator /lift / hoist. |
Special purpose construction lifts, such as power plant cold water tower construction lifts, mini rack construction lifts for tower crane, and mine construction lifts. |
Inclined construction elevator/ lift / hoist. |
Small rack observation elevator/ lift / hoist. |
High-level test bed maintenance elevator /lift / hoist. |
Other OEM type rack and pinion vertical elevator/ lift/ hoist. |
Main Standard models of Alimak Mast construction hoist passenger and material elevator
Type | Model | Load | Speed | Motor Power | VFD | Safety Device |
SC100L | 1000Kg | 0~33m/min 0~40m/min | 2×11Kw | 30Kw | SAJ 30-1.2 | |
SC150L | 1500Kg | 0~36m/min 0~45m/min | 2×13Kw 2×15Kw | 30Kw 37Kw | SAJ 40-1.2 | |
SC200L | 2000Kg | 0~40m/min 0~46m/min | 2×15Kw 3×11Kw | 37Kw | SAJ 40-1.2 | |
Twin cages | SC100/100L | 1000Kg×2EA | 0~33m/min 0~40m/min | 2×11Kw×2 | 30kw | SAJ 30-1.2 |
SC150/150L | 1500Kg×2EA | 0~36m/min 0~45m/min | 2×13Kw×2 2×15Kw×2 | 30Kw 37Kw | SAJ 40-1.2 | |
SC200/200L | 2000Kg×2EA | 0~40m/min 0~46m/min | 2×15Kw×2 3×11Kw×2 | 37Kw | SAJ 40-1.2 |
Type | Model | Load | Speed | Motor Power | VFD | Safety device |
Single cage | SC 100 M | 1000Kg | 0~60m/min | 3×13Kw | 45Kw | SAJ 30-1.4 |
SC 150 M | 1500Kg | 0~58m/min 0~60m/min | 2x11Kw 3×15Kw | 45Kw 55Kw | SAJ 40-1.4 | |
SC 200 M | 2000Kg | 0~55m/min 0~60m/min 0~75m/min 0~96m/min | 2×11Kw 3×15Kw 3×16Kw 3×19Kw | 45Kw 55Kw 90Kw 105Kw | SAJ 40-1.4 SAJ50-1.6 SAJ50-1.6 SAJ50-1.6 | |
Twin cages | SC 100/100 M | 1000Kg×2EA | 0~60m/min | 3×13Kw×2EA | 45Kw | SAJ 30-1.4 |
SC 150/150 M | 1500Kg×2EA | 0~58m/min 0~63m/min | 2x11Kwx2EA 3×15Kw×2EA | 45Kw 55Kw | SAJ 40-1.4 | |
SC 200/200 M | 2000Kg×2EA | 0~55m/min 0~60m/min 0~75m/min 0~96m/min | 2×11Kw×2 3×15Kw×2 3×26Kw×2 3×19Kw×2 | 45Kw 55Kw 90Kw 105Kw | SAJ 40-1.4 SAJ50-1.6 SAJ50-1.6 SAJ50-2.0 |
A. High quality& configuration for Construction hoist elevator Main Parts

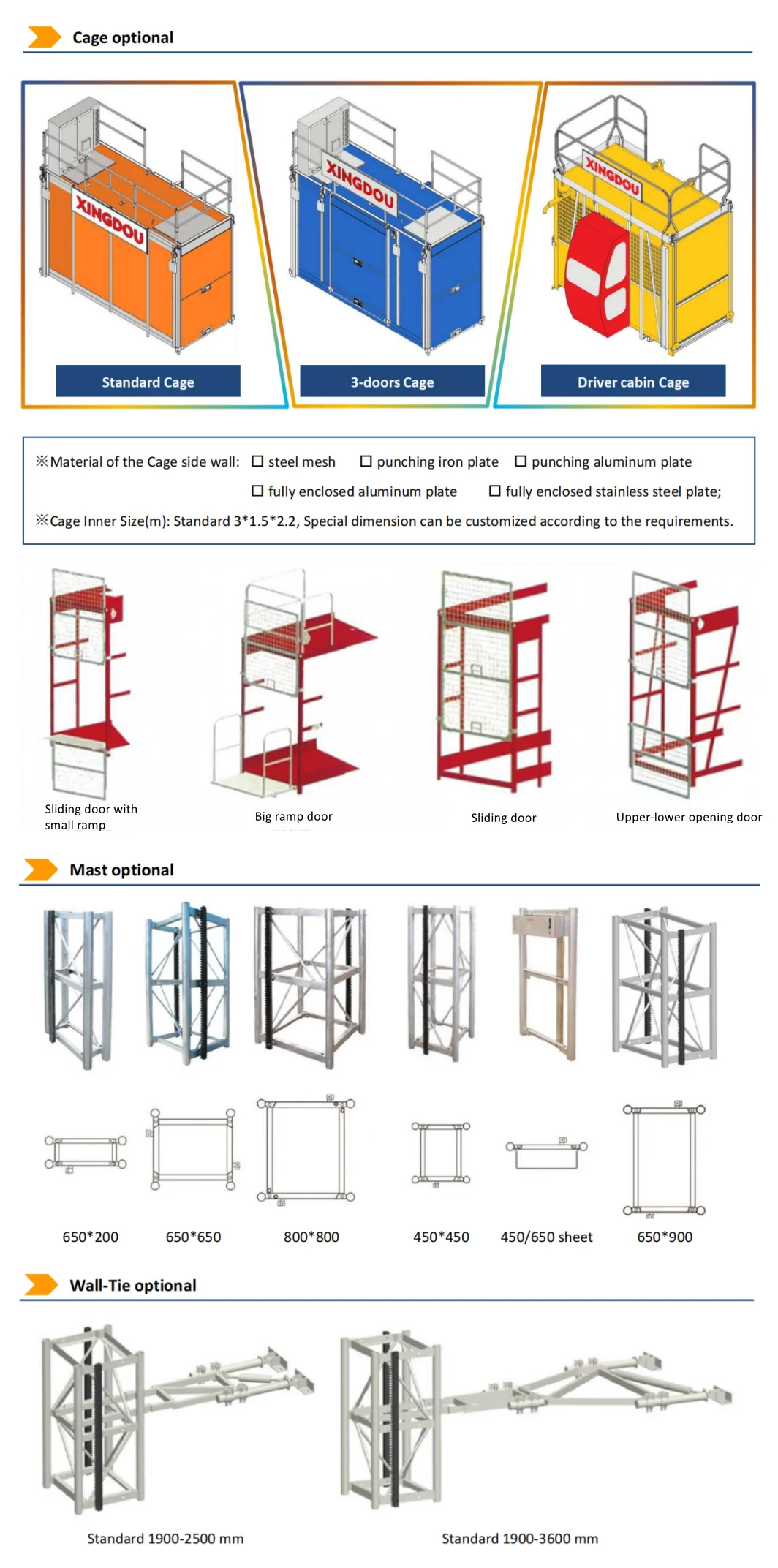

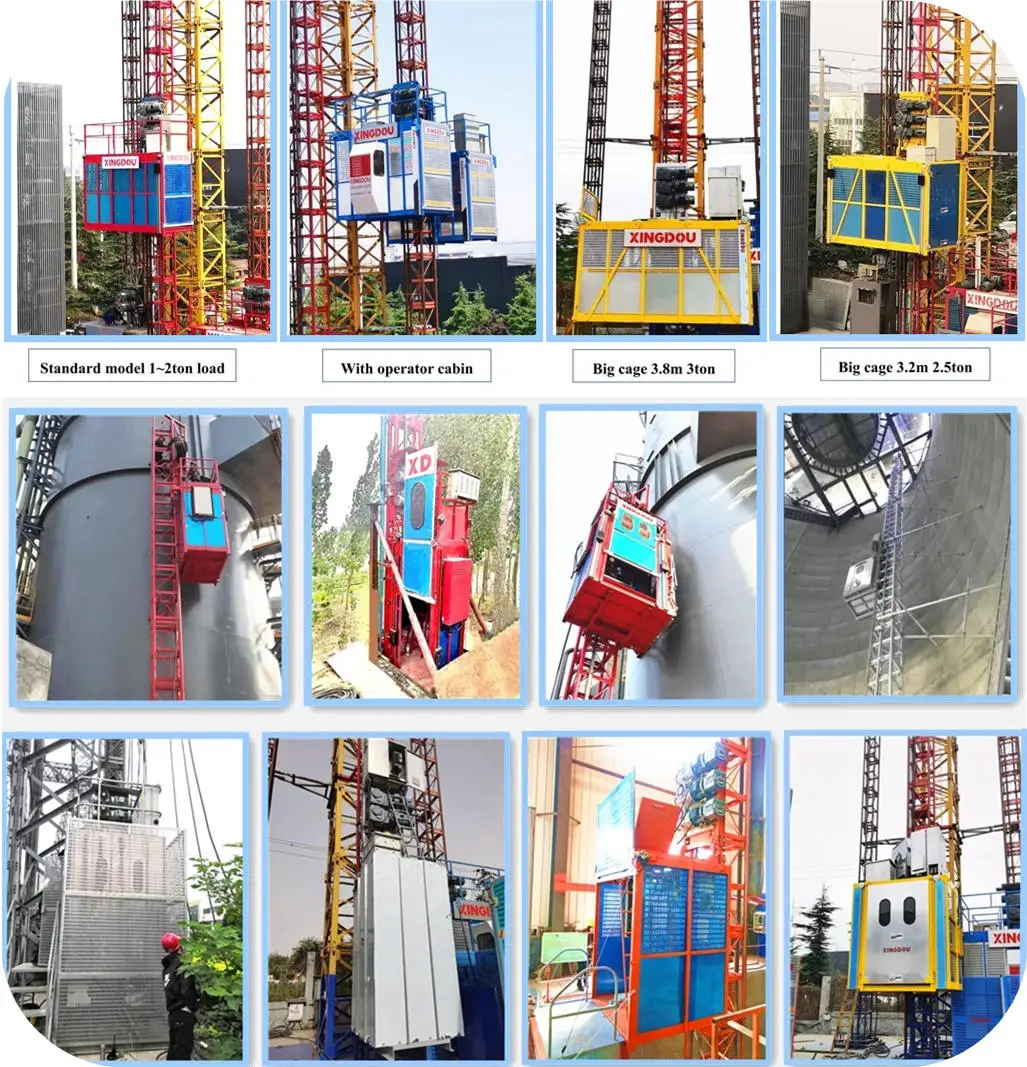

Cage/Cabin: Durable design and Strong ability of OEM Design
Quality comes first ! We have been updating our design combine new technology, site practice and customer real advice. More than 50 designs can be done as customers site requirement.
Mast Sections: Alimak, GJJ, CABR'M, TW, YHX design OEM supporting.
Quality Comes first ! We have manufacturing experience for near 20 years. We choose the high quality raw materials, use advanced machine and welding method, to keep accurate dimension and strong welding structure ! Mast section main chord and cross brace we choose strong design, which is high quality standards than common products.
High performance of Driving Motor and Gearbox Assembly Mechanism
Except the [email protected], Mast Sections, Driving Mechanism is also the most important parts of passenger hoist. It is the Force source of whole cage, and the driving mechanism working condition effect cage and mast sections structure. So, we pay each manufacturing details for the Driving mechanism too !
Stable and Durable Electrical Control system
The electrical system is the CPU Of Construction hoist materials lift, it determine the hoist's normal service. ① PLC system without inverter, it adopt PLC for soft start-up, simple, easy operation and cost saving. ② VFC control system, It keeps the hoist running smoothly during whole working period, protect whole structure and electrics from shock. World famous electrical components and Frequency Inverter application to ensure stable quality. We take care the connection point strong combination and avoid dust. One by one is tested before ex-work.
B. Completed security measures
Completed safety device
1) Top and bottom limit switches 2) Up/down high speed cut off limit switch
3) 3-phase limit switch 4) Electrical door limit switches 5) Trap door limit switch 6) Ramp door form a safety passage
7) Over speed safety device 8) Over load limiter with load cells
9) Phase failure (Inverter auto appear) 10) Over Load protector
11) Power Keylock 12) Emergency switch 13) Top mast No rack Cage ride out Protection
C.High standard Manufacturing Process and Strictly Quality Control
We adopt CNC for Mast sections' Main Chord cutting and milling
Main chord tube accurate dimensions is an key factor for whole mast quality. So we Adopt CNC Machine keep all mast sections in same dimension level, and use jig to inspect 10% among tubes !

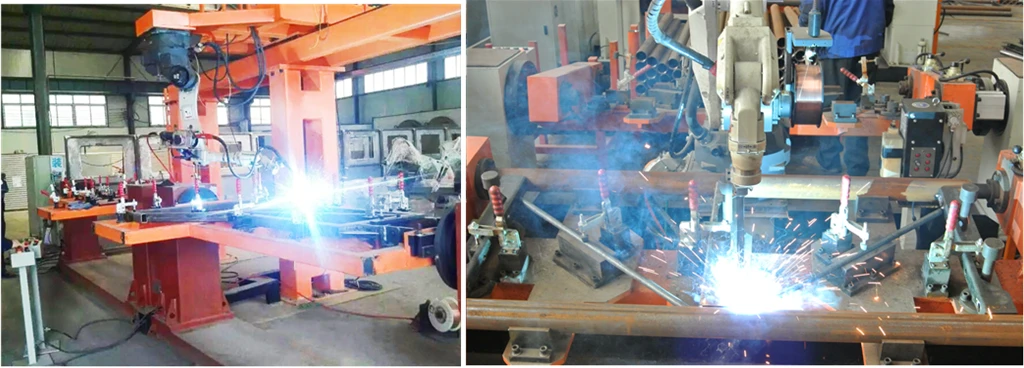

We adopt Robot welding for Mast sections
Welding quality is an key factor for whole mast quality. So we Adopt Robot welding to keep all mast sections in same high quality welding level !

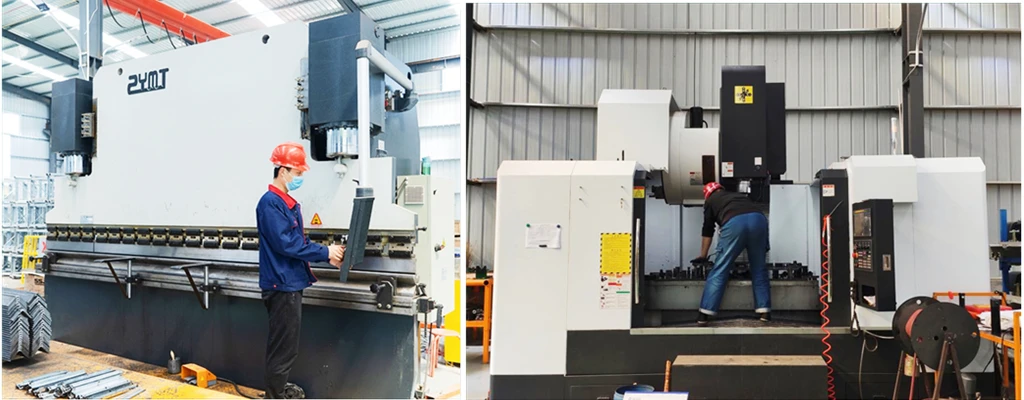

CNC bending and CNC milling machine adopt
Accurate dimension for every parts is the essential for whole Product quality. So we Adopt CNC machine for materials cutting, milling process, keep each semi parts in high quality level !
Strictly Quality Control as international standards ISO9001

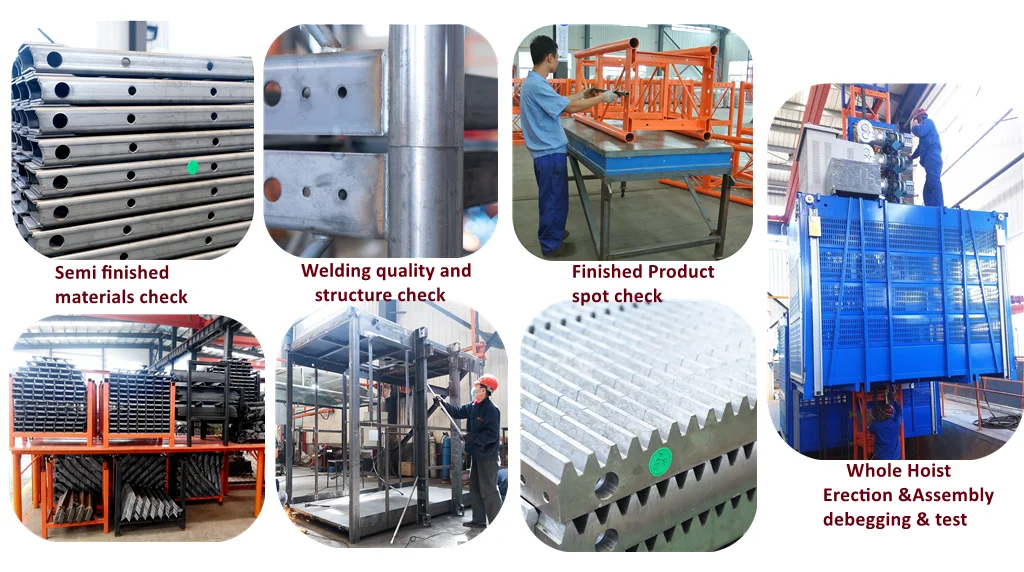

Raw Materials, Semi finished materials QC：We have special management for the semi finished product warehouse . All the Semi products past inspection, then it can be delivery to the warehouse.
Welding Quality & Structure QC:Mast section, Cage or cabin, driving mechanism, wall tie ect. should be check for welding defects, dimensions after welding, Surface quality after welding, and installation test after welding.
Finished Parts QC: Dimension, plane surface, verticallity, Assembly fit
Whole equipment factory running test: Each construction lifter must be take factory running test and a quality report provided before ex-factory.
Finished Parts QC: Dimension, plane surface, verticallity, Assembly fit
Whole equipment factory running test: Each construction lifter must be take factory running test and a quality report provided before ex-factory.
Manufacturing
Proffessional Manufacturer of passenger and materials lift construction hoist .
1. -All Production Line adopt special fixture, modules, gauge made by us to ensure all detailed size.
2.- Select high quality raw material from China Bao Steel Group, other like motors ,reducers, gearbox, safety device with low noise, electrics is Schneider, Siemens or Korea repute brand with reliable quality
3.- Special design,compact and reasonable structure, easy to installation and adjustment.
4.- Each equipment should be test and make record in Factory, all details will be adjust like motor brake, safety device operation, all limit switch operation, dropping test, loading test, and mast section erection test to ensure the completed equipment run well when take into use.

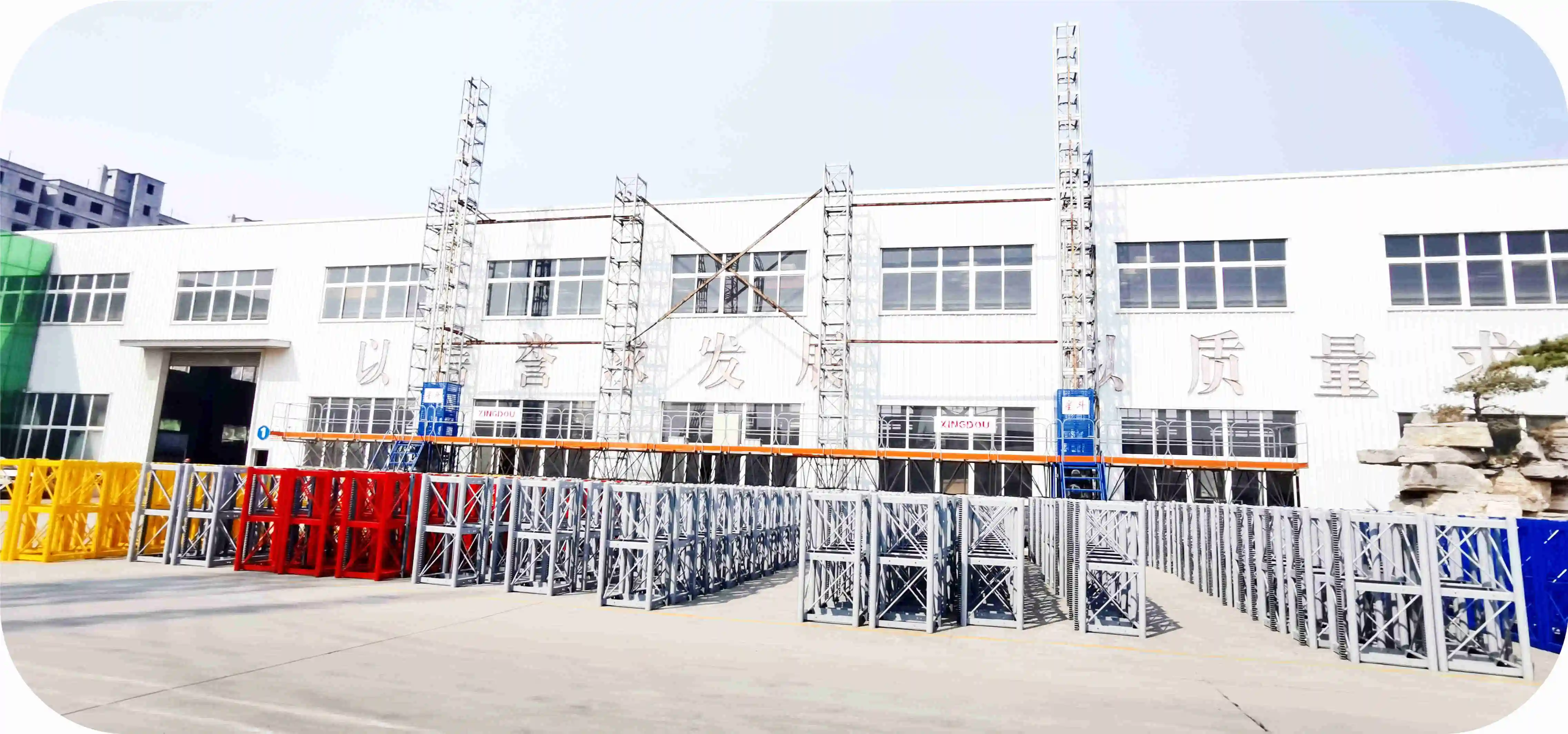

We have 2 big Stock Yard and 5 large Manufacturing Factories
Welding Workshop for Mast sections And Cages Cabins
Sandy Blasting Line, Power Painting spray Line For Mast sections, Cages, and other parts
Assembly workshop for Cages and Mast sections
Factory Loading site
Company Introduction
We are focus on all kinds of rack and pinion driving vertical access machinery and Supply design, solution and OEM to all customers all over the world!
Builder's lift, Tower crane mini hoist, industrial lift, mast climbing hoist, Mast climber.
Shandong Xingdou Equipment, From inception the Company has specialized in the production of various types of Construction hoist. We have rapidly developed domestic and foreign markets because of the integrity of the Company and its high-quality product. Starting in 2008 the Company began to develop foreign markets. Since then it has exported to more than 30 countries and regions.
Successful projects:
Our rack and pinion passenger hoist construction materials lift have sent to more than 30 countries and get well feedback from them!
Certificate
FAQ
Rack Pinion Mast climb lift construction elevator lifting passenger and material hoist
Inquiry details
let us know more information please as below:
2) Load capacity ___________(ton)
3) Double cage or single cage__________ ?
4) Mast tower coat: Painting spray or hot galvanized?
5) Using temprature___________?
6) Local power supply ___________(V, Hz) 3phase
7) Is there any space limited for your construction site? If yes, give us a brief drawing to show the space plz
8) Other special equipments __________?
9) FOB or CIF price? If CIF , plz let us know your destination port ____________?
We will provide best price of construction hoist once confirmed above infor. You can get our feedback within 12 hours !
