High Quality Electrostatic Powder Coating Powder Coating Machine Spraying Gun OURS800
- Category: >>>
- Supplier: Yangzhou AK Intelligent Equipment Co. Ltd.
Share on (1600538600027):
Product Overview
Description
Product Description

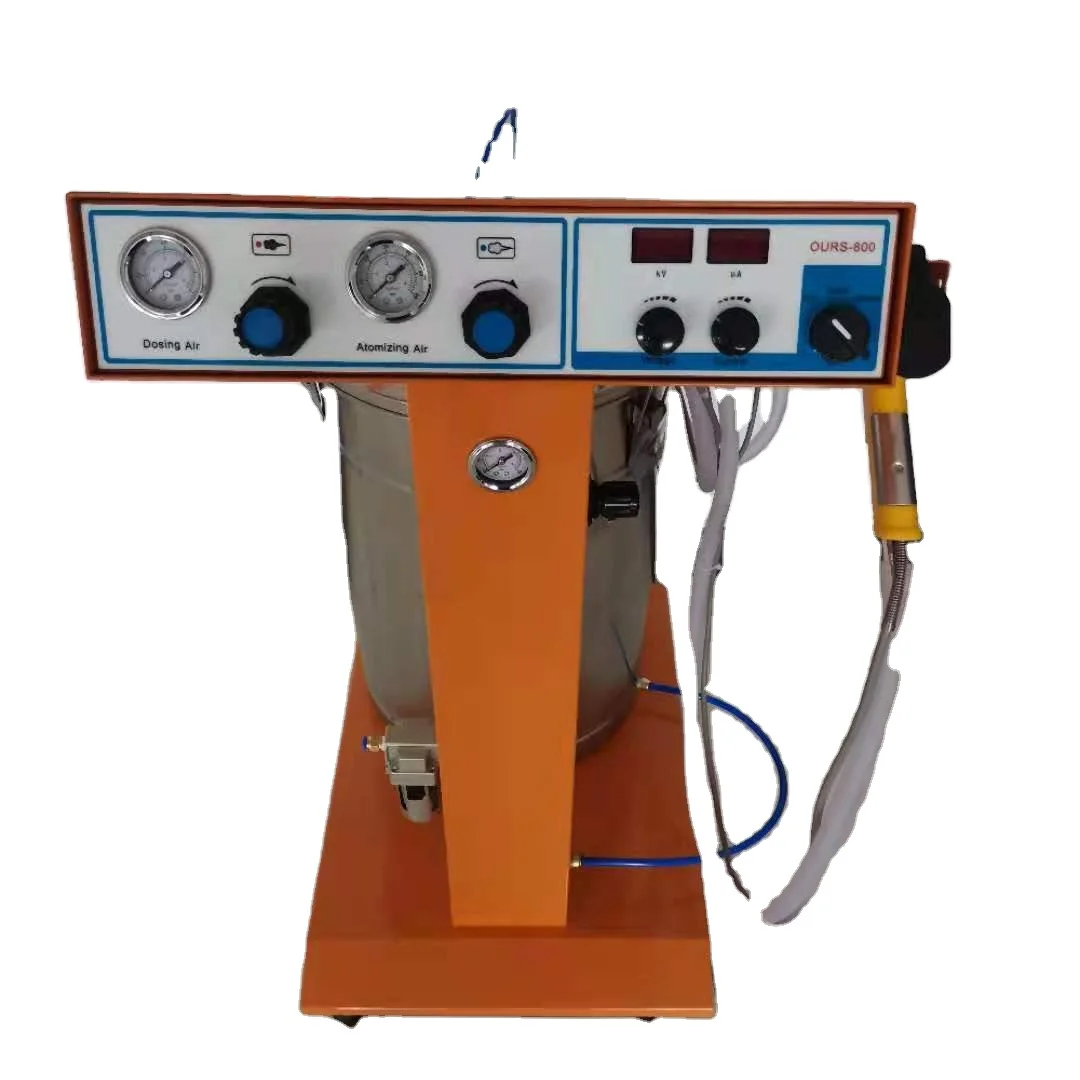

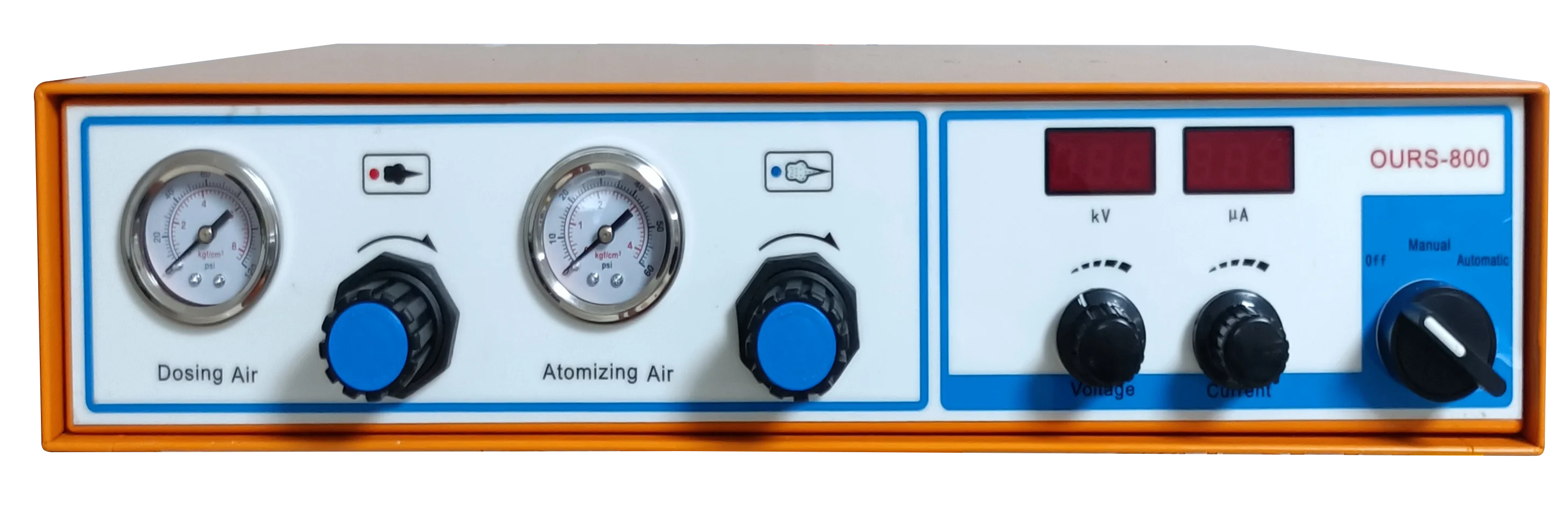

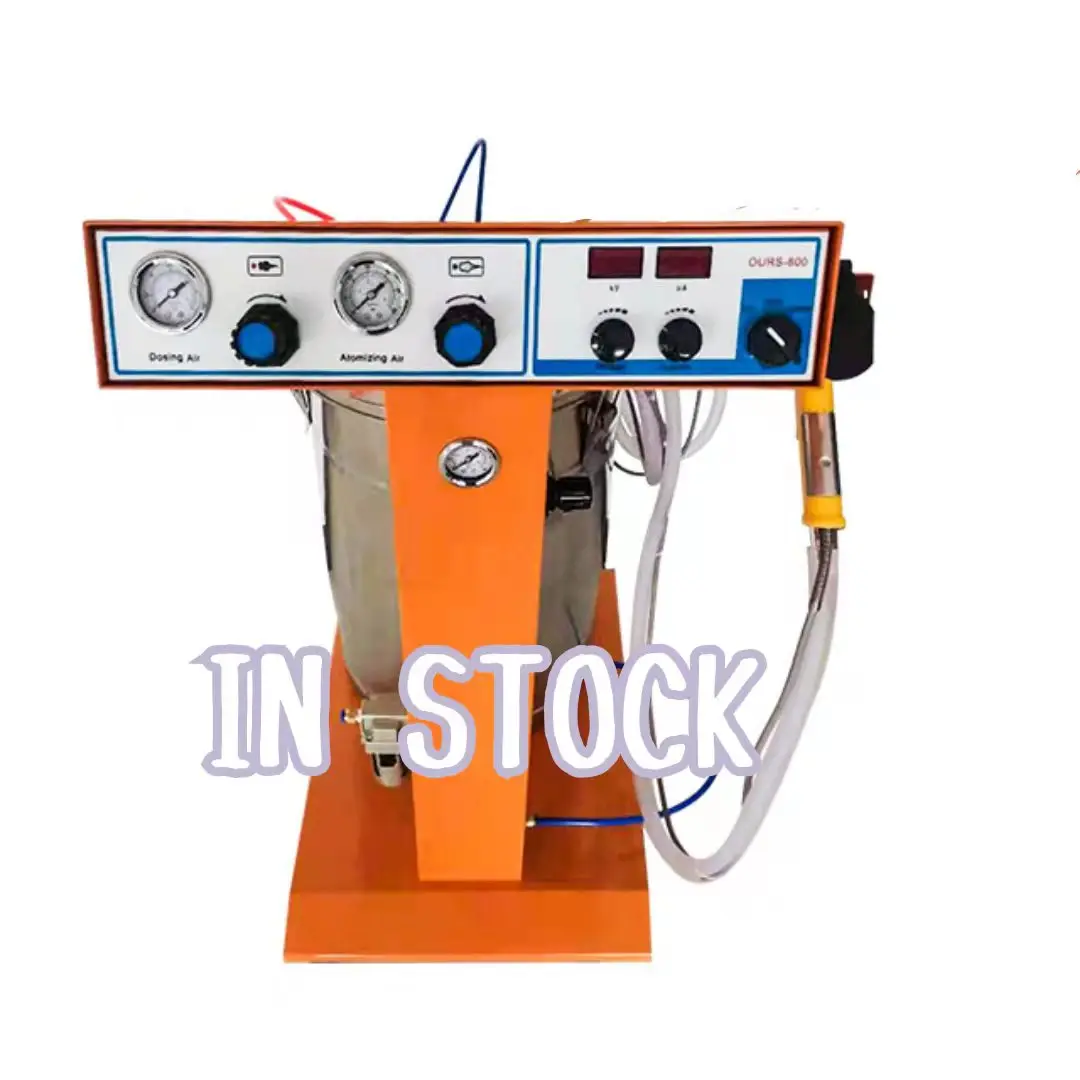

OURS800 powder coating machine | ||
Delivery: | 3-10 working days after full payment | |
Packing: | Wooden case | |
Operating principle: | The powder coating machine sprays the powder paint on the surface of the workpiece which will adsorb on the surface evenly to powder coatings under the effect of static electricity. And the powder coatings will level and solidify under high-temperature baking to the final coating. This technology is superior to others in the field of mechanical strength, adhesive force, corrosion resistance and aging resistance. | |
Imported quality components for smooth use and long service life, uniform and stable powder delivery with high powder application rate(save 10%-30% powder vary to powder quality), quality surface finish left no dead corners
Product parameters
Advantages：

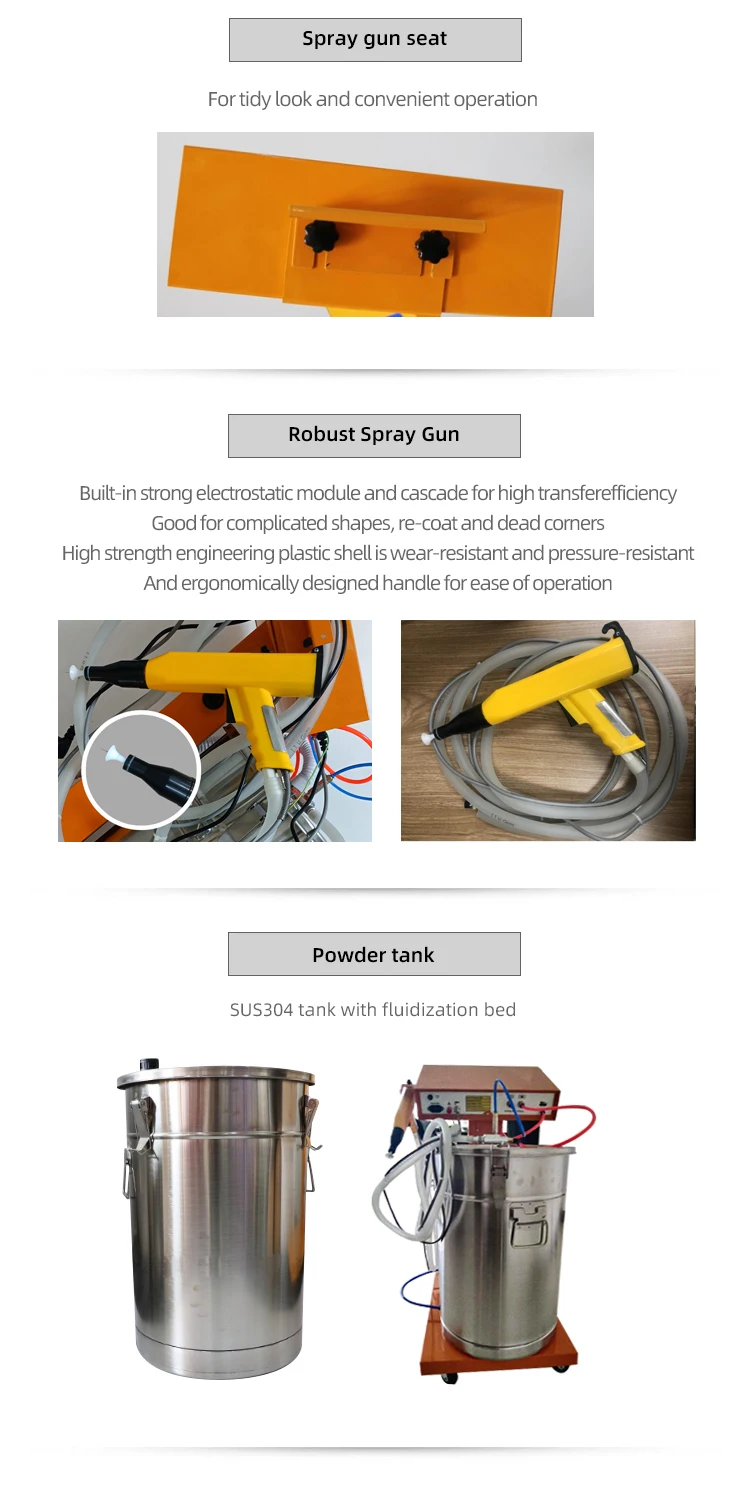

1. Lightweight and reasonable gun body structure, compact, beautiful and comfortable, can spray workpieces accurately, quickly and evenly.
2. The built-in high-voltage module, close to the nozzle, has low voltage loss and can be charged with any type of powder.
3. Intuitive display and easy operation.
4. Utilize the latest spraying technology to overcome the electrostatic shielding effect.
2. The built-in high-voltage module, close to the nozzle, has low voltage loss and can be charged with any type of powder.
3. Intuitive display and easy operation.
4. Utilize the latest spraying technology to overcome the electrostatic shielding effect.
Product specifications
Main technical parameters:

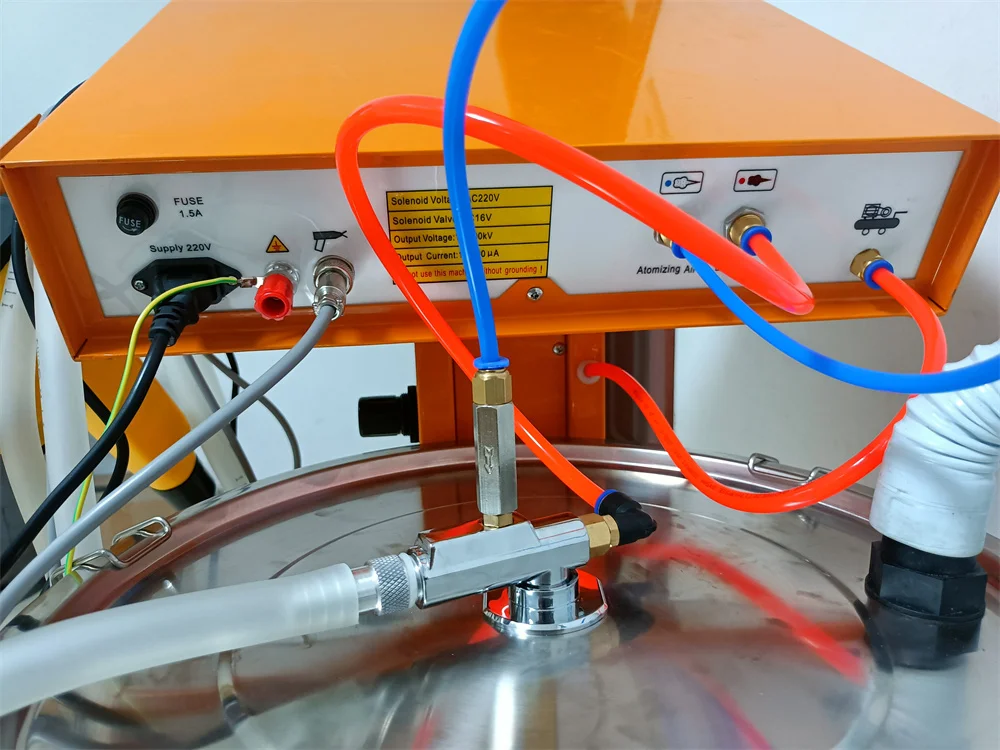

Circuit (control unit)
1. Input voltage: AC220V/50HZ
2. Output frequency: 20 KHz
3. Input power: 50VA
4. Control Voltage of electromagnetic valve: DC220V
5. Protection class：IP54
6. Transformer output voltage: 220V 16V
7. Fuse: 1.5-3A
8. Display mode: digital display
9. Input pressure: 0-7bar
1. Input voltage: AC220V/50HZ
2. Output frequency: 20 KHz
3. Input power: 50VA
4. Control Voltage of electromagnetic valve: DC220V
5. Protection class：IP54
6. Transformer output voltage: 220V 16V
7. Fuse: 1.5-3A
8. Display mode: digital display
9. Input pressure: 0-7bar

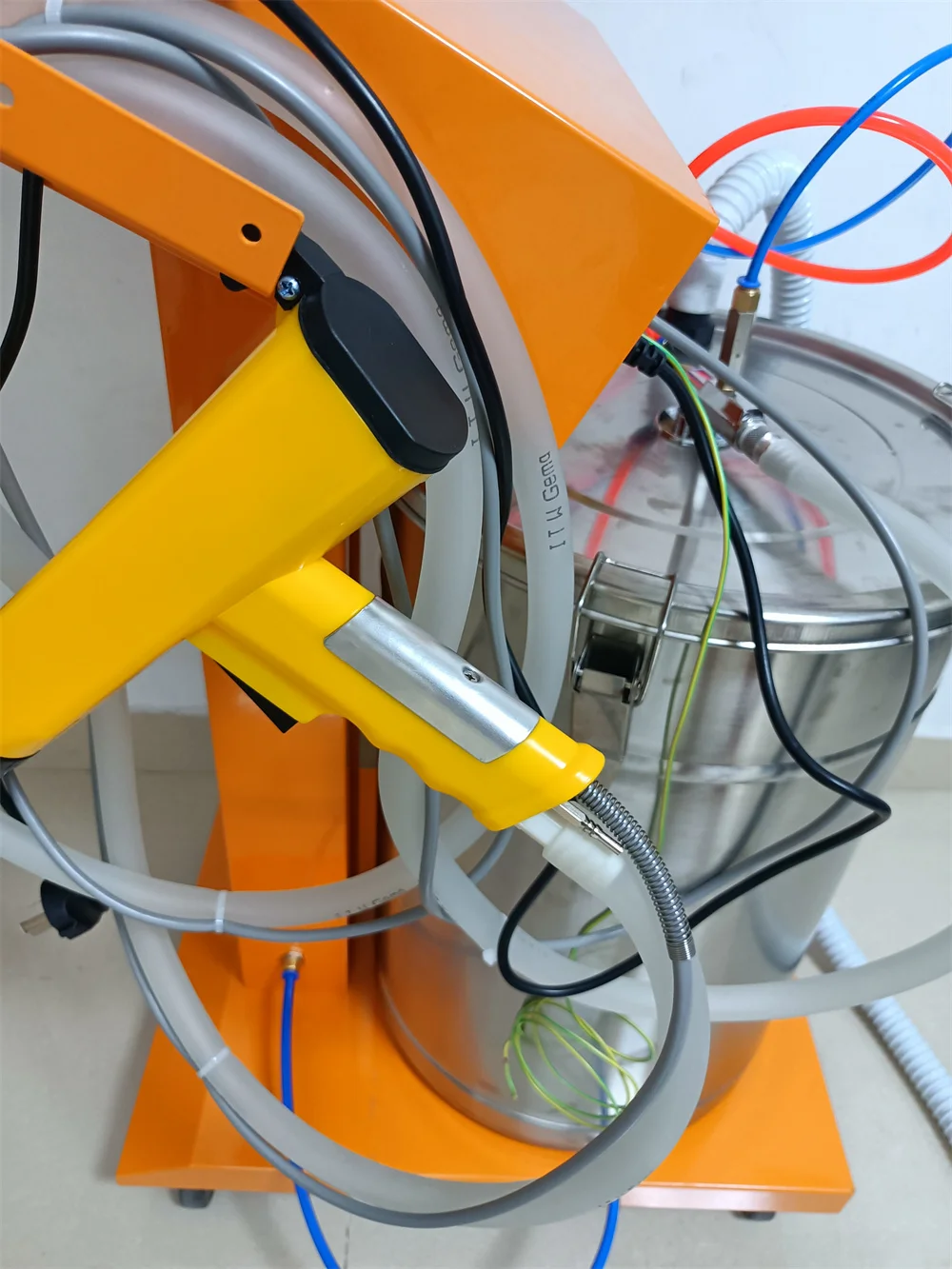

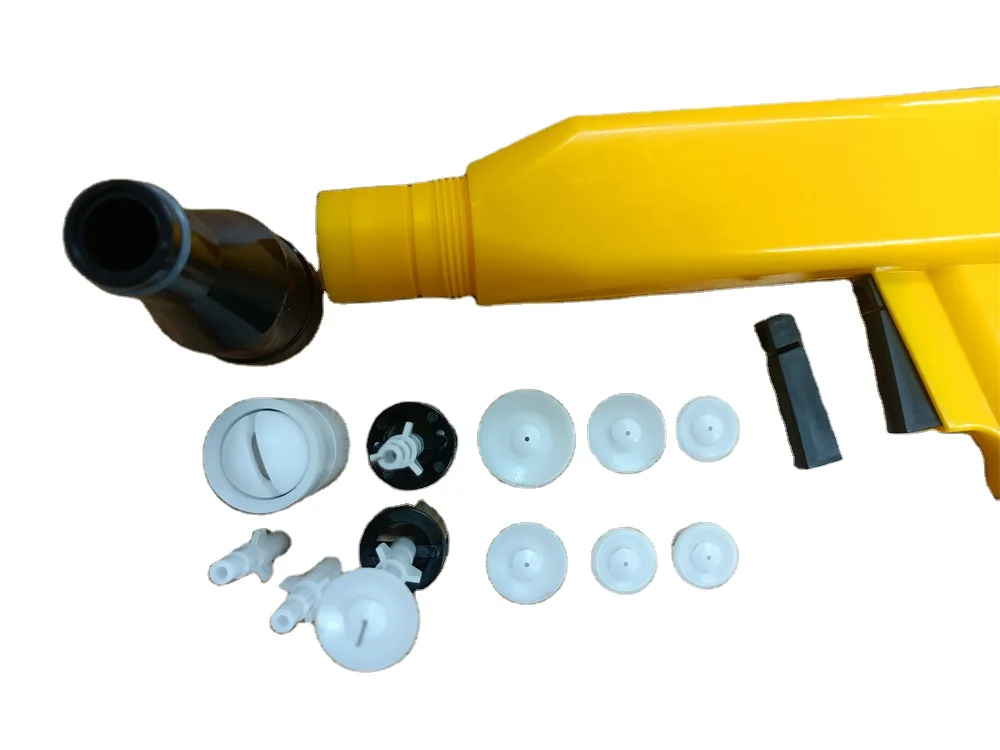

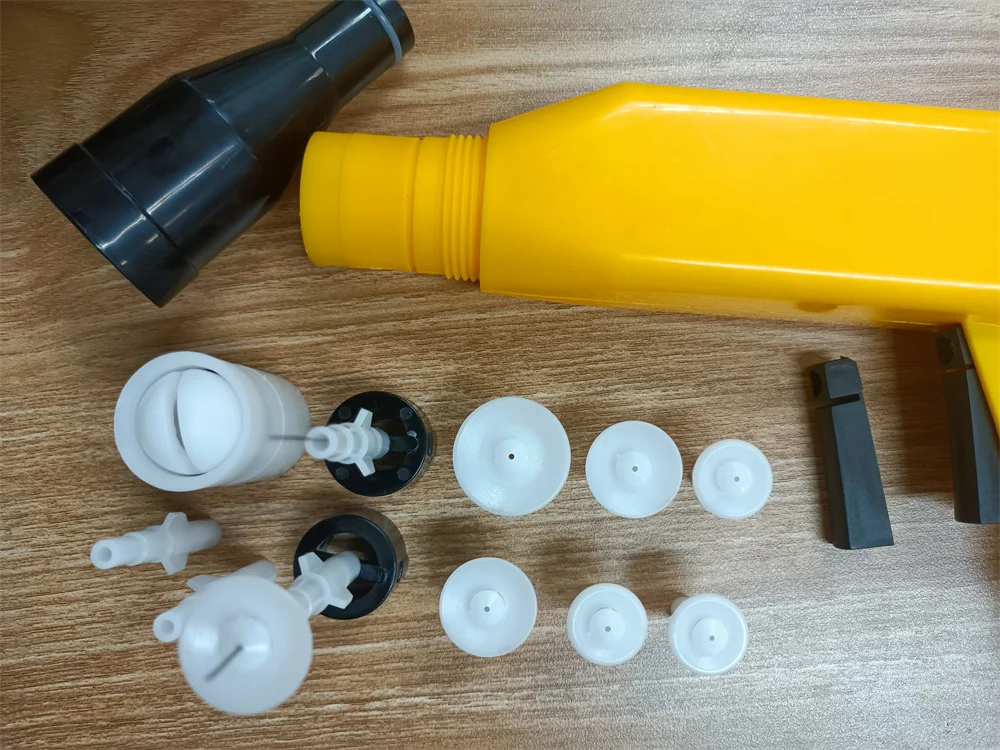

Gun (gun with high pressure module inside):
1. Input voltage: 0-15VDC
2. Power frequency: 20 KHz
3. Output high voltage: 15-100KV cathode
4. Output maximum current: 15-100uA
5. Powder output: 350g/min
6. Length of powder pipe: 3.5m
1. Input voltage: 0-15VDC
2. Power frequency: 20 KHz
3. Output high voltage: 15-100KV cathode
4. Output maximum current: 15-100uA
5. Powder output: 350g/min
6. Length of powder pipe: 3.5m

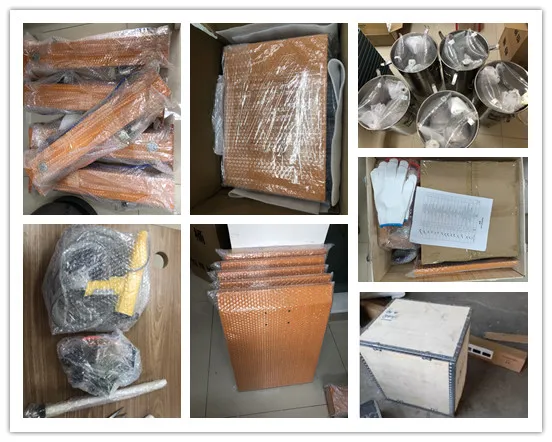

Packing & Delivery
PACKING DETAILS | ||
Size : | 58*48*62cm | |
Weight: | About 34kg | |
Packaging: | Adopt export-specific fumigation-free steel belt wooden box | |

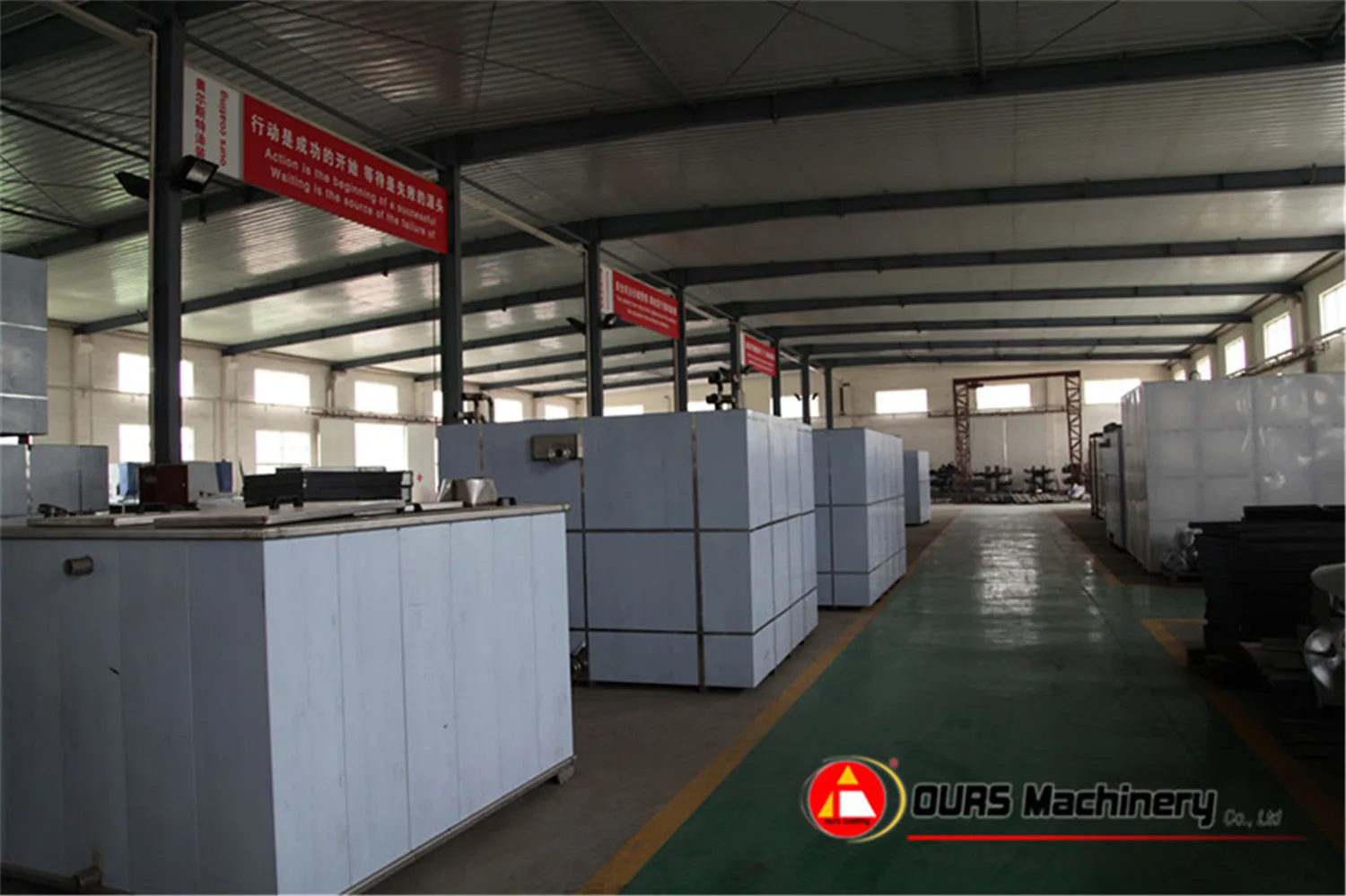

Company Profile
We specialize in the whole line:
1) Pre-treatment system: Automatic Spraying pre-treatment and dipping pre-treatment are available;
2) Drying oven: Drying oven which drying the water after pre-treatment is designed according to customers' actual conditions;
3) Powder coating spray system: Automatic spray reciprocator, manual spray equipment and Semi-auto (Auto-spraying with manual repairing spraying) are for your choice;
4) Powder recycling system: Cyclone equipment and cartridge filters is customized and introduced according to actual requirement by customer;
5) Curing oven: Tunnel curing oven, bridge type curing oven, Electric power heating curing oven, Gas-heating curing oven, Diesel heating curing oven, High temperature, lower temperature curing oven is available for fitting your sole factory;
6) Conveying system: Various design according to different requirement by customer on the basis of customers' workpiece and output information;
7) Control system: PLC control, with or without touch screen;
8) Spray gun and reciprocator.
2) Drying oven: Drying oven which drying the water after pre-treatment is designed according to customers' actual conditions;
3) Powder coating spray system: Automatic spray reciprocator, manual spray equipment and Semi-auto (Auto-spraying with manual repairing spraying) are for your choice;
4) Powder recycling system: Cyclone equipment and cartridge filters is customized and introduced according to actual requirement by customer;
5) Curing oven: Tunnel curing oven, bridge type curing oven, Electric power heating curing oven, Gas-heating curing oven, Diesel heating curing oven, High temperature, lower temperature curing oven is available for fitting your sole factory;
6) Conveying system: Various design according to different requirement by customer on the basis of customers' workpiece and output information;
7) Control system: PLC control, with or without touch screen;
8) Spray gun and reciprocator.
*We cooperate with professional manufacturers engaged in the design, manufacture, installation, commissioning and service of coating and environmental protection equipment for about 20 years.
FAQ
1. who are we?
We are trading company based in Jiangsu, China, start from 2014.
2. how can we guarantee quality?
Always final Inspection before shipment;
3.what can you buy from us?
coating machine,powder coating line,electrophoresis line,grapple,machine parts
4. why should you buy from us not from other suppliers?
Solve all the problems for customers
5. what services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDU, Express Delivery；
Accepted Payment Currency: USD;
Accepted Payment Type: T/T ,L/C, Western Union;
Language Spoken: English, Chinese
We are trading company based in Jiangsu, China, start from 2014.
2. how can we guarantee quality?
Always final Inspection before shipment;
3.what can you buy from us?
coating machine,powder coating line,electrophoresis line,grapple,machine parts
4. why should you buy from us not from other suppliers?
Solve all the problems for customers
5. what services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDU, Express Delivery；
Accepted Payment Currency: USD;
Accepted Payment Type: T/T ,L/C, Western Union;
Language Spoken: English, Chinese
