300 Mbps WiFi Module Realtek RTL8192EU Chipset USB WiFi Wireless Adapter For Wifi Modem
- Category: >>>
- Supplier: Shenzhen Ofeixin Technology Limited
Share on (1600538602446):
Product Overview
Description
Product Description
Introduction

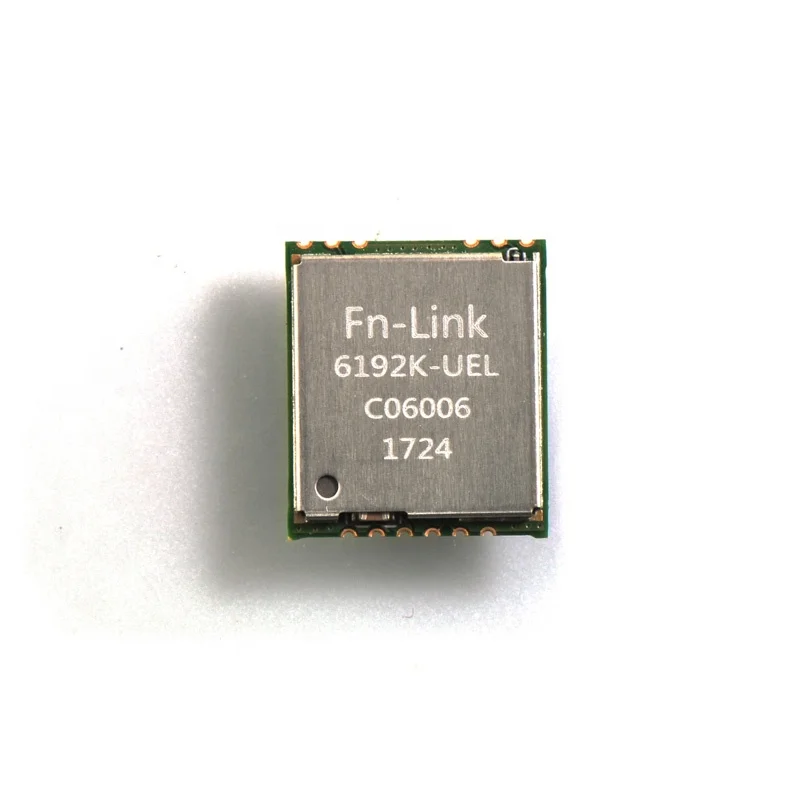

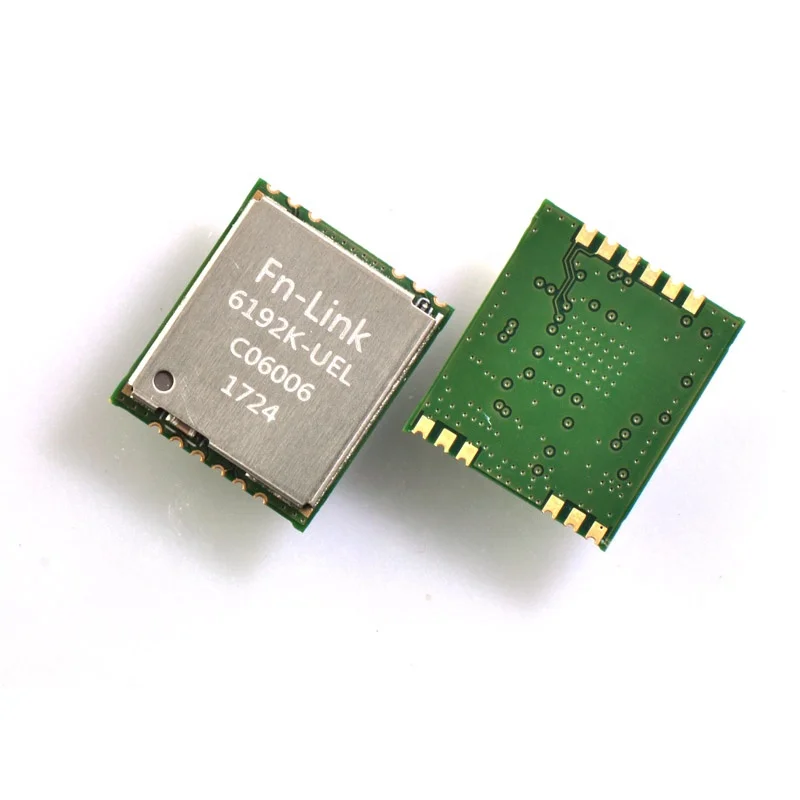

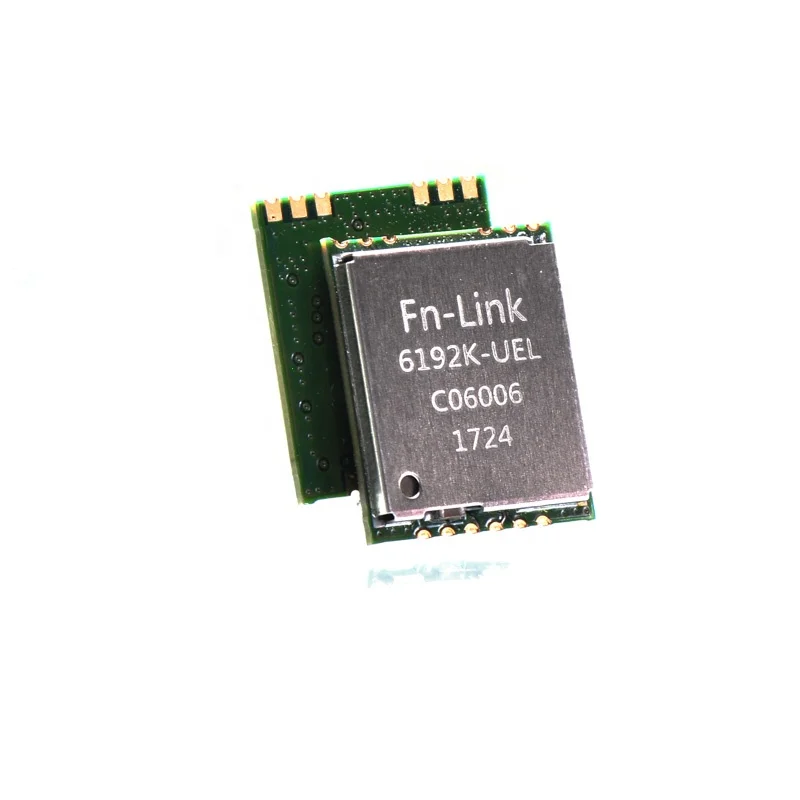

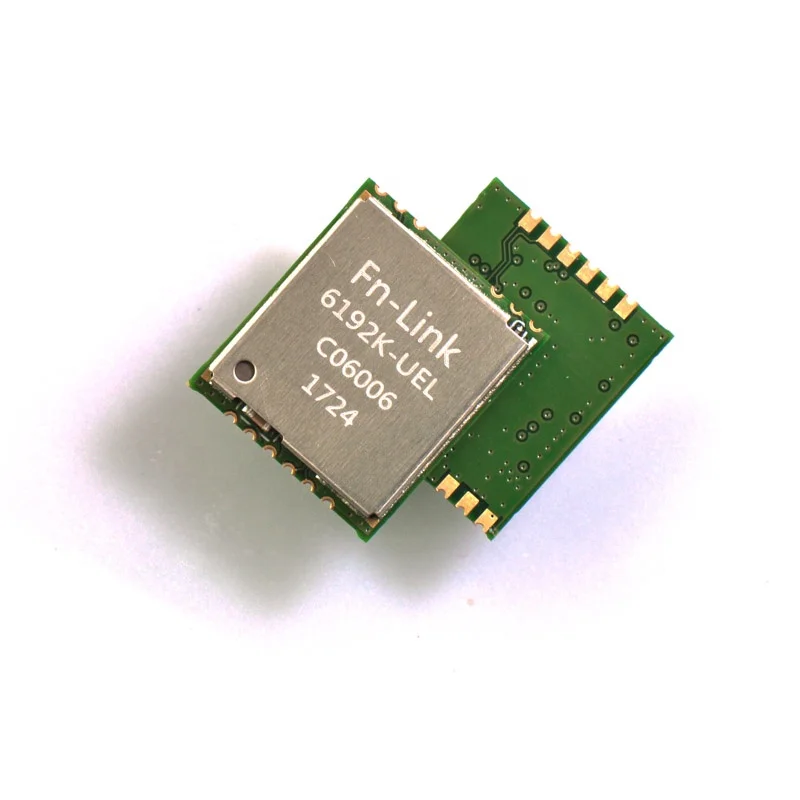

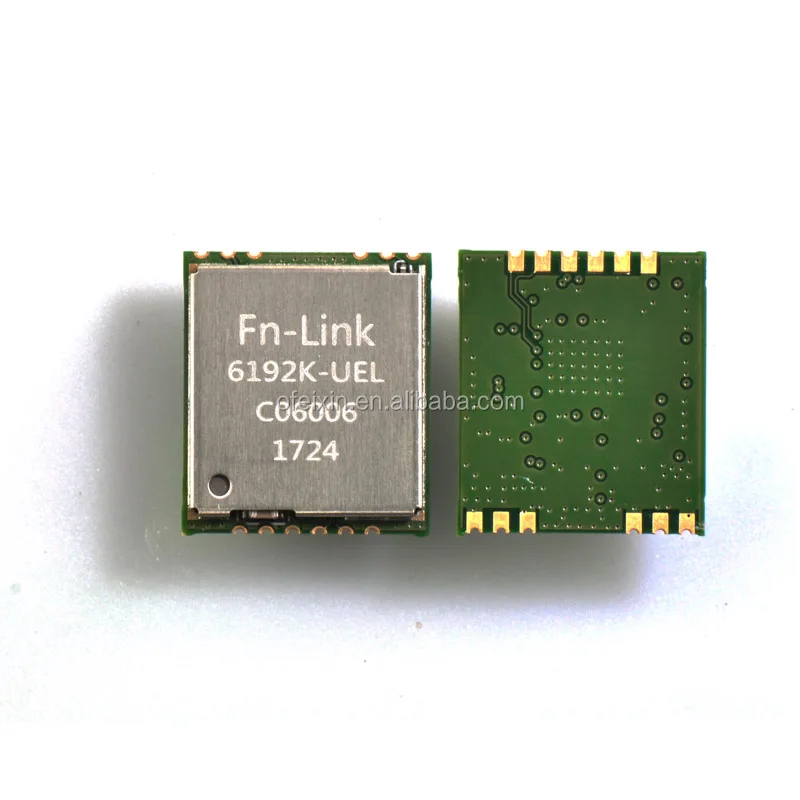

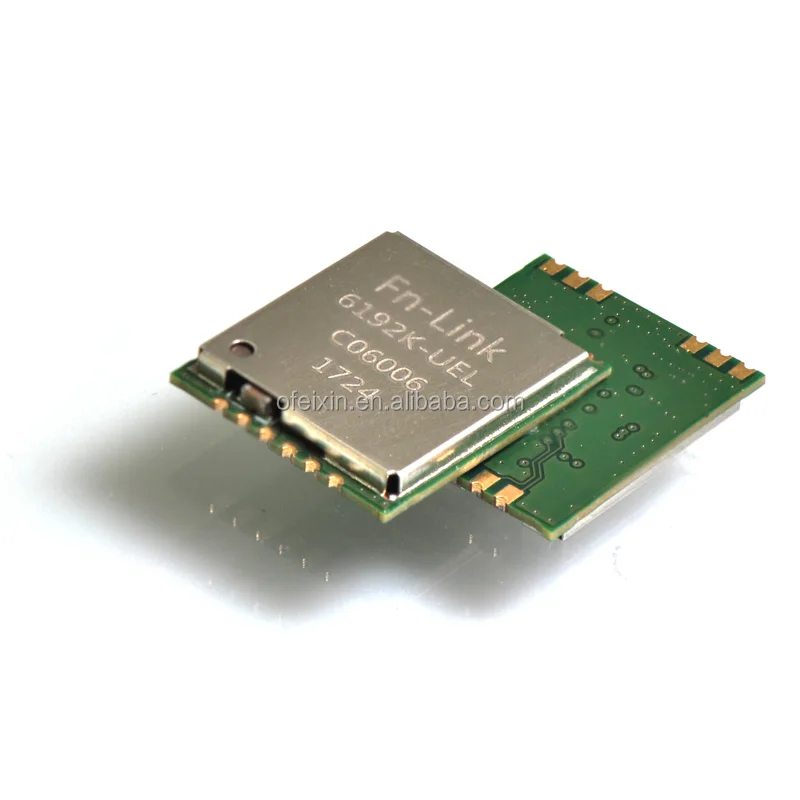

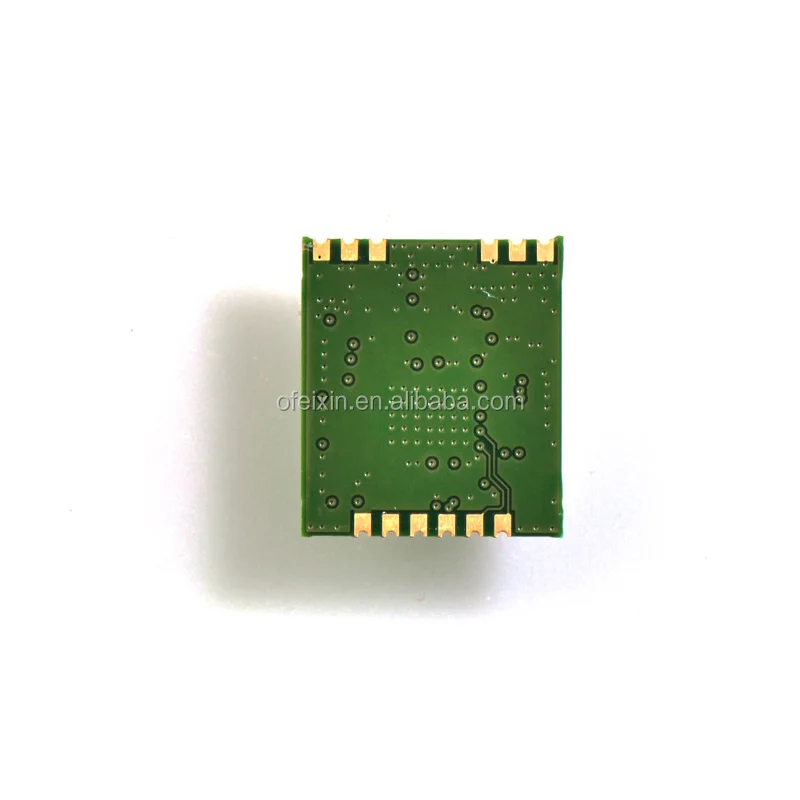

6192K-UEL is a small size and low profile of WiFi module with LGA(Land-GridArray) footprint, board size is 14mm*16mm with module thickness of 2mm. It can be easily manufactured on SMT process and highly suitable for tablet PC, ultra book, mobile device and consumer products. It provides USB interface for WiFi to connect with host processor. The WiFi throughput can go up to 300Mbps in theory by using 2x2 802.11n b/g/n MIMO technology.
6192K-UEL uses highly integrated WiFi single chip based on advanced COMS process. 6192K-UEL integrates whole WiFi function blocks into a chip, such as MAC, BB,AFE, RFE, PA, EEPROM and LDO/SWR, except fewer passive components remained on PCB.
This compact module is a total solution for a combination of Wi-Fi technologies. The module is specifically developed for Smart
phones and Portable devices.
Features
Operate at ISM frequency bands (2.4GHz)
USB for WiFi
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d,IEEE 802.11e,IEEE 802.11h,IEEE 802.11i
Enterprise level security which can apply WPA/WPA2 certification for WiFi.
WiFi 2 transmitter and 2 receiver allow data rates supporting up to 300 Mbps downstream and 300 Mbps upstream PHY rates
USB for WiFi
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d,IEEE 802.11e,IEEE 802.11h,IEEE 802.11i
Enterprise level security which can apply WPA/WPA2 certification for WiFi.
WiFi 2 transmitter and 2 receiver allow data rates supporting up to 300 Mbps downstream and 300 Mbps upstream PHY rates
Application Range:
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
& Commercial And OA Application
Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment
& Industrial And Vehical Application
Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile
& Medical Application
Medical equipments/Medical instruments
& Other Consumer Electronic Products
Detailed Parameters
Model No | 6192K-UEL | Main Chipset | RTL8192EU |
WIFI/BT Interface | USB | WIFI Standards | IEEE802.11/b/g/n |
Date Rates | 300Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | OS Supported | Android /Linux/ Windows |
Operating Frequency | 2.4GHz | Operating Voltage | 3.3V |
Dimensions | L x W : 14x 16 mm | RF Chains | 2T2R |
Operating Temperature | 0℃~70℃ | Storage Temperature | -40°C to 85°C |
Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download form the official website or sales.
