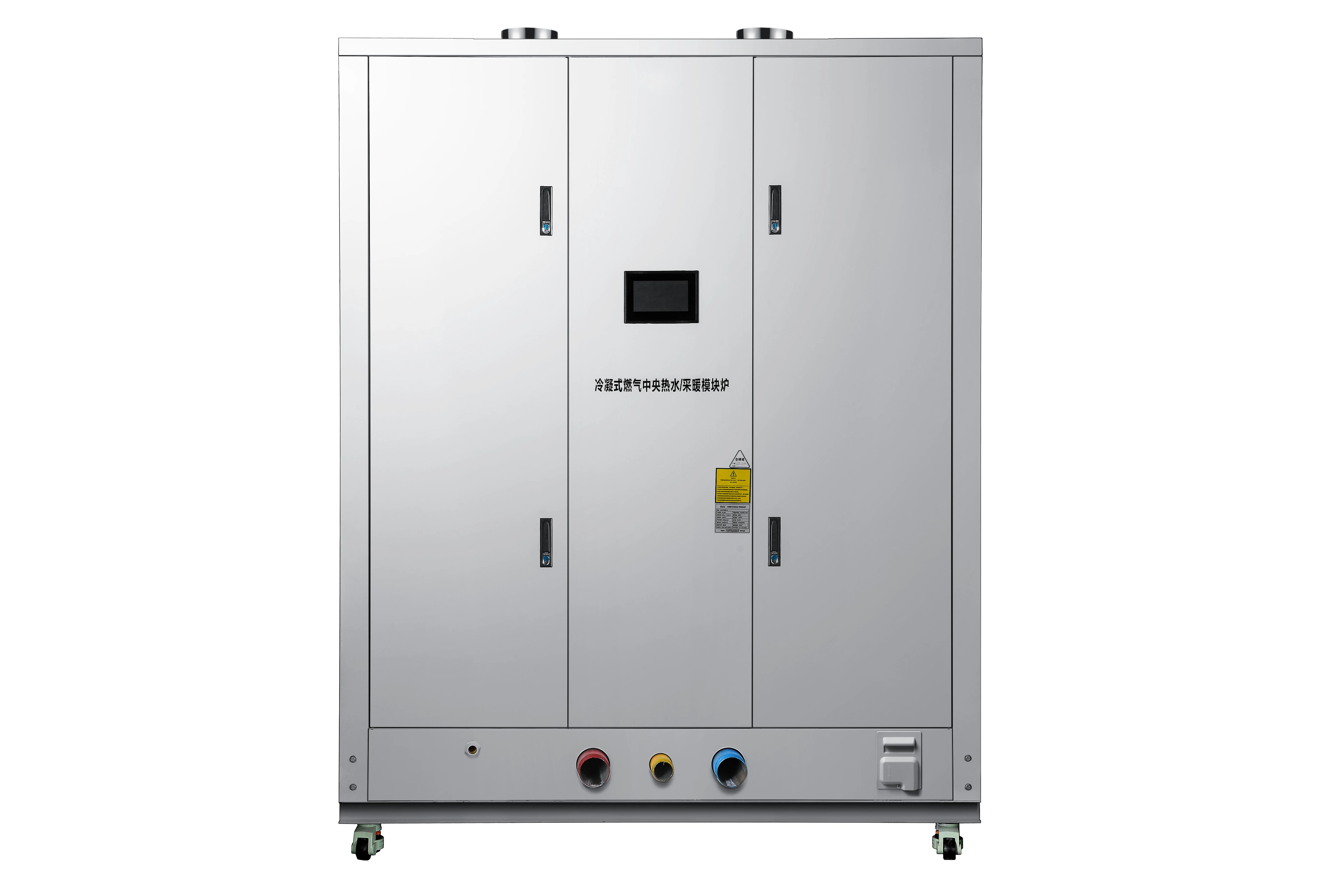

Hospital Office Building Area Heating Supply Atmosphere Pressure Gas Fired Hot Water Boiler Price

Product Overview

Description

Hospital Office Building Area Heating Supply

Atmosphere Pressure Gas Fired Hot Water Boiler Price

Rated heat load (KW)		600	Rated gas consumption(m3/h)	≤59.9
Rated working pressure(MPa)		0.75	Rated gas pressure(pa)	2000
Heat efficiency(%)		≥98	Combustion method	Atmospheric combustion
Gas pipe diameter		Φ200mm*2	Combustion control mode	Intelligent automatic
Reheat rate(L)	25°C	20000	Inlet/outlet pipe diameter	DN80(G3'')
	35°C	15000	Gas pipe diameter	DN50(G2'')
Temperature adjustment range(℃)		30-85	Gas Type	Natural Gas /LPG
	Installation location	Indoor	Voltage	220V/50HZ
Installation conditions	Ambient temperature	-18℃ ~ 79℃	Electric power(W)	900/External primary circulating water pump 2.2KW AC380V
	Environment humidity	6%~90%	Noise (db)	≤65
	Altitude	≤4800m	Net Weight(kg)	300±5
Recommended heating area(m2)		5500-6500	Product Size(mm)	1800x1030x2330mm





Differential functional characteristics of Condensing gas central hot water/ Heating Furnace (modular furnace):

Simple: It is used to separate and combined with circulating thermal warranty barrels, and the operation is close to the "fool" mode.

Flexible: The module crew can be increased or decreased according to the thermal load size of the use environment.

Intelligence: During the operation, it has an automatic protection function for ultra -temperature, dry drying, and anti -freezing.

Practical: It has the production of hot water/heating, and the anti -freezing cycle function is suitable for different thermal energy places.

Technology: When the central hot water/heating furnace is interrupted, it has a power loss memory function, and remote control through the mobile APP.

Almighty: It can be used as a air source (heat pump) low -temperature weather auxiliary heating, solar water heater at night and rainy days to assist heating, air -conditioning water heater (two -online) low -temperature weather assist heating (referred to as multi -combined supply).



Product Features :

Energy-saving combustion, low carbon emissions, modular combination, step ignition,convenient maintenance, simple operation, stable operation,super low noise, easy installation.



Best Places To Use: Star hotel, guesthouse, sauna, business club, hospital, army, school, swimming pool, artificial hot spring, waiting room, conference room, classroom, fitness club, collective dormitory heating water and heating.
