Оптовая продажа, 6 цифровых дисплеев с механической частотой и Modbus
- Category: >>>
- Supplier: Toky Electrical Co. Ltd.
Share on (1600538724003):
Product Overview
Description
Products Description

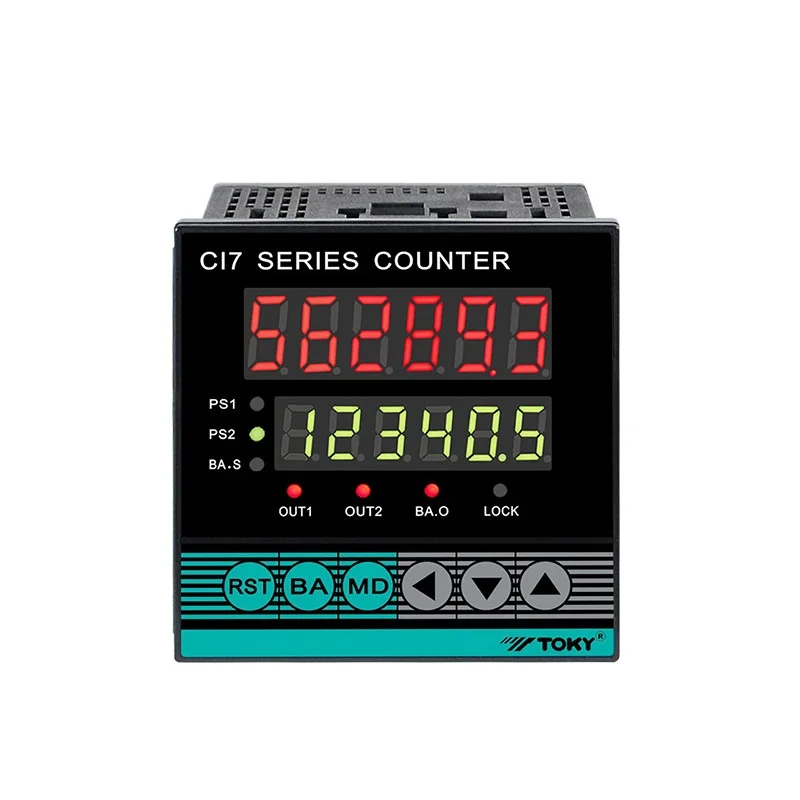

Wholesale 6 Digitals Mechanical Frequency Digital Counter Display With Modbus
Model | Panel Size(mm) | Output Mode | Output | Display | Batch output | Communication | Code |
CI80-RC60 | 80H×160W | Relay output | 2 loops | 6 digits | 1 loop relay | No | B0380CI01 |
CI80-RC68 | 80H×160W | RS485 | B0510CI01 | ||||
CI8-RC60 | 48H×96W | No | B0380CI01 | ||||
CI8-RC68 | 48H×96W | RS485 | B0510CI01 | ||||
CI7-RC60 | 72H×72W | No | B0380CI01 | ||||
CI7-RC68 | 72H×72W | RS485 | B0510CI01 | ||||
CI4-RC60 | 48H×48W | No | No | B0380CI01 | |||
CI4-RC68 | 48H×48W | RS485 | B0510CI01 | ||||
CI8-RC80 | 48H×96W | 8 digits | 1 loop relay | No | B0510CI01 | ||
CI8-RC88 | 48H×96W | RS485 | B0620CI01 | ||||
CI7-RC80 | 72H×72W | No | B0510CI01 | ||||
CI7-RC88 | 72H×72W | RS485 | B0620CI01 | ||||
CI80-RC60W | 80H×160W | Relay output | 2 loops | 6 digits | 1 loop relay | No | B0425CI01 |
CI80-RC68W | 80H×160W | RS485 | B0550CI01 | ||||
CI8-RC60W | 48H×96W | No | B0425CI01 | ||||
CI8-RC68W | 48H×96W | RS485 | B0550CI01 | ||||
CI7-RC60W | 72H×72W | No | B0425CI01 | ||||
CI7-RC68W | 72H×72W | RS485 | B0550CI01 | ||||
CI4-RC60W | 48H×48W | No | No | B0425CI01 | |||
CI4-RC68W | 48H×48W | RS485 | B0550CI01 |

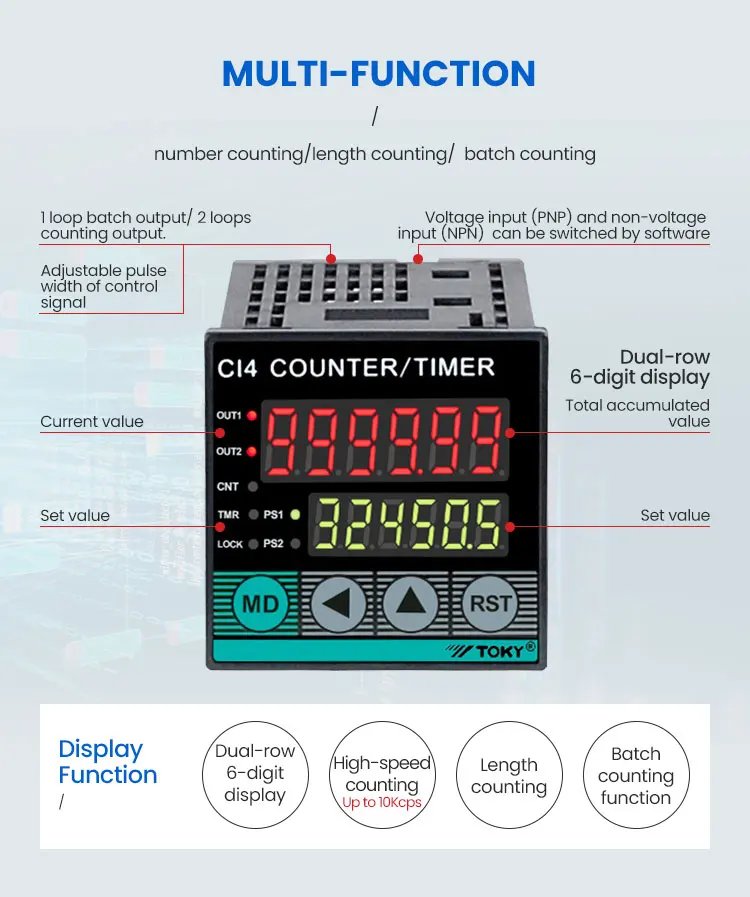

Display | Display digits | Dual-line,6 digits,high light LED | |
Display Range | -19999~999999 | ||
Input Signal | Signal Type | Square wave, sine wave, passive contact | |
Input Impedance | Voltage input impedance is 5.4KΩ, Non-voltage input: short circuit impedance is max.1KΩ | ||
Signal Level | High Level:5-30VDC Low Level:0-2VDC | ||
Input Signal | Max Frequency | 1Hz,30Hz,1KHz,5KHz,10KHz selectable | |
Edge Trigger | NPN falling edge,PNP rising edge | ||
Counting Accuracy | ±1 pulse (more or less) | ||
Ratio Coefficient | 0.00001~9.99999 | ||
Relay | Load Capacity | >100,000 times (NO:250VAC 3A resistive load NC:250VAC 2A resistive load) | |
NO/NC guide | Refer to the connections | ||
Mechanical Life | >10,000,000 times | ||
Input mode | UP/DOWN counting | U UP counting/D DOWN counting | |
UP/DOWN counting control | UD-A UP/DOWN-A,UD-B UP/DOWN-B | ||
Phase Difference Counting | Rotary Encoder Input | ||
Output | Output Mode | 12 kinds, F,N,C,R, etc. | |
Delay Time | 0.01~499.99s | ||
Auxiliary power supply | Supply Voltage | 12VDC±10% | |
Capacity | <100mA | ||
Temp. | Woking Temp. | -10~50 (Unfrozen) | |
Storage Temp. | -25~65 (Unfrozen) | ||
Environment RH | 35-85%RH | ||
Communication | Comm. Protocol | ModBUS RTU | |
Baud Rate | 4.8KBPS 9.6KBPS | ||
Address Range | 1-247 | ||
Comm. Delay | No | ||
Function | Power-Fail Memory | YES/NO | |
Reset Pause Lock | Optional | ||
Power supply & consumption | 100~240V AC/DC <5W | ||
Protection Class | Panel | IP 54 | |
Housing | — | ||
Mechanical requirements | Screw torque | 0.74n.m~0.9n.m | |

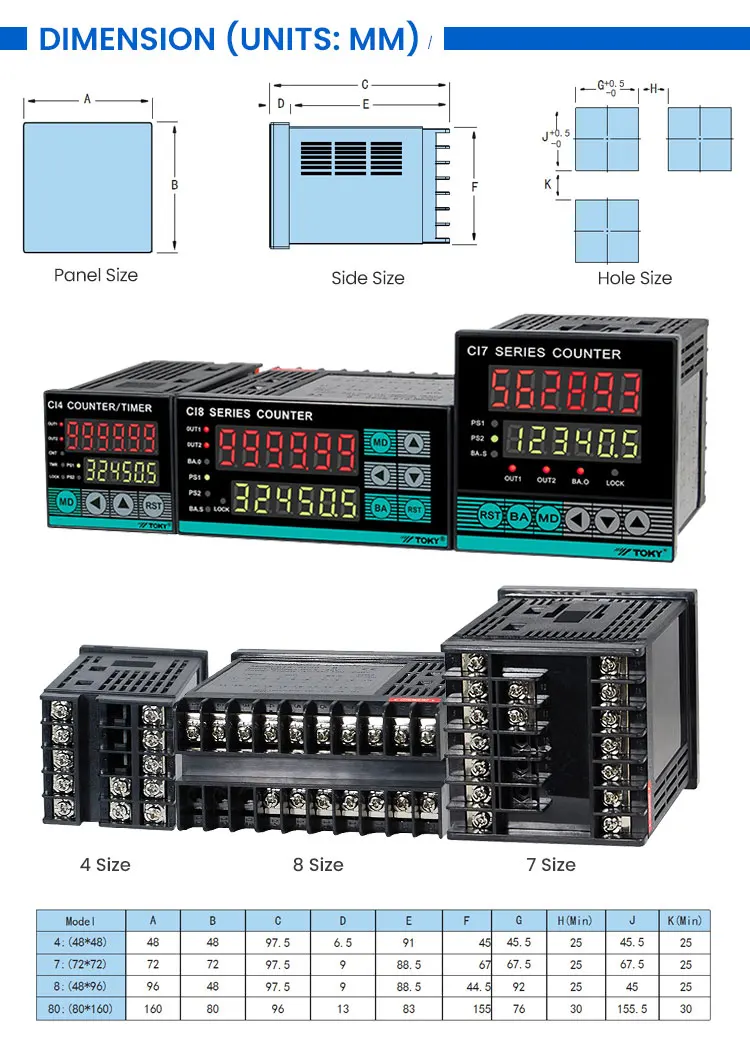

Installation size | Refer to the Dimensions | ||
Installation Mode | Panel mounting | ||
Transpor- tation requirements | Vibration, Stacking | Amplitude:0.75mm Frequency:10~55Hz 1h for each X,Y,Z directions | |
Min Pulse Width | Reset | 1,20ms optional | |
Pause | 1,20ms optional | ||
Output | Passive contactor output | NPN open collector output (to be ordered) | |
Withstand Voltage | Dielectric Strength | 2000V AC 50/60Hz 1 min | |
Insulation | Insulation Resistance | Min. 100MΩ (at500VDC) | |
EMC Anti-interference capability | Static | 3 class | |
Group of Pulses | 4 class each mode±4000VP-P | ||
Lightning surge | 3 class wire to wire±2000V | ||
Frequency Drop | 3 class | ||
