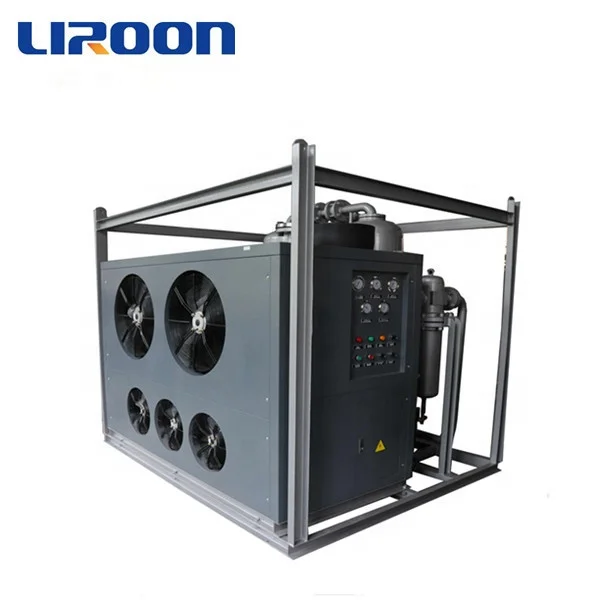

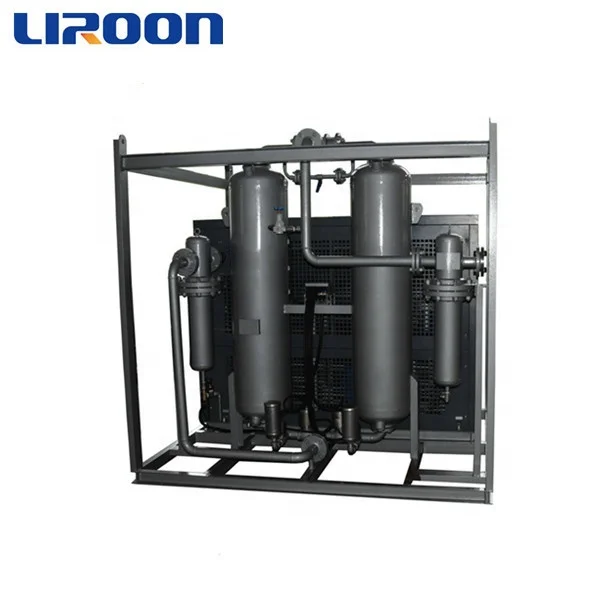

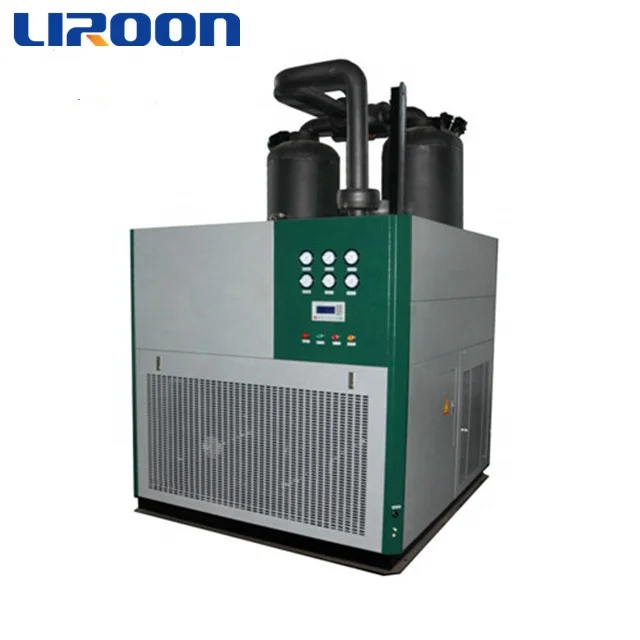

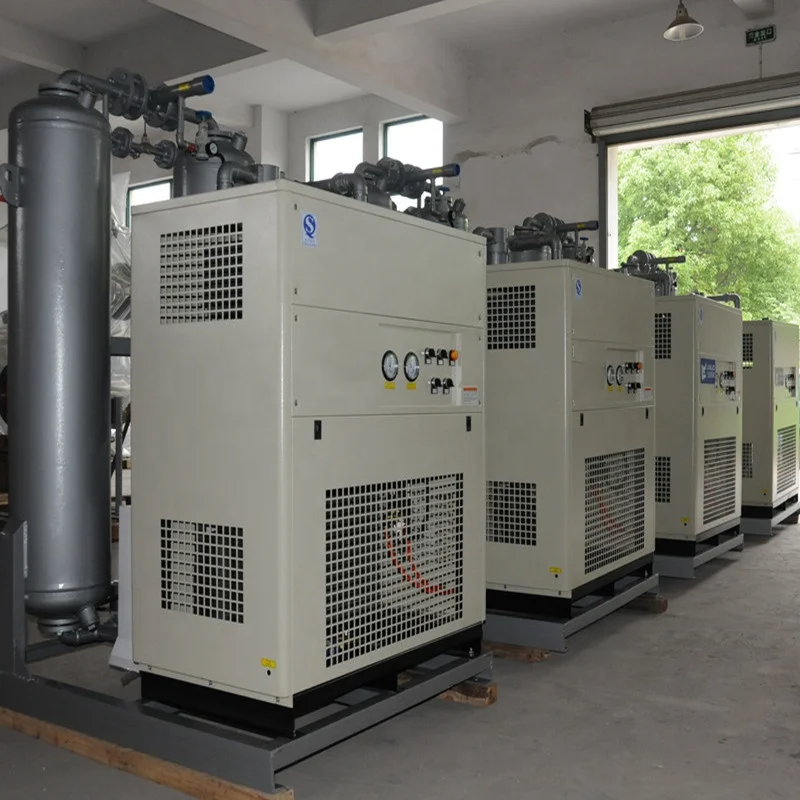

High quality low dew point combined compressed air dryer

Type: Low Dew Point Combined Compressed Air Dryer

Rated Inlet Temperature:≤45°C

Outlet Pressure Dew Point: -40°C(-70°C is optional)

Rated Working Pressure:0.7MPa-1.0Mpa

Desiccant :Activated Aluminum or Molecular sieve

Pressure Loss:≤5% of inlet pressure

Control Model :PLC

Regeneration Way:Heated regenerative

Regeneration Air Loss:3-5%

Cycle Period :10-40min

Regeneration way:Heatless or Heated Regenerative

Working Mode:Automatic switching between tower A and Tower B,continuous working

Cooling way: air cooling or water cooling

Ambient Temperature:≤38°C(air cooling )

Cooling water temperature :≤32°C (water cooling )

Cooling water pressure :0.2-0.5MPa

Cooling Water:Industrial Recirculating water

Installation : Indoor without foundation

Power Supply: 380V/1PH/50HZ(Other power can be customized)

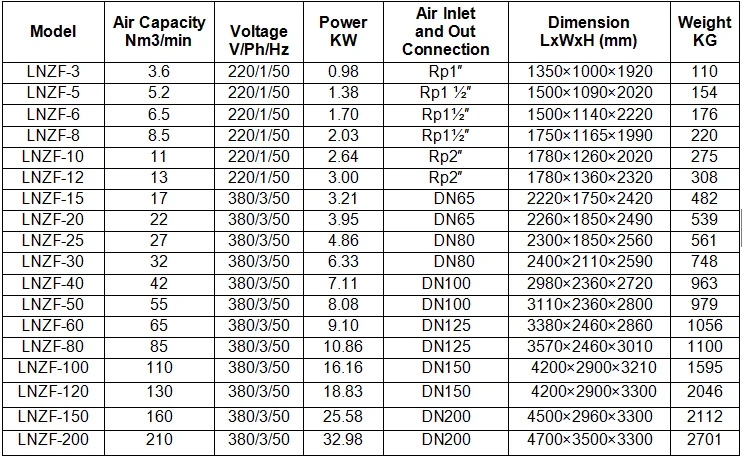

Specifications as follows:

 If can't find the one you need ,special specification welcome to contact us .

1. Are you a Manufacturer or Trade company ?

    We are a professional manufacturer of compressed air dryer ,found in 1999.

2. Could I use my own logo or design on goods?

     Yes,customized logo and design on mass production are available.

3. What's the delivery time?

    Within 15-30 working days after receiving deposit.
