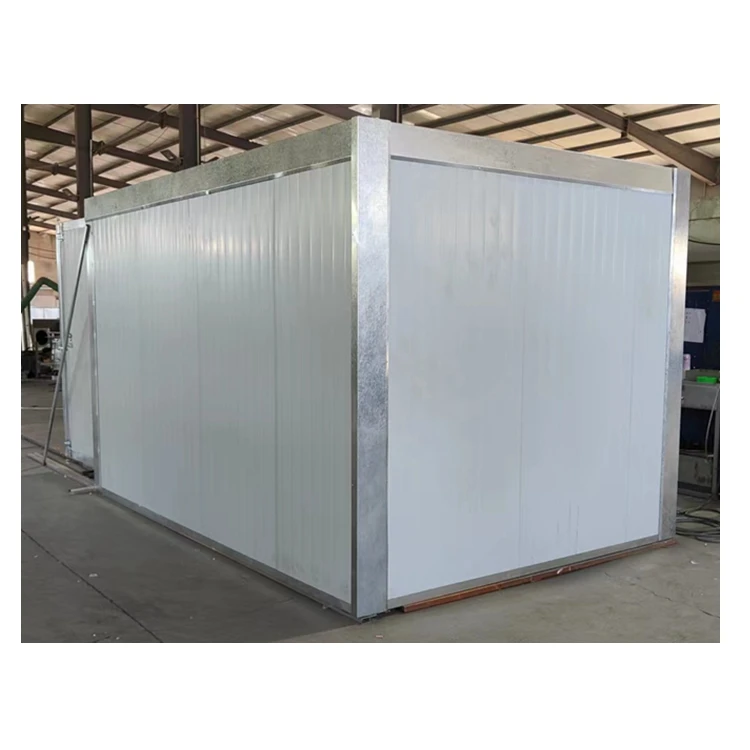

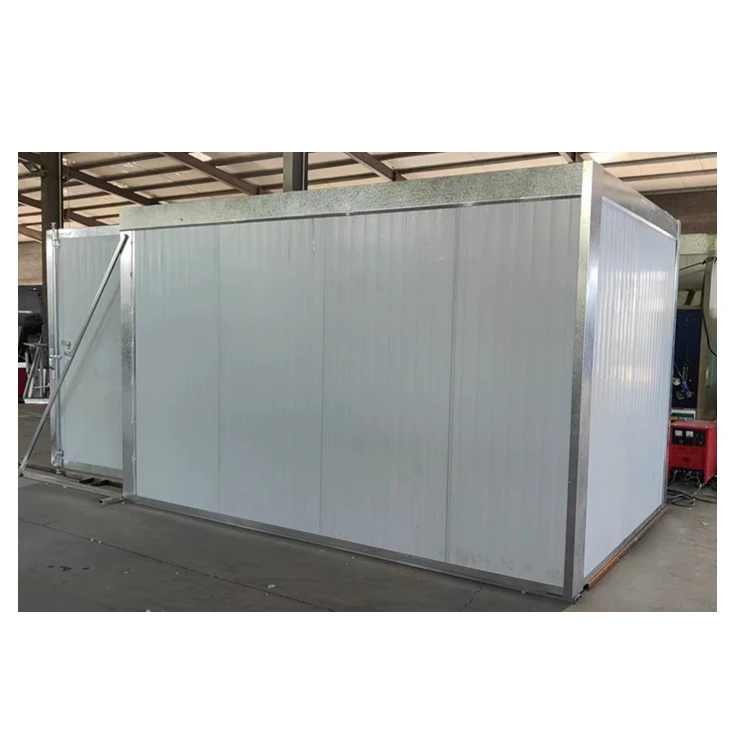

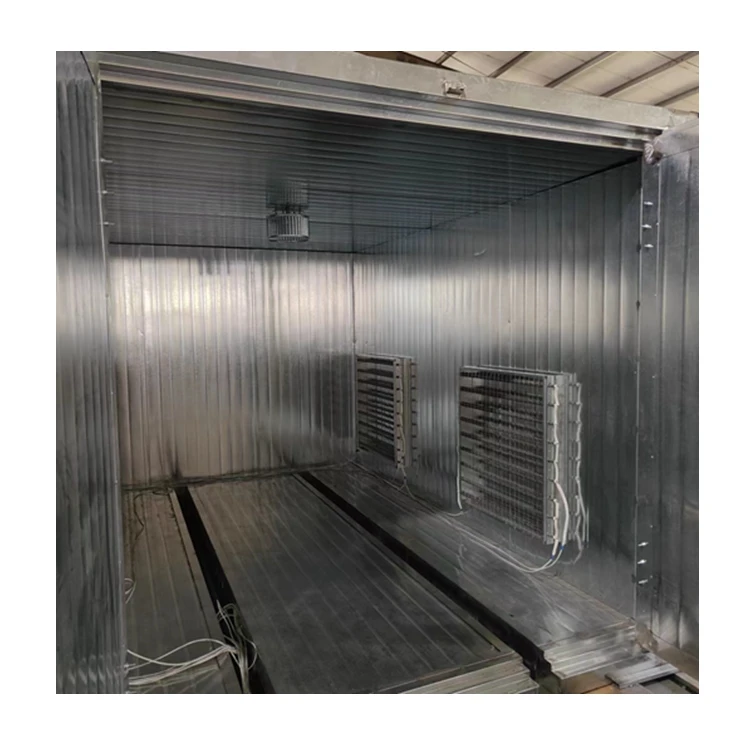

Large Batch Oven Industry Drying Powder Coating Curing Oven with IR Electric Heating

Chamber panel

Assembled insulation chamber.

100 mm thickness Rockwool panel; 120kg/m³.

Outside is colorful steel, 0.476mm; inner surface is galvanized steel, 0.476m.

High quality rock wool board, insulation and fireproof, easy to install.

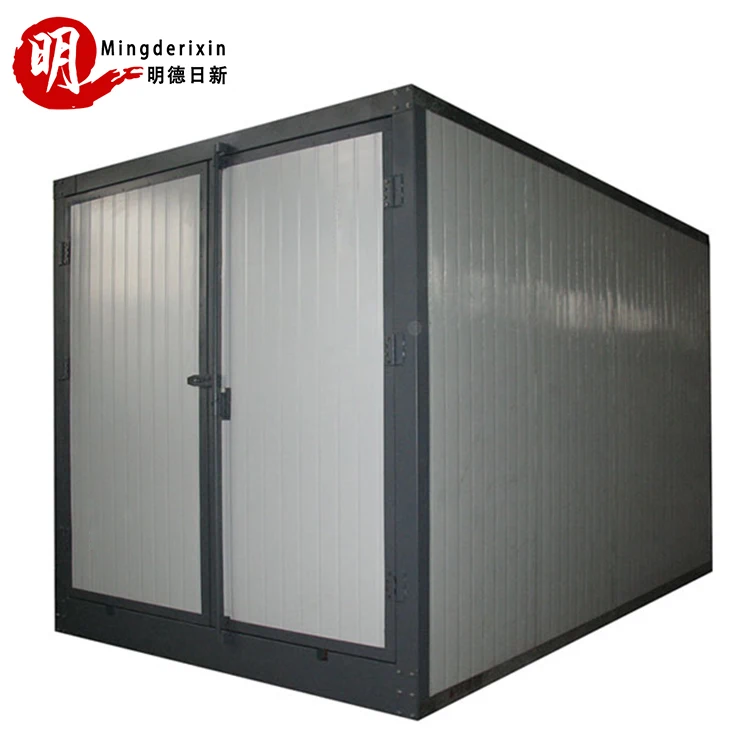

Two hinge doors, and door leaf is also made of 100mm thick rock wool panel, surrounded by 1.5mm galvanized sheet, and is firmly insulated.

Heating system

Circulation system

With a high temperature centrifugal fan,Power :46kW

With cooling system Cooling circulation fan bearing part.

The fan impeller is made by stainless steel. The fan bearing protection method is liquid circulation cooling protection.

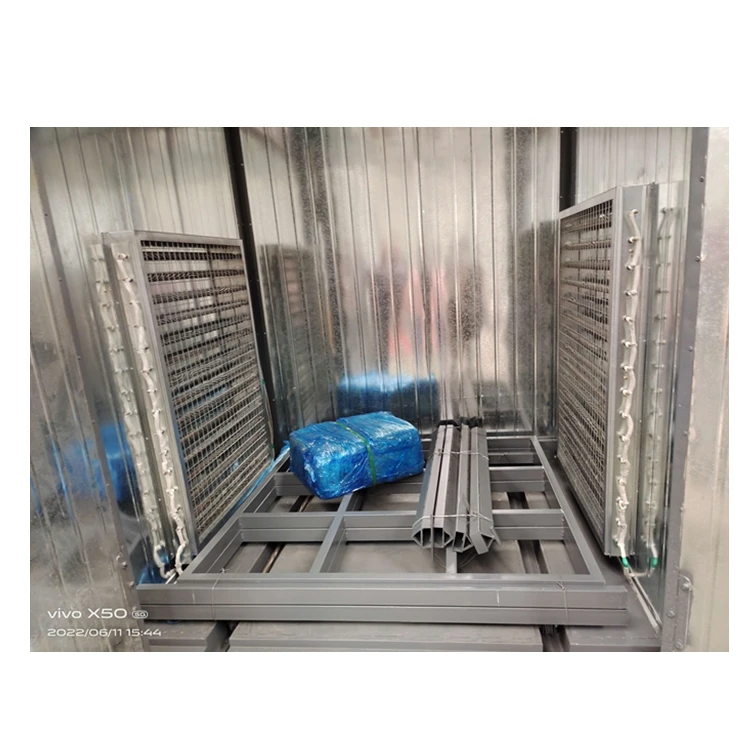

Independently adjustable hot air ducts are arranged inside the chamber to make the temperature in the curing furnace uniform.

The air duct is made by punching and bending with a 0.8mm galvanized sheet.

Guide Rail

One side equip ground rail used for workpiece entry and exit.

Optional

Transfer trolley

Control system

Microcomputer control, dual display digital temperature controller, hot air temperature and oven temperature are automatically controlled.

Fan control, heating control, temperature control, indicator lights for various items, and emergency stop.

Safety device, one set of explosion-proof relief valve, when the pressure inside the curing furnace increases, it will automatically open and discharge the excess air.

No.

Model

Inside size ( L*W*H)mm

Outside size ( L*W*H)mm

1

MD-E019

1900*2100*2000

2100*2300*2400

2

MD-E028

2650*2100*2000

2850*2300*2400

3

MD-E038

3600*2100*2000

3800*2300*2400

4

MD-E048

4550*2100*2000

4750*2300*2400

5

MD-E057

5500*2100*2000

5700*2300*2400

6

MD-E066

6450*2100*2000

6650*2300*2400

Remarks: Choose your favorite size ,and let me know .
