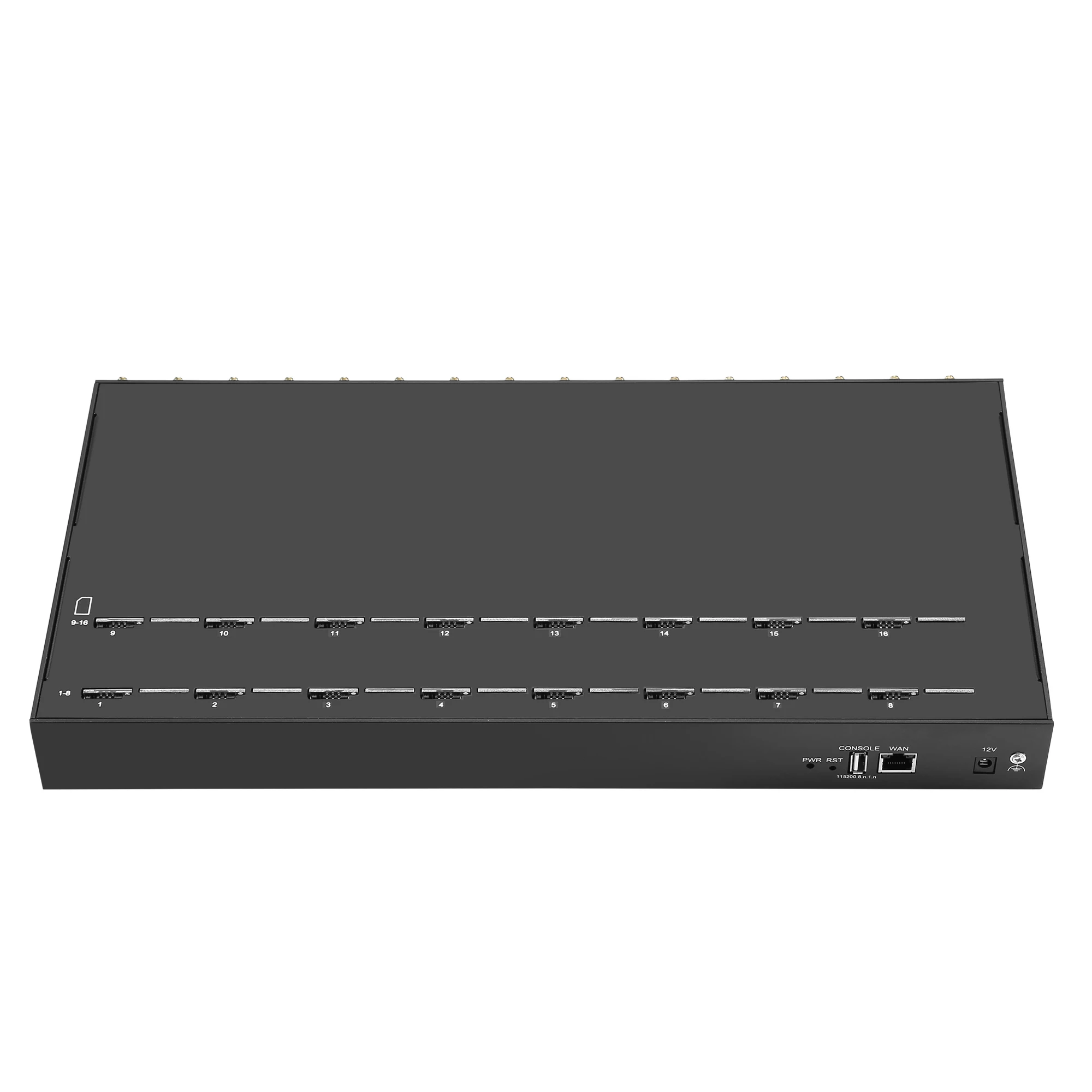

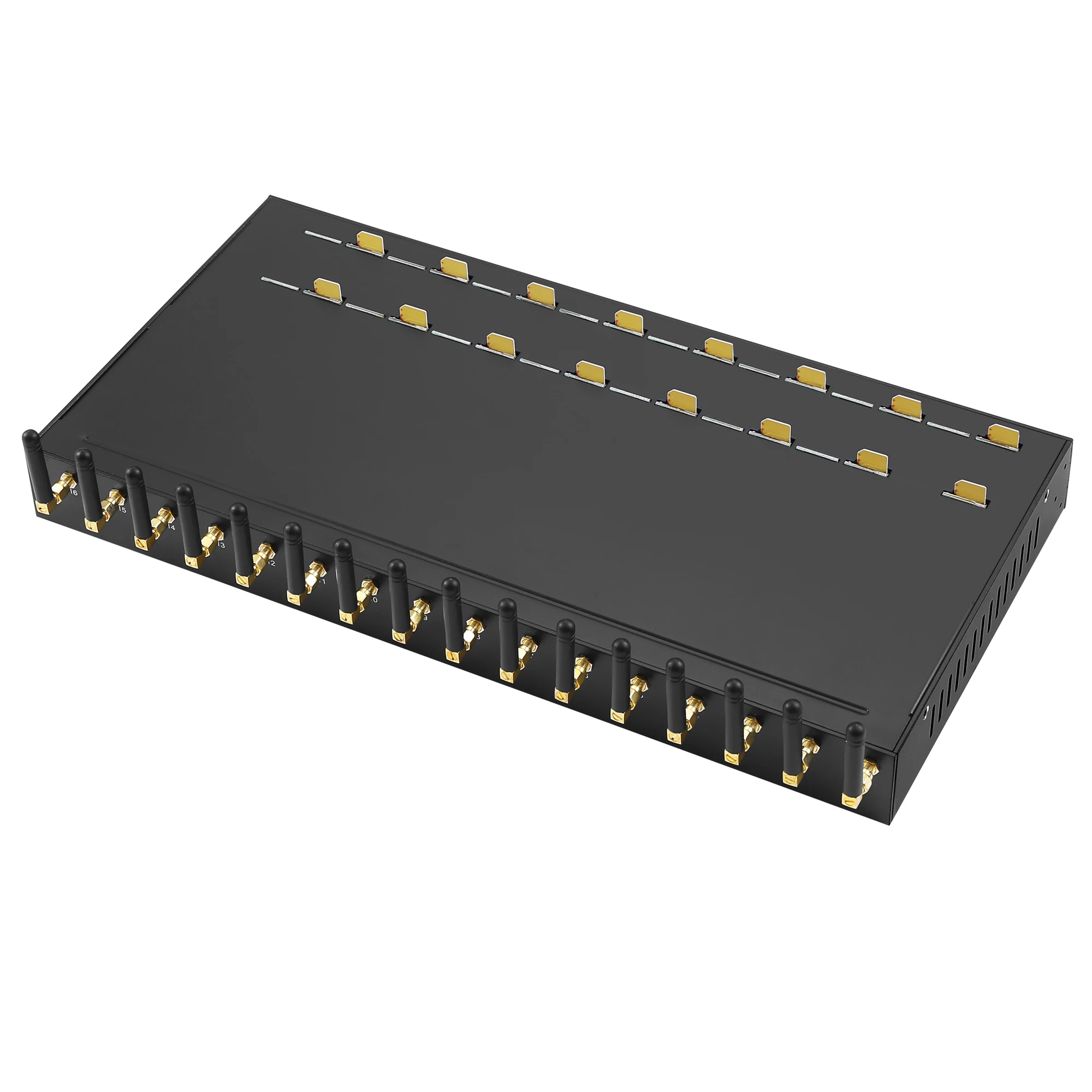

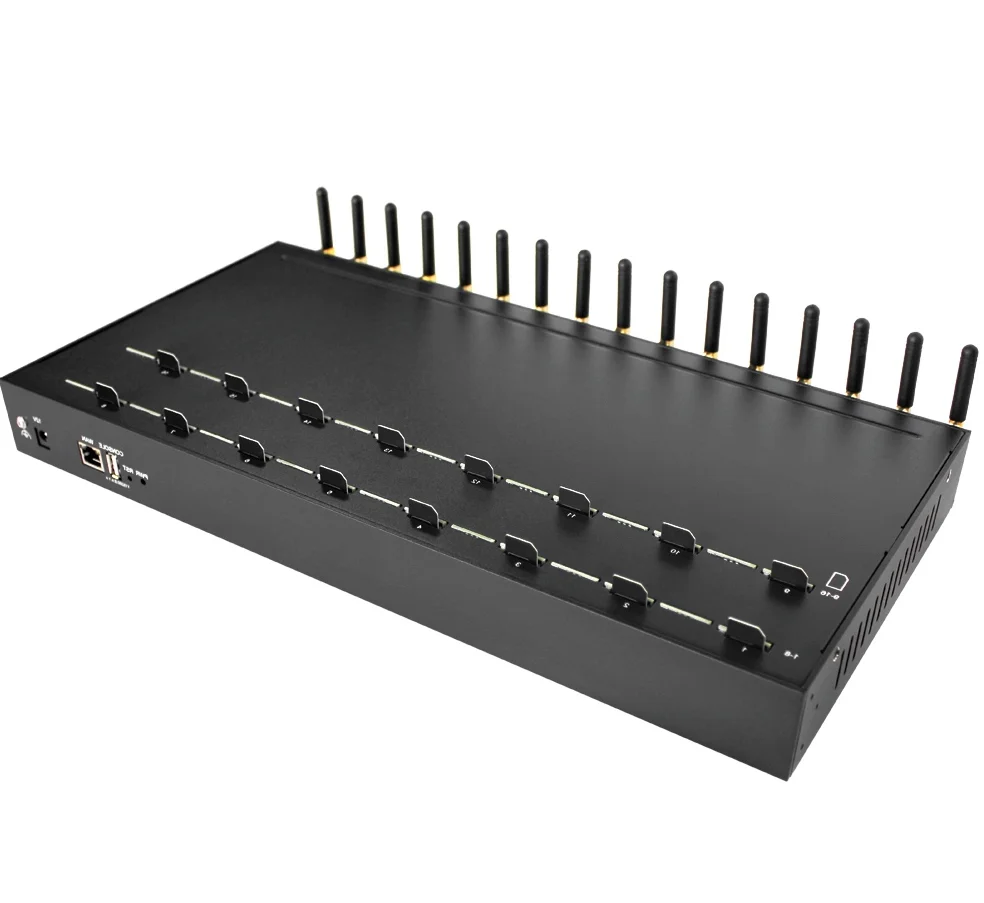

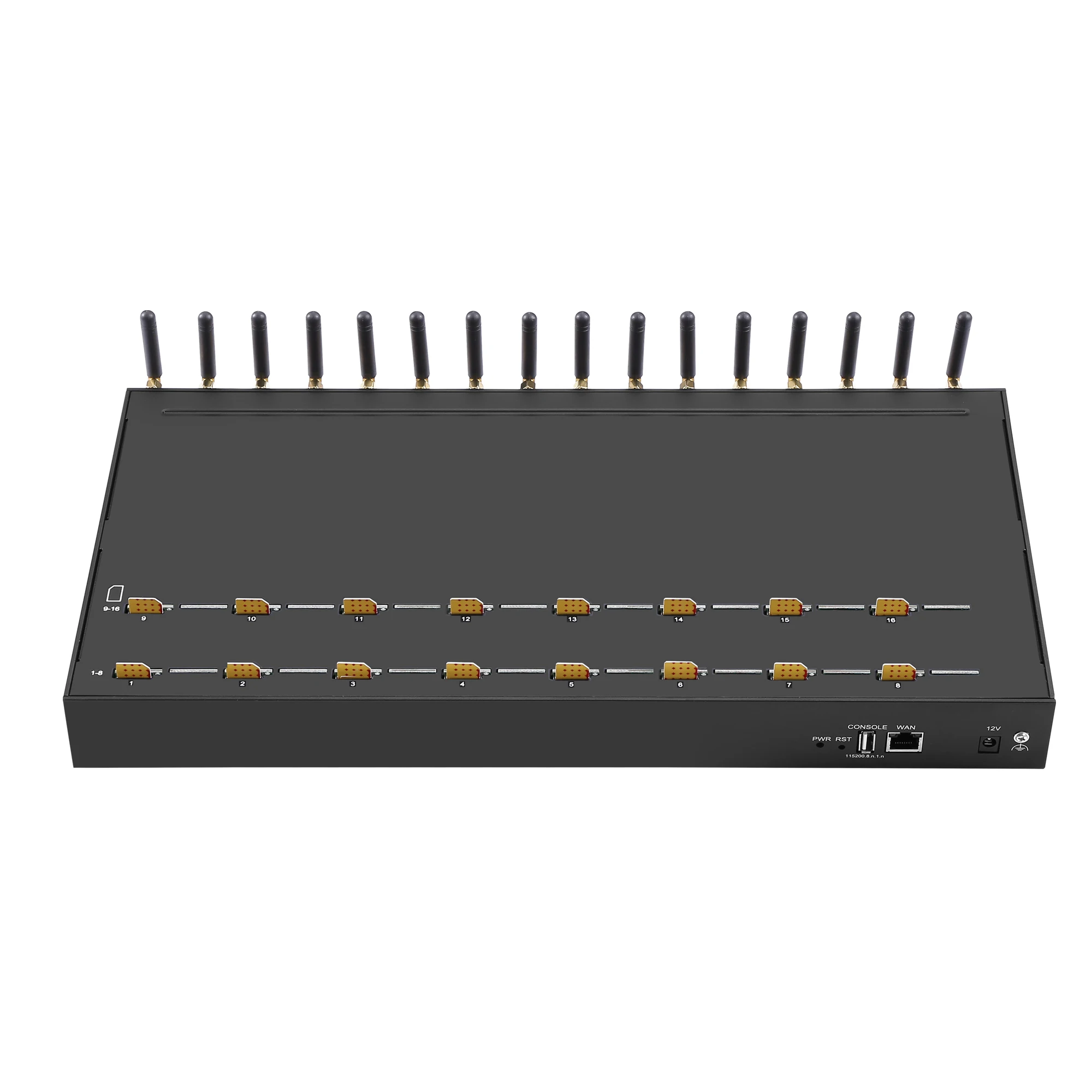

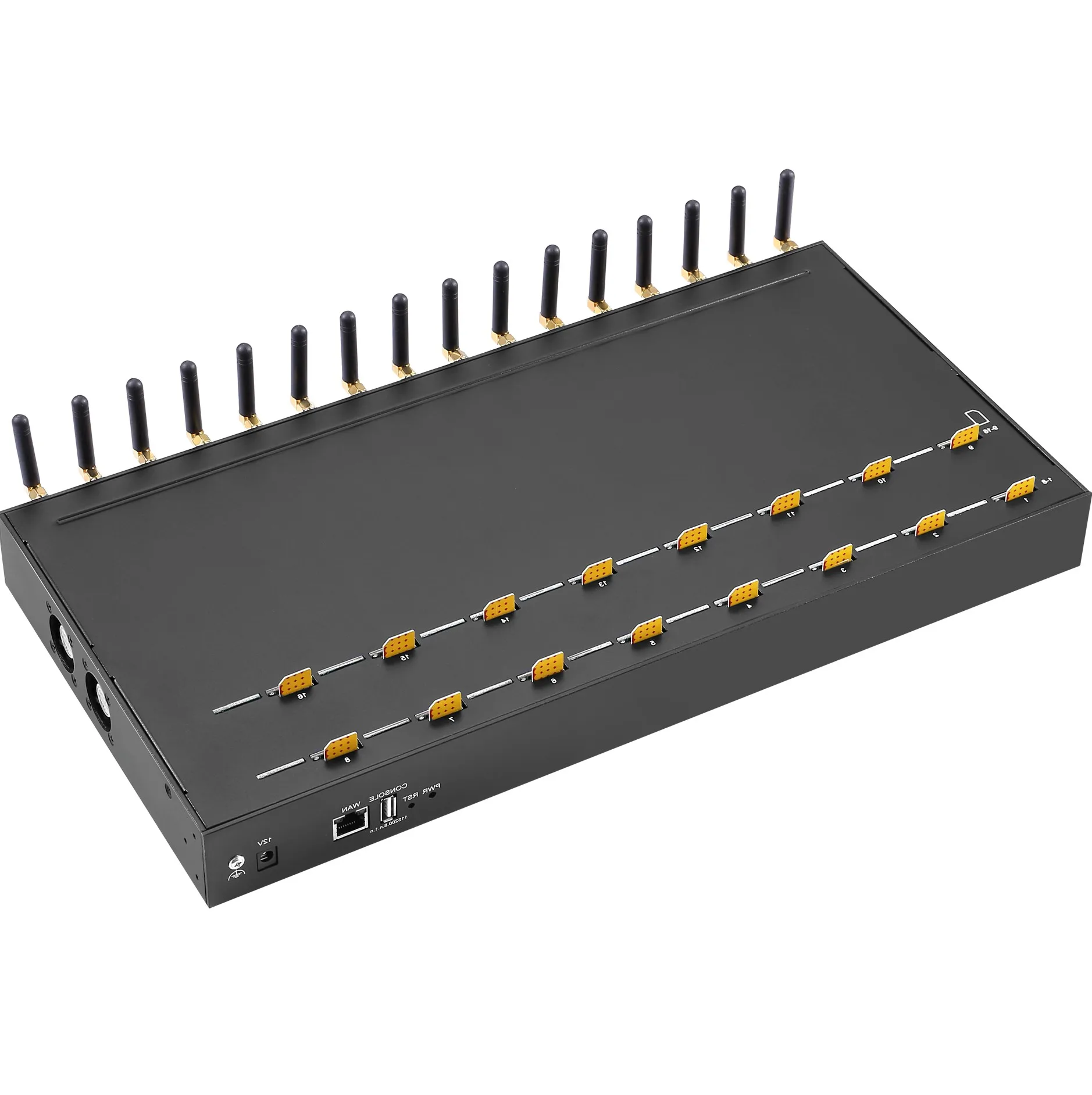

SK 16G-16 gsm sms gateway Brief introduction
SK 16G-16 gsm sms gateway is a multi-functional and high performance product, which is designed with advanced embedded technology. SK 16 ports gateway is able to process traditional voice call service and internet data service. It adapt new hardware and software structure, which supports up to 16 concurrent calls and perfectly support G729a/b/e, G723.1, G.711 A/U law and iLBC codecs at the same time.
INTERFACES
Channel: 1 SIM900/2100MHz per Channel WAN: RJ-45
USB: Serial Port, Baud rate: 115200, 8, n, 1, n
USB: Serial Port, Baud rate: 115200, 8, n, 1, n
MAIN POWER
Power Input: 100-240V~50-60Hz 1.2A
MAX Power Output: 12V/8A
ADMINISTRATION
User Management program via USB interface
Includes version update capabilities for firmware or management Software
Remote Control
Telnet, Console Echo
Human Behavior
Channels: 32
SIP V2.0 RFC3261
RTP/RTCP RFC3551
Echo/Silence control
Caller Anonymous
Codecs: G729 a/b/e, G723, G711 A/U law, iLBC
SIP account: Management with Authentication
VOL control
PIN Code Management
AT, SMS, USSD
SIP V2.0 RFC3261
RTP/RTCP RFC3551
Echo/Silence control
Caller Anonymous
Codecs: G729 a/b/e, G723, G711 A/U law, iLBC
SIP account: Management with Authentication
VOL control
PIN Code Management
AT, SMS, USSD
Internet
DHCP, DNS, PPPoE IPv4, TCP, UDP HTTP, FTP, TFTP, ARP, NTP
Other
Working Temperature: 0~+50℃
Working Moisture: 10 ~ 90 % RH
32 Channel 128 SIM cards
Working Moisture: 10 ~ 90 % RH
32 Channel 128 SIM cards
Features
SK 16G-16 gsm sms gateway Features | ||||||
Relay Encryption Solution(Fix IP Blocking) | Bandwidth Optimization | |||||
SIM Rotating Automatically(Fix SIM Blocking) | Base Station Switch | |||||
Remote Control(Manage Device Anywhere) | SMS Receive & Send | |||||
Muti-Codec Support | Sim Hot Plugging | |||||
1) Base station Change
2) IMEI Change
3) AT command directly
4) Support connect with simpool
5) Support USSD balance enquiry,billing
6) Direct to monitor ASR and ACD in device
7) Support to do both sms route and voice route
8) Auto suffer the internet to use Internet traffic
9) Intercalling/ Intersending system for decreasing sim block
10) Automatically lock/switch SIM card according to its balance, balance alarm
11) Support SIMS hot-swap
12) Support SMPP server/client
13) Support HTTP/SIP SMS API
14) Direct to open gateway software page in Webpage
14) Direct to open gateway software page in Webpage
Anti-Sim Block Solution | ||
Human Behavior Features: ● Auto IMEI change ● Auto base station change ● Port-Inter call/SMS ● Call Duration minutes control ● Sim data internet surfing ● SIM Card Rotation | ||
Application
Quick Start

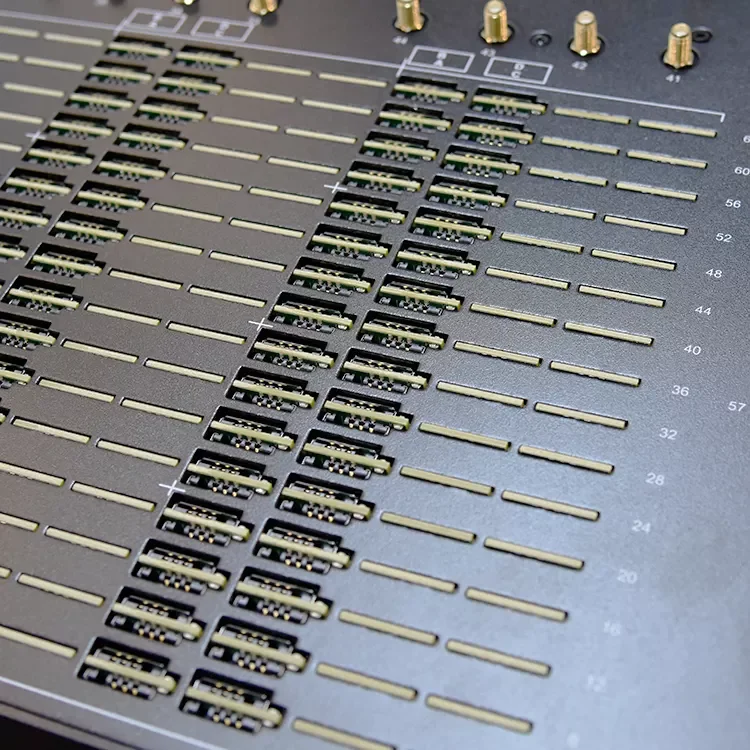

①Insert Sim Cards
Insert 32 Sim Cards Or less.
②Connect Device
Connect the power adapter to keep power on, connect a RJ45 network cable from GoIP WAN port to a router① LAN port (The router should be connected to internet).
③Check Device IP
If the GoIP WAN default IP is 111.111.1.11.
1, If the router LAN IP is 111.111.1.11, the GoIP default IP will be OK.
2, If the router LAN IP is not 111.111.1.11, for example 111.111.1.22, the GoIP default
IP should be corrected.
1, If the router LAN IP is 111.111.1.11, the GoIP default IP will be OK.
2, If the router LAN IP is not 111.111.1.11, for example 111.111.1.22, the GoIP default
IP should be corrected.

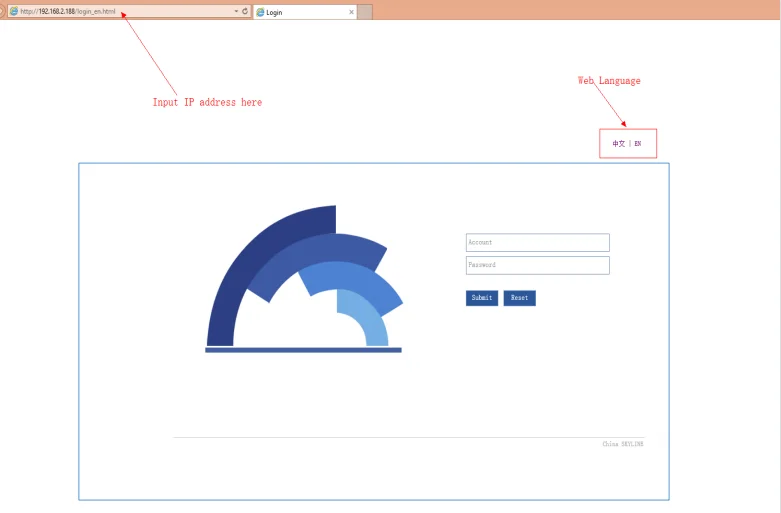

③Log Into The Management Web
After retrieving the IP address, open browser (IE, Chrome, FireFox, Opera …), input the IP address and the login web will return. The username & password will be needed to log into. Default Account is root, password is root.
When login successfully, the “Initial Setting” guide page will be help to make gateway working more easily.
Actually, only IP address and SIP info are needed then the GoIP gateway can start to transfer VOIP calls.
When login successfully, the “Initial Setting” guide page will be help to make gateway working more easily.
Actually, only IP address and SIP info are needed then the GoIP gateway can start to transfer VOIP calls.

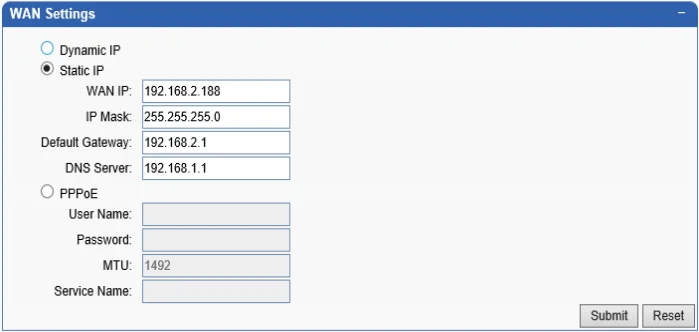

④Connect To Network
Dynamic IP: DHCP② mode, get an IP address from the network router automatically.
Static IP: set IP address manually.
1, The WAN IP should be in the segment of the router.
2, The WAN IP should be unique or it will conflict with other network devices.
3, Check the IP Mask and Default Gateway in your router configuration.
1, The WAN IP should be in the segment of the router.
2, The WAN IP should be unique or it will conflict with other network devices.
3, Check the IP Mask and Default Gateway in your router configuration.

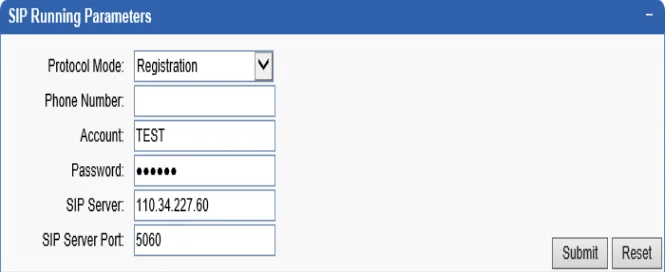

⑤Connect To SIP Server
Phone Number: (same with SIP id or keep it empty)
Account: (The SIP id created in the SIP server)
Password: (The SIP password created in the SIP server)
SIP Server: (The SIP server IP address or domain name)
SIP Sever Port: (The SIP server SIP port, default port is 5060)
Account: (The SIP id created in the SIP server)
Password: (The SIP password created in the SIP server)
SIP Server: (The SIP server IP address or domain name)
SIP Sever Port: (The SIP server SIP port, default port is 5060)

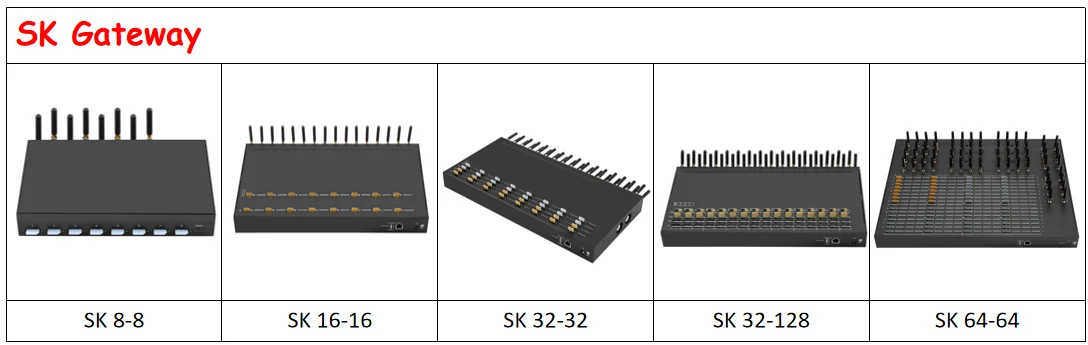

Related Product
Shipping and Package
Shipping: FedEx、DHL、EMS、UPS、TNT or Freight Forwarder.

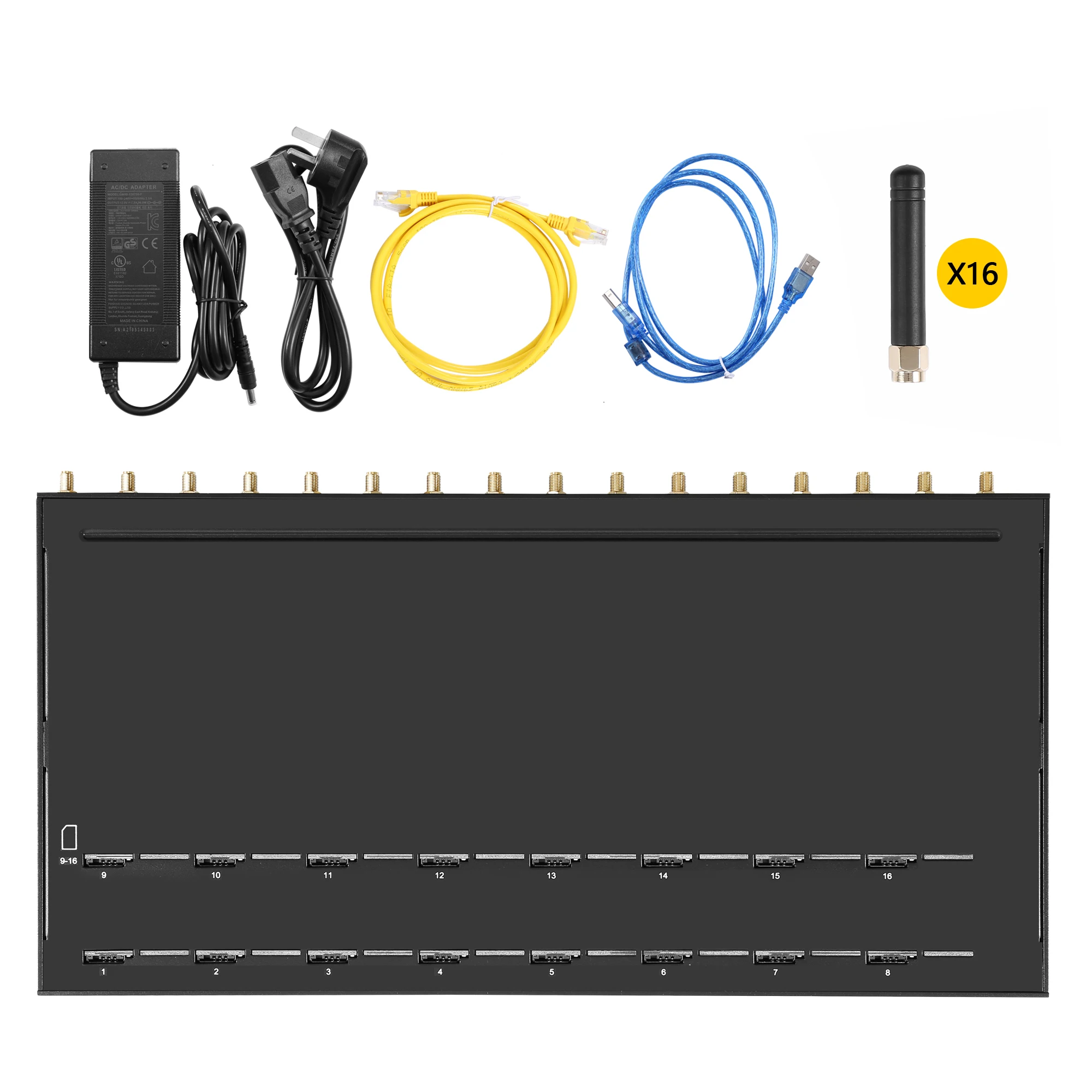

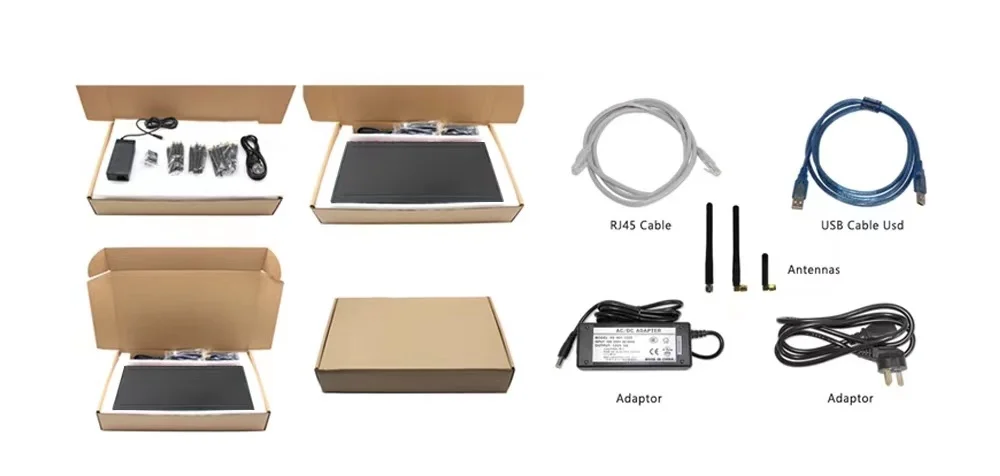

Packing Contents:
