Three Wheels Mounted Portable Borehole Drilling Rig for Water Well
- Category: >>>
- Supplier: Henan Leagoo Electro-Mechanical Co. ltd.
Share on (1600538779470):
Product Overview
Description
Product Description
200m Three Wheels Mounted Portable Borehole Drilling Rig for Water Well
1. It is a high-speed drilling rig, suitable for geotechnical exploration, water well, soil sample projects.
2. Alloy bit, diamond bit and tricone bit can be selected for drilling according to the different bottom layers.
3. Diesel engine as power, no need to use electricity, convenient for outdoor drilling.
4. BW-160 mud pump, with large water flushing rate, supply powerfully energy for working.
5. Three-wheel tricycle type, could drive directly, fast for moving.
Technical Parameter
200m Three Wheels Portable Borehole Drilling Rig for Water Well
1.Main machine | ||
Max drilling depth | 200m | |
Diameter range | 500mm-75mm | |
Diameter of drill rods | 50,60mm | |
Drilling angle | 90°~75° | |
Weight(include power) | 1950kgs | |
Dimension | 4.3*1.6*2.8m | |
2.Vertical Spindle | ||
Holding device | Ball bearing type structure | |
Rotating speed | 64,128,287,557r/min | |
Stroke | 450mm | |
Max torque | 2400N.M | |
3.Hoist | ||
Max. single line lifting capacity | 1800kg | |
Reel lifting speed | 17,35,75,151m/s | |
Steel wire rope diameter | 12mm | |
Steel wire rope volume | 26mm | |
Hug floodgate diameter | 245mm | |
Hug floodgate belt width | 70mm | |
Movable distance | 400mm | |
4. Mud pump | ||
Type | BW-160 Horizontal Single Cylinder | |
Max displacement | Diesel engine | 160L/min |
Electrical Motor | 140L/min | |
Max. pressure | 1.2MPa | |
Work pressure | 0.7MPa | |
5. Power | ||
Diesel engine | 22HP | |
Electric motor | 15KW | |
Drilling Accessories

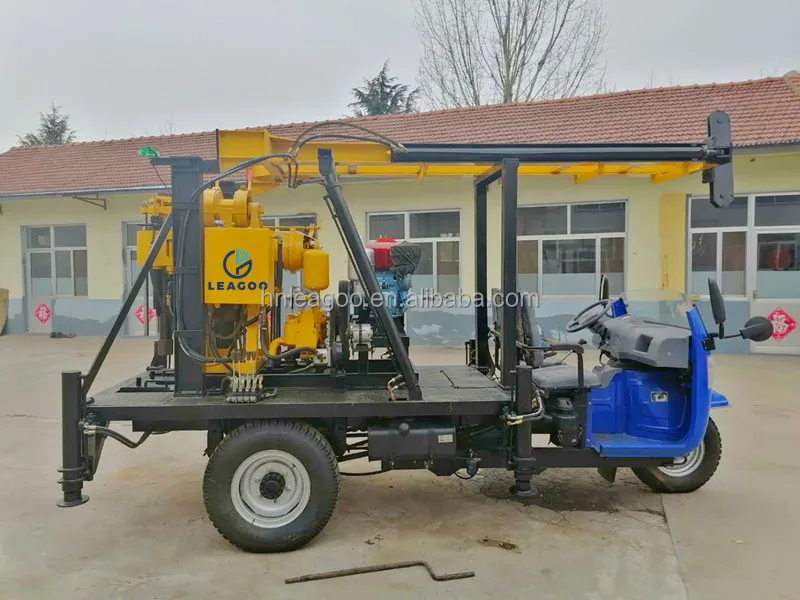

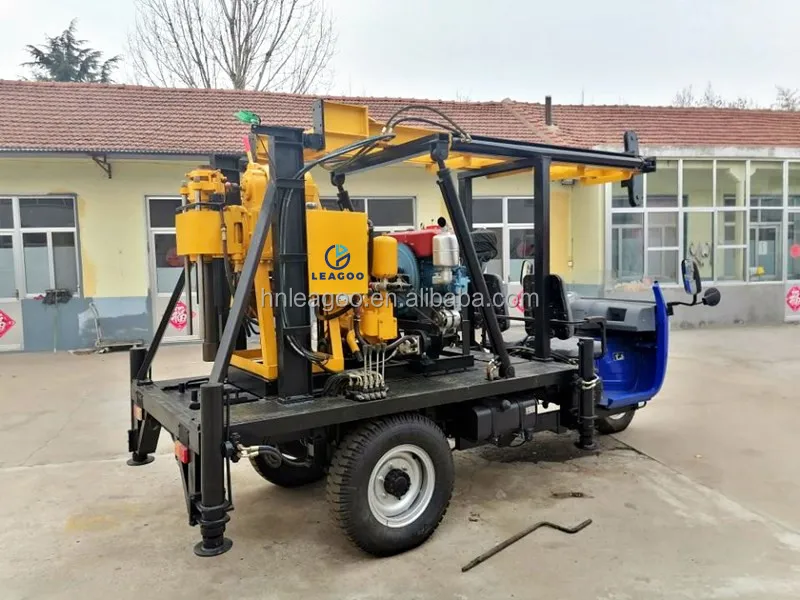

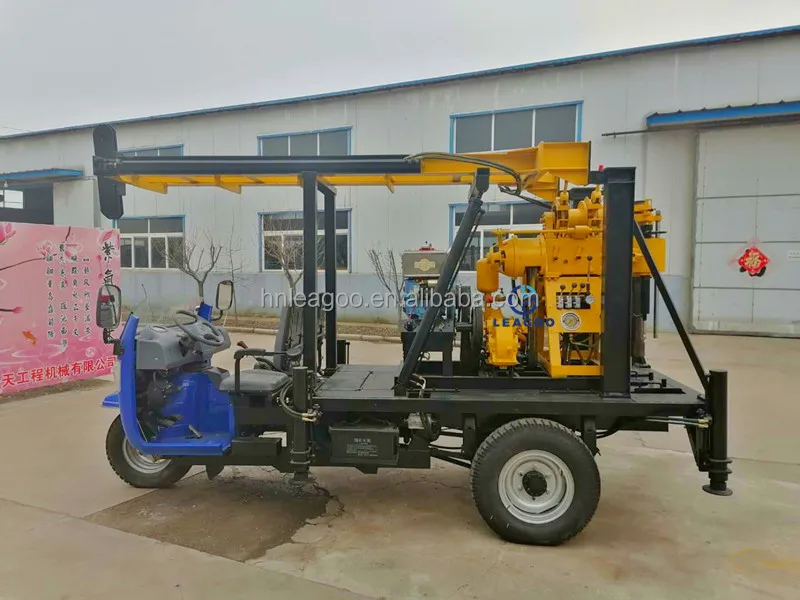

Machine at workshop

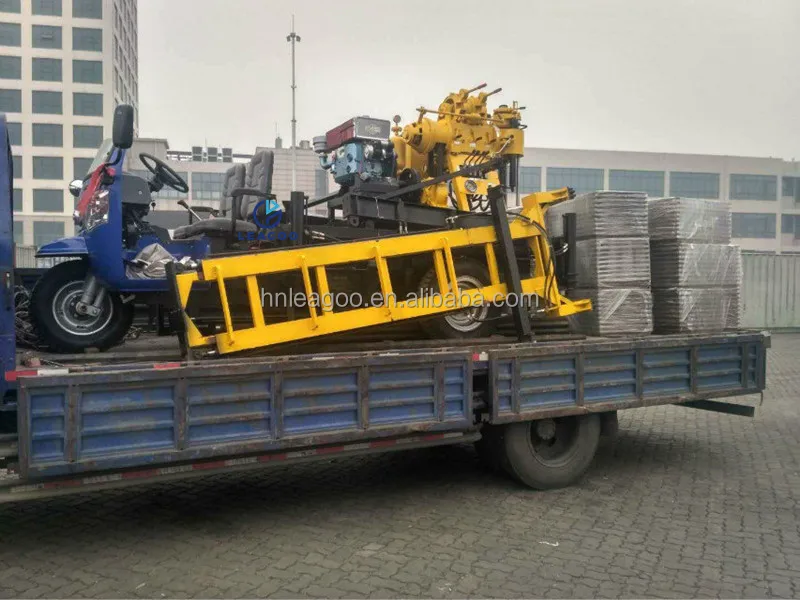

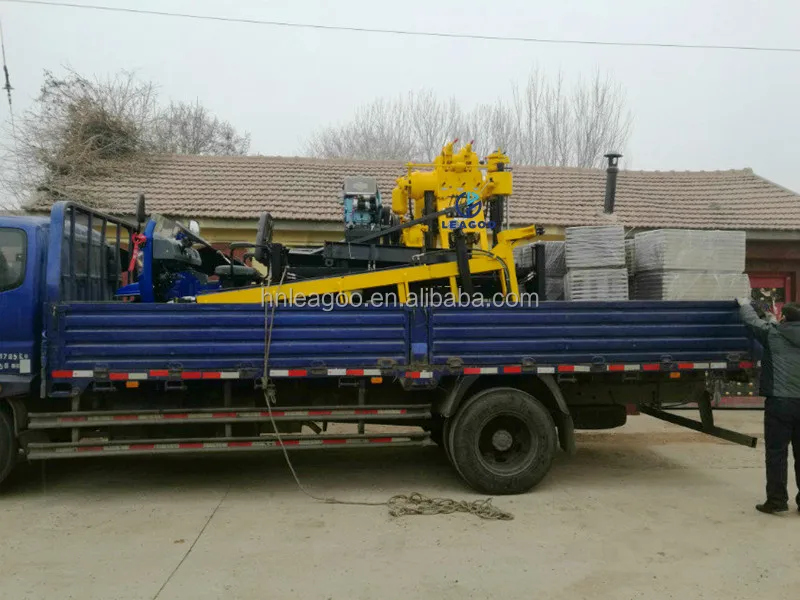

Delivery at Qingdao loading port
XY Series Drilling Rig at Working site
Our Services
1.Professional pre-sale and after-sale technical support
2.Provide spare parts at cost price all year around.
3.Online service 24 hours* 7 days.
4.One year guarantee for main machine.
5.Operation video and manual are available.
Contact Information
Sales Manager : Debbie Liu
Mobile /Whatsapp: +86-13213019085
Email: debbieliu888 @163.com
Offering 100m-2000m drilling rigs , borehole measuring instruments and solar pumps, please contact me for more details !
