2inch Digital Clamp type Cheap Cement Chemical Water electromagnetic Flowmeter China Battery powered Electromagnetic Flow meter
- Category: Testing Instrument & Equipment >>>
- Supplier: Kaifeng Hollysys International Trading Co. Ltd.
Share on (1600538783719):
Product Overview
Description
Product Description

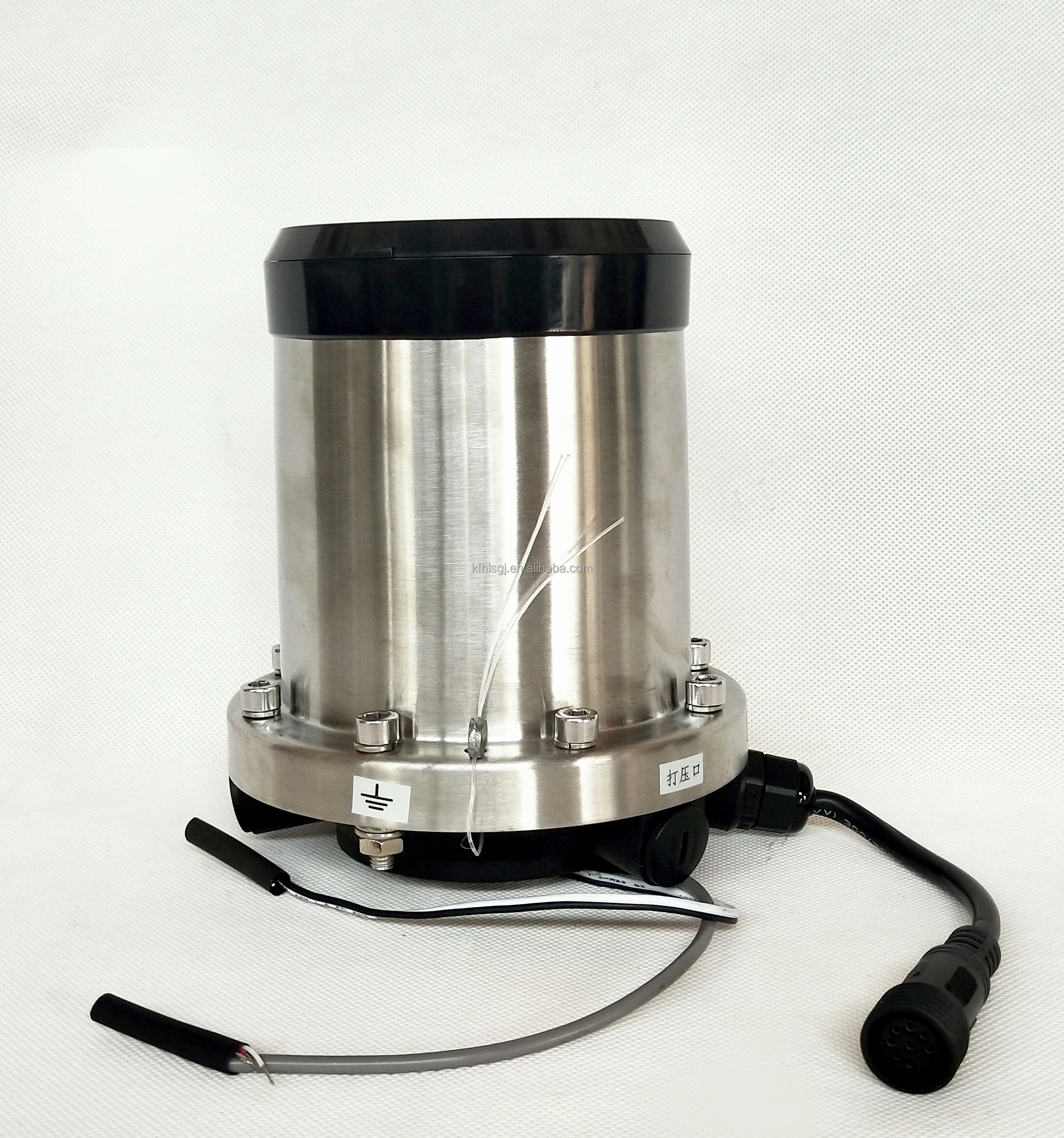

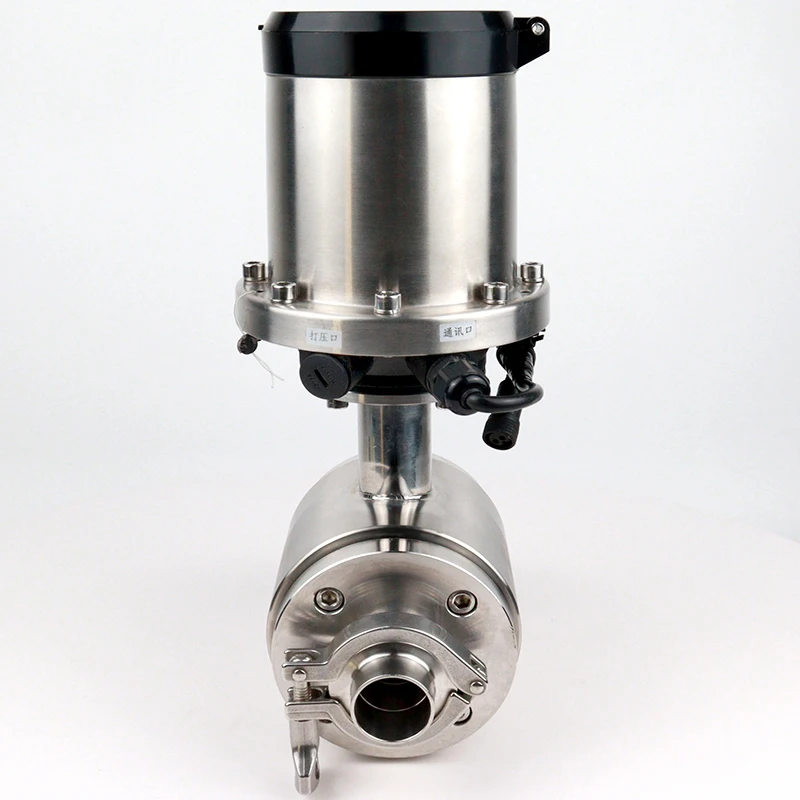

Digital clamp type cheap cement chemical water electromagnetic Flowmeter China Battery-powered Electromagnetic Flowmeter
Battery-powered magnetic flow meter can be used in remote area where don’t have power grid . It is widely used for all conductive liquids in every industry, such as water, acid, alkali,milk, slurry etc. |
Size | DN15-DN1000mm |
Nominal Pressure | 0.6-1.6Mpa(2.5Mpa/4.0Mpa/6.4Mpa...Max 42Mpa) |
Accuracy | +/-0.5%(Standard) +/-0.3% or +/-0.2%(Optional) |
Liner | PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA |
Electrode | SUS316L, Hastelloy B, Hastelloy C Titanium, Tantalum, Platinium-iridium |
Medium Temperature | -20~+60 ℃ |
Ambient Temperature | -20~+60℃ |
Humidity | 5-100%RH(relative humidity) |
Measuring Range | Max 15m/s |
Conductivity | >5us/cm |
Ingress protection | IP65(Standard); |
Connection | Flange (Standard), Wafer, Thread, Tri-clamp etc (Optional) |
Output Signal | 4~20mA/Pulse |
Communication | RS485(Standard), HART(Optional), |
Power Supply | AC220V (can be used for AC85-250V) DC24V (can be used for DC20-36V) DC12V (optional), Battery Powered 3.6V (optional) |
Power Consumption | <20W |
Alarm | Upper Limit Alarm / Lower Limit Alarm |
Self-diagnosis | Empty Pipe Alarm, Exciting Alarm |

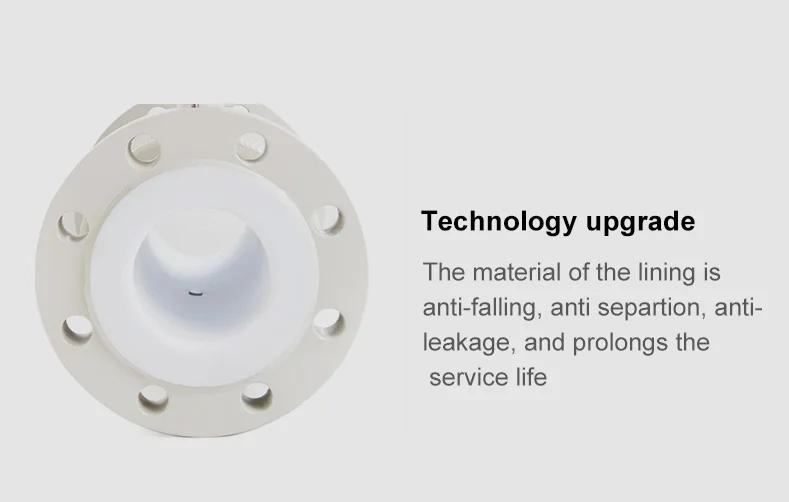

Product Details
Lining Material | Applications |
Neoprene | Water, sewage and slurry, mineral serosity of low abrasion |
PTFE | Strong corrosive mediums such as strong acid and alkali |
Polyurethane | Applicable in mineral serosity, slurry and coal slurry of high abrasion. |
PFA | Applicable in state of load pressure |
F46 | 1.The same as PTFE. 2. Applicable in mediums of low abrasion. |
Working principle

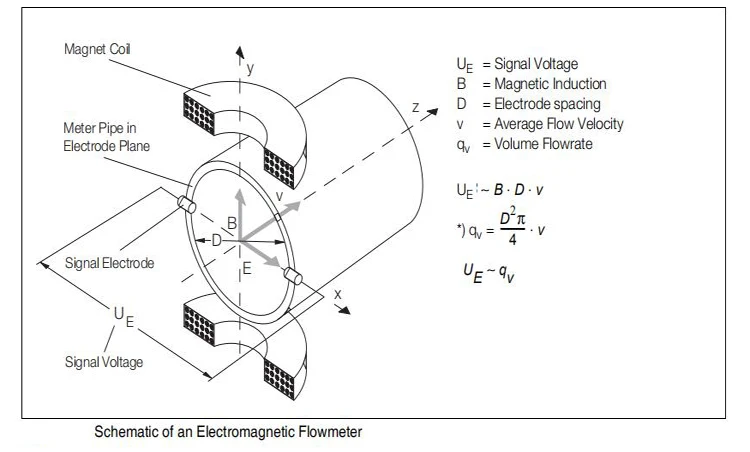

Faraday’s Laws of induction form the basis for the magnetic water flow meter which states that a voltage is generated in a conductor as it moves through a magnetic field. This principle is applied to a conductive fluid which flows through the meter tube perpendicular to the direction of the magnetic field (see Schematic).UE ~ B · D ·V The voltage induced in the fluid is measured by two electrodes located diametrically opposite to each other. This signal voltage UE is proportional to the magnetic induction B, the electrode spacing D and the average flow velocity v. Noting that the magnetic induction B and the electrode spacing D are constant values indicates that a proportionality exists between the signal voltage EU and the average flow velocity v. From the equation for calculating the volume flowrate* )UE ~ qv, it follows that the signal voltage is linear and proportional to the volumetric flowrate. |

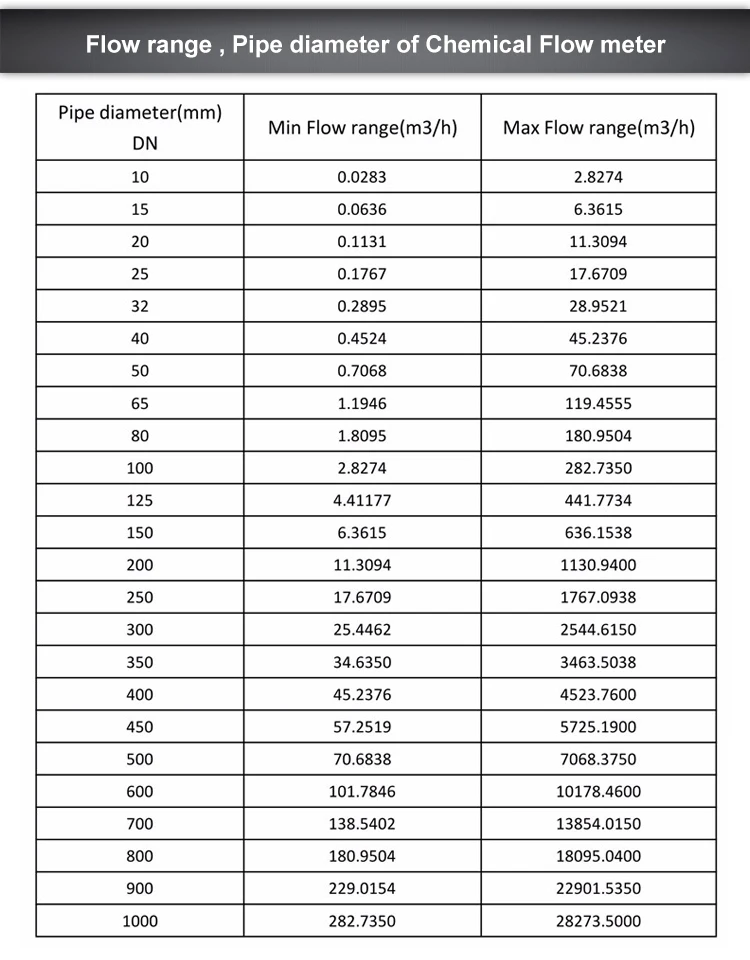

Flow range
Related Product
Packing & Delivery
Company Profile
FAQ
1. Q: Are you a manufacturer or a trading company? A: We are a leading manufacturer of various instruments. Welcome to visit our factory at any time. | ||||||||
2. Q:Could I get samples? A:Yes,we have materials in stock to help you to get the samples as soon as we can. | ||||||||
3. Q:How is the price? A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price. | ||||||||
4. Q:Can I have my own logo of the products? A:Of course.We provide OEM services.The products’ material,dimansions,color,etc. will according to your requirement. | ||||||||
5. Q: How about the Warranty time ? A:Our warranty time is 12 months after you get our goods . All lifelong technology service and support . | ||||||||
6. Q: Could I visit your factory? A: Of course, please contact us in advance, we would like to tour you arround our the factory and our city. | ||||||||
7. Q:How about the payment terms ? A:You can choose T/T, Western union , or you can choose by alibaba -credit insurance and so on. | ||||||||
