Factory Original 150Mbps/50Mbps Cat.4 EC20 Cellular Network Card 3G LTE 4G Dongle Suitable for M2M IoT Application
- Category: >>>
- Supplier: Shenzhen New Shining Technology Co. Ltd.
Share on (1600538805678):
Product Overview
Description

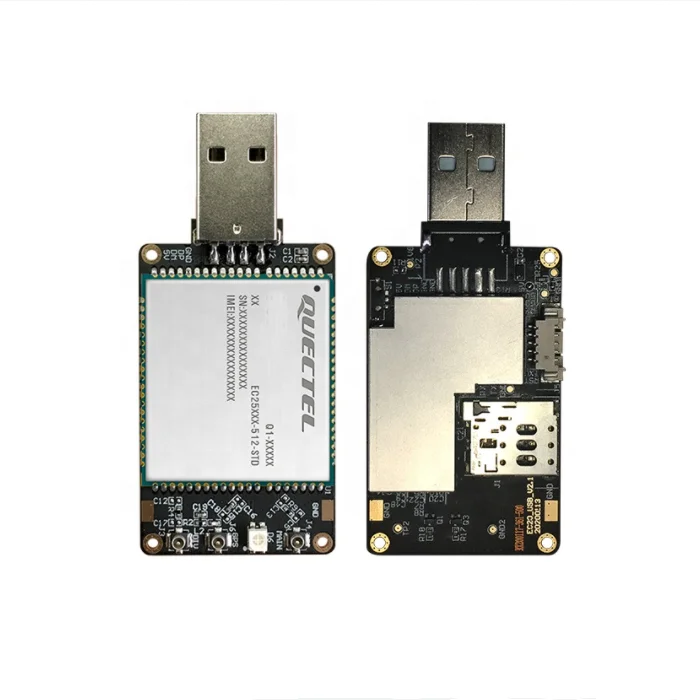

Product Description
EC20 R2.1 series is a new generation of LTE Cat 4 wireless communication module. Adopting the 3GPP Rel. 11 LTE technology, it delivers 150Mbps downlink and 50Mbps uplink data rates and is fallback compatible with Quectel UMTS/HSPA+ UC20 module in the compact and unified form factor, providing a flexible and scalable platform for migrating from UMTS/HSPA+ to LTE. EC20 contains four variants: EC20-A, EC20-C, EC20-CE and EC20-E. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.
EC20 supports multiple-input multiple-output (MIMO) technology, a cutting edge antenna technology capable of transmitting multiple data streams on multiple transmitters to multiple receivers. The antennas at each end of the communications circuit are combined to minimize errors and optimize data speed. The module also combines high-speed wireless connectivity with embedded multi-constellation high-sensitivity GPS+GLONASS receiver for positioning.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows XP, Windows Vista, Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as CPE, router, data card, rugged tablet, automobile, security and industry PDA.
Key Benefits
* Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
* Compact SMT form factor ideal for small end products with tight space and extended operating temperature range
* MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
* GNSS receiver available for applications requiring fast and accurate fixes in any environment
* Simple migration from 3G to 4G with a flexible and scalable platform
EC20 supports multiple-input multiple-output (MIMO) technology, a cutting edge antenna technology capable of transmitting multiple data streams on multiple transmitters to multiple receivers. The antennas at each end of the communications circuit are combined to minimize errors and optimize data speed. The module also combines high-speed wireless connectivity with embedded multi-constellation high-sensitivity GPS+GLONASS receiver for positioning.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows XP, Windows Vista, Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as CPE, router, data card, rugged tablet, automobile, security and industry PDA.
Key Benefits
* Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
* Compact SMT form factor ideal for small end products with tight space and extended operating temperature range
* MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
* GNSS receiver available for applications requiring fast and accurate fixes in any environment
* Simple migration from 3G to 4G with a flexible and scalable platform
Specification
Model Number | EC20 R2.1 |
Place of Origin | Guangdong |
Brand Name | Yuanyu |
Chipset | Quectel |
Application | M2M, IoT |
Product Name | 4G Dongle |

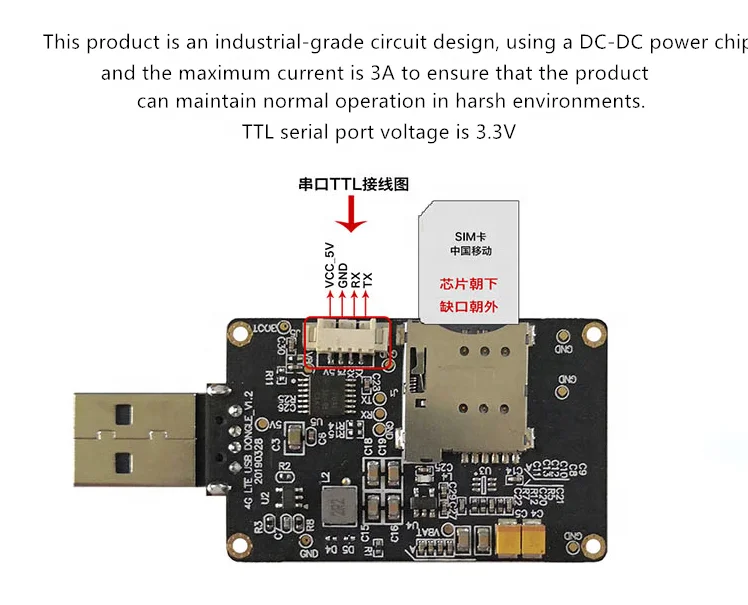

Interface | USB/4pin/TTL optional |
Transmission Rate | 150Mbps downlink/50Mbps uplink |
System Support | Windows, Linux, Android |
Antenna | 4G Main Antenna, 4G auxiliary Antenna, GPS Antenna |
GNSS | GPS/GLONASS/BeiDou/Galileo/QZSS |
SIM Card Slot | Nano SIM Card |
Power Consumption | 2W max. |
Packing & Delivery

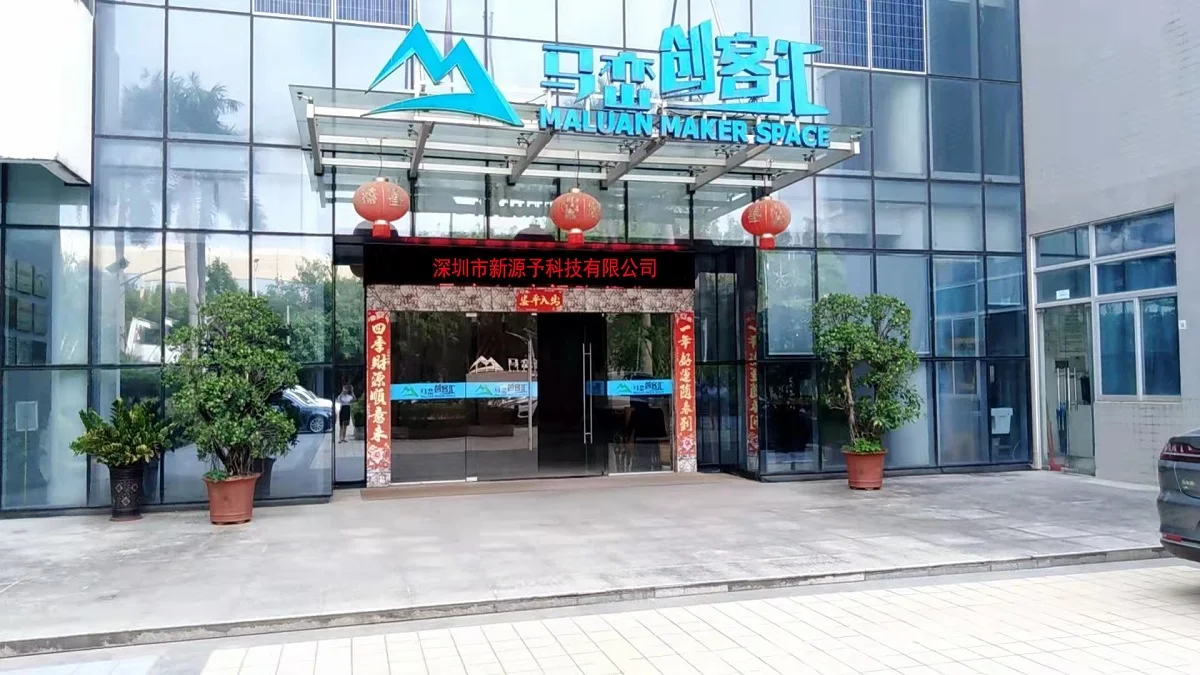

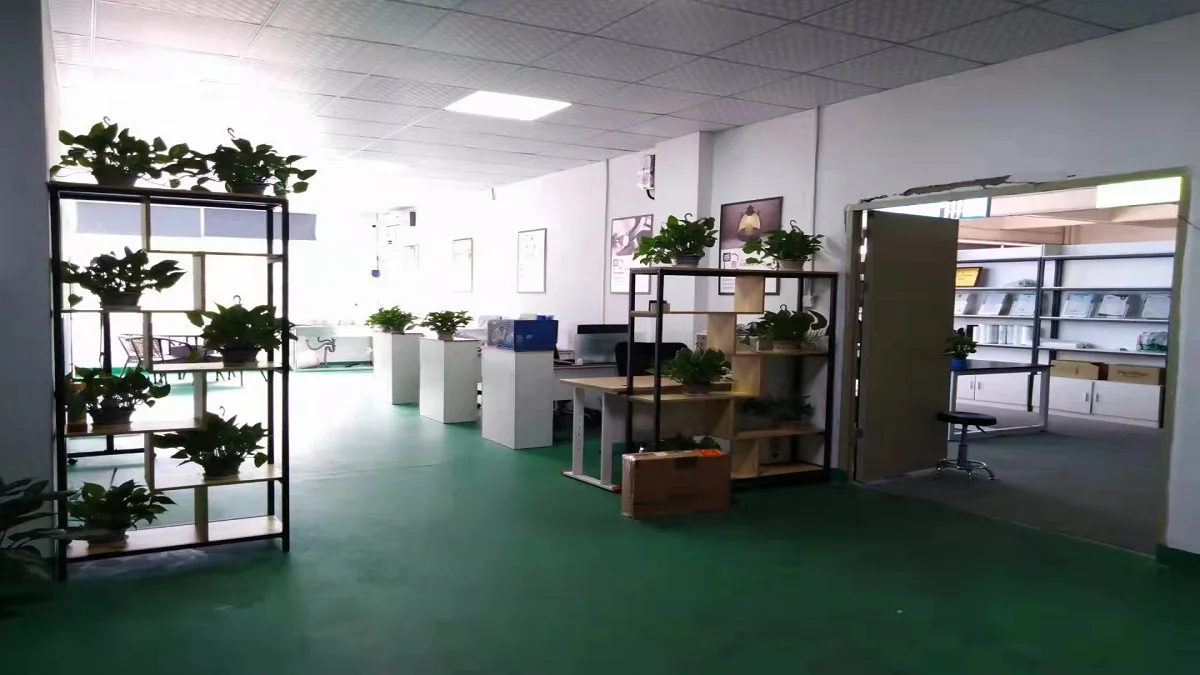

Company Profile
FAQ
1. who are we?
We are based in Guangdong, China, start from 2019,sell to Western Europe(30.00%),North America(30.00%),Eastern Europe(10.00%),Southern Europe(5.00%),Northern Europe(5.00%),South America(5.00%),Eastern Asia(5.00%),Mid East(5.00%),Southeast Asia(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
RF amplifier,LoRa Gateway&Sensors,RF Antennas,SAW Filters,Crypto Miner Accessories
4. why should you buy from us not from other suppliers?
We are a professional RF related products manufacturer and solution provider in Shenzhen, which is the Silicon Valley of China. Our main products includes LoRa gateway&Sensors, RF amplifier, bias tee, SAW filter, and high gain RF antenna ,etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2019,sell to Western Europe(30.00%),North America(30.00%),Eastern Europe(10.00%),Southern Europe(5.00%),Northern Europe(5.00%),South America(5.00%),Eastern Asia(5.00%),Mid East(5.00%),Southeast Asia(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
RF amplifier,LoRa Gateway&Sensors,RF Antennas,SAW Filters,Crypto Miner Accessories
4. why should you buy from us not from other suppliers?
We are a professional RF related products manufacturer and solution provider in Shenzhen, which is the Silicon Valley of China. Our main products includes LoRa gateway&Sensors, RF amplifier, bias tee, SAW filter, and high gain RF antenna ,etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal;
Language Spoken:English,Chinese
