100m Air Compressor DTH Hammer Water Well Drilling Rig
- Category: >>>
- Supplier: Henan Leagoo Electro-Mechanical Co. Ltd.
Share on (1600538844108):
Product Overview
Description
Product Description

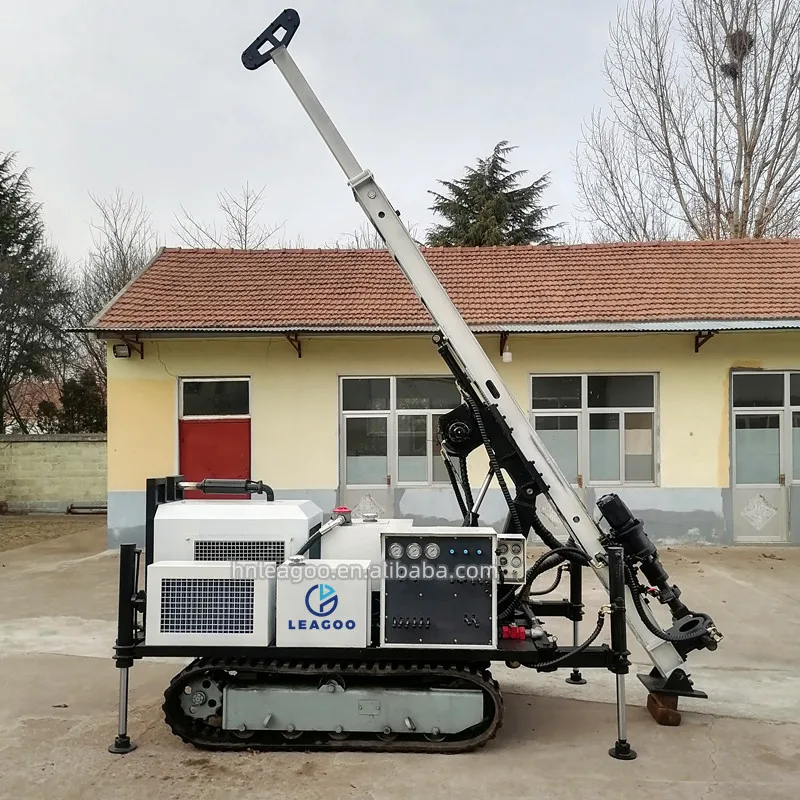

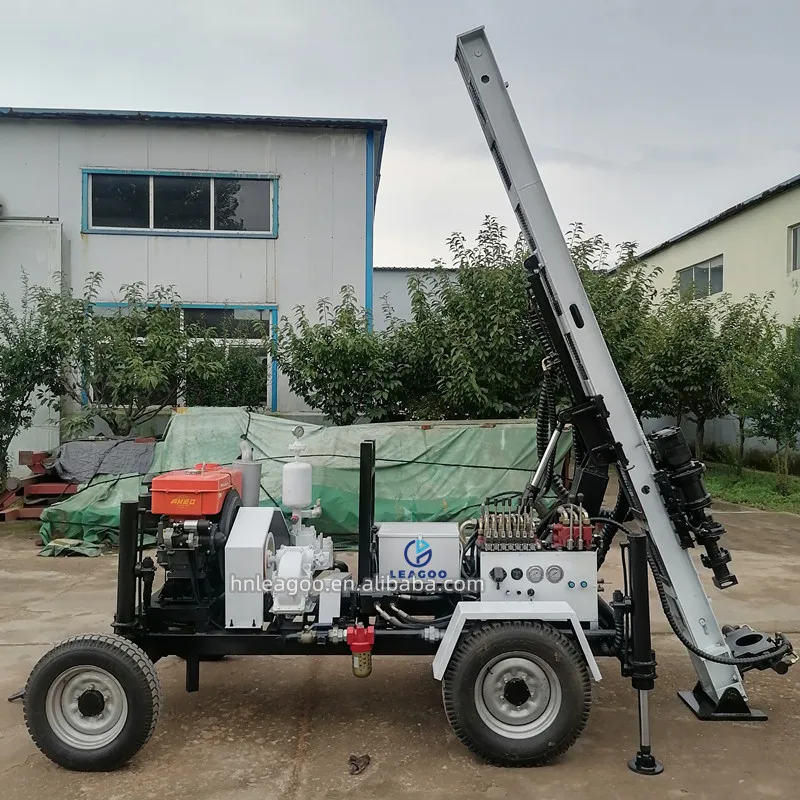

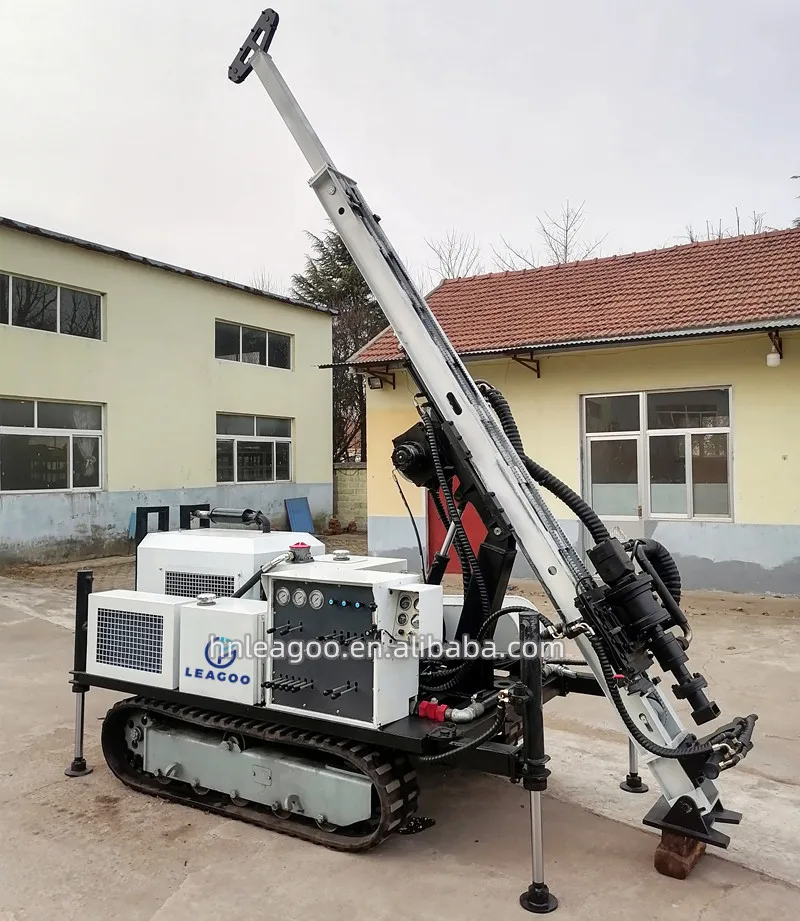

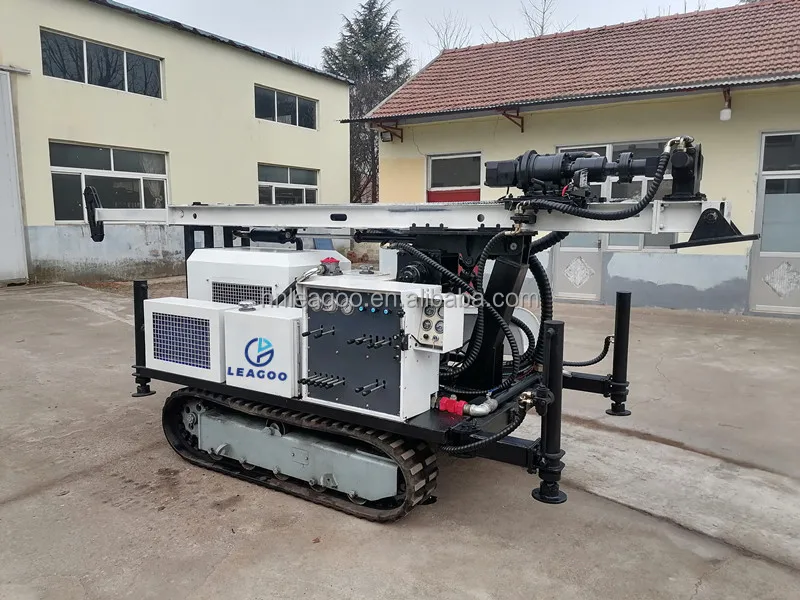

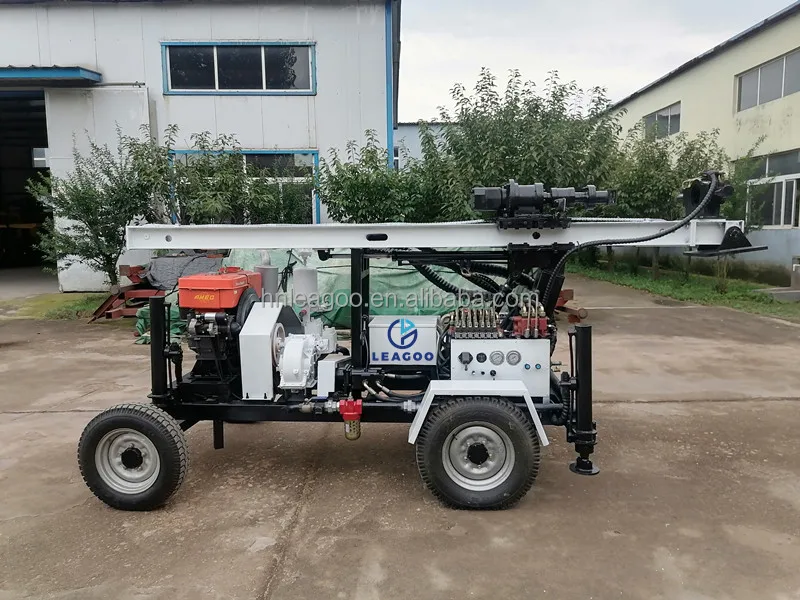

100m Air Compressor DTH Hammer Water Well Drilling Rig
LG series air compressor drilling rig is a kind of light weight, high efficiency and multi-function drilling equipment, it is suitable for drilling water wells, agricultural irrigation well, geothermal air-conditioning hole and other uses, especially for water engineering in mountainous and rock areas. LG series drilling rig solves the problems to drill hard rocks, gravel, pebble stratum,which can work efficiently under all kinds of geological structure.
Technical Parameter
100m Air Compressor DTH Hammer Water Well Drilling Rig
Item | Parameter |
Drilling caliber | 100m |
Max. drilling depth | 105-150mm |
Diameter of drill pipe | Φ60 Φ76 |
Gas consumption | 15-18 m³/min |
DTH Hammer | DHD340/DHD350 |
Power | 35HP/2200rpm |
Ground clearance | 210mm |
System pressure | 20Mpa |
Walking speed | 0-20 Km/h |
Leg cylinder stroke | 600 mm |
Propulsion | 3.0 ton |
Lifting force | 5.0 ton |
Speed of spindle | 65-120rpm |
Rotary torque | 1350N.m |
Weight | 1900 Kg |
Dimension | 3000×1550×2000mm |
Factory site
Our Services
1.Professional pre-sale and after-sale technical support
2.Provide spare parts at cost price all year around.
3.Online service 24 hours* 7 days
4.One year guarantee for main machine
5.Operation video and manual are available.
Contact Information
Sales Manager : Debbie Liu
Mobile /Whatsapp: +86-13213019085
Email: info(at)hnleagoo.com
Offering 100m-2000m drilling rigs , borehole measuring instruments and solar pumps, please contact me for more details !
