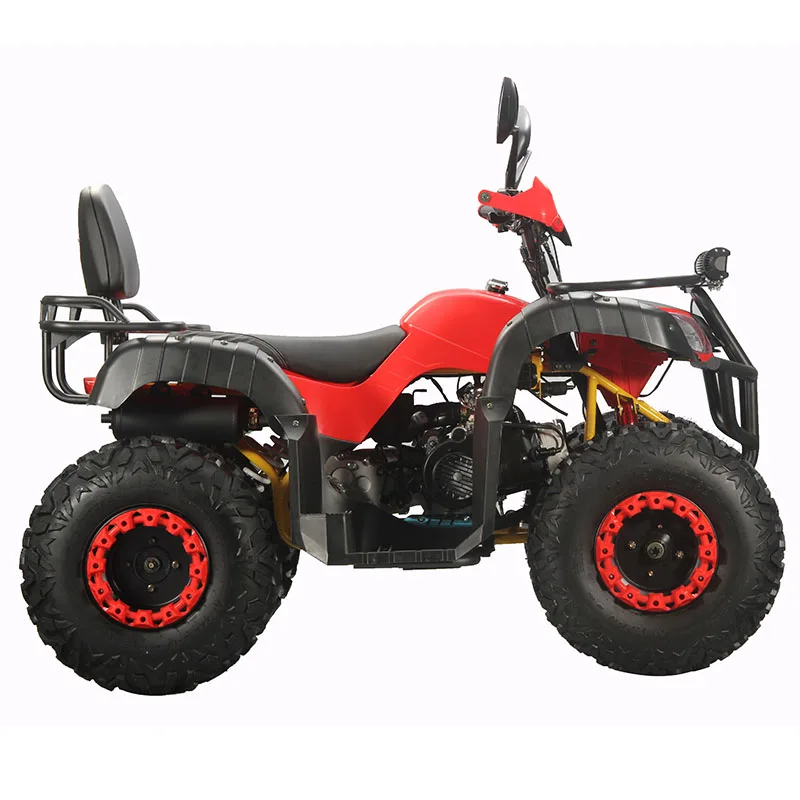

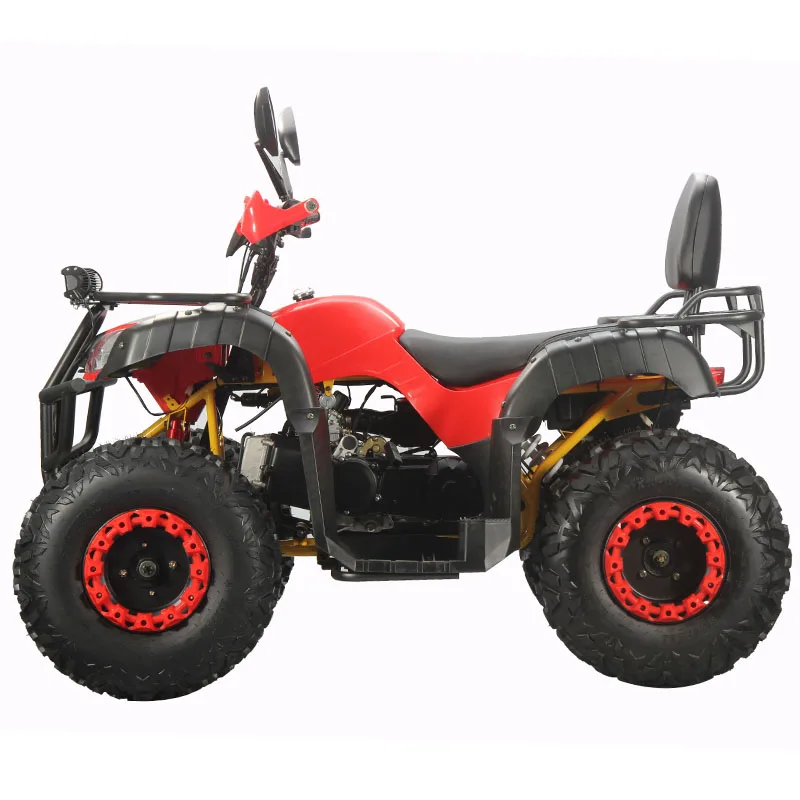

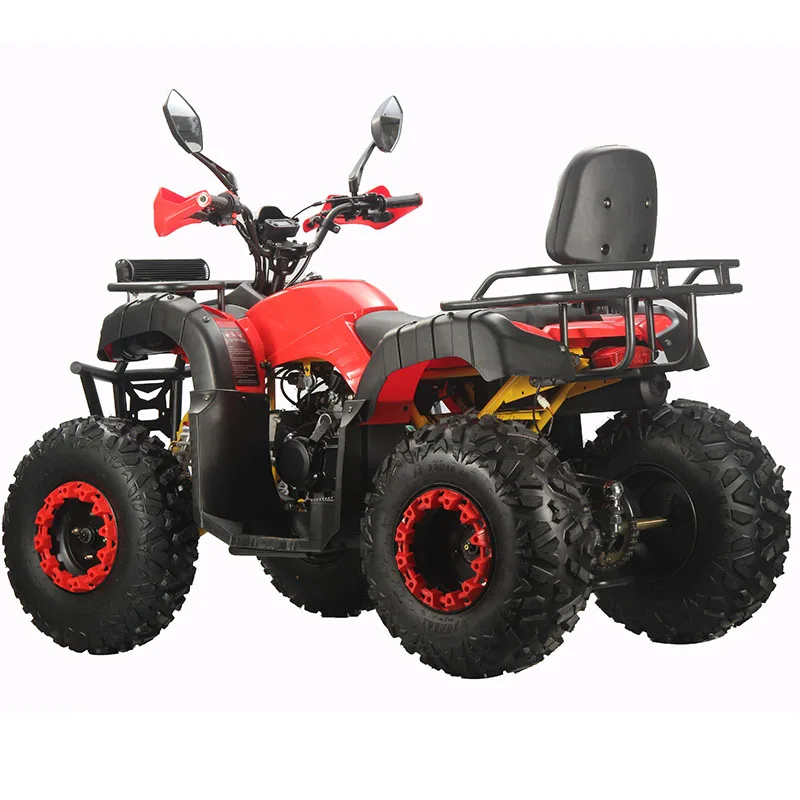

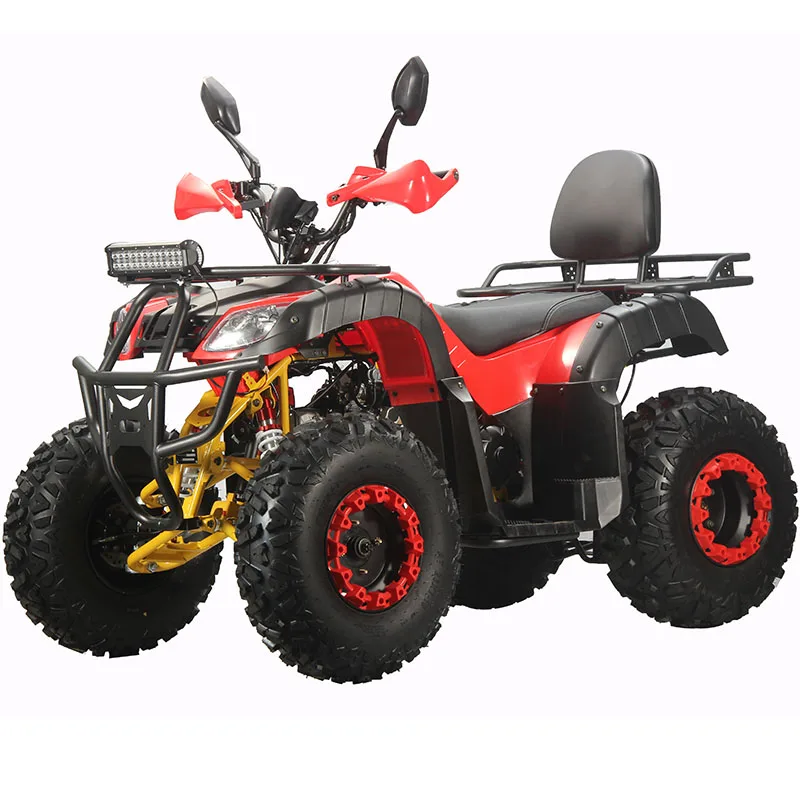

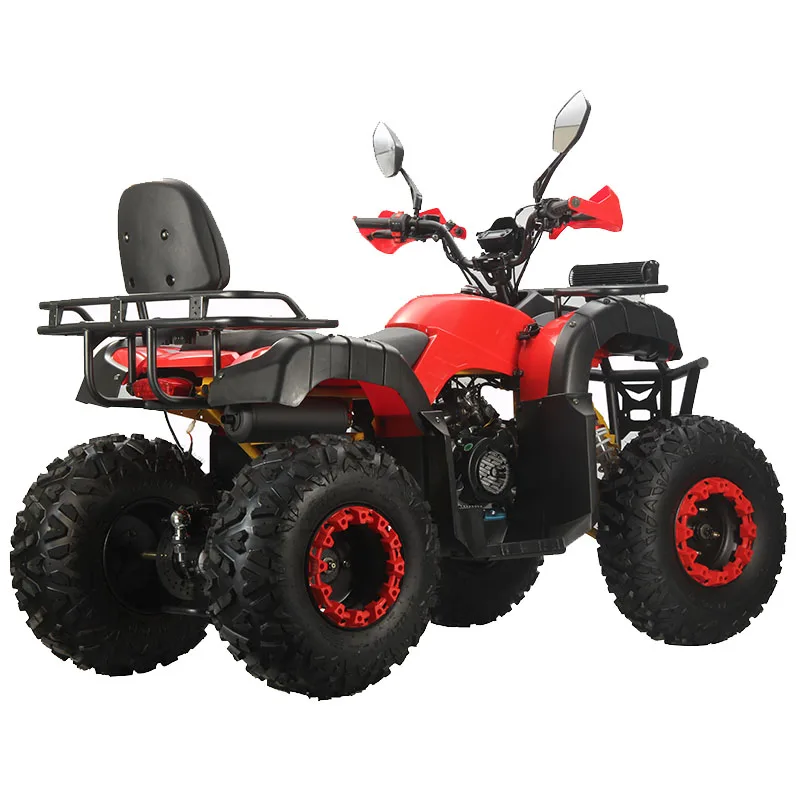

ATV QUADS CG150 200CC 250CC CVT

Product Overview

Description

MODEL	FM150
SIZE INRORMATIONS

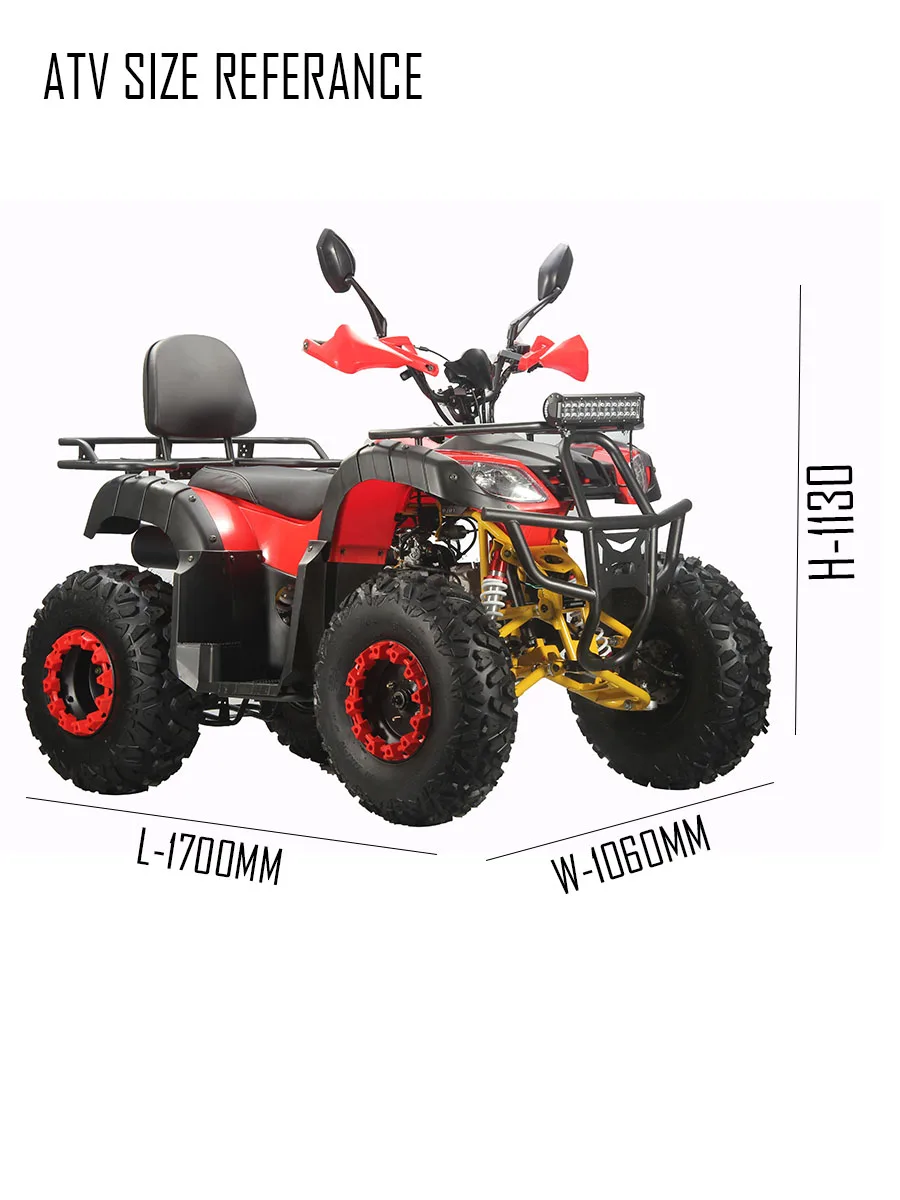

LXWXH	1700×1060×1130 mm
FRONT TRACK	860 mm
REAR TRACK	780 mm
WHEELBASE	1150±20mm
SEAT HIGHT	800 ±15mm
GROUND CLEARANCE	155±15mm
MINI TURNING RADIUS	3400±500mm
NET WEIGHT	147kgs
MAX LOADING	100kg
FRONT SHOCK SUSPENTION	L=  350 mm
REAR SHOCK SUSPENTION	L=  350 mm
FUEL TANK	6.5L
Max Speed	≥60km/h
Battery	12V/9AH
ENGINE
DISPLACEMENT	149.6ml
ENGINE TYPE	4 stroke air cool
BORExSTROKE	57.4MM*57.8MM
MAX POWER/RPM	6.0kW/7500r/min
MAX TORQUE/RPM	8.6N·m/6000r/min
COMPRESSION RATIO	10.3:1
WHEEL SUSPENTION BRAKE
CABURATOR	PD24J
IGNITION	C.D.I
START	electric/pull
GEAR BOX	CVT
DRIVE	CHAIN
BRAKE	FRONT AND REAR DISC
SWIM ARM	FRONT DOUBLE A-ARM
SHOCK SUSPENTION	hydralic oil damp suspention
WHEEL	10INCH
TYRE	F23*7-10/R22*10-10/TUBELESS
carton Packing size	146x84x85CM
Quanity/40HQ	66PCS/40'HQ
