300V 14/2 14/3 12/3 NMD90 Building/Electric Wire Roll Factory Price for Canada 150m or 75m PVC Copper Insulated CUL Listed Cable
- Category: >>>
- Supplier: Hebei Huatong Wires And Cables Group Co. Ltd.
Share on (1600539022638):
Product Overview
Description
Product Description
APPLICATIONS
NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locations.
The maximum allowable conductor temperature is 90°C. The minimum recommended installation temperature is -25°C
for two-conductor cables and -10°C for three-conductor cables (with suitable handling procedures). Material should be
properly stored above 0°C for 24 hours prior to installation.
The maximum voltage rating for all intended applications is 300 volts. Consult the Canadian Electrical Code1 for further
information related to applications.
CODES / STANDARDS
NMD90 cables meet or exceed the
following requirements:
CONSTRUCTION
ASTM
CSA C22.2 No. 48 (non-metallic sheathed cable)
Canadian Electrical Code1

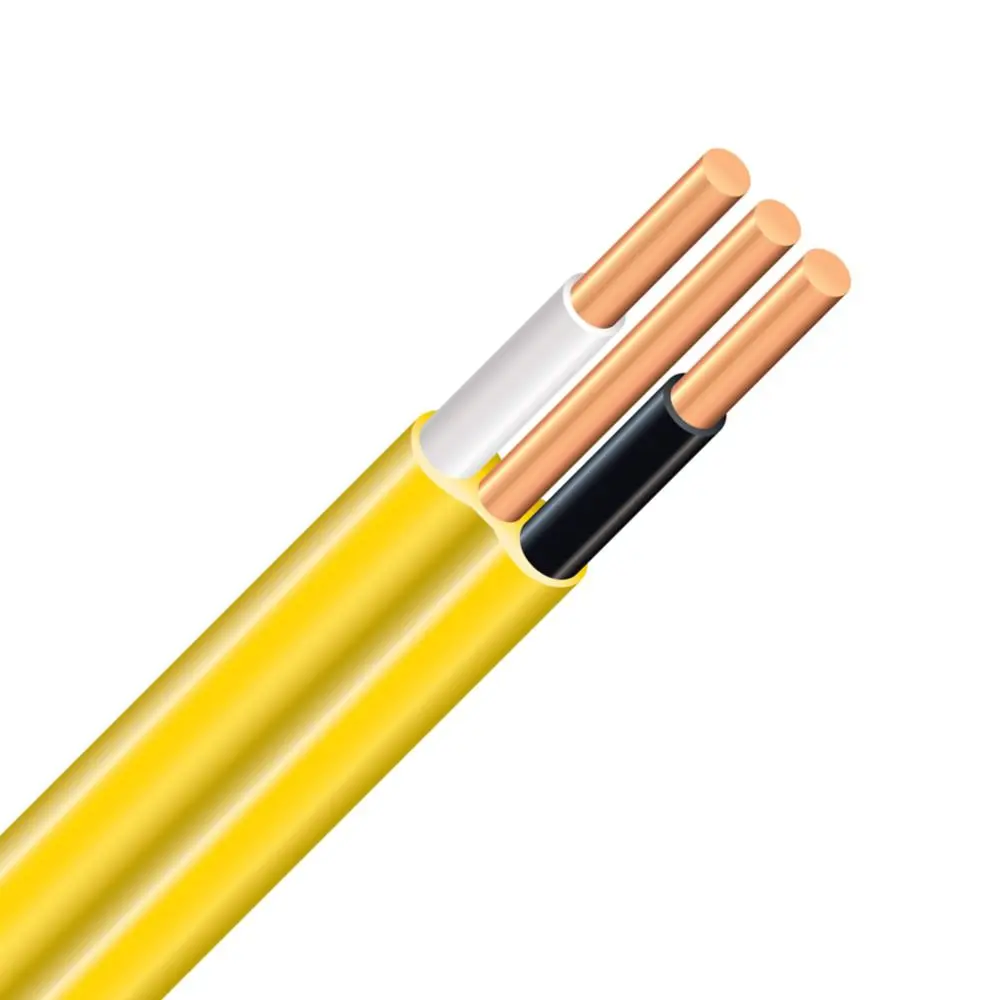

NMD90 cables are available as two- or three-conductor cables with a bare grounding conductor. It is
manufactured using annealed (soft) copper conductors—compressed standing for stranded conductors; a
heat-resistant thermoplastic polyvinyl chloride (PVC) insulation and nylon jacket for the individual conductors
with a PVC jacket for the overall construction.
Conductors are white, black and red (for 3 conductor cables). Cable jackets are colour coded by size for quick
identification in the Table below
JACKET COLOUR CODE - Typical Application Guide
•WHITE - General Residential Wiring
•RED - 2 Black and Red conductors - 208V-240V Circuits (no neutral)
•ORANGE - No. 10 AWG General Residential Wiring
•YELLOW - No. 12 AWG General Residential Wiring
•BLUE - No. 14 AWG - 2 black and white conductors - 120V Arc Fault Circuit Interupter Applications
specification.
| Size (AWG) | Number of Strands | Ground Wire Size | Insulation Thickness (in) | Allowable Ampacity (Amps)* | Outside Diameter (in) | Approximate Net Weight (lbs/1000 ft) | |
| PVC | Nylon | ||||||
| 14/2 G | Solid | 14 | 0.015 | 0.004 | 15 | 0.170 x 0.390 | 56 |
| 12/2 G | Solid | 12 | 0.015 | 0.004 | 20 | 0.160 x 0.450 | 82 |
| 10/2 G | Solid | 10 | 0.020 | 0.004 | 30 | 0.210 x 0.493 | 123 |
| 8/2 G | 7 | 10 | 0.030 | 0.005 | 40 | 0.290 x 0.580 | 185 |
| 6/2 G | 7 | 10 | 0.030 | 0.005 | 55 | 0.330 x 0.695 | 256 |
| 14/3 G | Solid | 14 | 0.015 | 0.004 | 15 | 0.170 x 0.450 | 74 |
| 12/3 G | Solid | 12 | 0.015 | 0.004 | 20 | 0.345 | 107 |
| 10/3 G | Solid | 10 | 0.020 | 0.004 | 30 | 0.430 | 165 |
| 8/3 G | 7 | 10 | 0.030 | 0.005 | 40 | 0.555 | 251 |
| 6/3 G | 7 | 10 | 0.030 | 0.005 | 55 | 0.612 | 352 |
| 4/3 G | 7 | 8 | 0.040 | 0.006 | 70 | 0.820 | 565 |
| 2/3 G | 7 | 8 | 0.040 | 0.006 | 95 | 0.945 | 841 |
| **14/4 G & 14/2-2 G | Solid | 14 | 0.015 | 0.004 | 12 | 0.345 | 90 |
| **12/4 G & 12/2-2 G | Solid | 12 | 0.015 | 0.004 | 16 | 0.385 | 132 |
| **10/4 G | Solid | 10 | 0.020 | 0.004 | 30 | 0.540 | 205 |
Details Show

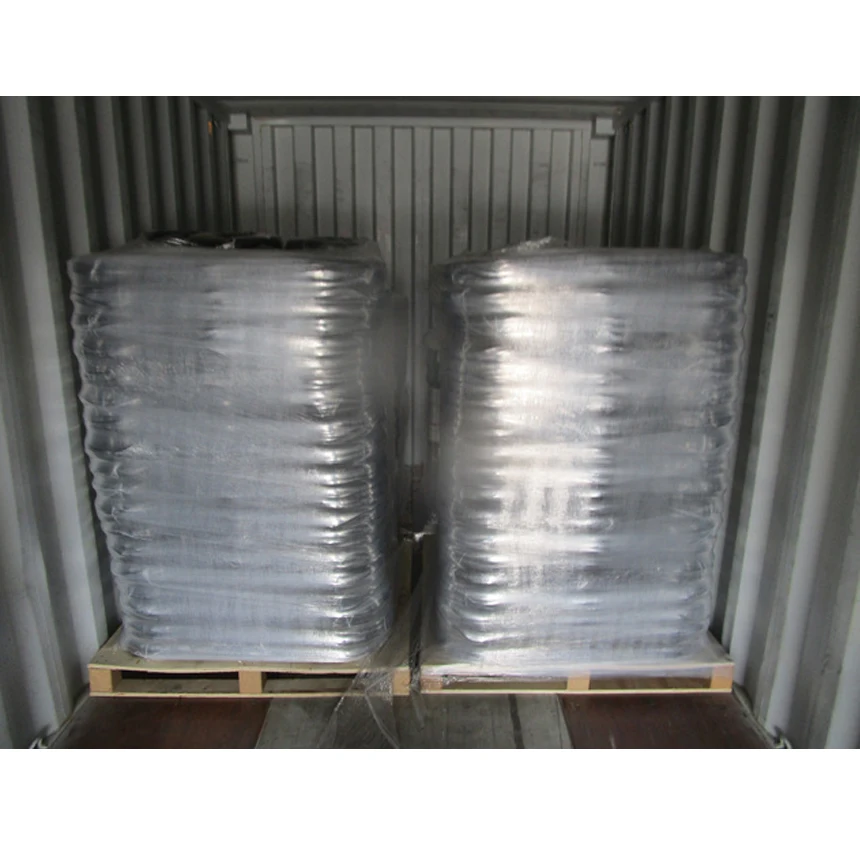

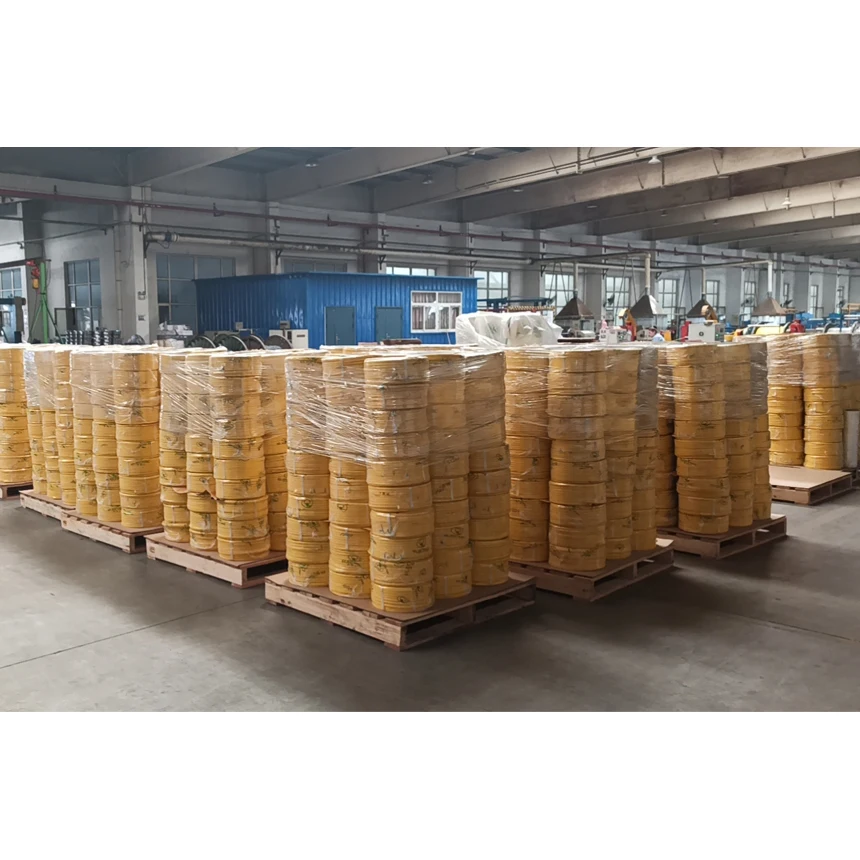

Packaging & Shipping
Certificate
We are one of China top rank cable&wire manufacturer.
Our products meet standards of GB, IEC DIN ASTM, JIS,NF, AS/NZS UL GOST and so on.
we have obtained ISO9001,ISO14001,OHSAS18001,
UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.
Company Information
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
FAQ
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7
days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
