environmental car machine Customized size auto spray paint booths car baking oven for sale
- Category: >>>
- Supplier: Guangzhou Hechuang Coating Equipment Manufacturing Co. Ltd.
Share on (1600539037870):
Product Overview
Description
Product Paramenters

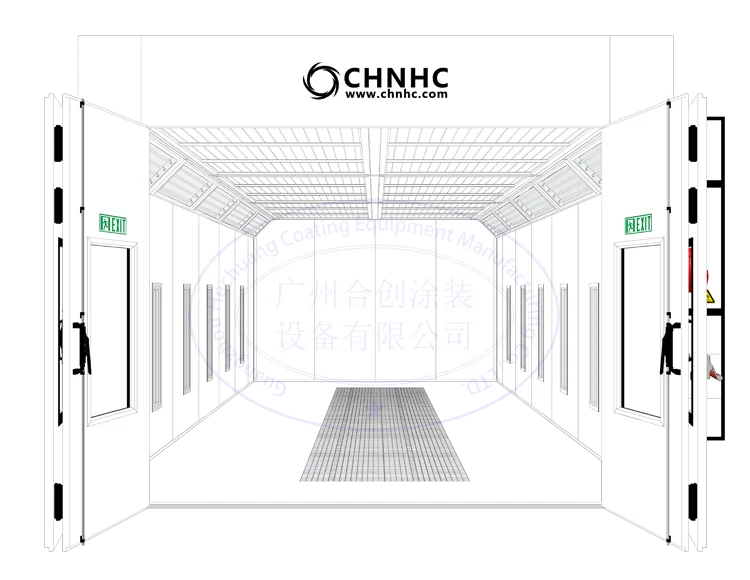

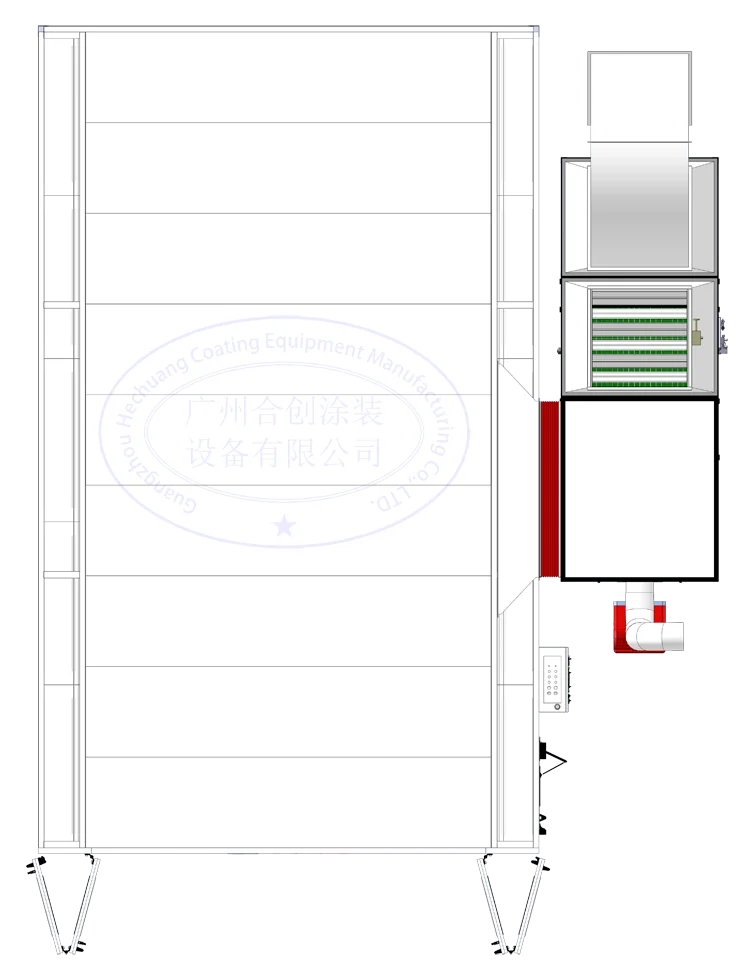

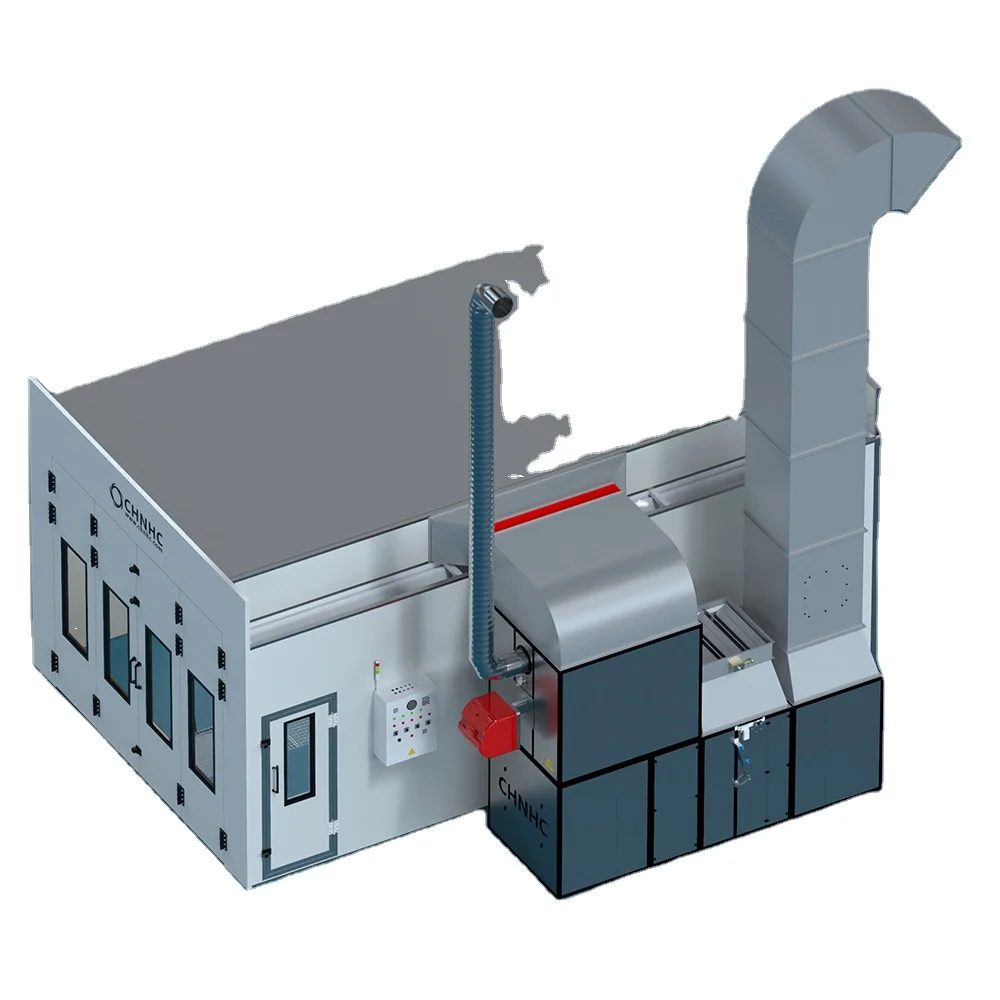

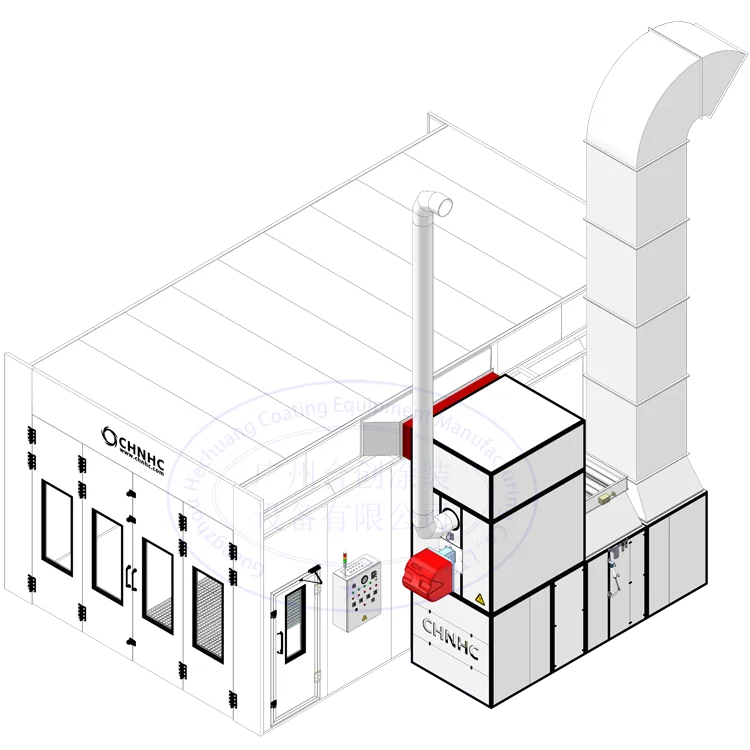

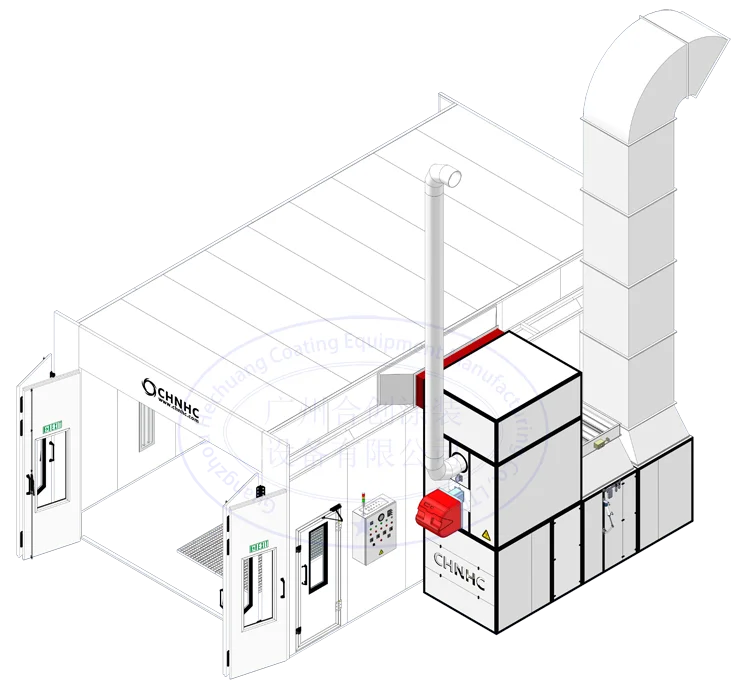

Full downdraught spray booth E608 | ||||
Size (L x W x H) | Inside Size | 7500 x 4500 x 3000mm | ||
Outside Size | 7600 x 6300 x 3660mm | |||
Foundation and Floor | Foundation | No metal foundation, dig pit type of subsidence, two rows of grids | ||
Wall and Door | Wall Board | Adopt high quality double construction inflaming retarding EPS panel, thickness: 50mm (rock wool panel as option) | ||
Roof Panel | Adopt high quality double construction inflaming retarding EPS panel, thickness: 50mm (rock wool panel as option) | |||
Entrance Door | Door with steel frame, 1 set, size: 3600 x 2900mm (W x H), tempering glass observation window (exit door as option) | |||
Personnel Door | 1 set, size: 800 x 2000mm (W x H),tempering glass observation window， | |||
Hanging system | Option | |||
Light System | Ceiling Lighting | 10 units, each 4 x 16w, adopt LED energy saving light, tempering glass | ||
Side Lighting | 10 units, each 2 x 16w, adopt LED energy saving light, tempering glass | |||
Brightness | ≥1000 LUX | |||
Filtration System | Pre-filters | EU3 grade pocket filter, filter effect is much better | ||
Ceiling Filters | Adopt high efficient adhesive filter, which can capture the dust who is more than 4μm, its filtering rate reaches 98% | |||
Bottom filter | Fibreglass paint-stop filter | |||
Exhaust Filters | Fibreglass paint-stop filter and active carbon filter | |||
Ventilation System | Inlet Fan | Adopt big impeller turbo fan 1 x 7.5KW , Three-phase, 6 pole motor, 380V, 970RPM, 50HZ (Siemens motor as option, big impeller turbo fan 11KW as option) | ||
Outlet Fan | Adopt big impeller turbo fan 1 x 7.5KW , Three-phase, 6 pole motor, 380V, 970RPM, 50HZ (Siemens motor as option, big impeller turbo fan 11KW as option) | |||
Total Fan Capacity | 25,000m³/h | |||
Air Flow Speed in Cabin | 0.2-0.3m/s in loaded booth (Option: big impeller turbo fan 11KW air flow 0.26－0.35 m/s in loaded booth) | |||
Painting and Baking Exchange System | Solenoid valve+ pressure adjustment control cylinder driven damper exchange | |||
Air flow adjust | Electric air damper to adjust to pressure of booth | |||
Manometer | Yes, to indicate the pressure of booth | |||
Duct | Straight pipe: 4.9 meters, bending pipe: 3 units, reducing pipe: 3 units, soft connection: 1 unit, flange connection (air inlet pipe as option) | |||
Flue | Galvanized pipe: 4 meters, bending pipe: 2 units (stainless steel pipe as option) | |||
Heating System | Heating Exchanger | Adopt high efficient heat-resistant (SUS304) stainless steel as cycling heat exchanger | ||
Burner Model | Adopt 1 set RIELLO diesel burner G20, each heating capacity 180.000kcal/h (gas burner or infrared light heater as option) | |||
Heating Time | 6－8 minutes (from 20 to 60ºС) under baking status, max baking temperature is 80°C | |||
Control Box | Control System | Standard control system | ||
More options | PLC control, touch screen control, inverter control | |||
Function | Painting, warm painting, baking, lighting, emergency stop switch, baking time setting, temperature setting, over-temperature alarm indication, baking delay stop protection, temperature limiter , burner error alarm, motor error alarm | |||
Total Power | 16KW | |||
Option voltage | Three-phase 208/220/240/380/400/415/440/480V, 50/60Hz | |||
whatsapp/wechat: 008615302470492
call me directly Ada
Company Profile
FAQ
Q1. How do you control your quality?
A. Our factory is ISO/ CE certified. We have our own QA and QC team. Before shipment, we will 100% check quality.
Q2: How is the Lead time?
Q2: How is the Lead time?
A:For stock or regular products, our lead time is 7 to 10 days. For custom-made products, our lead time is 15 to 20 days.
Q3: What is the regular color? May I order a special color I like?
A: The regular color is Blue, White, Red. Also we can do customize one for you.
Q4: Can you supply OEM service?
A: Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.
Q5: What is the warranty time?
A: Warranty time is 12 months. Parts have free replacement when damaged during this time.
