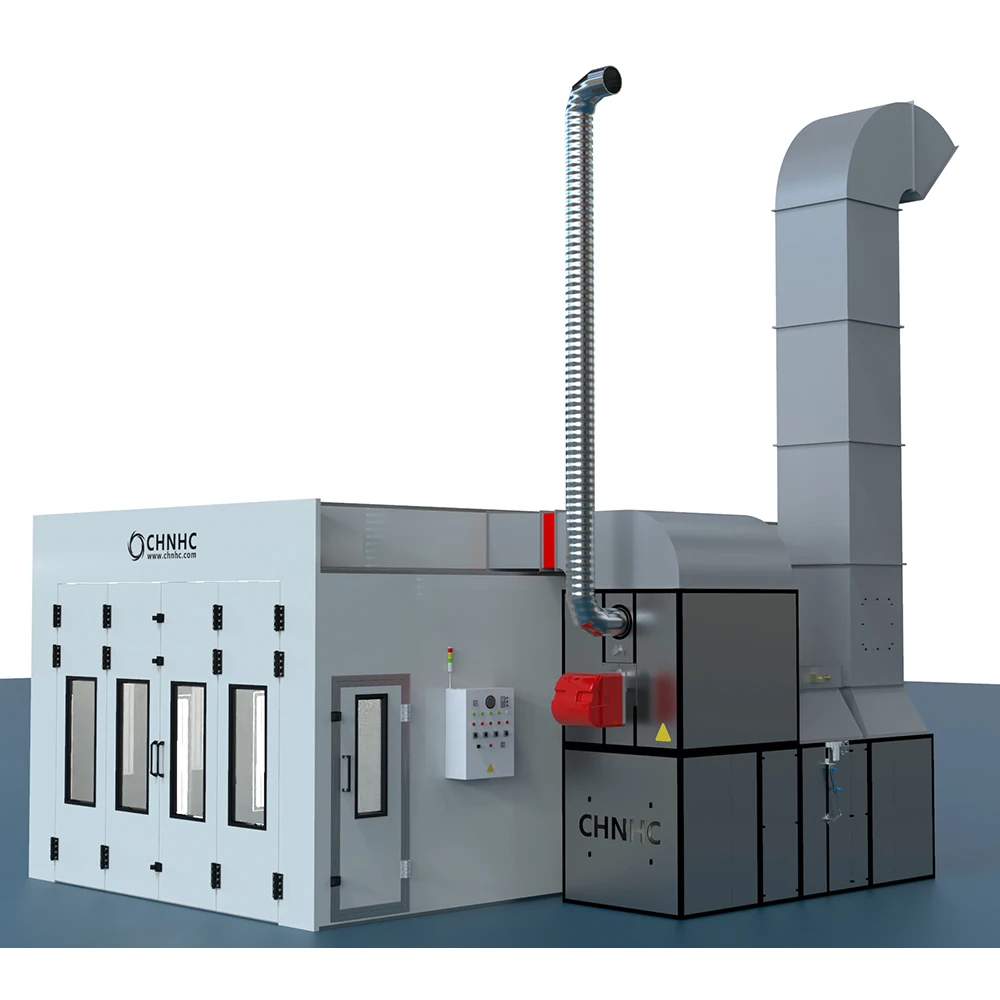

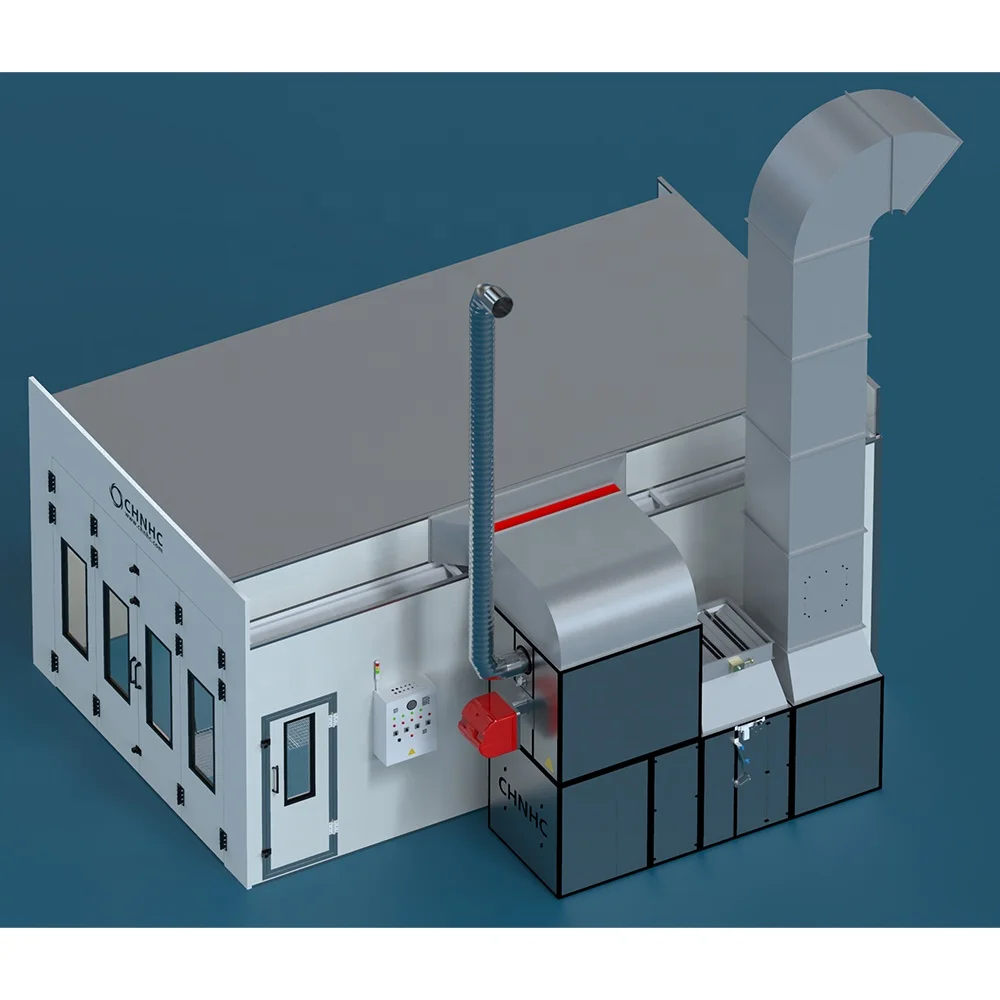

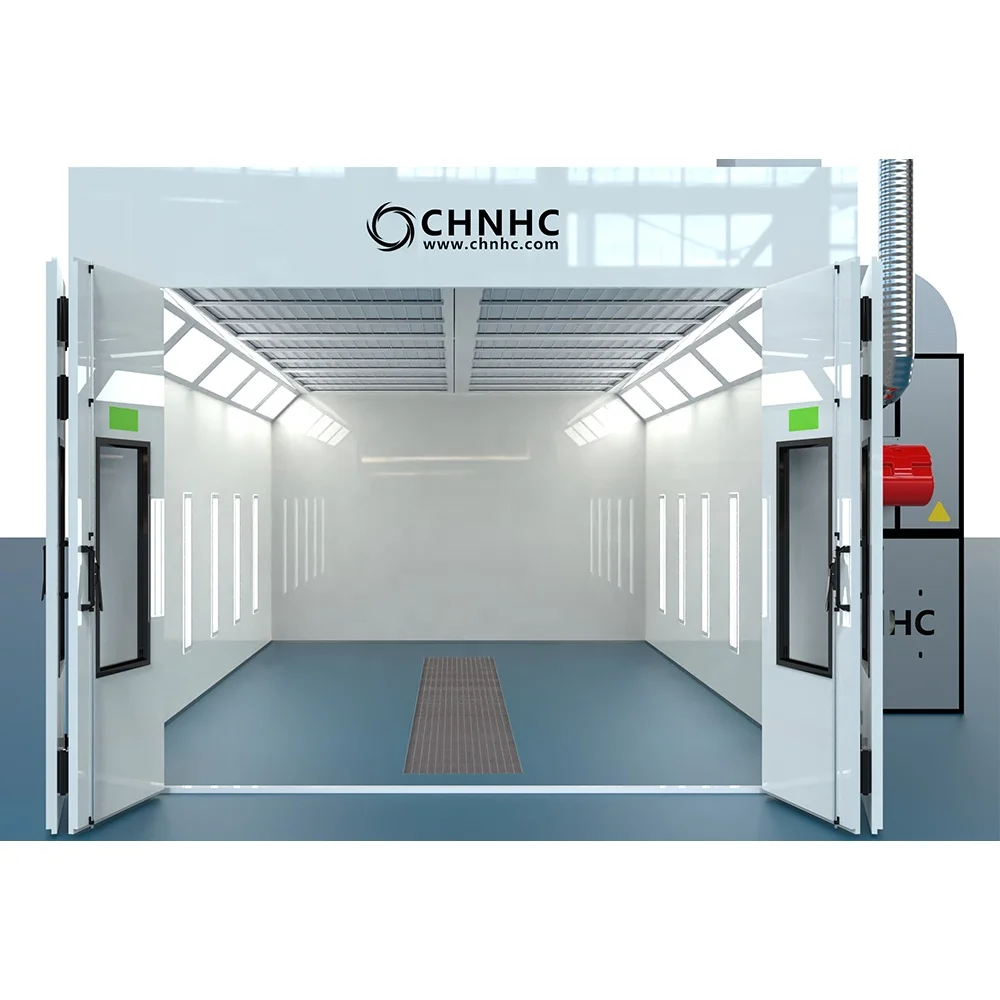

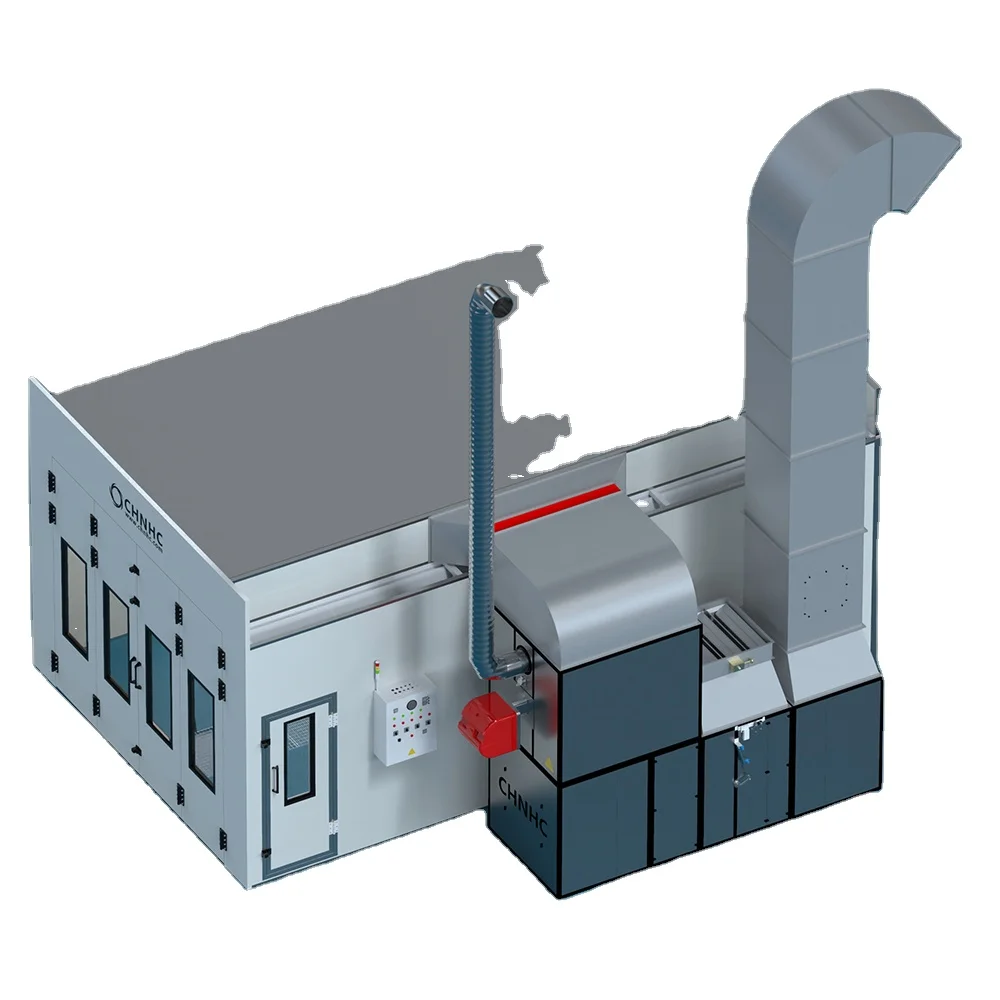

Full downdraught spray booth E608
Size
(L x W x H)
Inside Size
7500 x 4500 x 3000mm

Outside Size
7600 x 6300 x 3660mm
Foundation and Floor
Foundation
No metal foundation, dig pit type of subsidence, two rows of grids




Wall
and Door
Wall Board
Adopt high quality double construction inflaming retarding EPS panel, thickness: 50mm (rock wool panel as option)

Roof Panel
Adopt high quality double construction inflaming retarding EPS panel, thickness: 50mm (rock wool panel as option)

Entrance Door
Door with steel frame, 1 set, size: 3600 x 2900mm (W x H), tempering glass observation window
(exit door as option)

Personnel Door
1 set, size: 800 x 2000mm (W x H),tempering glass observation window，

Hanging system
Option

Light System
Ceiling Lighting
10 units, each 4 x 16w, adopt LED energy saving light, tempering glass

Side Lighting
10 units, each 2 x 16w, adopt LED energy saving light, tempering glass

Brightness
≥1000 LUX


Filtration System
Pre-filters
EU3 grade pocket filter, filter effect is much better

Ceiling Filters
Adopt high efficient adhesive filter, which can capture the dust who is more than 4μm, its filtering rate reaches 98%

Bottom filter
Fibreglass paint-stop filter

Exhaust Filters
Fibreglass paint-stop filter and active carbon filter








Ventilation System
Inlet Fan
Adopt big impeller turbo fan 1 x 7.5KW , Three-phase, 6 pole motor, 380V, 970RPM, 50HZ (Siemens motor as option, big impeller
turbo fan 11KW as option)

Outlet Fan
Adopt big impeller turbo fan 1 x 7.5KW , Three-phase, 6 pole motor, 380V, 970RPM, 50HZ (Siemens motor as option, big impeller
turbo fan 11KW as option)

Total Fan Capacity
25,000m³/h

Air Flow Speed
in Cabin
0.2-0.3m/s in loaded booth
(Option: big impeller turbo fan 11KW air flow 0.26－0.35 m/s in loaded booth)

Painting and Baking
Exchange System
Solenoid valve+ pressure adjustment control cylinder driven damper exchange

Air flow adjust
Electric air damper to adjust to pressure of booth

Manometer
Yes, to indicate the pressure of booth

Duct
Straight pipe: 4.9 meters, bending pipe: 3 units, reducing pipe: 3 units, soft connection: 1 unit, flange connection (air inlet
pipe as option)

Flue
Galvanized pipe: 4 meters, bending pipe: 2 units (stainless steel pipe as option)



Heating System
Heating Exchanger
Adopt high efficient heat-resistant (SUS304) stainless steel as cycling heat exchanger

Burner Model
Adopt 1 set RIELLO diesel burner G20, each heating capacity 180.000kcal/h
(gas burner or infrared light heater as option)

Heating Time
6－8 minutes (from 20 to 60ºС) under baking status, max baking temperature is 80°C




Control Box
Control System
Standard control system

More options
PLC control, touch screen control, inverter control

Function
Painting, warm painting, baking, lighting, emergency stop switch, baking time setting, temperature setting, over-temperature alarm
indication, baking delay stop protection, temperature limiter , burner error alarm, motor error alarm

Total Power
16KW

Option voltage
Three-phase 208/220/240/380/400/415/440/480V, 50/60Hz






whatsapp/wechat: 008615302470492
call me directly Ada


Company Profile








FAQ


Q1. How do you control your quality?
A. Our factory is ISO/ CE certified. We have our own QA and QC team. Before shipment, we will 100% check quality.
Q2: How is the Lead time?
A:For stock or regular products, our lead time is 7 to 10 days. For custom-made products, our lead time is 15 to 20 days.
Q3: What is the regular color? May I order a special color I like?
A: The regular color is Blue, White, Red. Also we can do customize one for you.
Q4: Can you supply OEM service?
A: Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.
Q5: What is the warranty time?
A: Warranty time is 12 months. Parts have free replacement when damaged during this time.
