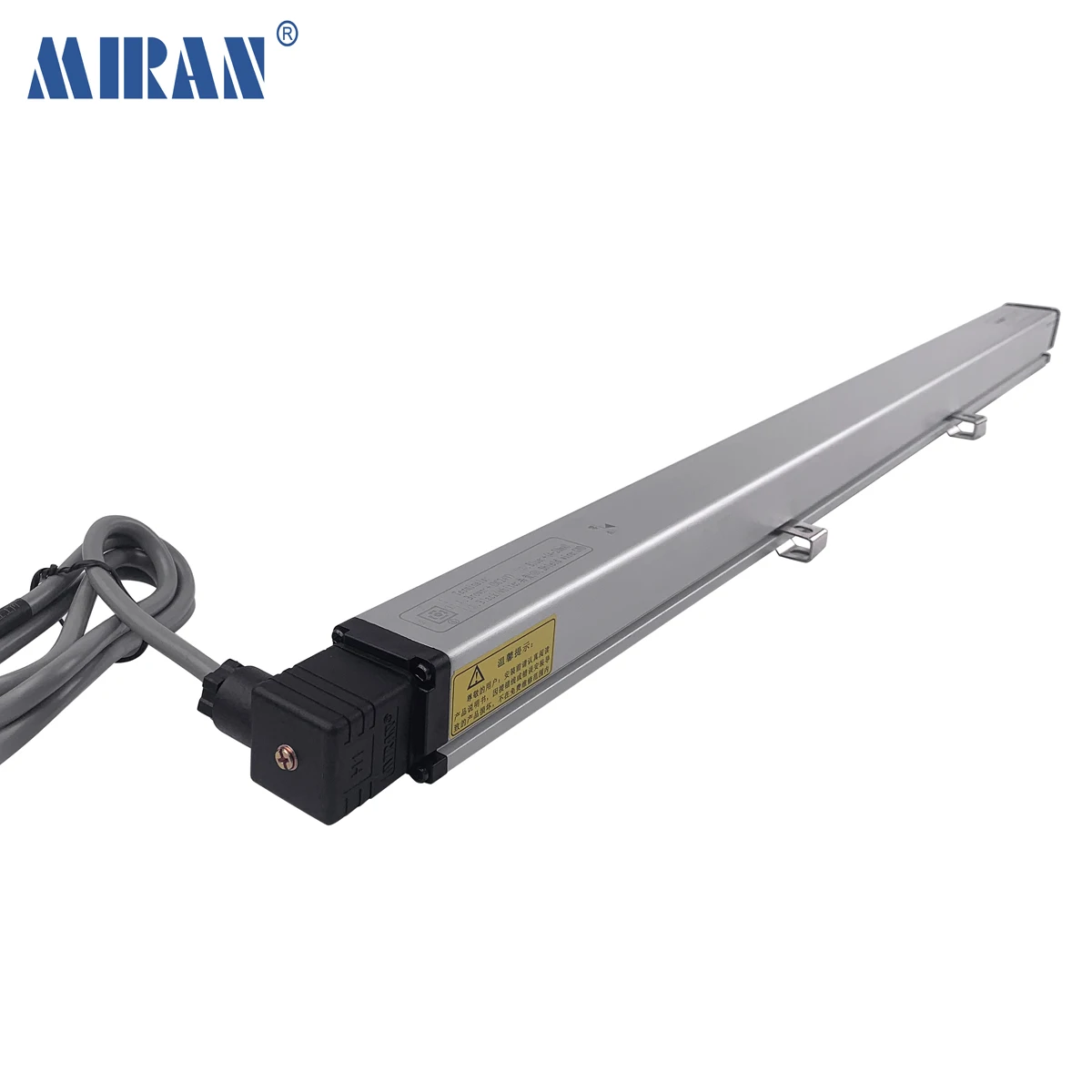

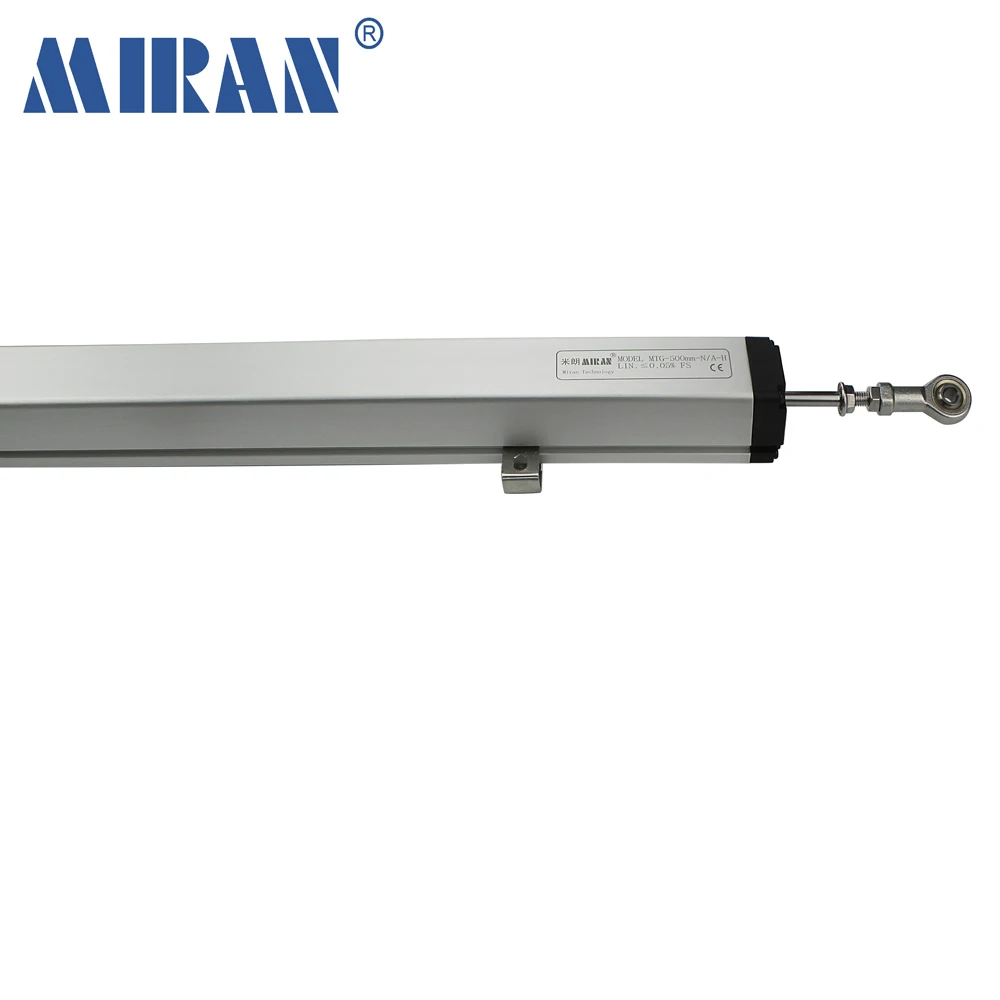

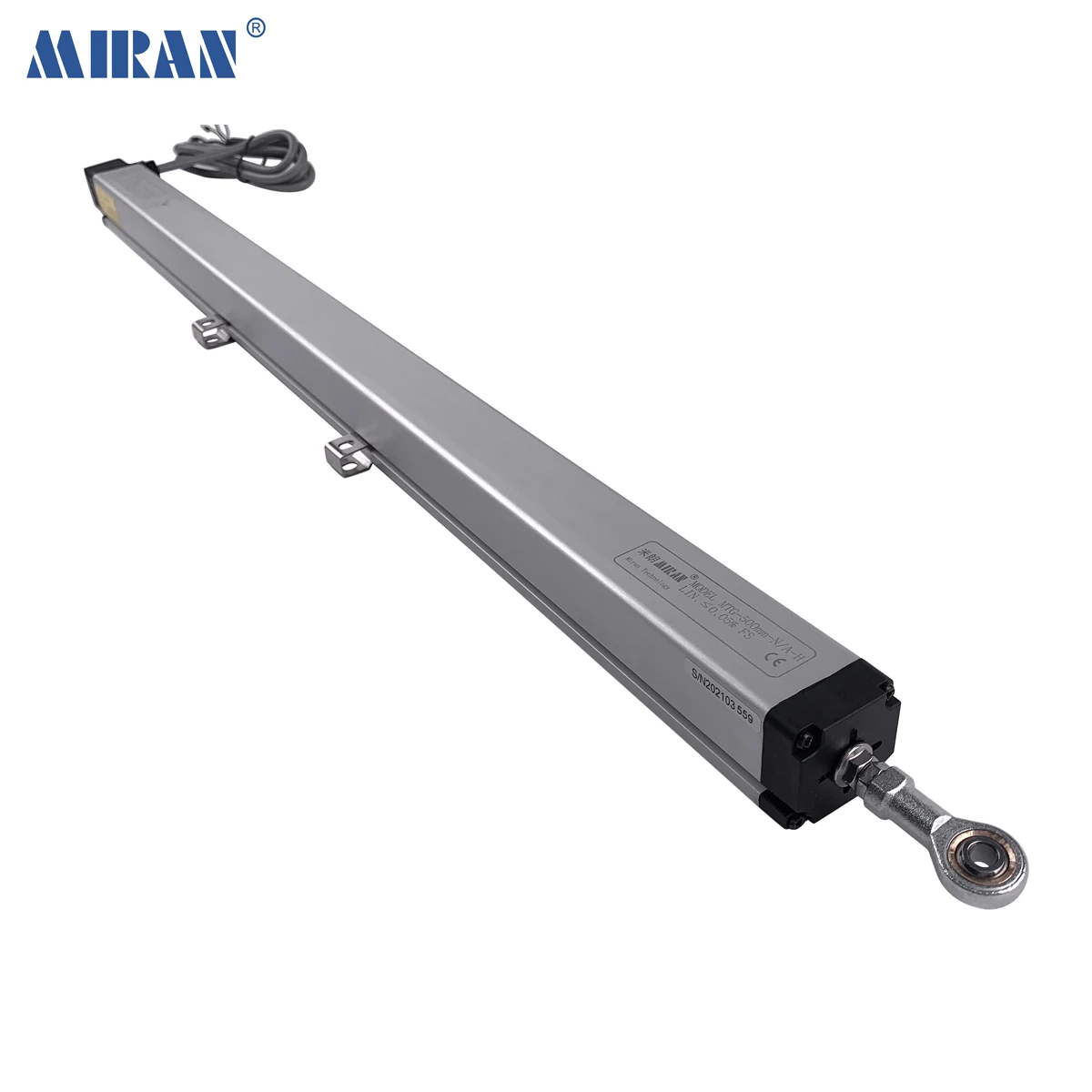

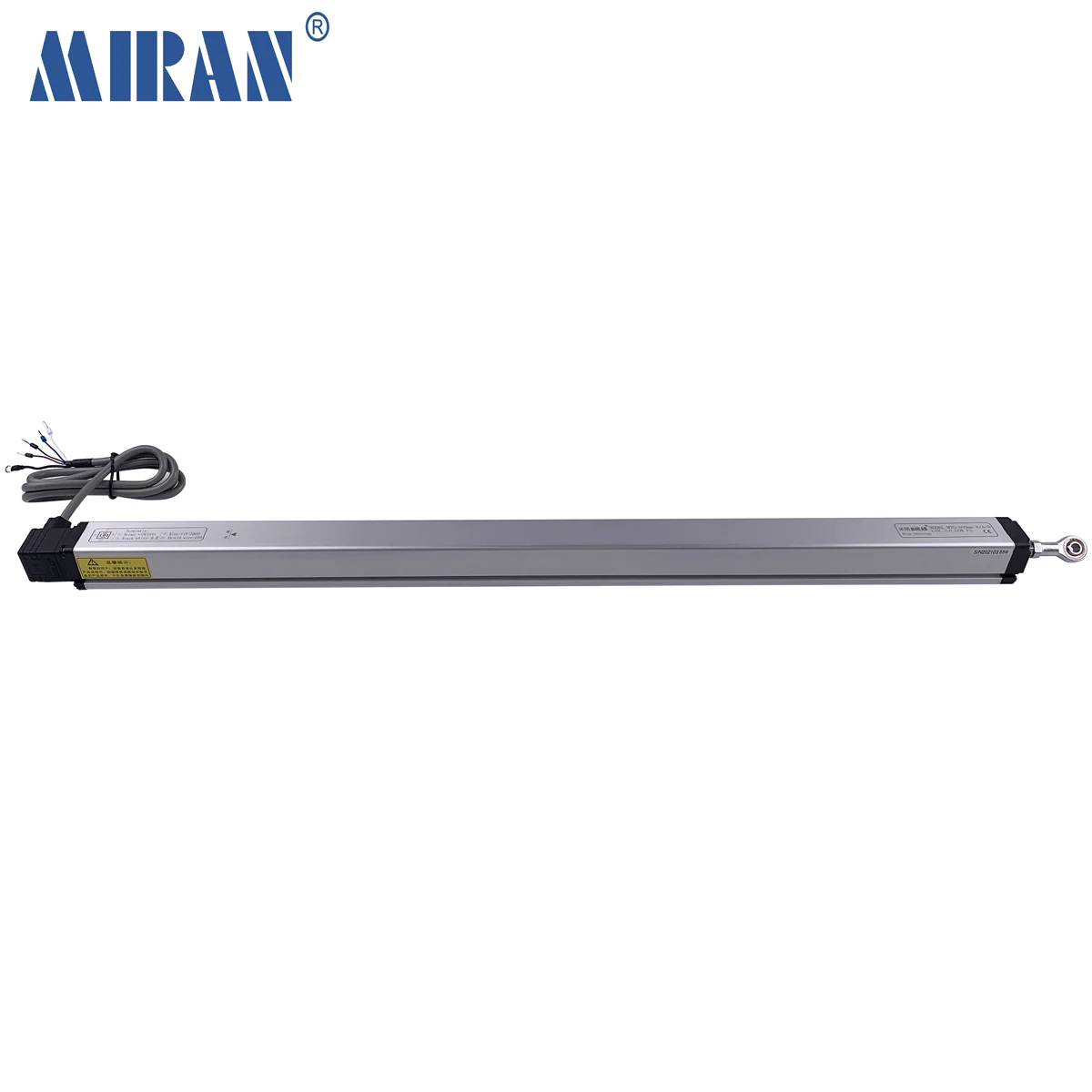

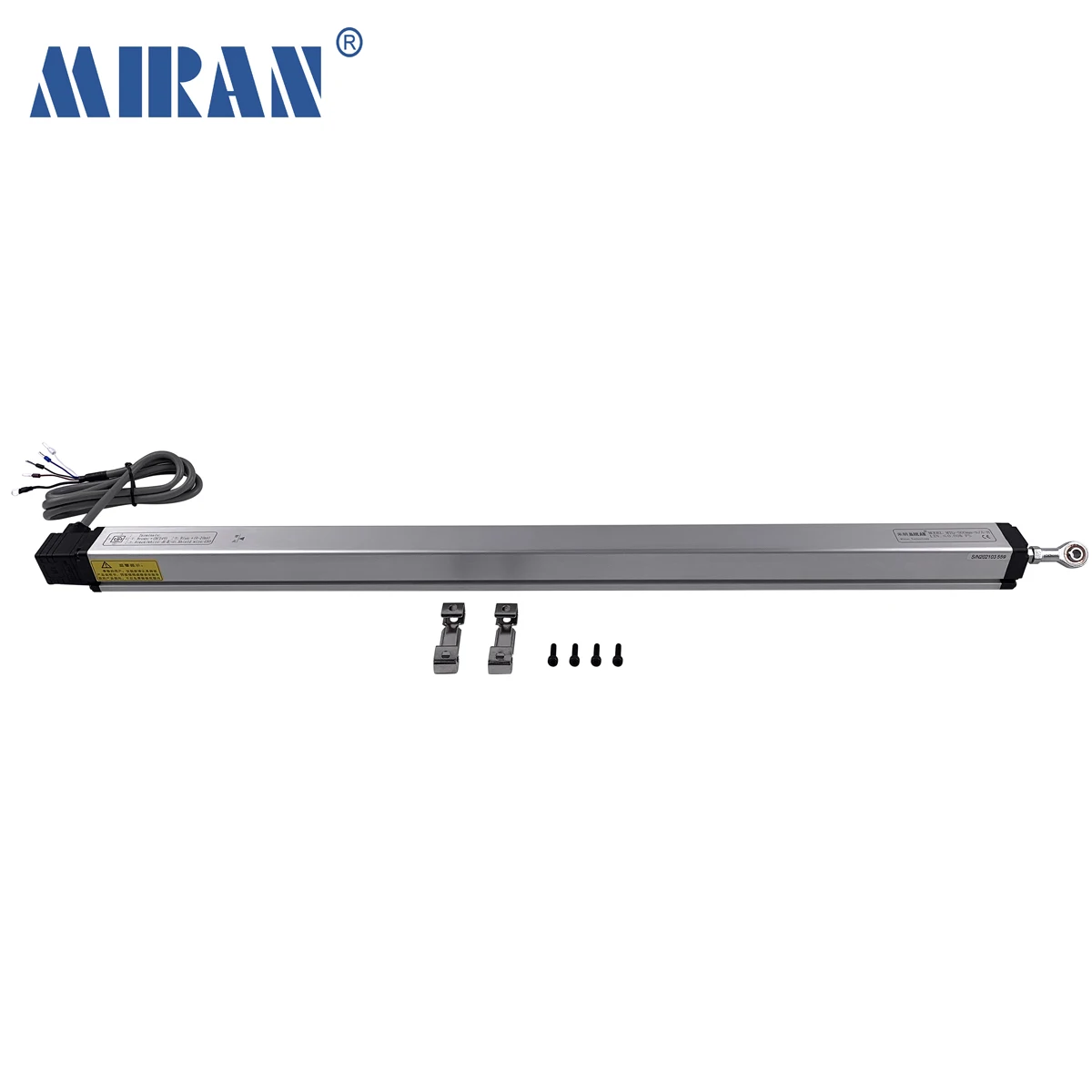

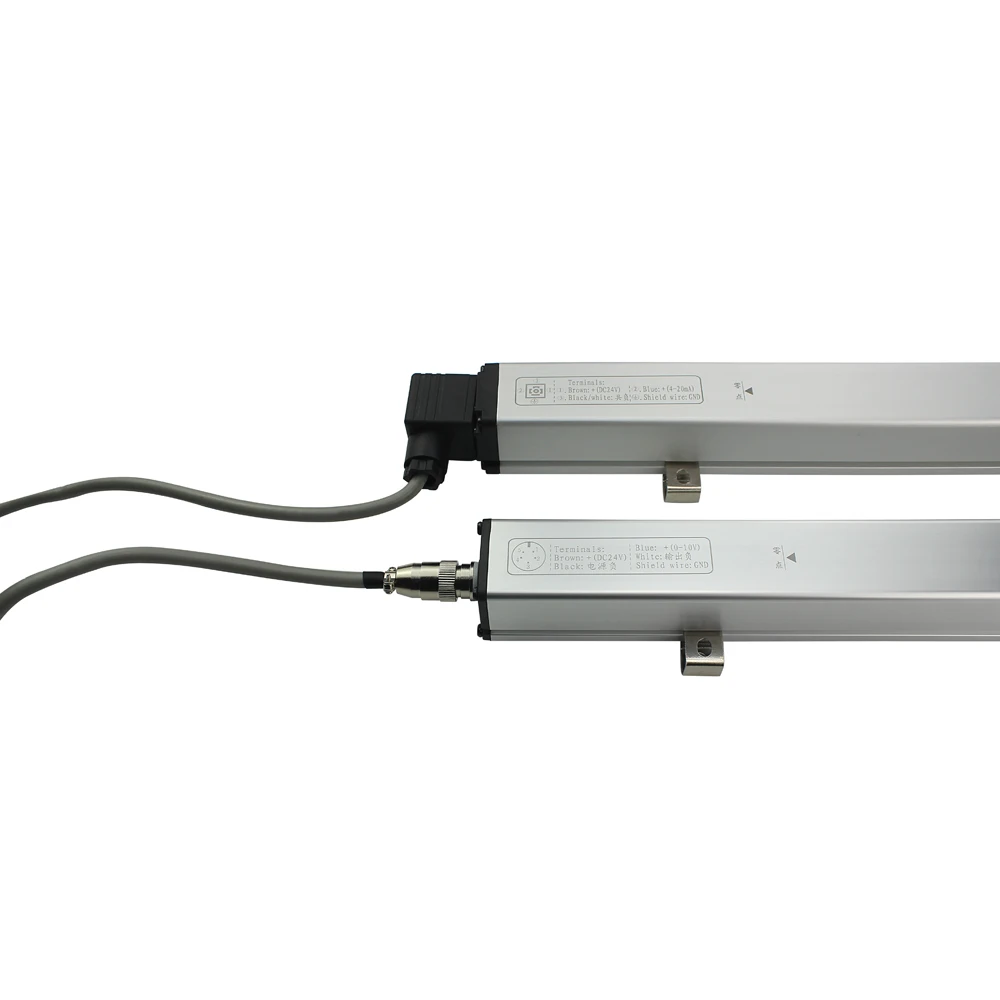

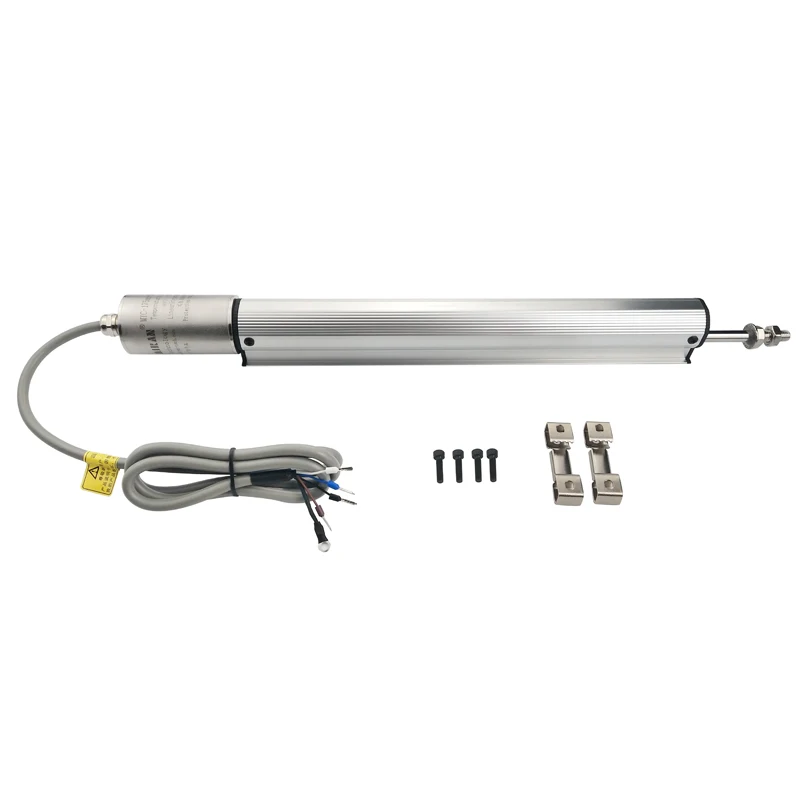

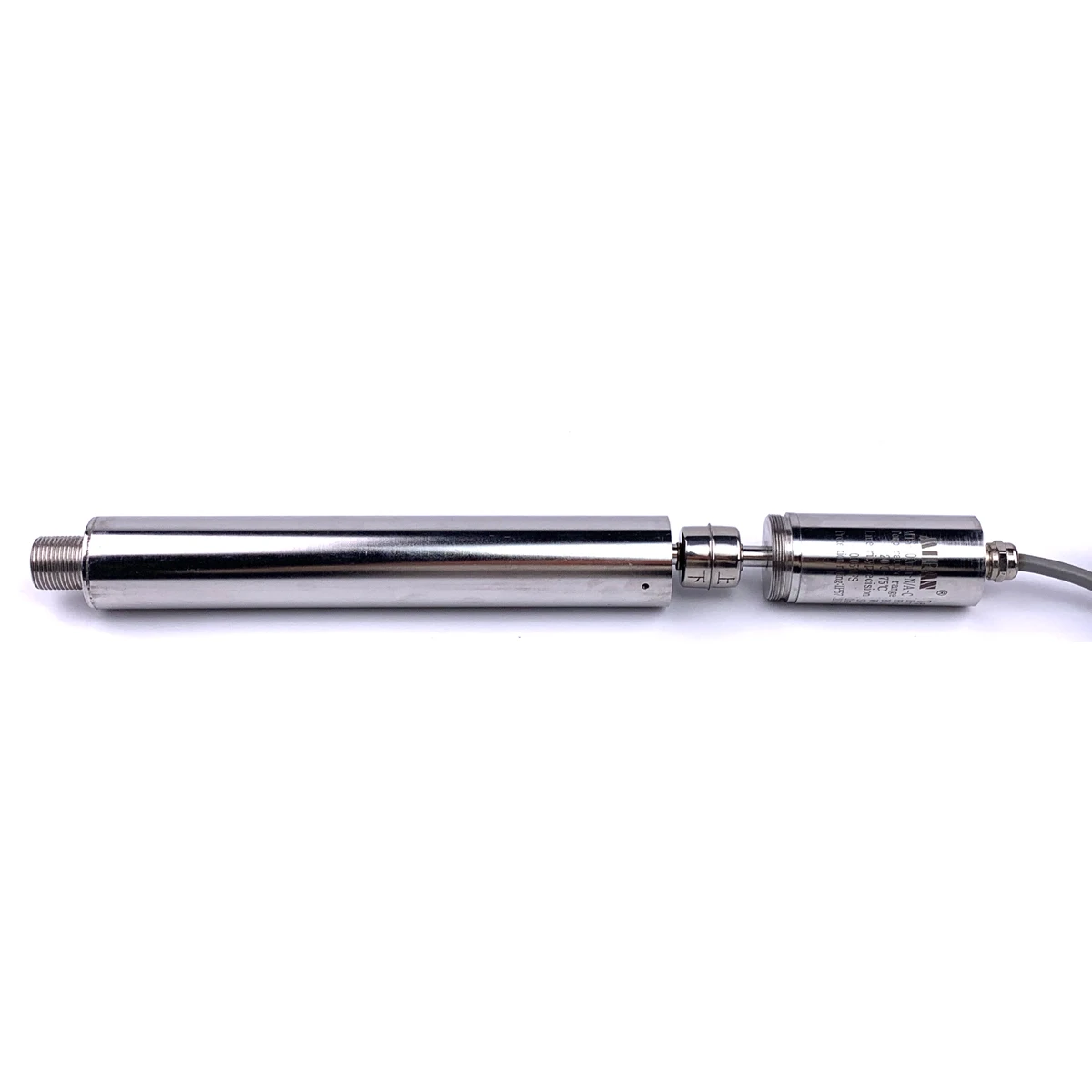

Miran MTG 200mm New Design Pull Rod Magnetostrictive Motion Position Sensor Ruler Magnetic Sensor Magnetostrictive Linear Sensor
- Category: >>>
- Supplier: Shenzhen Miran Technology Co. Limited
Share on (1600539067791):
Product Overview
Description
Product Description

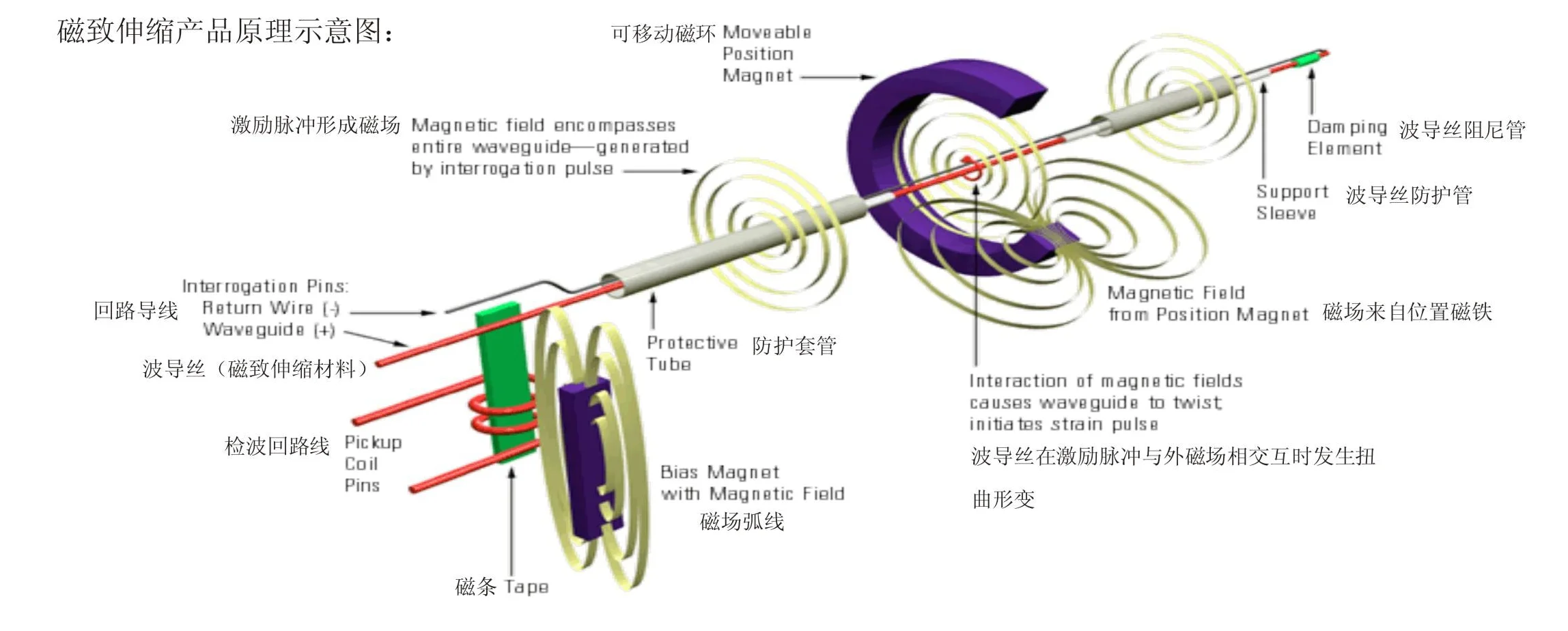

The principle of MTG pull rod magnetostrictive displacement sensor is to generate a strain pulse signal when two different
magnetic fields intersect, and then calculate the time period required for this signal to be detected, so as to convert the exact position. The two fields come from a permanent magnet in the magnetic ring and a pulse of excitation generated by the electronics in the sensor bin. The excitation pulse travels at the speed of sound along the waveguide wire made of magnetostrictive material within the sensor. When it intersects the permanent magnet field in the magnetic ring, the mechanical vibration of the waveguide wire is formed as a strain pulse due to magnetostriction. Strain pulses are soon detected by sensor circuits in the bin. The magnetostrictive displacement sensor can accurately calculate the position change of the magnet by multiply the total time from the moment when the excitation pulse is generated to the time when the strain pulse is detected by the fixed speed of sound. This process is continuous, so whenever the ring position changes, the new position is quickly measured. Since the output signal is the real value, rather than a proportional or reamplified signal, there is no signal drift or variable value, much less the need for periodic remarking like other sensors.
Specifications: | |||||||||||||||||||||||||||

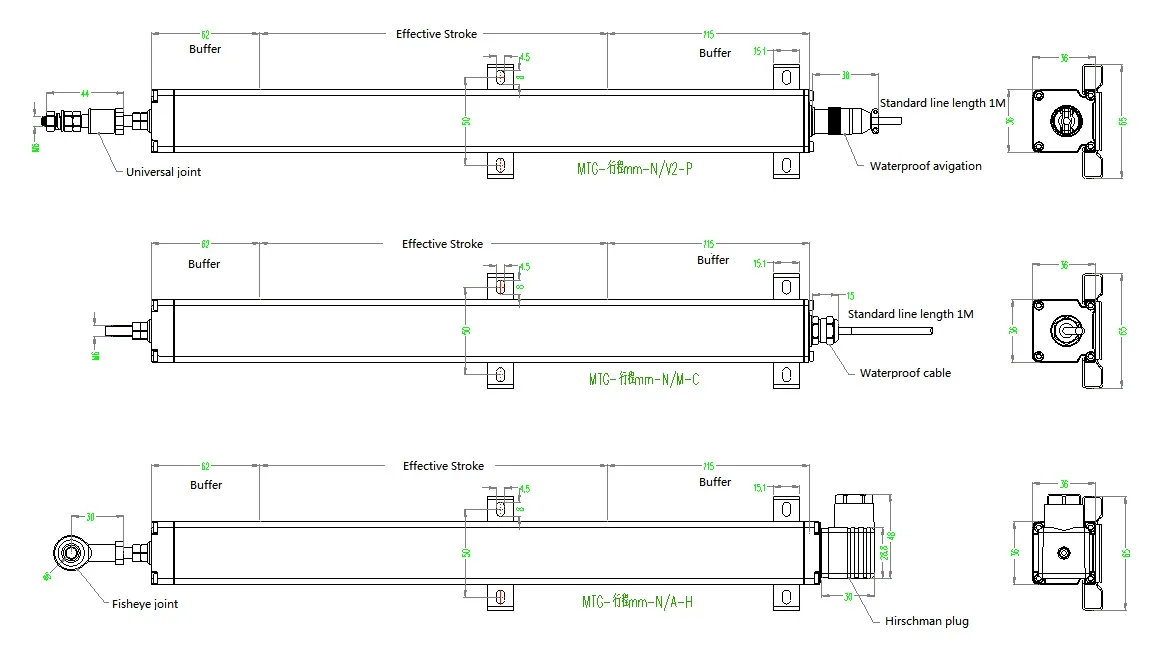

Stroke Length (mm) | 80 | 100 | 110 | 125 | 130 | 150 | 175 | 200 | 225 | ||||||||||||||||||
250 | 275 | 300 | 325 | 350 | 360 | 375 | 400 | 425 | 450 | ||||||||||||||||||
Length A (mm) | 234 | 254 | 264 | 279 | 284 | 304 | 329 | 354 | 379 | ||||||||||||||||||
404 | 429 | 454 | 479 | 504 | 514 | 529 | 554 | 579 | 604 | ||||||||||||||||||
Length B (mm) | 209 | 229 | 239 | 254 | 259 | 279 | 304 | 329 | 354 | ||||||||||||||||||
379 | 404 | 429 | 454 | 479 | 489 | 504 | 529 | 554 | 579 | ||||||||||||||||||
Linearity | ≤0.05%FS | ||||||||||||||||||||||||||
Repeatability | ≤0.0005%FS | ||||||||||||||||||||||||||
Resolution | ≤0.001%FS | ||||||||||||||||||||||||||
Lag | ≤0.001%FS | ||||||||||||||||||||||||||
Temperature Drift | ≤0.001%/℃ | ||||||||||||||||||||||||||
Working Voltage | +15VDC-24VDC | ||||||||||||||||||||||||||
Working Current | ≤16mA (voltage output); ≤35mA (current output), change along with displacement | ||||||||||||||||||||||||||
Vibration | 3g, 25Hz, GB/T2423.10 (Vibration Test); 10g, 100Hz, GB/T2423.5 (Bump Test) | ||||||||||||||||||||||||||
Temperature | T1: -20~+55℃; T2: -40~+85℃; T3: -50~+125℃; | ||||||||||||||||||||||||||
Load Characteristic | ≥3KΩ (voltage output); ≤1KΩ (current output) | ||||||||||||||||||||||||||
Output Signal | 0~5VDC; 0~10VDC; 0~20mA DC; 4~20mA DC; RS485 | ||||||||||||||||||||||||||
Main Features
The structure of the rod type is simple and convenient to be installed. The change of the magnetization direction of the measuring unit in the ferromagnetic material will cause the change of the lattice spacing of the medium, so that the length and volume of the ferromagnetic material will change, namely: magnetostriction phenomenon, also known as the Weedman effect, and its inverse effect is called the Villarreal effect. The magnetostrictive sensor is non-contact and will never wear out. It has the advantages of high resolution, high precision, high stability, high reliability, fast response time and long working life. Sensors do not need to be recalibrated or maintained regularly.

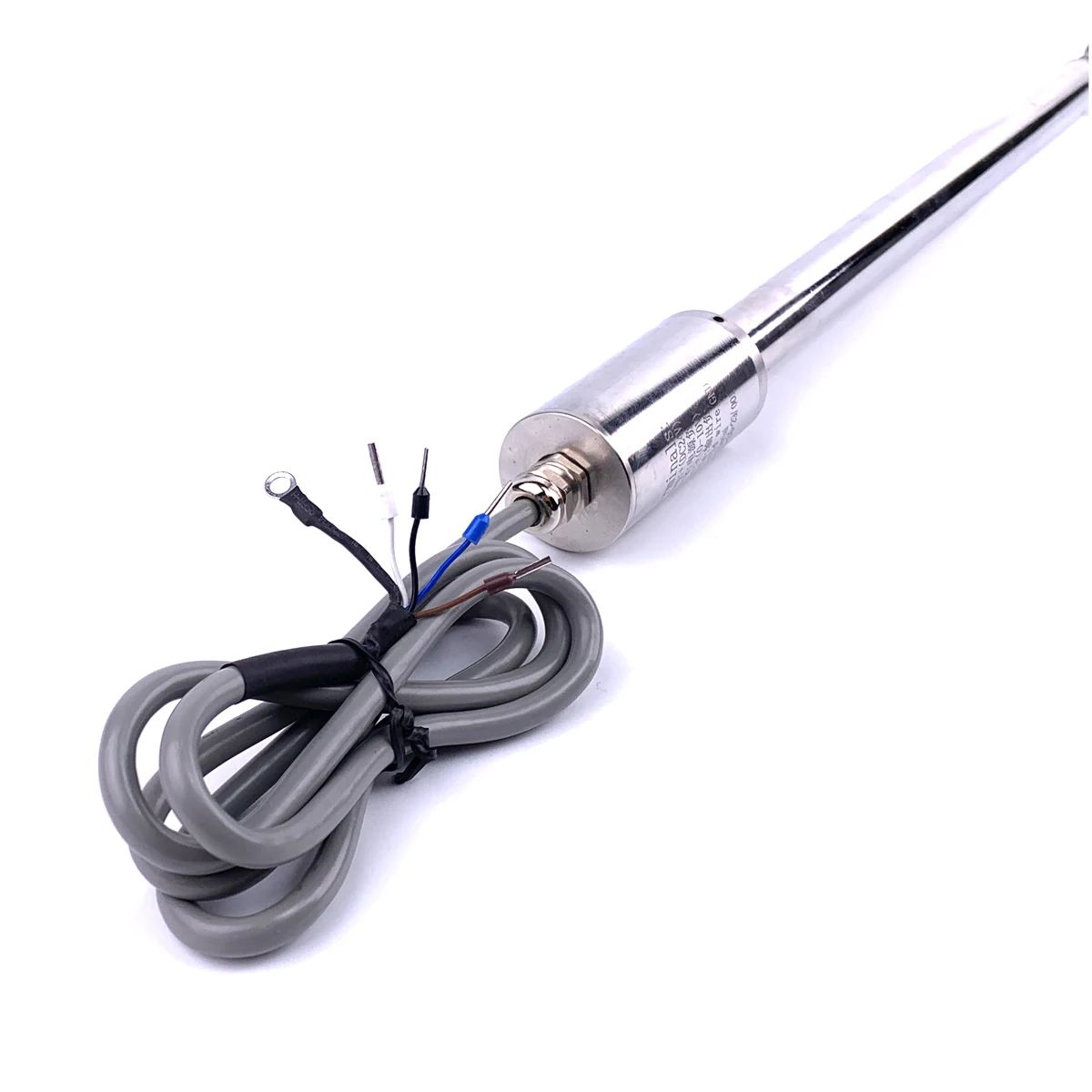

MTG Pull Rod Type magnetostrictive displacement sensor wiring definition:
Before wiring, please check whether the power supply meets the requirements of +24VDC, and the output power of the power supply must be greater than the total power consumption of the product. It is calculated according to each sensor ≤95mA in different ranges. If the power supply fails to meet the requirements, please replace the power supply to ensure that the sensor can work normally.
1. Direct outlet connection mode of waterproof connector:
The sensor has five contacts: positive power (brown), negative power (black), positive signal output (blue), negative signal
output (white), and shell ground (shielding line).
2. Aviation plug connection Mode:
The sensor has five contacts: positive power supply (brown), negative power supply (black), positive signal output (blue),
negative signal output (white), housing ground (shielding line)
3. Connection mode of Hersman plug:
The sensor has four contacts: positive power supply (brown), positive signal output (blue), negative power supply (black and white) E, shell ground (shielding line)
The sensor has five contacts: positive power (brown), negative power (black), positive signal output (blue), negative signal
output (white), and shell ground (shielding line).
2. Aviation plug connection Mode:
The sensor has five contacts: positive power supply (brown), negative power supply (black), positive signal output (blue),
negative signal output (white), housing ground (shielding line)
3. Connection mode of Hersman plug:
The sensor has four contacts: positive power supply (brown), positive signal output (blue), negative power supply (black and white) E, shell ground (shielding line)
Digital signal output connection mode of MTG magnetostrictive displacement sensor:
1. Direct outlet connection mode of waterproof connector:
The sensor has five contacts: positive power supply (brown), power supply ground (black), RS485A(blue), RS485B (white), and shell ground (shielding line).
2. Aviation plug connection Mode:
The sensor has five contacts: positive power supply (brown), power supply ground (black), RS485A(blue), RS485B (white), housing ground (shield line)
1. Direct outlet connection mode of waterproof connector:
The sensor has five contacts: positive power supply (brown), power supply ground (black), RS485A(blue), RS485B (white), and shell ground (shielding line).
2. Aviation plug connection Mode:
The sensor has five contacts: positive power supply (brown), power supply ground (black), RS485A(blue), RS485B (white), housing ground (shield line)
3. Hirschman plug connection Mode:
The sensor has five contacts: positive power supply (brown), power supply ground (black), RS485A(blue), RS485B (white), housing ground (shield line)
The sensor has five contacts: positive power supply (brown), power supply ground (black), RS485A(blue), RS485B (white), housing ground (shield line)
